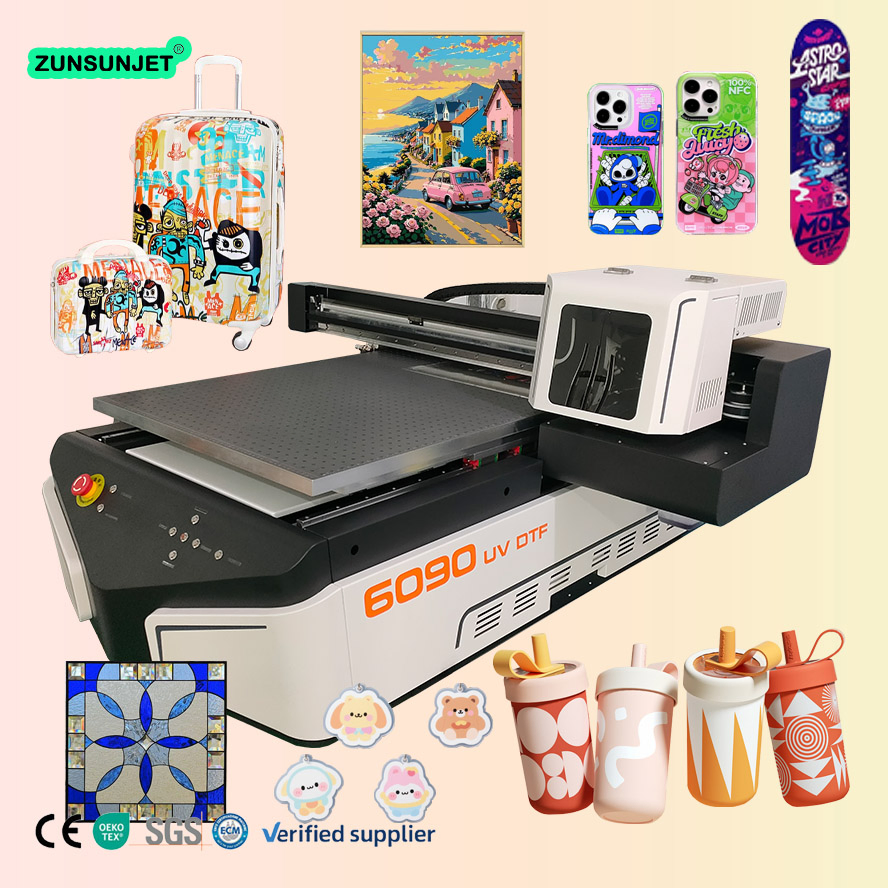

Zunsunjet UV Flatbed Plotter Printer Metal Sheet Hybrid Single UV Dtf 60 90 13200 UV Flatbed Printer with Camera

1 / 5

Zunsunjet UV Flatbed Plotter Printer Metal Sheet Hybrid Single UV Dtf 60 90 13200 UV Flatbed Printer with Camera

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model:ZS-A1 UV Flatbed Printer

Type:Ink Jet Type

Color:Multi-Colour Printing Press

Automatic Grade:Automatic

Interface:1000Base-T

Accuracy:1440dpi - 2880dpi

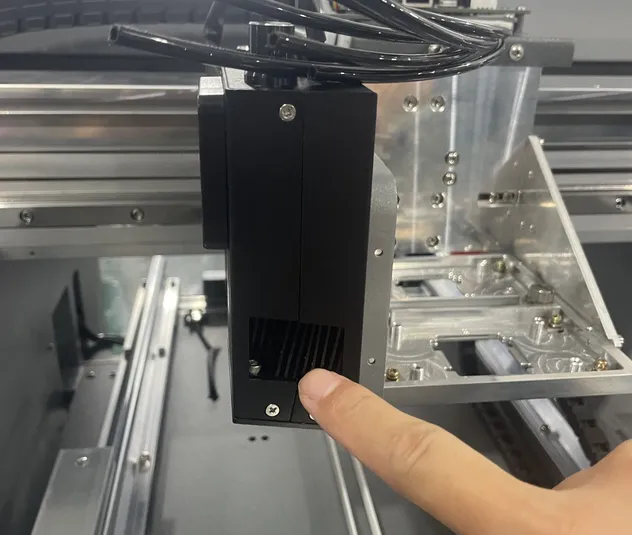

UV Lamp:Water Circle Cooling System

Printing Size:60*90cm (23.6*35.4in)

Max Thickness:18 cm

RIP Software:Photoprint / Riprint

★

Product Description

The 6090UV flatbed printer combines high precision, efficiency, and versatility, making it an ideal solution for precise and customizable printing on small items. Equipped with a visual positioning system, it achieves a positioning accuracy of 0.1 mm, ensuring detailed print quality.

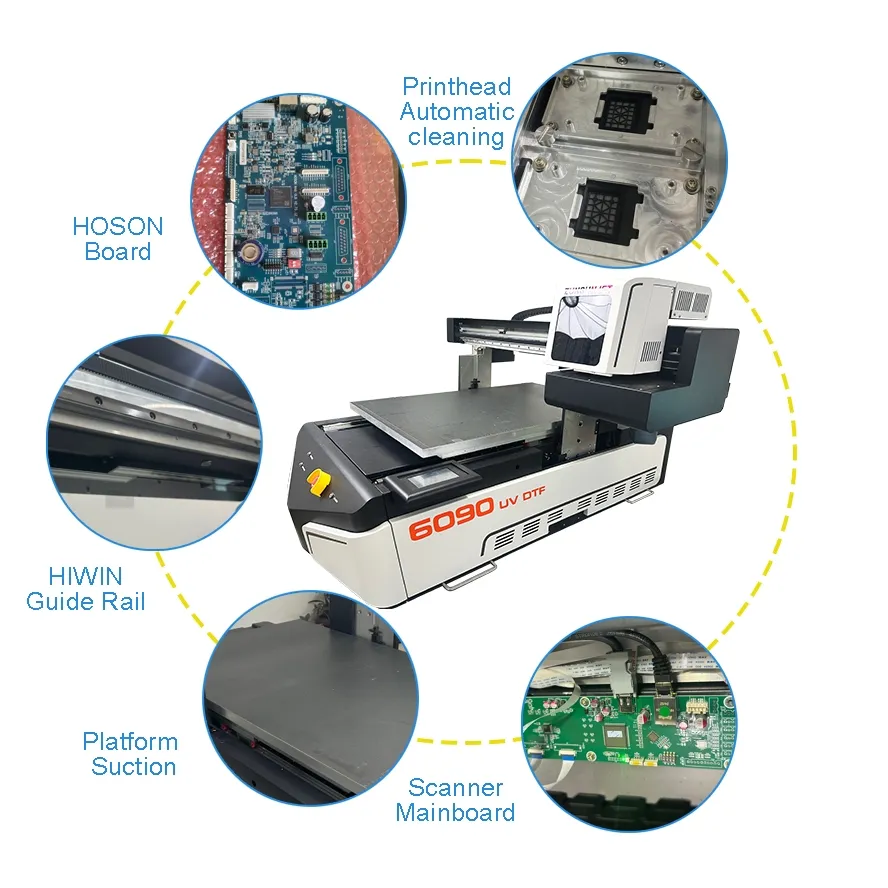

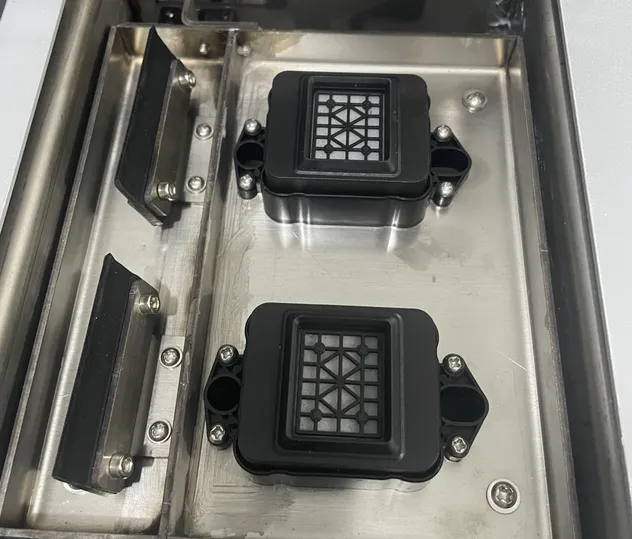

Dual Printhead Configuration Utilizes two XP600 printheads, delivering high-quality output to meet diverse printing needs.

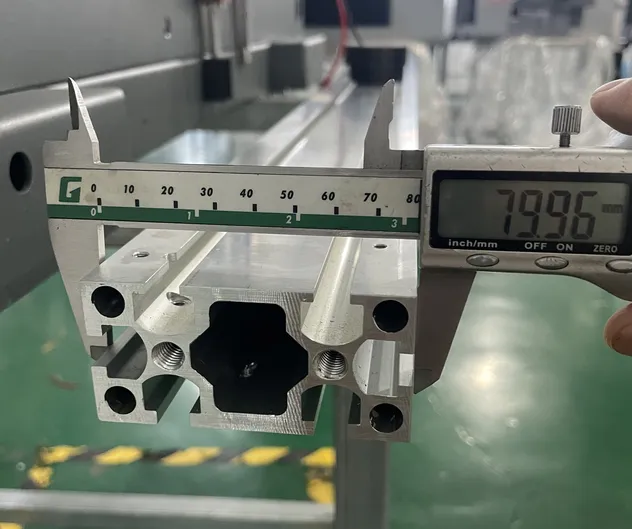

Robust Construction Full aluminum alloy frame enhances stability and durability for reliable long-term operation.

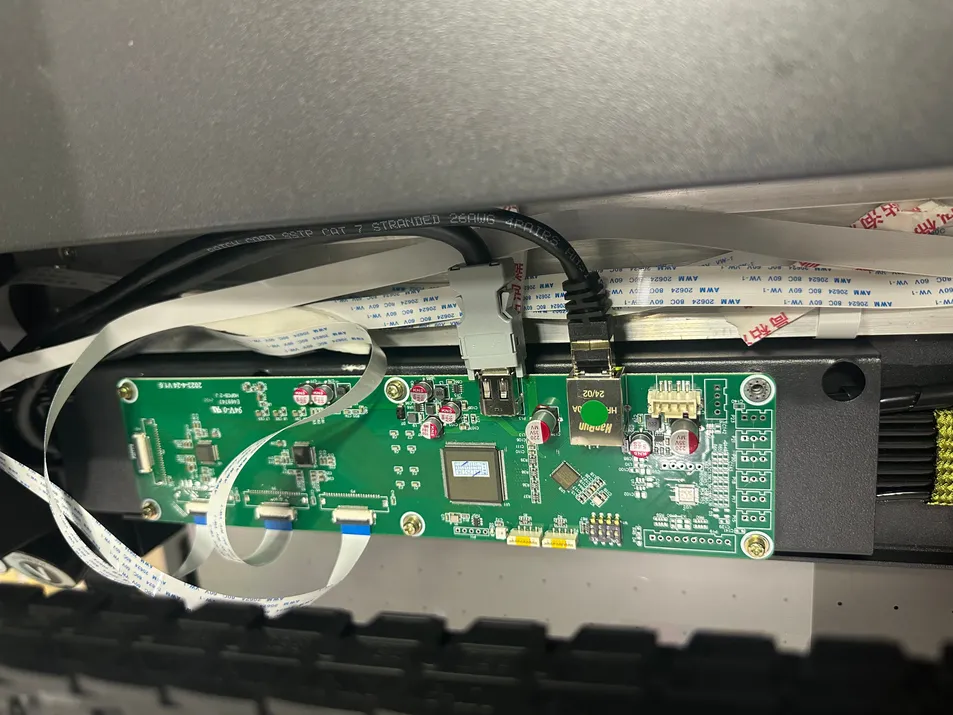

Advanced Control Features a high-end Hoson control board, improving control precision and performance.

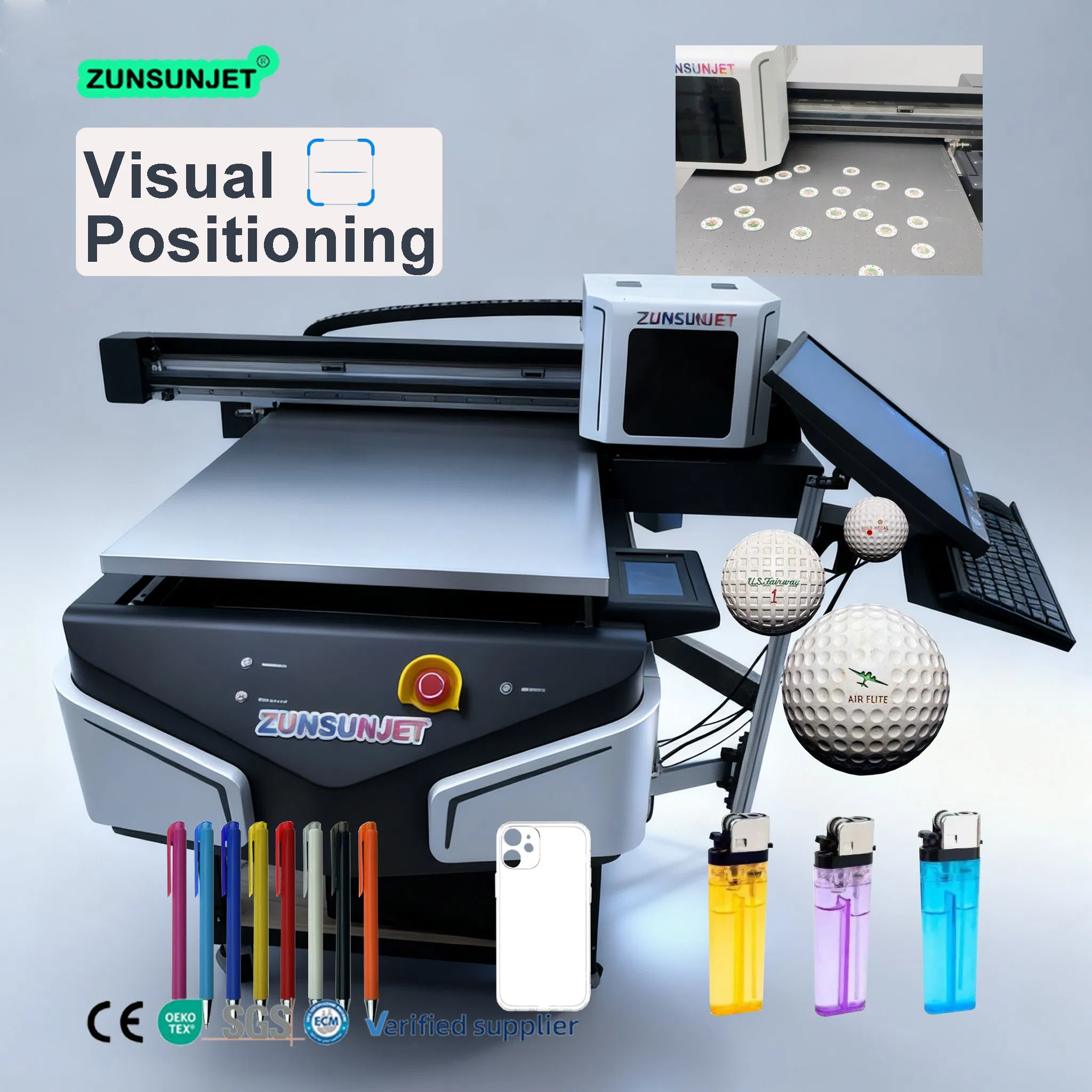

Visual Positioning Boosts printing efficiency and reduces manual intervention, ideal for batch production.

⚙

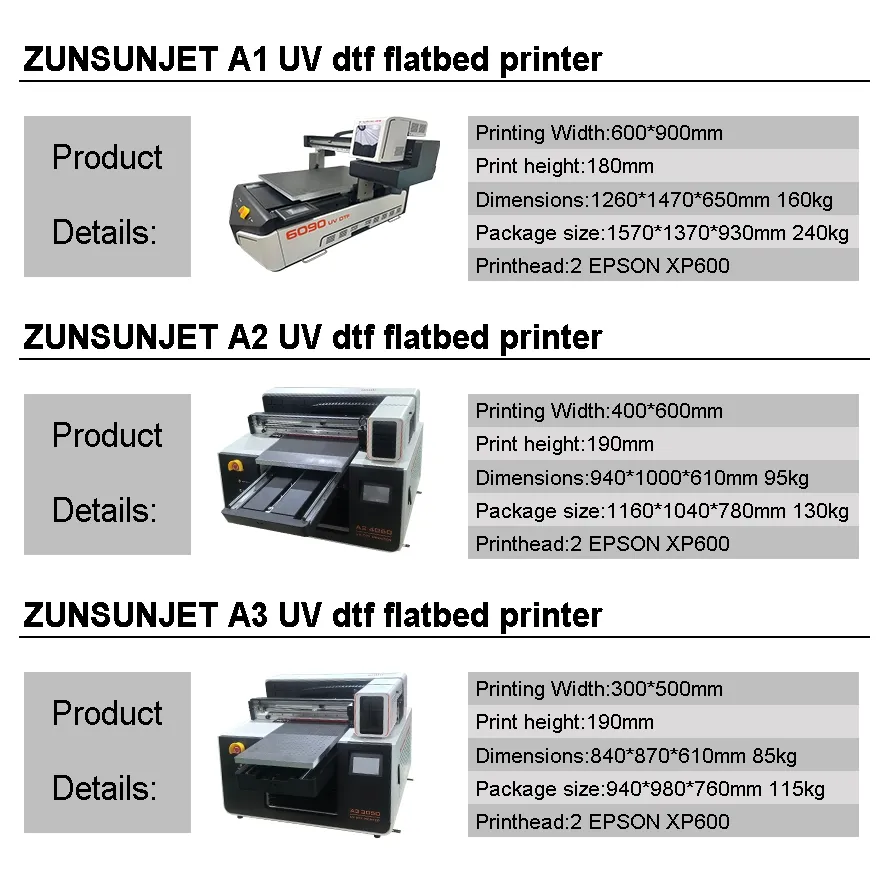

Technical Specifications

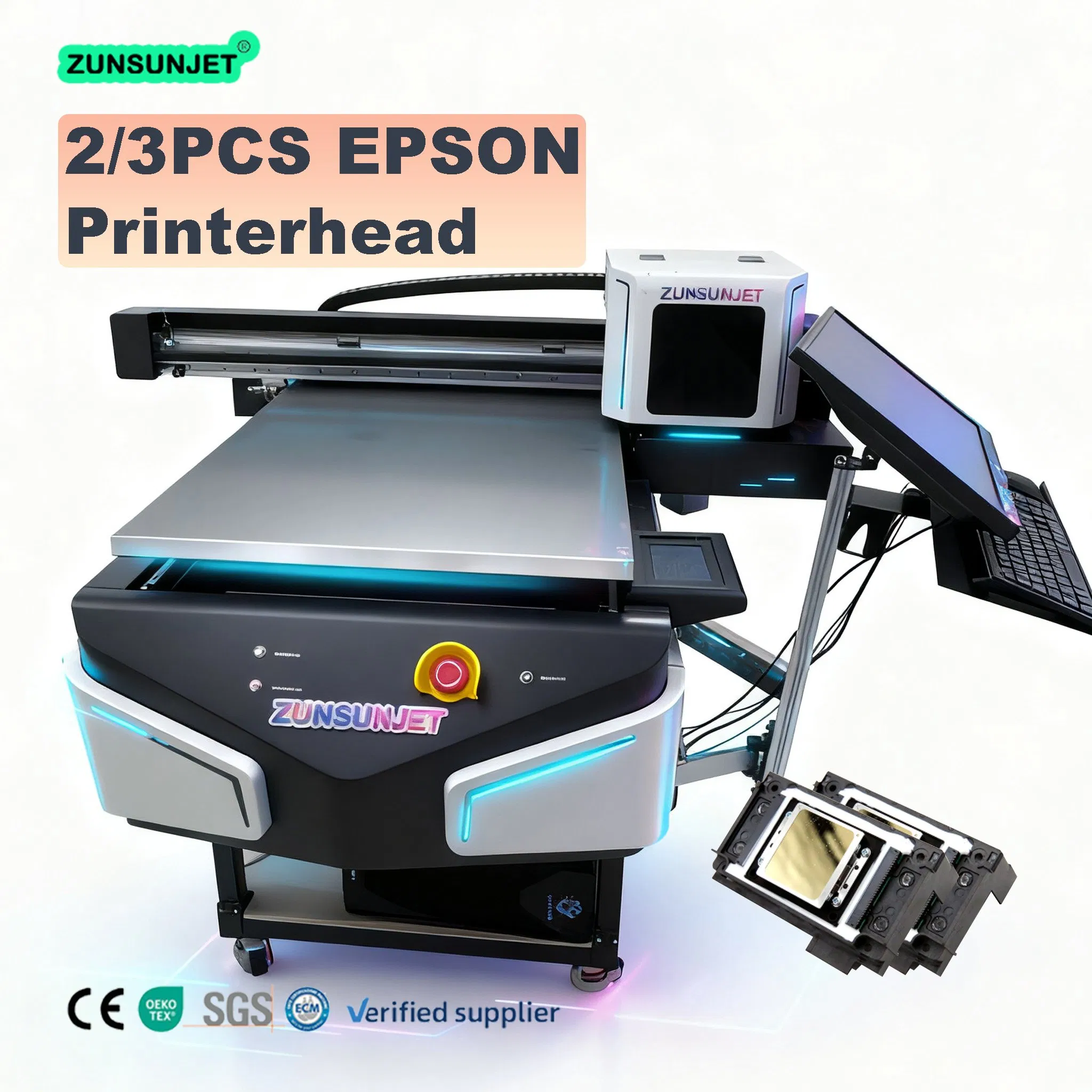

Printhead	2-3 pieces XP600 / I3200 printheads
Color Configuration	CMYK + White + Varnish
Print Media	PVC, Glass, Plastic, Leather, Metal, Wood, Acrylic, Ceramic Tile, Marble, etc.
Photo Format	TIF, JPG, PDF, PNG
Voltage / Power	1200W / 110-220V 50-60HZ
Media Thickness	Up to 18 cm
Ink Supply	500 ml bottle system
Platform	Aluminum alloy Vacuum Suction Table
Ink Consumption	15 ML / SQM
Ink Type	UV Hard / Neutral / Soft curing ink

✔

Core Advantages

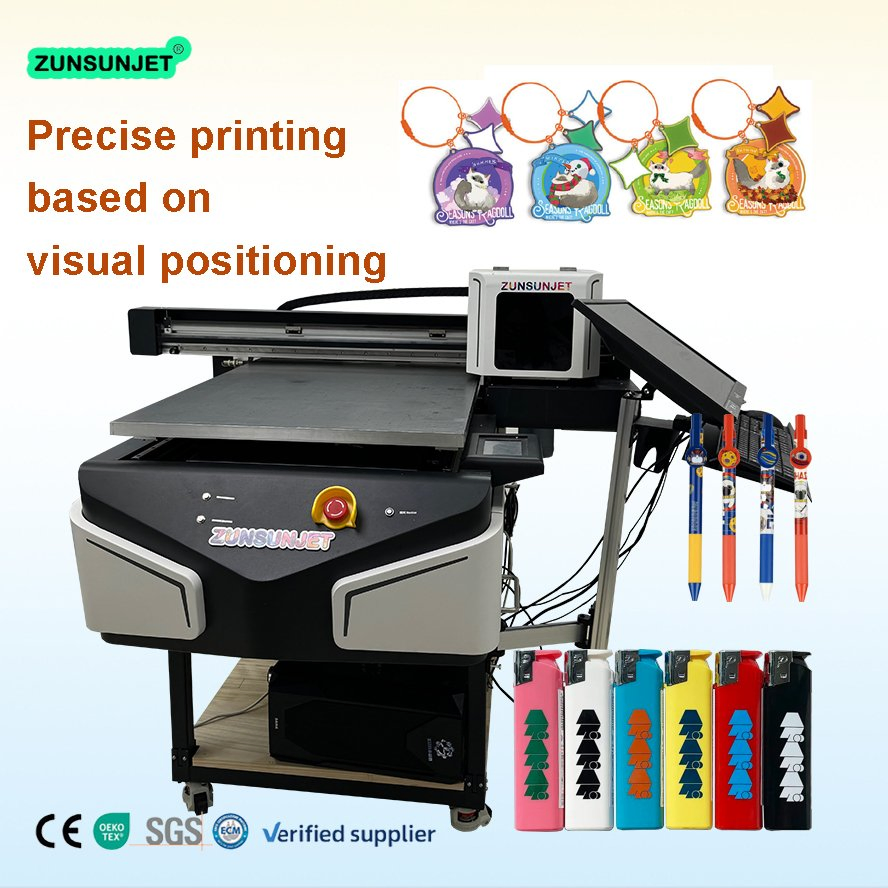

Visual Scanning: High-precision 0.1mm positioning for batch small item production.

Stable Rails: Hiwin linear guides ensure the carriage runs stably for high-resolution output.

✈

Versatile Applications

This UV flatbed printer breaks through the bottlenecks of digital printing, enabling single-page, plate-free, full-color printing.

Supported Shapes: Flat, cylindrical, cambered, rhombic, and irregular shapes.
Supported Materials: Plastic, glass, ceramics, metal, leather, pens, notebooks, phone cases, mugs, bottles, and more.

📦

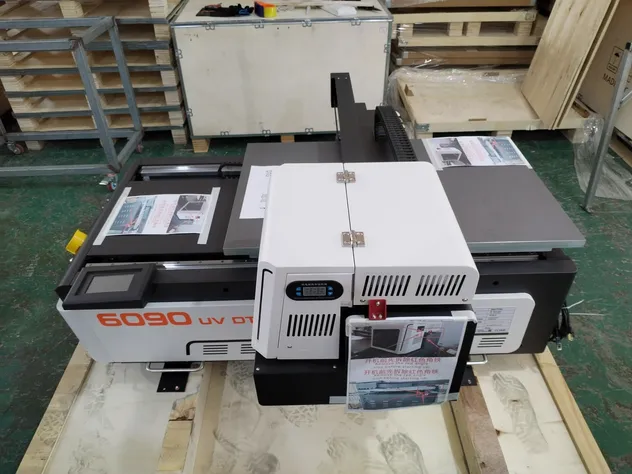

Packaging & Delivery

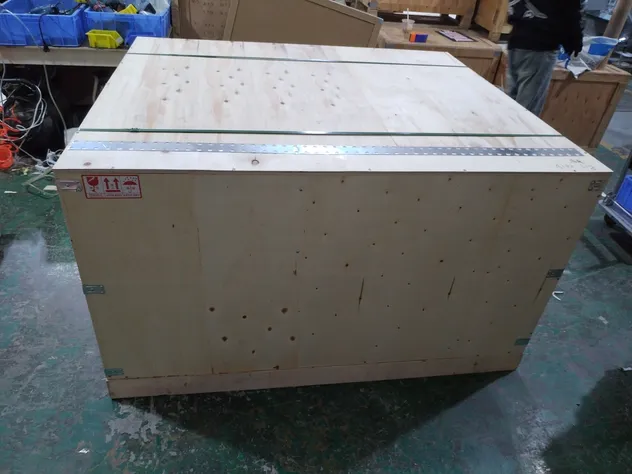

1. Standard wooden box packing for maximum safety.
2. Multiple shipping options: Sea, Air, and Land transportation.
3. Detailed tracking and logistics insurance provided.

🏢

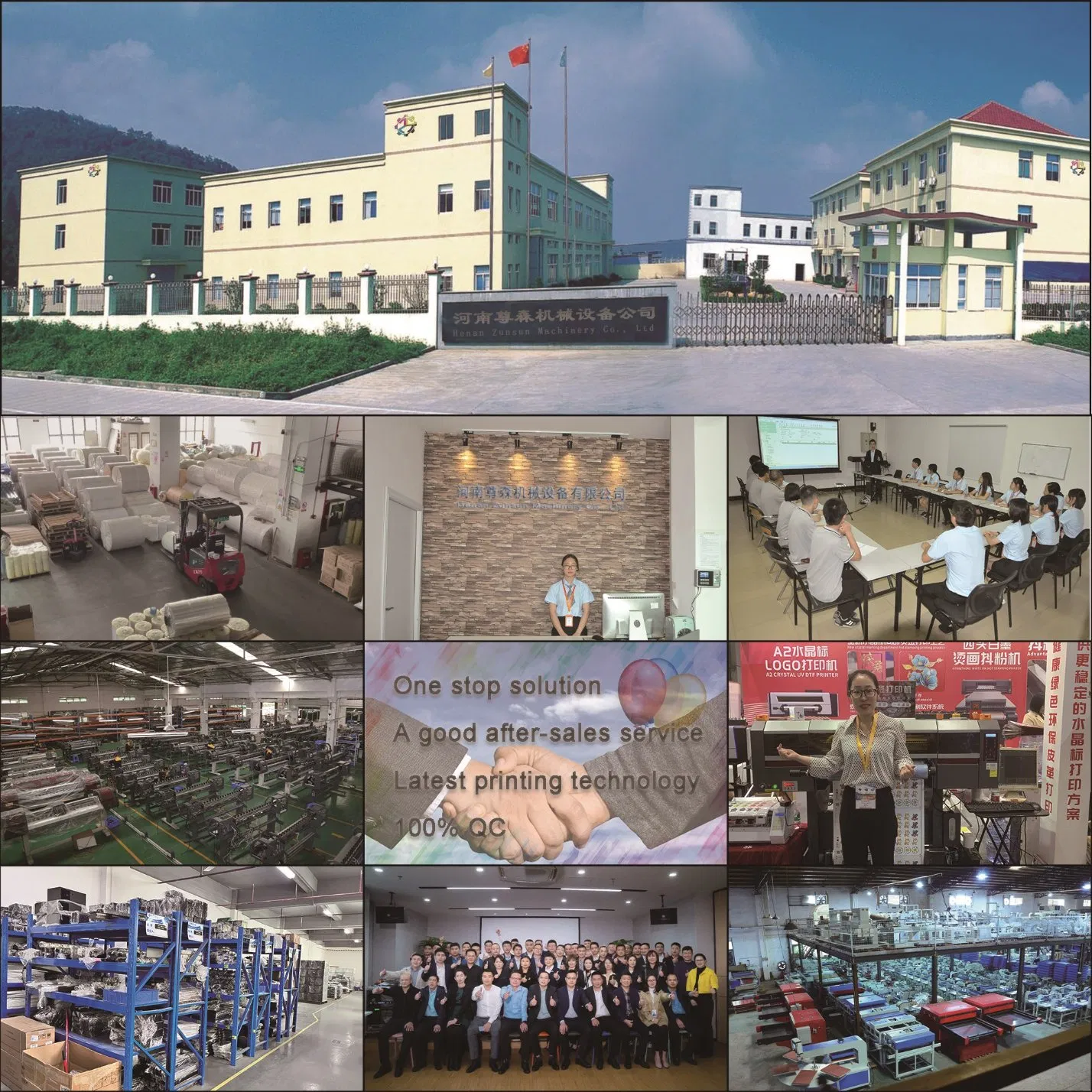

Manufacturer Profile

As an international high-tech enterprise, we focus on research, development, and production of advanced printing solutions. We offer OEM services and maintain a commitment to professional technical support.

Frequently Asked Questions

1. What materials can this UV printer print on?

It can print on almost any material, including PVC, glass, plastic, leather, rubber, metal, wood, ceramic tiles, acrylic, and more. It is suitable for both flat and irregular shapes.

2. What is the maximum printing height?

The printer supports a maximum media thickness of 18 cm (approx. 7 inches), making it ideal for tall objects like bottles and boxes.

3. Does it support Varnish and White ink printing?

Yes, it supports CMYK + White + Varnish. This allows for embossed effects, glossy finishes, and printing on dark or transparent materials in a single pass.

4. What is the visual positioning system?

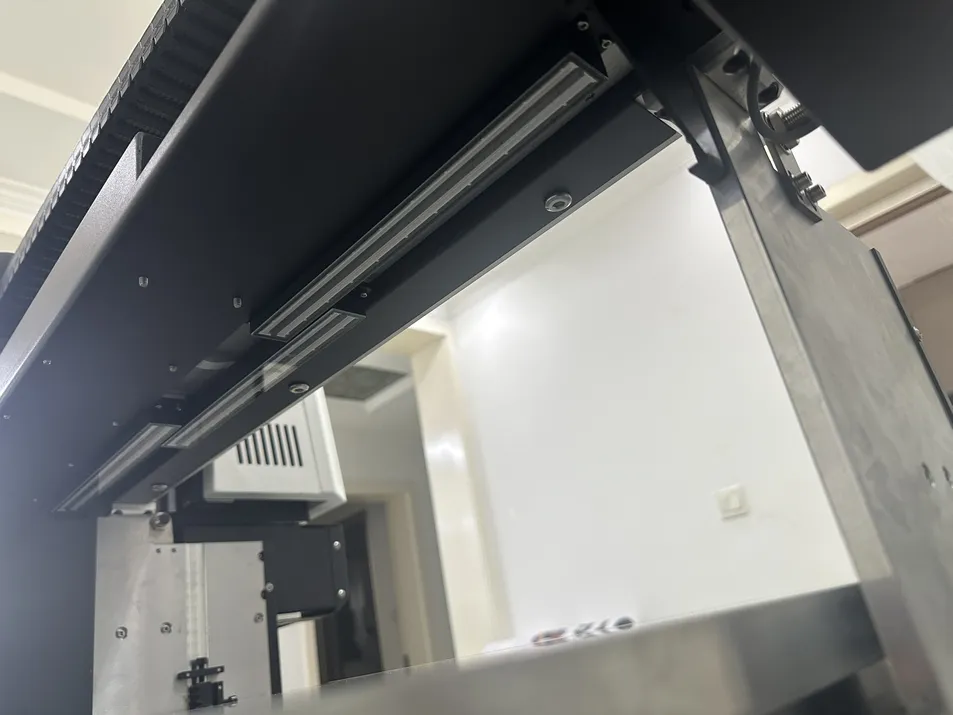

The visual scanning system uses a camera to achieve 0.1mm positioning accuracy. It automatically detects the placement of items on the platform, which is perfect for batch printing small items without complex jigs.

5. How is the machine cooled during operation?

The machine uses an advanced water circle cooling system for the UV lamps, ensuring stable performance and long lamp life even during continuous operation.

6. What software is included for color control?

The printer uses international standard ICC color control via Photoprint or Riprint software, allowing for adjustable density and professional color management.
