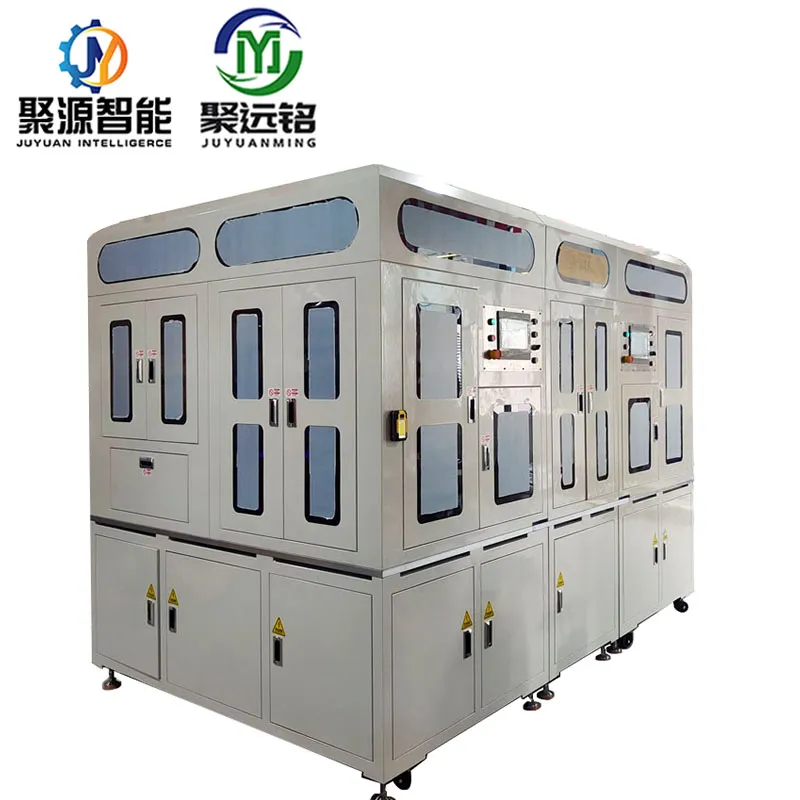

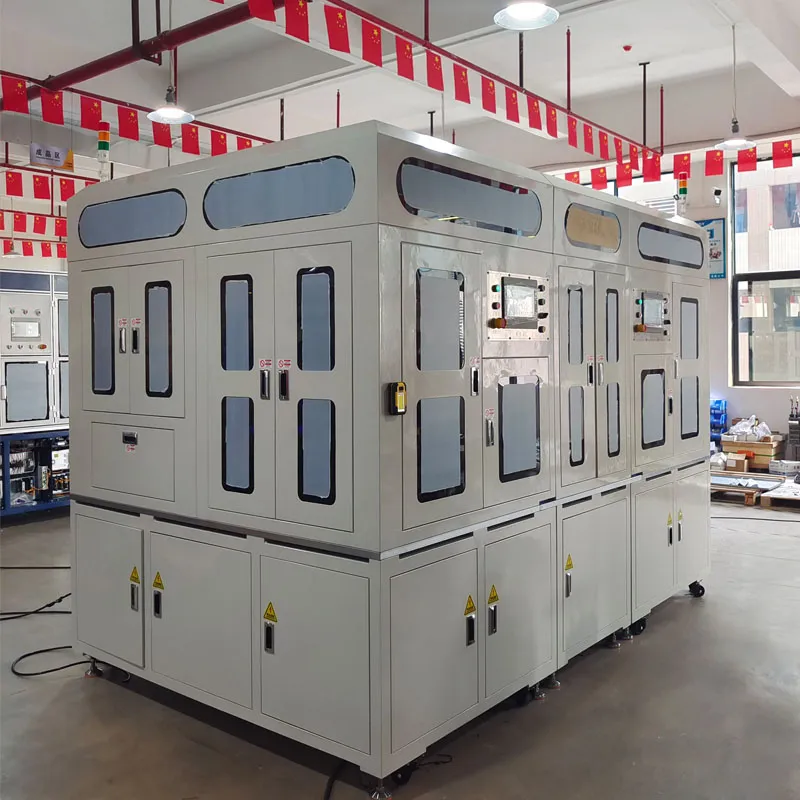

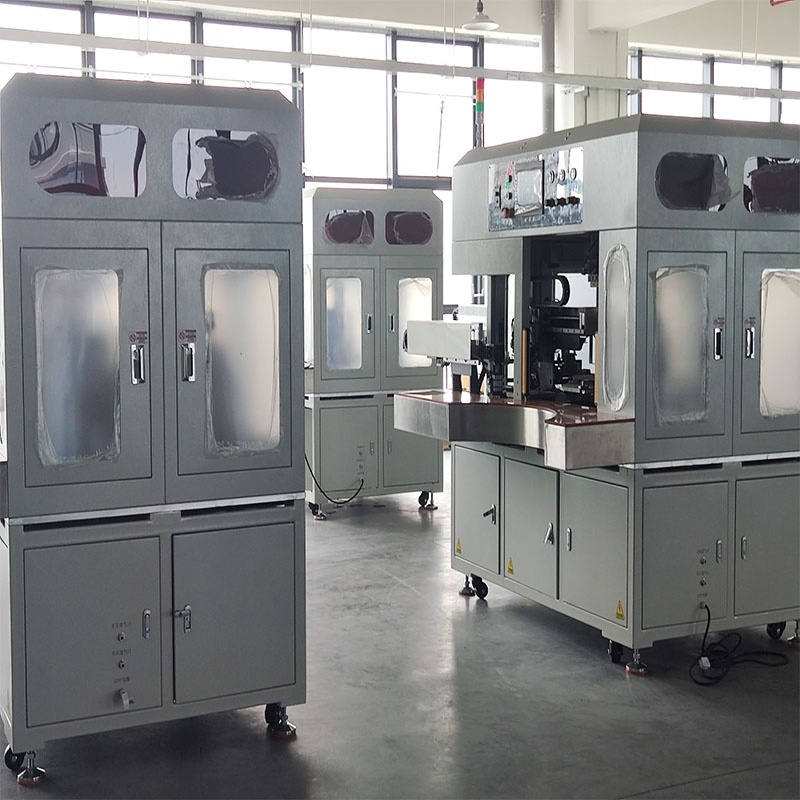

Z Type Single-station Full Automatic Lamination Stacking Machine
Function Description

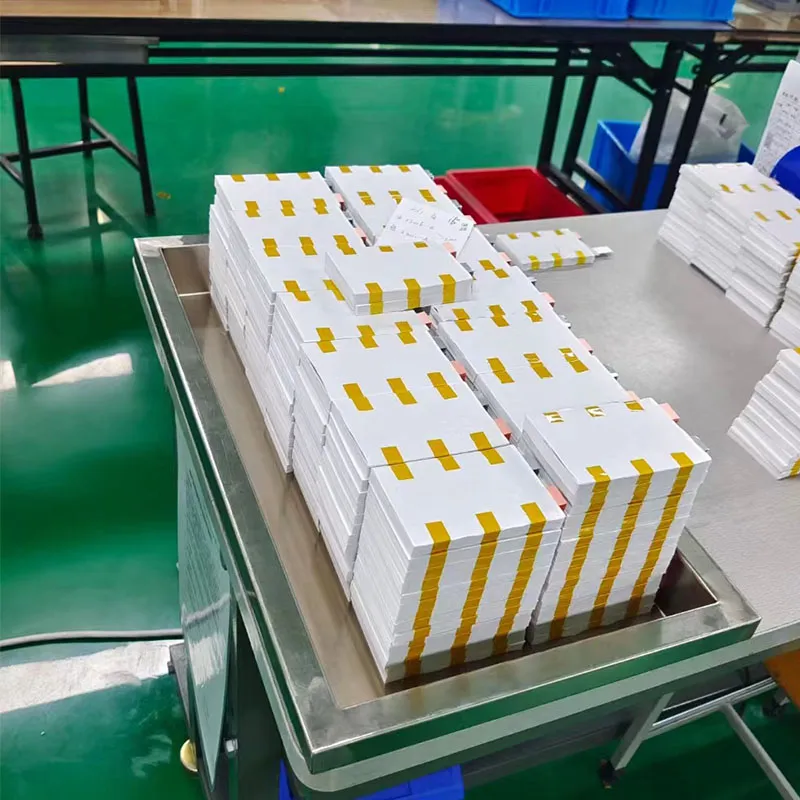

The device is mainly used for square lithium-ion power battery cell Z-shaped laminated.
Key Advantages
Diaphragm System
Active unwinding; Tension control; Diaphragm correction; Static electricity removal; Alignment accuracy: ±0.3mm.
High Precision
Overall accuracy of the pole sheet in the stack reaches ±0.5mm; Adjacent pole sheet alignment: ±0.3mm.
High Efficiency
Production speed ≤0.8S per piece (single station efficiency, excluding auxiliary time).
Dust Protection
Special dust protection mechanisms installed in material boxes and predetermined positions.
Leakage Protection
Multi-piece detection and anti-multi-piece mechanisms to prevent cell defects.
Application Fields
Widely used in 3C, digital, consumer and other industries, especially in high-rate, L-shaped batteries and other sub-fields. It features a wide market share and high repurchase rate due to its mature and stable performance.
Why Choose Us
Innovation Focused
Specializing in R&D and innovation of lithium battery equipment with numerous invention patents.
Reliable Manufacturing
Experienced, professional, and efficient R&D team providing strong technical support.
One-Stop Solutions
Providing whole line planning: from experimental and pilot lines to mass production lines.
Full Material Support
Supply of cathode & anode materials (NMC, LTO, etc.), aluminum foil, copper foils, and separators.
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of lithium battery equipment with our own R&D team and workshop, ensuring high quality and excellent after-sales service.
Q2: What is the typical delivery lead time?
Standard equipment is usually delivered within 60-90 working days after order confirmation, depending on specific requirements and order quantity.
Q3: What is the warranty period for the machinery?
We provide a 12-month warranty (excluding human damage). Positive technical solutions are provided through our online service channels.
Q4: Which payment methods do you accept?
We accept various payment methods including T/T, L/C, PayPal, and Global Pay.
Q5: How is the equipment transported?
Equipment can be shipped by sea, air, or express based on customer requirements. We assist in choosing the most suitable shipping service.

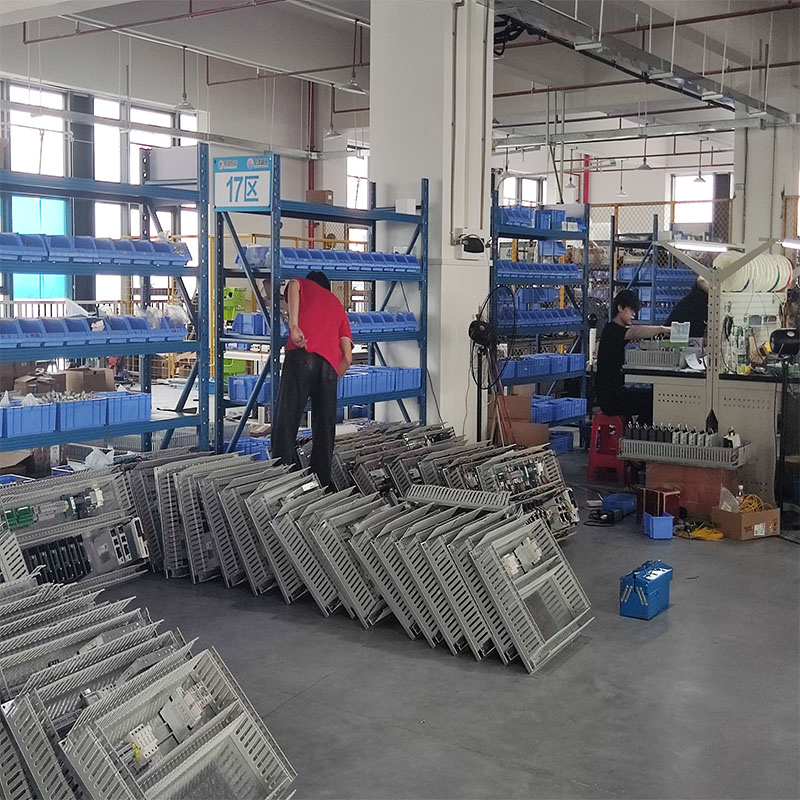

Q6: Can I visit the production facility?
Yes, we welcome factory visits at any time. We also support virtual video tours of our workshops.
