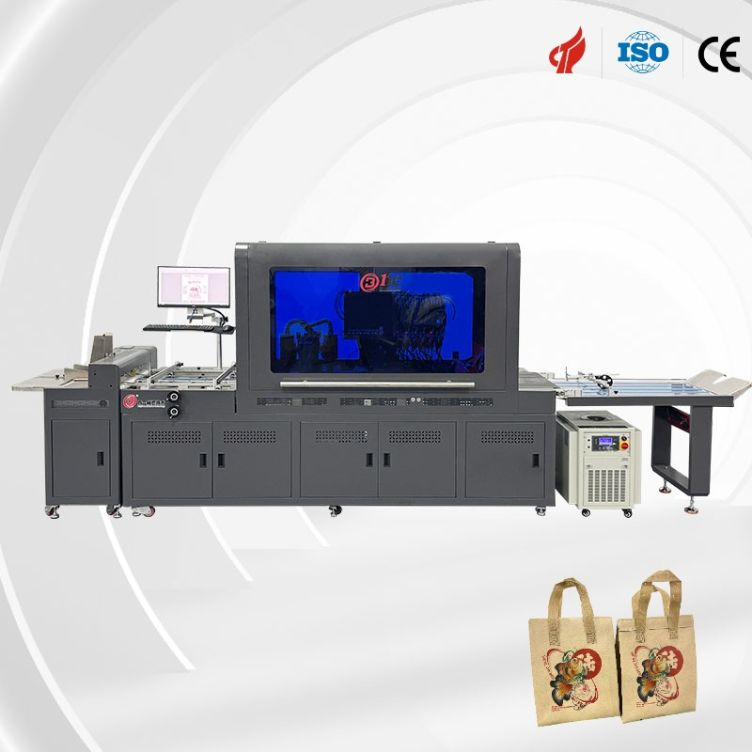

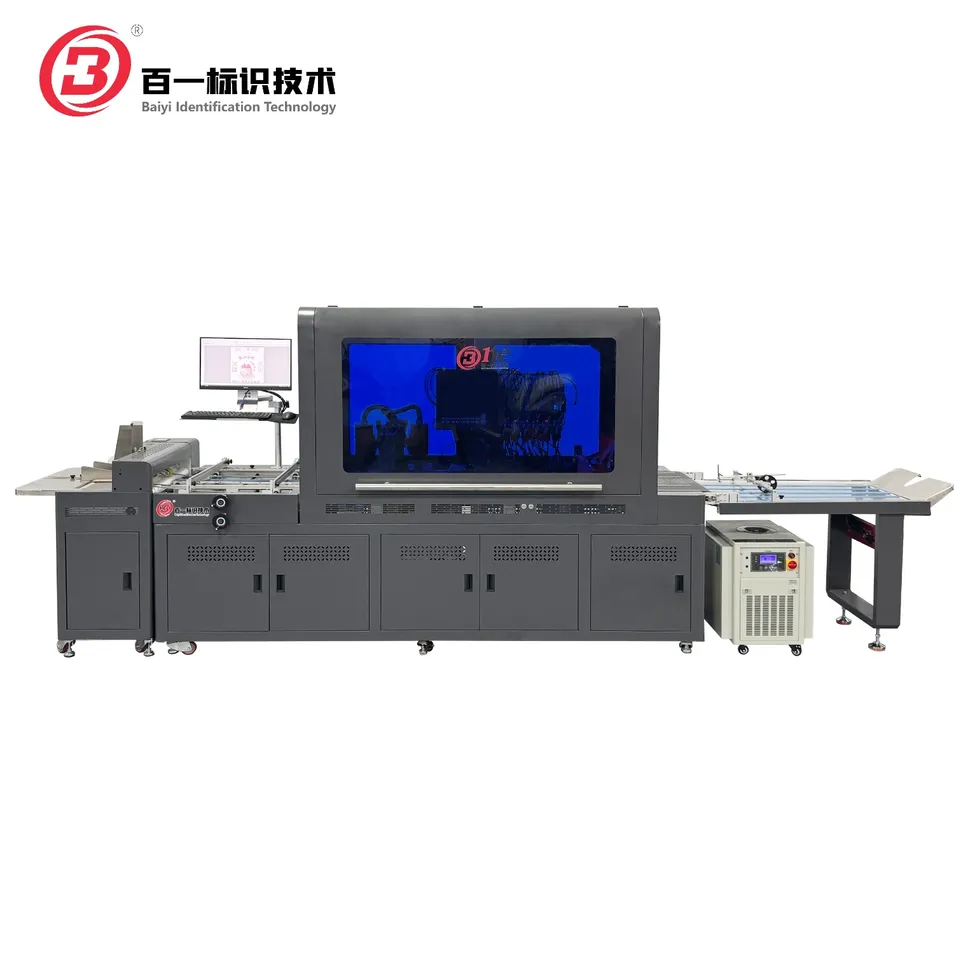

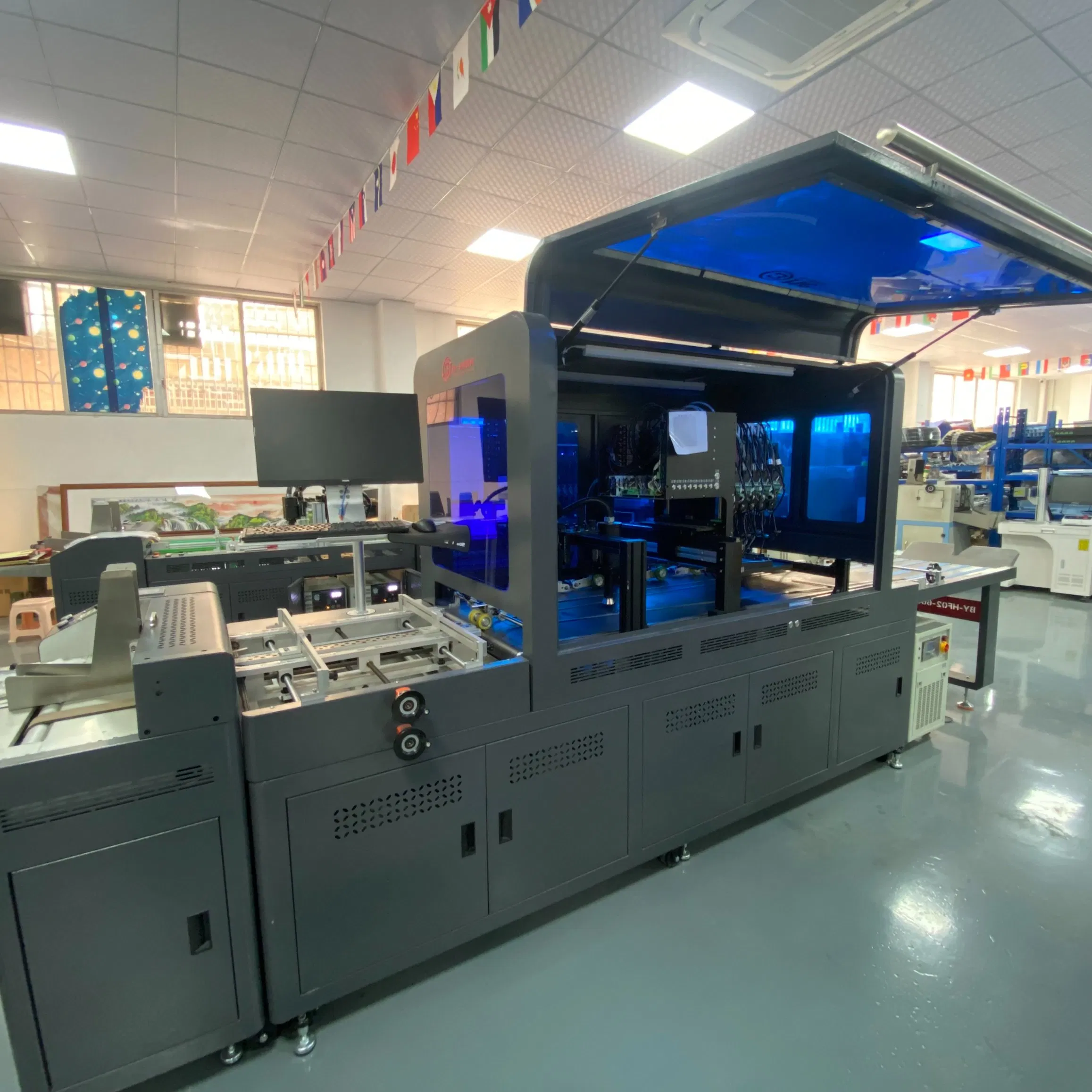

Advanced UV Digital Printing System: This industrial-grade machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.

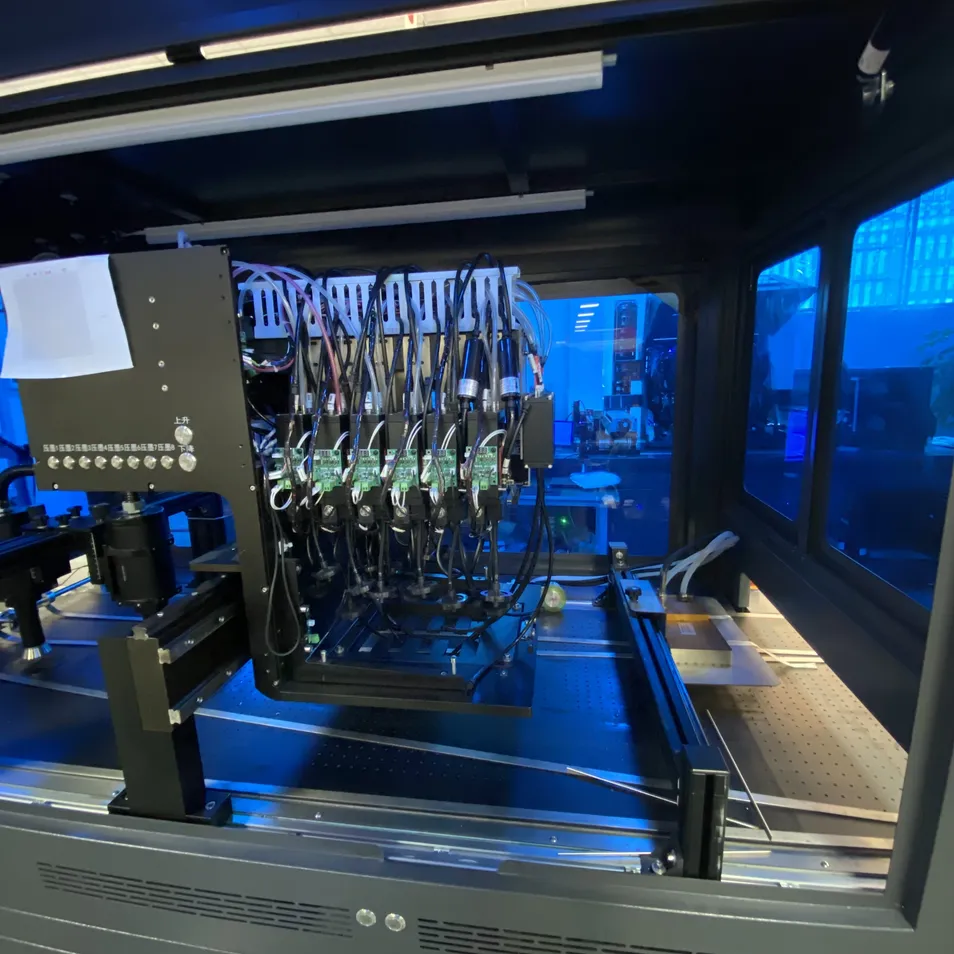

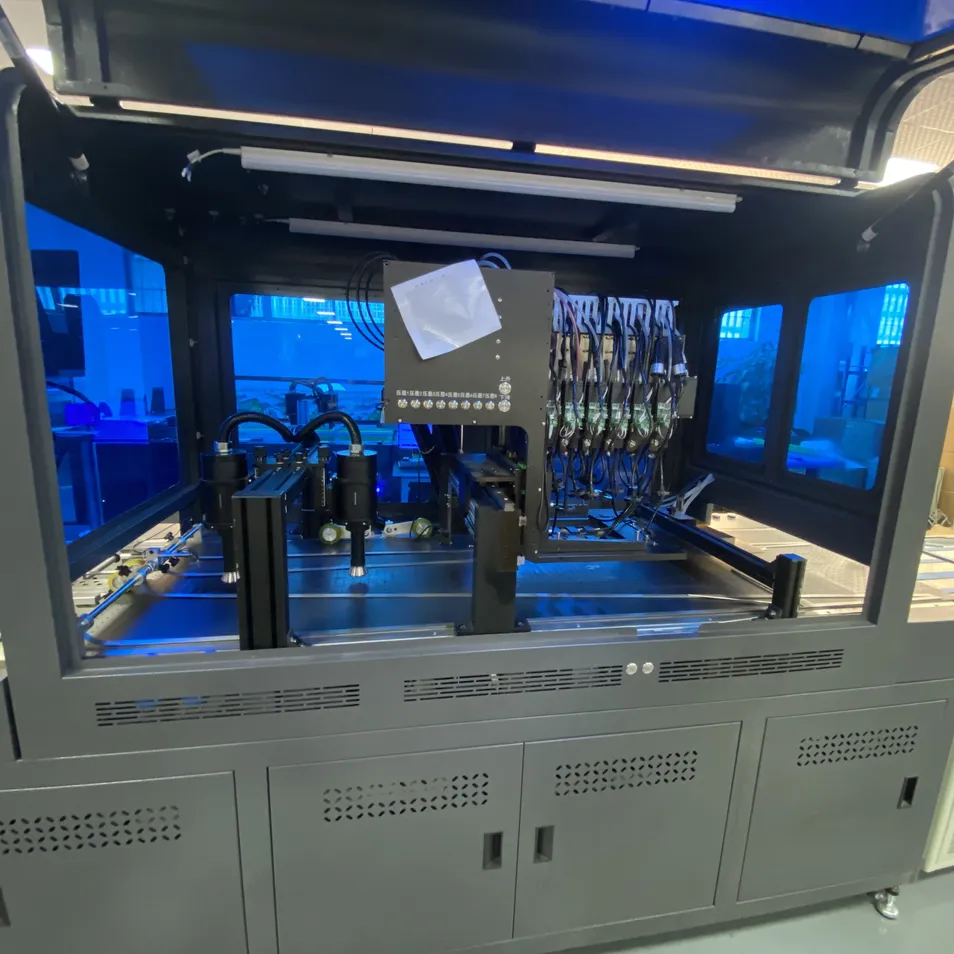

Featuring professional-grade Ricoh G5/G6 printing heads with an exceptional 20mm working height capacity, it delivers outstanding full-color CMYK printing across a 100mm width.

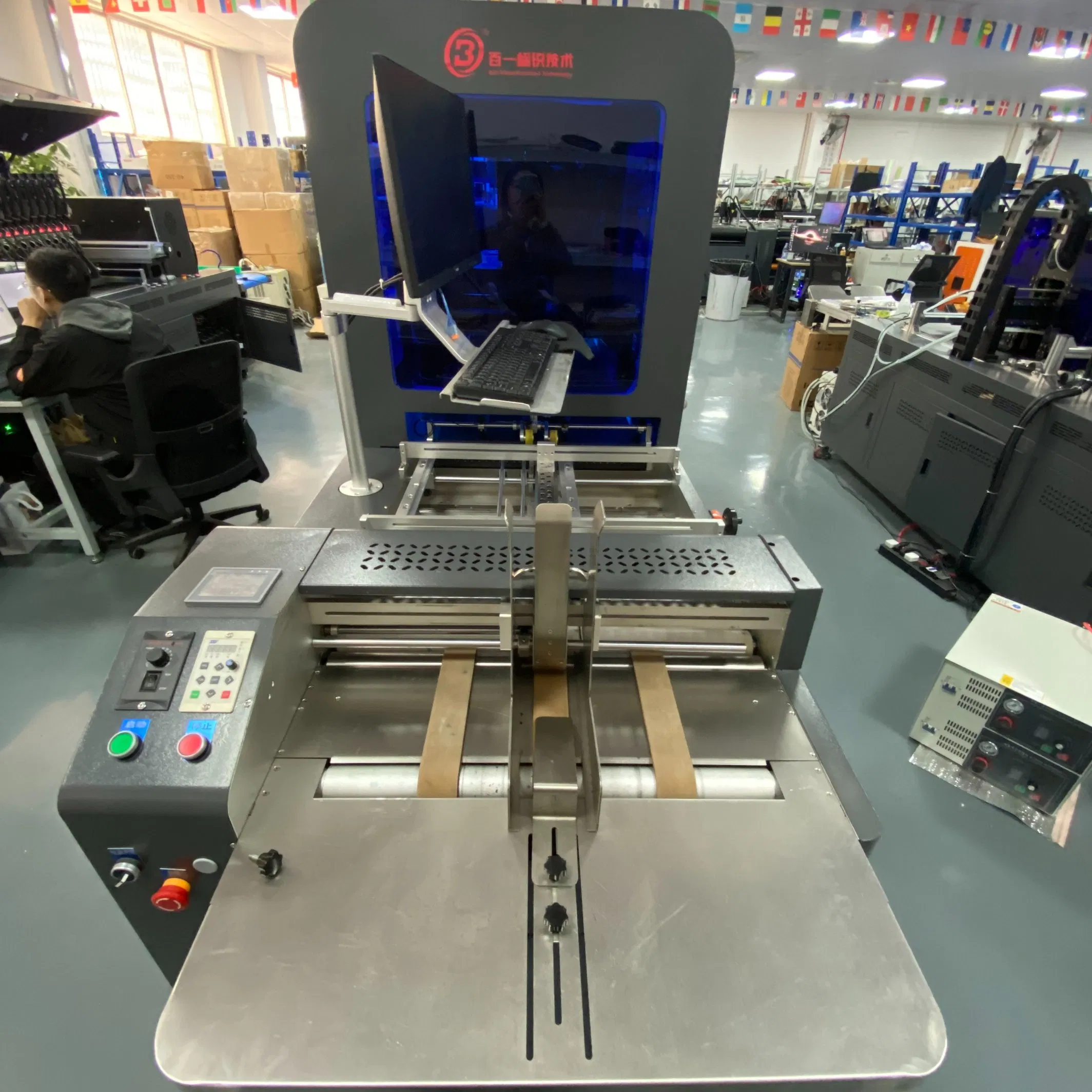

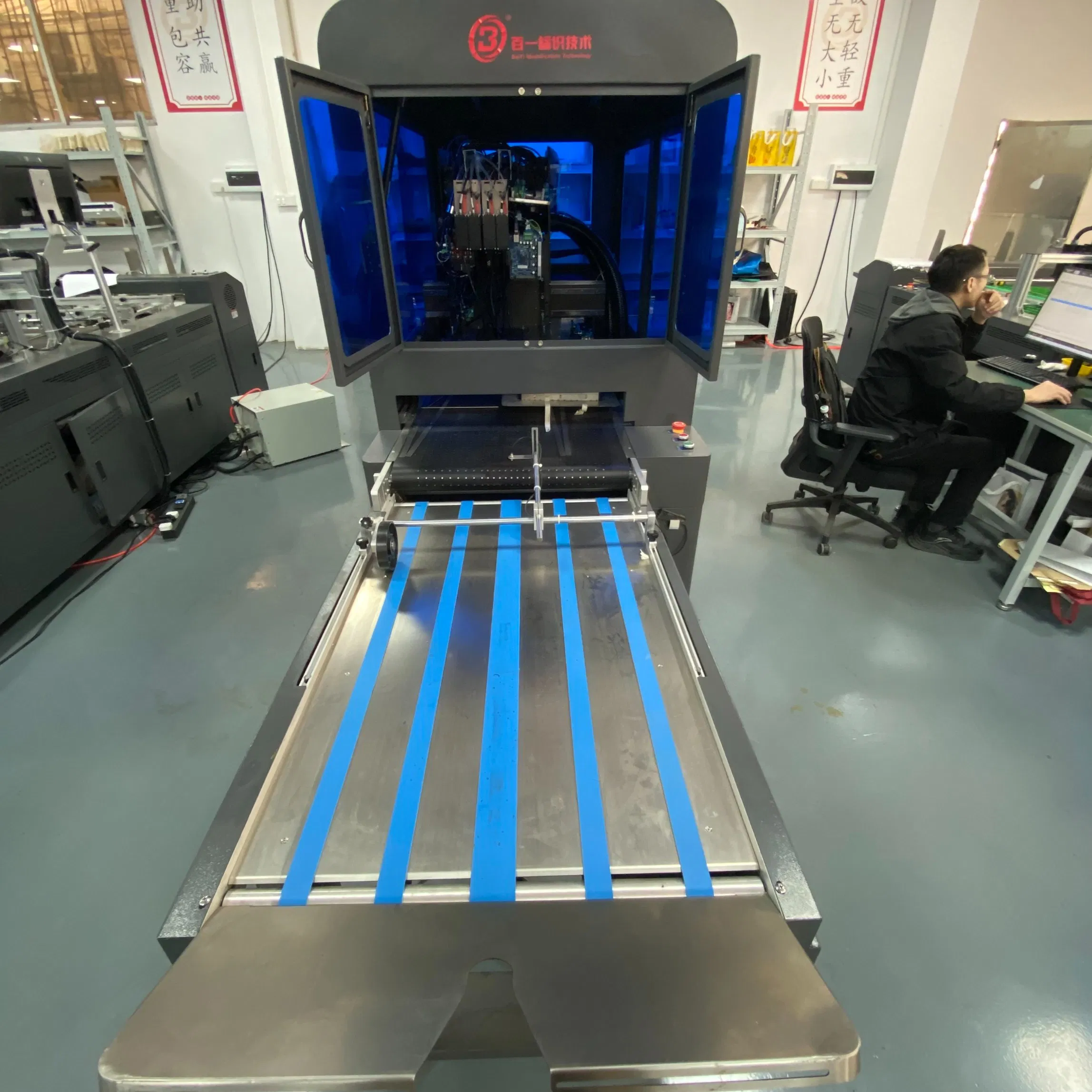

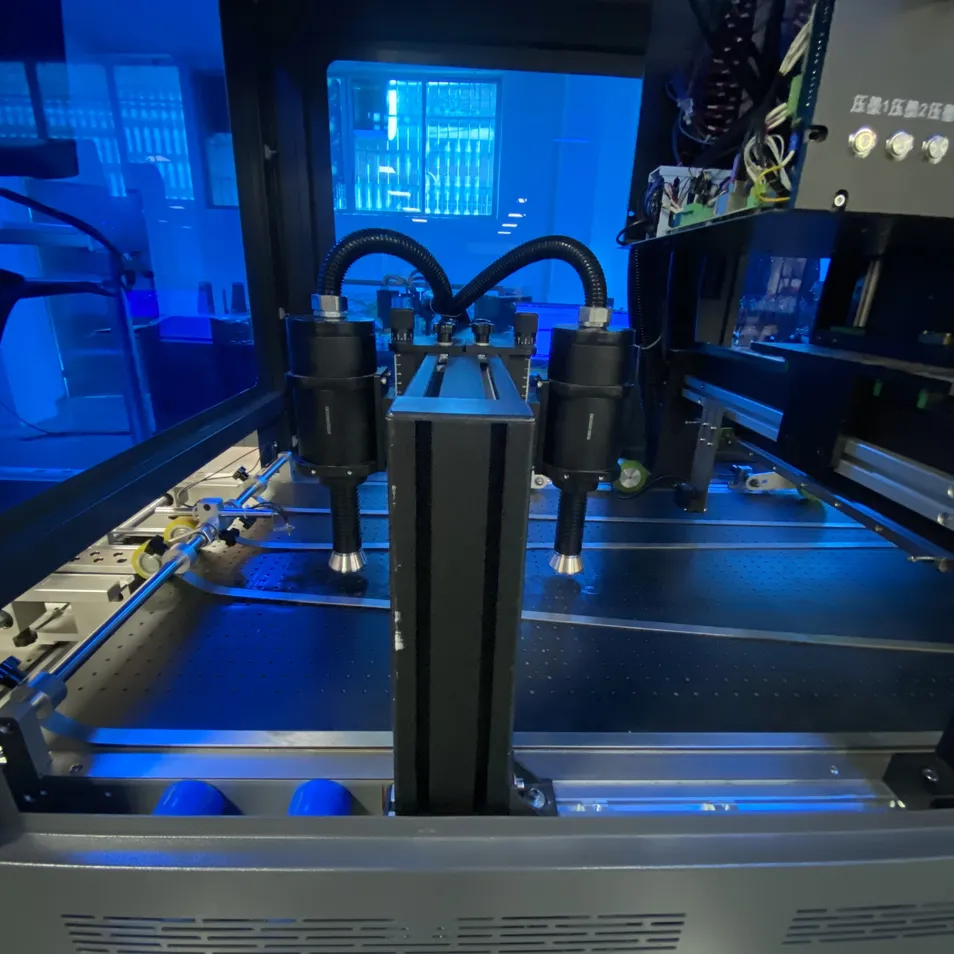

The integrated automated workflow combines auto-feeding, intelligent rectification, plasma surface treatment, and a dual-stage UV curing system to ensure consistent industrial quality.

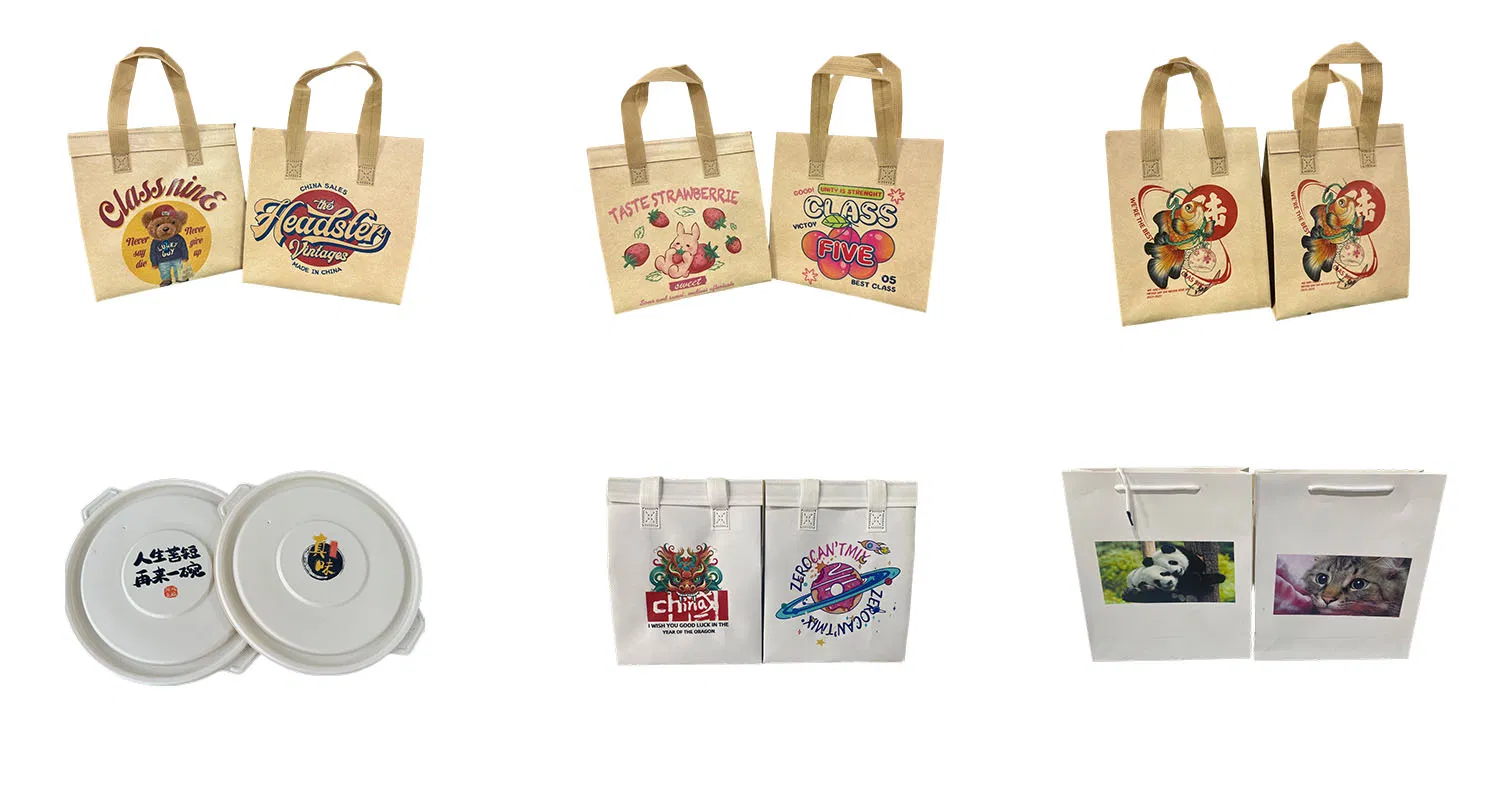

Coated shopping bags, promotional tote bags, and reusable bags with three-dimensional structures.
Coated paper bags, cardboard packaging, and various paper products for branding.
Lunch boxes, food containers, film substrates, and various plastic packaging materials.
Wooden boxes, bamboo products, metal sheets, and tin containers for decorative purposes.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Printing Head | Ricoh G5/G6 (8 Pcs) | Voltage | 220VAC, 50HZ |
| Printing Color | CMYK Full Color | Power | About 6.5Kw |
| Printing Width | 100MM | Efficiency | 60-120 Pcs/Min |
| Resolution | 360 DPI | Weight | About 800Kg |
| Printing Speed | 15 M/Min | Conveyor Speed | 0-50 M/Min |
| Rectify Accuracy | ±0.5mm | Available Size | 60-450 * 50-550 mm |
