UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm

1 / 5

UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm

Customization:	Available
Usage:	Industrial use
Shape:	Square

Send Inquiry

Product Description

Basic Information

Model NO.

AF50200H1

Wavelength

365/385/395/405nm

Material

Sheet Metal

Certification

Input Voltage

AC100~240V(50/60Hz)

Cooling Method

Air-Cooled

LED Life

20000hrs

Control Method

RS232/Pedal/PLC

Operation Interface

Touch Screen

LED Beam Size

200X50mm

Color

Black

UV Intensity

1500MW/Cm2 or Customized

Transport Package

460X430X255mm

Specification

Gross weight: 12KG

Origin

China

HS Code

8543709990

Product Description

UV LED Curing System - High Performance 395nm Solution

Product model: AF50200H1

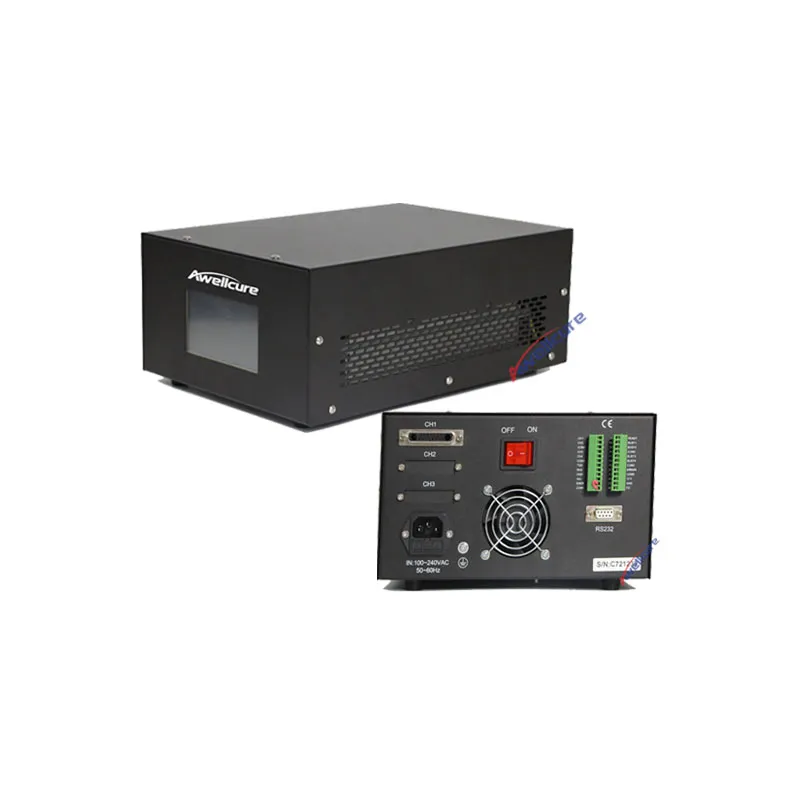

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

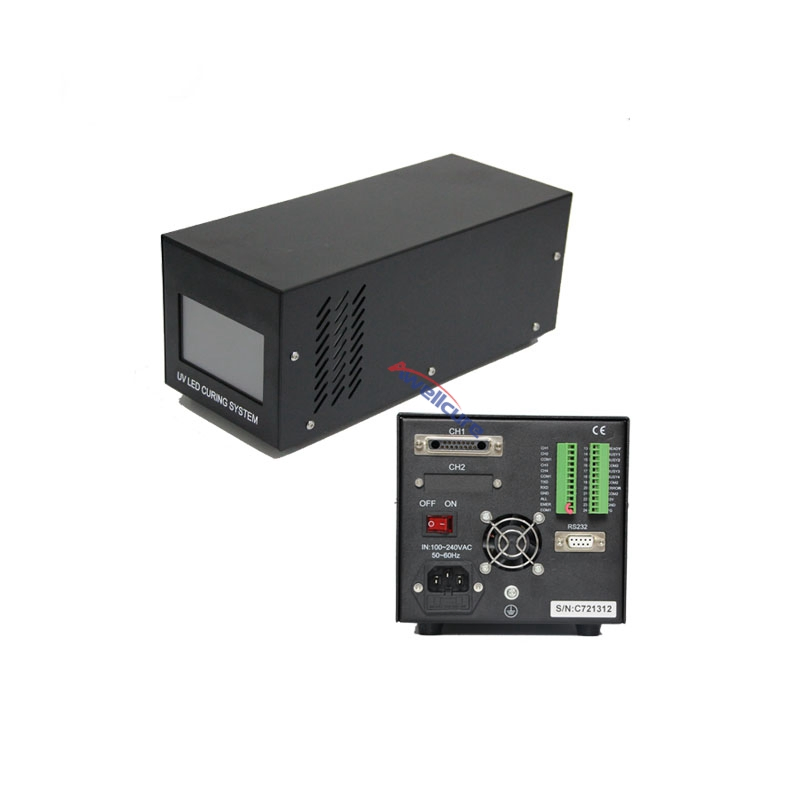

Key Features of Controller

External input signal controls UV irradiation via MCU, PLC, and scanners.
Comprehensive status monitoring: Start, Stop, Working, and Alarm signal outputs.
RS232 interface for programming and seamless integration with PC/PLC systems.
Direct lighting control support through foot switch or sensor connection terminals.

Advantages of UV LEDs

No infrared radiation: Ideal for temperature-sensitive materials.
Energy Efficiency: Optimized spectra ensure fast, safe curing cycles.
Instant Response: No warm-up phase required; immediate on/off capability.

Technical Specifications

Voltage	100-240V AC
Material	Sheet metal black

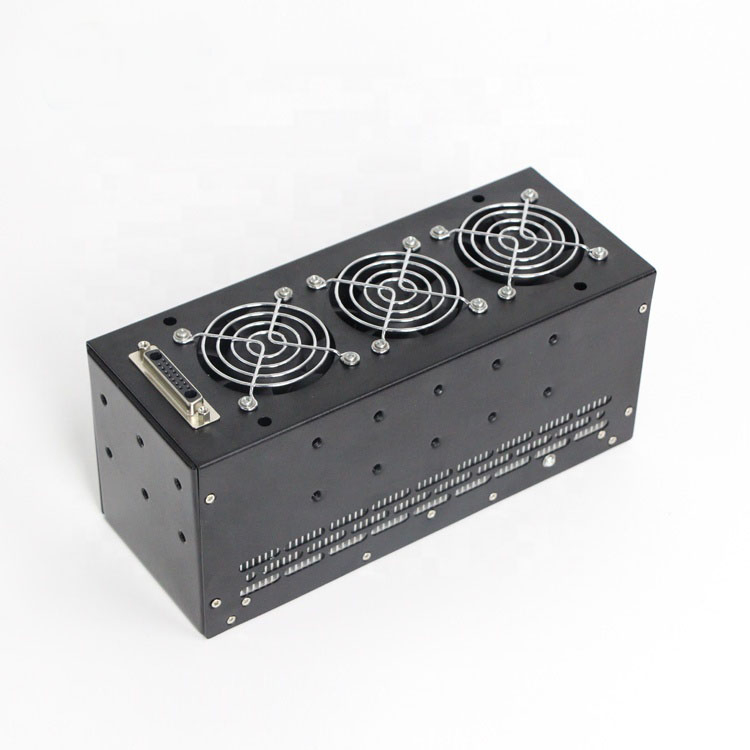

Cooling Method	Fan cooling
Controller Method	Touch/Pedal/RS232 Port/PLC
Power Range	10%~100%mW
Irradiation Mode	Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse
Communication	RS232 Serial Port / I/O Interface
Working Temp.	0-45℃

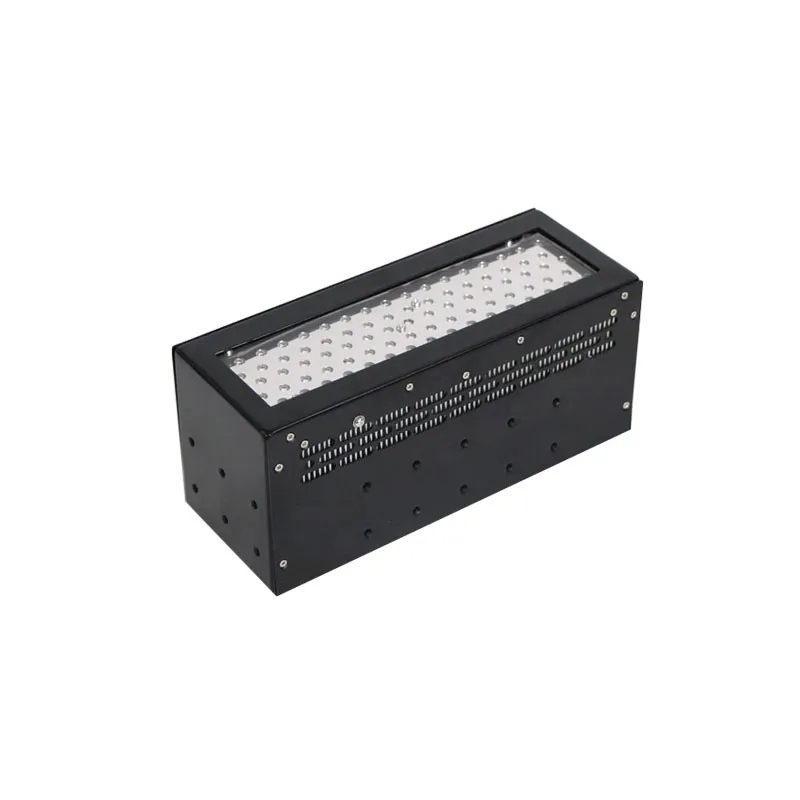

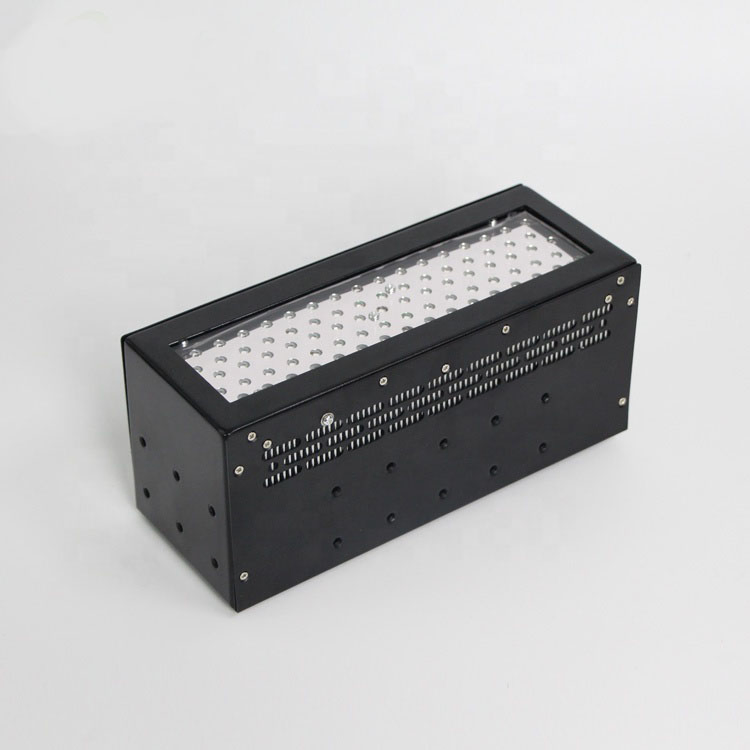

Irradiation Head Specifications

LED Type	Imported High-Efficiency Chips
Usage Time	20,000 Hrs @ 80% power
Wavelength	365nm/385nm/395nm/405nm (±5)

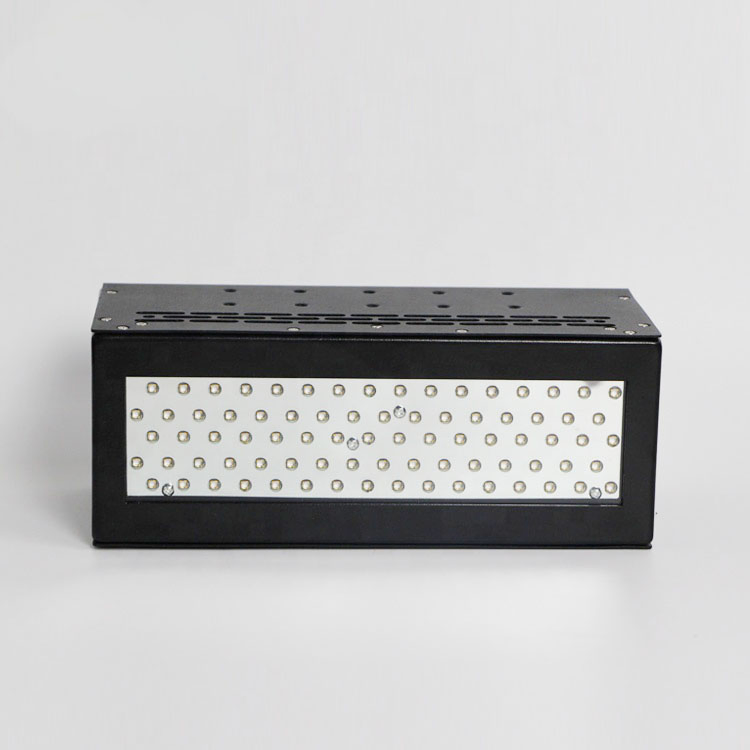

Luminous Size	50x200mm
Peak Intensity	500mW - 1500mW/cm² (Customizable)
Connection	Standard 2M Power Cord / Customizable Cable Length

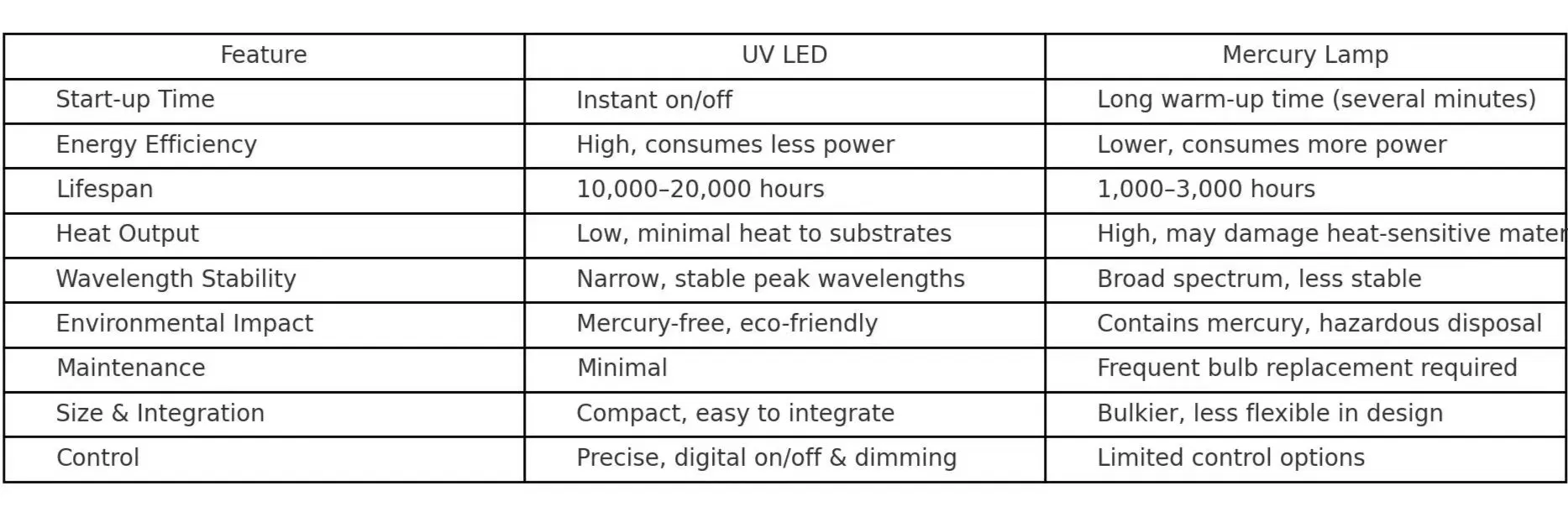

UV LED vs. Mercury Lamp

UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps.

Industrial Applications

UV Adhesive

Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.

UV Coating

PCBA, precision machining, Chip packaging, Automotive Industry.

UV Ink

UV printing, Screen printing, 3D printing.

Service & Support

Standard Warranty: 12 months comprehensive coverage.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and rapid spare parts supply.
Training: On-site or remote operation and maintenance training programs.

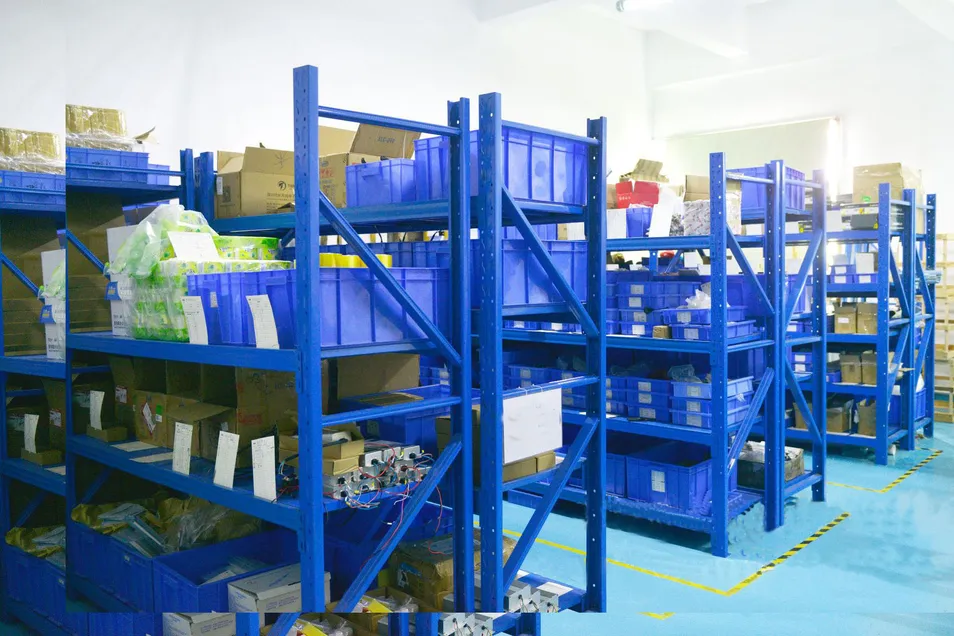

Company Profile

We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable machines backed by R&D innovation and strict quality control.

Core Product Line

UV-LED Spot & Line curing systems
UV-LED Area & Oven curing systems
UV-LED Conveyor systems
UV-LED Measuring instruments

Why Partner With Us?

Full OEM/ODM capabilities
Competitive factory pricing
Fast global shipping
Turnkey project solutions

Frequently Asked Questions

Why choose this UV LED curing system?

With over 12 years of combined industry experience, our systems are engineered to meet precise client requirements with high reliability and efficiency.

What materials can be cured with this machine?

It is primarily used for curing UV glues, UV inks, UV adhesives, UV paints, UV varnishes, and other UV-sensitive industrial materials.

What are the main advantages over traditional mercury lamps?

Key benefits include a significantly longer service life, reduced energy consumption, instant on/off capability, and an environmentally friendly mercury-free design.

How do I determine the required emitting window size?

The emitting window depends entirely on the specific curing area required by your application or production line.

Is customization available for specific power requirements?

Yes, any size of emitting window and peak irradiance levels can be fully customized based on your specific UV-sensitive materials and production efficiency goals.

What power intensity do I need for my project?

Power intensity requirements depend on the sensitivity of your materials and the required speed of your production process. We can help you calculate this based on your application details.
