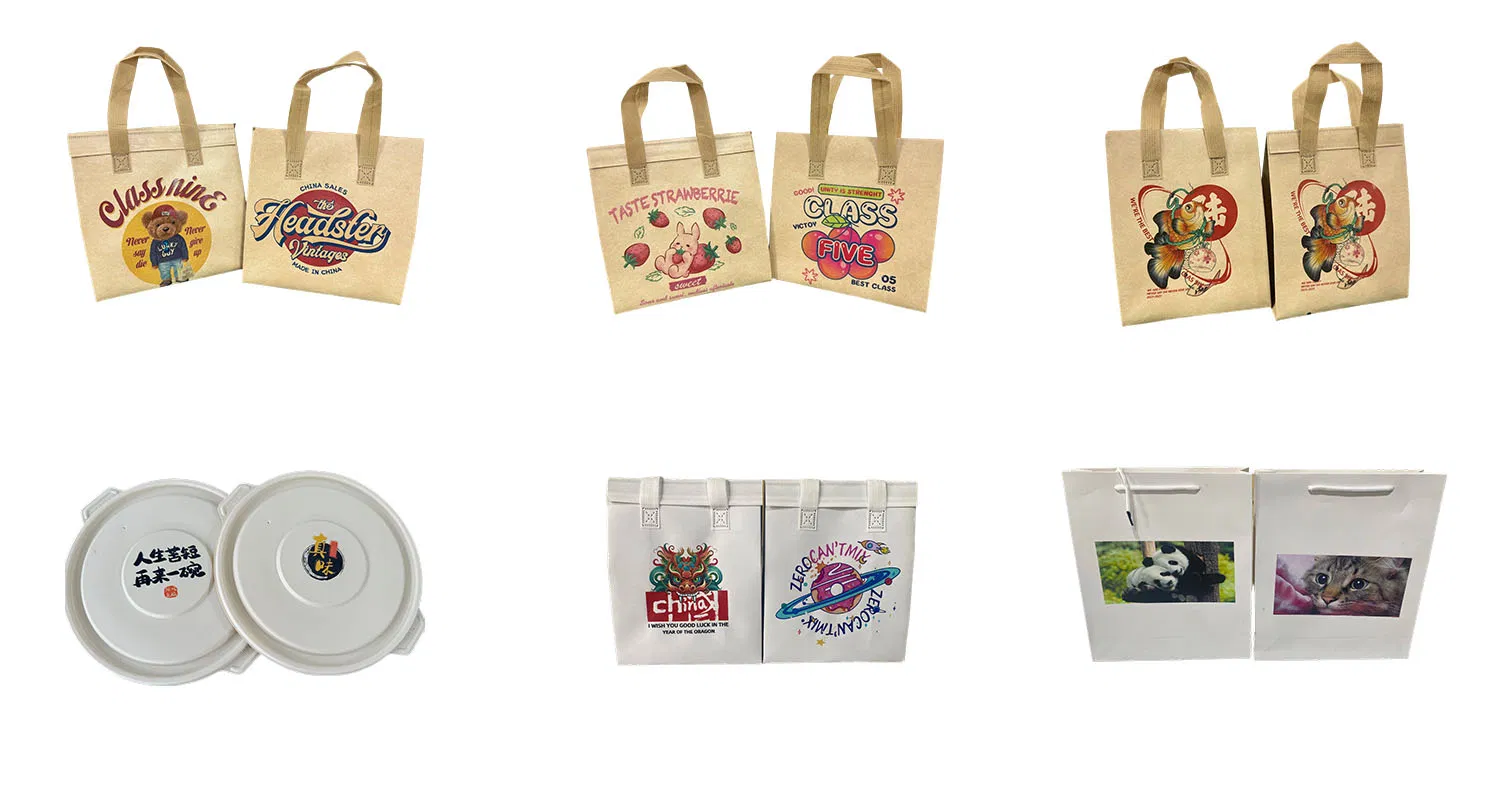

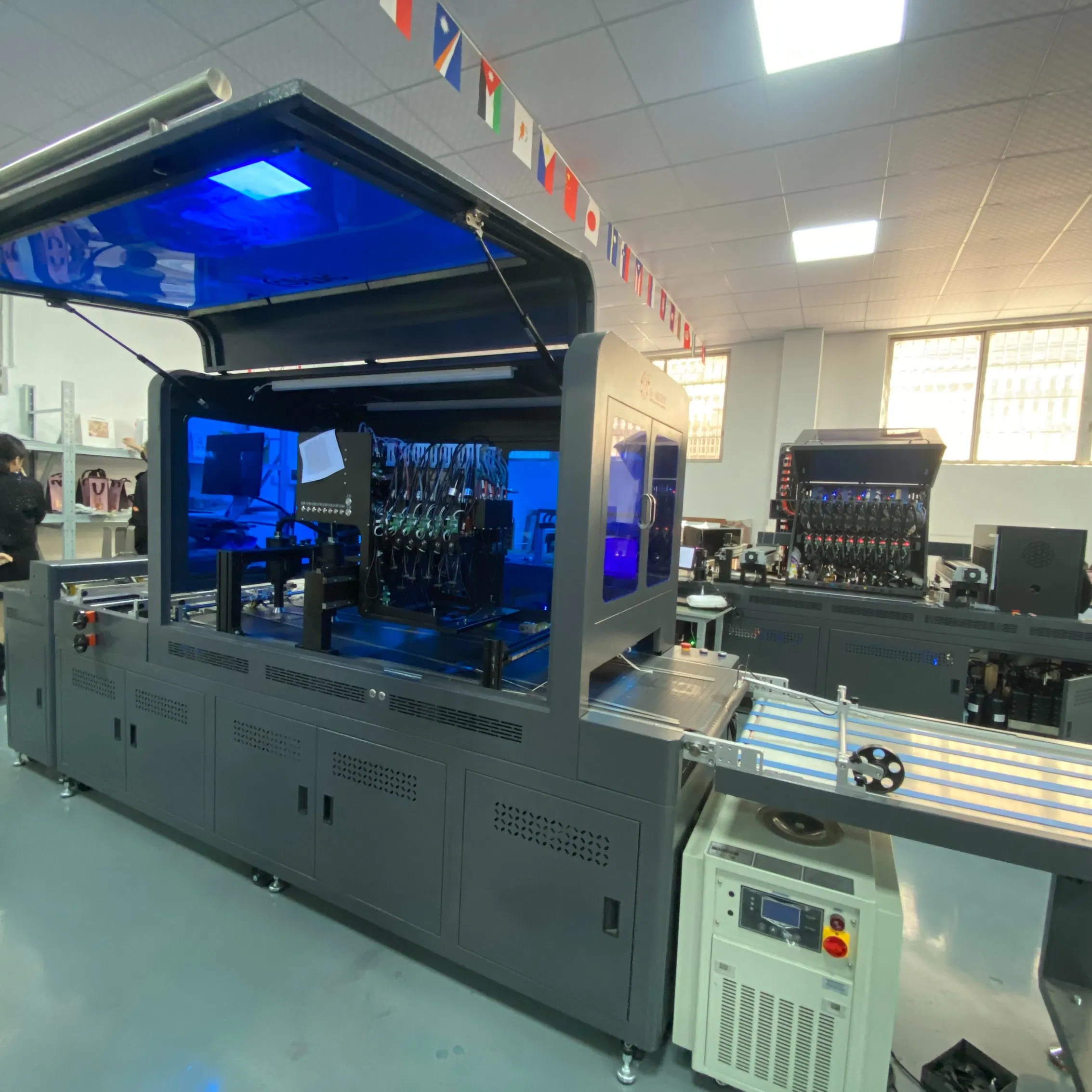

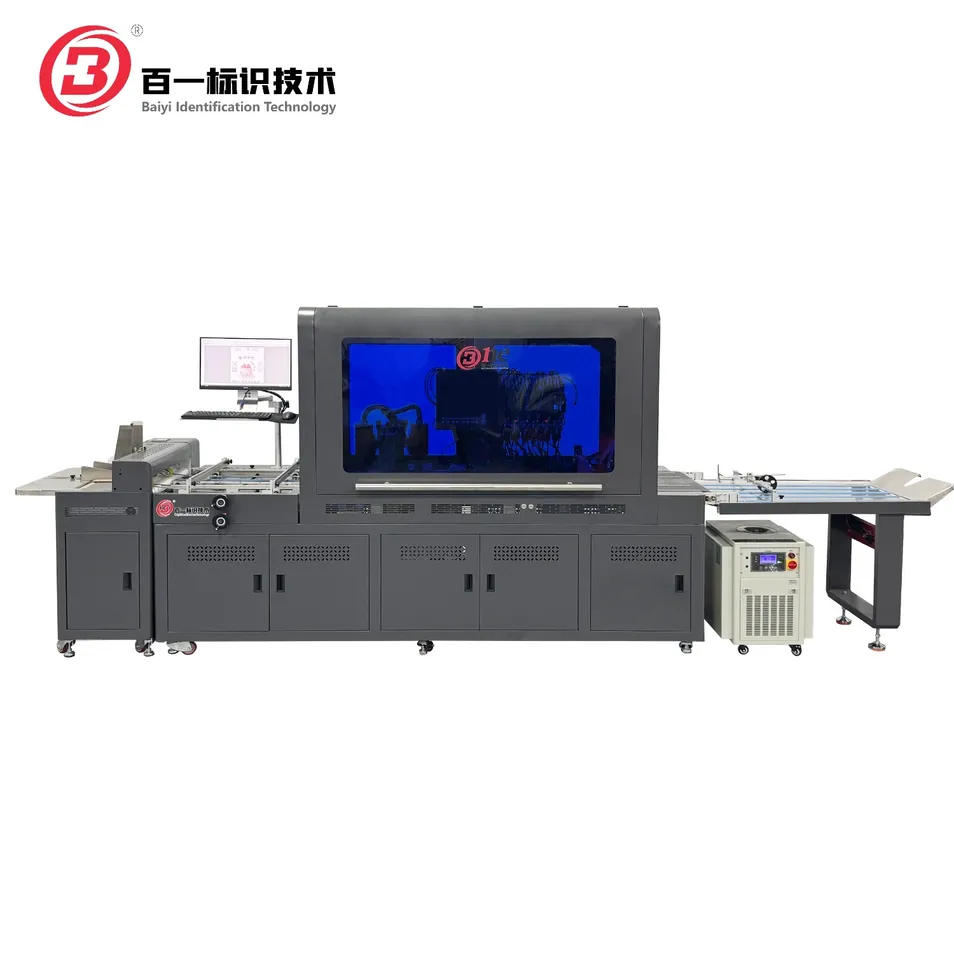

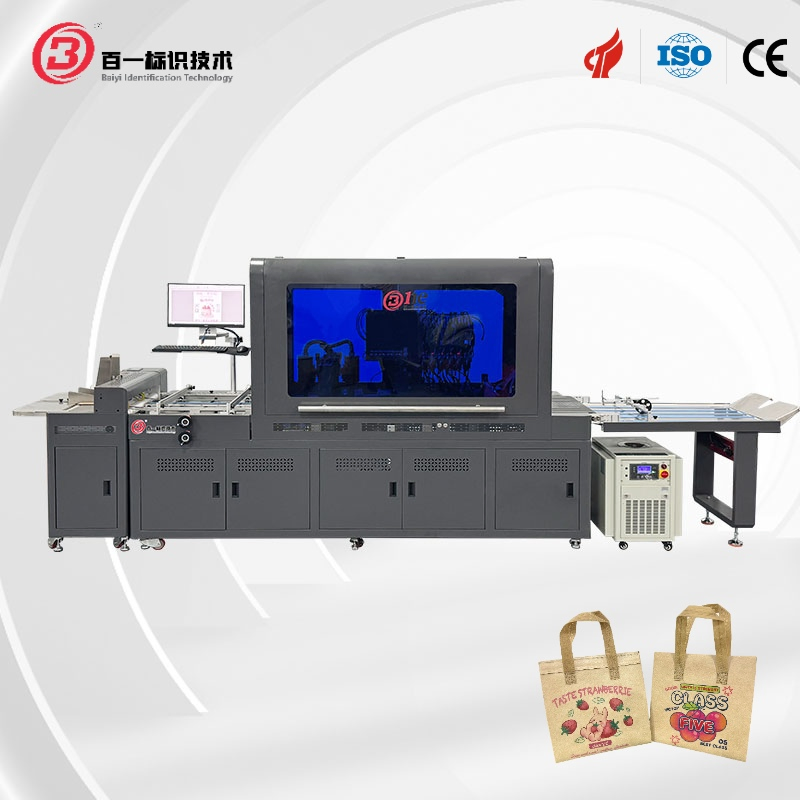

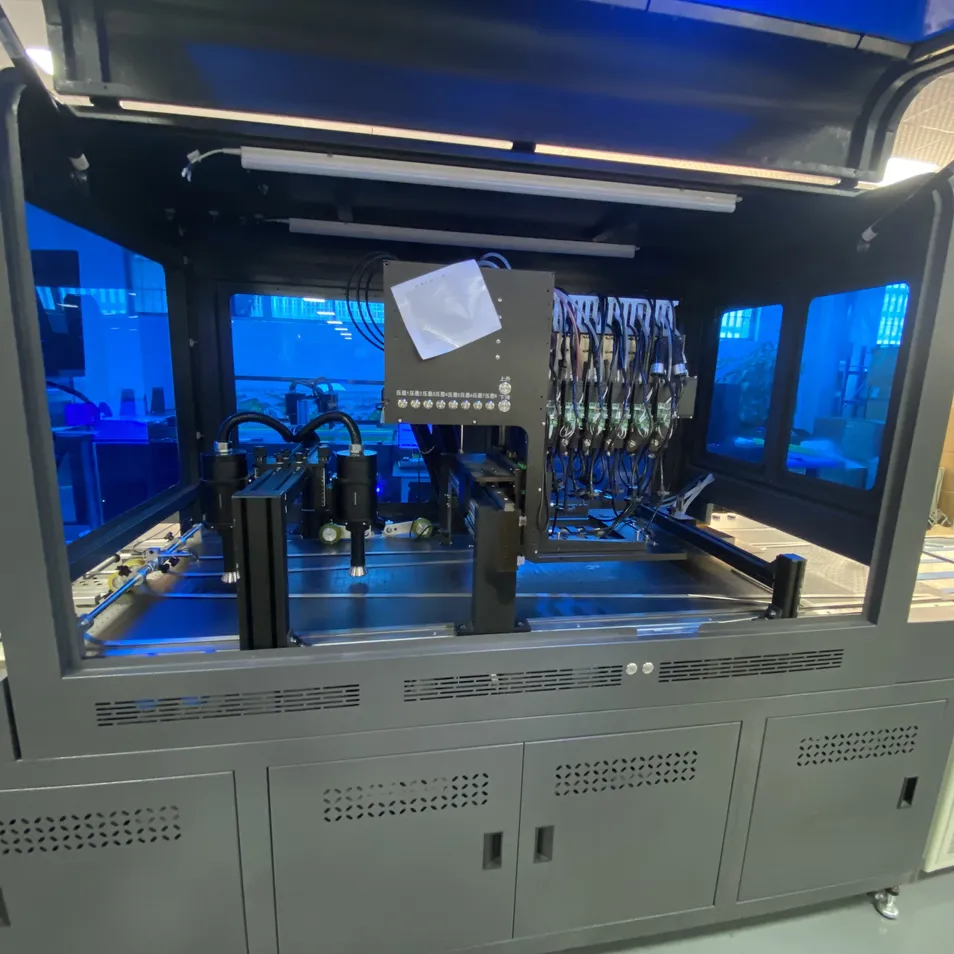

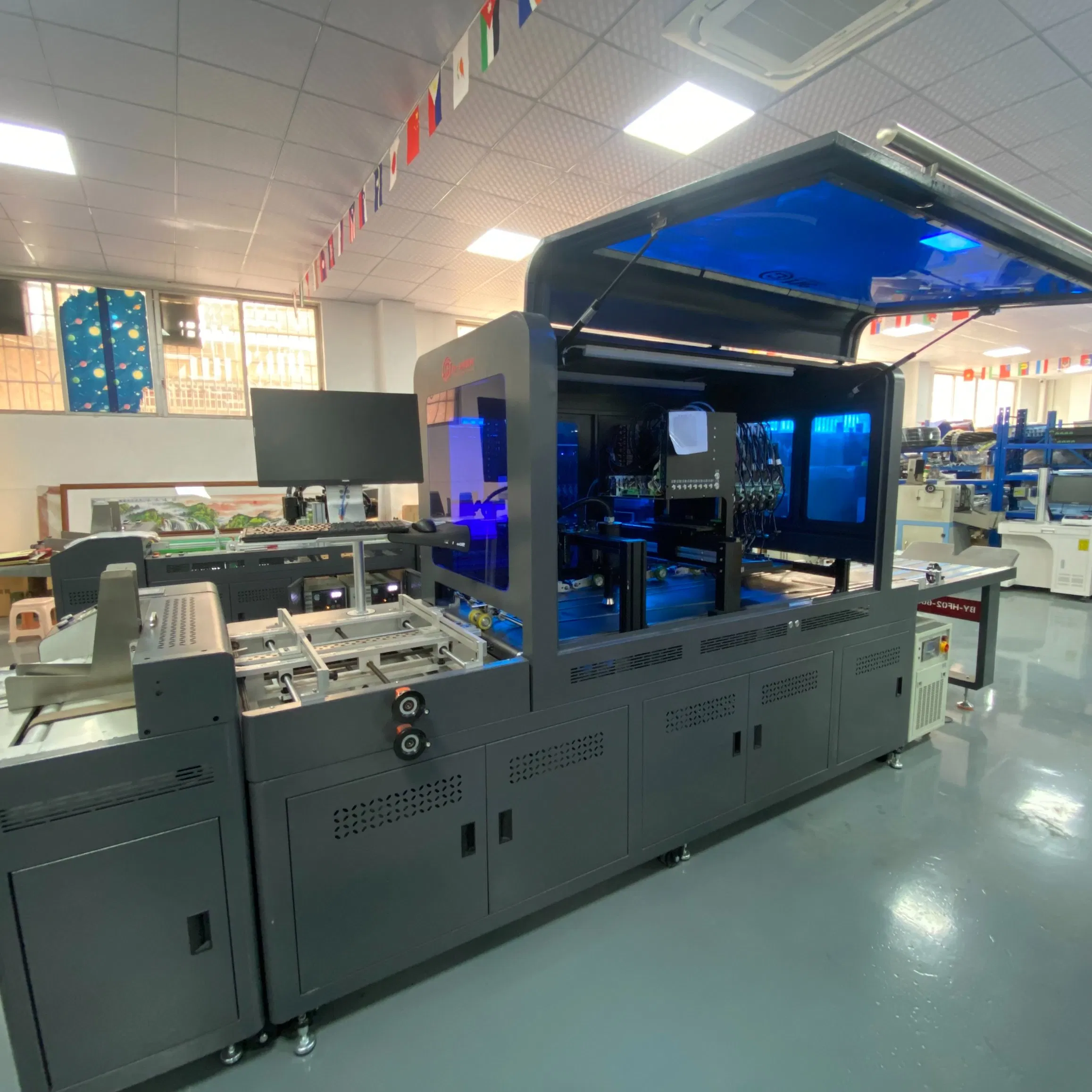

This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials. Featuring professional-grade Ricoh G5/G6 printing heads with exceptional 20mm working height capacity, this system delivers outstanding full color CMYK results with 100mm printing width.

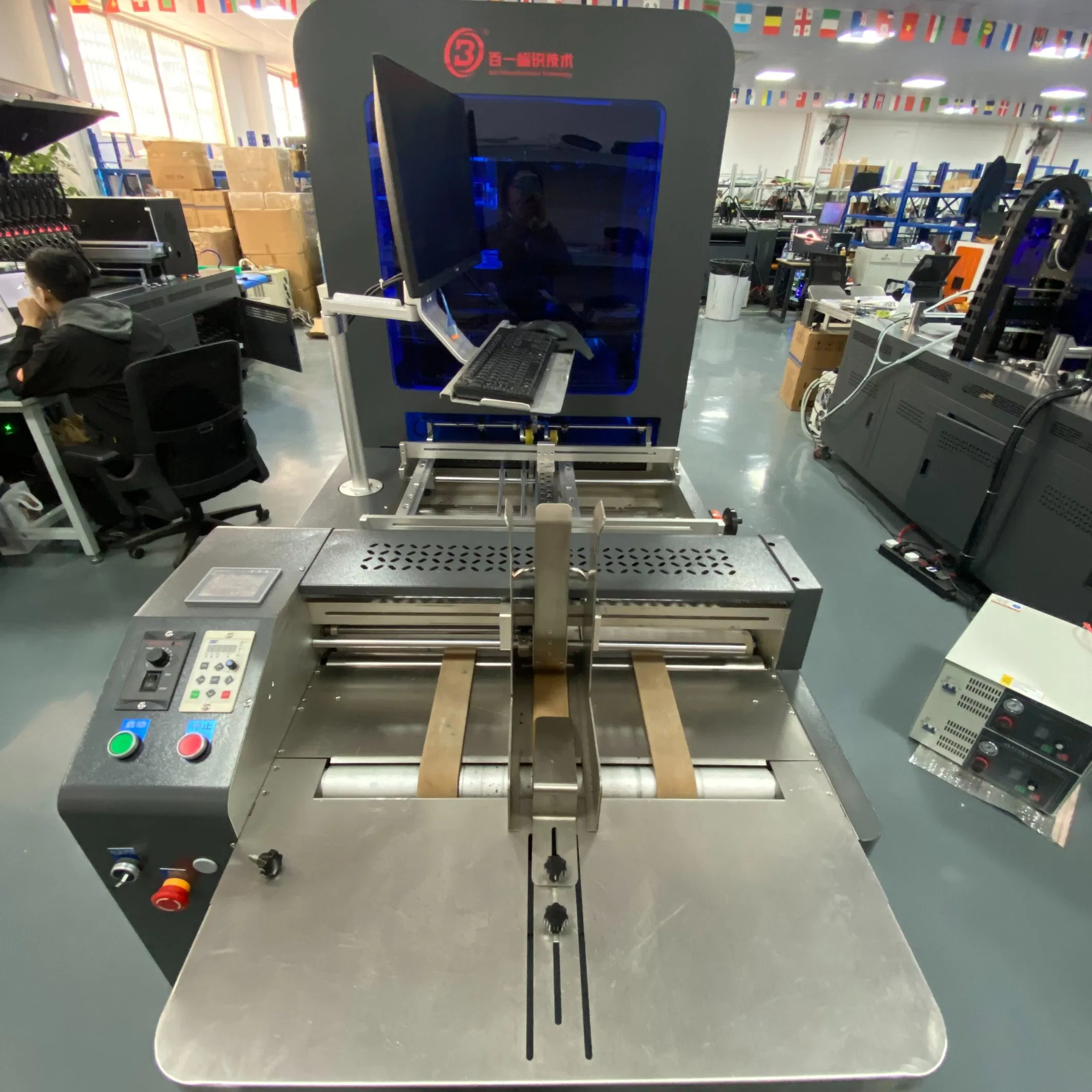

The integrated automated workflow combines auto-feeding technology, intelligent rectification, plasma surface treatment, and a dual-stage UV curing system to ensure industrial-grade consistency.
| Technical Specifications | |
|---|---|
| Printing Head | Ricoh G5/G6 (8 Pcs) |
| Printing Color | CMYK (Full Color) |
| Printing Width | 100MM |
| Resolution | 360DPI |
| Printing Speed | 15M/Min |
| Voltage / Power | 220VAC, 50HZ / Approx 6.5Kw |
| Efficiency | 60-120 Pcs/Min (Size dependent) |
| Feeding Method | Intelligent Friction Feeding, Down-Out |

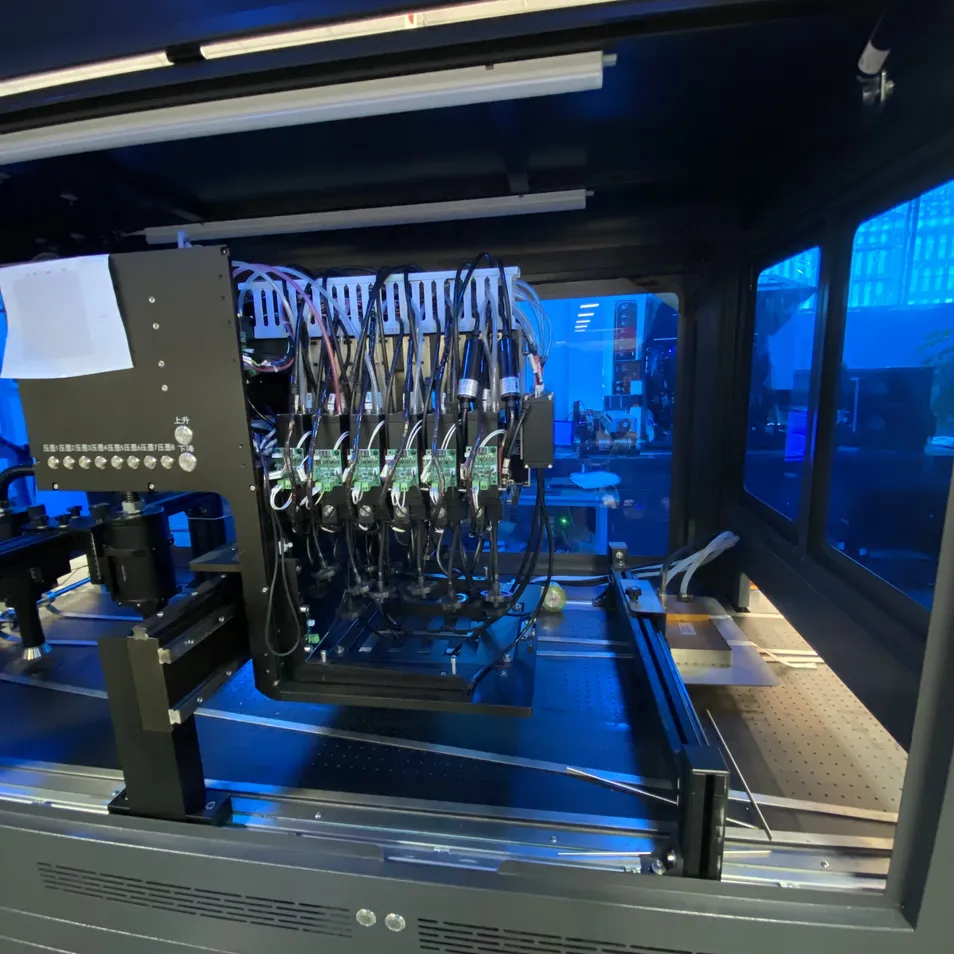

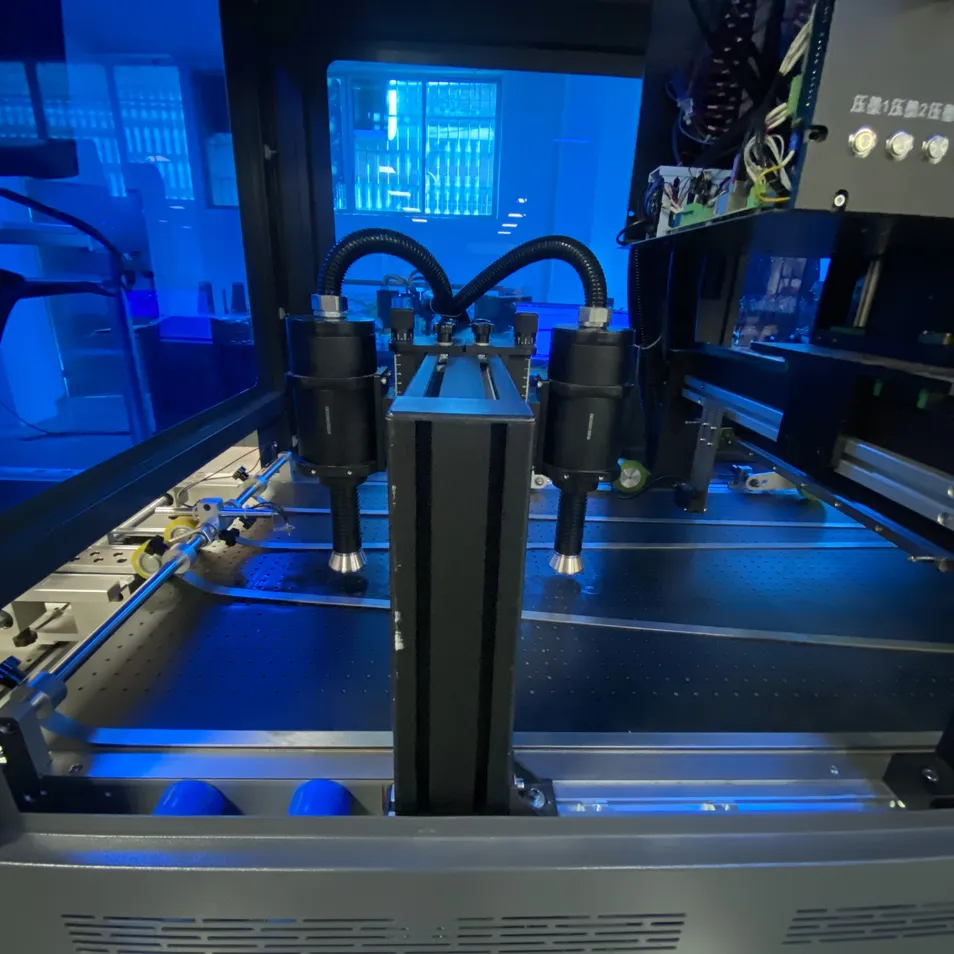

Advanced Printing Technology: Equipped with dual 54mm Ricoh heads per color channel and plasma surface treatment to enhance ink adhesion and vibrancy on non-absorbent materials.
