UV High Speed Variable System

Customization:	Available
Type:	Demand for Ink Coding Machine
Usage:	Daily Industrial, Chemical Products, Drug, Food

Send Inquiry

Product Description

Basic Info.

Automatic Grade

Automatic

Principle of Classification

Drop on Demand

Application

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Packaging

Box

Seamless Joint

Accepted

Ink Solution

Support Porous, Semi-Porous and Non-Porous

Languages

English, Japanese, French, German, Spanish, Portug

Resolution

150-600dpi

Powder

AC 90V-240V/50-60Hz

Logo/OEM

Accepted

Tech Support

Yes

Training

Free

Delivery

in Time

Specification

CE, SGS

Origin

China

HS Code

8443322100

Product Description

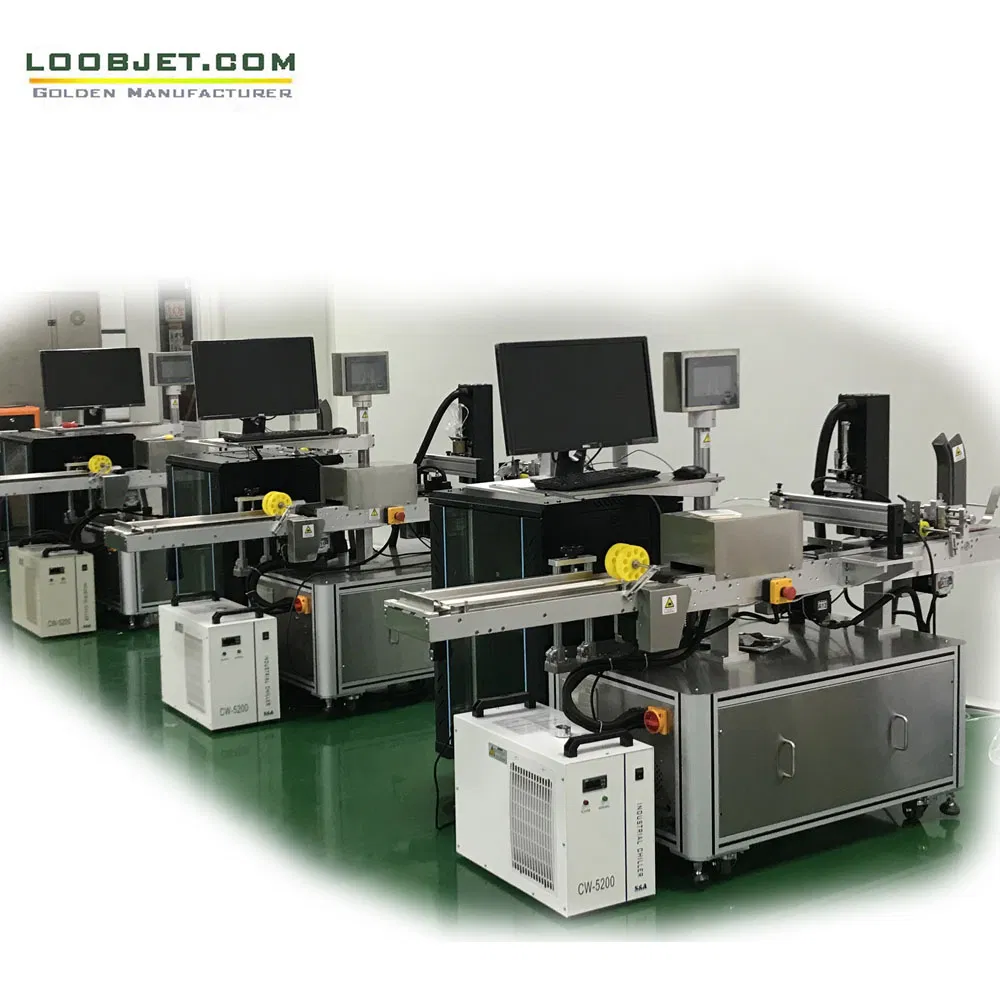

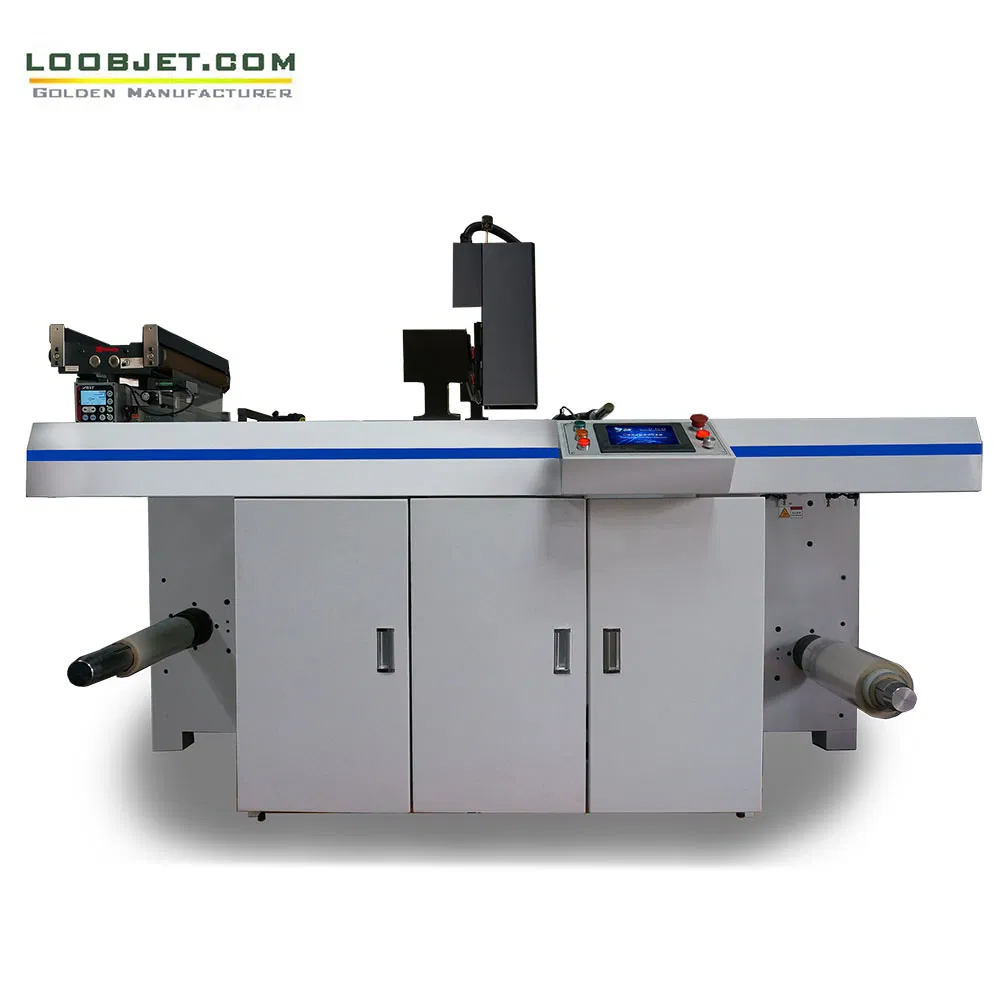

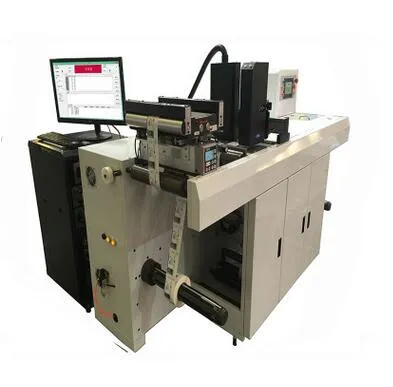

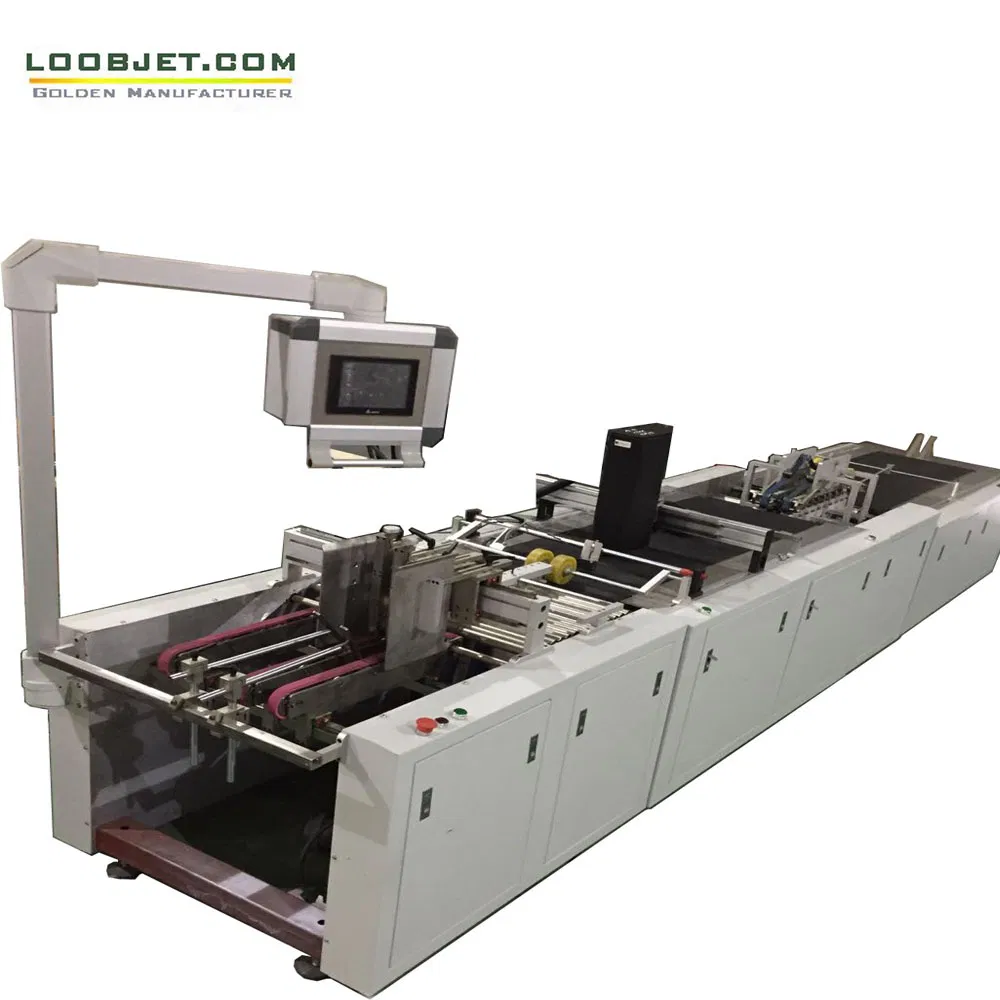

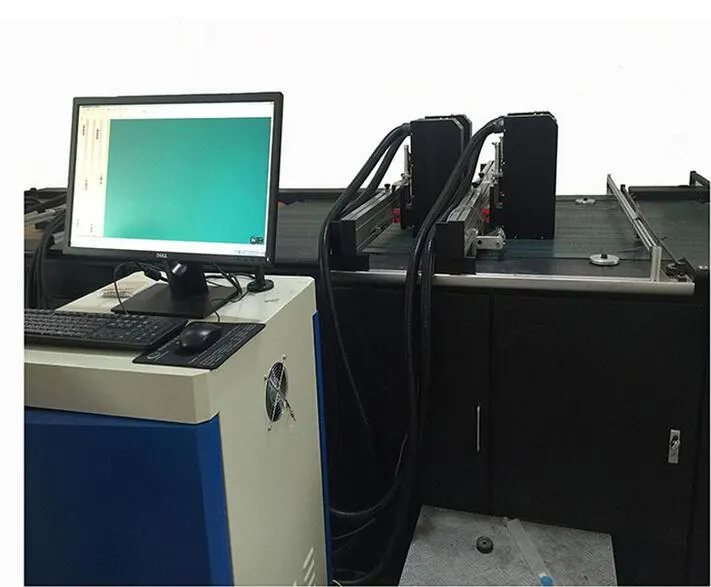

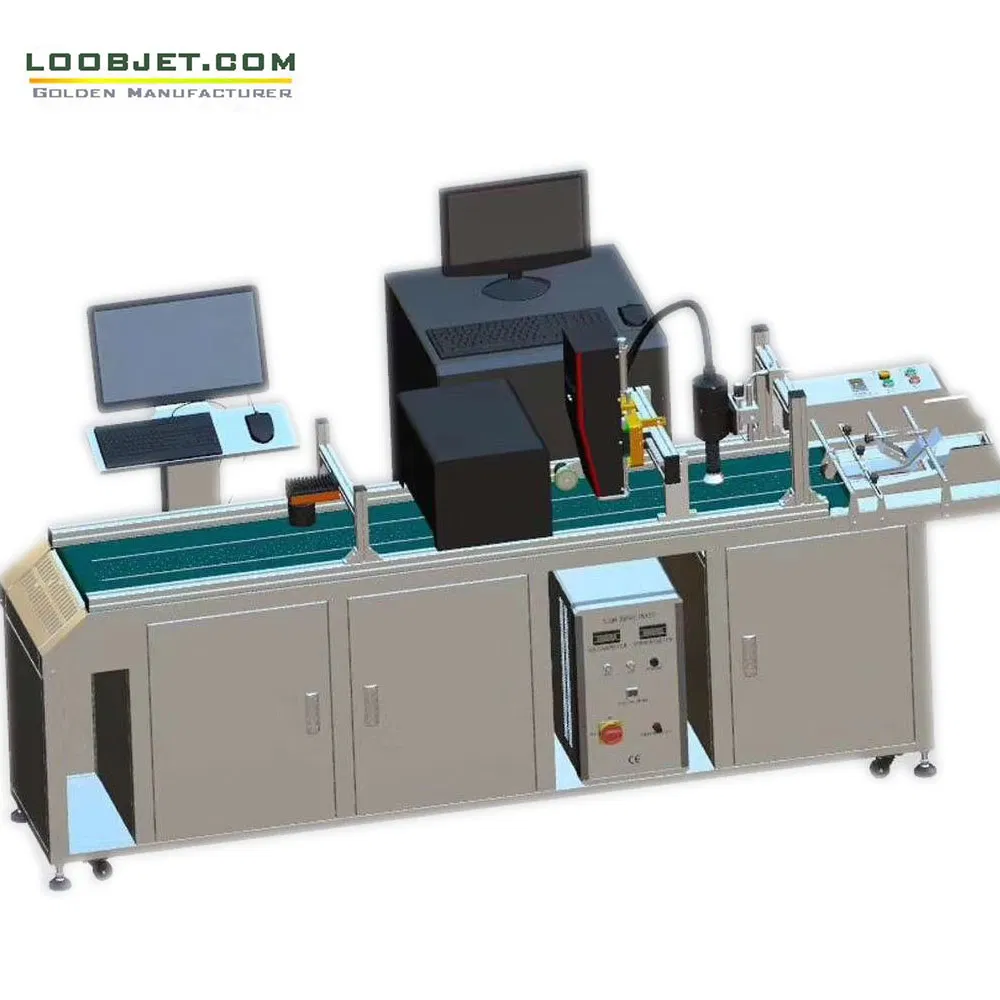

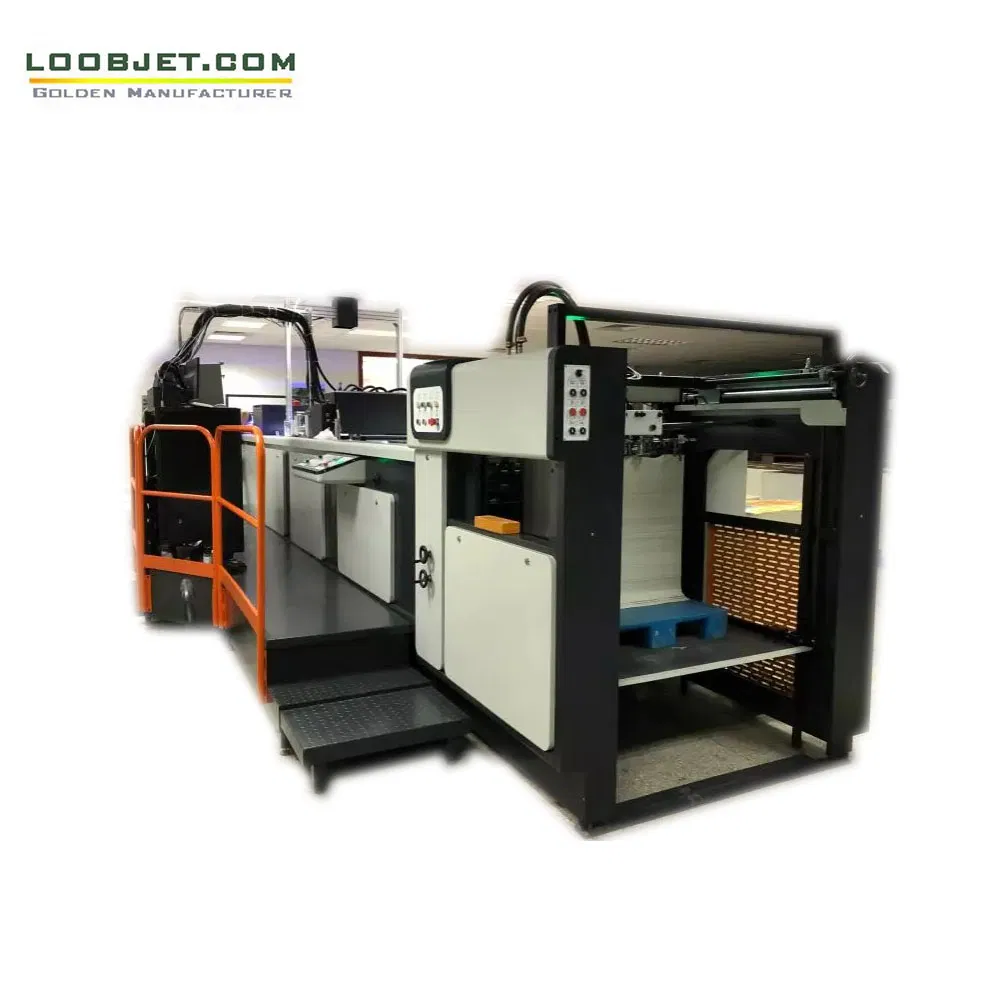

UV High Speed Variable System

Introduction

This UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

It is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, its modular design allows for easy integration into existing transport systems to create more value-added opportunities.

Technical Details

Nozzle type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles
Normal life of the nozzle: More than 3 years (10 billion printing times)
Single Nozzle print width: 54mm / 72mm / 108mm based on requirements
Printing unit extension: 1 ~ 24 groups with seamless joint capability
Printing precision: Physics 600 dpi
Linear speed: 70 ~ 180 m/min
Inks: Imported environmentally friendly UV or water-based inks
Substrates: Suitable for paper, plastics, PVC, PP, PE film, etc.

Advanced Software Control

The Printer Control Software (PCS) designed for scanning inkjet printing offers a user-friendly interface to control the printer interactively, monitor status, and set options such as jetting waveforms and temperature for each print head.

Variable Data Printing Software: Supports objects including text, dates, serial numbers, barcodes, Windows Fonts, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files. Supports multiple languages such as English, Spanish, German, French, Portuguese, Russian, and Chinese.

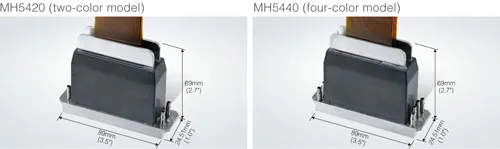

Print Head Specifications

Model	VDG540/VDK720/KY108	Print Head	Ricoh GN5/Konica 1024i/KY
Origin	Japan	Resolution	600×600, 400, 300, 200dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Printing Speed	180m/min (600×200dpi) up to 75m/min (600×600dpi)
Max Width	54/72/108mm × 24 Seamless Joint	Method	Piezoelectric Ink-jet
Drop Size	5-21PL	Inks	Original SGS UV Inks
System	Windows 7	Port	Gigabit Ethernet (Real-time)
Bar Code Formats	UPCA, EAN13, CODE128, QR, DATAMATRIX, etc.	Files Format	MS Excel, TXT, PDF, BMP

Frequently Asked Questions

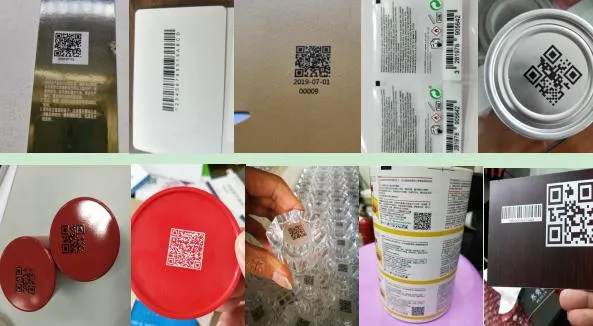

1. What materials can this UV inkjet system print on? The system is highly versatile and suitable for all kinds of paper, plastics, and films including PVC, PP, and PE.

2. What is the expected lifespan of the print heads? The industrial piezoelectric nozzles (Ricoh/Kyocera/Konica) have a normal lifespan of more than 3 years, capable of approximately 10 billion printing times.

3. What are the maximum printing speed and resolution? The system can reach speeds up to 180m/min at 600×200dpi resolution, or 75m/min at a high precision of 600×600dpi.

4. Does the software support variable data and multiple languages? Yes, the Variable Data Printing Software supports text, barcodes, and images from databases (Excel/CSV/PDF) and is available in English, Spanish, French, German, and more.

5. Can multiple print heads be combined for wider printing? Yes, the system supports seamless joint technology, allowing for up to 24 groups of printing units to be extended together.
