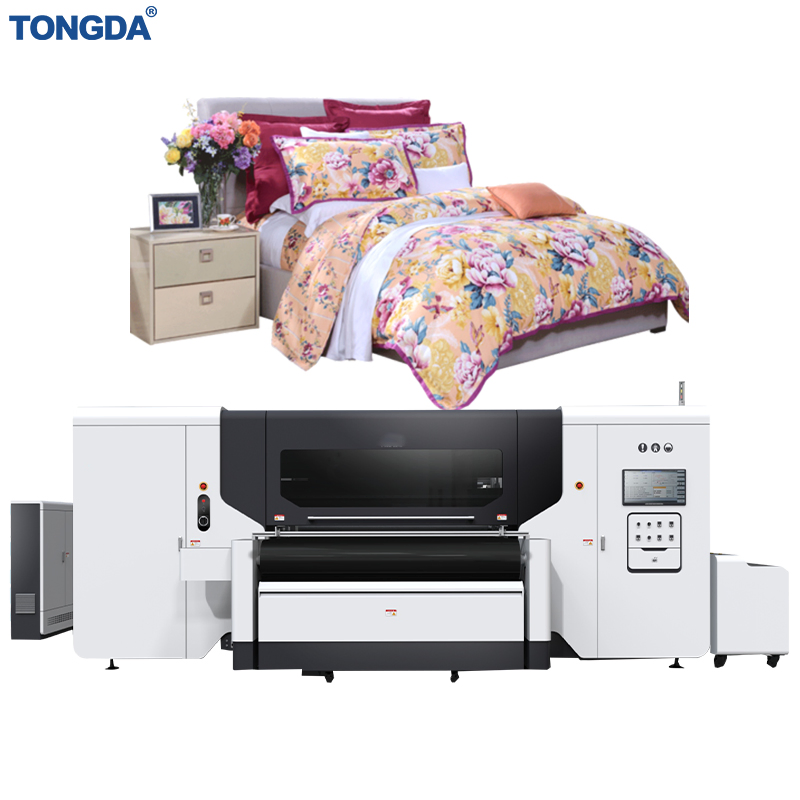

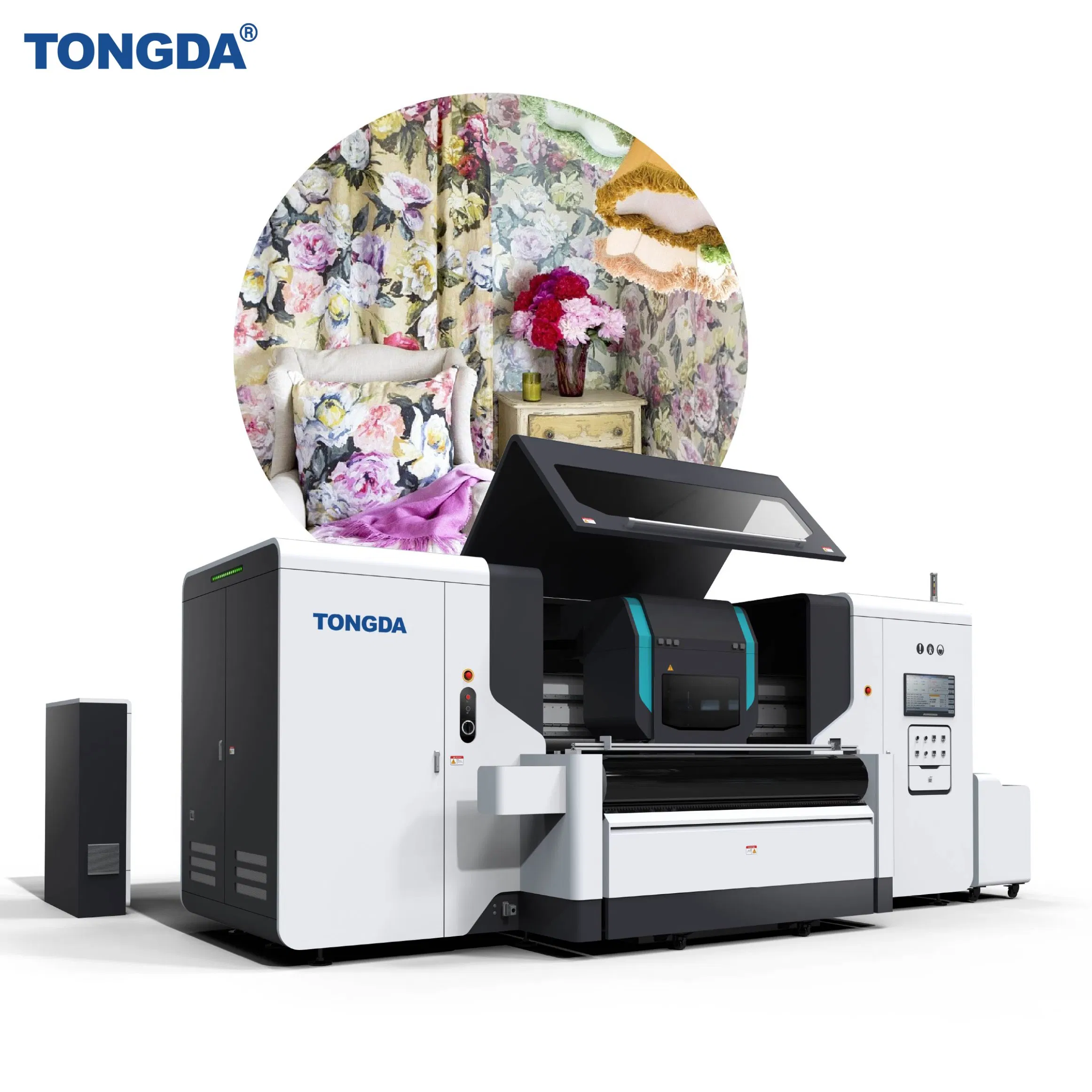

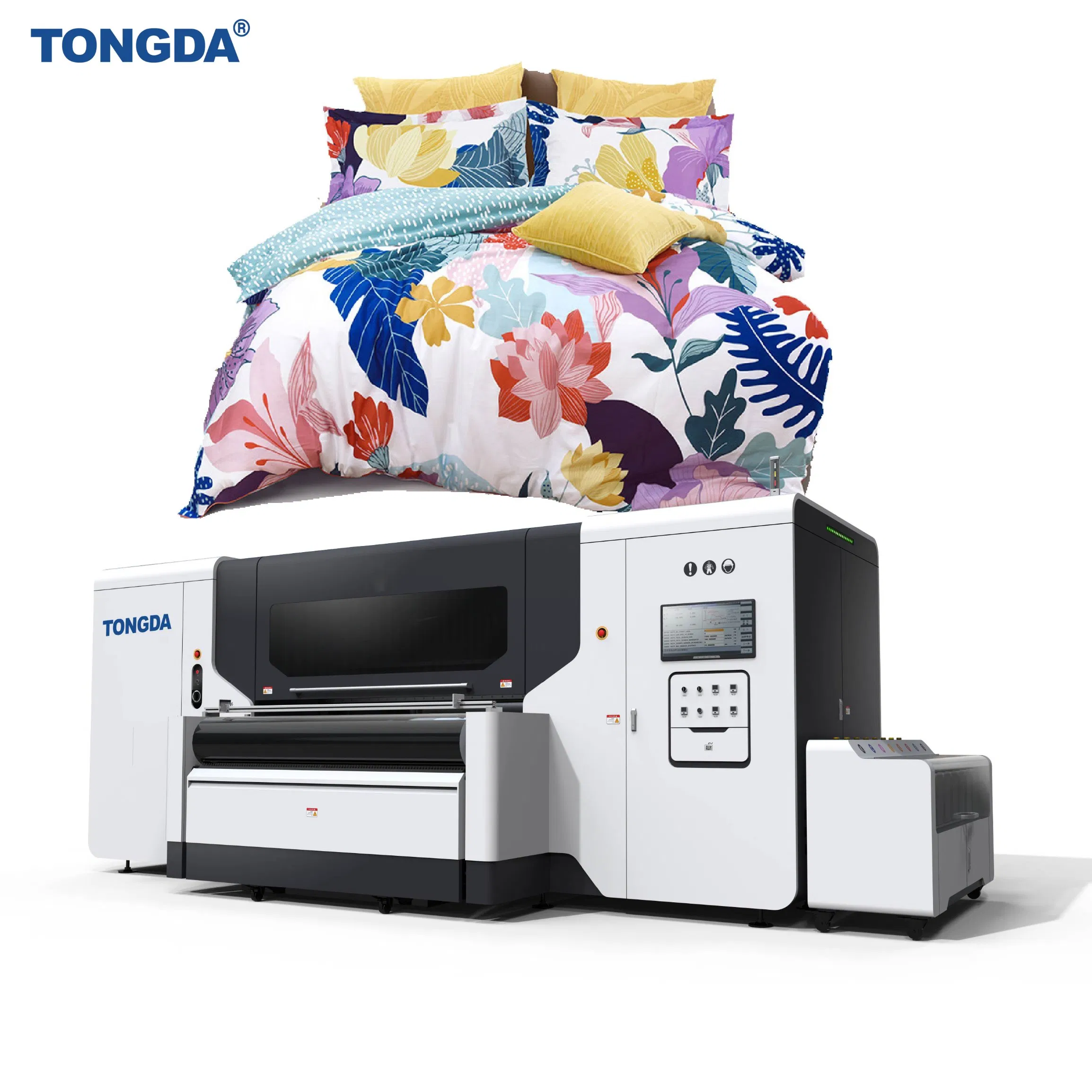

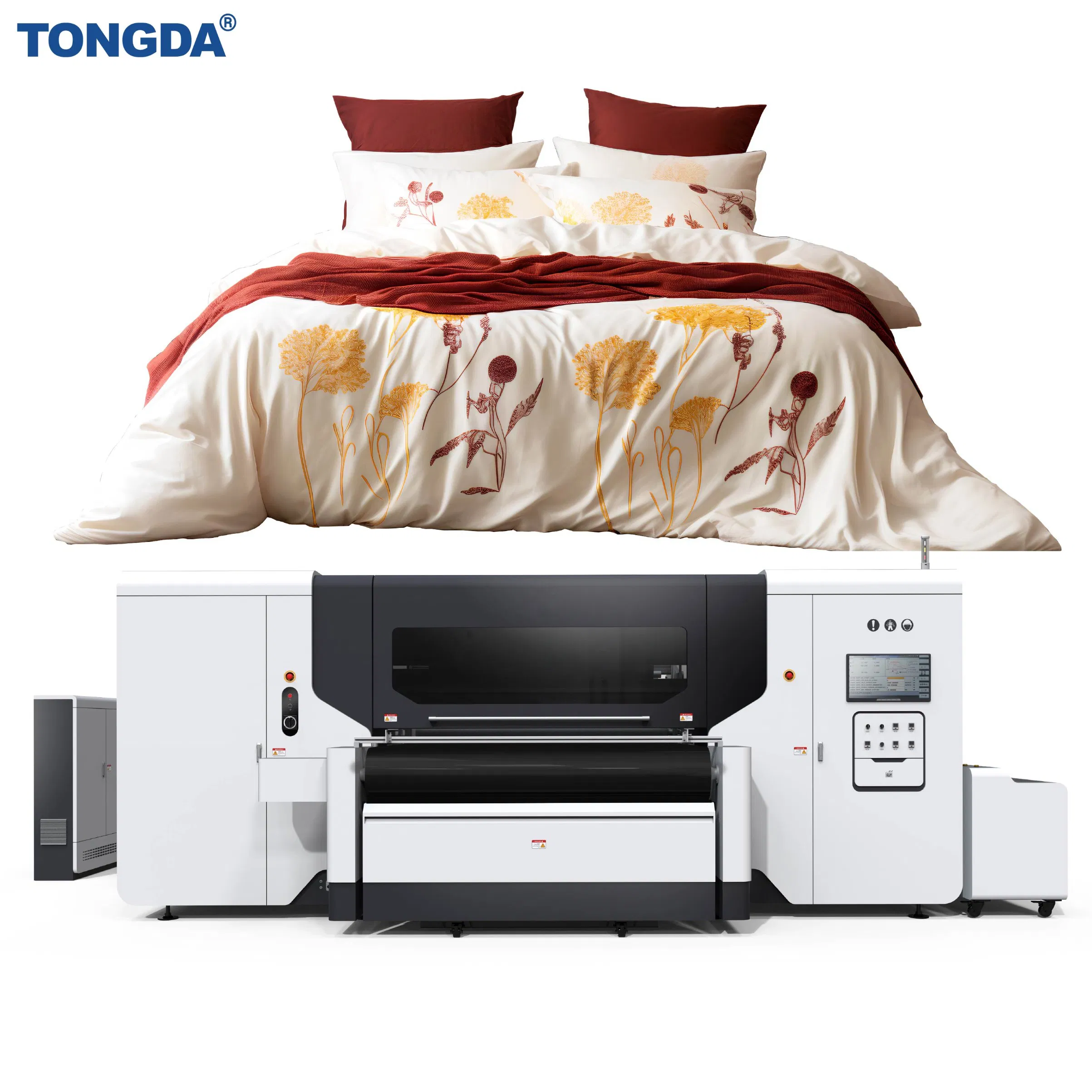

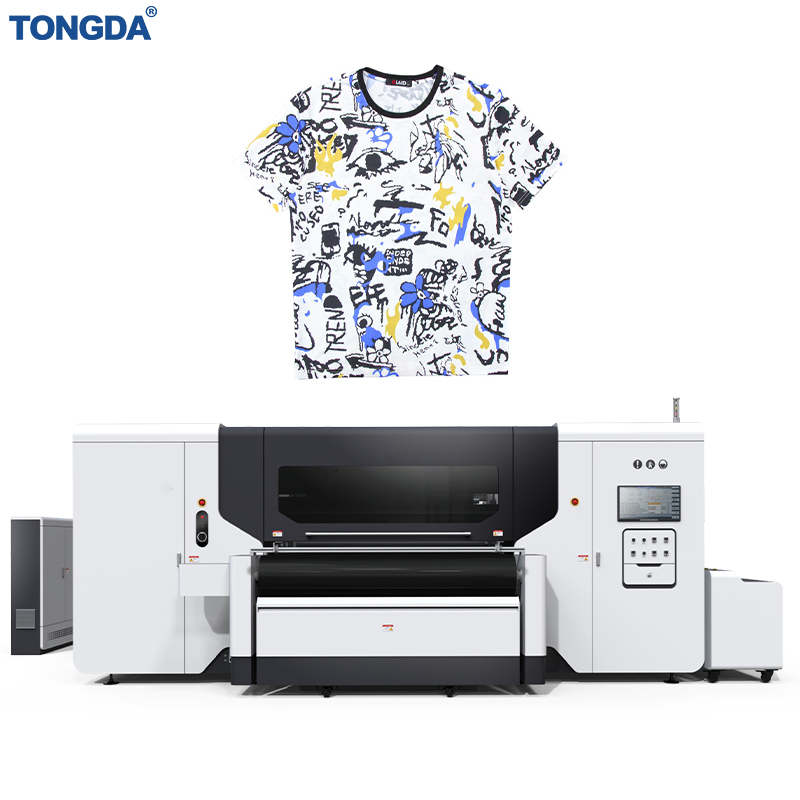

Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
1 / 5
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment
Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment

Tongda Industrial Digital Fabrics Printing Textile Machine, High-Speed Direct-to-Fabric Printing Equipment

Customization: Available
Automatic Grade: Automatic
Working Width: 2.6m
Send Inquiry

Product Description

⚙️

Basic Information

Model NO.
TD1832
Material
Silk Fabric
Voltage
380V
Load Capacity
1000-2000kg
Certification
CE
Warranty
1 Year
Condition
New
After-sales Service
Provided
Effective Print Width
1800/2200/2600mm
Rip Software
Neostampa/Texprint
Main Ink Tank
10L/15L
📦

Packaging & Delivery

Package Size
519.50cm * 220.00cm * 175.00cm
Gross Weight
3000.000kg
🖼️

Product Showcase

Industrial Digital Fabrics Printing Machine

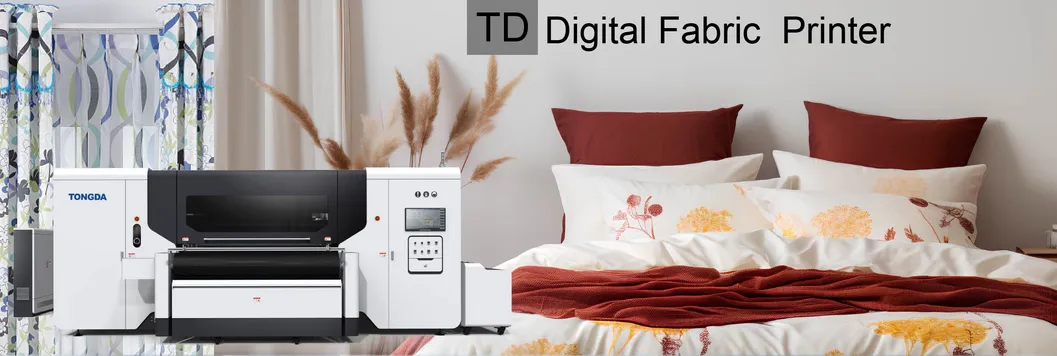

Printing Detail 1

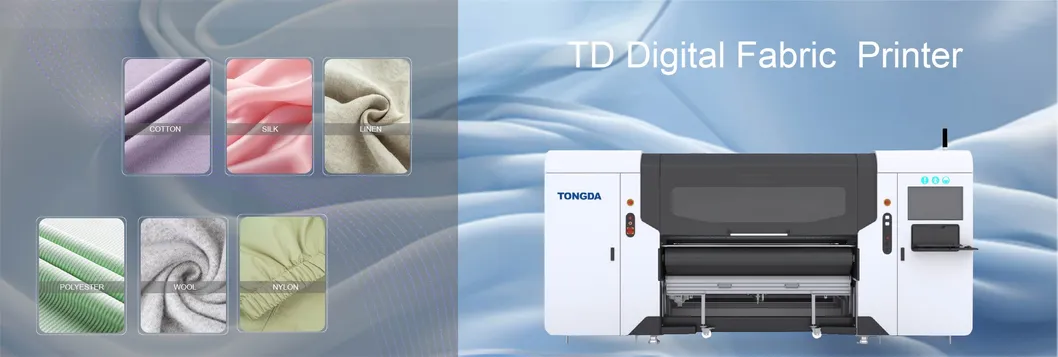

Printing Detail 2

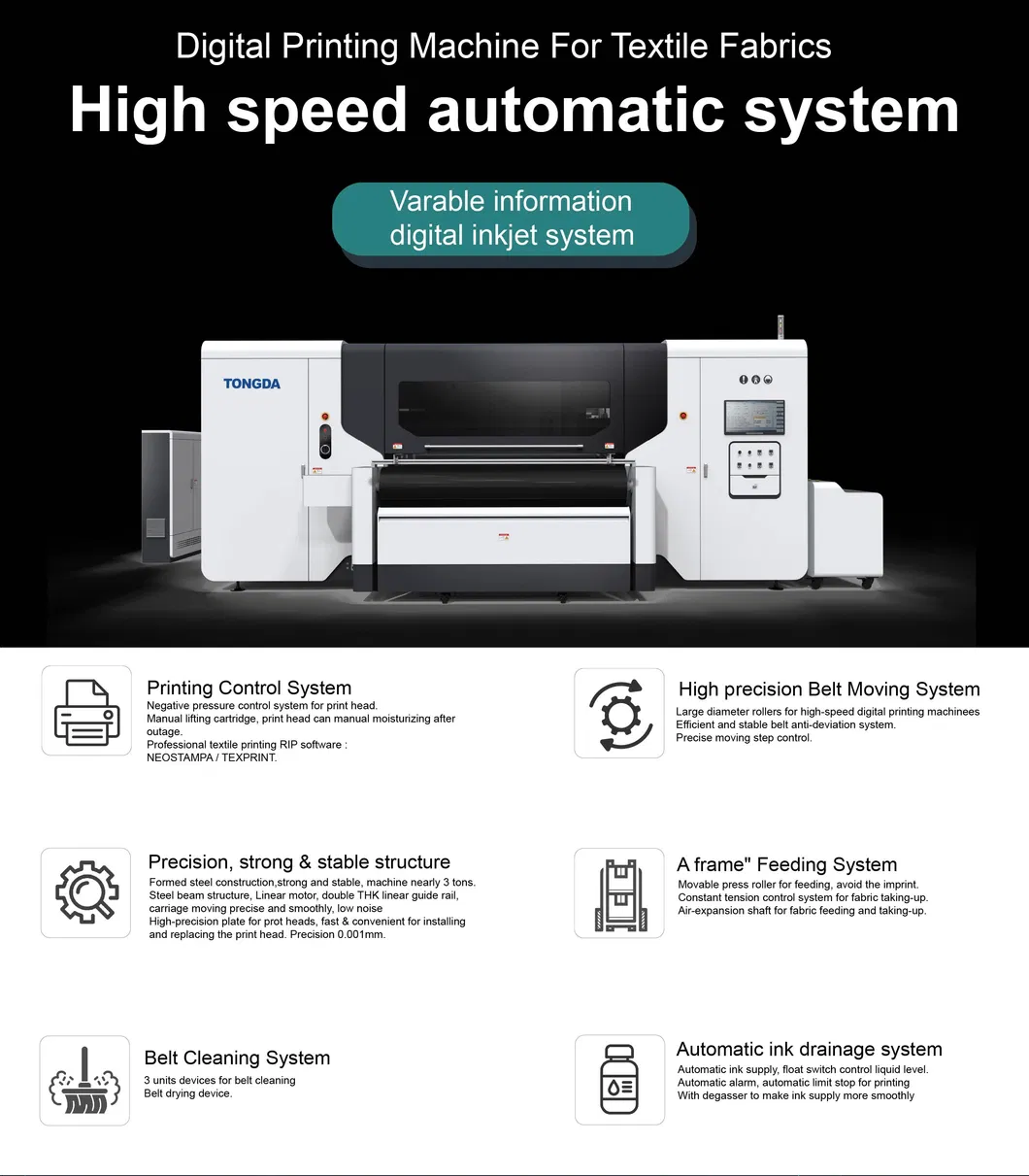

High Speed Printing Equipment
Color Pattern Capability

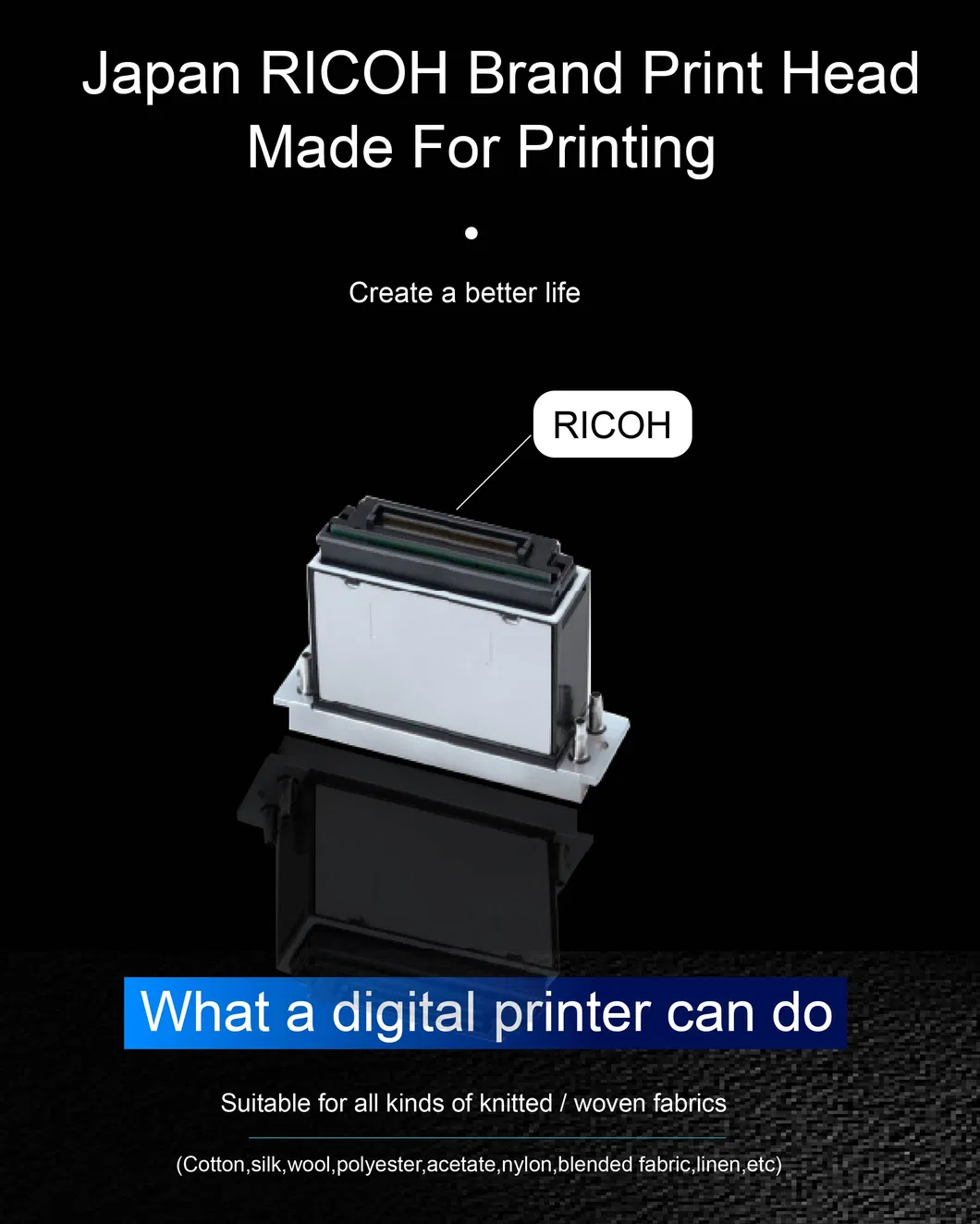

Industrial Textile Machine
Digital Printing System
📊

Main Technical Parameters

Product Mode TD1832
Print Head Ricoh GEN5E/GEN6
Conveyance Mode Adhesive belt with cleaning and heating system
Printing Resolution Up to 2400DPI
Speed (Gen6) 1 Pass: 1300m²/h | 2 Pass: 650m²/h
Ink Type Reactive / Disperse / Acid / Pigment ink
Printing Features Automatic negative pressure ink supply, car lifting, positive pressure cleaning, moisturizing, and anti-collision system.
Dryer Unit 3 tiers industry dryer with off plane
Power Consumption Printer: 40kw; Oven: 6KW

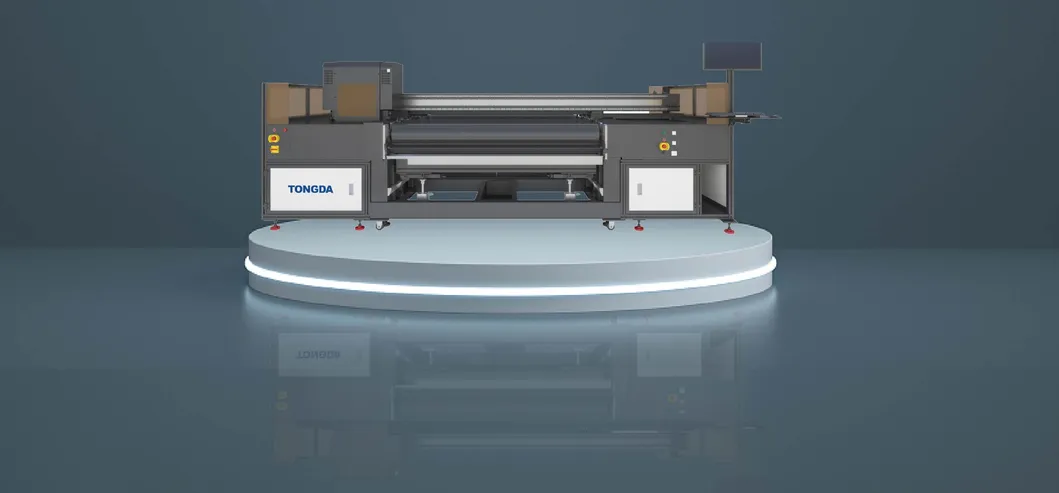

Polyester Fabric Printing

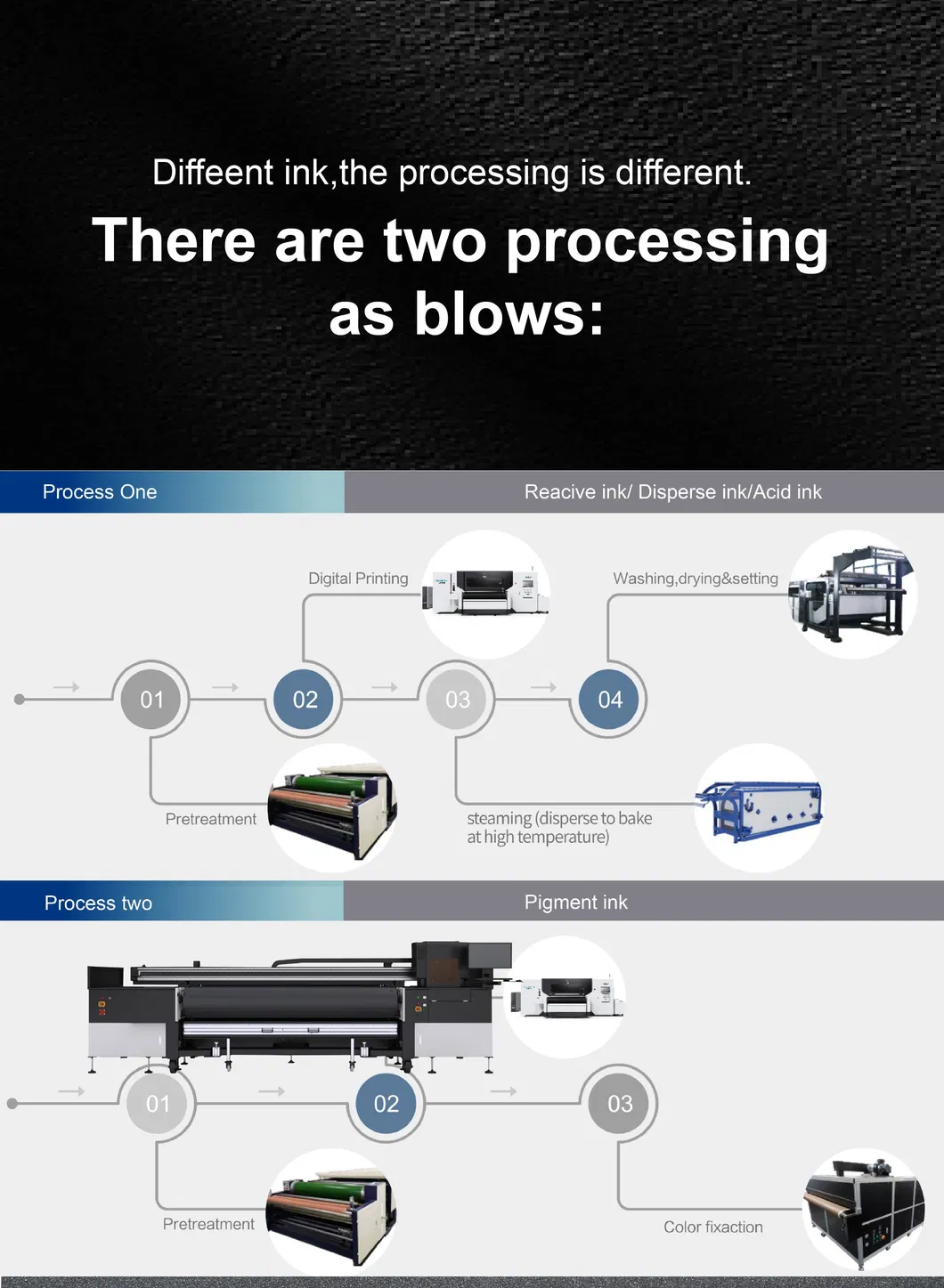

Feature 1
Feature 2
Textile Fabric Solution
❓

Frequently Asked Questions

What materials are compatible with this digital printing machine?
The TD1832 is highly versatile and suitable for various fabrics including Silk, Wool, Nylon, and Polyester.
What is the maximum printing speed of the equipment?
Equipped with Gen6 print heads, it can reach a high-speed performance of up to 1300m²/h in 1 pass mode and 650m²/h in 2 pass mode.
What kind of maintenance systems does the machine include?
It features an automatic belt cleaning and heating system, automatic positive pressure cleaning, and an anti-collision system for the print heads.
Which RIP softwares are supported?
The system is compatible with industry-standard RIP software such as Neostampa and Texprint.
What are the power and environmental requirements for the workshop?
The machine requires a 380V power supply. The ideal workshop temperature should be 20-30°C with a humidity level of 50-65%.
Is after-sales service provided?
Yes, full after-sales service is provided, and the equipment comes with a 1-year warranty.

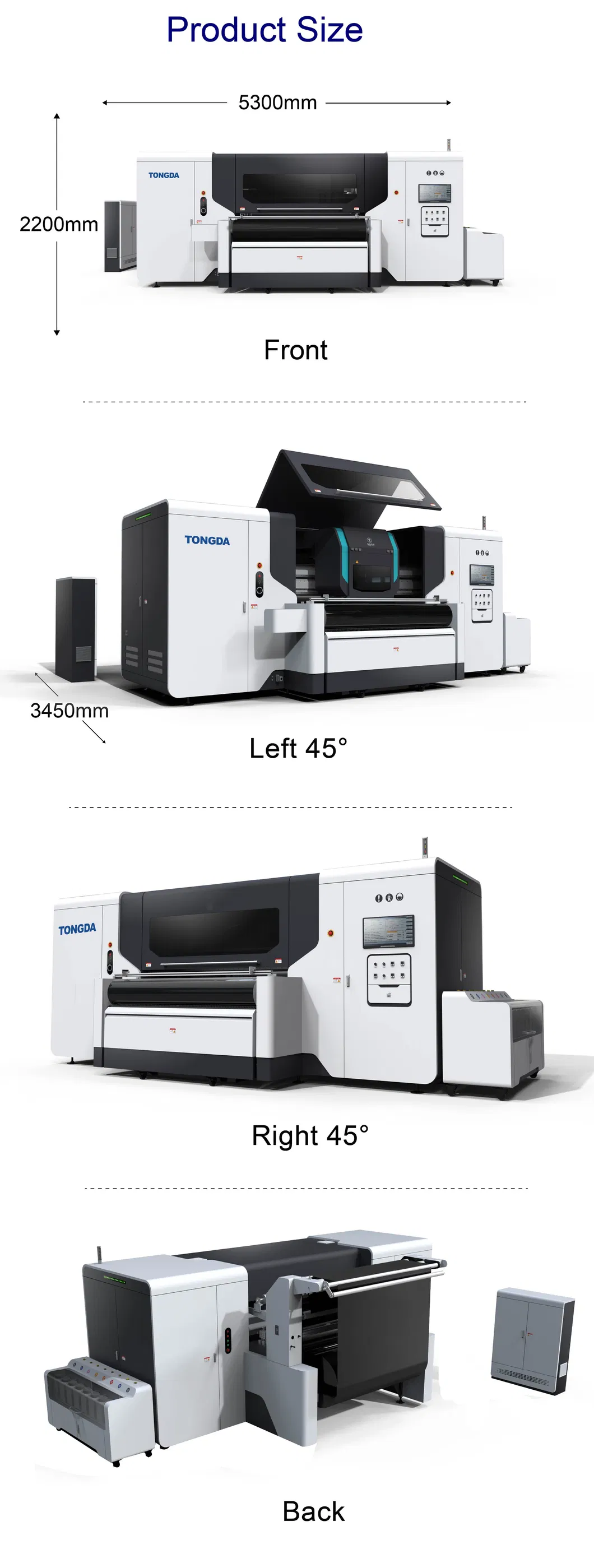

Process View 1

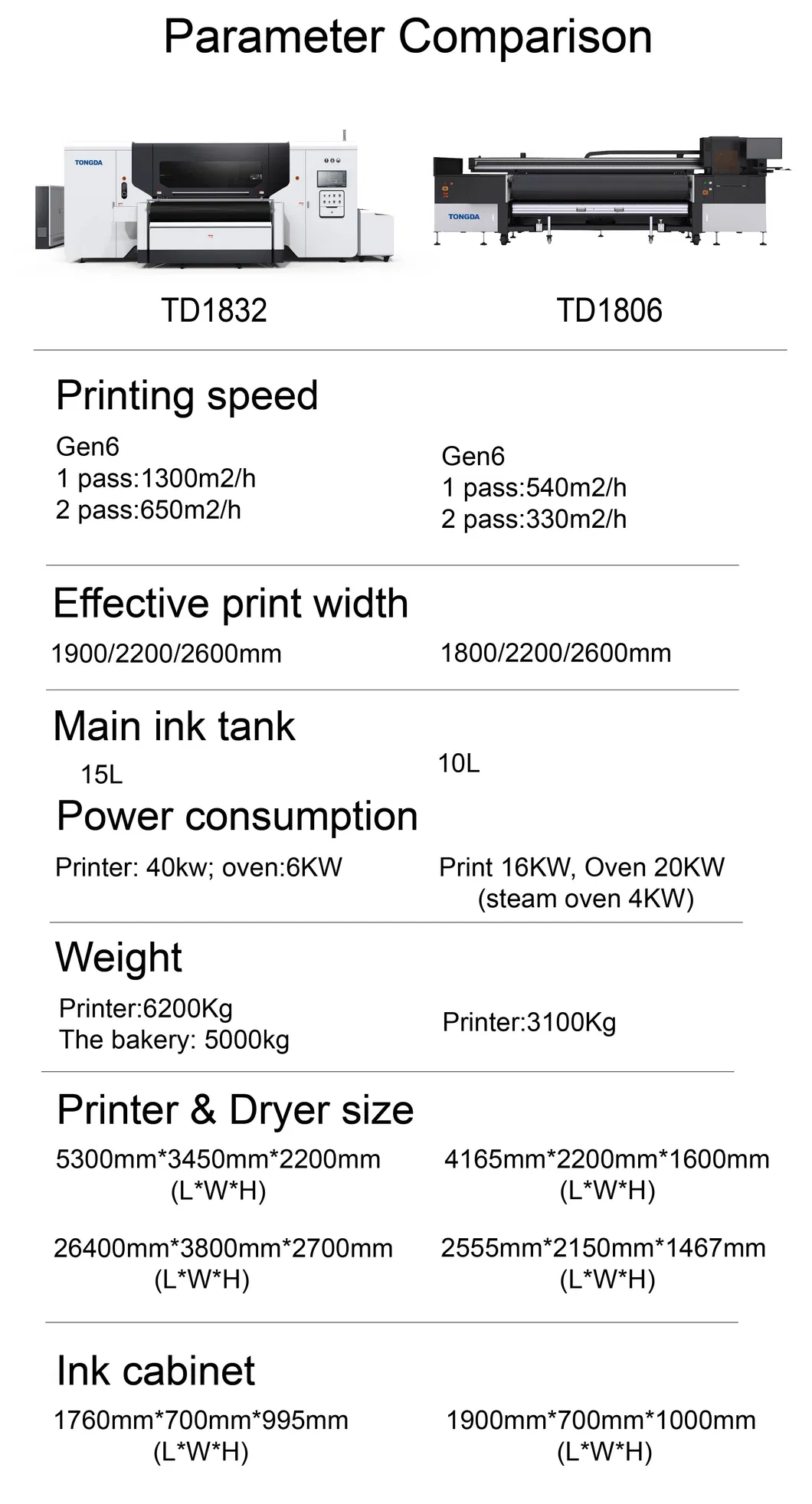

Process View 2
Final View 1
Final View 2
Final View 3
