Textile Screen Printing Thick Emulsions Exposure Film Free Vertical Laser Direct Imaging Exposure Unit

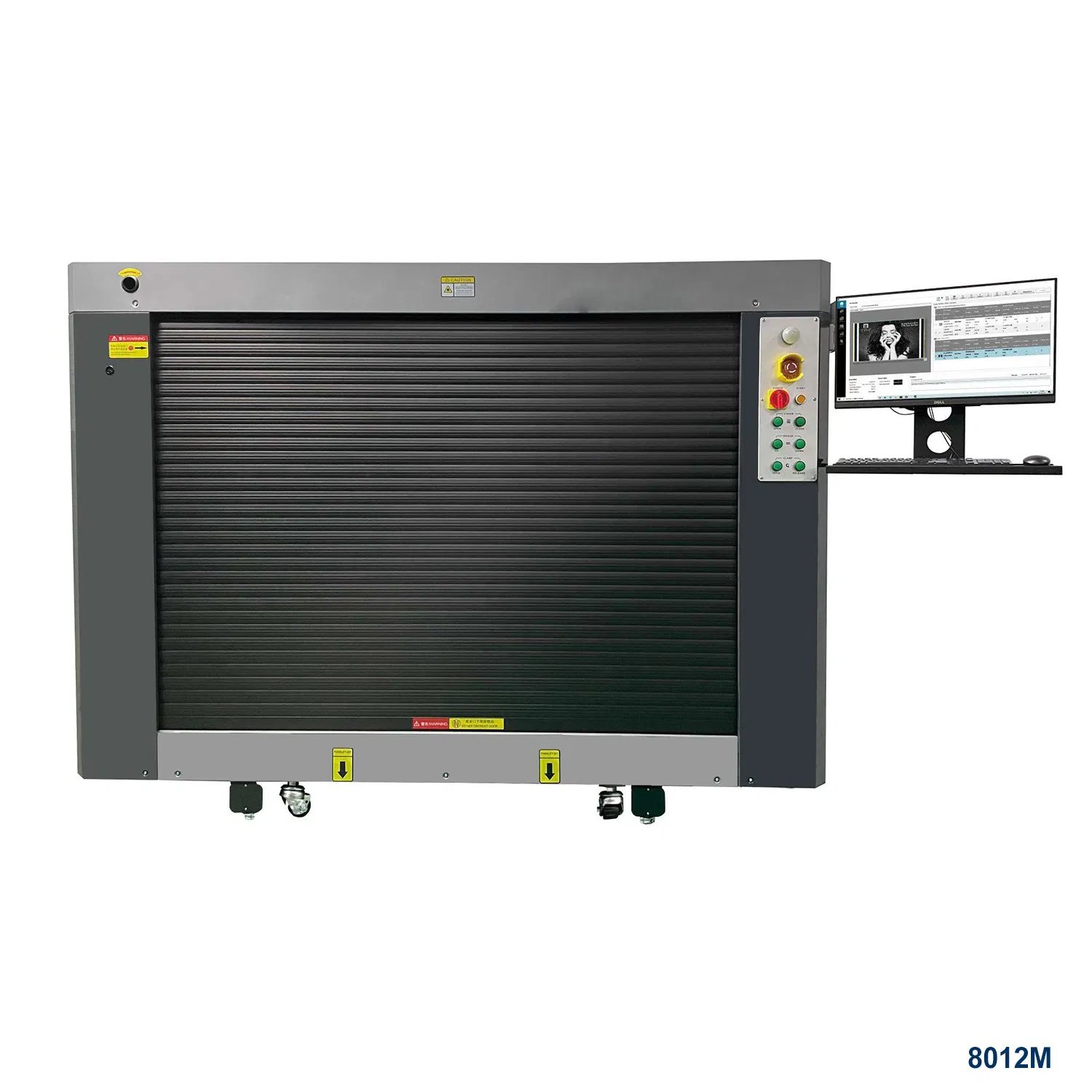

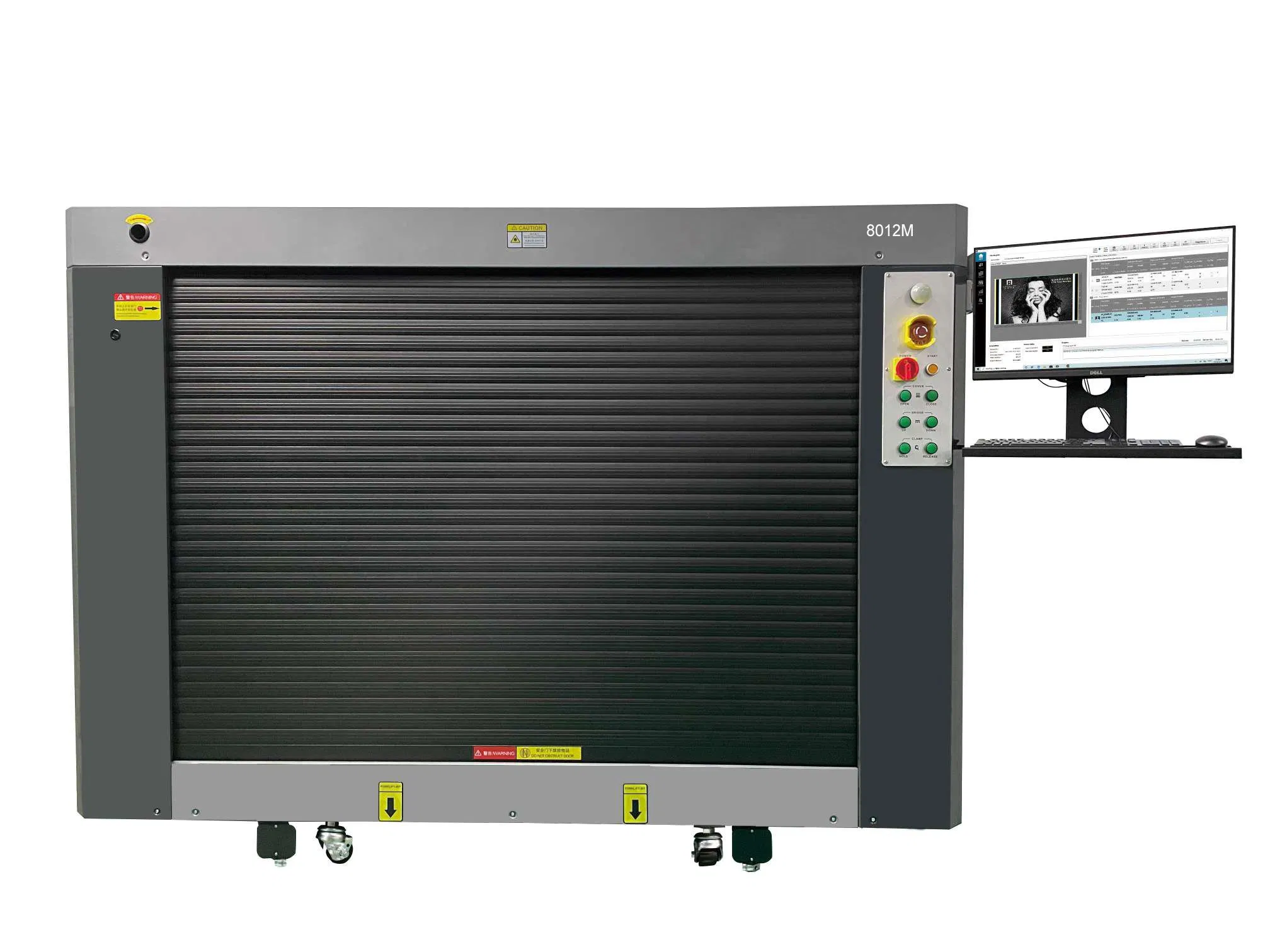

The 8012M series is a vertical laser exposure machine designed for multi-industry screen printing panel production. It offers high precision, high power, high speed, and exceptional efficiency for modern printing workflows.

• Maximum exposure range up to 1.00mm x 1580mm.
• Suitable for clothing, packaging, labels, PCB, and photo-electric industries.
• Level 160 controllable exposure power.
• Real-time focus with up to 4mm focal depth.
• Laser scanning speed up to 3m/s for rapid image output.
• High degree of equipment integration.
• Supports multiple formats: TIFF, Gerber, DXF, BMP, and more.

High Precision: Analytical resolution up to 2540 DPI.

High Power: Maximum exposure energy of 150mj/cm2; Maximum optical power 20 watts; light source penetration up to 1000 micron.

High Speed: Linear motion speed 2~3m/s; exposure time less than 5 minutes.

Strong Adaptability: Compatible with water, oil, diazo, and ammonia stack emulsions. No special requirements for frame flatness.

High Reliability: Core laser features a 20,000-hour super long working life with no attenuation for the first 10,000 hours.

• First-year Warranty: Free maintenance provided by the manufacturer. Components are designed for long-term reliability (4+ years).
• Extended Support: After the first year, on-site service is available with travel and accommodation expenses covered by the customer.
