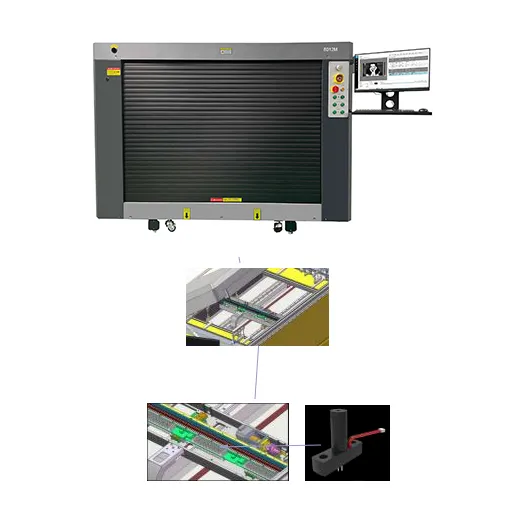

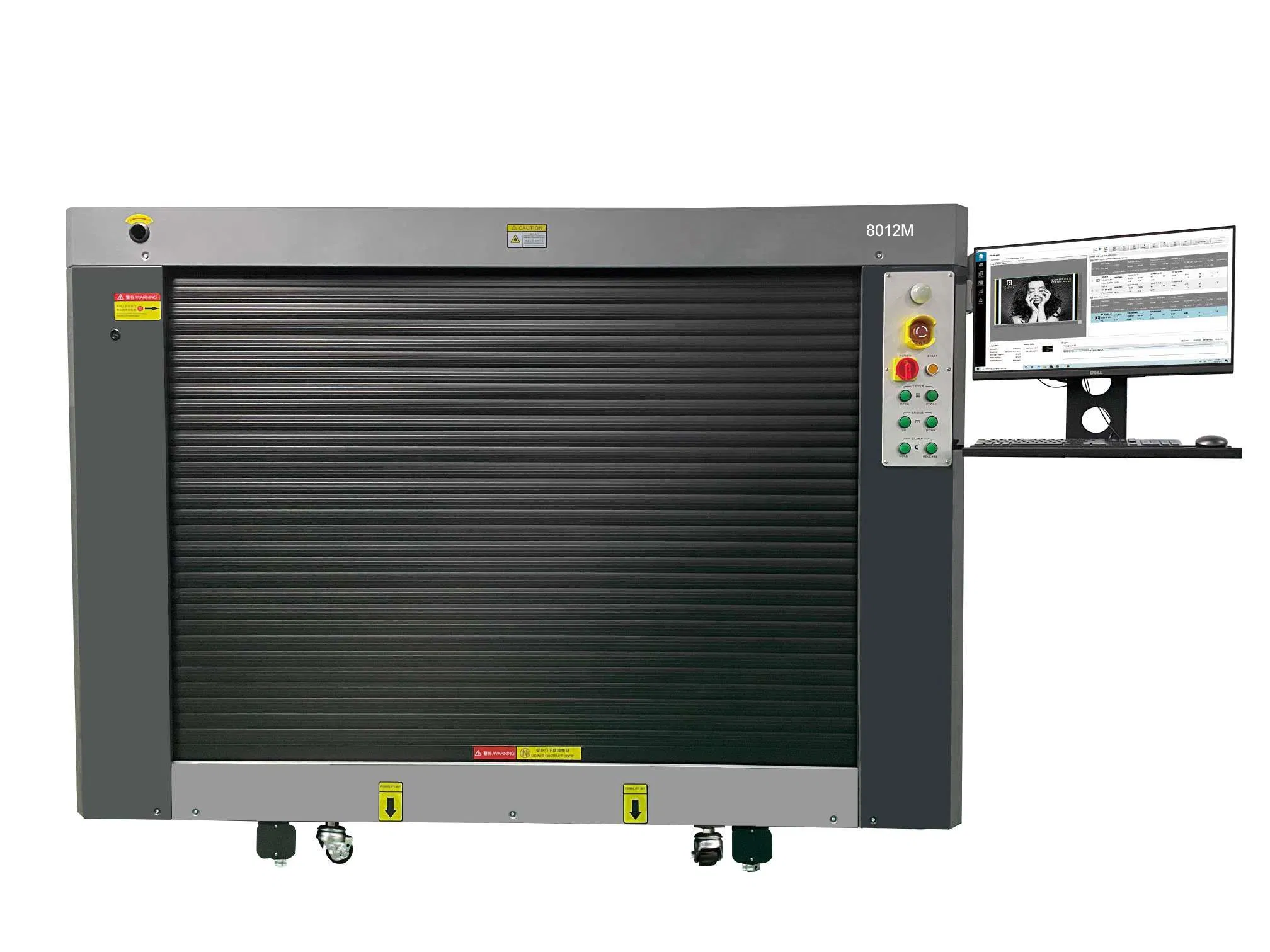

The 8012M series is a premium vertical laser exposure machine specifically engineered for multi-industry screen printing panel production. It delivers high precision, high power, and exceptional efficiency for modern printing needs.
Broad Range: Maximum exposure range up to 1.00mm x 1580mm.
Multi-Industry: Ideal for clothing, packaging, labels, PCB, and photo-electric industries.
Advanced Control: Level 160 controllable exposure power with real-time focus up to 4mm focal depth.
Fast Processing: Up to 3m/s laser scanning speed for rapid image output.

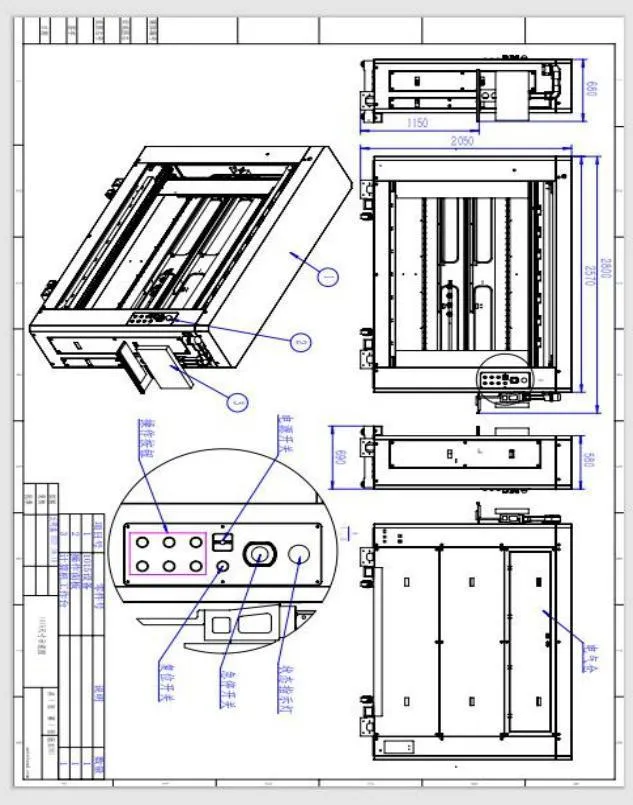

| Size (L*W*H) | 2285*685*1690 mm |
| Net Weight | 925 Kg |
| Gross Weight | 1190 Kg |
| Image Size | Maximum 800*1200 mm |
| Frame Size | Maximum 1100*1700 mm |
| Exposure Light | 405 nm laser |
| Repeatability | Less than 0.1 mm |
| Emulsion Thickness | Maximum 1000 μm |
| Exposing Speed | Less than 2.5 minutes |
| Interface | USB 2.0 / 3.0 |
Warranty: The first year includes free manufacturer maintenance. The main components are designed for long-term industrial use (4+ years). Solutions are optimized for low cost and high reliability.
