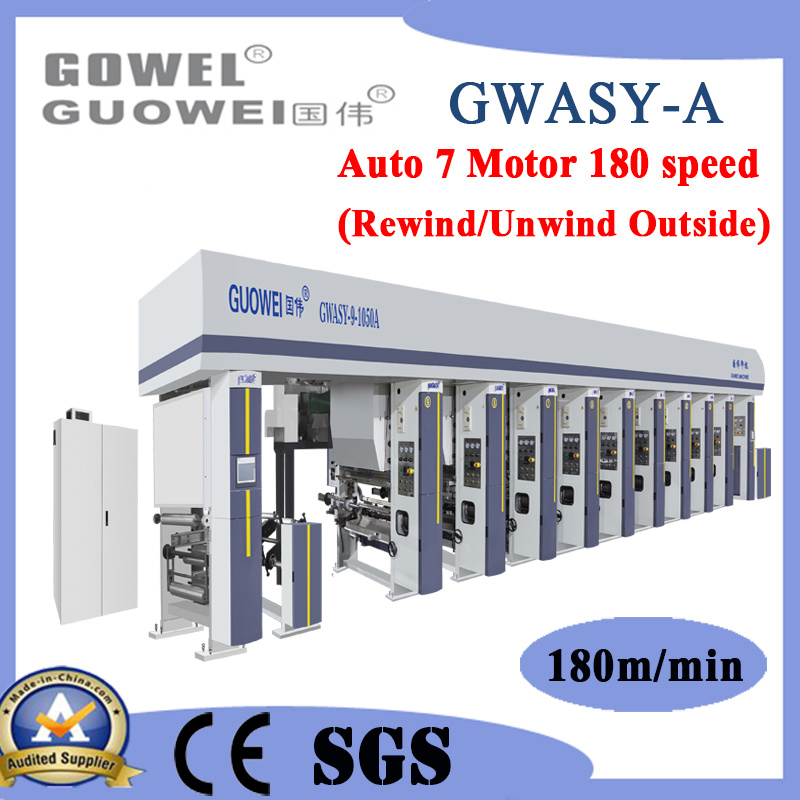

Textile, Film, Paper, Plastic Printing Equipment with 180 M/Min

1 / 5

Textile, Film, Paper, Plastic Printing Equipment with 180 M/Min

Customization:	Available
Certification:	CE
Condition:	NEW

Send Inquiry

Product Description

ℹBasic Specifications

Model NO.

GWASY-A

Applicable Material

Textile, Film, Paper, Plastic

Usage

Flexible Packaging Gravure Printing Machine

Automatic Grade

Automatic

Structure

Rotary Type Printing Machine

Printing Color

8 (Adjustable)

Machine Speed

180 M/Min

+-0.1mm

Guarantee

1 Year

HS Code

8443170001

★Product Description

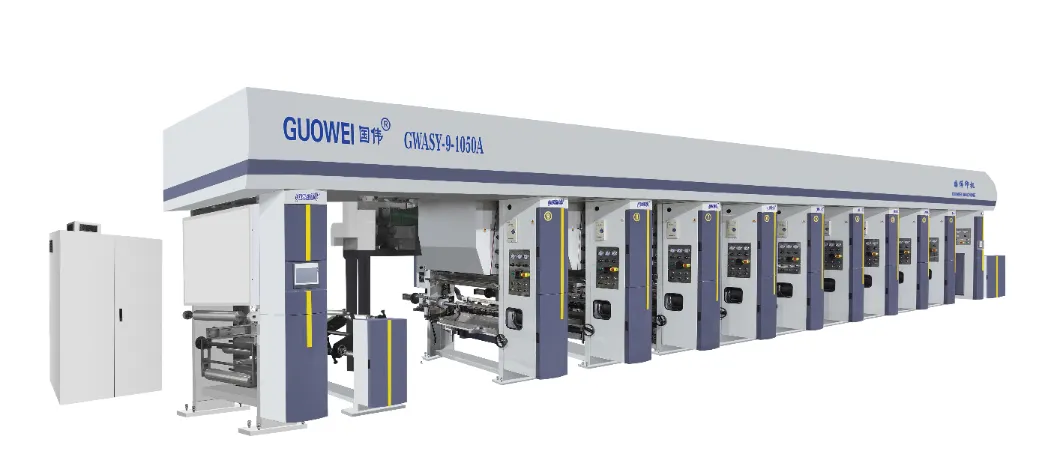

Textile, Film, Paper, Plastic Printing Equipment (180 M/Min)

This high-speed machine is engineered for BOPP, PET, PVC, PE, aluminum foil, and roll paper. It features excellent properties for continuous color printing on thin film reel materials, making it ideal for high-grade print applications.

Key Features & Systems

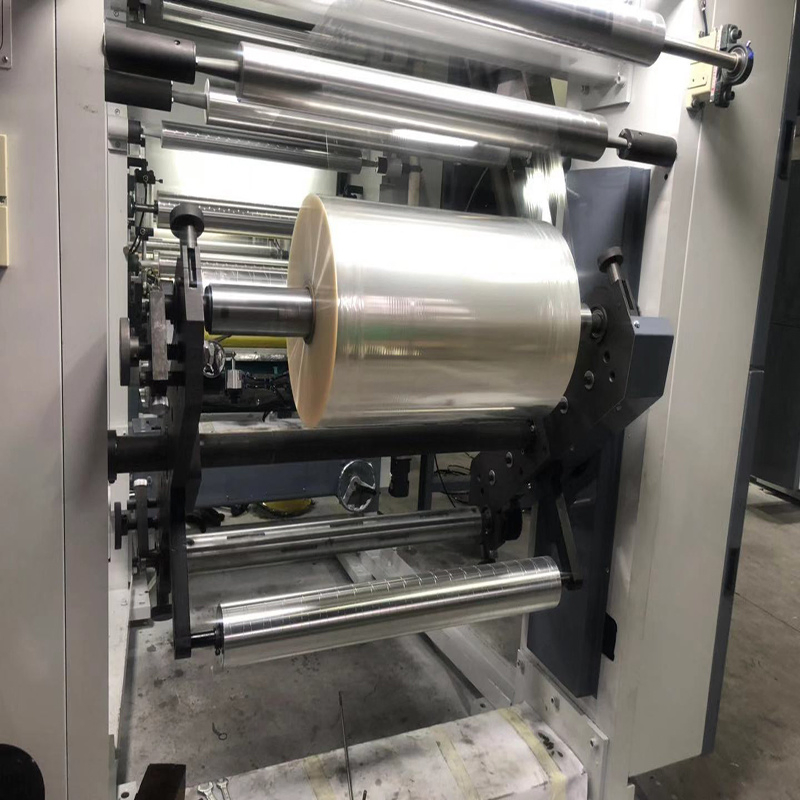

Unwind and Rewind: Outside type with Air shaft loading/unloading for fast, secure operations.
Precision Printing: Vertical register system with high precision and minimal waste.

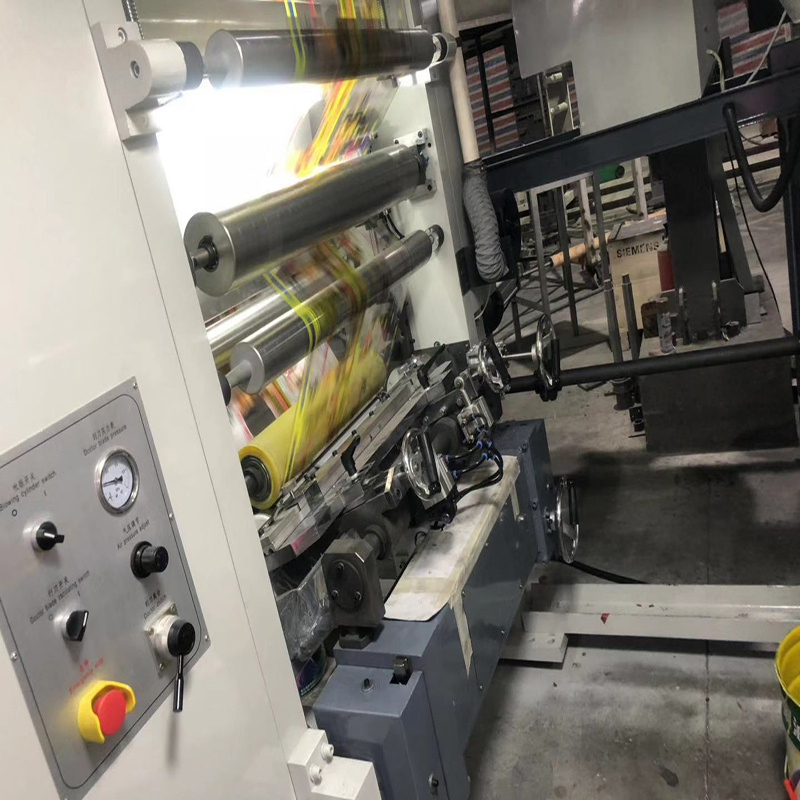

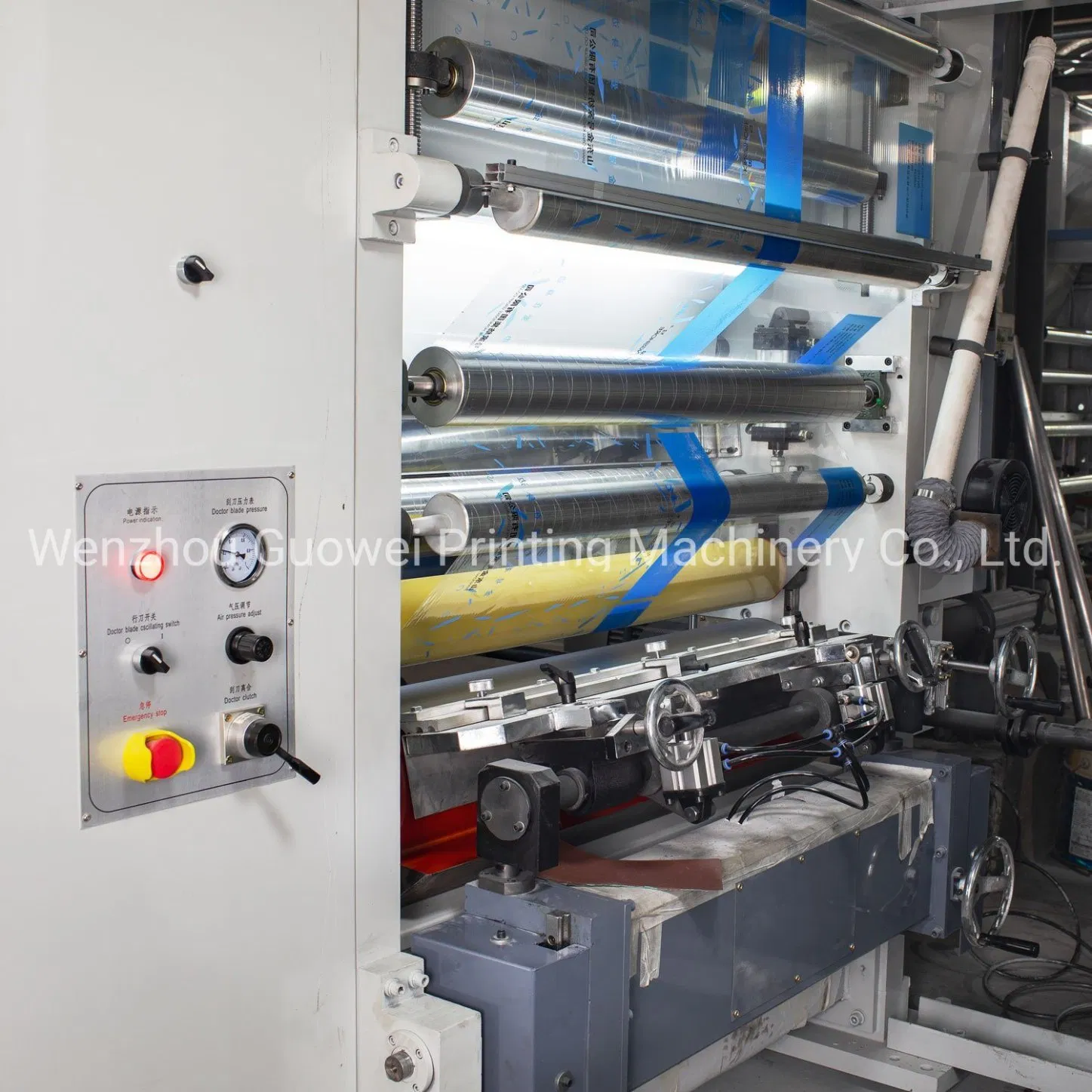

Doctor Blade: Double-axis design driven by an independent motor.

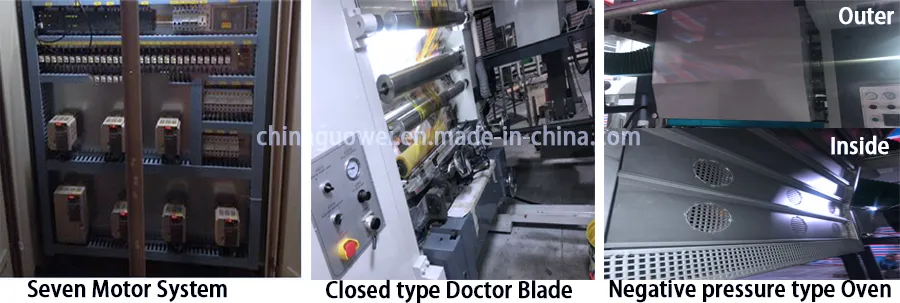

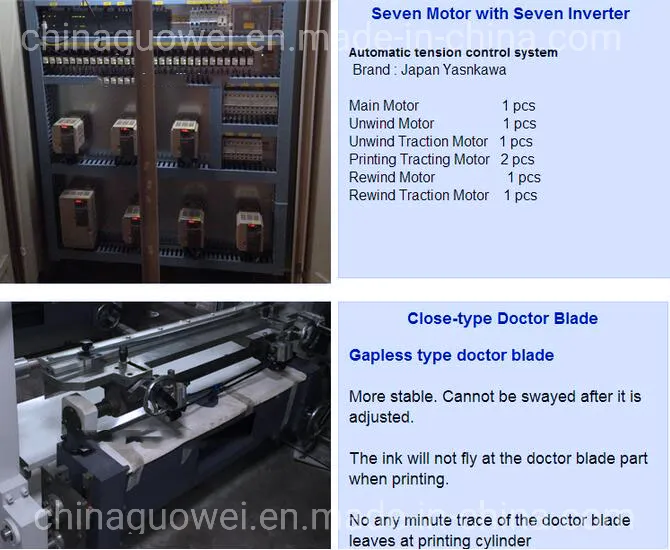

Advanced Control: Equipped with Siemens PLC, YASKAWA frequency converter, and a seven-motor tension control system.

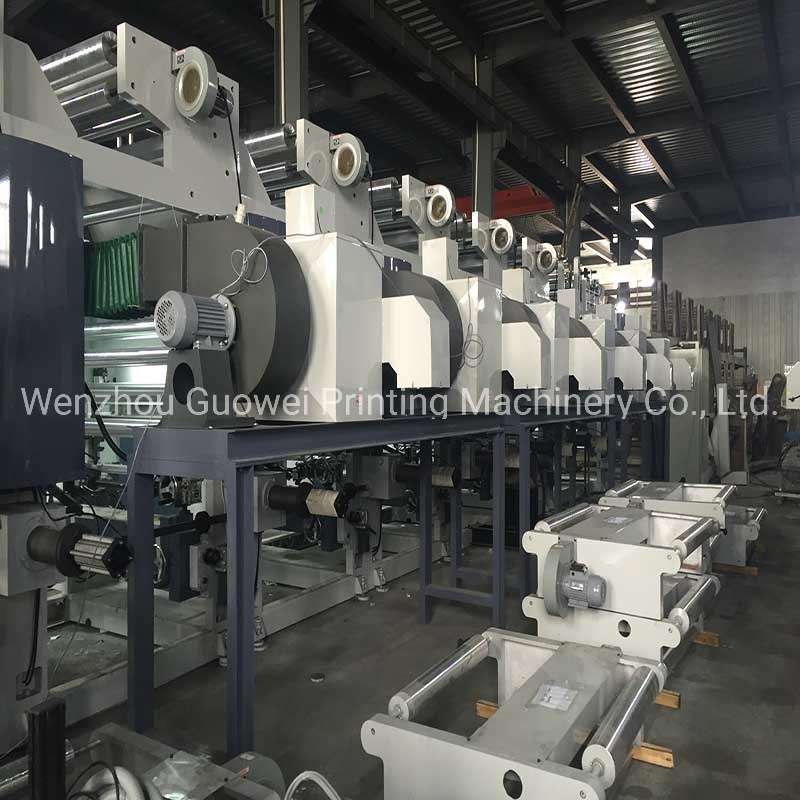

Drying Technology: Patent technology ovens using high-temperature axial fans and built-in heating.

Printing Material	BOPP, PET, PVC, PE, aluminum foil and roll paper
Color Range	Multicolor 8 (Scalable from 1-13)
Max Printing Width	600mm, 800mm, 1000mm, 1100mm, 1200mm
Max Printing Speed	180 m/min
Cylinder Diameter	100-320 mm
Drying Method	Electric, Steam, or Oil heating
Register Precision	+-0.1mm

⚙Unwinding & In-feed Units

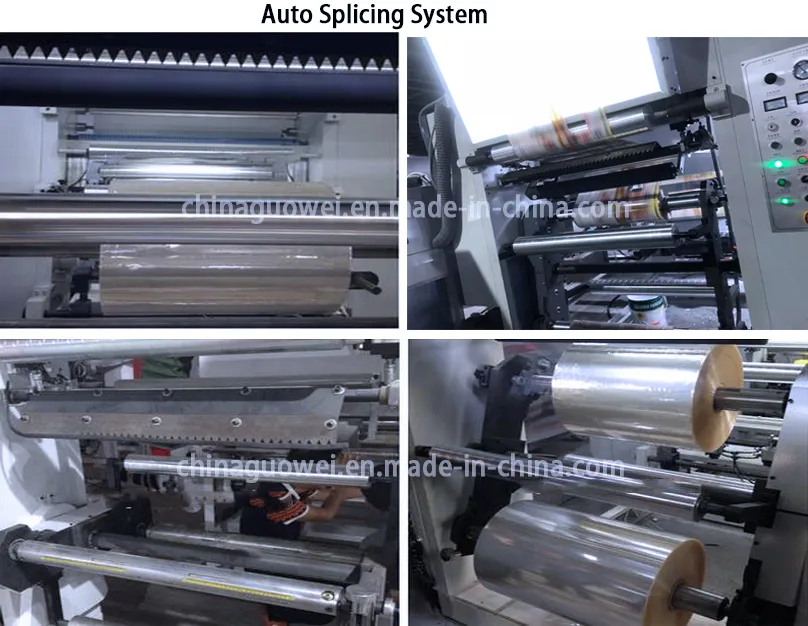

The system utilizes built-in arms double working position rotary racks with dual motor drives and independent vector frequency conversion control. It includes tension detecting and oscillating roll stabilization for a closed-loop control environment.

♨Drying & Rewinding

Independent monochromatic drying systems with heat source recycling ensure energy efficiency. Rewinding features high-speed non-stop refueling and automatic cutting with inflatable shaft supports.

📦Packaging & Delivery

Packaging Details: Wooden pallet or plastic film protection.
Delivery Timeline: 30-60 days.
Main Port: Ningbo Port.

?Frequently Asked Questions

What materials can this printing machine process?

The equipment is compatible with a wide range of flexible materials including BOPP, PET, PVC, PE, aluminum foil, roll paper, and various textiles.

How is the printing precision maintained?

The machine uses a vertical register system and a seven-motor tension control system combined with Siemens PLC and YASKAWA frequency converters to achieve a precision of +-0.1mm.

What is the maximum production speed?

The machine is capable of a stable maximum printing speed of 180 meters per minute.

Is overseas technical support available for installation?

Yes, engineers are available to travel overseas for machine installation and service. Buyers are responsible for travel expenses, visa costs, and a daily service fee.

What is the warranty period for this equipment?

All machines come with a comprehensive one-year guarantee, starting from the date the installation is completed.

How does the drying system save energy?

The drying unit features a closed oven design where the heat source can be utilized for two-times return air utilization, significantly reducing energy consumption.
