Spg Automatic Textile Silk Screen Printing Equipment for T-Shirt Garment Non-Woven Bag Shoes Face

Customization:	Available
Type:	Automatic Screen Printing Machine
Style:	Screen-process Printing Press

i

Basic Information

Model NO.

SPG

Structure

Platen Press

Color & Page

Multi-Colour Printing

Application

Packaging Printing

Transport Package

Standard Wooden Package

Specification

CE, SGS

Origin

China

HS Code

8443192290

Production Capacity

20 Sets/Month

P

Product Description

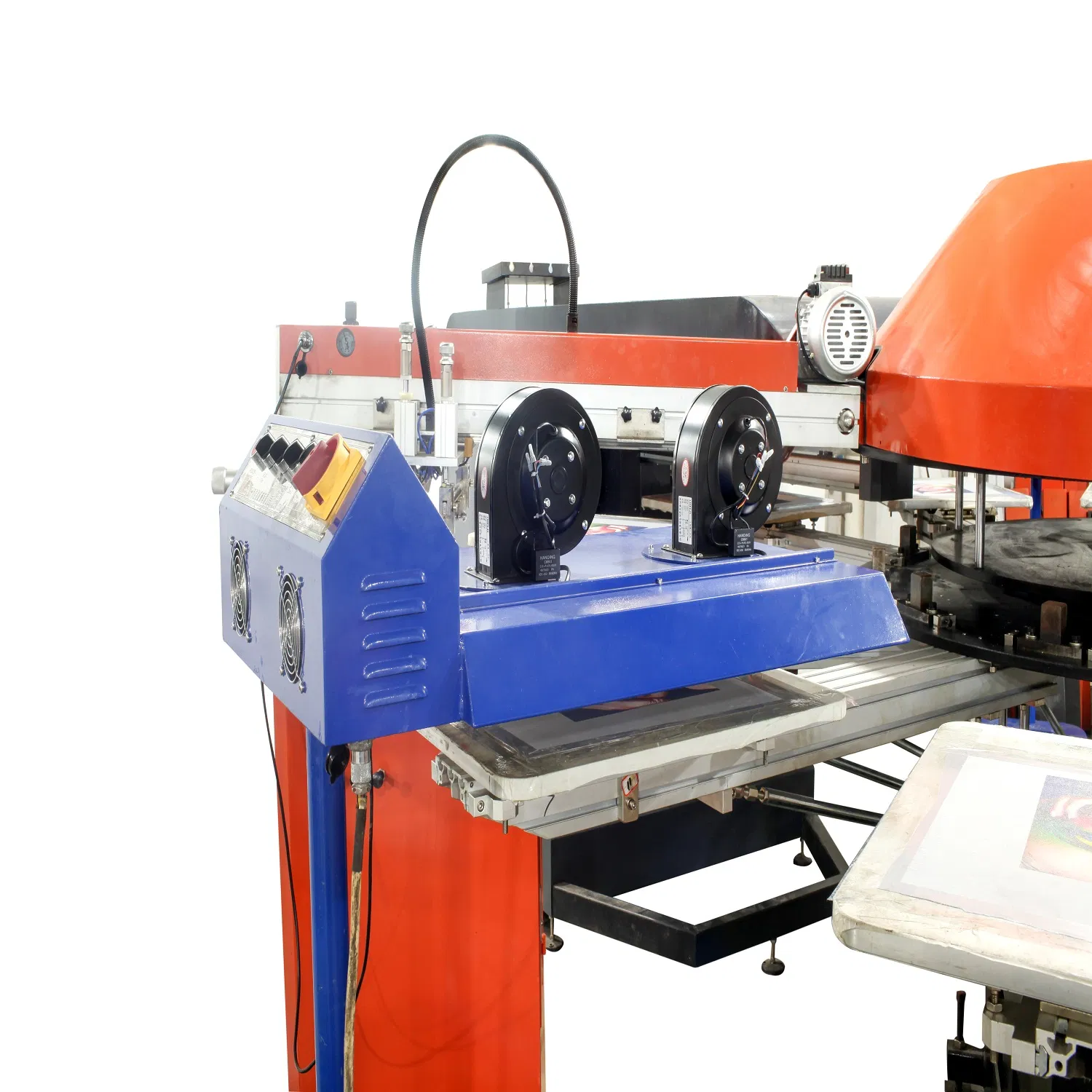

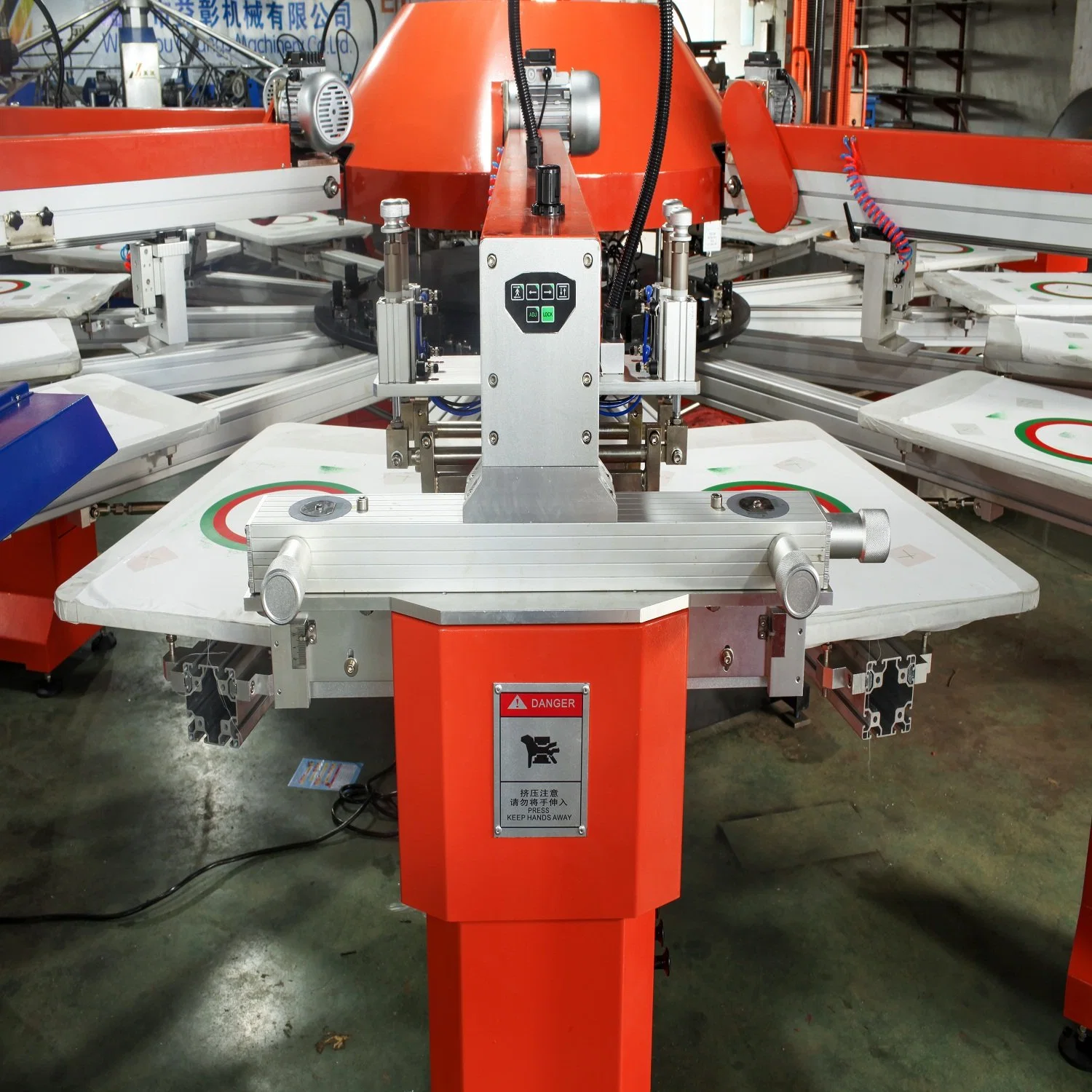

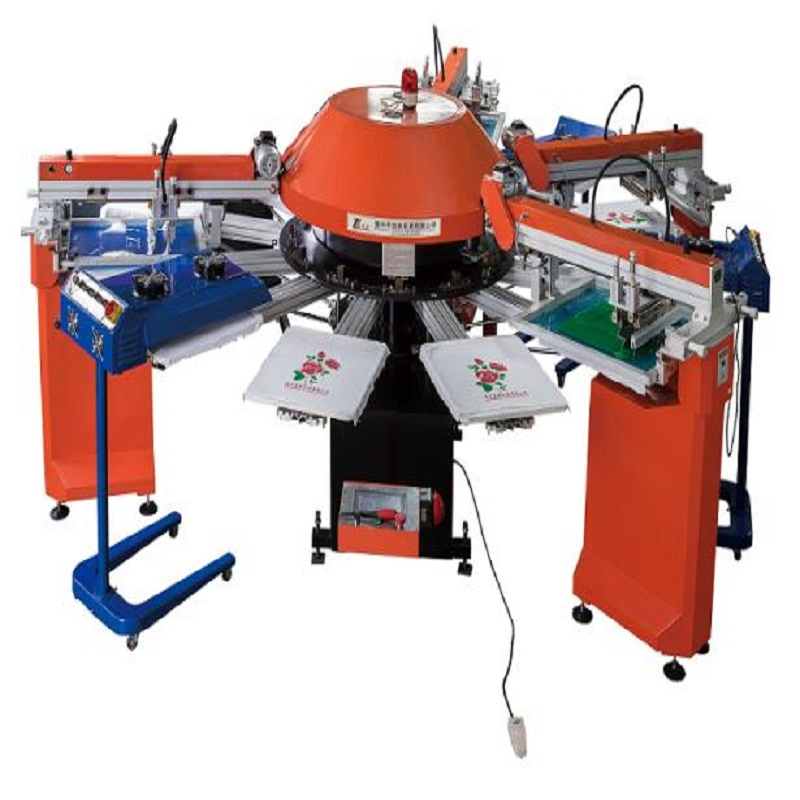

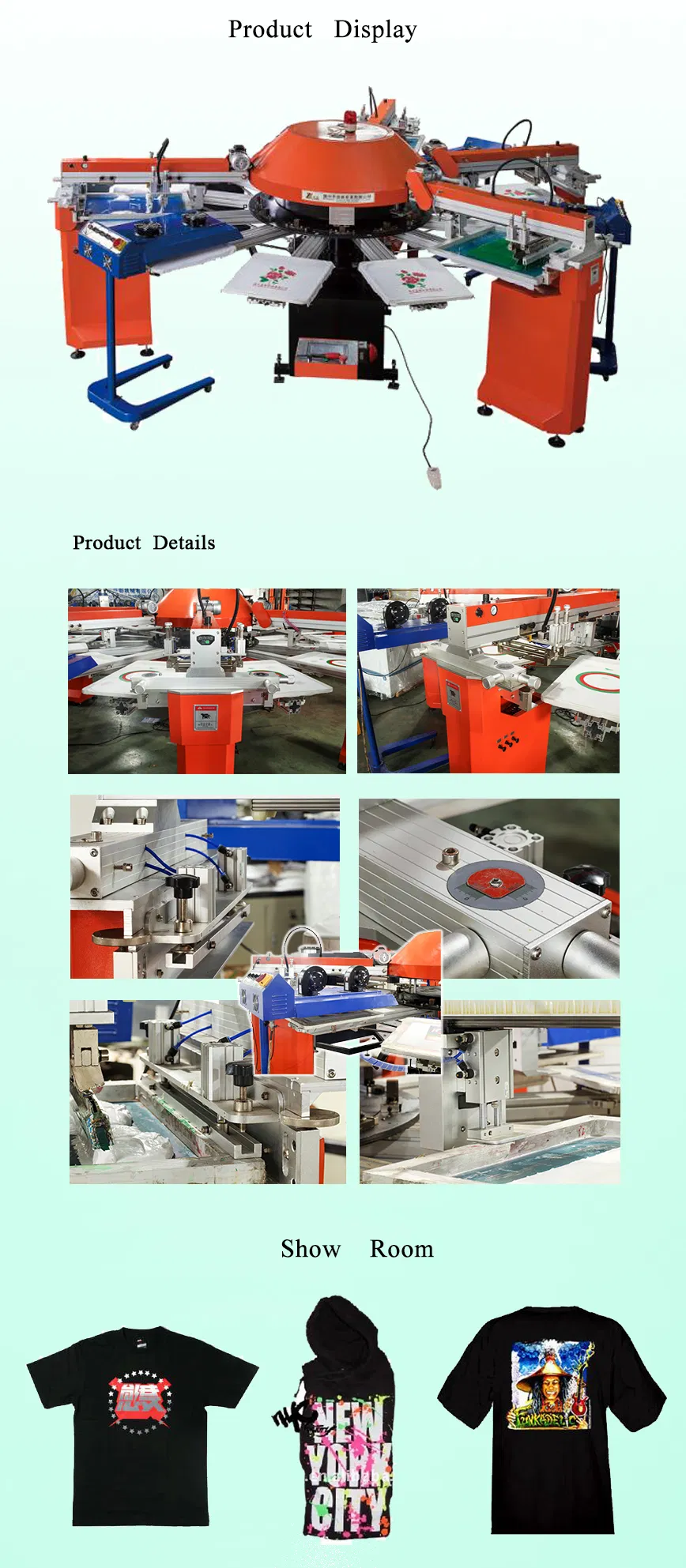

Automatic Textile Silk Screen Printing Equipment

SPG series is a multi-functional automatic screen printing machine. It is equipped with an intelligent micro-processor, touch screen, and servo motor driven system, providing high printing stability and a color registration tolerance up to ±0.05mm.

All parts of the machine are tested precisely before installation, ensuring zero fault and minimal maintenance. The simple operation and easy maintenance satisfy diverse production requirements, making the SPG series an ideal choice for professional printing.

A

Applications

The SPG series is suitable for various printing materials, including:

T-shirts, garments, and cloth

Non-woven bags, satin labels, and umbrellas

Wooden boards, paperboard, and fabric boards

Glass plates, PVC plates, ceramics, and marble

F

Key Features

High-tech servo motor driven system for speed and stability.

Pallets driven by servo motor for perfect position registration (±0.05mm).

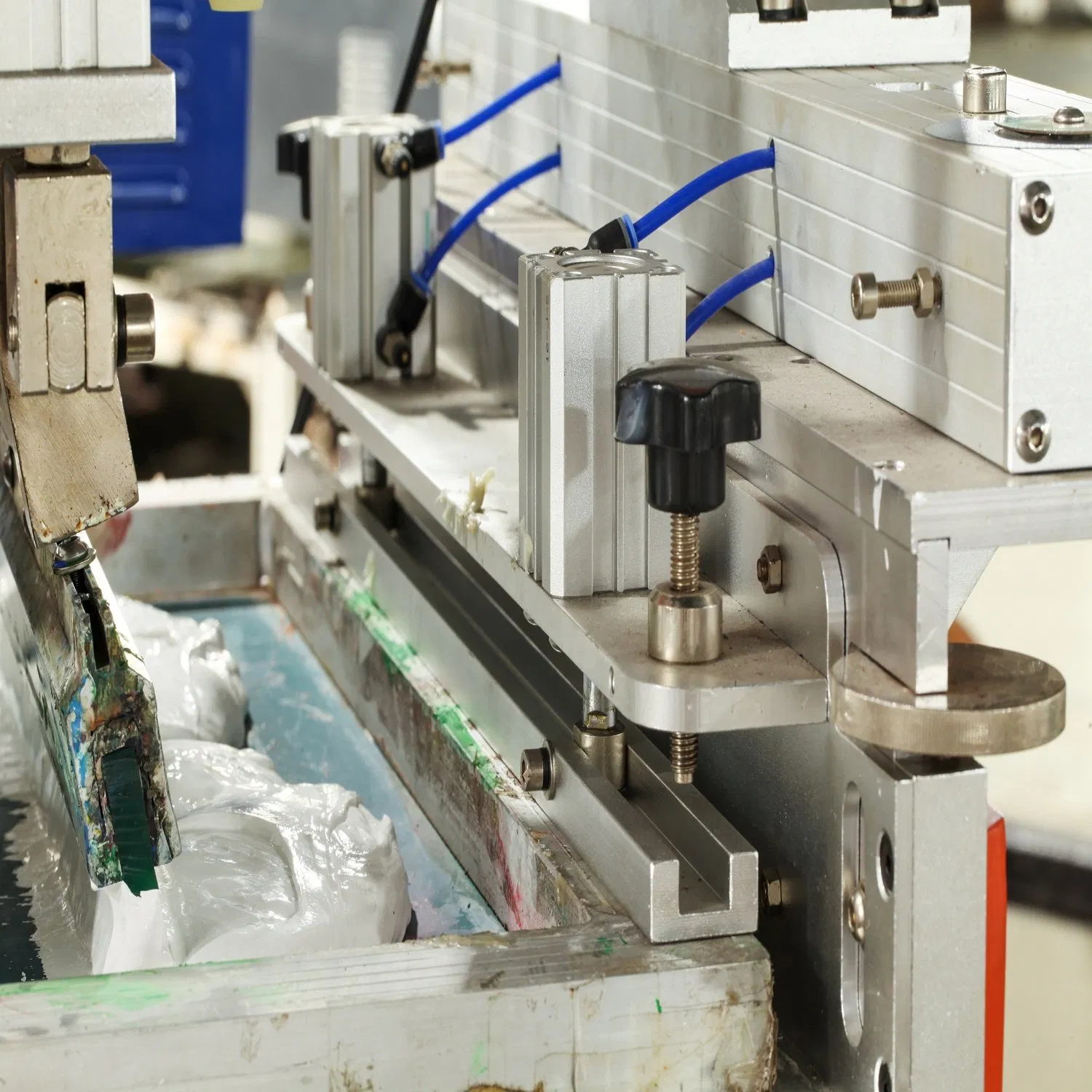

Squeegee/Flood bar speed adjusted by converter motor.

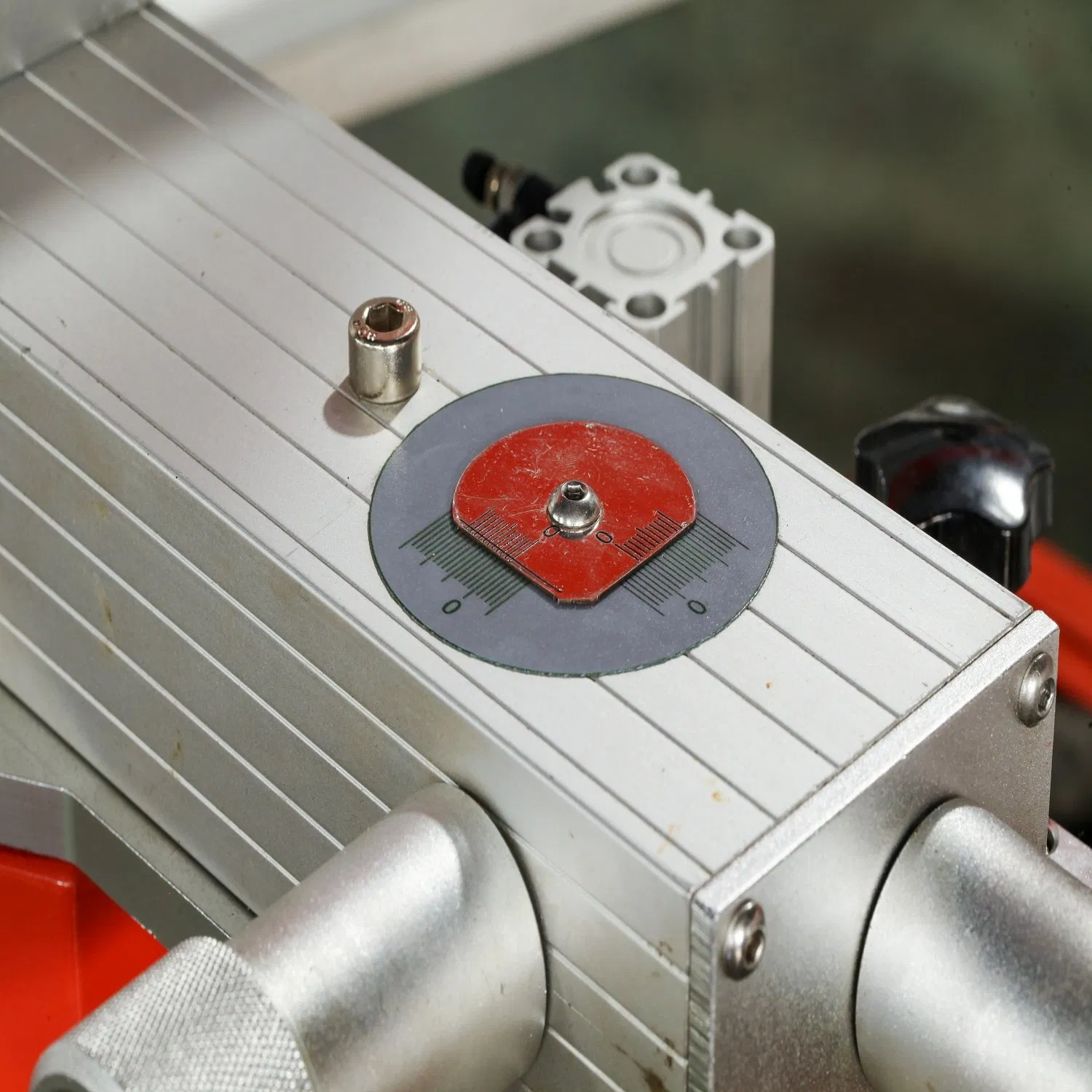

Adjustable print pressure, stroke length, and print angle.

Simple maintenance and user-friendly operation.

T

Technical Parameters

Model	SPG-104/8	SPG-156/10	SPG-158/12
Print Color/Station	4-6/8	4-8/10	6-10/12
Max. Print Area	300×400mm	300×400mm	300×400mm
Pallet Size	400×500mm	400×500mm	400×500mm
Air Source	≥1.0Mpa	≥1.0Mpa	≥1.0Mpa
Max. Output	700pcs/h	700pcs/h	700pcs/h
Power	2.0Kw	2.0Kw	2.0Kw
Dryer Unit Power	13.5Kw	13.5Kw	13.5Kw
Weight	700Kg	800Kg	900Kg

S

Service & Facilities

Warranty: 1-year limited warranty. Free replacement parts provided for breakages within the warranty period.

Installation & Training: Technical engineers available for factory installation and operator training.

Reliability: Global technical support network ensuring customer satisfaction.

?

Frequently Asked Questions

Q1: What materials can the SPG series print on? A1: It is highly versatile and can print on T-shirts, garments, non-woven bags, wooden boards, glass, ceramics, and PVC plates.

Q2: What is the printing precision of this machine? A2: Thanks to the servo motor driven system, the machine achieves a color registration tolerance of up to ±0.05mm.

Q3: What information is needed for a customized quote? A3: Please provide the number of colors required, your maximum printing size (e.g., 500x700mm), and your required hourly production capacity.

Q4: What is the standard production capacity? A4: The SPG series can reach a maximum output of approximately 700 pieces per hour, depending on the model and material.

Q5: How is the machine's speed controlled? A5: The squeegee and flood bar speeds are adjusted via a high-performance converter motor for smooth operation.

Q6: What are the typical payment and delivery terms? A6: The standard lead time is 20 workdays after deposit. We typically accept T/T (30% deposit, 70% before shipment) or L/C at sight.
