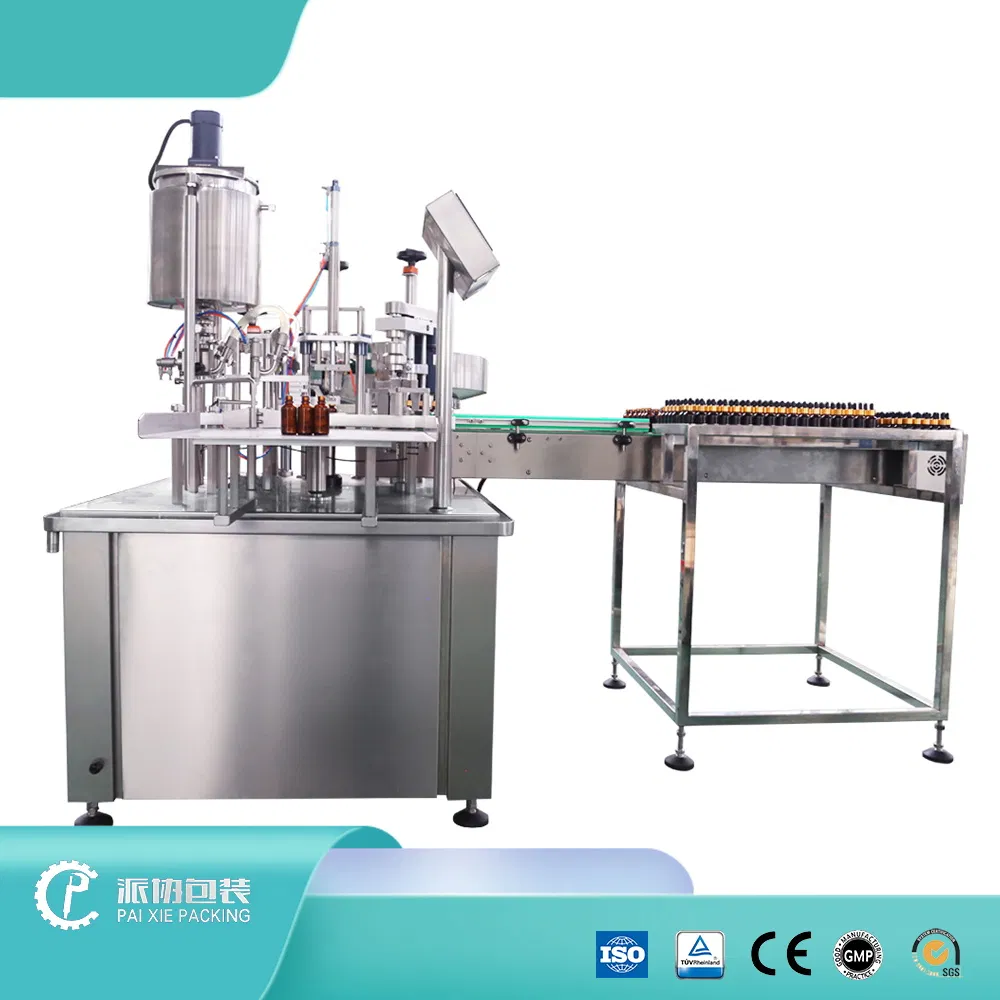

Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
1 / 5
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine
Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine

Space Saving Small Business Syrup Essential Oil Filling Capping Unit Label Application Ink Jet Printing Machine

Customization: Available
After-sales Service: Online-Service
Warranty: 12 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.
PX-BFC80
Type
Peristaltic Pump
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Rotor
Structure
Rotary
Drive
Servo System
HMI
7.5” Color Touch Screen
Capacity
2000 Bph
🔍 Product Description
Integrated Filling Line
SmartFiller integrated filling line is rated at 40 fillings per minute, depending on filling volume. It supports online filling for 30-650ml containers. The machine is servo-driven, maintaining high accuracy and speed; users simply enter the ideal filling volume and speed in the HMI interface. Featuring a mixing hopper at the top, it is suitable for both liquids and pastes. The mixing motor drives a paddle to ensure strong material fluidity. Scale rules are integrated for quick adjustment across different bottle specifications, enhancing operational convenience.
⭐ Key Features & Advantages
⚙ Servo Precision

Operator can edit filling parameters directly on HMI to accommodate various product packaging needs.

🛡 Safety Protection

Equipped with a 150mm SS304 frame and induction switches that stop the machine if the plexiglass door is opened.

📏 Scale Rules

Built-in scale rules for different bottle types make data recording and adjustments fast and convenient.

✨ Hygiene Standards

Constructed from SS304 and SS316 stainless steel to prevent pollution and ensure product quality.

📊 Technical Parameters
ModelPX-BFC80 filling line
ComponentsBottle feeding + 2 heads filling + cap torquing + labeling + packing table
Filling PumpPeristaltic pump (10-100ml)
Capping TypeSingle heads star wheel capping with vibrator
Labeling TypeRound bottle pressing labeling
Driving EngineServo (Filling), Magnetic torque (Capping), Stepper (Labeling)
Power / Air5.5KW / 0.6-0.8Mpa
Filling Precision±1%
MaterialSS304 + SS316 Stainless Steel
📷 Machine Details & Scenes

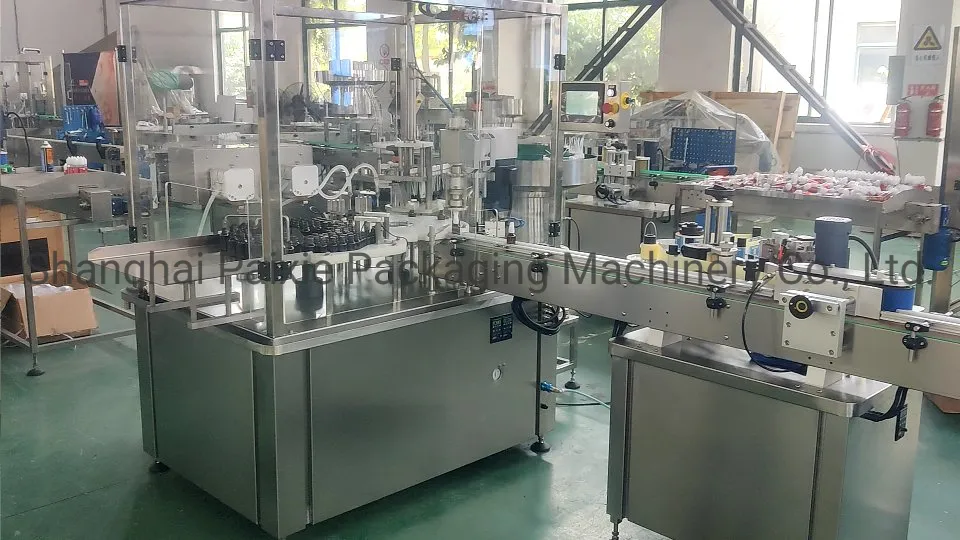

Factory Scene

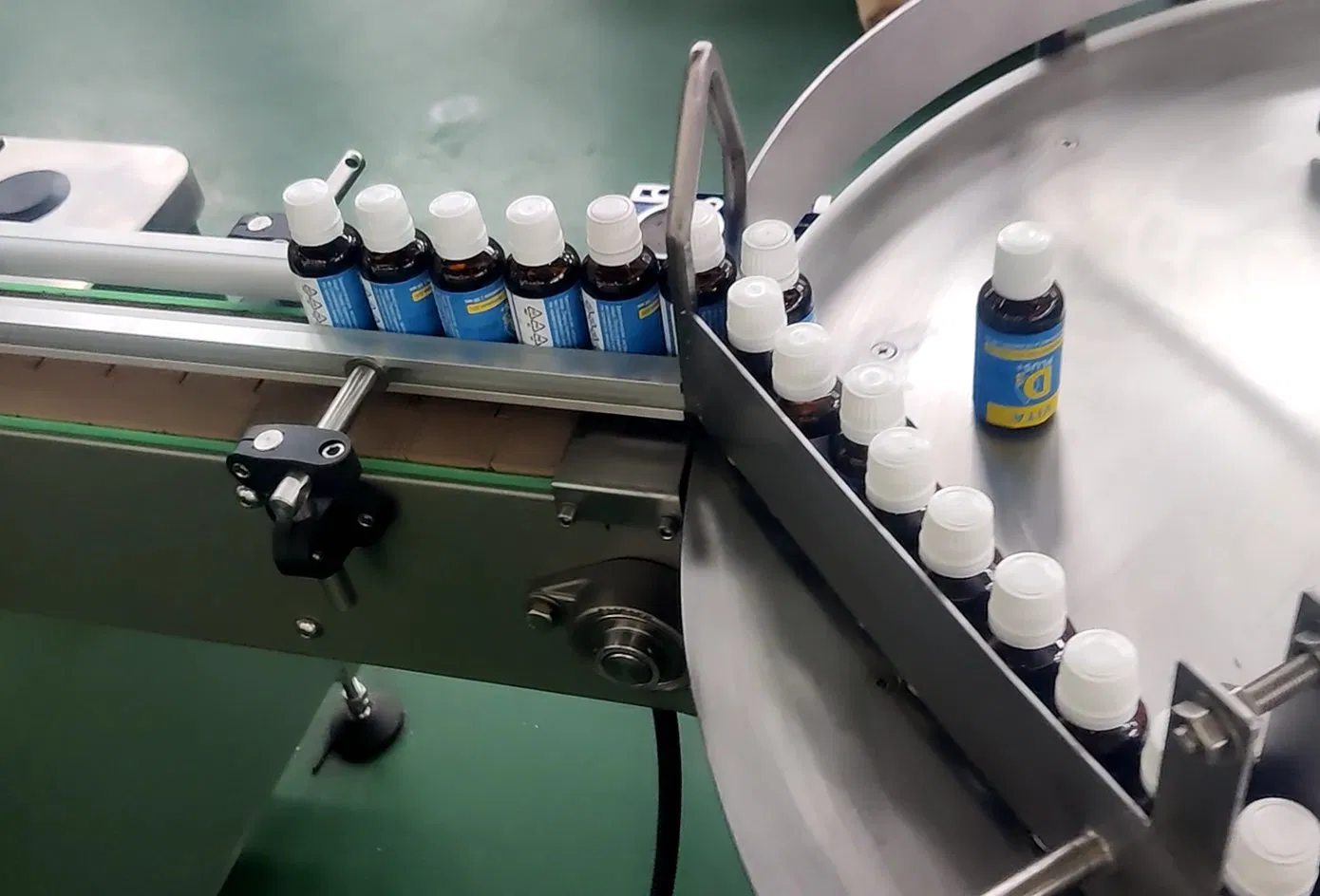

Feeding Table

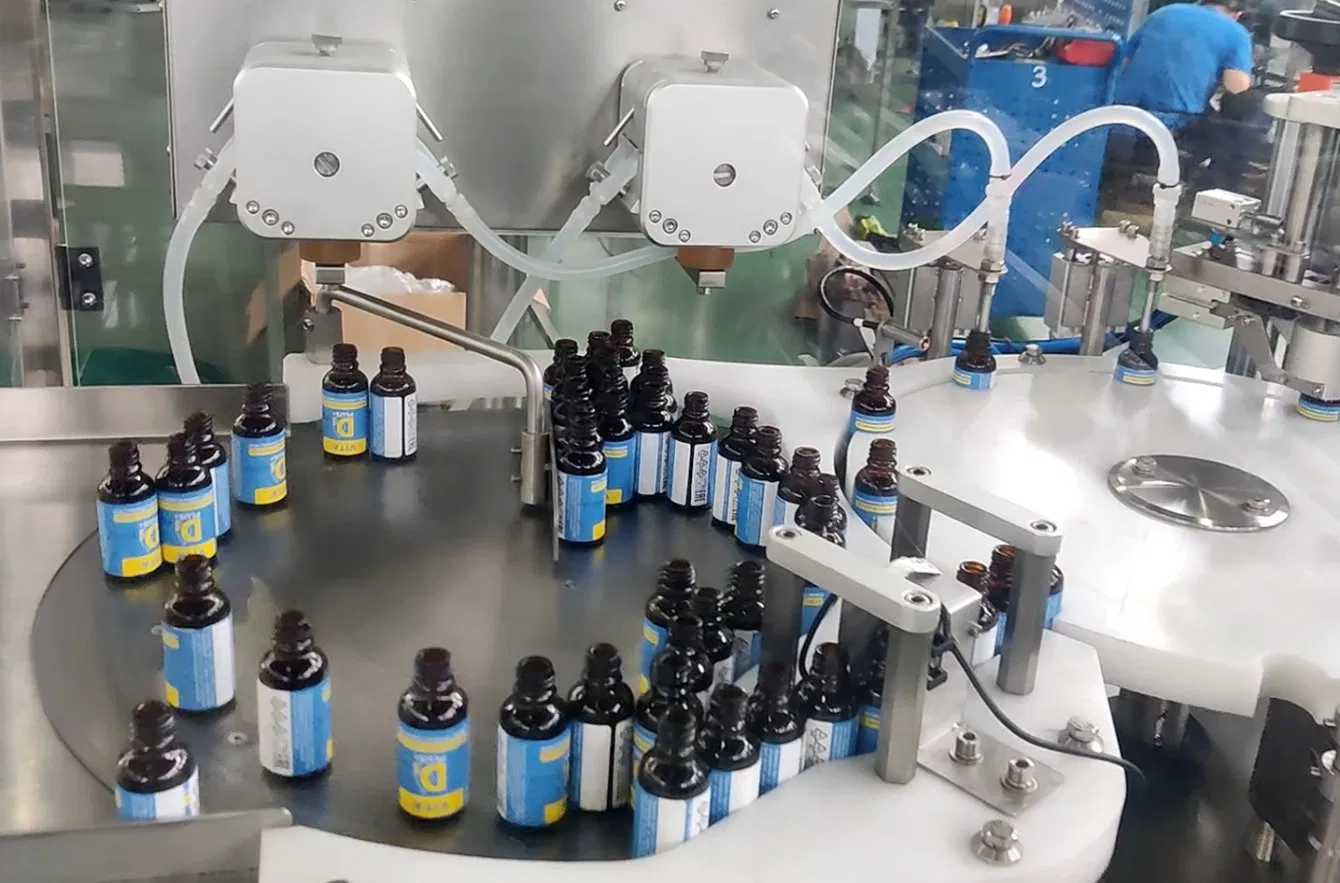

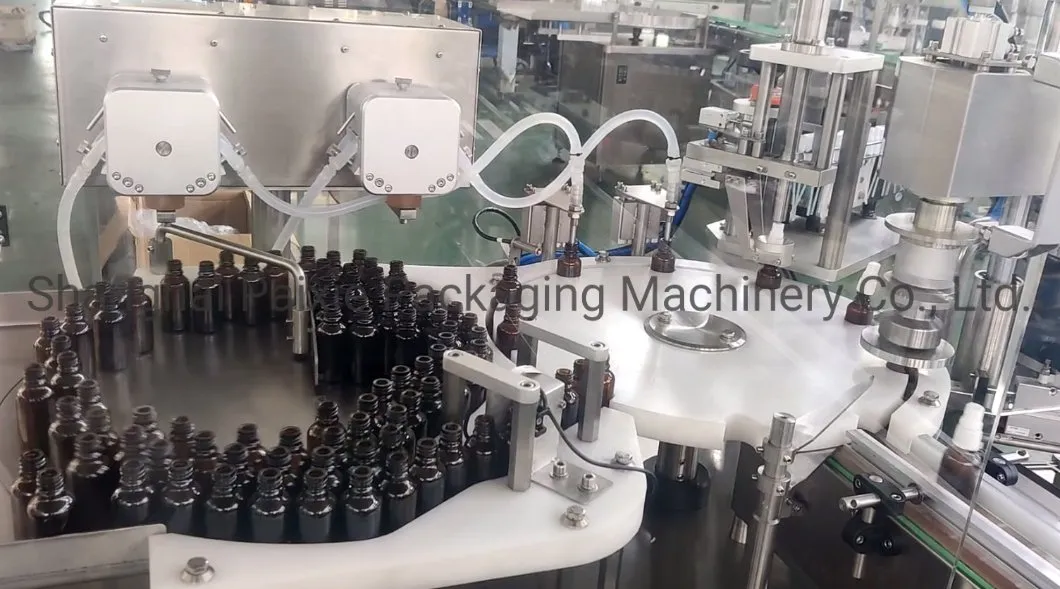

Filling Station

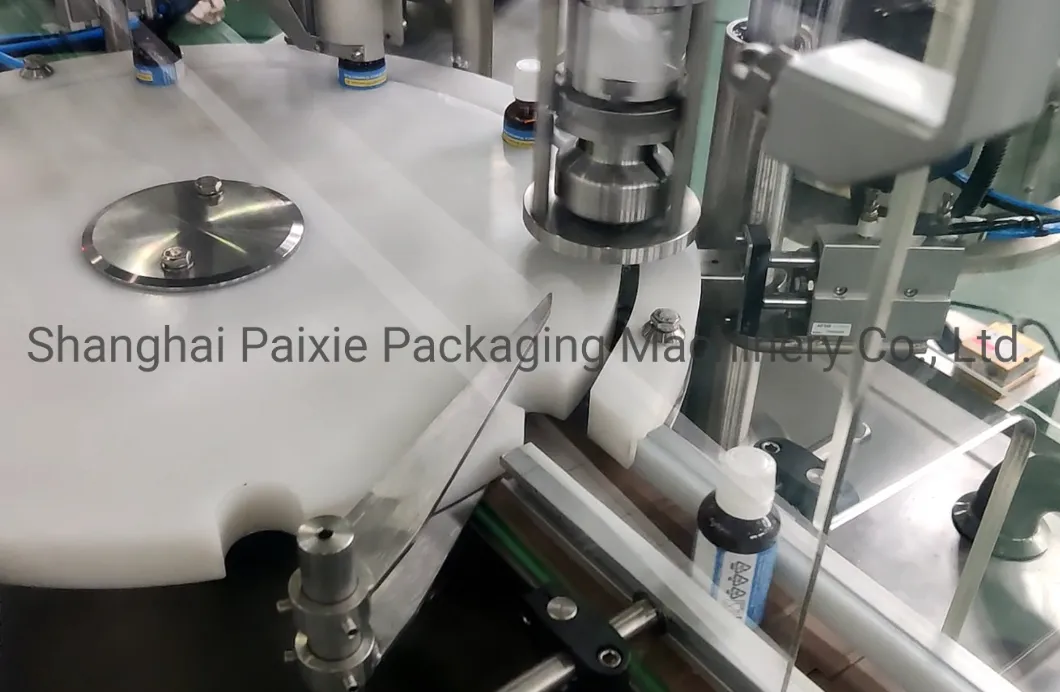

Cap Torquing

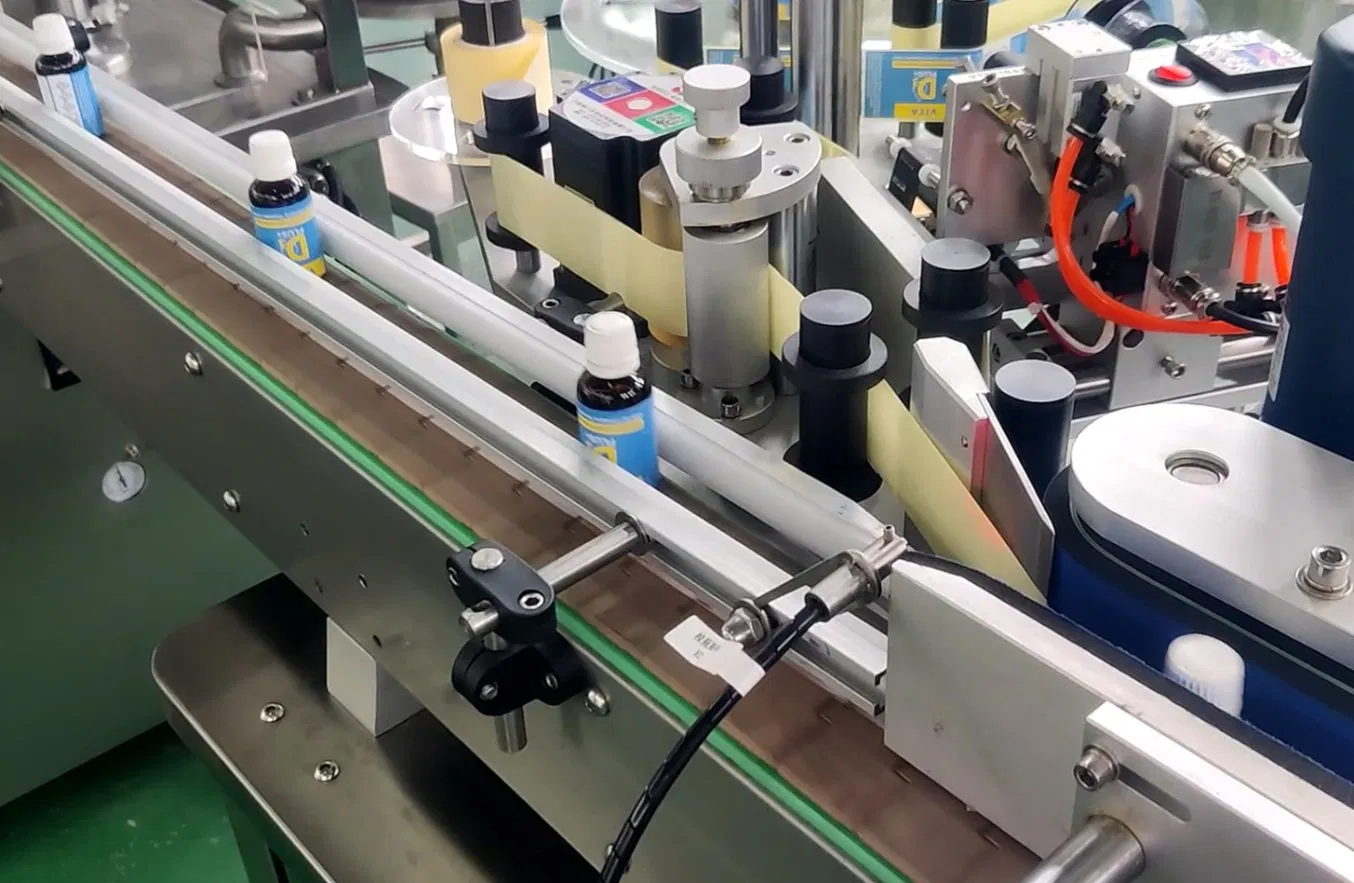

Labeling Machine

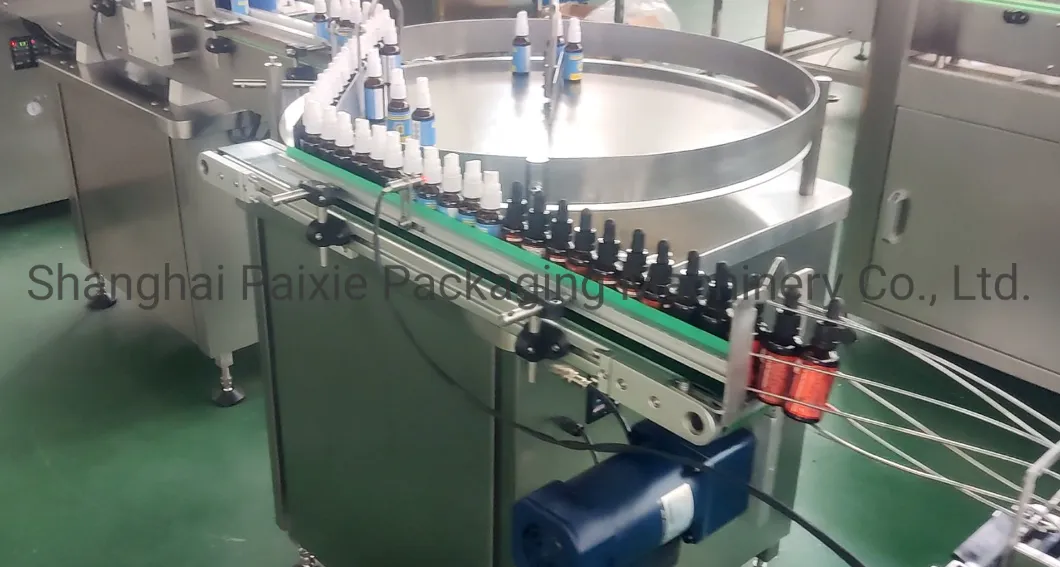

Packing Table

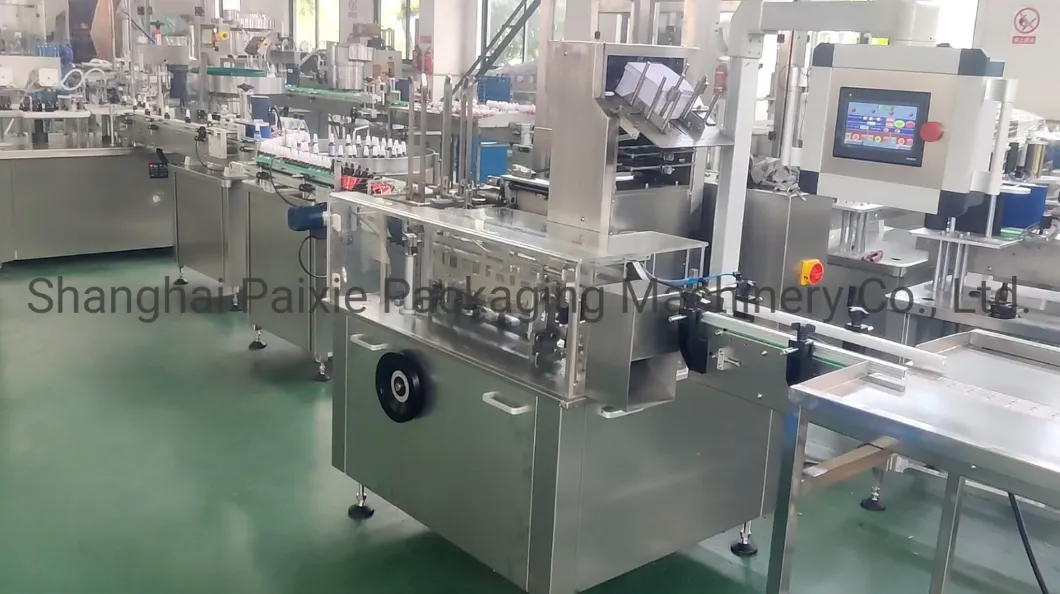

Cartoning Machine
Quality Comparison
Process Detail 1
Process Detail 2
Final View
❓ Frequently Asked Questions
Q1: How accurate is the filling process?
A1: The machine utilizes a servo-driven peristaltic pump system, providing a high filling precision of ±1%.
Q2: Can this machine handle both liquids and pastes?
A2: Yes, the machine is equipped with a mixing hopper and paddle at the top, which ensures strong fluidity for both liquid and paste materials.
Q3: Is it difficult to adjust the machine for different bottle sizes?
A3: Not at all. The machine includes integrated scale rules for different bottle specifications, allowing for quick adjustments and easy data recording for future use.
Q4: What safety features are included for the operator?
A4: It features a 150mm SS304 protection frame with a plexiglass cover and induction switches that automatically stop the machine if the doors are opened.
Q5: How is the machine delivered and installed?
A5: Machines are delivered as a whole unit to minimize the stress of after-sale installation. Technicians are also available for on-site support.
Q6: What materials are used in the construction?
A6: To ensure product quality and avoid pollution, all parts in contact with the product are made of high-quality SS304 and SS316 stainless steel.
