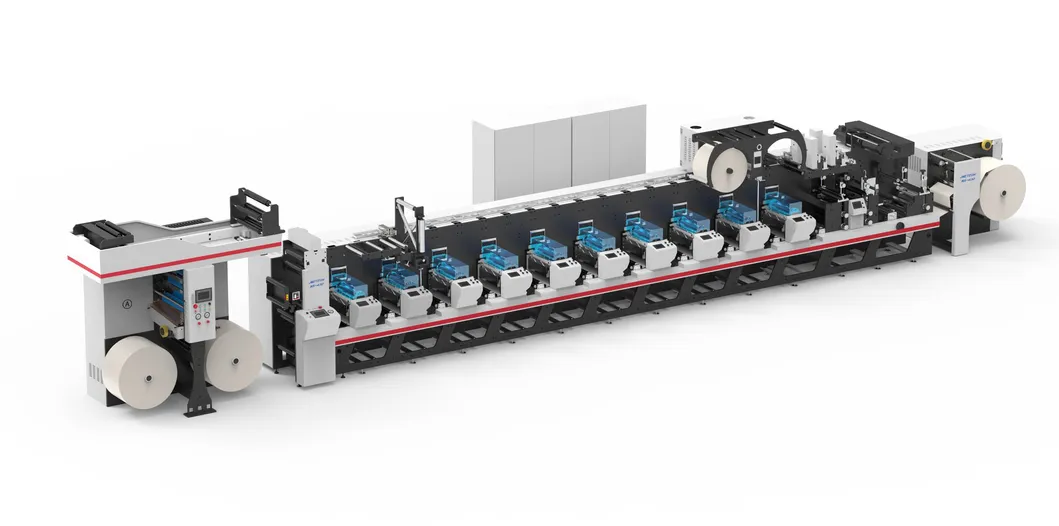

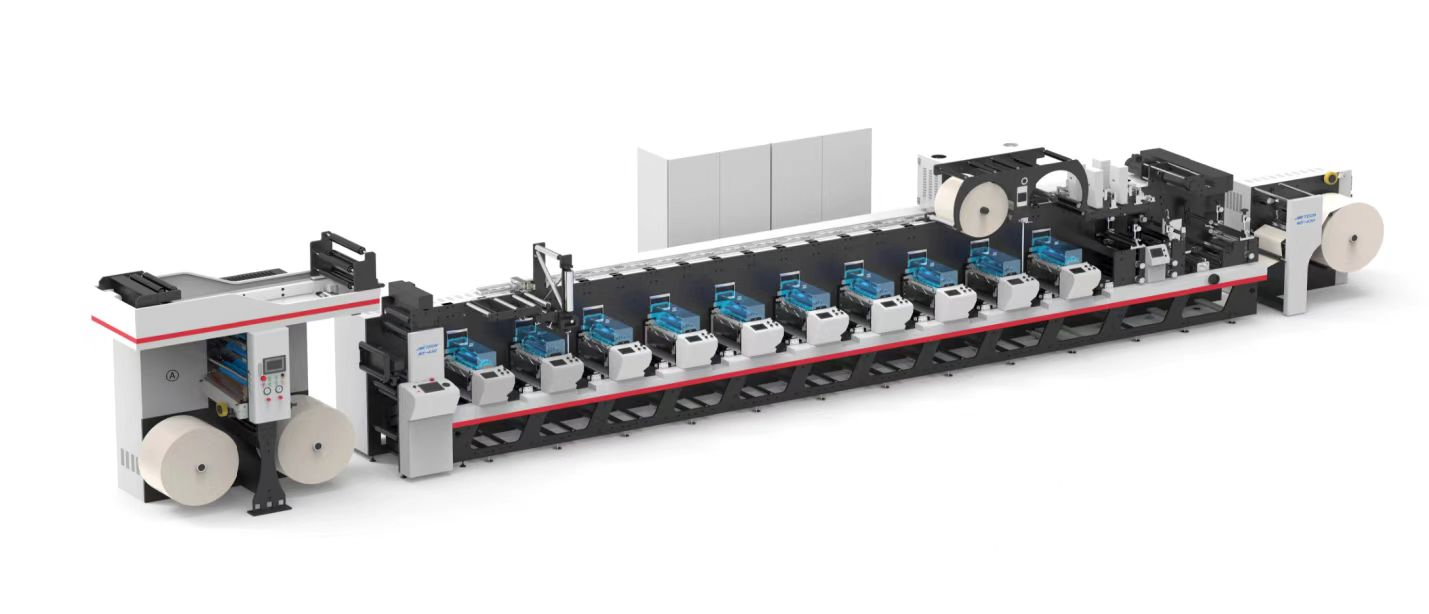

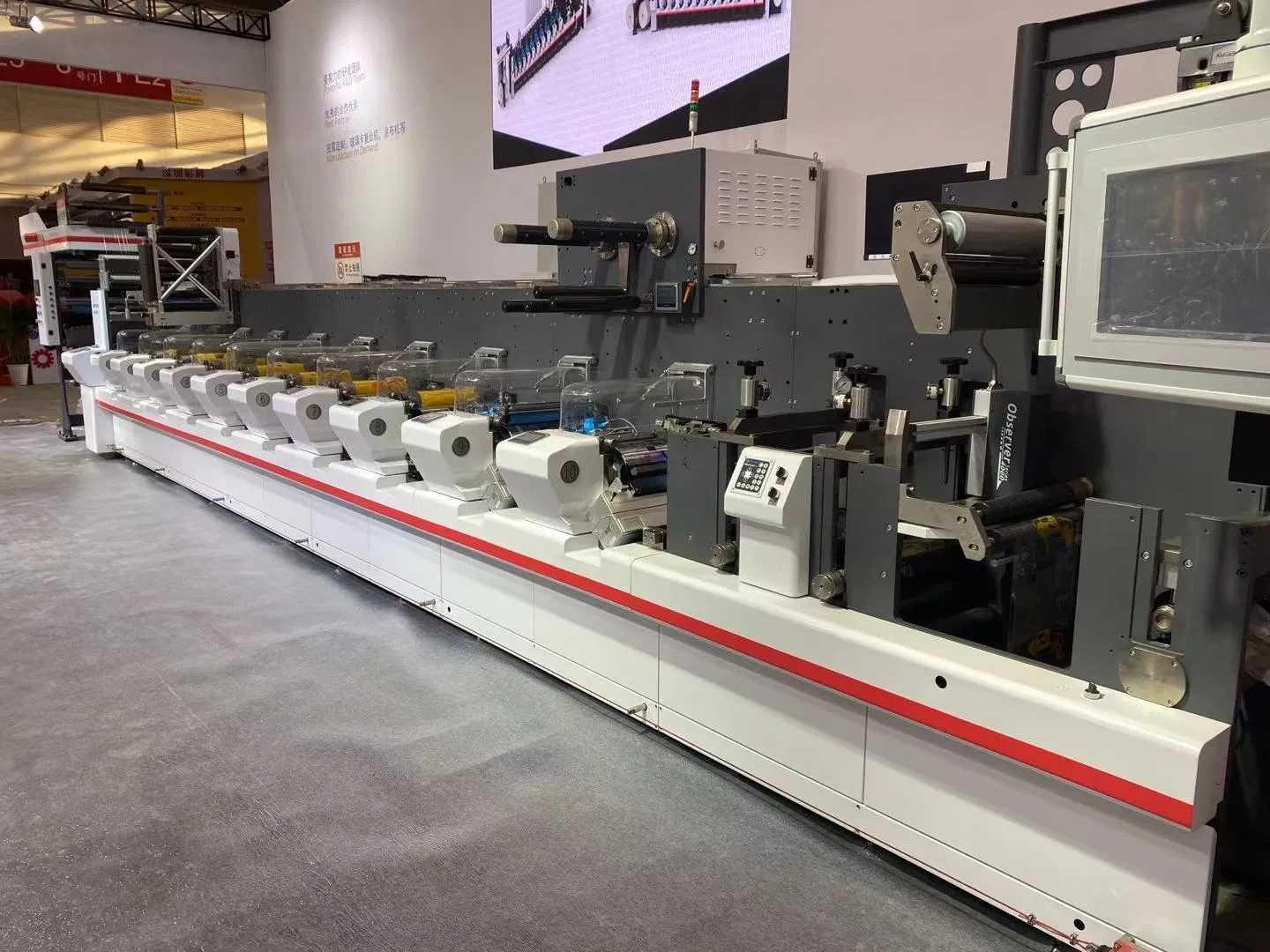

The N6 Flexo gravure combination machine is designed to meet the rigorous demands of film, label, and carton printing. It achieves the highest efficiency with minimal waste, ensuring premium printing quality and precise registration. This flexible platform can combine gravure, silk screen, offset, inkjet, and cold foil, as well as inline coating and PUR glue lamination.
Compatible Substrates: PS labels (Paper, PET, BOPP, PVC), light carton up to 350gsm, mono film PET from 15um, PVC, BOPP, PE, PA from 20um, and laminated tubes (PBL and ABL).
| Substrate Width | Max 670 mm / Min 340 mm |
| Printing Width | Max 650 mm |
| Printing Stations | Up to 20 colors as per request |
| Gear Pitch | Z = 3.175 mm (Helical 1/8") |
| Print Repeat | From 8" to 24" |
| Die-Cutting Repeat | 304.8 mm - 609.6 mm (12" to 24") |
| Machine Speed | 180 m/min |
| Reel Diameter | Unwinder: 1000 mm / Rewinder: 1000 mm |
| Waste Matrix Diam | 700 mm (27.5") |
| Compressed Air | 6 bar pressure (filtered and dehumidified) |
| Ambient Conditions | 10° to 25°C; 30% to 80% Humidity |
With a professional design team engaged in the printing industry for more than 20 years, our production team has consistently created industry milestones. We focus on the research, development, and sales of flexo printing machines, digital printing platforms, and high-quality OEM specifications for books, flexible packaging, and corrugated boxes. Holding more than 20 patented technologies, we catch up with international well-known brands in performance, providing stability and cost-effective equipment solutions.
