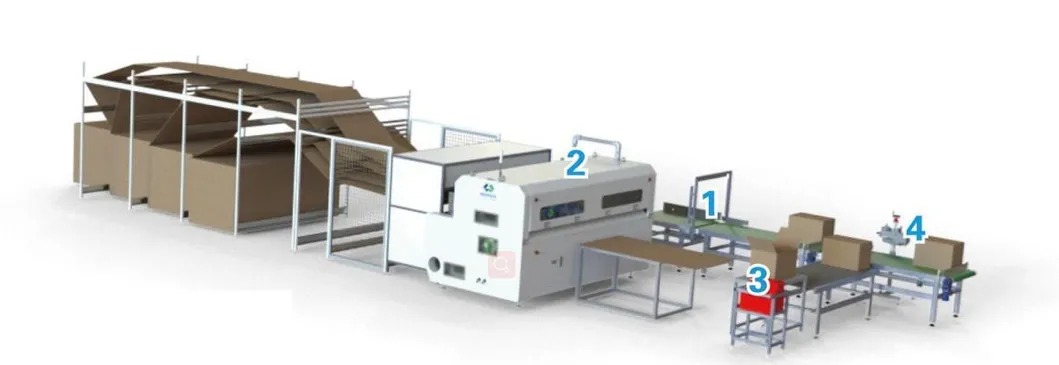

E-commerce Semi-Automated Box On Demand Packaging Assembly Line
This assembly line is specifically designed for e-commerce, fulfillment, and supply chain logistics on-demand packaging. It is used to make boxes with high diversity, powered by servo motors and an intuitive control panel. It can produce boxes of any type and any size at any time.
This box-on-demand machine combines efficiency and convenience. It produces corrugated cardboard boxes tailored to the product size, right at the place of packaging, exactly when needed. As a one-stop solution, it features:
| Parameter | Specifications |
|---|---|
| Machine Dimension | 10000(L)*3700(W)*3200(H)mm |
| Net Weight | 6000kg |
| Power | 380V, 50-60HZ, 10KW |
| Production Rate | 400 units/hour |
| Sheet Type | Fanfold |
| Max. Board Sheet Size | 2500mm Width x Unlimited Length |
| Min. Board Sheet Size | 200mm Width x 655mm Length |
| Sheet Thickness | 2mm - 12mm |
| Switchover Time | 1-3 seconds |

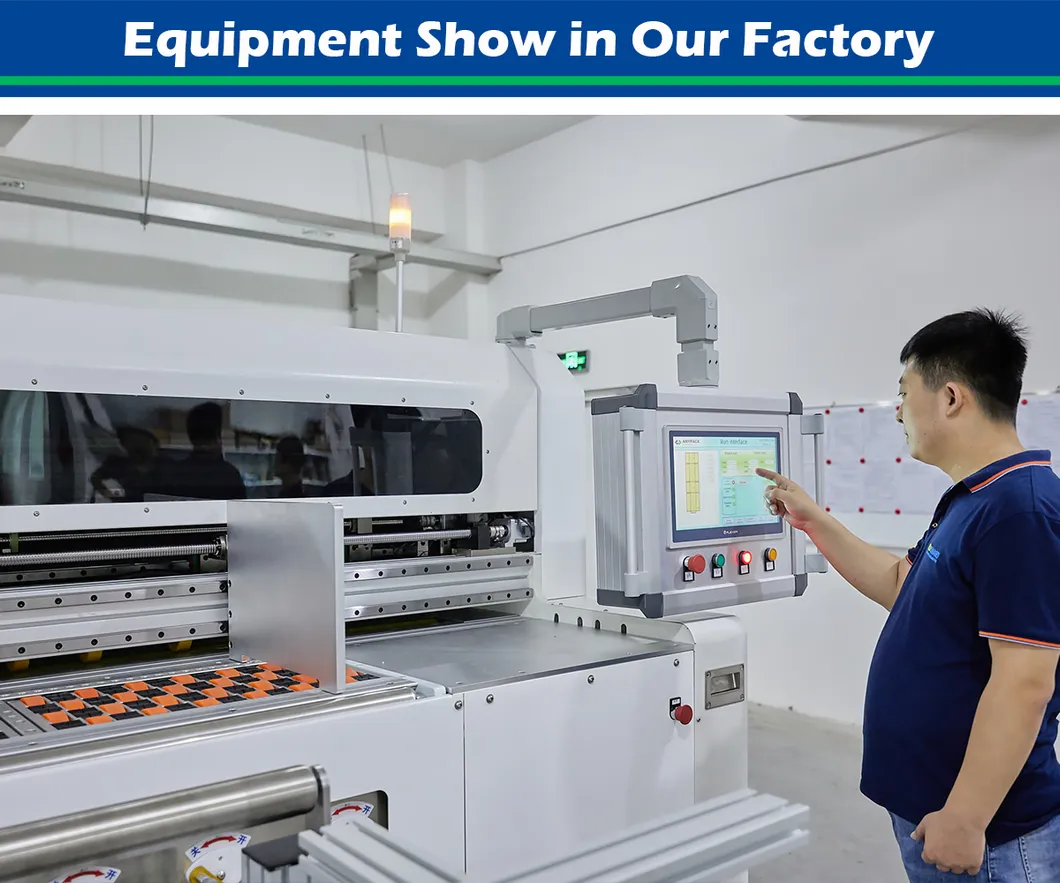

| Touch Panel | 15.6 inch (Multi-language) |

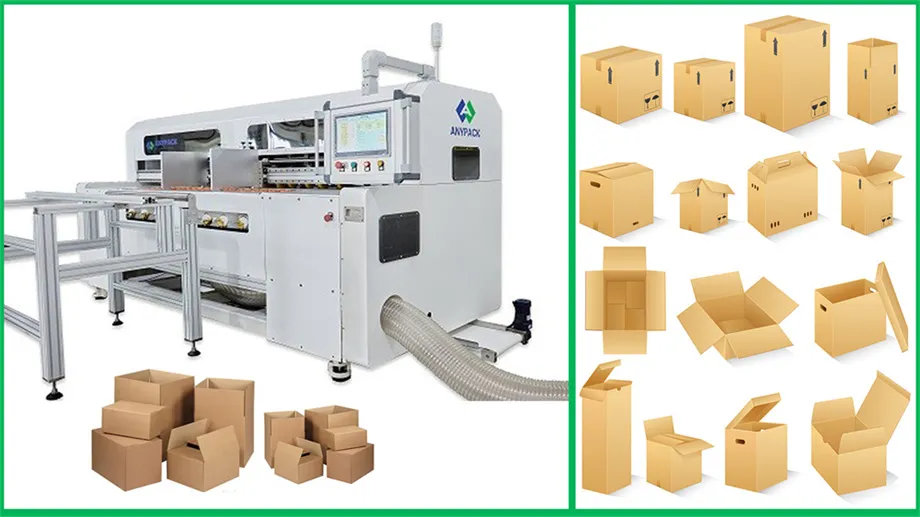

Supports FEFCO or ASSCO box types. Over 30 standard types are preloaded, with the ability to add custom designs.
