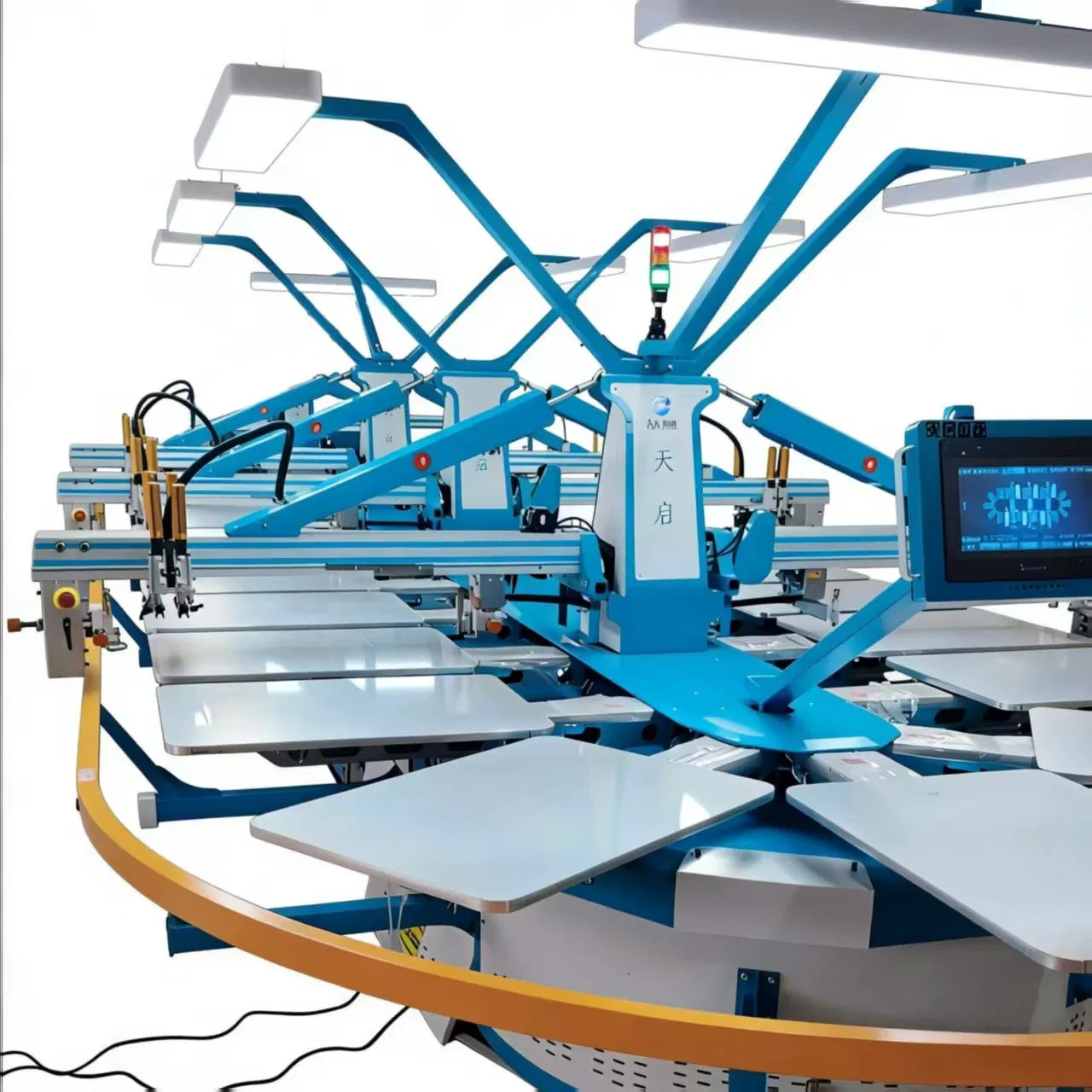

Q Series 49-Color Automatic Printing Equipment for Custom-Made Shoe Materials

Customization:	Available
After-sales Service:	Worry-Free After-Sales Service
Warranty:	One Year

Basic Information

Model NO.	Q Series 49-Color Printing Machine
Type	Automatic Screen Printing Machine
Style	Screen-process Printing Press
Structure	Screen Printing
Color & Page	Multi-Colour Printing Press
Application	Luggage/ Bags /Garments /Shoe Materials
System Supported	Phone/PC
Operational Noise	Smooth & Quiet
Origin	China
HS Code	8443192201

Product Description

Cantilever-type Elliptical Printing Machine
Engineered for garments, textiles, luggage & bags, and shoe materials; offers efficiency, stability, and flexibility. Precision transmission tech and durable materials ensure accurate printing, smooth operation, and lower energy use. Ideal for mass production with excellent results across fabrics and designs.

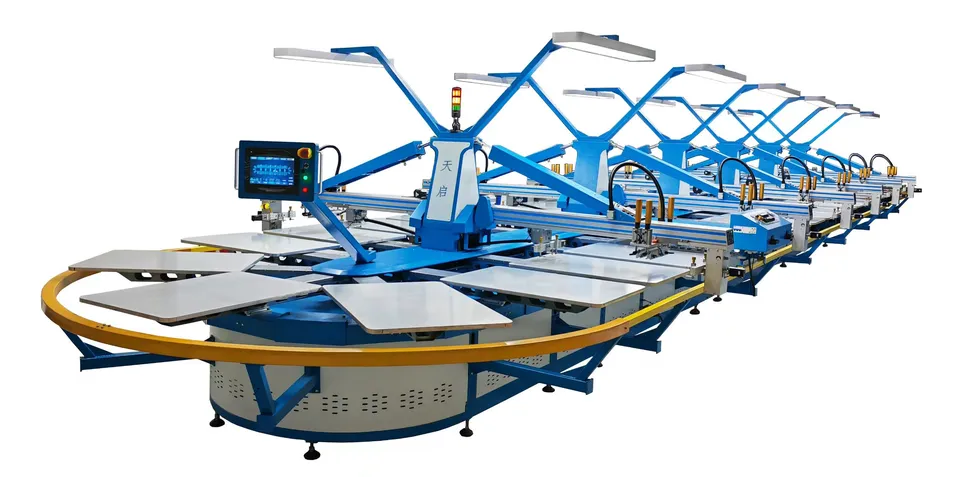

Q Series 49-Color Automatic Printing Equipment

Key Specifications

Applications

Garments: T-shirts, hoodies, jackets
Textiles: Home textiles and decorations
Luggage & Bags: Backpacks and handbags
Shoe Materials: Uppers, insoles, and accessories
Other: Gloves and umbrellas

Key Configurations

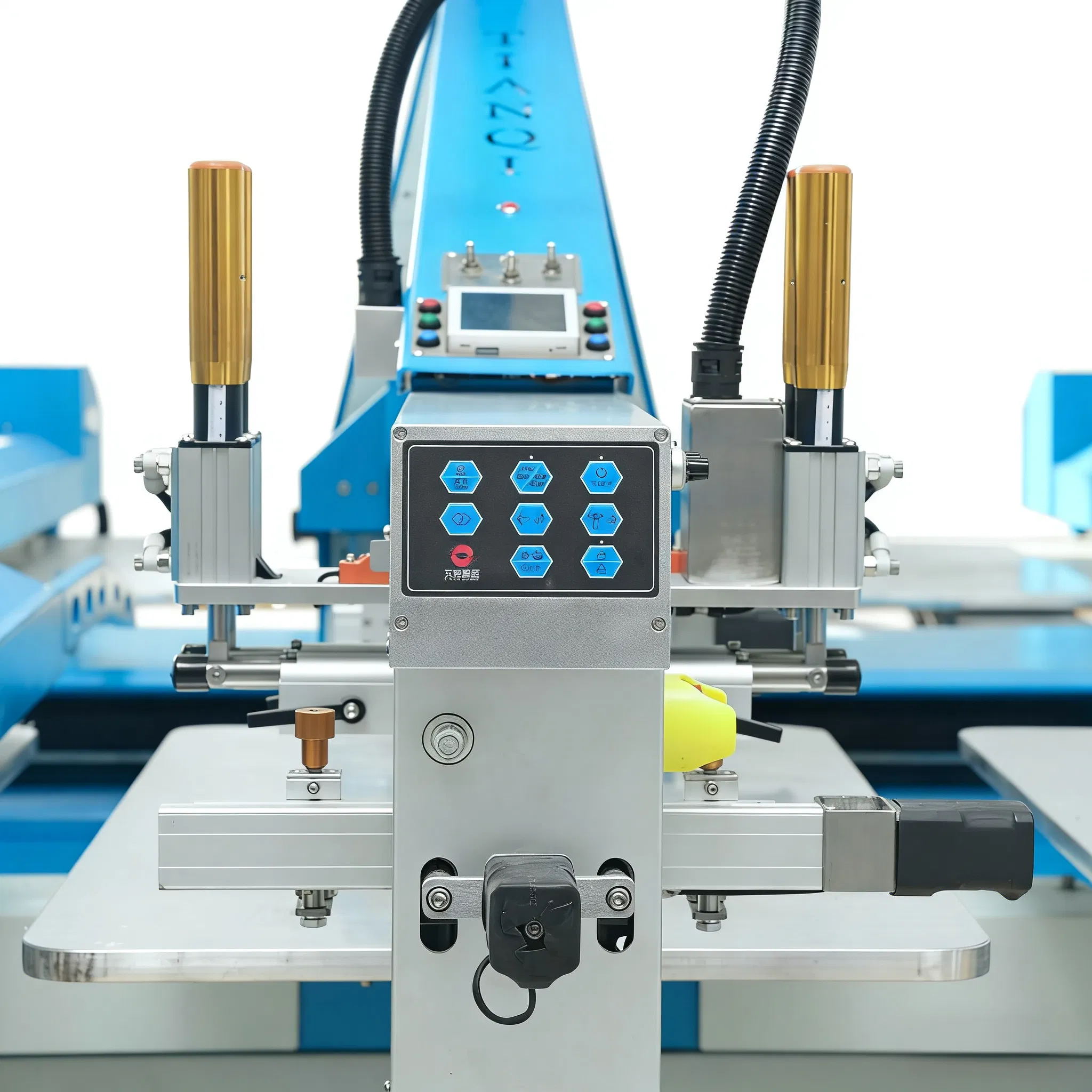

High-precision Print Heads
Customizable Printing Pallets
Flash dryers with U-shaped heating tubes
Precision servo drive Transmission
Intelligent Control System

Intelligent Control Features

The system features an Intelligent Numerical Control Plate Alignment System. It supports automatic plate alignment databases, storing hundreds of order data. One-key origin reset allows for quick screen frame recovery, while data retrieval speeds up repeat order setup significantly.

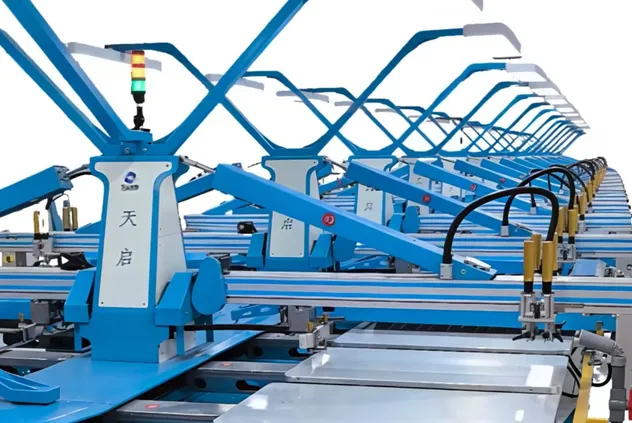

Right Elevation

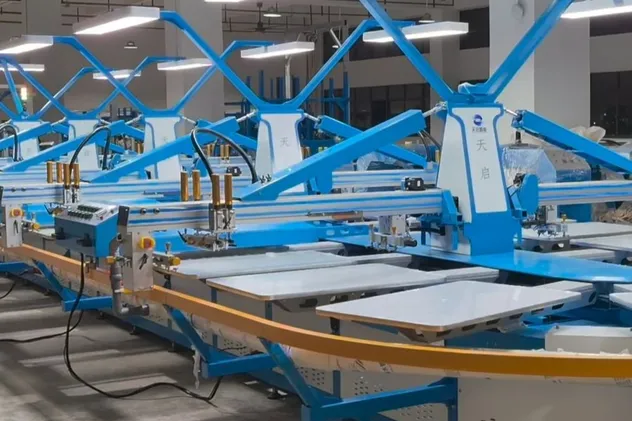

Left Elevation

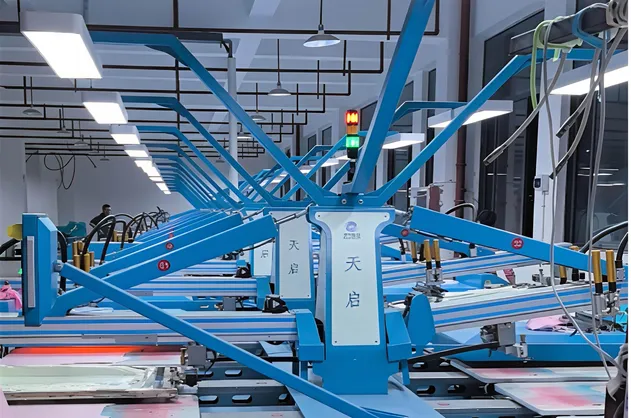

Front Elevation

Technical Parameters

Parameter Indicators
Number of printing heads	49 (customizable)
Platen size (mm)	400x650 - 800x1350mm
Power supply specification	380V/50Hz
Main machine power (KW)	6-12 (Depending on head count)
Printing head power (Kw/unit)	0.4
Maximum output (pieces/hour)	900
Minimum air pressure (MPa)	0.6

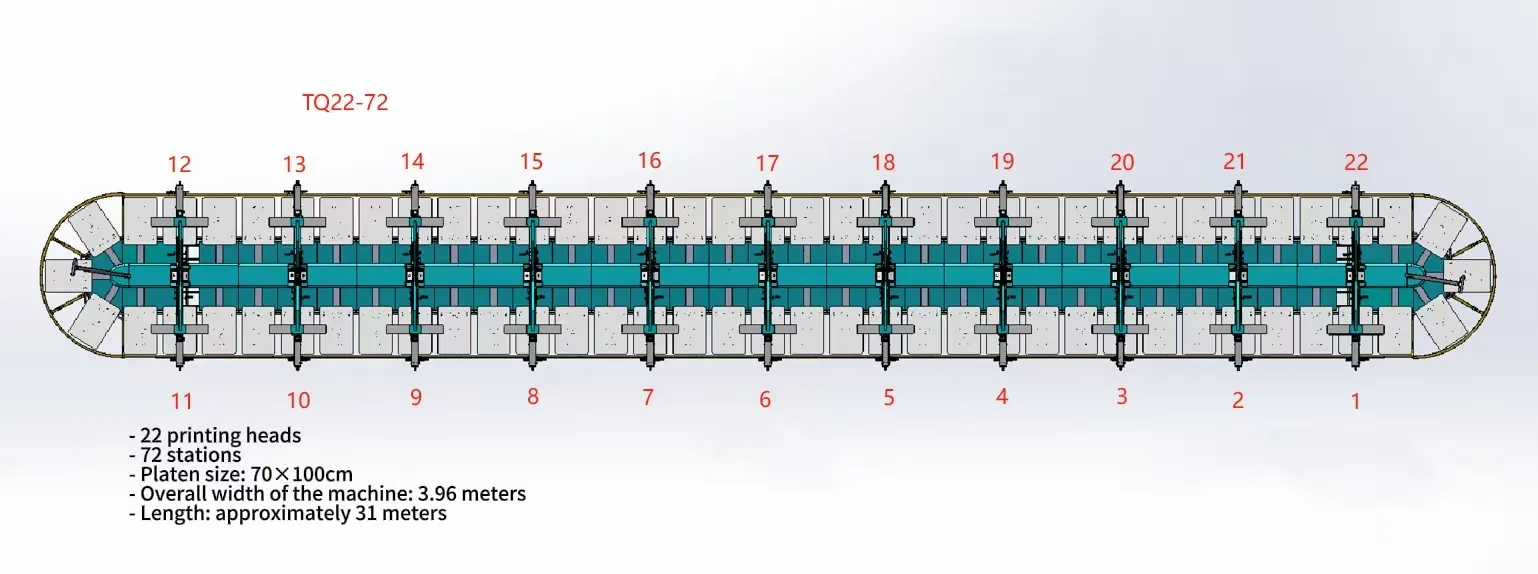

Drawings & Dimensions (Reference only)

Service & Quality

After Sales Service

Warranty: 12 months standard warranty.
Support: 24/7 technical support and global parts supply.
Training: Comprehensive on-site or remote training sessions.

Why Choose Our Equipment?

20+ years of industrial experience
Multiple technology patents
Turnkey printing solutions
Customized configurations

Frequently Asked Questions

Q: What is the lead time for standard and customized orders? A: Standard models typically ship within 40 days, while customized units require between 40 to 55 days depending on the specifications.

Q: Do you offer international after-sales support? A: Yes, we provide comprehensive 24/7 online technical support and offline service options for our global customers.

Q: Can the number of printing heads be adjusted? A: Absolutely. Our equipment is highly customizable; for example, the Q series can be built with 49 heads or tailored to your specific production needs.

Q: What documents are provided for the export and customs process? A: We provide a full export documentation package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: What materials are compatible with this machine? A: It is ideal for garments (T-shirts/hoodies), textiles, luggage, bags, shoe uppers, insoles, and even umbrellas or gloves.

Q: How do I initiate a purchase order? A: You can contact us for a formal quote. Once details are finalized, you can confirm the order via a formal Purchase Order (PO).
