Colvanta Print
1 / 5
| Model NO. | Q Series 17-Color Printing Machine | Type | Automatic Screen Printing Machine |
| Style | Screen-process Printing Press | Structure | Screen Printing |
| Color & Page | Multi-Colour Printing Press | Application | Luggage/ Bags /Garments /Shoe Materials |
| System Supported | Phone/PC | Table Size | Custom-Made to Customer Needs |
| Operational Noise | Smooth & Quiet | HS Code | 8443192201 |

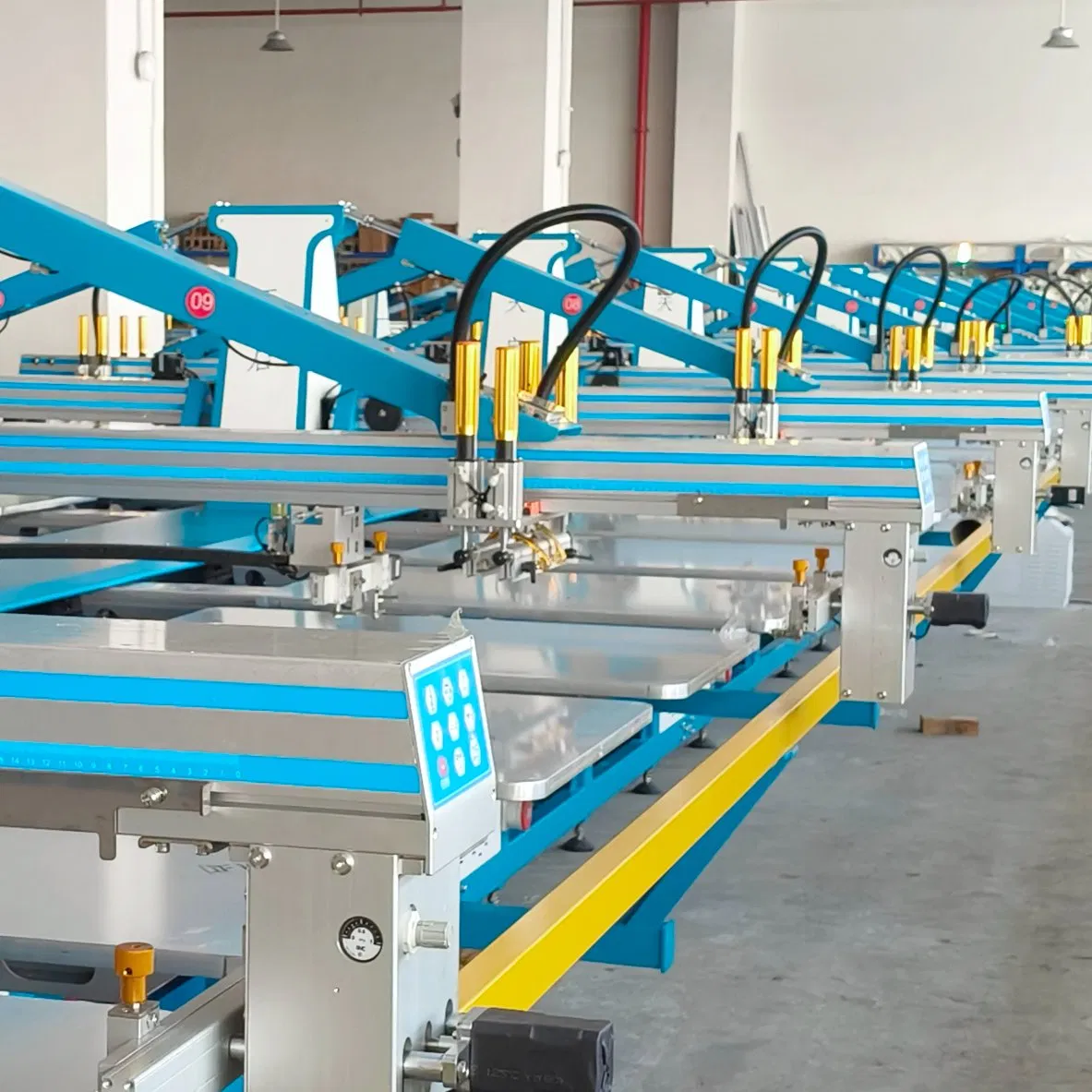

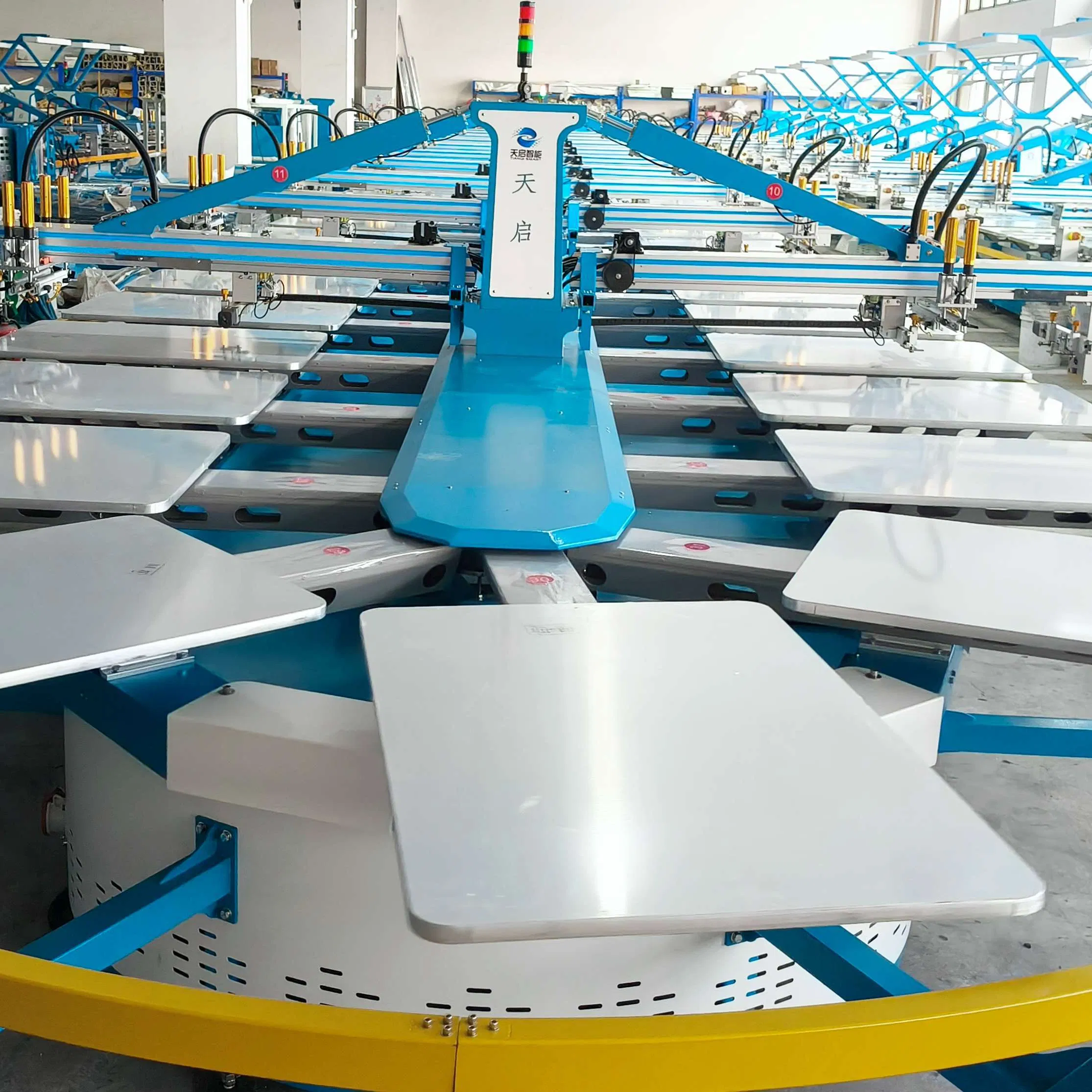

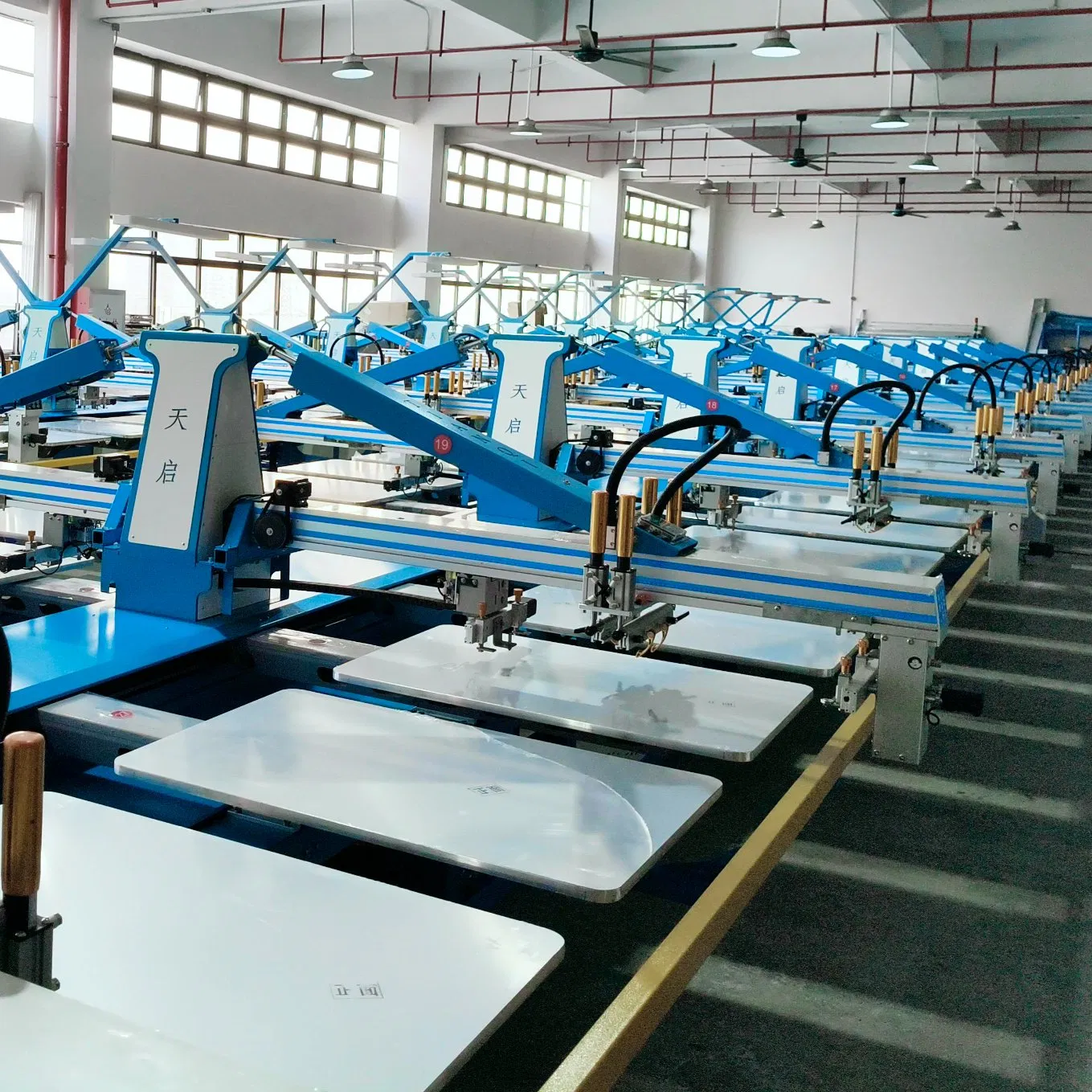

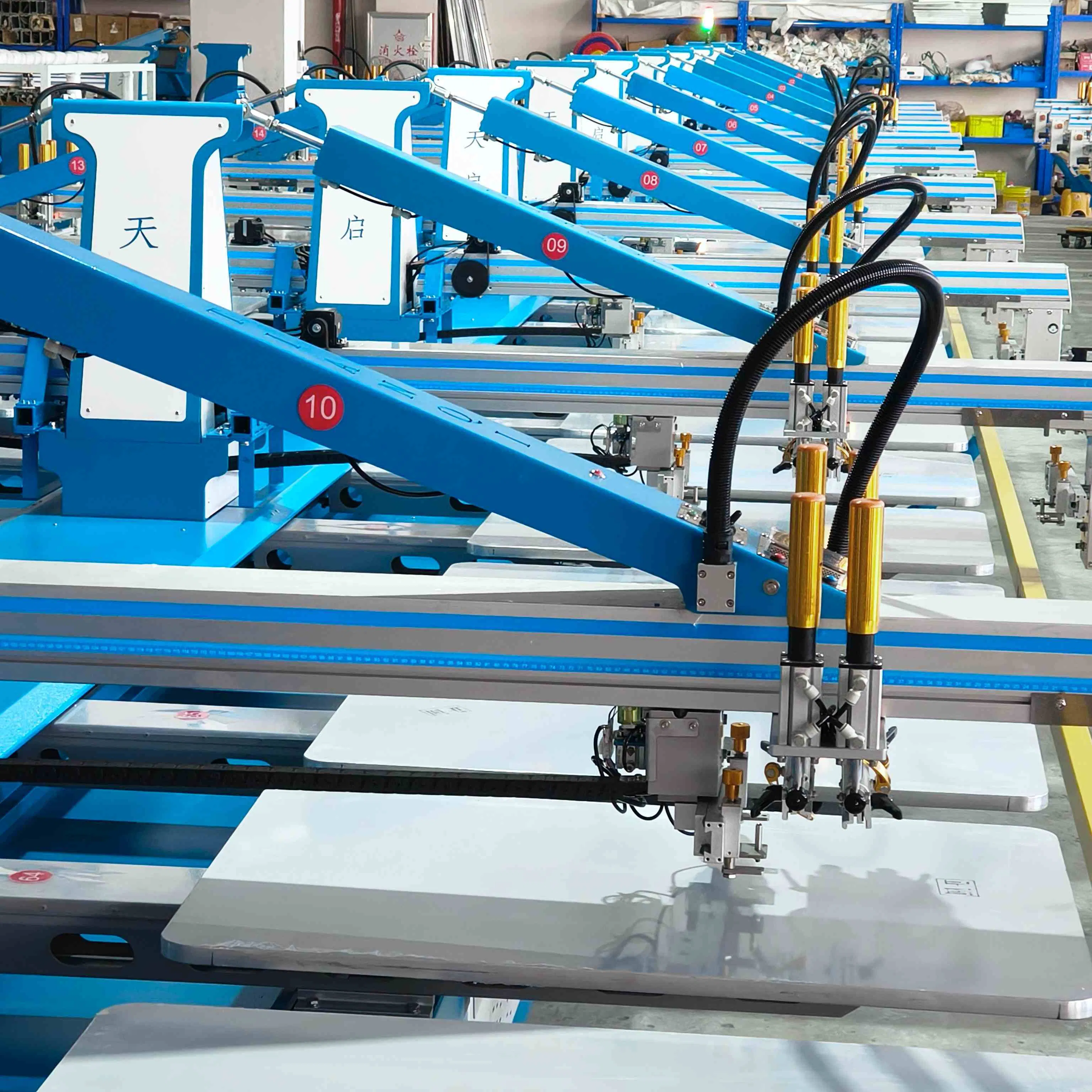

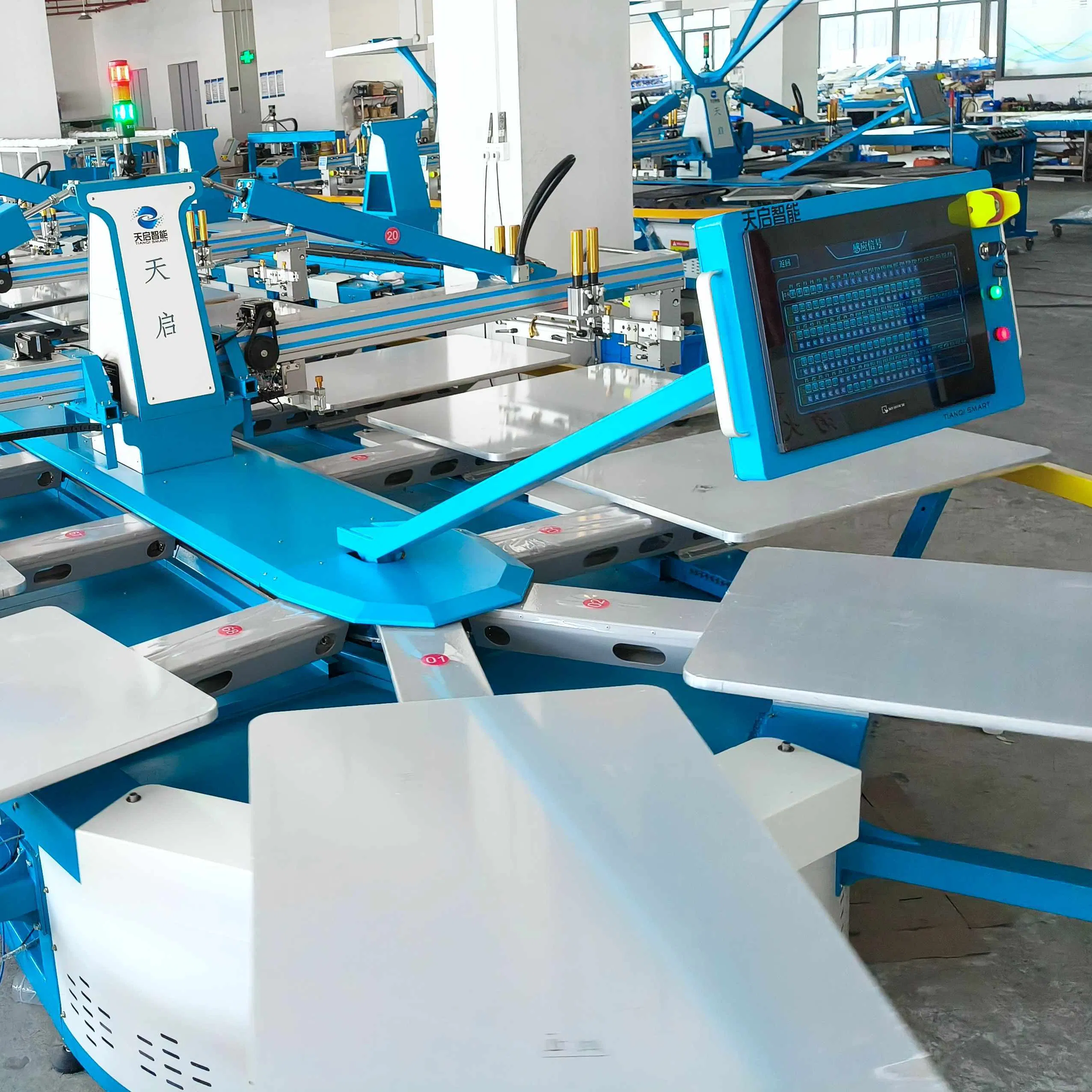

Cantilever-type Elliptical Printing Machine
Engineered for garments, textiles, luggage & bags, and shoes, offering efficiency, stability, and flexibility. Precision transmission with durable materials ensures accuracy, smoothness, and low energy. Ideal for mass production, achieving excellent results on various fabrics and patterns.
Intelligent Numerical Control Plate Alignment
Supports code scanners, flocking, ironing, and digital printers. Features an automatic plate alignment database that stores data for hundreds of orders. One-key origin reset allows quick setup for repeat orders with saved screen frame positions.

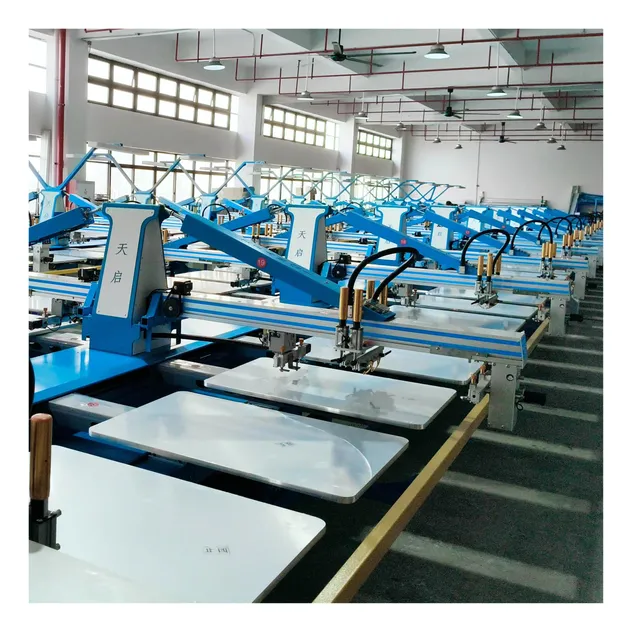

Right Elevation

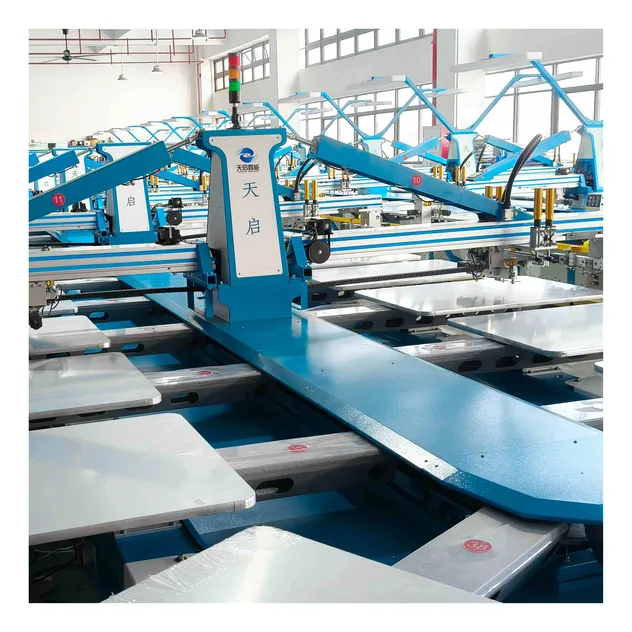

Left Elevation

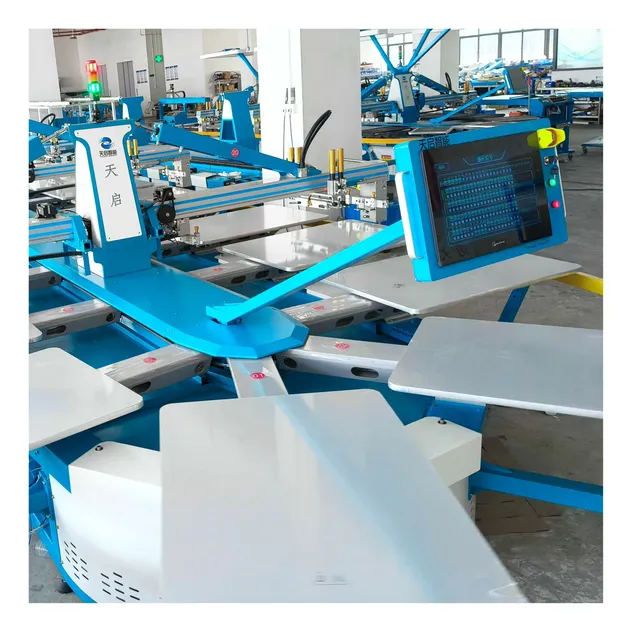

Front Elevation
| Parameter Indicators | |
|---|---|
| Number of printing heads | 17 (customizable) |
| Platen size (mm) | 400x650 - 800x1350mm |
| Power supply specification | 380V/50Hz |
| Printing head power (Kw/unit) | 0.4 |
| Flash drying power (Kw/unit) | 8.16 |
| Maximum output (pieces/hour) | 900 |
| Minimum air pressure (MPa) | 0.6 |
Standard Warranty
12 months coverage. Global support provides 24/7 technical assistance and spare parts availability.
Training Support
Comprehensive on-site or remote operation and maintenance training to ensure optimal machine performance.
Why Choose Our Equipment?
Available Equipment Range:
A: Standard models are typically shipped within 40 days, while customized units require 40–55 days depending on specifications.
A: Yes, we offer comprehensive overseas after-sales service, including both online technical support and offline assistance when required.
A: Absolutely. We provide tailored equipment configurations, including the number of printing heads and platen sizes, to meet your specific production requirements.
A: We provide a full export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, and COC (Certificate of Conformity).
A: The Q Series is ideal for garments, textiles, luggage, handbags, shoe materials (uppers/insoles), and accessories like gloves or umbrellas.
A: We offer a 12-month standard warranty. Please note that damage caused by human error or natural disasters is not covered under the machine warranty.
