Printing Presses Dry Powder Automatic Fire Suppression Systems

Customization:	Available
Capacity:	12kg Auto ABC90%
Neck Thread of Cylinder:	M30*1.5

Basic Specifications

Outlet Thread:NPT3/8

Cylinder Material:St12

Valve Thread:M30*1.5

Valve Body:Brass, Nickel Plated

Power:24va

Activation Temp:140℃

Working Pressure:14bar

Activation Time:<8s

Discharge Pipe:Dia.16mm, Stainless Steel

Capacity:12kg Auto

Printing Presses Dry Powder Automatic Fire Suppression Systems

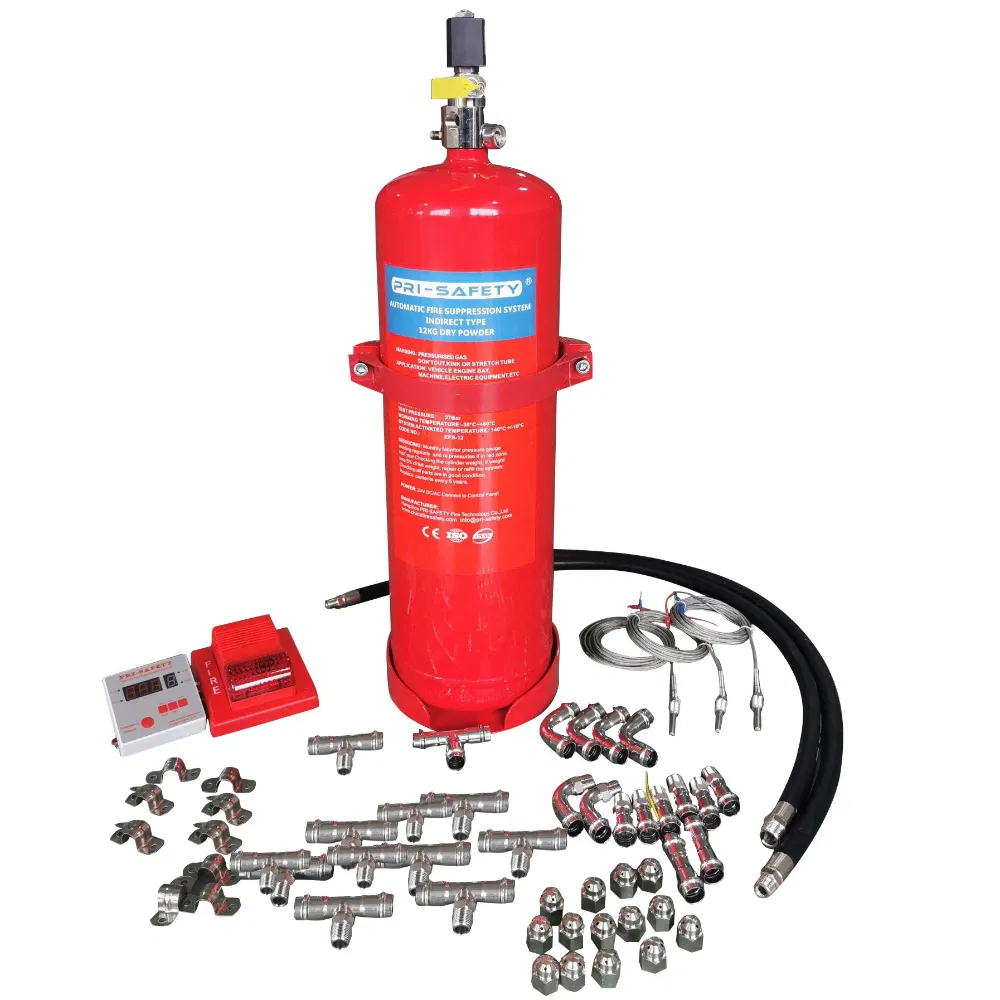

The automatic printing machine fire system consists of a tank cylinder, a solenoid valve with pressure gauge, discharge tube, fire alarm, control panel, and thermal detection cord. The tank is filled with dry powder agent and nitrogen driving gas.

Key Features

Full-automation heating start, requires electricity for control.
High effectively for industrial fires.
Simple installation and maintenance requirements.
Suitable specifically for electric equipment protection.
Refillable cylinder design for long-term use.

Technical Parameters

CAPACITY	12KG AUTO ABC90%
NECK THREAD	M30*1.5
SERVICE TEMPERATURE	-30ºC ~ +60ºC
WORKING PRESSURE	14Bar
TEST PRESSURE	27Bar
ACTIVATION TIME	< 8s

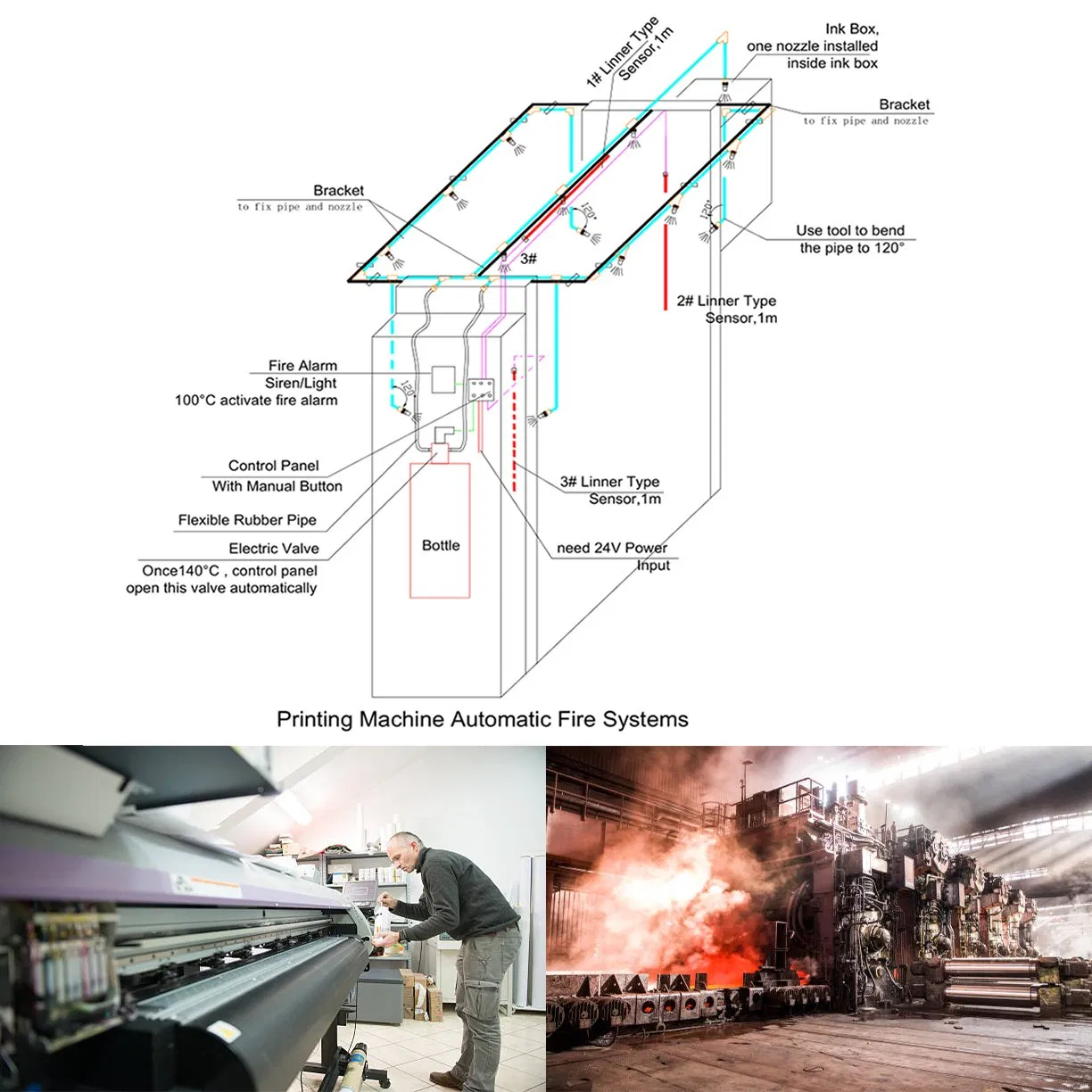

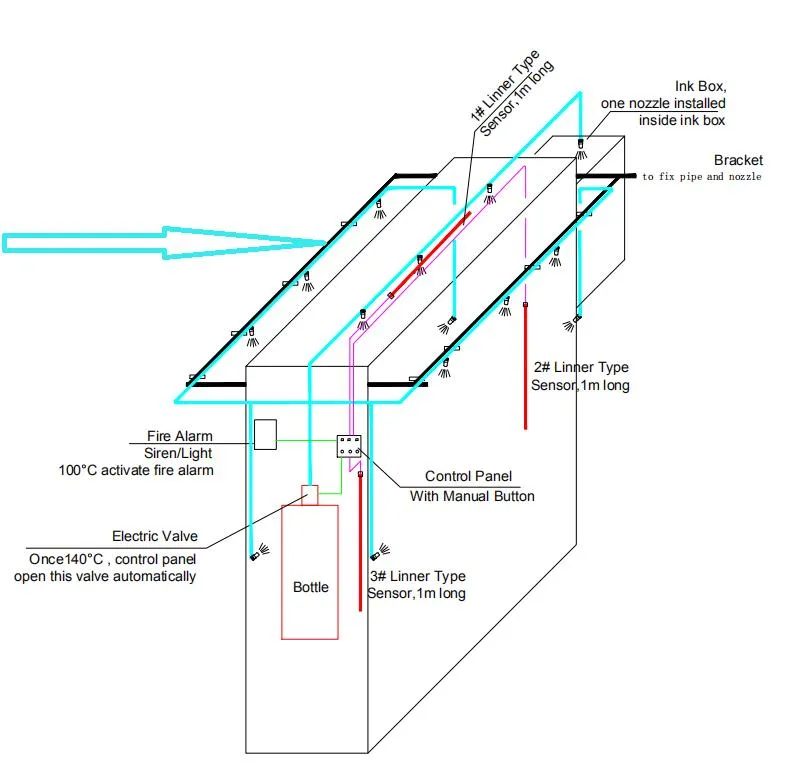

Working Principle

The alarm starts when the thermal cord detects an ambient temperature of 100ºC. The system activates and discharges the extinguishing agent at 140ºC.

The solenoid valve is held in a latched position without power until a signal is received from the control panel. Once released, the latching solenoid opens the cylinder valve, discharging the agent into the system. It also features an emergency release button for manual activation.

Applications

Ideal for environments where fire risks are high or equipment is valuable:

Electronic Computer Rooms

Telecommunications Facilities

Medical & Industrial Equipment

Libraries & Museums

Paint-spraying Production Lines

Ship's Engine Rooms

Quality Standards

Production follows strict international guidelines. Most products carry certifications including CE, EN3, EN671, EN1869, and UL. Our specialization includes fire extinguishers, suppression systems, aerosol systems, fire hoses, and alarm components.

Frequently Asked Questions

At what temperature does the system activate?

The system triggers an alarm at 100°C and fully activates to discharge extinguishing agent at 140°C.

What extinguishing agent is used in this system?

The system utilizes high-quality ABC 90% dry powder agent driven by nitrogen gas.

Can the cylinder be refilled after use?

Yes, the tank cylinder is designed to be refillable, making it a sustainable choice for industrial fire protection.

What is the typical response time?

The activation time is extremely fast, typically less than 8 seconds once the activation temperature is reached.

Is manual activation possible?

Yes, the latching solenoid is designed with an emergency release button for manual cylinder valve depression if needed.

What are the main application areas?

It is primarily used in printing presses, computer rooms, data centers, and industrial production lines like paint-spraying or electrical aging equipment.
