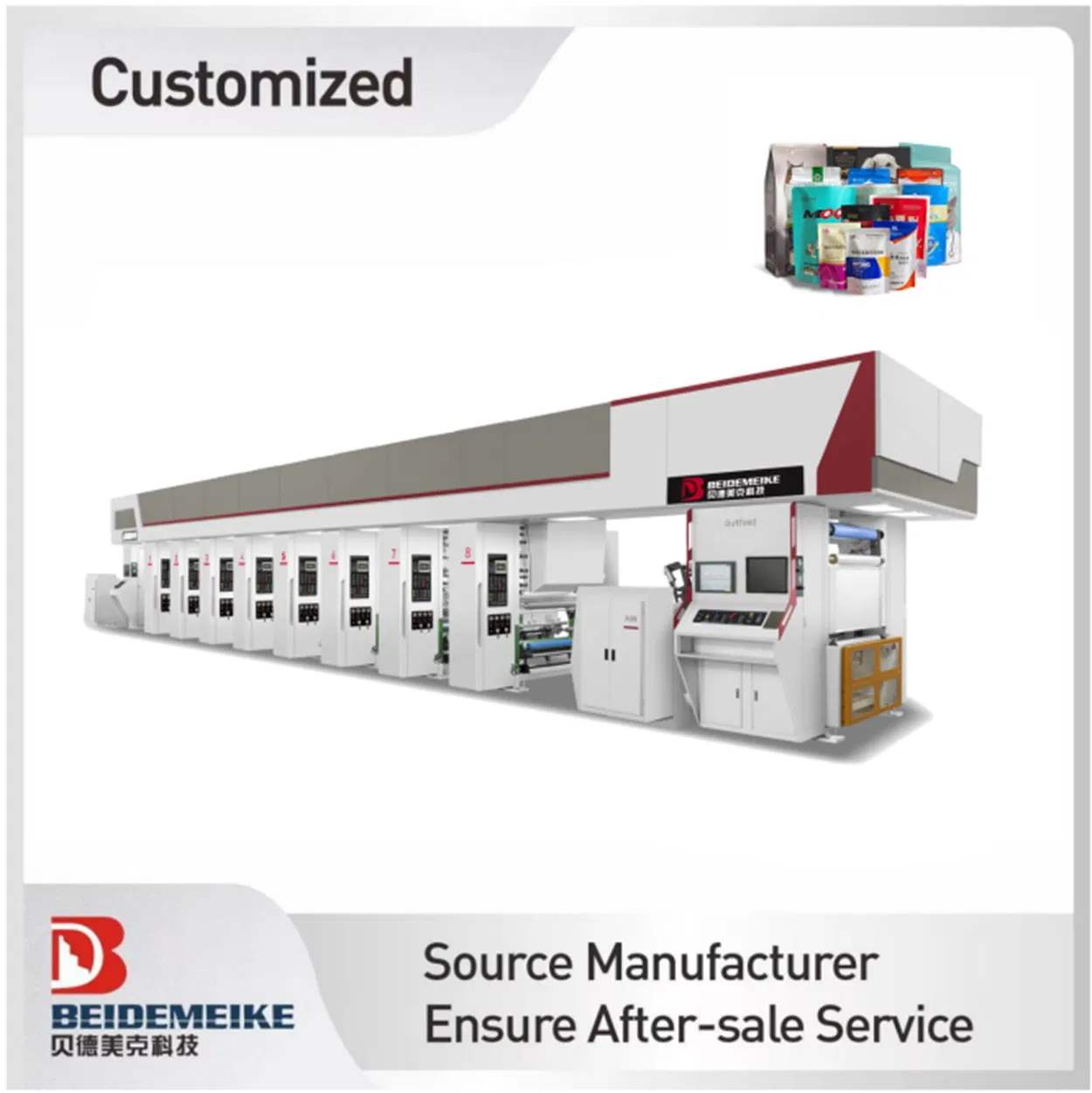

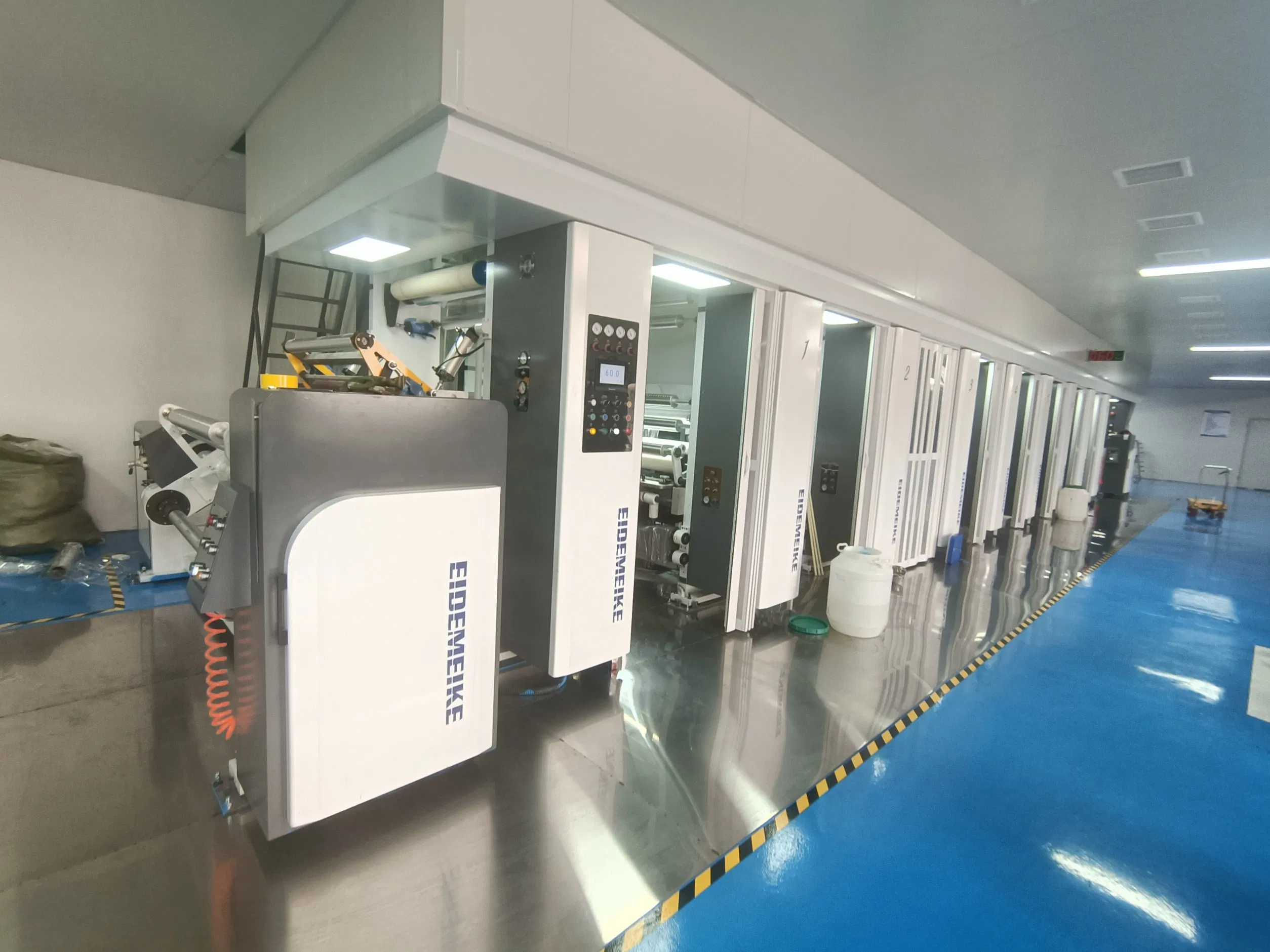

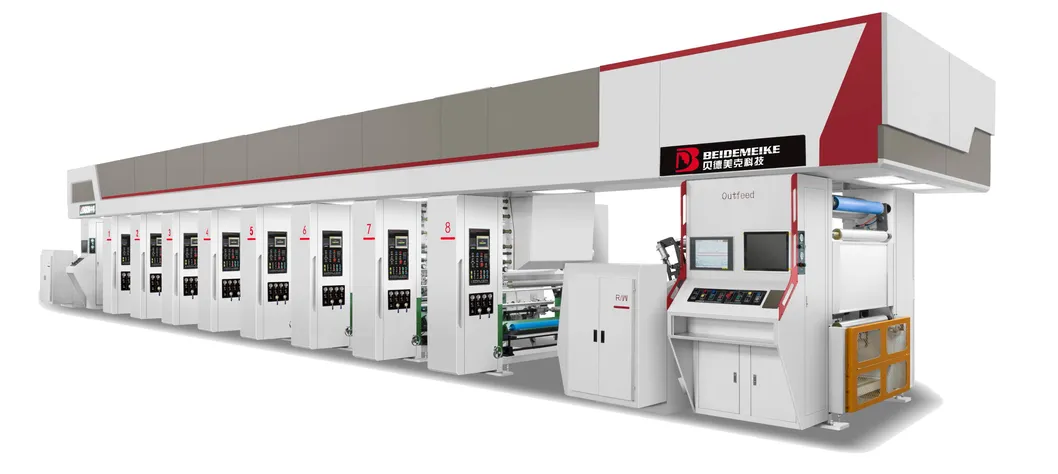

Discover the epitome of precision and efficiency with our cutting-edge electronic shaft-driven gravure presses, meticulously crafted to revolutionize your packaging. This avant-garde equipment is engineered to offer exceptional features: it significantly reduces energy consumption while minimizing material waste, all wrapped in an intuitive user-friendly interface. Its state-of-the-art intelligence makes it adaptable, whether you're managing high-volume oversupply demands or curating bespoke small-volume collections.
Utilizes a sophisticated tower-type dual-station setup for seamless receiving and discharging, ensuring uninterrupted operation during coil replacements.
Features a one-touch activation system with a fully automated tinted function, diminishing the dependency on operator expertise.
Incorporates a semi-suspension structure oven with optimized guide rollers for maximum efficiency and streamlined processing.
| Parameter Item | Specifications (BM-400D) |
|---|---|
| Max. Speed | 400m/min |
| Max. Width of Web | 1050mm |
| Max. Diameter (Unwinding/Rewinding) | Ø600-800mm |
| Tension Control Range | 20-50kg/Full Width |
| Inside Diameter of Roll Core | 76mm |
| Diameter of Printing Cylinder | Ø120-360mm |
| Accuracy of Computer Registration | ±0.1mm |
| Total Power | Approx 300kw |
| Machine Weight | Approx. 40000kg |
| Material | Min. Thickness | Max. Thickness |
|---|---|---|
| BOPP | 12μm | 60μm |
| PET | 10μm | 60μm |
| BOPA | 15μm | 60μm |
| PE / LDPE | 35μm | 100μm |
| Paper | 30g/m² | 120g/m² |

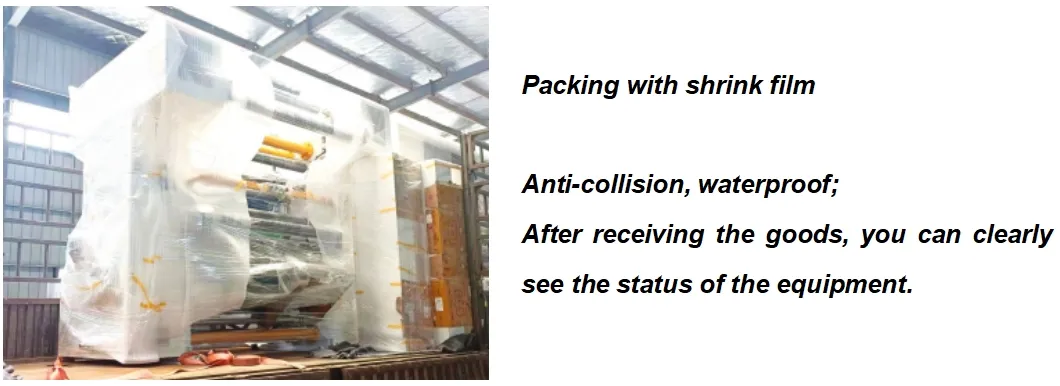

In response to the needs of our esteemed customers, our dedicated and highly skilled team of factory workers ensure that each piece of equipment is ready for timely dispatch. The equipment is carefully loaded, standing as a testament to our commitment to excellence and punctuality.
Since our inception, we have passionately dedicated ourselves to pioneering the development of eco-friendly equipment. We provide expert technical consultation, seamless installation, commissioning, and comprehensive training.
