Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.:FM-CS
Printing Page:Single Faced
Printing Color:5 Colors
Anilox Roller:Ceramic Anilox Roller
Dryer:UV & IR
Embossing Structure:Rotary Letterpress
Structure:Unit Type
Automatic Grade:Automatic
Printing Speed:200m/min
Max. Web Width:1370mm
Printing Material:60-350GSM Paper Roll
Production Capacity:5 Sets / Month

Product Overview

With superior quality and satisfying performance, this equipment has gained reliance and praise from customers worldwide. We prioritize quality as the foundation of the market, ensuring that every machine meets high standards of efficiency and durability for the flexible packaging industry.

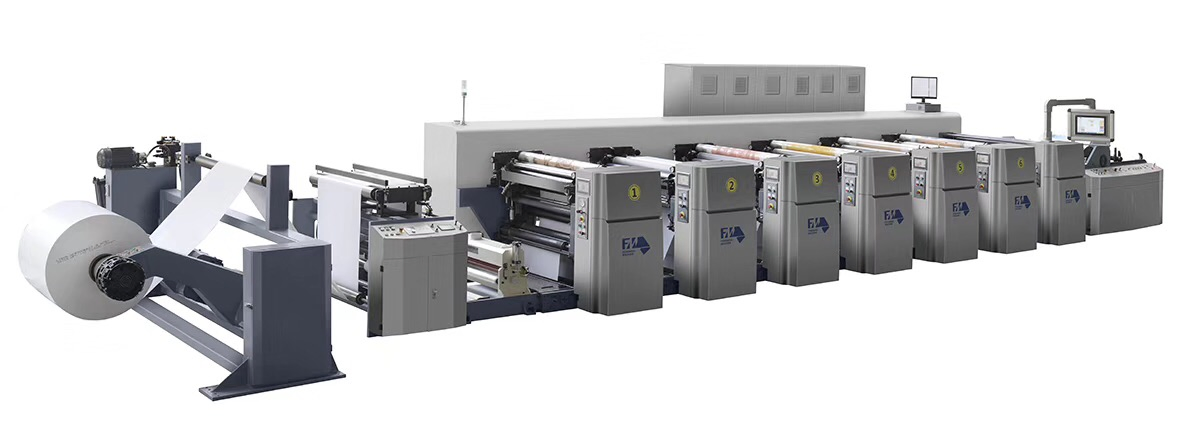

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  • Petal type plate mounting, anilox and cylinder with quick change structure.
  • Printing unit easy operation, cylinder and anilox pressing once successfully.
  • Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  • Registering remains the same during lifting process.
  • Register position automatic memory function.

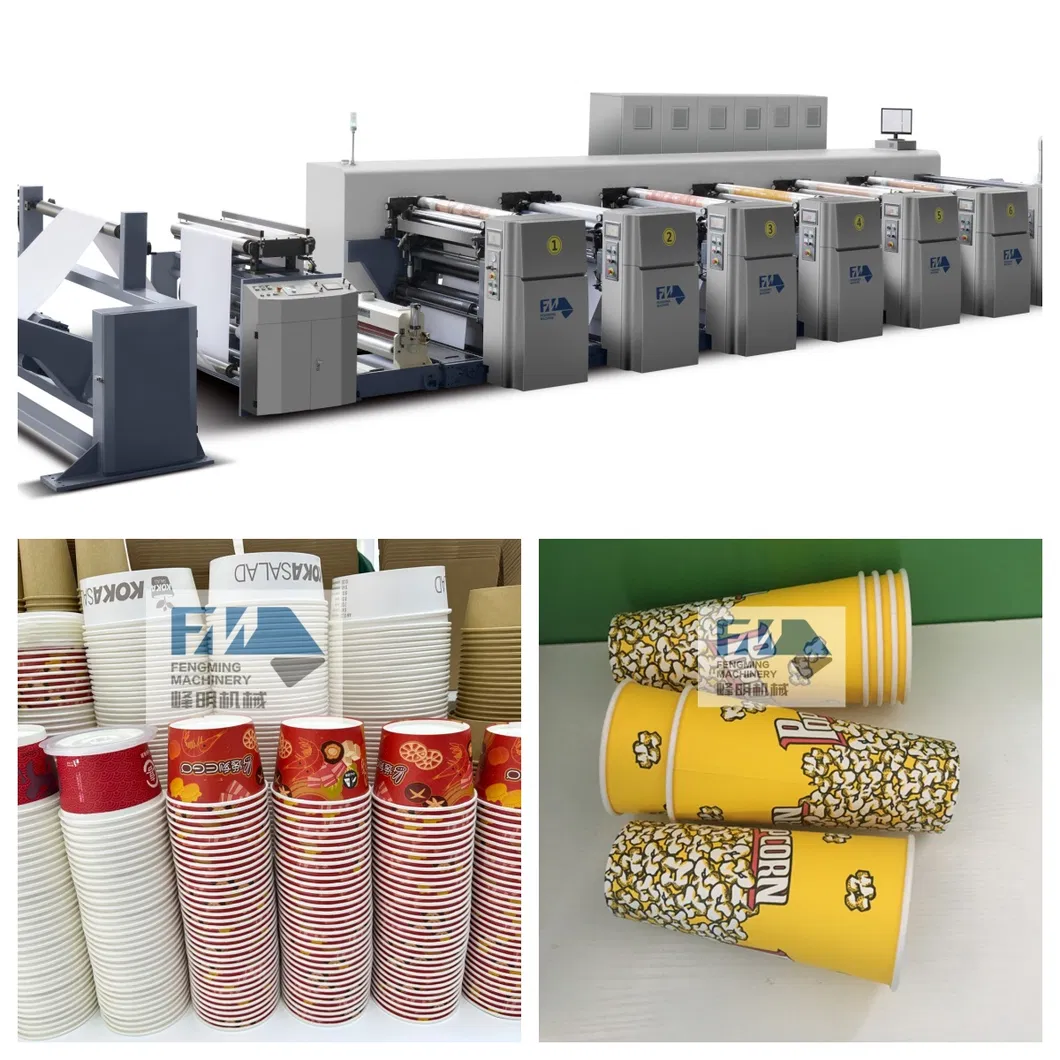

Paper Cup Flexo Printing Equipment

Industrial Applications

Suitable for eco-friendly packaging, such as paper bags used for food and healthcare industry, paper boxes, paper cups, pre-printing cartons, courier bags, milk cartons, and medicine packaging.

Compatible Materials

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials, and more.

Technical Parameters

Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1370mm
Max. Printing Width 1000mm 1270mm 1350mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Max. Unwinder Diameter 1524mm 1524mm 1524mm
Max Printing Speed 160-200m/min 160-200m/min 160-200m/min
Drying Mode Hot Air Drying / IR Drying / UV Drying
Printing Material 60-300gsm paper roll

Frequently Asked Questions

Q1: What materials can the FM-CS series print on? A: The machine is designed for various paper-based materials including kraft paper, paperboard, coated paper, and laminated paper rolls ranging from 60 to 350GSM.
Q2: What is the maximum production speed of this flexo printing machine? A: The FM-CS series can achieve a maximum printing speed of 200 meters per minute, depending on the material and job requirements.
Q3: What are the advantages of the Petal Type structure? A: The petal type structure allows for quick changes of the anilox roller and plate cylinder, significantly reducing setup time and improving operational efficiency.
Q4: Does the machine support UV drying? A: Yes, the machine is highly versatile and can be equipped with Hot Air Drying, IR Drying, and UV Drying systems to suit different ink types.
Q5: Is the printing registration automated? A: Yes, it features a full servo shaftless transmission with an automatic pre-print function and register position memory for high precision and material saving.
Q6: What is the maximum web width available? A: The maximum web width for the 1350 model is 1370mm, with a maximum printing width of 1350mm.
