Note Book Cover Servo Control Flexographic Printing Equipment

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Specification

Model NO.FM-CS

Printing PageSingle Faced

Printing Color5 Colors

Anilox RollerCeramic Anilox Roller

DryerUV & IR

TypeFlexo

StructureUnit Type

Printing Speed200m/min

Max. Web Width1370mm

Automatic GradeAutomatic

Production Capacity5 Sets / Month

HS Code8443160090

🚀

Product Description & Features

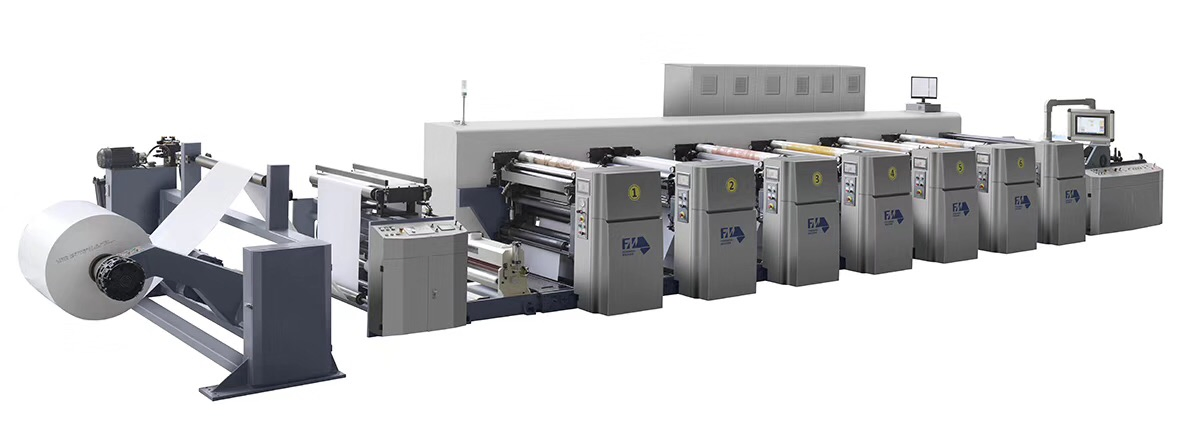

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

Petal type plate mounting, anilox and cylinder with quick change structure.

Printing unit easy operation, cylinder and anilox pressing once successfully.

Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.

Registering remains the same during lifting process.

Servo Control Flexographic Printing Equipment

🎯 Main Applications

• Food & Healthcare Paper Bags

• Eco-friendly Paper Cups/Boxes

• Pre-printing Cartons

• Courier Bags & Milk Cartons

Materials Used: Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials, etc.

⚙️

Technical Parameters

Specification	1020	1300	1350
Max. Web Width	1020mm	1300mm	1370mm
Max. Printing Width	1000mm	1270mm	1350mm
Printing Repeat	300-1200mm	300-1200mm	300-1200mm
Max.Unwinder/Rewinder Dia.	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	160-200m/min	160-200m/min	160-200m/min
Drying mode	Hot Air Drying / IR Drying / UV Drying
Printing Material	60-350gsm paper roll

❓

Frequently Asked Questions

Q1: What materials are suitable for this Flexographic Printing Machine? A: It is designed for 60-350GSM paper rolls, including kraft paper, paperboard, coated paper, laminated paper, and multilayer composite materials.

Q2: What is the benefit of the "Petal Type" structure? A: The petal type structure allows for quick change of the plate mounting, anilox, and cylinder, significantly improving operational efficiency.

Q3: How does the servo shaftless transmission help in production? A: It enables automatic pre-printing, which saves both time and material while ensuring high precision during the printing process.

Q4: What drying options are available for this model? A: The machine supports multiple drying modes including Hot Air Drying, IR (Infrared) Drying, and UV Drying to suit different ink types.

Q5: Does the registration position change during machine lifting? A: No, the registering remains the same during the lifting process, and it features an automatic memory function for register positions.

Q6: What is the maximum printing speed and width? A: The maximum speed is up to 200m/min, and the maximum printing width reaches 1350mm depending on the specific model configuration.
