Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
1 / 5
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment
Non Woven Material Printing Equipment

Non Woven Material Printing Equipment

Customization: Available
Printing Page: Single Faced
Printing Color: 4 Colors
Send Inquiry

Product Description

📊 Basic Specifications
Model NO.FM-B920-1320
Anilox RollerCeramic Anilox Roller
DryerUV & IR
TypeFlexo
Embossing StructureRotary Letterpress
StructureUnit Type
ApplicationFlexible Packaging
Automatic GradeAutomatic
Printing Speed150m/min
Max. Web Width1020mm
Max. Printing Width1000mm
Printing Repeat Length286-1200mm
Unwinder/Rewinder Dia.1524mm
Gearing1/8 Cp
Main Motor Power11kw
Drying ModeHot Air & IR Drying
Ink UsedWater Based Ink
Power Supply380V 3pH 50Hz
Printing Material60-350GSM Paper
HS Code8443160090
Production Capacity10 Sets / Month
📝 Product Description

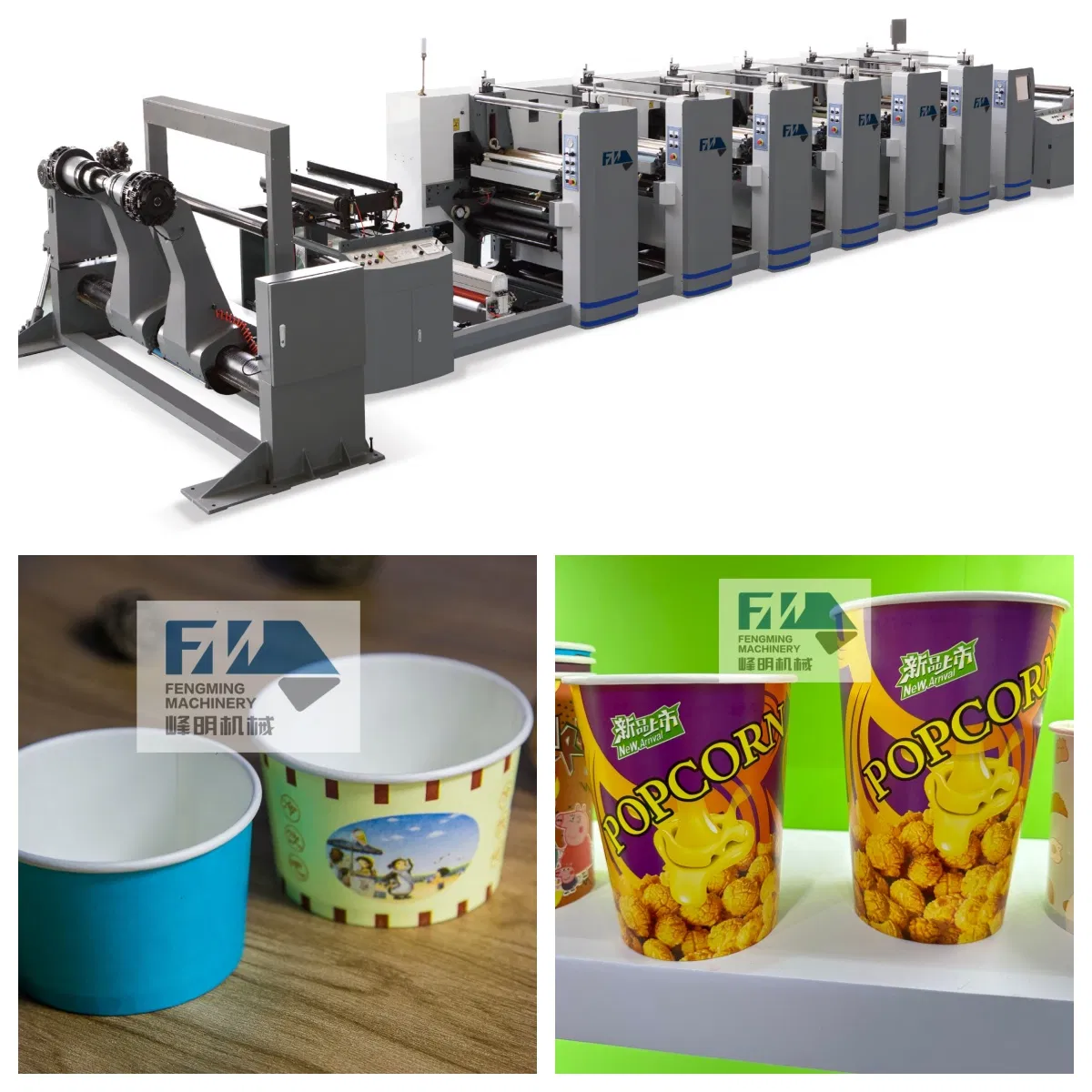

⚙️ FM-B650-1320 MODEL FLEXOGRAPHIC PRINTING MACHINE

Application Object: Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used: Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials etc.

📋 Technical Parameters
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1350mm
Max. Printing Width 1000mm 1270mm 1320mm
Printing Repeat 286-1200mm 286-1200mm 286-1200mm
Max. Unwinder Diameter 1524mm 1524mm 1524mm
Max. Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 150m/min 150m/min 150m/min
Drying mode Hot air Drying / IR Drying / UV Drying
Substrate 80-400g chrome paper, aluminum-foil paper, BOPP, paper board, kraft paper.
Flexographic Printing Machine Equipment
❓ Frequently Asked Questions
1. What kind of materials can this flexo printing machine handle?
The machine is versatile and can handle various substrates including kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, and carton board materials ranging from 60-350GSM or 80-400g depending on the specific model.
2. What is the maximum printing speed of the FM-B series?
The maximum printing speed for these models is 150 meters per minute, ensuring high efficiency for industrial production.
3. What types of drying systems are integrated into the machine?
The machine is equipped with multiple drying options to suit different ink types and substrates, including Hot Air Drying, IR (Infrared) Drying, and UV Drying systems.
4. Does the machine support eco-friendly printing?
Yes, it is specifically designed for eco-friendly packaging production and is optimized for using water-based inks, which are more environmentally friendly than solvent-based alternatives.
5. What are the available web width options for this model?
We offer different specifications to meet various needs, including maximum web widths of 1020mm, 1300mm, and 1350mm.
6. What is the unwinder and rewinder capacity?
Both the unwinder and rewinder are designed to handle large rolls with a maximum diameter of up to 1524mm, allowing for longer continuous production runs.
