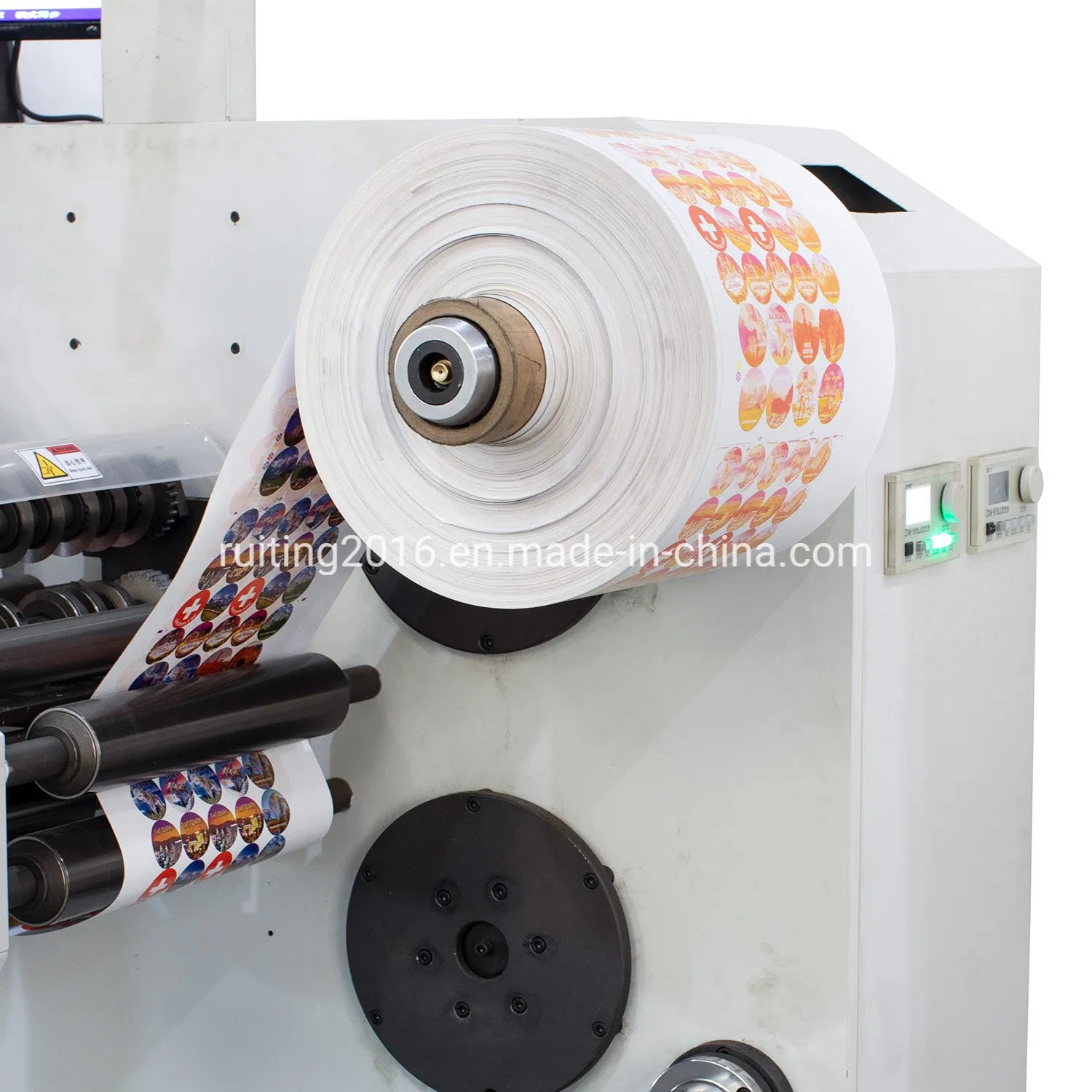

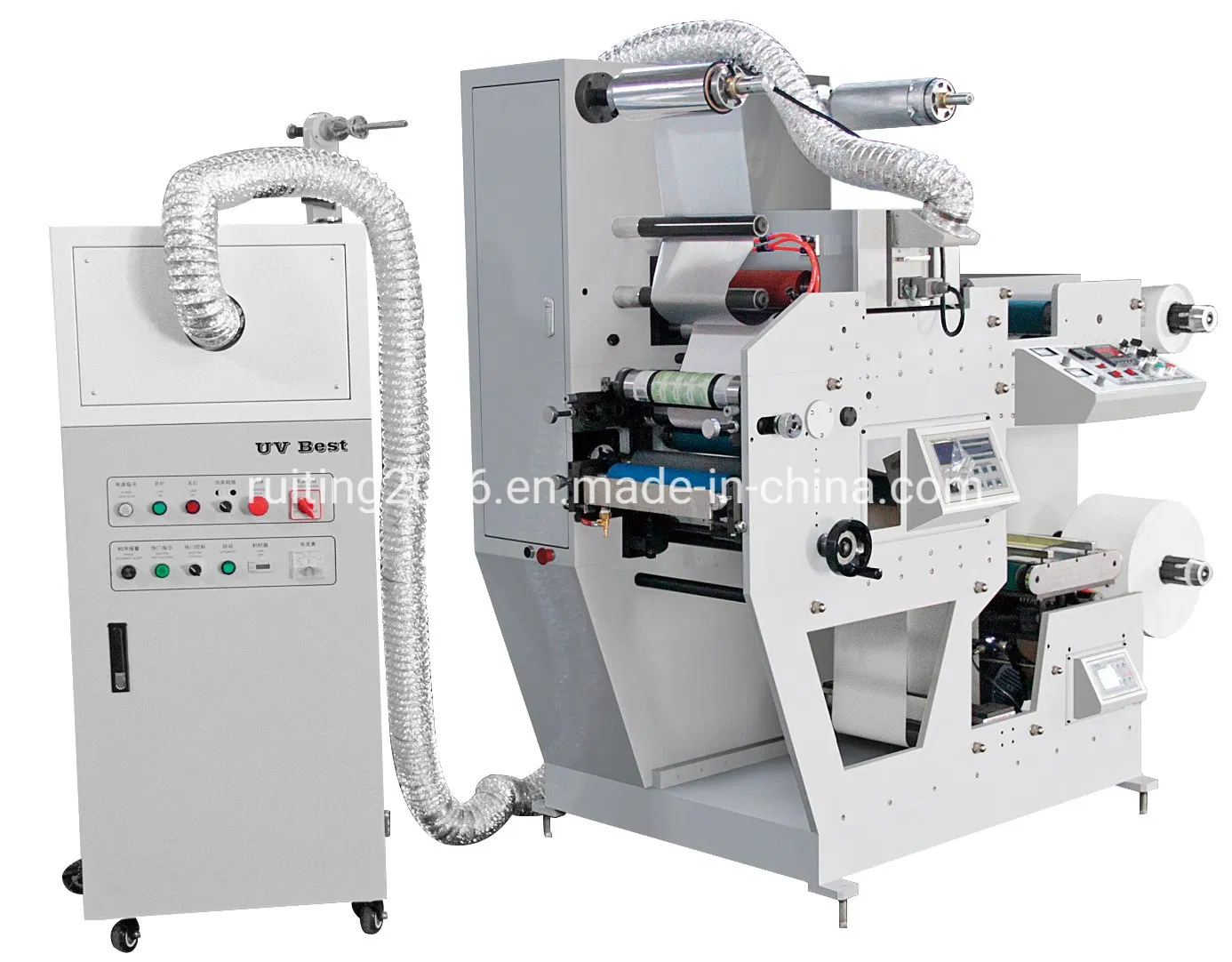

Mini 1 Color Aluminum Foil Roll to Roll Printing Machine with UV Printer

Customization: Available
After-sales Service: Video Support
Warranty: 12 Months

Product Description

i

Basic Information

Model NO.
RTRY-320A
Printing Page
Single Faced
Printing Color
1 Color
Anilox Roller
Ceramic Anilox Roller
Dryer
IR
Type
Ink Jet
Embossing Structure
Rotary Letterpress
Structure
Stacked
Application
Flexible Packaging Printing
Automatic Grade
Automatic
Printing Speed
60m/min
Printing Material
Paper/Label/Plastic Film/PVC
Plate Thickness
1.7mm
Function
Die Cutter, Slitter, Sheet, Laminating, Cold Foil, UV
Transport Package
Wooden Box
Specification
2m*1.1m*1.4m
HS Code
8443140000
Production Capacity
30 sets/Month

Product Description

UV Printing Machine

Rtry-320 1 Color Sticker UV Printing Machine with Cold Foil

  • The main motor adopts imported stepless frequency control.
  • Feeding and discharging device are controlled through magnetic powder brake and clutch (Japanese Mitsubishi aut tension controller).

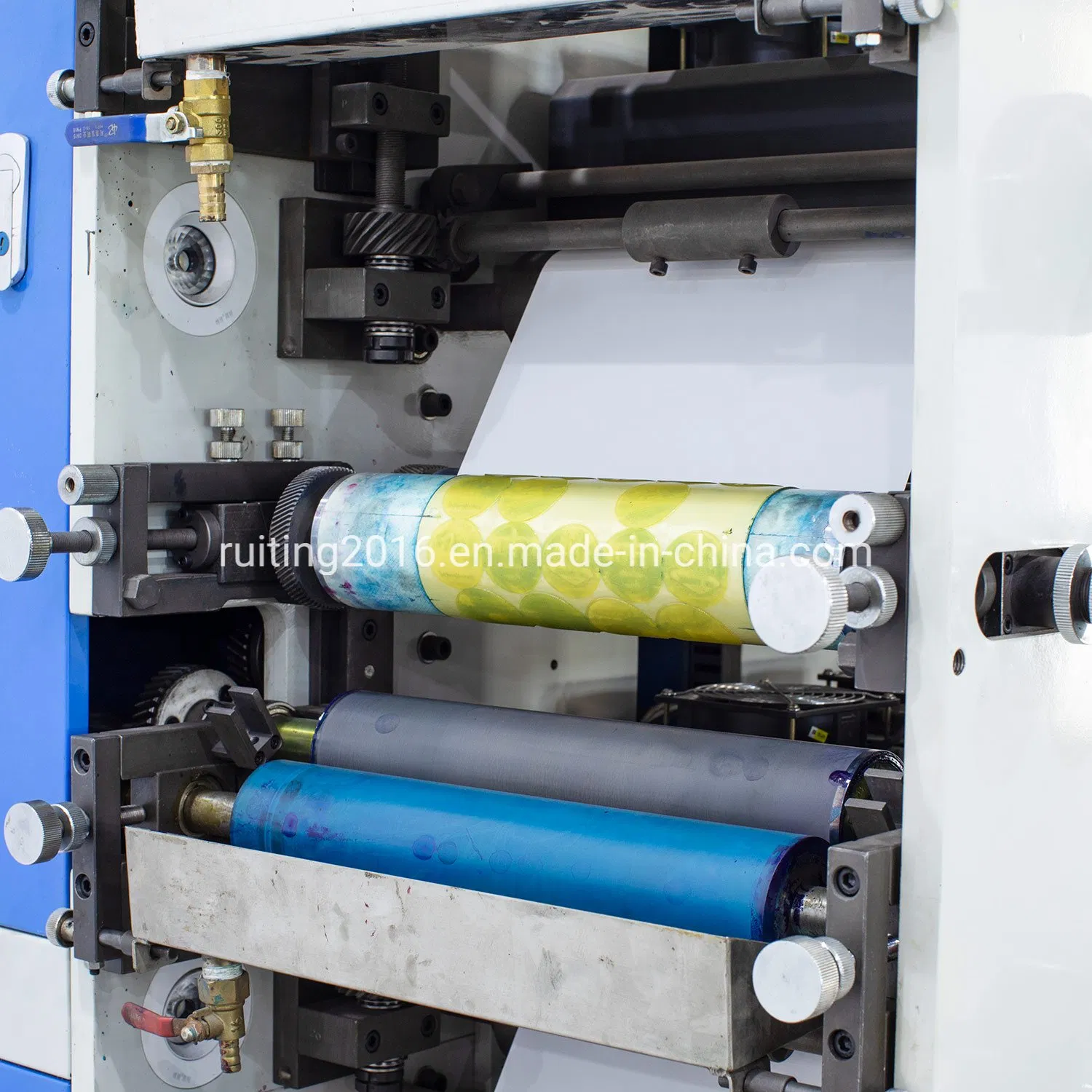

  • Adopt ceramic mesh distributor roller, which is durable, wear proof, and corrosion resistant. It is favorable to reduce the replacement frequency of mesh roller and improve the printing efficiency.
  • The printing unit can register in 360 degrees.
  • Every printing unit equipped with a group of infrared dryers respectively.
  • The feeding and discharging device use air-expansion core shaft.
  • The inking roller can automatically fall off at stoppage and rotate at low speed in order to keep the ink from being dry and solid.
  • The roll feeding, printing, polishing, auto infrared drying, laminating and rolling can be processed in one processing.
  • Features wide application, pollution-free printing ink, high economic benefit, and high printing speed. Ideal for commercial bills, paper cards, and high-class adhesive labels.

Machine Parameters

Max. Printing speed10-80(m/min)
Printing color1 (color)
Max web width320mm
Max printing width310mm
Max feeding diameter600mm
Max winding diameter500mm
Precision girth175-320mm
Precision of overprint±0.1mm
Overall dimensions(L*W*H)2m*1.1m*1.4mm
Machine weight(about) 800kg
📷

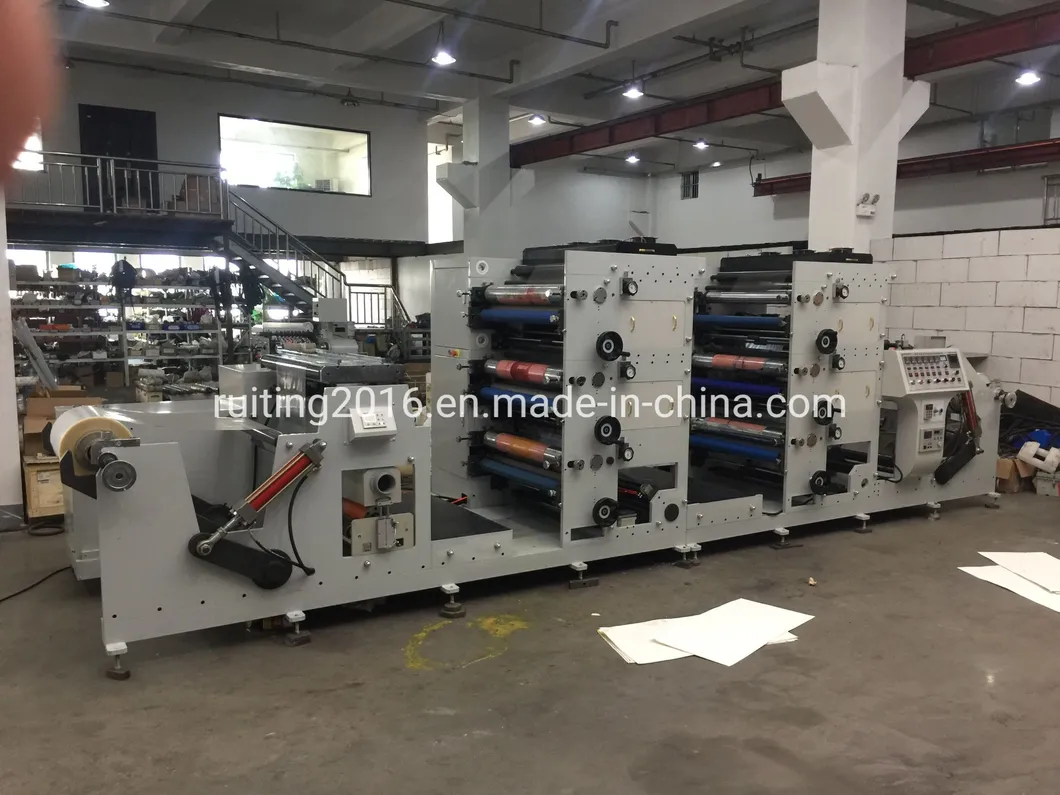

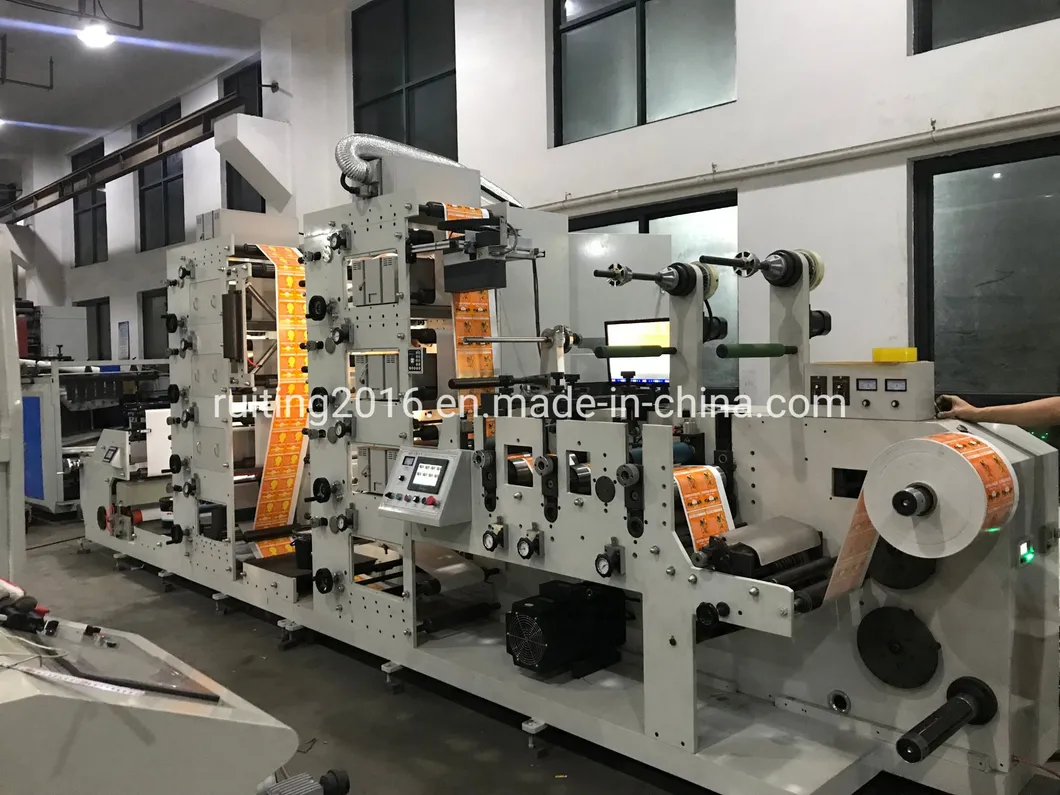

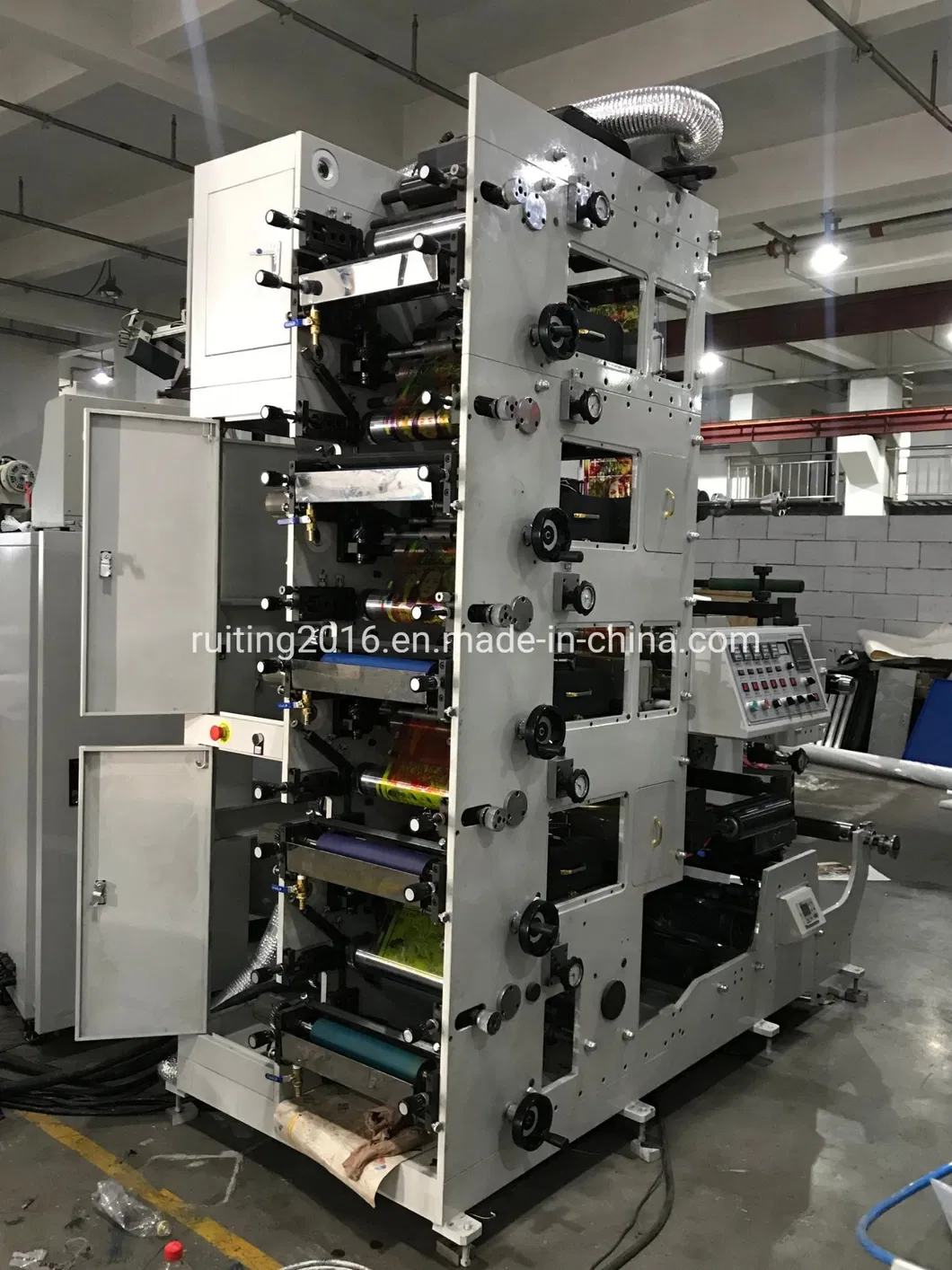

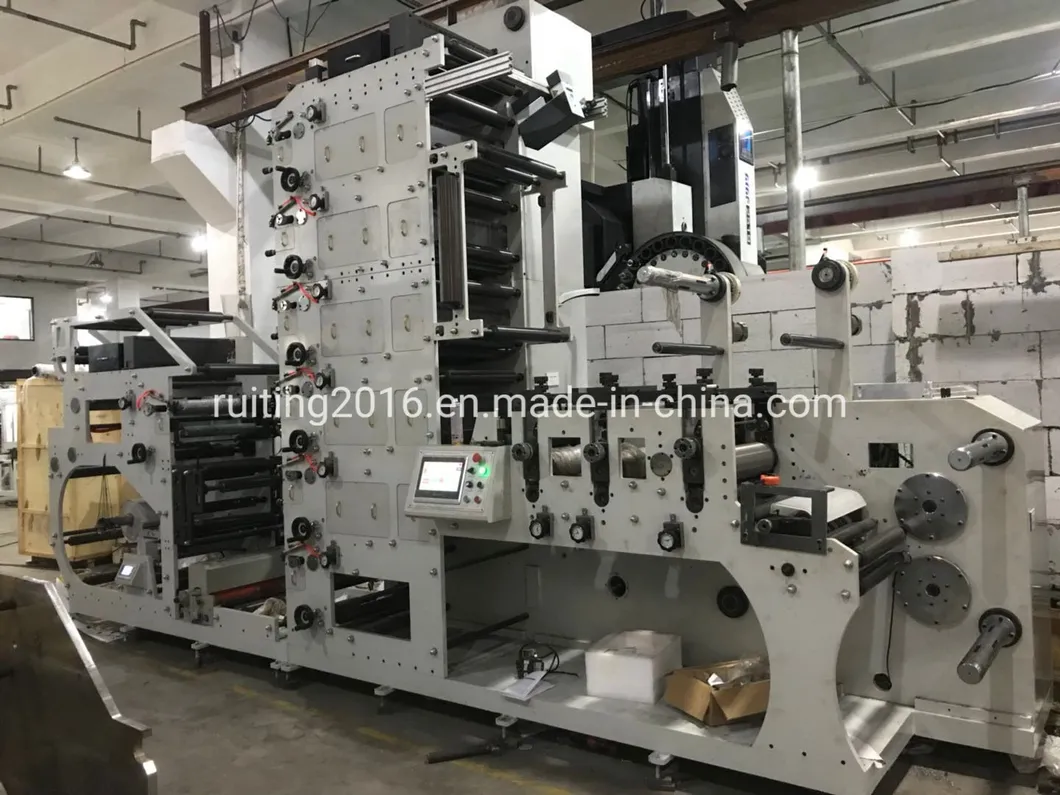

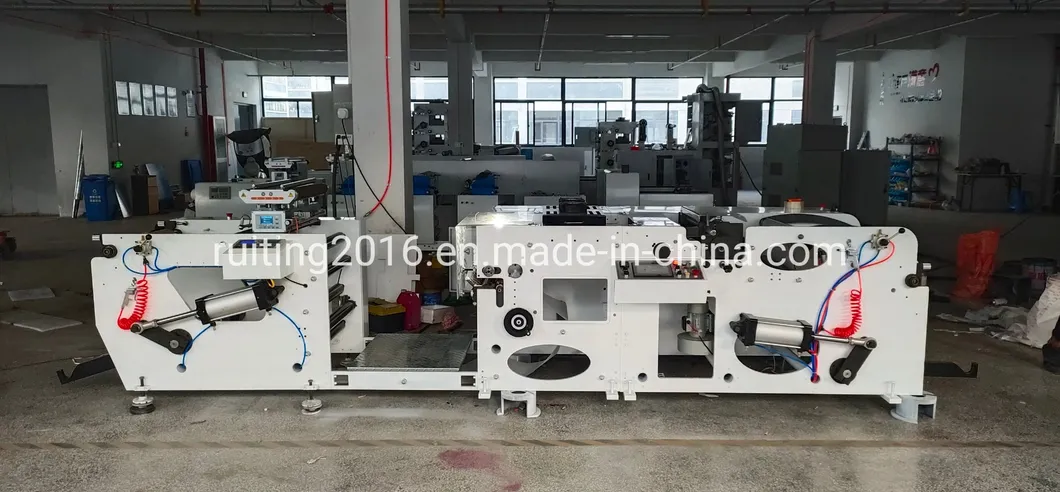

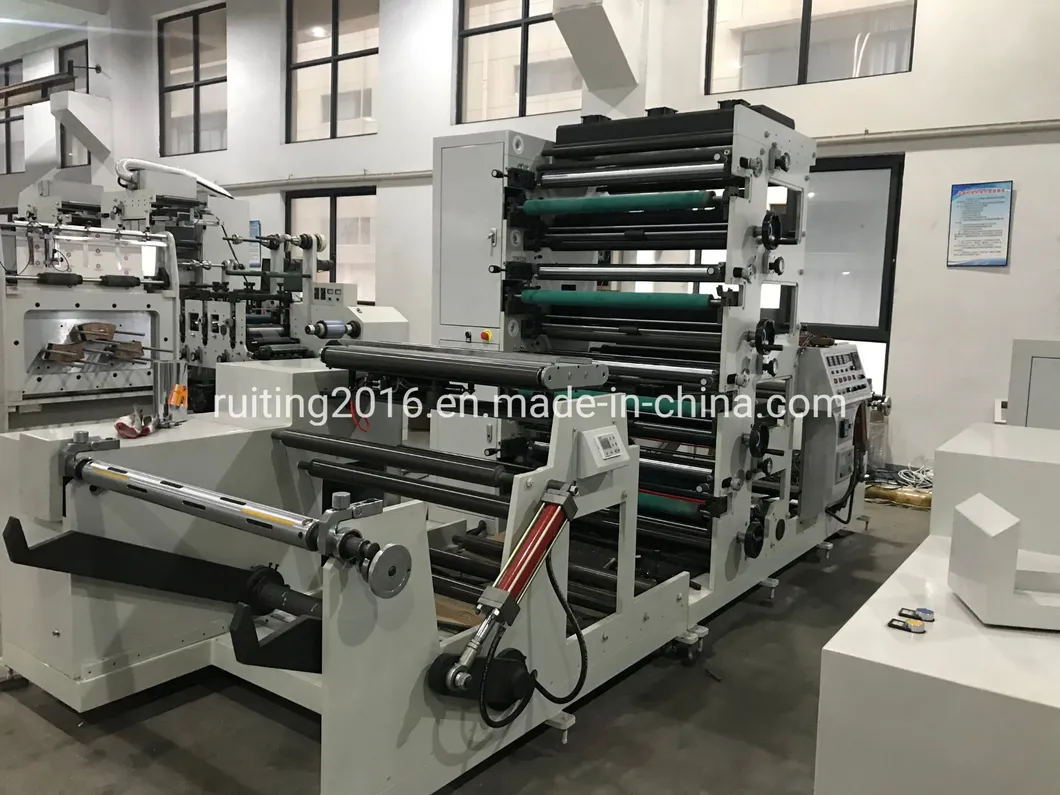

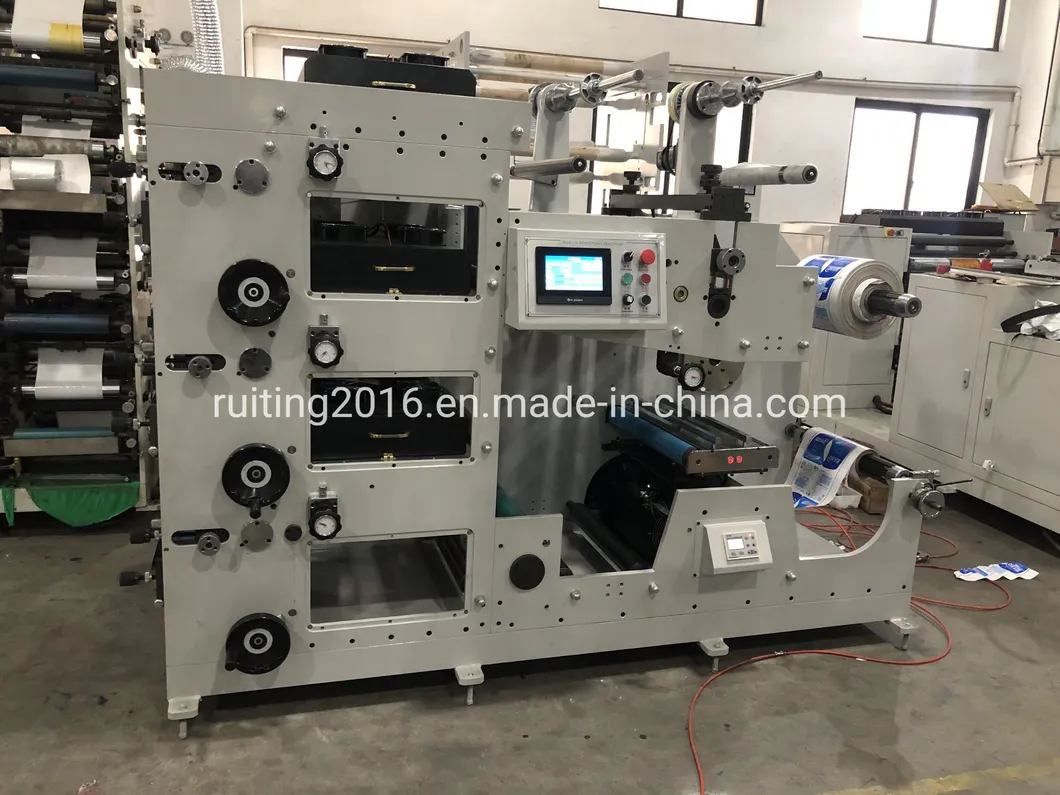

Machine Photo Reference

?

Frequently Asked Questions

Q1: What materials can this machine handle? A: The RTRY-320A is highly versatile and can print on paper, labels, plastic film, PVC, and other flexible packaging materials.
Q2: What is the maximum printing speed of the RTRY-320A? A: The machine can reach a maximum printing speed of 60-80 meters per minute, ensuring high production efficiency.
Q3: How does the machine handle ink drying? A: Each printing unit is equipped with an independent infrared (IR) drying system to ensure rapid and effective drying of the ink.
Q4: What are the advantages of the ceramic anilox roller? A: The ceramic anilox roller is extremely durable, wear-proof, and corrosion-resistant, which helps in maintaining consistent printing quality and reducing maintenance frequency.
Q5: Can this machine perform multiple processes in one go? A: Yes, it is designed for all-in-one processing, including roll feeding, printing, polishing, infrared drying, laminating, and rolling.
Q6: What type of tension control system is used? A: The feeding and discharging units are controlled via magnetic powder brakes and clutches with high-precision automatic tension controllers.
