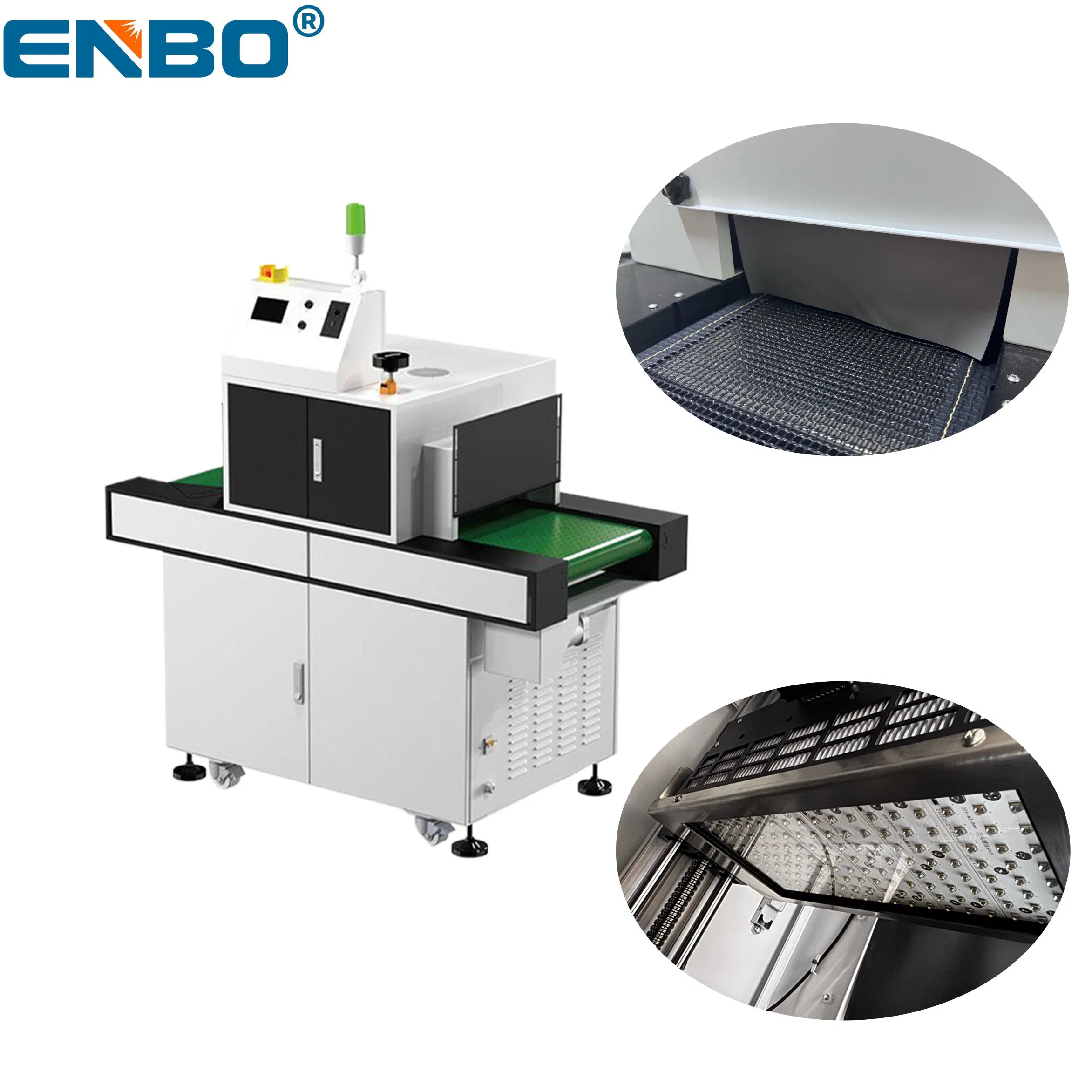

LED UV Curing Conveyor System for Adhesive/Varnish Curing in Printing

i

Overview & Basic Information

Model NO.	EB-FR300	Power	900W
UV Wavelength	365nm / 395nm / 405nm	Belt Length	1000mm
Belt Width	300mm	HS Code	8543709990
Package Size	200.00cm * 110.00cm * 180.00cm	Gross Weight	300.000kg

D

Product Description

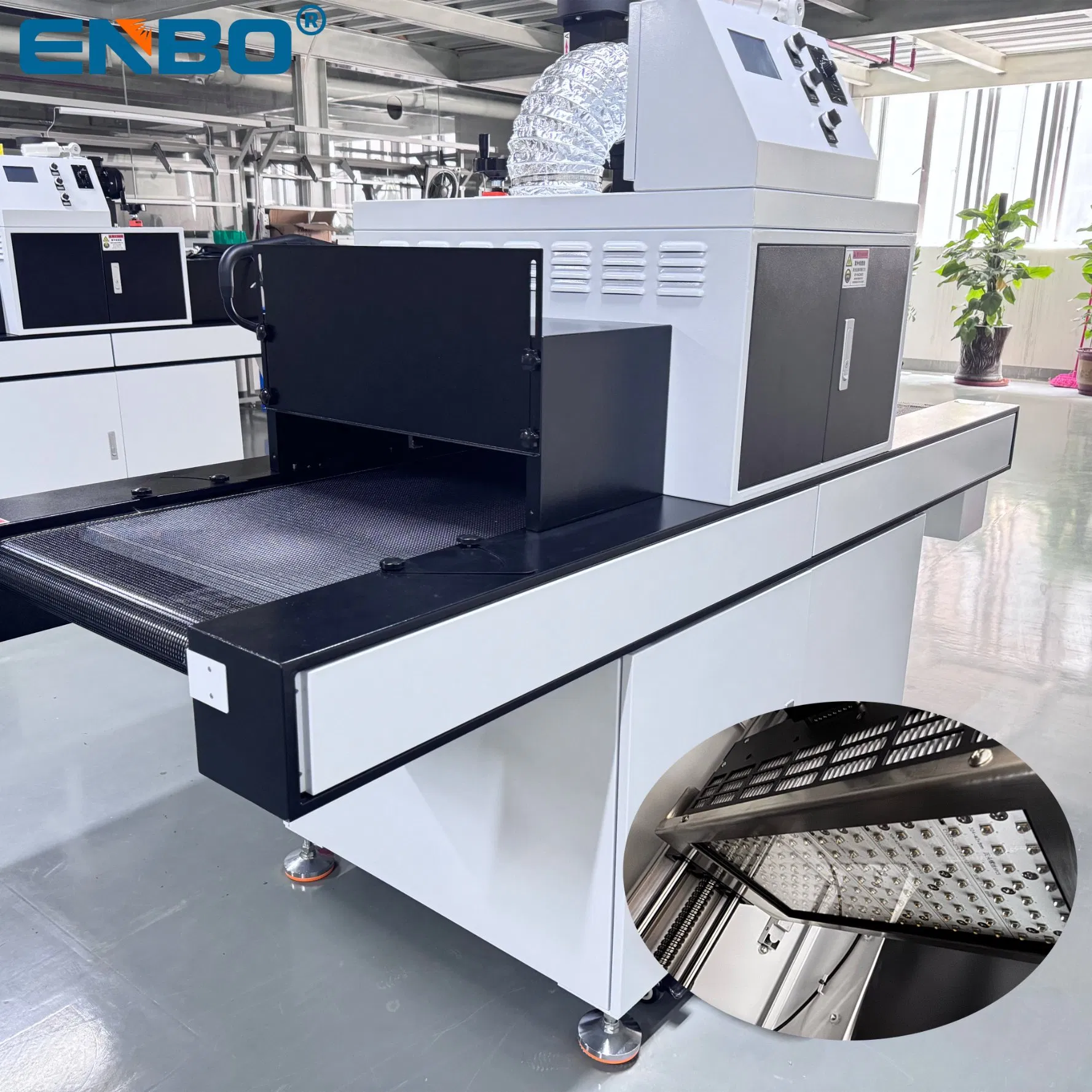

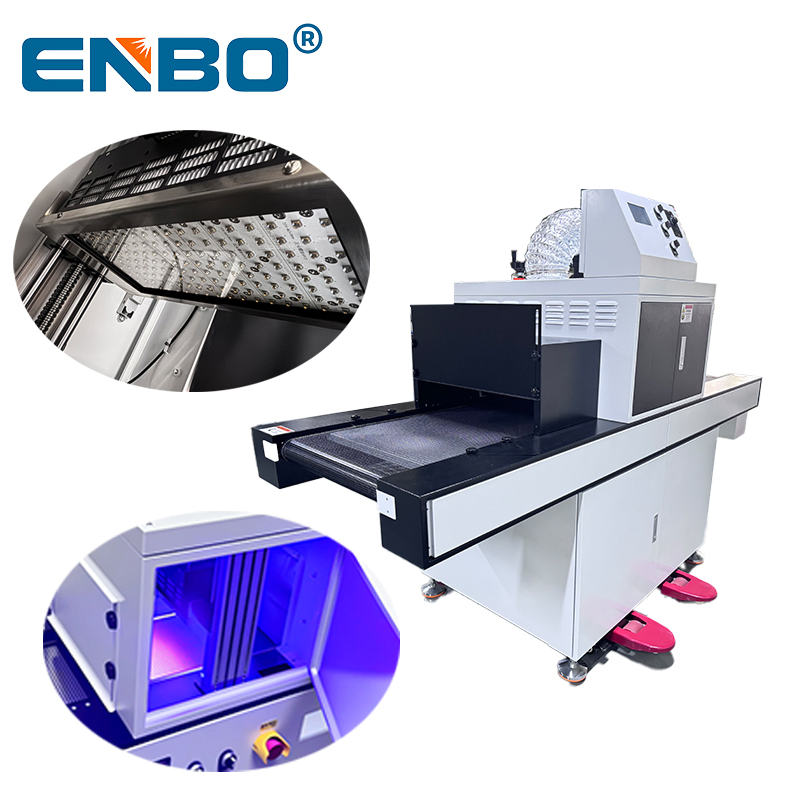

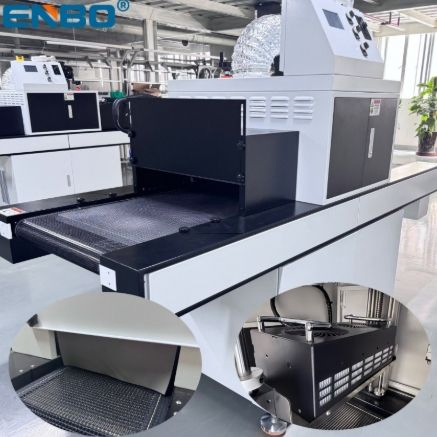

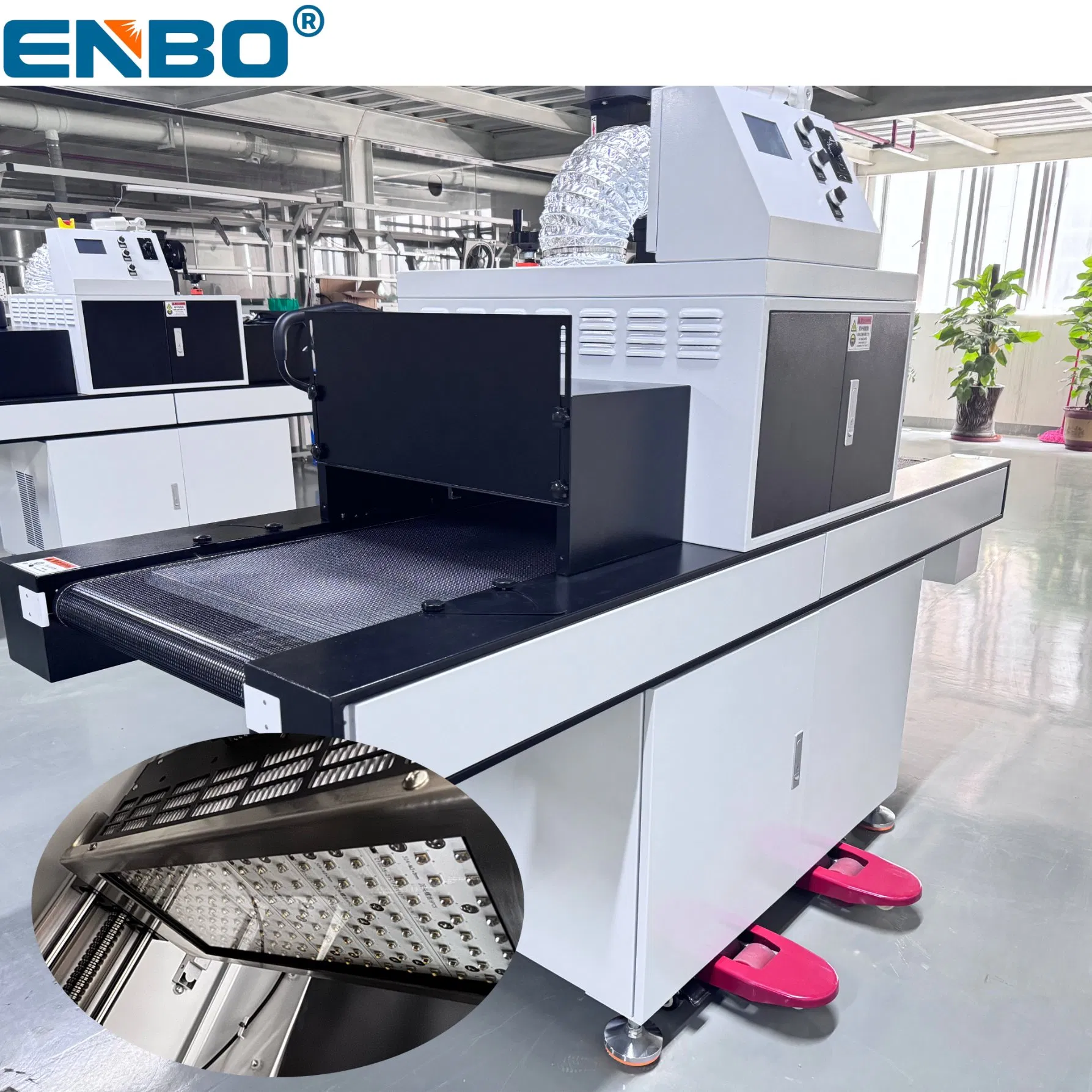

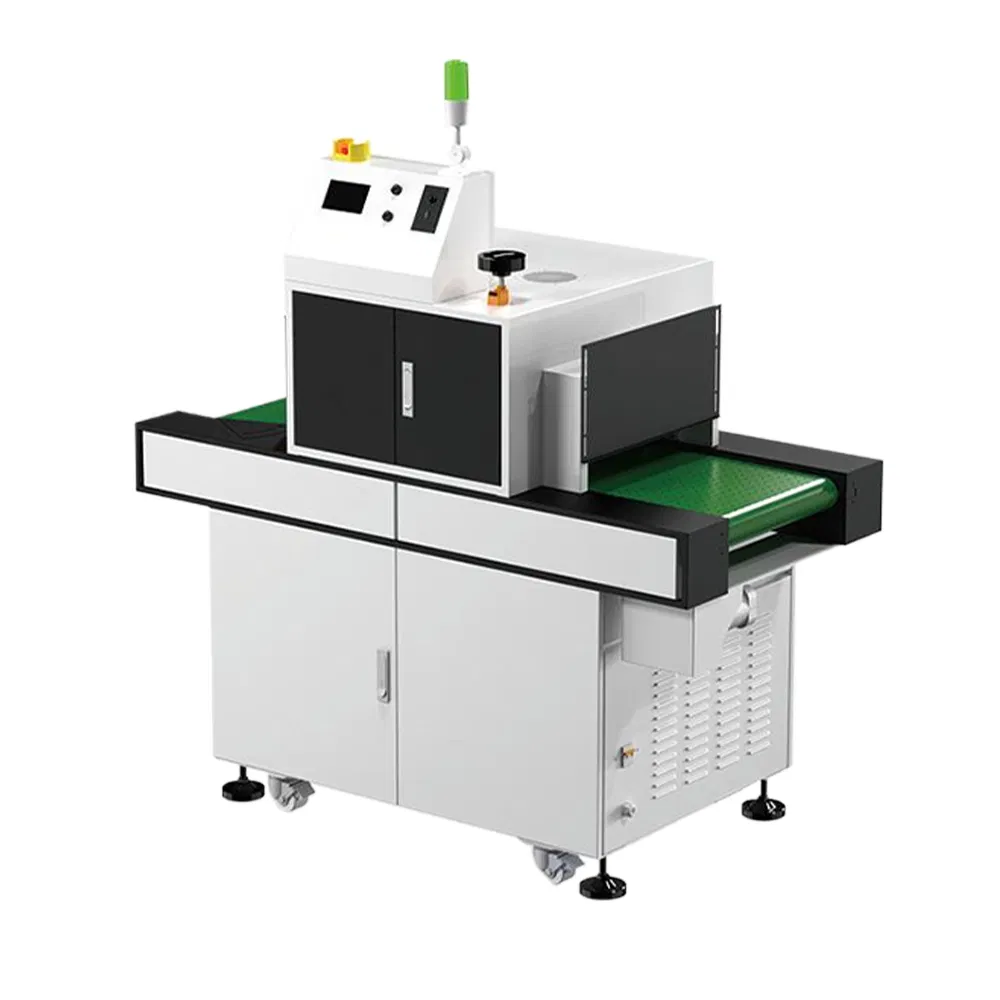

The EB-FR300 is a Floor type LED UV curing conveyor system featuring a 300mm wide conveyor belt. This system offers high-intensity curing capabilities ranging from 600mw to 18000mw/cm², providing a compact and efficient solution for professional industrial applications.

Designed for versatility, the conveyor material can be selected from options including stainless steel and PVC. The standard height from the lamp heads to the conveyor belt is fully adjustable from 10mm to 180mm, accommodating various workpiece sizes.

Desktop & Floor Adaptability:

Equipped with a maximum conveyor belt speed of 5m/min (customizable), this system provides exceptional versatility. Its efficient footprint makes it ideal for medical, electronic, and laboratory settings where space and precision are paramount.

P

Product Parameters

Power	900W	UV Wavelength	365nm / 395nm / 405nm / 485nm
Cooling Method	Air Cooling or Water Cooling	UV Intensity	9000-18000mw/cm²
Display Control	5-inch Touch Screen	Belt Width	300mm

F

Key Features

✔

High Efficiency: Rapid curing of UV materials with intensities up to 18000w/cm².

✔

Versatility: Multiple wavelength options to match specific material requirements.

✔

User-Friendly: Intuitive 5-inch touch display with 0-100% power modulation.

✔

Customizable Materials: Choice of stainless steel, PVC, or other specialized belt materials.

C

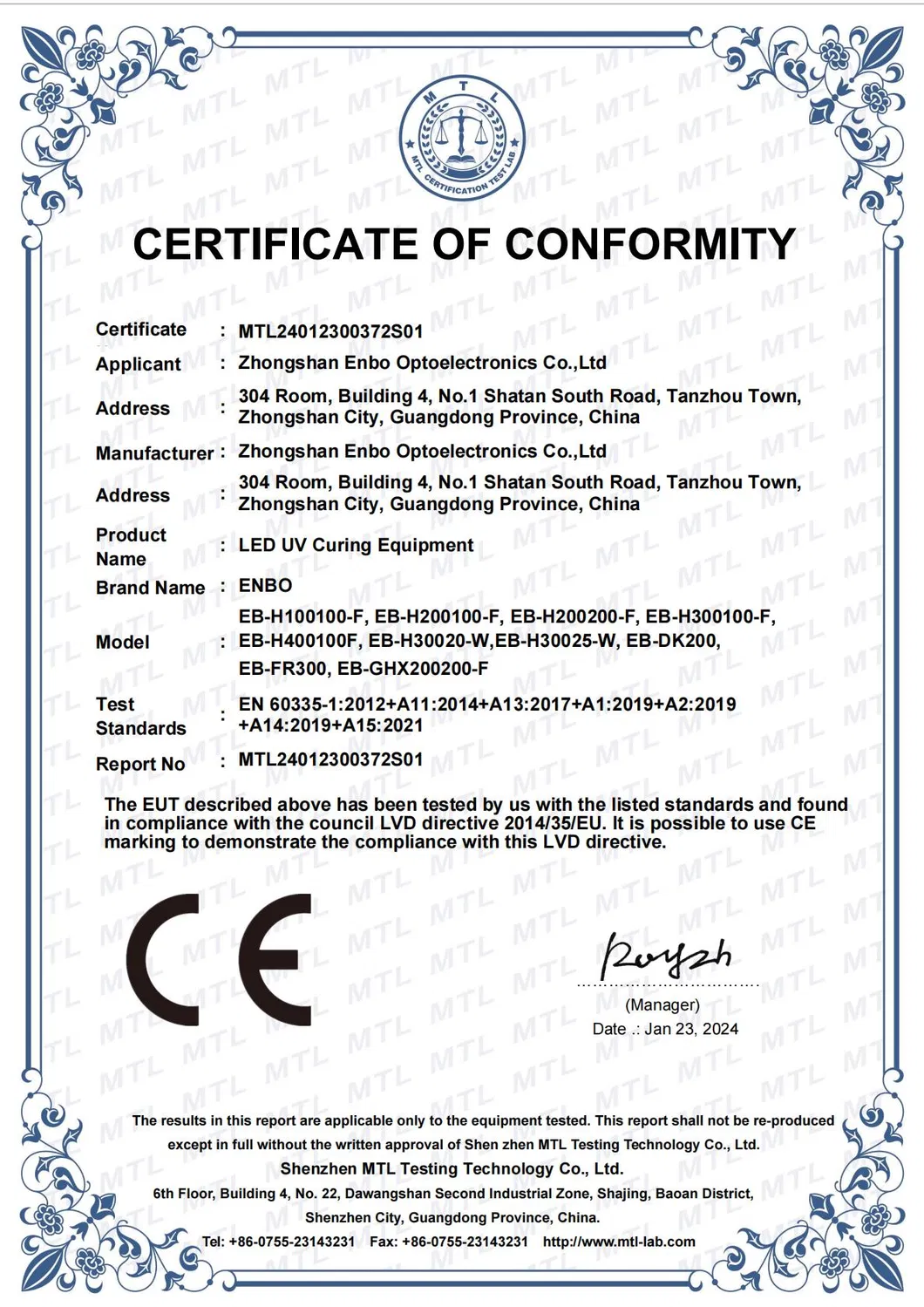

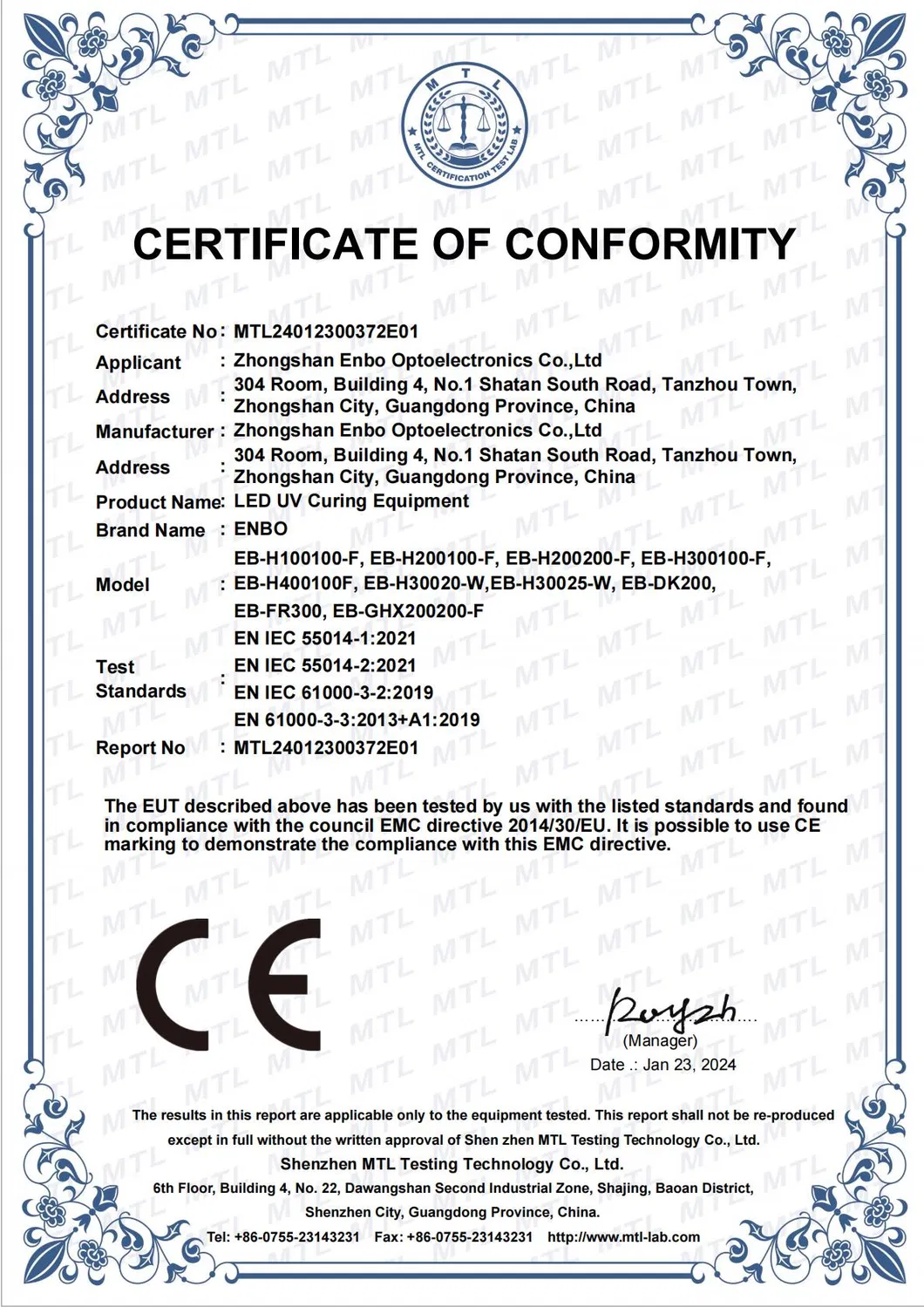

Quality Certifications

S

Packaging & Shipping

We utilize professional export-grade packaging and reinforced wooden crates to ensure the safe transportation of the products worldwide.

?

Frequently Asked Questions

What is included in the complete UV LED curing system?

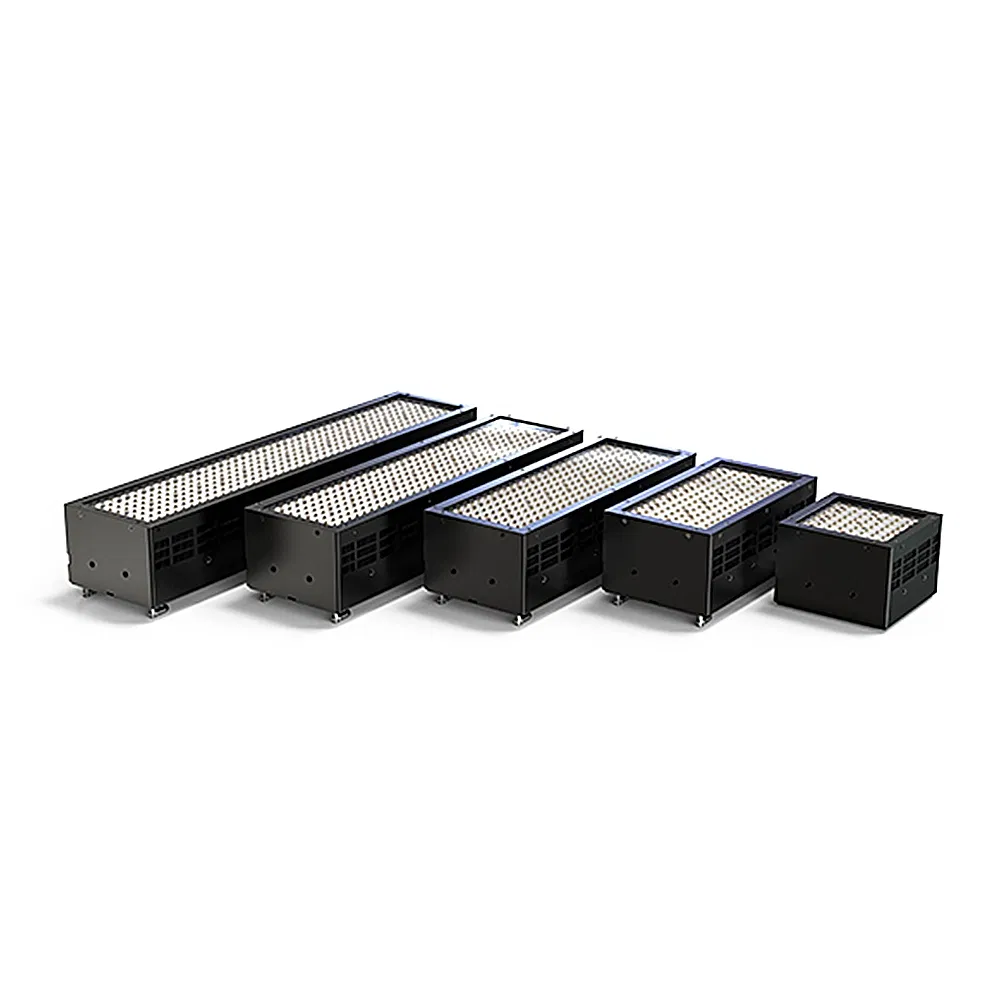

The complete system includes the UV LED Curing Conveyor, the UV LED Lamp head, and the specialized Controller System.

Can I integrate my own PLC and Electric cabinet?

Yes, our UV LED drivers are designed with compatibility in mind and provide RS485 communication for external integration.

How do I proceed with an order for this system?

First, share your application requirements. We will then provide a quote and suggestions. Upon confirmation and deposit, we move into the production phase.

Is it possible to print a custom logo on the equipment?

Yes. Please inform us of your design requirements before production so we can confirm the sample design with you.

What are the warranty and installation terms?

We offer a 1-year free warranty and 20,000 hours of service support. Installation services are available and can be quoted based on your location and system complexity.

Can the conveyor belt material and speed be customized?

Absolutely. The belt can be made of stainless steel, PVC, or other materials, and the speed can be adjusted or customized beyond the standard 5m/min.
