Product Description

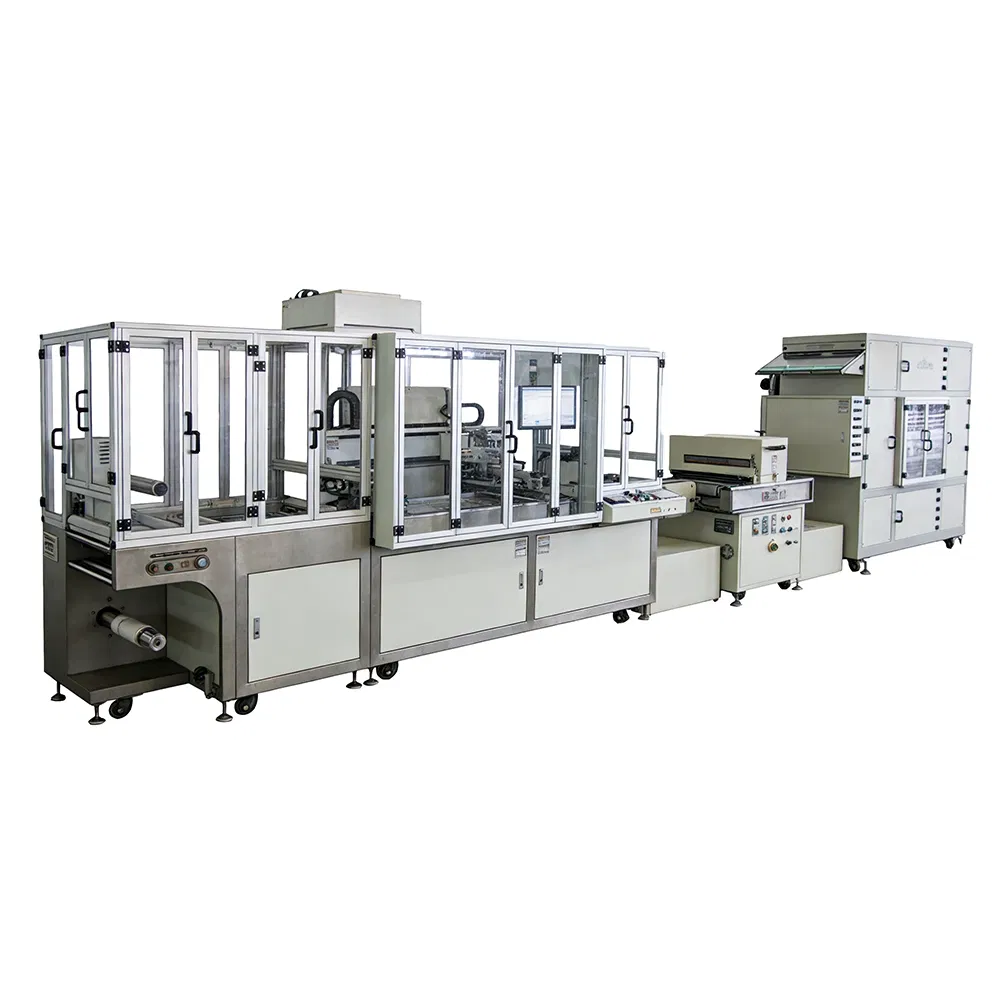

This entire production line comprises an automatic rewinding unit, one color printing unit, one UV dryer, and one IR dryer. The automatic unwinding unit features functions including automatic unwinding, anti-static capability, adjustable speed magnetic powder tension control, automatic protective film separation, and auto-stop in the absence of material. The printing unit is constructed with an integrally cast column, beam, and head, and incorporates systems such as feeding correction, dust removal and cleaning, a Φ3mm round hole punching device, and CCD automatic alignment correction, with all printing operations controlled by a servo motor. The IR dryer offers 60 meters of drying length, automatic correction, and protective film laminating function, equipped with an ionizing fan for static removal, a cold air device, LED lighting, and an automatic stop function in case of material sticking.
About Our Expertise
We are dedicated to providing excellent service to the graphics industry and related consumables to customers worldwide. Our specialty in the printing industry serves as a reliable guide to finding the most suitable solutions. Our professional team, well-versed in the industry, helps bridge technical gaps and provides a safe, easy, and smooth trading experience. Our long working partnerships with leading manufacturers allow us to offer favorable terms and reliable quality.
Frequently Asked Questions
What is the maximum printing speed of the LC-570SP?
The machine can reach a maximum speed of 1500 times per hour, depending on the material and printing requirements.
How accurate is the printing registration?
Equipped with a high-precision CCD automatic alignment correction system, the printing precision is within ±0.03mm.
What kind of drying systems are included in the line?
The production line includes both a 60-meter IR drying tunnel (up to 160℃) and a powerful UV drying unit with two 6kW lamps.
What material thicknesses can this machine handle?
The LC-570SP is designed for substrate thicknesses ranging from 0.125mm to 0.188mm.
What is the warranty period for the equipment?
All machines come with a 12-month warranty from the date of arrival, excluding wearing parts.
Does the machine feature anti-static controls?
Yes, the unwinding unit includes anti-static capabilities, and the drying unit is equipped with ionizing fans for effective static removal.
