Functions: This machine is specialized for washing flannel and coral fleece fabric after the steaming process.
Technological Process: Open into frame → (open washing + 2-roller Squeezer)*3pcs → rope washing machine*8pcs → rope out frame.
| No. | Configuration Item | Qty | Technical Description |
|---|---|---|---|
| 1 | Nominal Width | - | Roller width: 2500mm |
| 2 | Vehicle Speed | - | 5-60m/min, independently regulated |
| 3 | Cloth Feeder | 1 | A3 thickness 4mm, C-type steel plate with fastener |
| 4 | J-BOX Washing | 1 | SUS304 stainless steel (3mm), 400m fabric impregnation, spray pipe config |
| 5 | Open Width Washing | 3 | SUS304 frame, 5 rollers above/below (φ125mm), equipped with thermometer |
| 6 | Rope Washing Machine | 8 | Five operation modes, SUS304 (3mm), φ150mm guiding roller, 3Kw motor |
| 7 | 2-roller Squeezer | 3 | Rubber diameter φ300mm, pneumatic fastener expansion, cycloidal reducer |
| 8 | Softener Vat | 1 | SUS304 frame, 4 rollers above/below (φ150mm) |
| 9 | Non-listed Parts | 1 set | 14 Studs, 9 water plates, 4 plastic pipes |
| 10 | Motor Power | - | Approx 55KW |
| 11 | Dimension (L*W*H) | - | 35335 × 4800 × 2850mm |

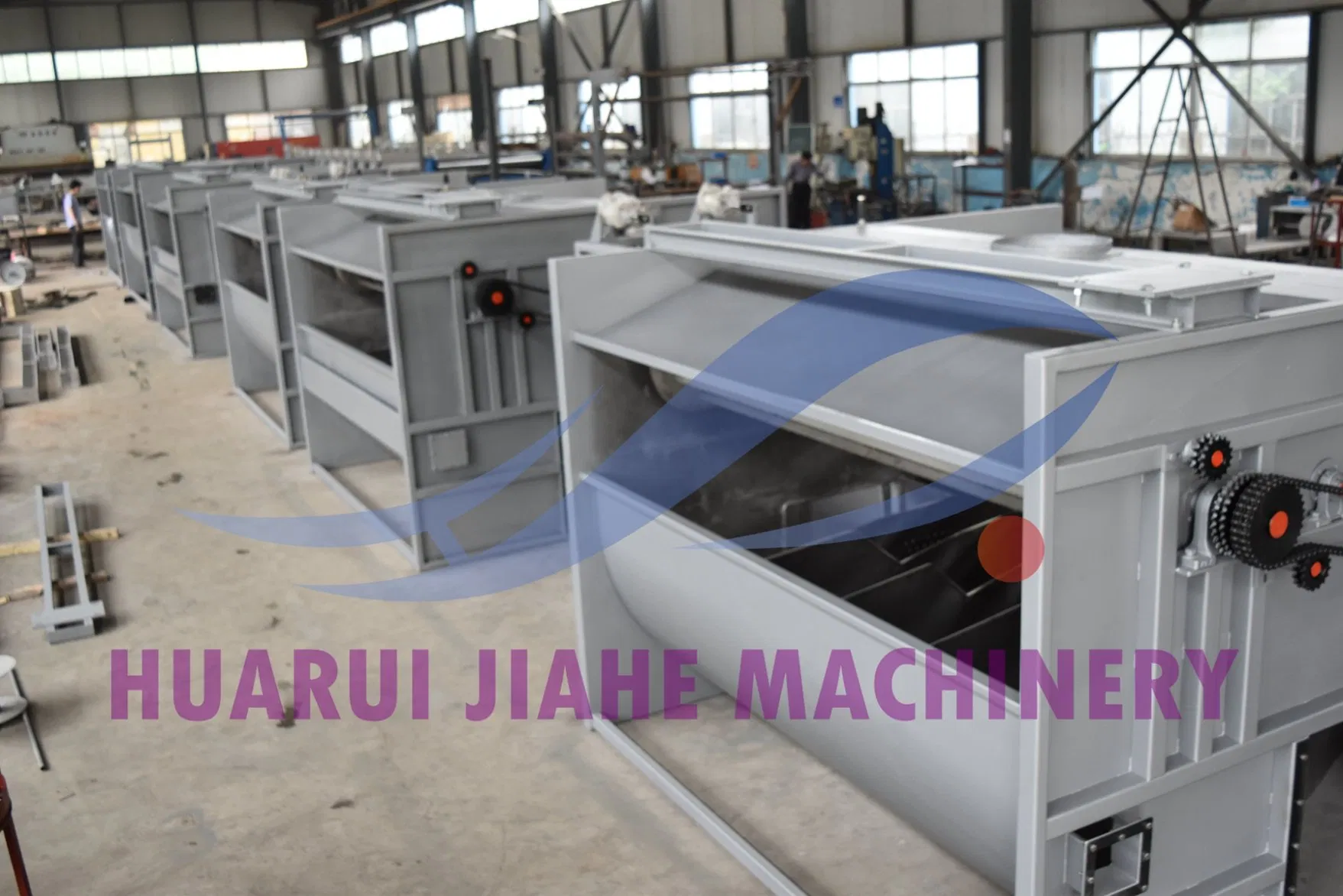

Machine Body Details:
