Jr-1521 Mini Size Desktop Satin Ribbon Garment Care Label Flexo Printing Machine Front 2 Color Back 1 Color for Polyester Nylon Taffeta, Cotton Tape

Printing Page: Double Faced
Printing Color: 3 Colors
Anilox Roller: Ceramic Anilox Roller

Product Description

Basic Specifications

Model NO.
JR1521
Type
Letterpress Flexography Printer
Dryer
IR
Automatic Grade
Automatic
Printing Speed
60m/min
Print Width
10-155mm
Printing Length
108-401mm
Plate Thickness
1.7mm
Net Weight
570kg
Capacity
20 set/Month

Product Overview

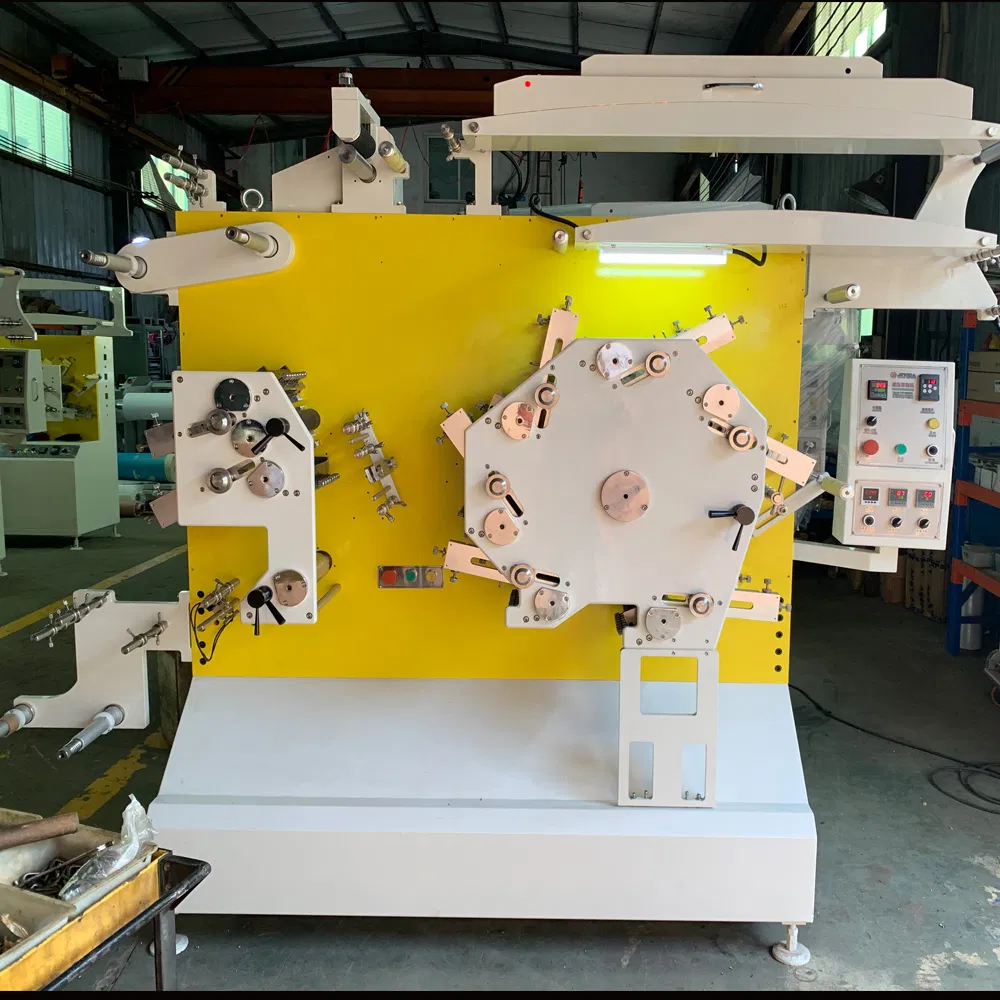

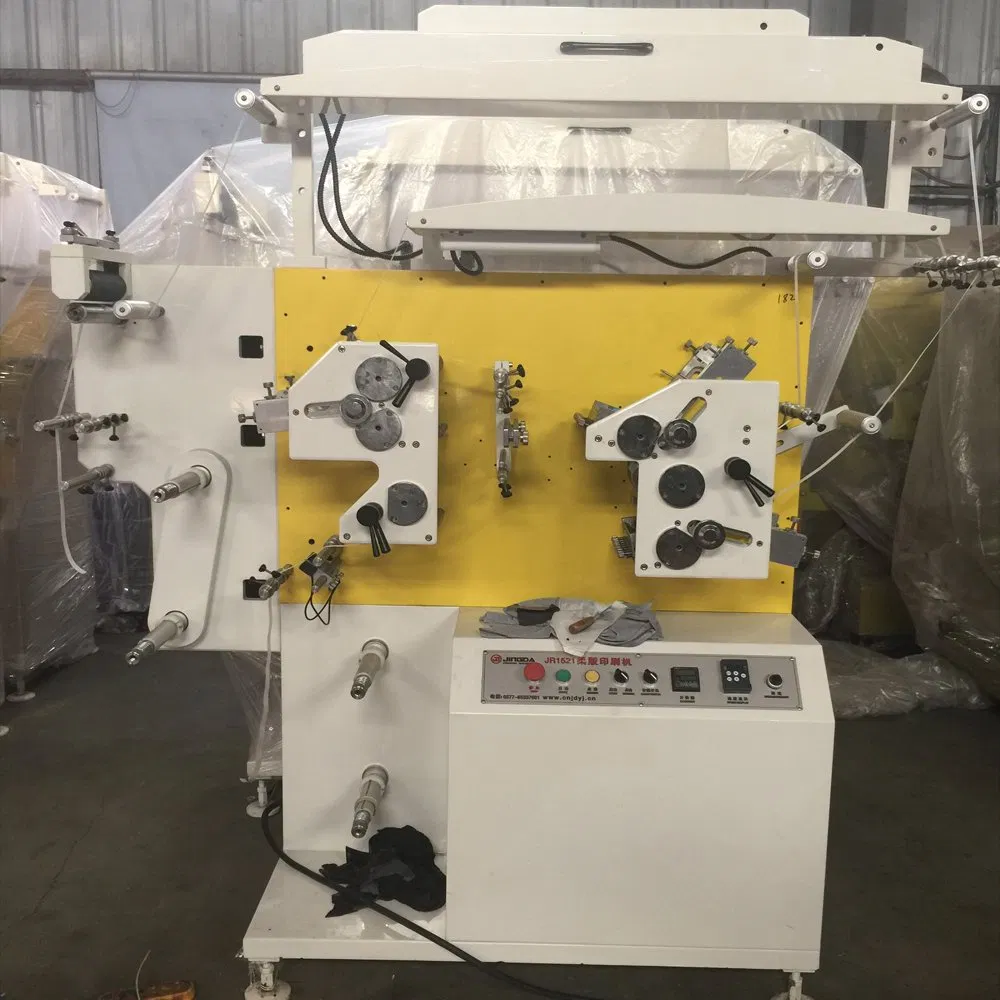

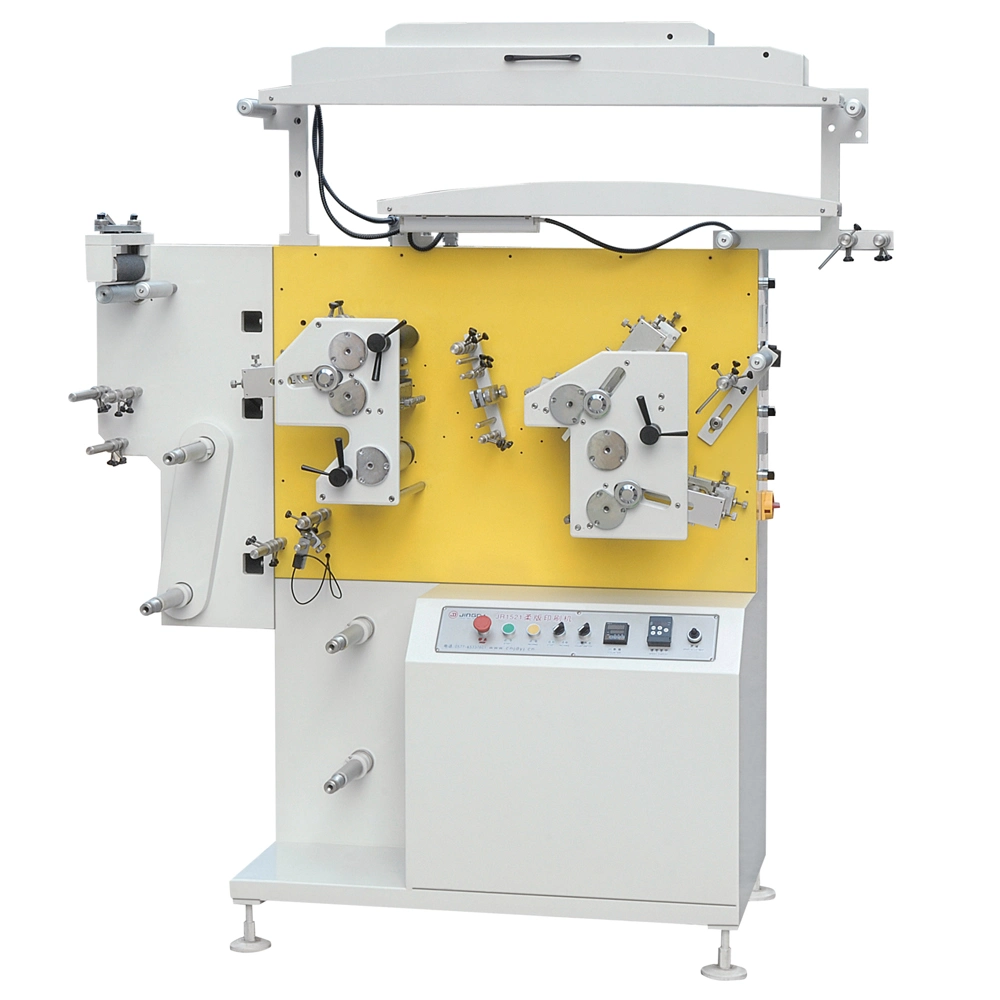

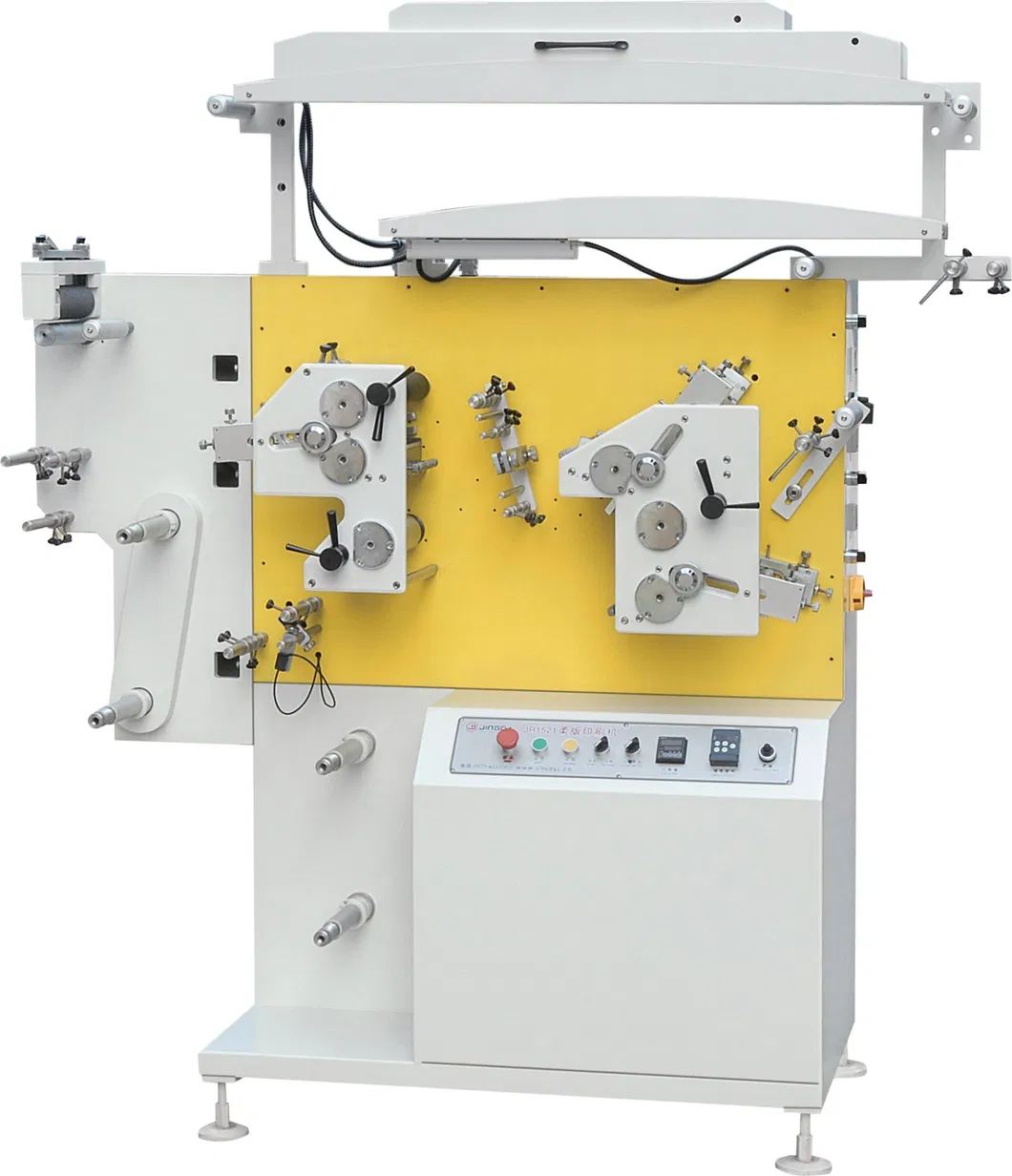

JR-1521 Mini Size Desktop Satin Ribbon Garment Care Label Flexo Printing Machine

This high-efficiency flexo label printing machine is designed for 2+1 color printing on various materials including satin tape and cloth tape. It operates on the principle of type form using letterpress, copper, or zinc etching for convenient plate changes.

Machine Video Reference: https://youtu.be/JwtWc_3gtvM

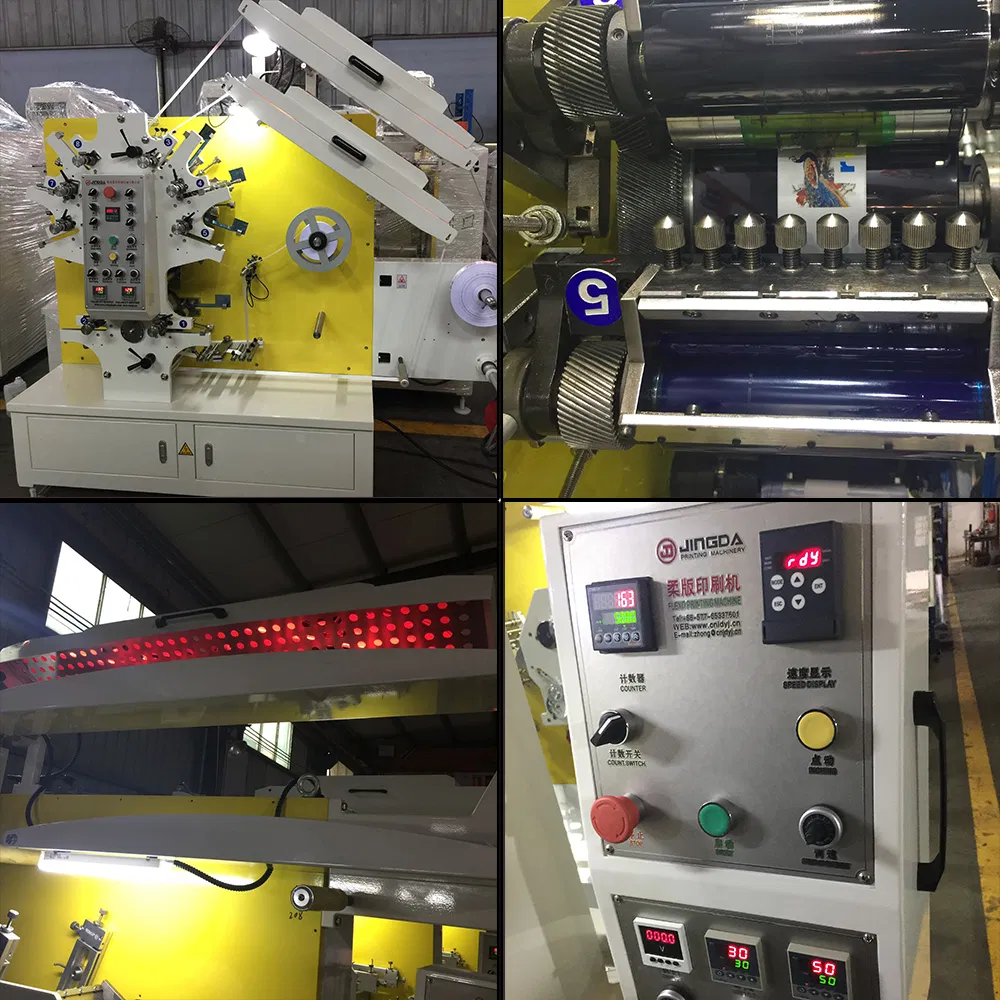

  • Ink is evenly spread on ink-rollers before transferring to the printing cylinder.
  • Flexo photopolymer plates collect ink and press directly onto material surfaces.
  • Complete drying process integrated into the printing procedure.
  • High wash fastness achieved via heating in Automatic Temperature Controlled Ovens (3-8 hours).
  • Perfect color registration and stability across different cylinders.
  • Optimized for printing on ribbons, cotton tape, woven labels, nylon, and paper.

Technical Parameters

Feature 2 Colors 3 Colors 4-8 Colors Range
Double-Side Model - JR-1521 JR-1531 to JR-1562
Printing Area 108-401mm
Max. Print Width 155mm
Max. Print Speed 60m/min
Power Source AC: 220V 50Hz/60Hz
Available Materials Satin, Nylon, Taffeta, Polyester, Cotton, Woven tape, Paper sticker.

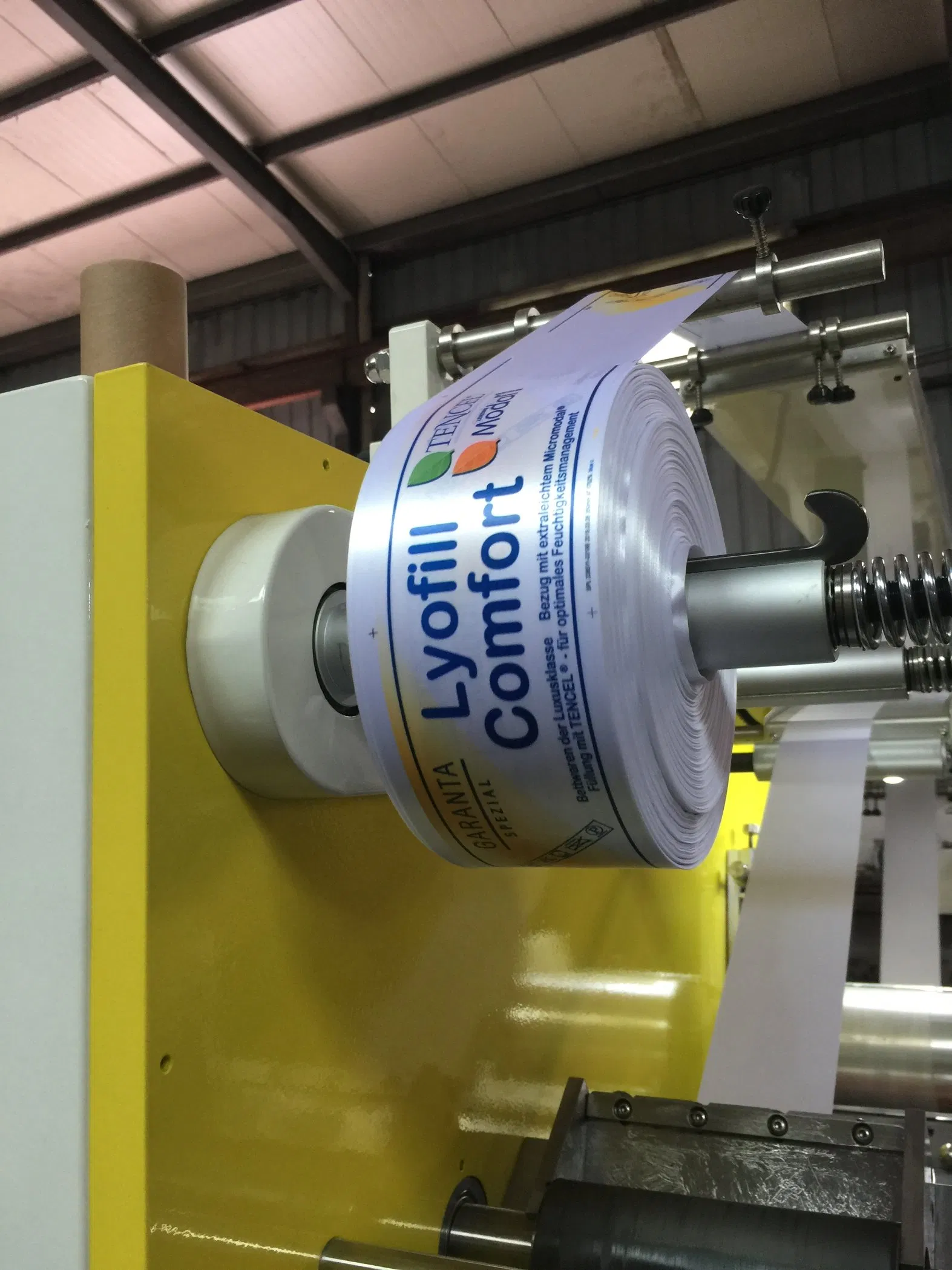

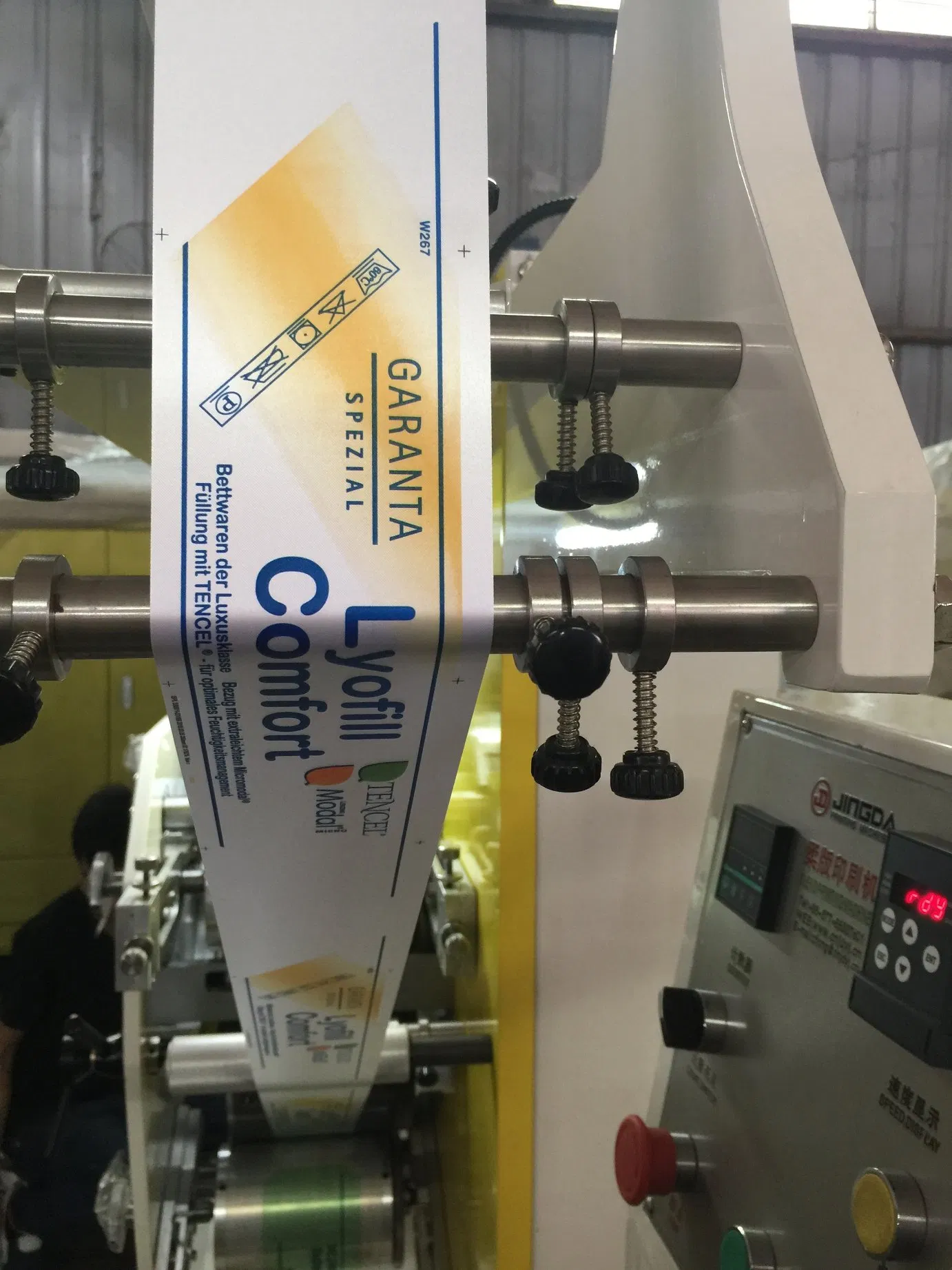

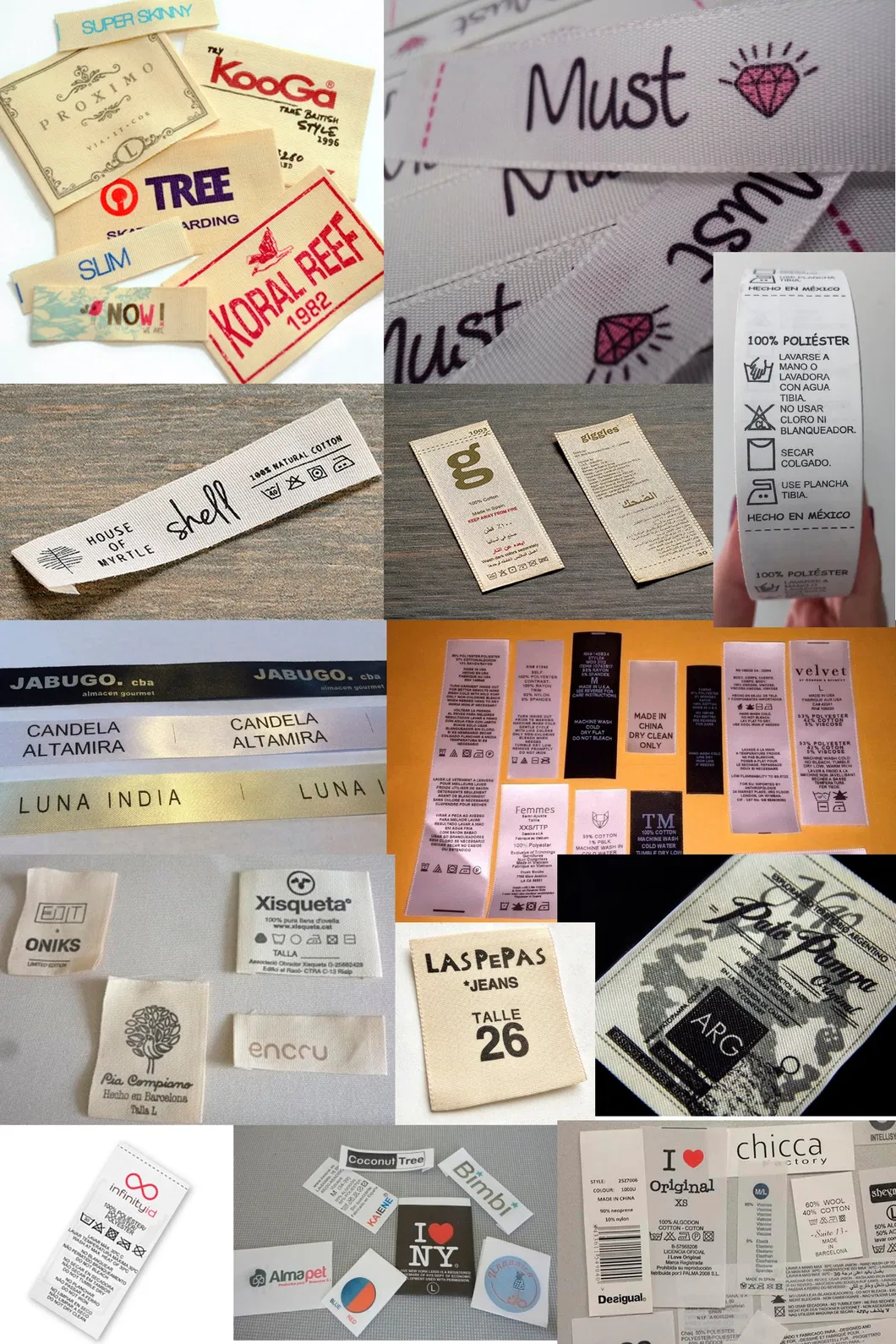

Product Details & Samples

Services & Packaging

Packaging
Export standard wooden case packing
Warranty
One Year (Free spare parts)
Installation
Technicians available for overseas training
Support
24-hour online after-sales service

Frequently Asked Questions

Q1: Are you a factory or trading company?

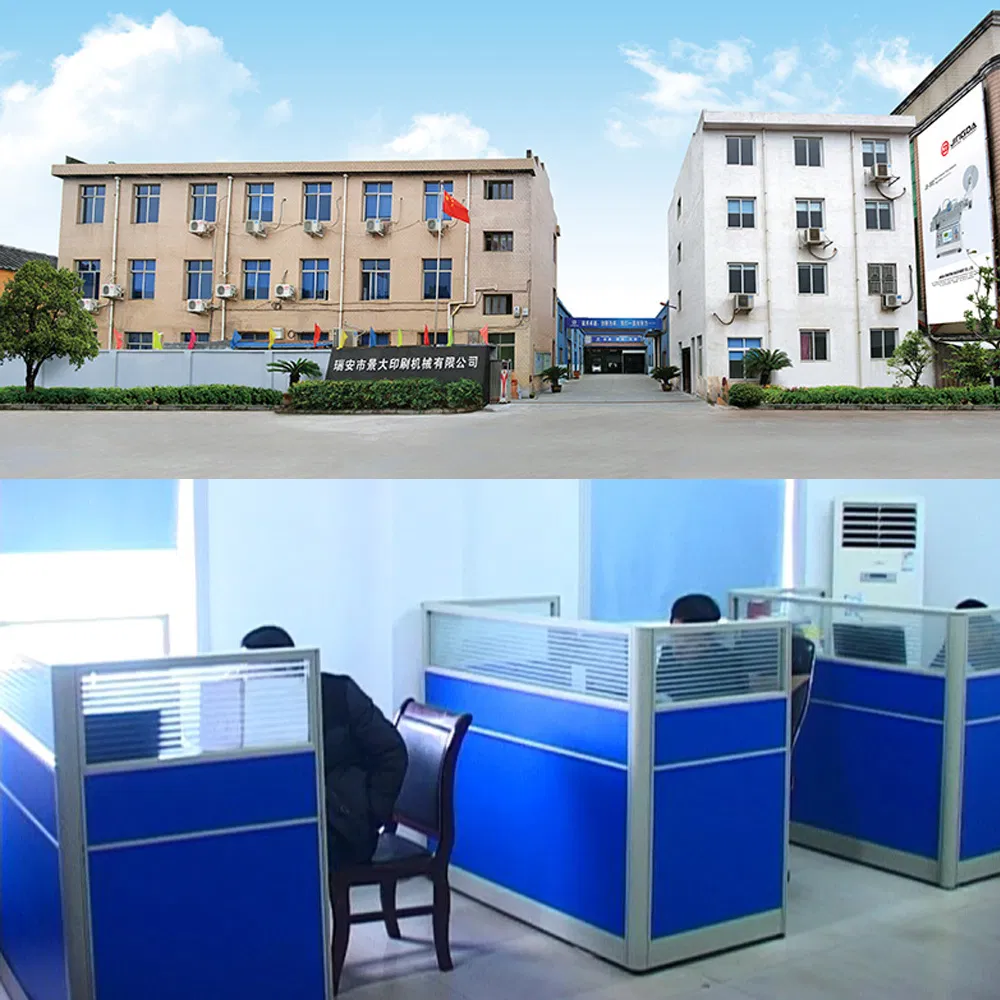

We were established in 2007 and are a professional manufacturer specializing in garment label printing and cutting machines for many years.
Q2: Do your machines have CE certification?
Yes, every model of our machinery comes with a full CE certificate to ensure international safety and quality standards.
Q3: What are your standard payment terms?
Our standard terms are a 50% deposit via T/T in advance, with the remaining 50% balance payable prior to delivery.
Q4: How long is the warranty period?
We provide a one-year warranty which includes free spare parts for any manufacturing issues.
Q5: What after-sales support do you offer?
We provide 24-hour online support. You can email or call us with any questions, and we guarantee a response within 12 hours to help resolve technical issues.
Q6: Can you provide onsite training and installation?
Yes, our technicians are available for overseas installation and training. Please note that customers are responsible for travel and accommodation expenses for onsite visits.
