Why is label inspection so important?
During long-term usage of printers, factors like worn-out printer heads, dust, temperature fluctuations, or mechanical failures can affect print quality. Defective labels can lead to wasted products or market recalls due to:
Statistics show over 20% of market recalls in pharmaceuticals relate to label issues.

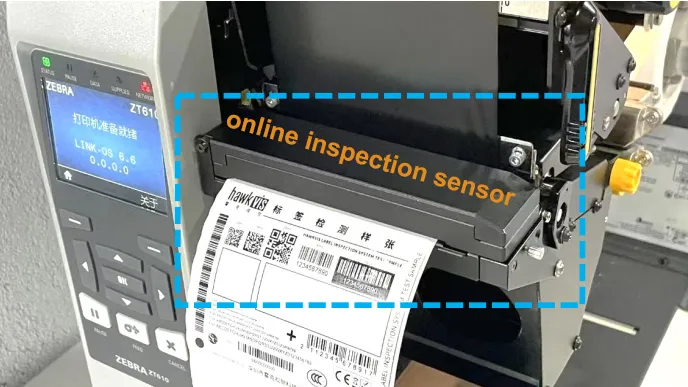

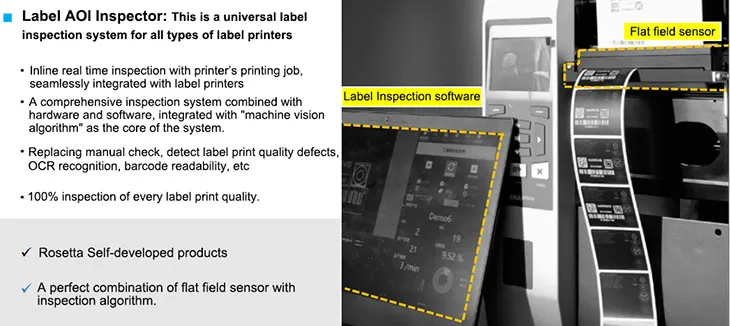

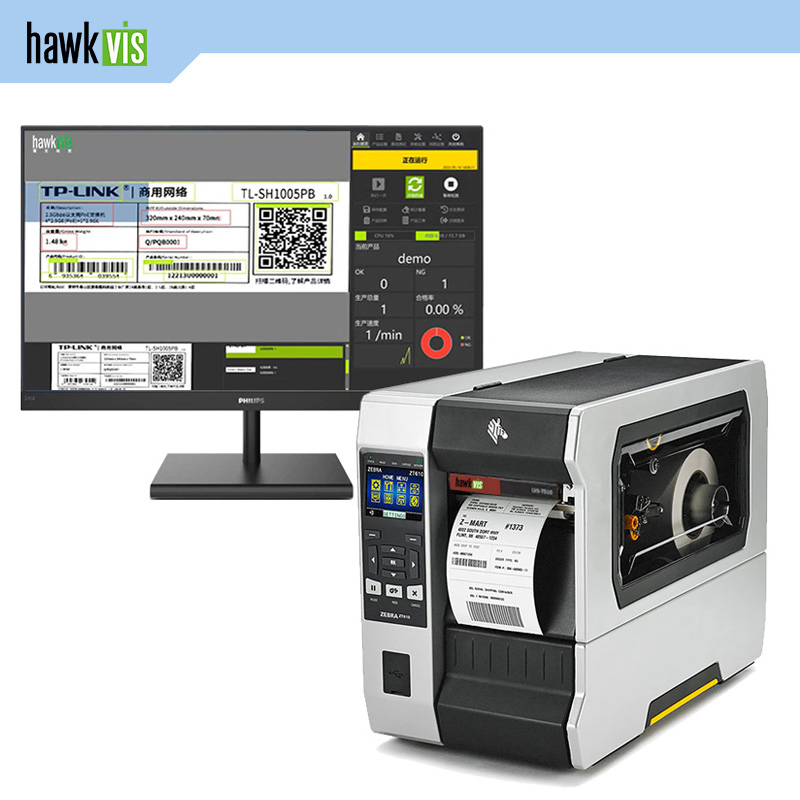

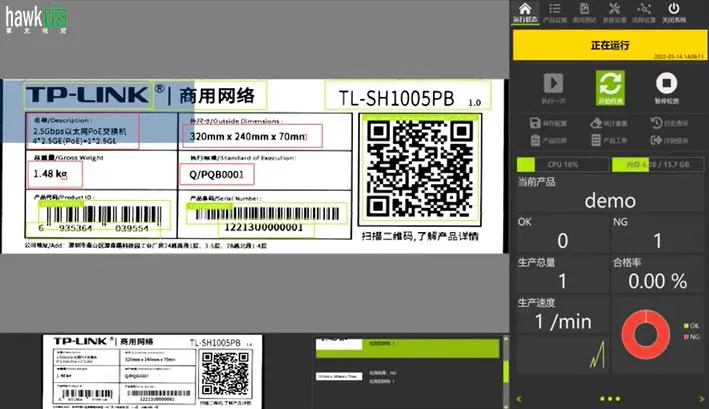

The R210 is a widely applicable, easy-to-use online automatic label print quality & barcode inspection system. It features a high-resolution flat field sensor pack and specialized vision inspection software.

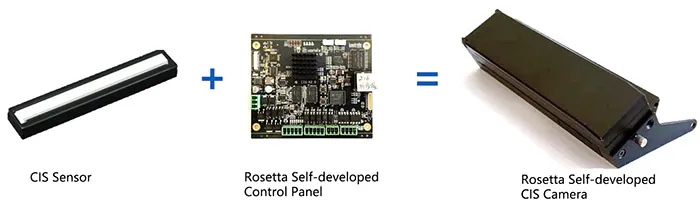

By adopting CIS technology, this solution overcomes the high cost and performance limitations of traditional area-array or single-scanline cameras, bringing label inspection to a revolutionary new level.

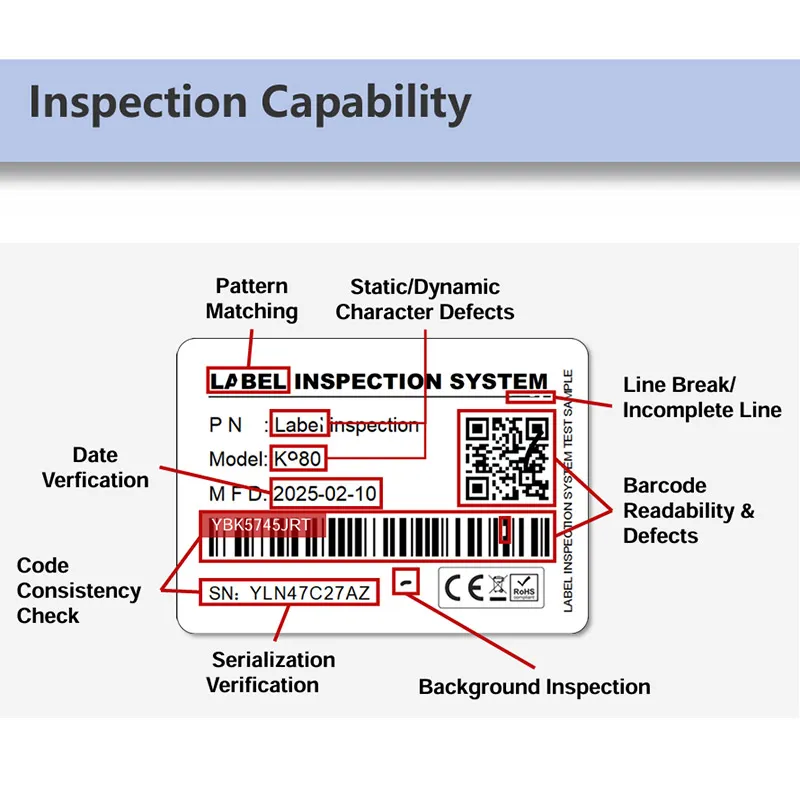

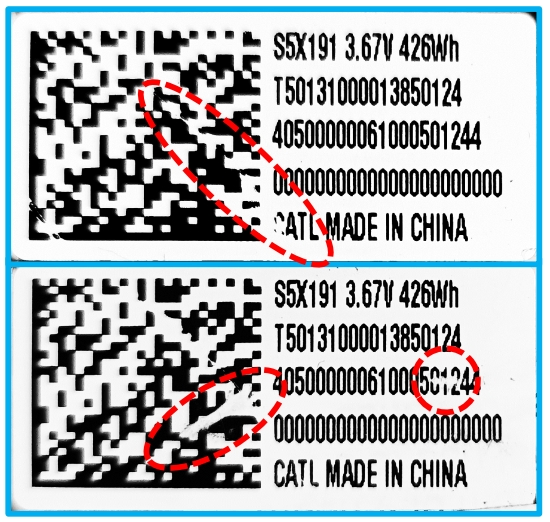

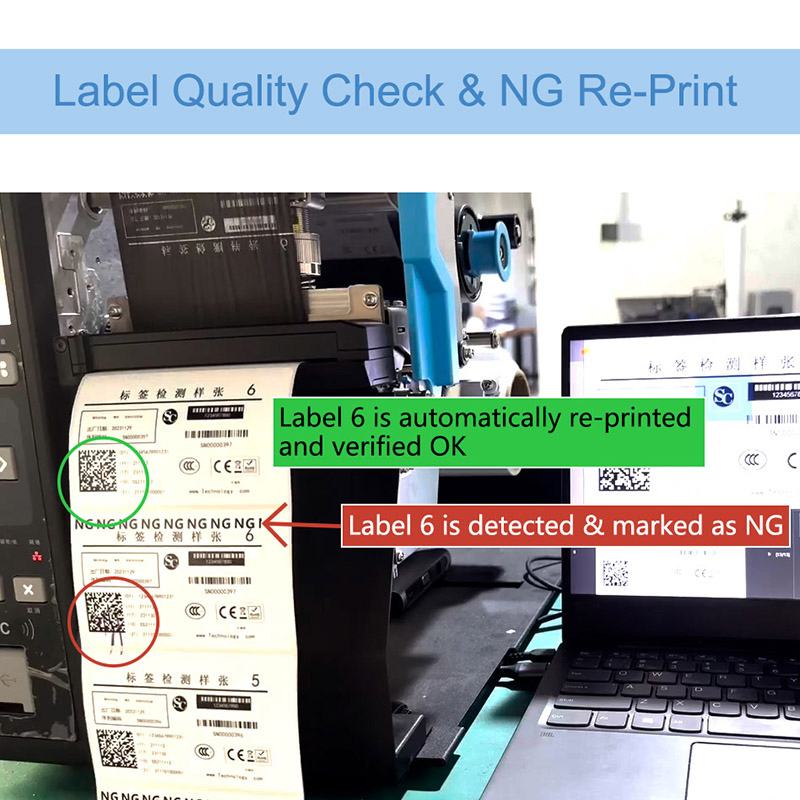

Detects missing prints, position deviation, and distortion of text/graphics.
Identifies dirt on labels or paper defects outside the printable area.

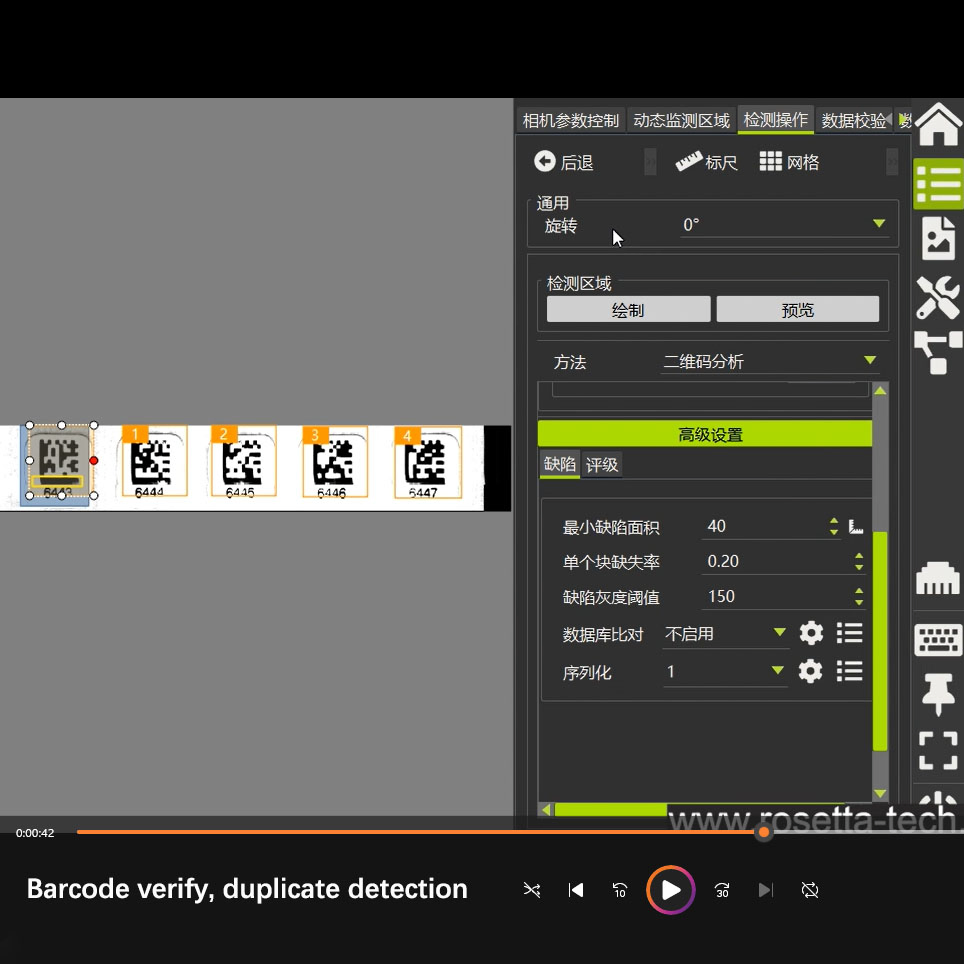

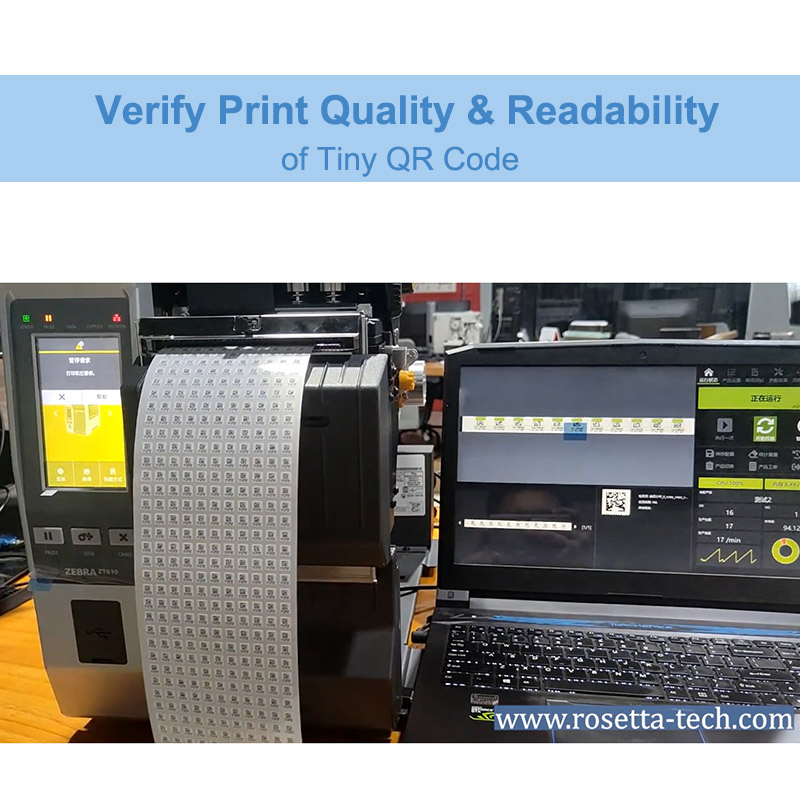

Recognizes letters, numbers (multi-language) and verifies 1D/2D codes per ISO standards.
Compares scans against databases for consistency and anti-counterfeiting.
| Key Specifications | |
|---|---|
| Camera Resolution | 600 / 1200 dpi |
| Maximum Speed | 14 inches / sec. |
| Smallest Character Height | 1mm height (2.5pt) |
| Minimum Label Size | 6mm * 10mm |
| Maximum Label Size | 532mm * 216mm |
| Structure Mode | Integrated In-line / Standalone In-line / Standalone Offline |

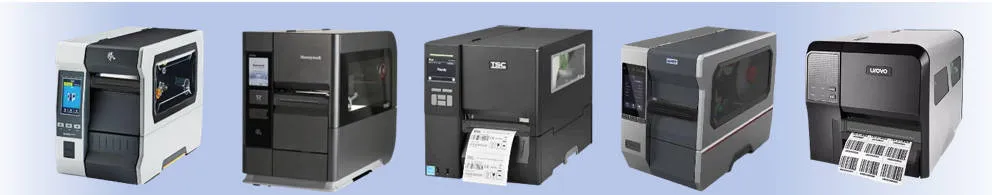

| Compatibility | All industrial label printers (Zebra, Honeywell, etc.) |
As a pioneer of machine vision solutions, our company has been a national-level high-tech enterprise since 2015. We are committed to continuous technology innovations in the field of machine vision worldwide.
Our research and development team consists of over 100 engineers, including many senior PhDs and masters. We have served various enterprises in the 3C industry, solar energy, lithium battery, pharmaceutical, food and beverage, and packaging sectors.
We have accumulated a rich variety of solutions, including product appearance inspection, manufacturing process inspection, and package inspection. We are proud to offer fast, flexible, and diverse services for global customers.
