Hti Heat Transfer Testing Equipment Compliant with ISO 9151 Standards

Customization:	Available
After-sales Service:	Response on Customers' Questions Within 12 Hours.
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

HTI

Description

Fabrics Burning Behaviour Vertical Flame Tester

Reference Standards

En ISO9151, En367

Function

Determine Heat Transmission Through Materials

Test Object

Protective Clothing

Application Field

Safety Protection

Dimension

500mm(W) * 500mm(H) * 500mm(D)

Weight

25kg

Gas Supply

Propane and Air Compressed Air

Power Supply

230 Volts Nominal 10 AMPS

Shipping Method

By Air or Express

Package Size

70.00cm * 70.00cm * 70.00cm

Product Description

HTI Protective Clothing Heat Transmission Testing Equipment Refer to ISO9151

A new term heat transfer index (HTI) has been introduced to avoid confusion with the thermal protective index (TPI) or other terms used in previous versions of this test.

HTI is calculated from the mean time in seconds to achieve a temperature rise of 24±0.2ºC when testing by this method using a copper disc and a starting temperature of 25±5ºC. This equipment is used to determine the heat transmission of flame exposure to protective clothing against heat and flames.

A classification of materials can be made by comparing the determined heat transfer indices, which serve as a reference for the relative heat transfer under the specified test conditions.

Product Parameters

No.	Item Name	Specifications
1	Application field	Safety protection
2	Dimension	500mm(W) * 500mm(H) * 500mm(D)
3	Weight	25kg
4	Power supply	230 volts Nominal 10 Amps
5	Ambient temperature	Operating 25±5ºC
6	Gas supply	Propane and air-compressed air

Key Features

Designed and manufactured according to EN 367 and ISO9151 standards.

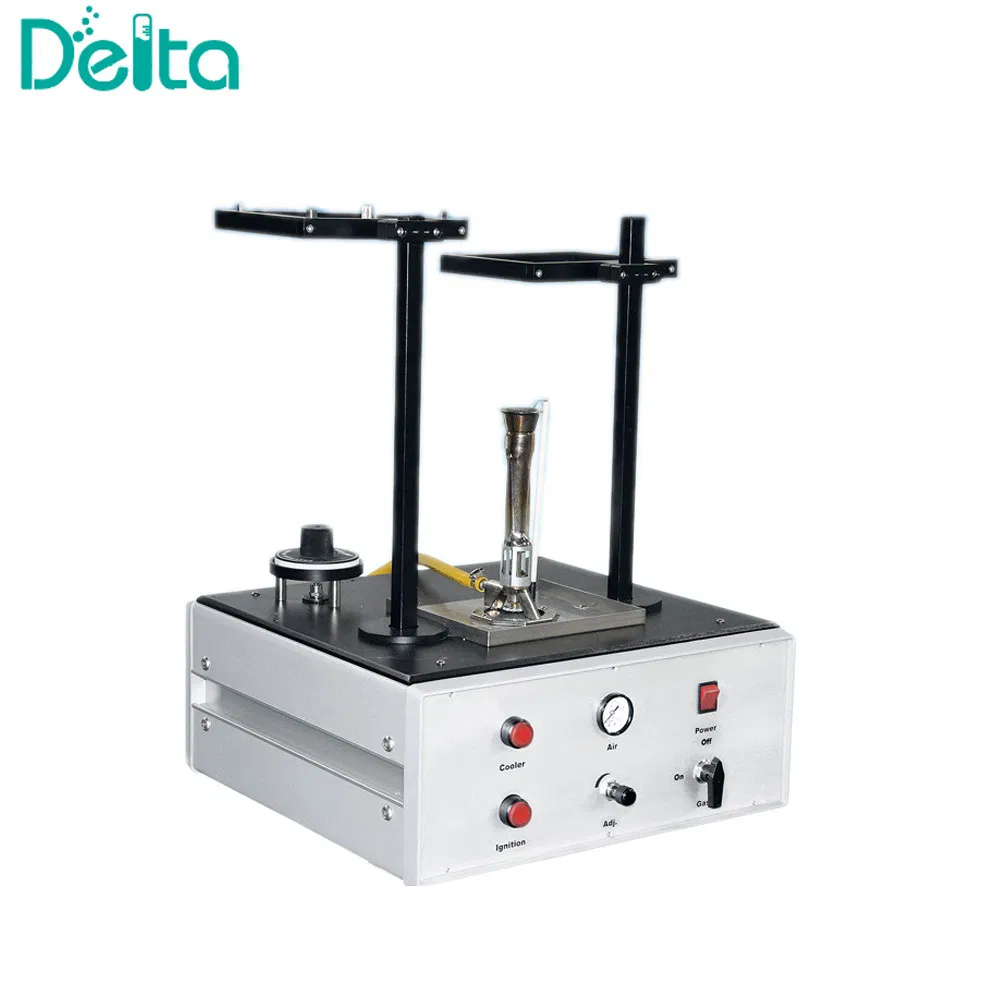

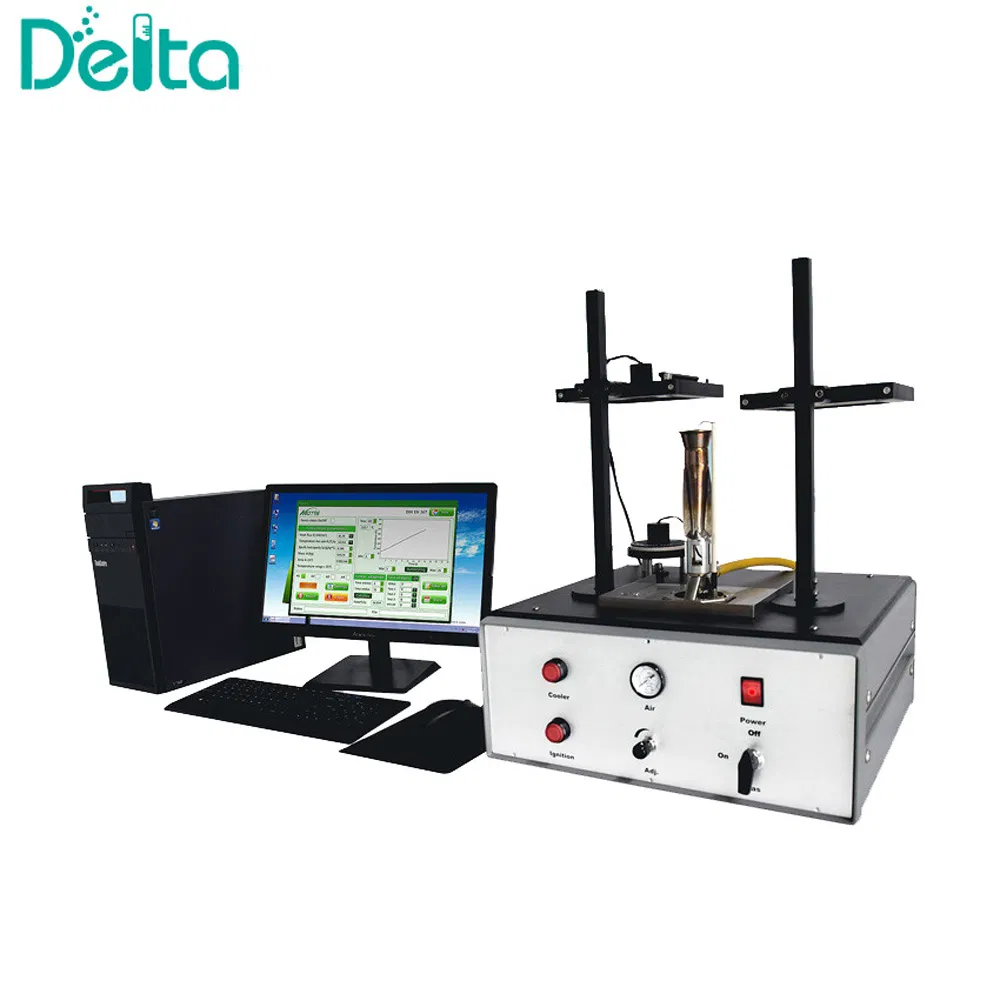

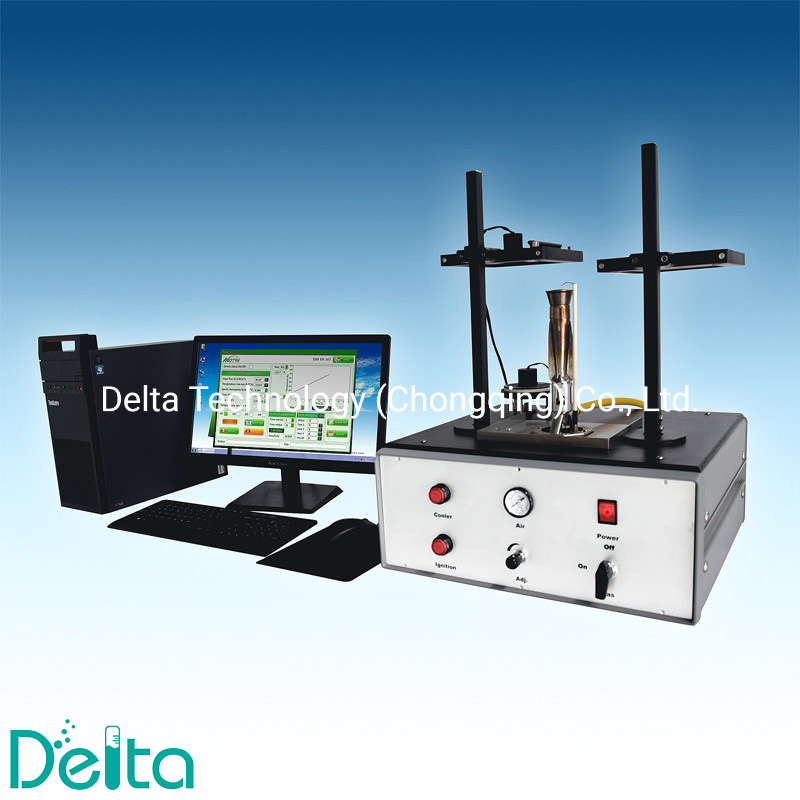

Consists of the burner, the cover sheet, and the specimen holder with a copper calorimeter.
Pneumatic transmission for cover sheet and specimen holder, automatically controlled by software.
Subjected to an incident heat flux of 80KW/m2 from a Meker burner flame.
Small copper calorimeter on top of the specimen measures heat transmission.
Records time for temperature rises of 12ºC or 24ºC in seconds.
Calorimeter cooling device included to shorten test cycles.
Automatic calibration of heat flow density (80 kW/m2) via software.

Frequently Asked Questions

Q1: What is the Heat Transfer Index (HTI)? A1: HTI is the mean time in seconds required to achieve a temperature rise of 24±0.2ºC in the copper calorimeter when the specimen is exposed to a specific heat flux.

Q2: Which international standards does this equipment meet? A2: The equipment is fully compliant with ISO 9151 and EN 367 standards for determining heat transmission in protective clothing.

Q3: What heat flux is applied during testing? A3: A constant incident heat flux of 80 kW/m2 is applied to the specimen using a Meker burner.

Q4: Does the software support automatic calibration? A4: Yes, the system includes software that automatically performs the calibration of heat flow density to ensure precise testing conditions.

Q5: How is the testing time shortened between cycles? A5: The equipment is equipped with a specialized calorimeter cooling device that reduces the waiting time between consecutive tests.

Q6: What gas supply is required for the burner? A6: The system requires a supply of propane and air-compressed air for the Meker burner to function correctly.
