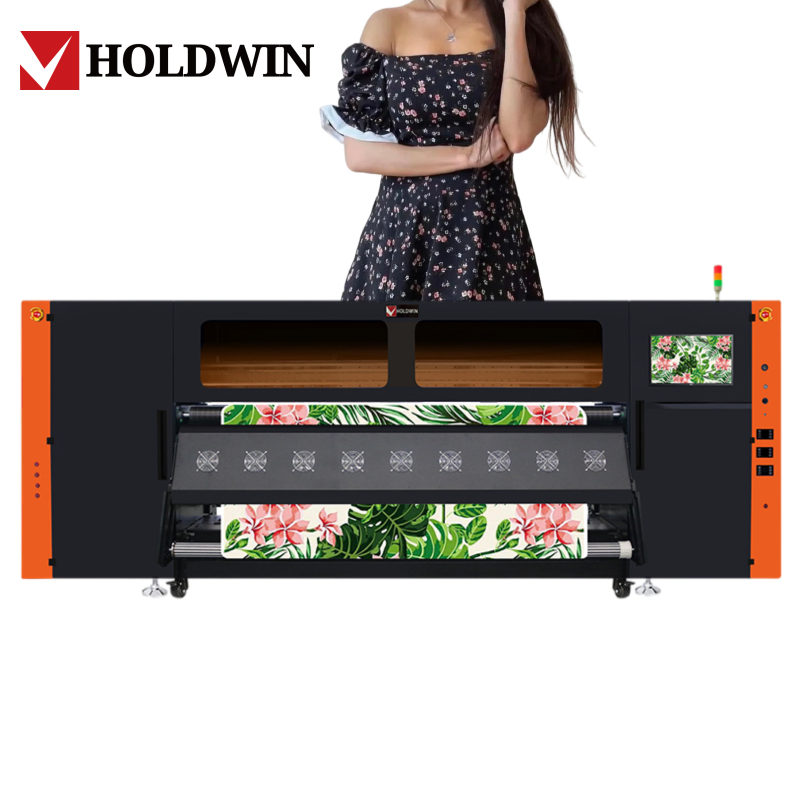

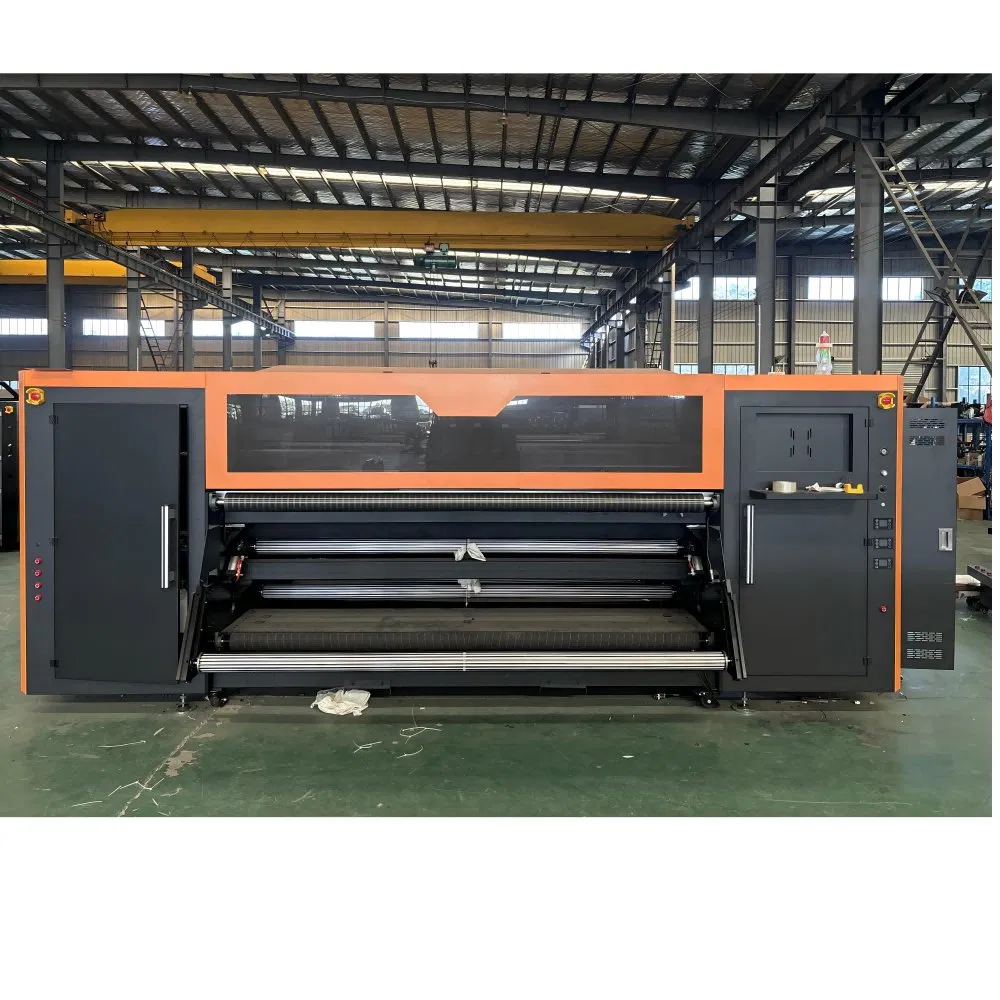

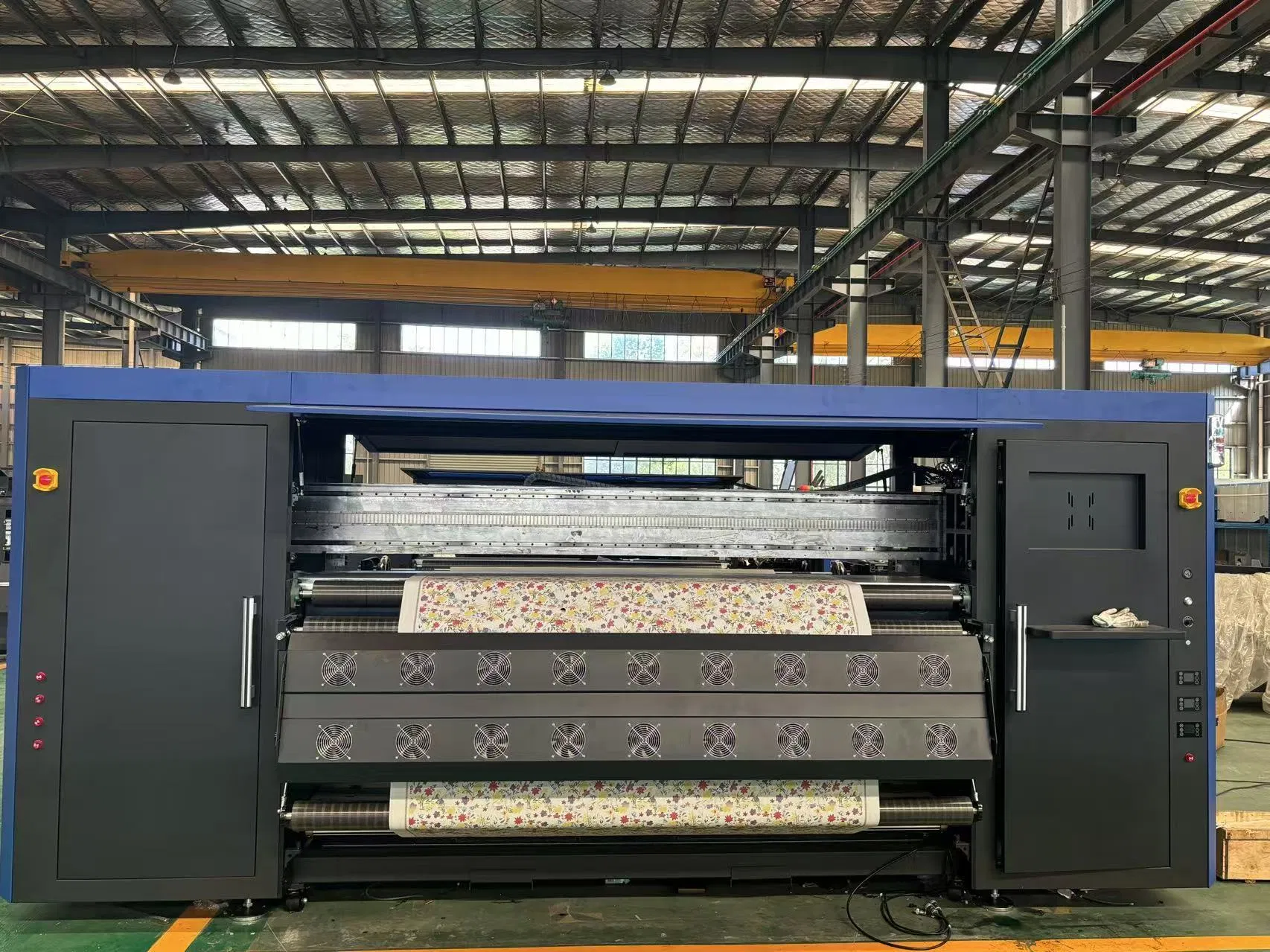

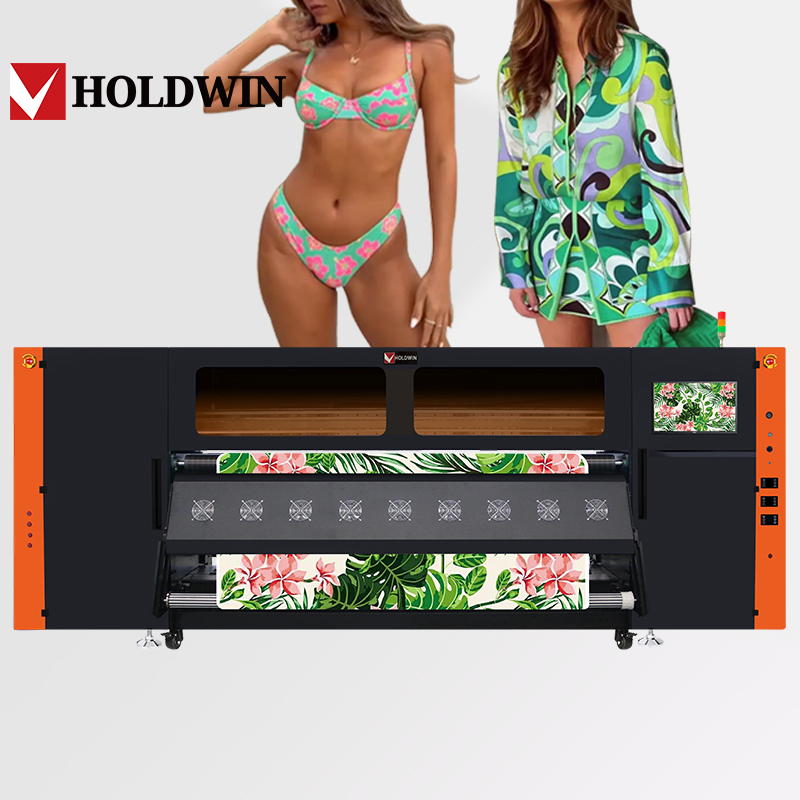

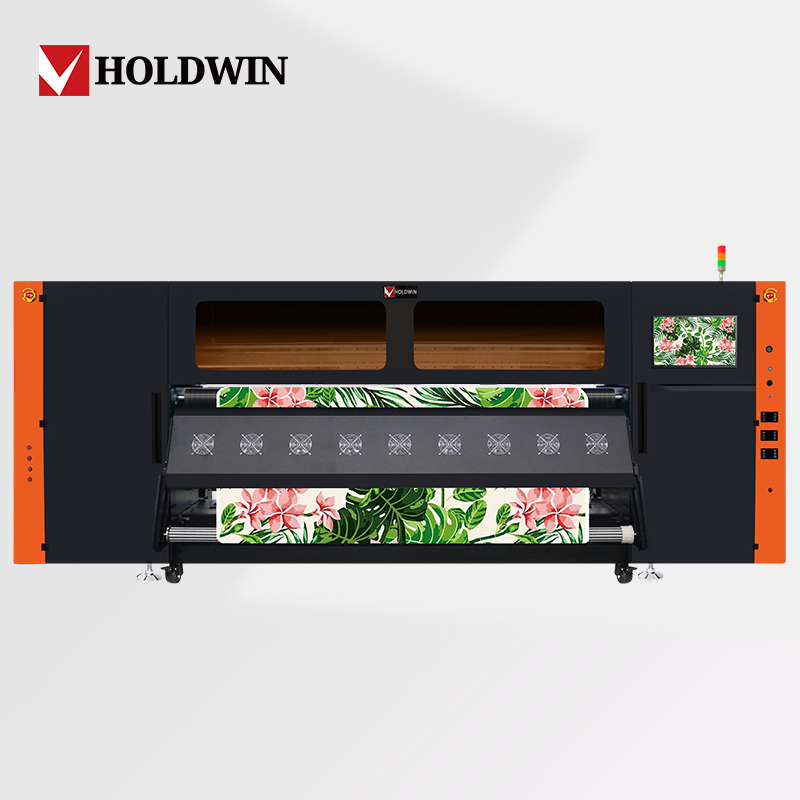

Holdwin T-Shirt/Clothes Fabric Textile Digital Industrial Large Format Sublimation Printer Printing Machine

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.HOLDWIN-2224TX
StructurePressure Wheel
Color & PageMulti-Colour Printing Press
UsagePaper, Cloths, Textile Printer
Automatic GradeAutomatic
Printing Speed860sqm/H (1 Pass)
Print Head TypeI3200-A1 (24 Heads)
Ink TypeHigh-Concentration Heat Transfer Ink
Ink SupplyNegative Pressure
X-AxisMaglev Transmission
Technical Parameters
Model HOLDWIN-2224TX
Printing Speed 1 Pass: 860 sqm/h 2 Pass 430 sqm/h
Ink Capacity 12 L Ink Color C M Y K
Machine Width 2220mm Print Width 2200mm
Power Input AC 220V ± 5%, 16A Drying Unit Max 18kw
Computer Sys Win7/Win10 64-bit Interface USB 3.0 / LAN
Core Features & Advantages

The 24*I3200-A1 Print Heads 2.2m Digital Textile Printing Machine is an industrial-grade solution widely used for household goods, apparel, masks, T-shirts, canvas bags, flags, and curtains.

  • Massive Capacity: Equipped with a 10,000-meter base paper carrying performance for continuous roll-to-roll output.
  • High Stability: Built with premium, durable accessories and a thickened wall panel structure for high-speed operation.
  • Precision Platform: Air channel honeycomb platform ensures smooth feeding and prevents paper bulging.
  • Superior Drying: Integrated front, bottom, and back drying units to improve efficiency for mass production.
  • Fine Quality: Delivers high-precision printing with natural transitions and highly realistic patterns.
  • Advanced Structure: Features a Maglev X-Axis transmission and frequency conversion motor for the receiving system.
Product FAQ
What is the maximum printing speed?
The HODLWIN-2224TX model reaches 860 sqm/h for 1 Pass and 430 sqm/h for 2 Pass.
What type of ink does this machine use?
It uses High-Concentration heat transfer ink with a negative pressure ink supply method.
What is the effective printing width?
The machine width is 2220mm, providing a maximum effective print width of 2200mm.
What kind of drying system is included?
It is equipped with an external multi-stage automatic control wind and heat all-in-one dryer.
What are the power requirements for operation?
The input voltage is AC 220 V± 5%, 16A. The printer consumes 7500W, and the drying unit reaches a maximum of 18kw.
Which operating systems are supported?
The system supports Windows 7 64-bit and Windows 10 64-bit versions.
