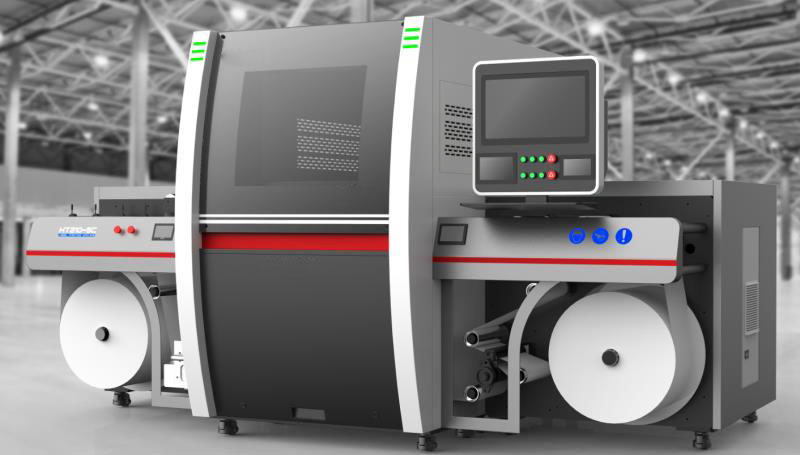

Highly flexible feeding system
Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE), paper, among others.

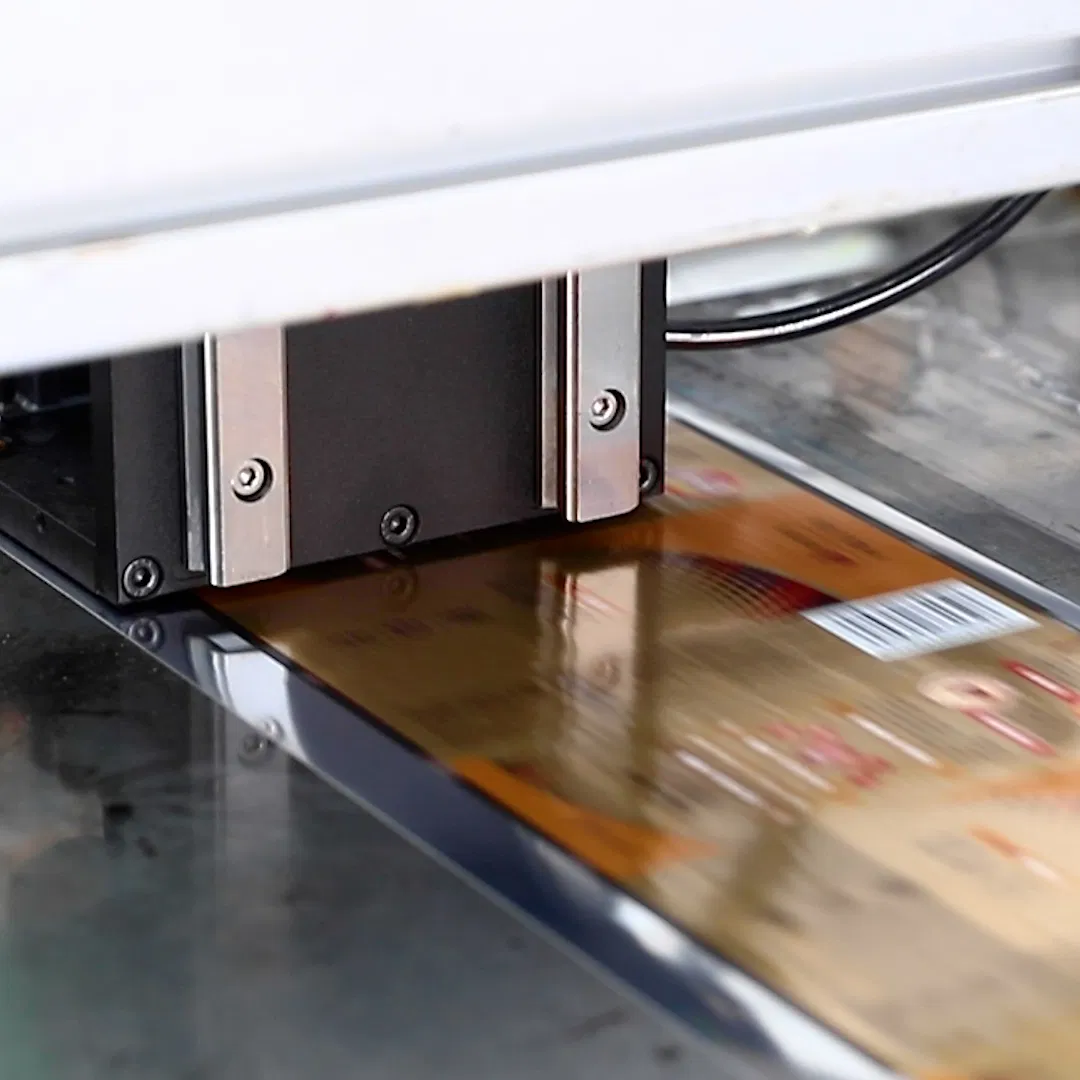

Stable and high-speed printing unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality. The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
High quality UV eco-friendly Ink
Benefit from the excellent ink formula, UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection. Broad color gamut UV ink, vivid colors, can accurately restore the Pantone database colors.
AGFA APOGEE workflow software system
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.
Automatic winding and unwinding system
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.

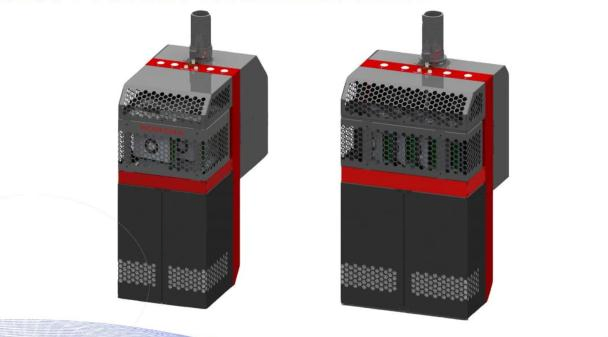

Unique print head control system
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
Unique multiple curing technology
LED cold light curing unit, energy saving and high efficiency. Each color group is equipped with a curing module, so the ink droplets can be quickly and accurately attached to different media without spreading.
❓ Frequently Asked Questions
Q: What materials can the VDG330 digital printing system handle?
A: It is highly flexible and suitable for materials ranging from 80-330mm wide, including PET, BOPP, PE, BOPA films, label stock, paper, and pre-pressed materials.
Q: What is the maximum printing resolution and speed?
A: The system supports a resolution of up to 600 x 1200 dpi and a maximum printing speed of 50m/min.
Q: Which colors are supported by this UV printing system?
A: It supports CMYK + White (W) + Varnish (V) for multi-colour and textured printing effects.
Q: How does the curing system work?
A: The machine utilizes LED cold light curing technology. Each color group has its own curing module to ensure ink droplets are fixed quickly without spreading.
Q: What workflow software is used for prepress management?
A: It uses the fully integrated AGFA Apogee prepress workflow system for high reliability and ease of operation.
Q: Is the system capable of secondary overprinting?
A: Yes, the integrated patch tracking electronic eye allows for accurate secondary overprinting with a precision of ±0.05mm.
