Colvanta Print
1 / 5

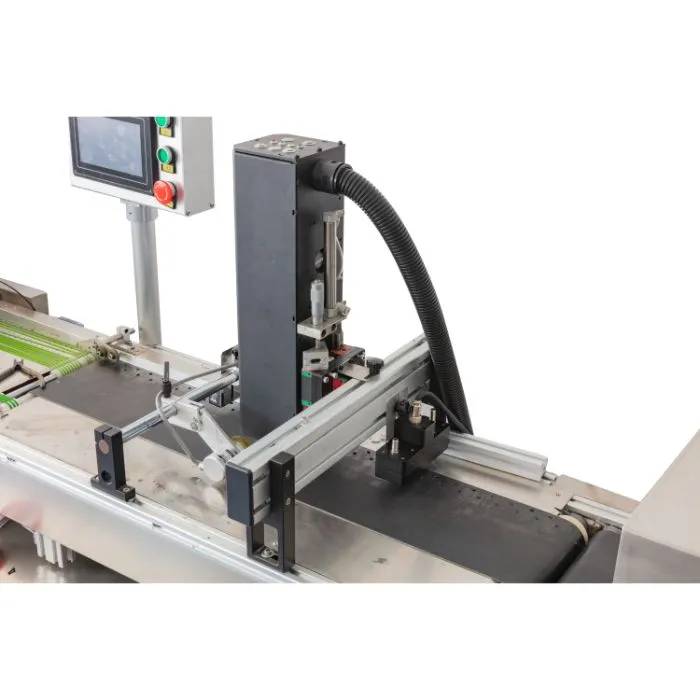

This UV inkjet system fits perfectly on presses, rewinders, or cut-sheet vacuum transports. Our latest UV Drop-on-Demand (DOD) technology offers proven performance, ease of operation, and flexible resolutions. It is ideal for printing on difficult substrates like films, foils, plastics, coated stocks, and other synthetics.
| 1. High-speed digital inkjet system, UVLED curing, and negative pressure ink supply. |
| 2. Suitable for printing names, numbers, logos, QR codes, and anti-counterfeit codes on films and labels. |
| 3. Utilizes industrial piezoelectric nozzles (Japan) for high precision. |
| 4. Environment-friendly black LED UV ink for stable, continuous printing. |
| 5. Real-time monitoring of print head to prevent empty data or leakage codes. |
| 6. Ethernet gigabit data transmission for high-speed stability. |
| Resolution | Maximum Printing Speed |
|---|---|
| 600 * 600 dpi | ≥ 75 m/min |
| 600 * 400 dpi | ≥ 91 m/min |
| 600 * 300 dpi | ≥ 125 m/min |
| 600 * 200 dpi | ≥ 160 m/min |
A: The UV ink is specifically designed for difficult substrates including films, foils, plastics, coated stocks, metals, and various synthetics.
A: The system supports up to 600 dpi resolution. At 600*200 dpi, the speed reaches ≥ 160 m/min, while at 600*600 dpi, it prints at ≥ 75 m/min.
A: Yes, it is designed for variable data including product names, numbers, logos, dates, barcodes, QR codes, and invisible anti-counterfeit codes.
A: Absolutely. It can be installed on various intaglio printing machines, flexo printing machines, and packaging lines for online printing, or used with rewinders for offline production.
A: The system features an integrated head cap, automated service mode, one-button cleaning, and a one-button evacuation function to protect the nozzles during long idle times.
A: It uses a UVLED cold light source that starts quickly and adjusts brightness automatically according to the movement speed to ensure optimal curing quality.
