🔹 Overview - Basic Information
Plate
Lithography Printing
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Semi-Automatic
System Supported
Windows 7 and Above
Max Print Width
27.1mm/33mm
Power Supply
AC 220V, 50 Hz, 2500W
Production Capacity
100 Sets/Month
📦 Packaging & Delivery
Package Size
160.00cm * 100.00cm * 165.00cm
Transport Package
Exported Plywood

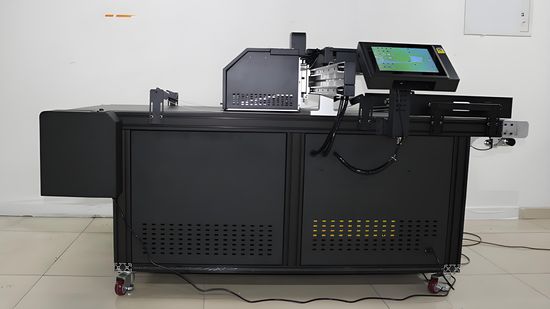

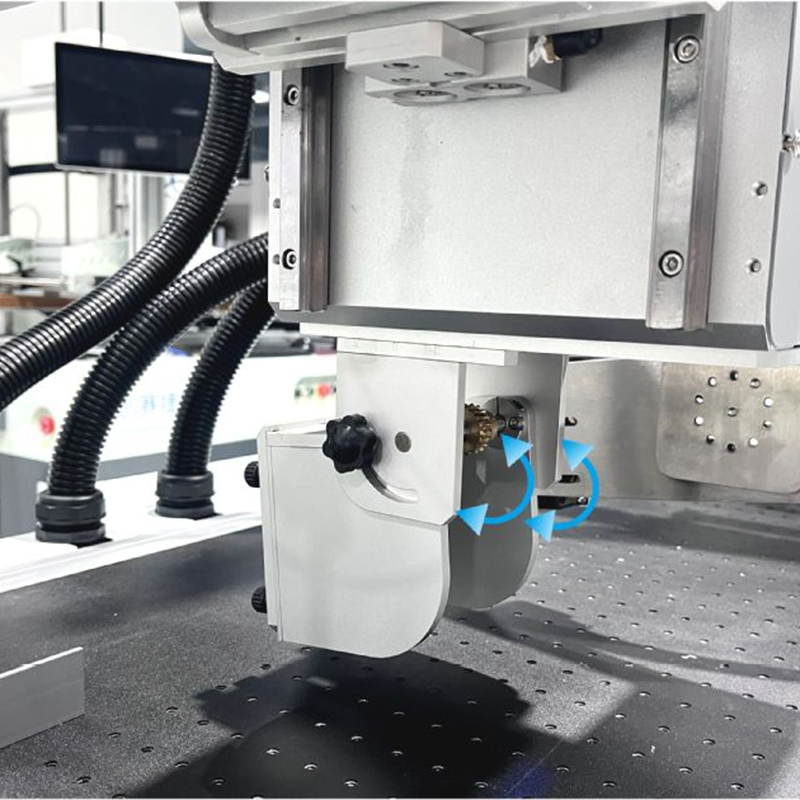

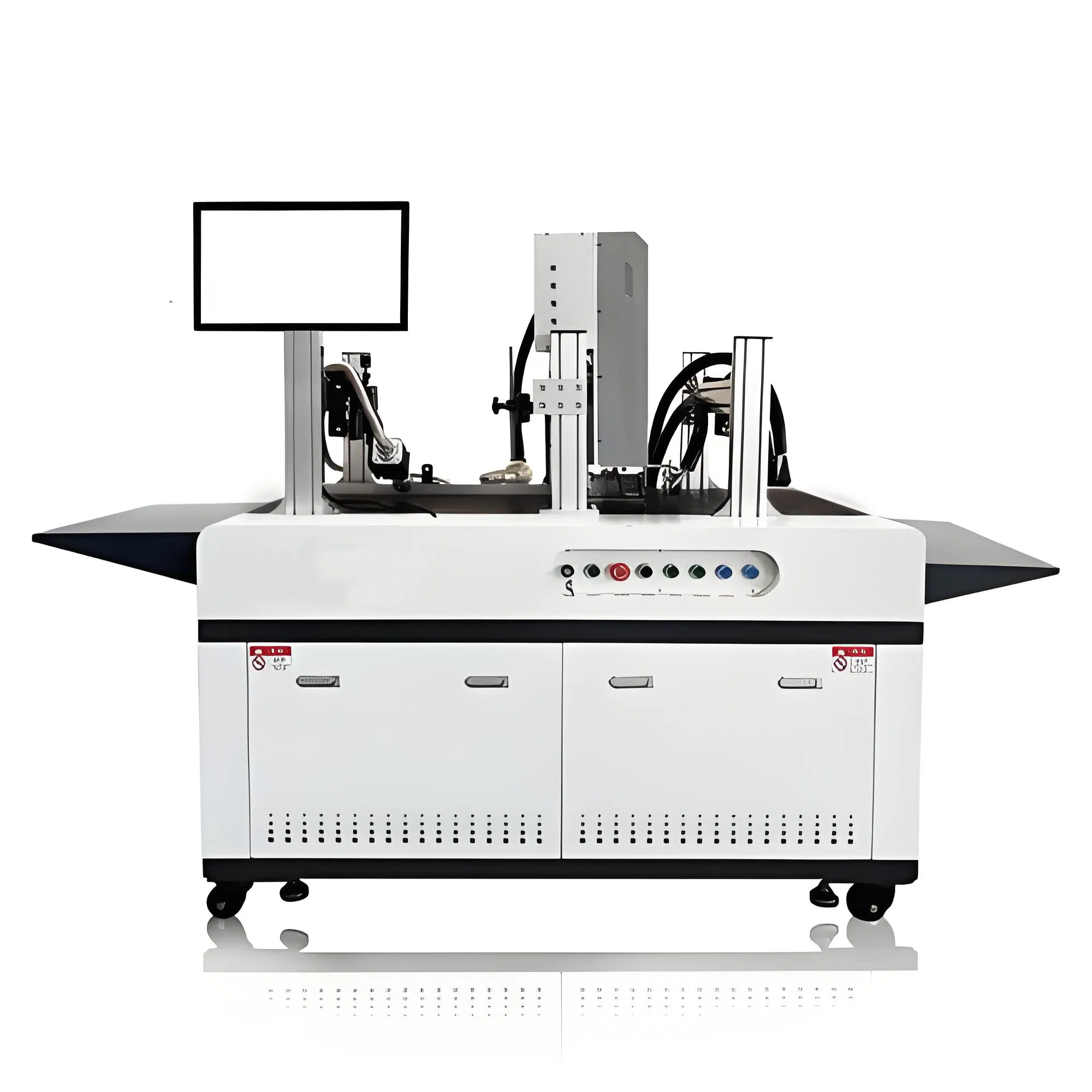

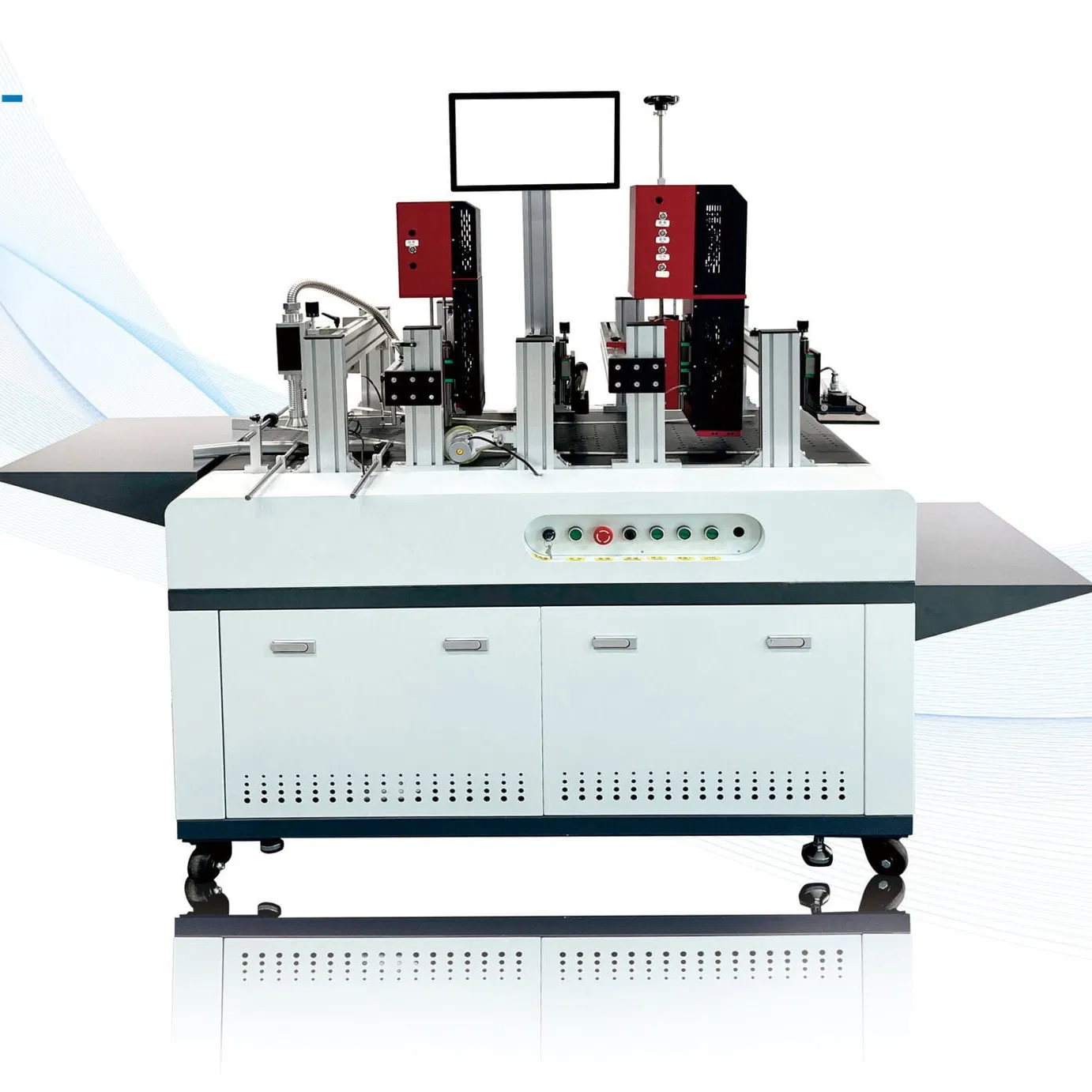

🚀 High-Speed Single Pass UV Digital Printing System
With a 33mm effective printing width per head, our system effortlessly combines multiple heads for wider print demands. Equipped with cutting-edge micro-piezoelectric technology.
Applications
Expertly engineered for non-absorbent materials, this head excels in packaging boxes like plastic cups, lunch-boxes, egg cartons, demonstrating remarkable versatility.
Key Configurations
- Print head: 1 PC
- Software: MainTop
- Ink type: Eco-friendly UV ink
- Ink supply: Circular ink supply
- Color profile: CMYK

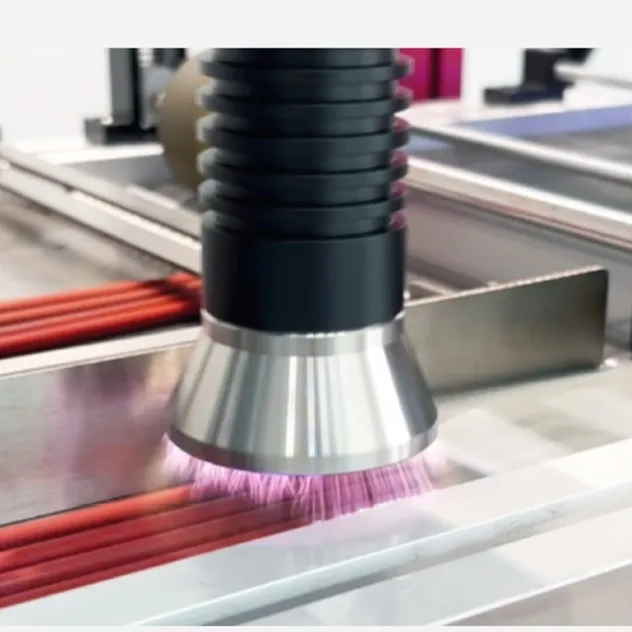

Plasma Treatment

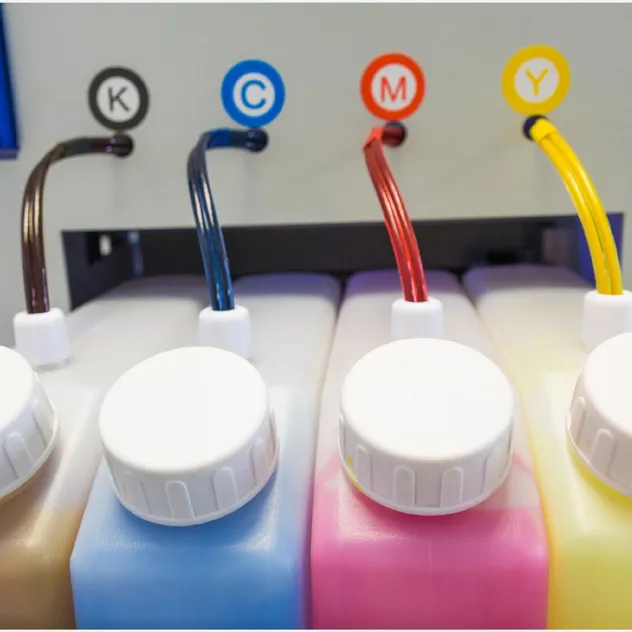

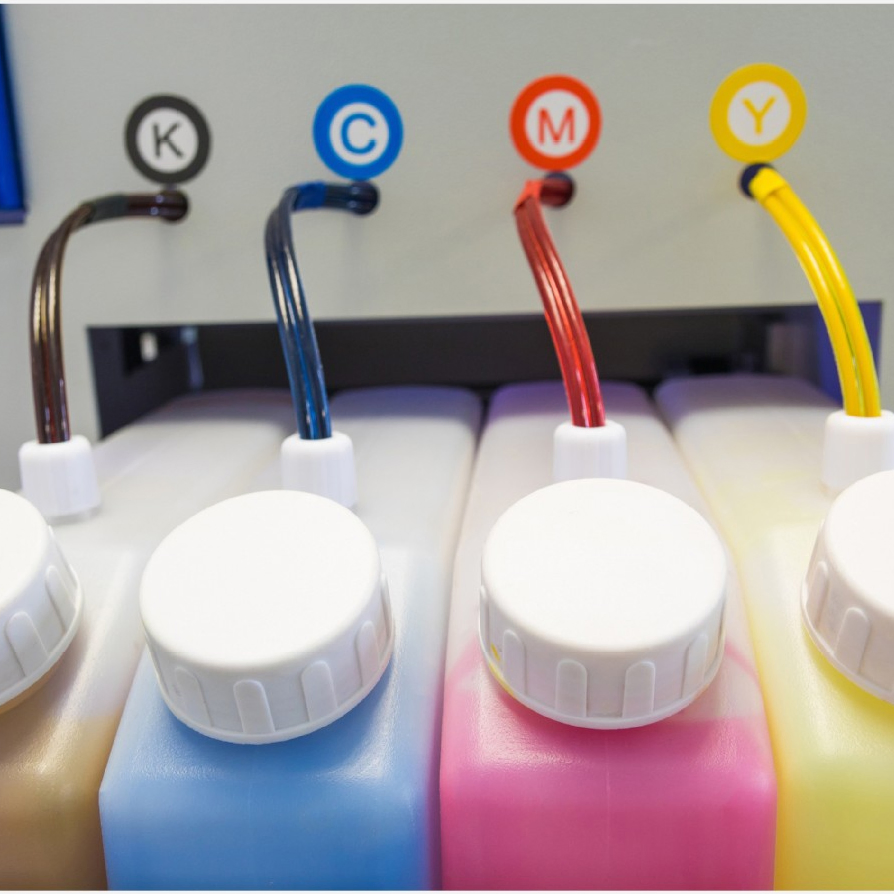

CMYK Colors
Printed Samples
📊 Technical Specifications
| Model |
HX-501-UV |
HX-502-UV |
HX-503-UV |
| Software | MainTop | MainTop | MainTop |
| Graphic format | TIFF/BMP/JPEG/CDR/PSD | TIFF/BMP/JPEG/CDR/PSD | TIFF/BMP/JPEG/CDR/PSD |
| Print head numbers | 1 pc | 2 pcs | 3 pcs |
| Feed length | 0 - 400 mm | 0 - 400 mm | 20 - 550 mm |
| Max print width | 27.1mm / 33 mm | 54mm | 54mm / 108mm |
| Print accuracy | 600 dpi | 600 dpi | 600 dpi |
| Print speed | 0 - 20 m / min | 0 - 30 m / min | 0 - 40 m / min |
| Ink type | Eco-friendly UV ink | Eco-friendly UV ink | Eco-friendly UV ink |
| Power supply | 220V, 2500W | 220V, 4000W | 220V, 5000W |
⚙️ Advanced Functions
- Effortlessly switch between friction feeding and vacuum suction, customizing your dispensing needs.
- Automatic continuous feeding system ensures steady production, avoiding breaks for replenishment.
- Intelligent counting and stacking eliminate manual counting, saving time and labor.
- Automatic deskew system prevents offset and misalignment during printing.
🛠️ After Sales Service
- Standard Warranty: 12 months.
- Extended Warranty: Optional coverage available for up to 36 months.
- Global Support: Round-the-clock technical support and spare parts at your service.
- Training: Comprehensive on-site or remote training in operation and maintenance.
🏢 Professional Manufacturer Profile
As a distinguished Chinese manufacturer with over 15 years of expertise, we are ISO 9001 and CE certified. Exporting to 50+ countries, we offer robust machinery backed by R&D innovation and strict quality control.
Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs support
- Turnkey project solutions

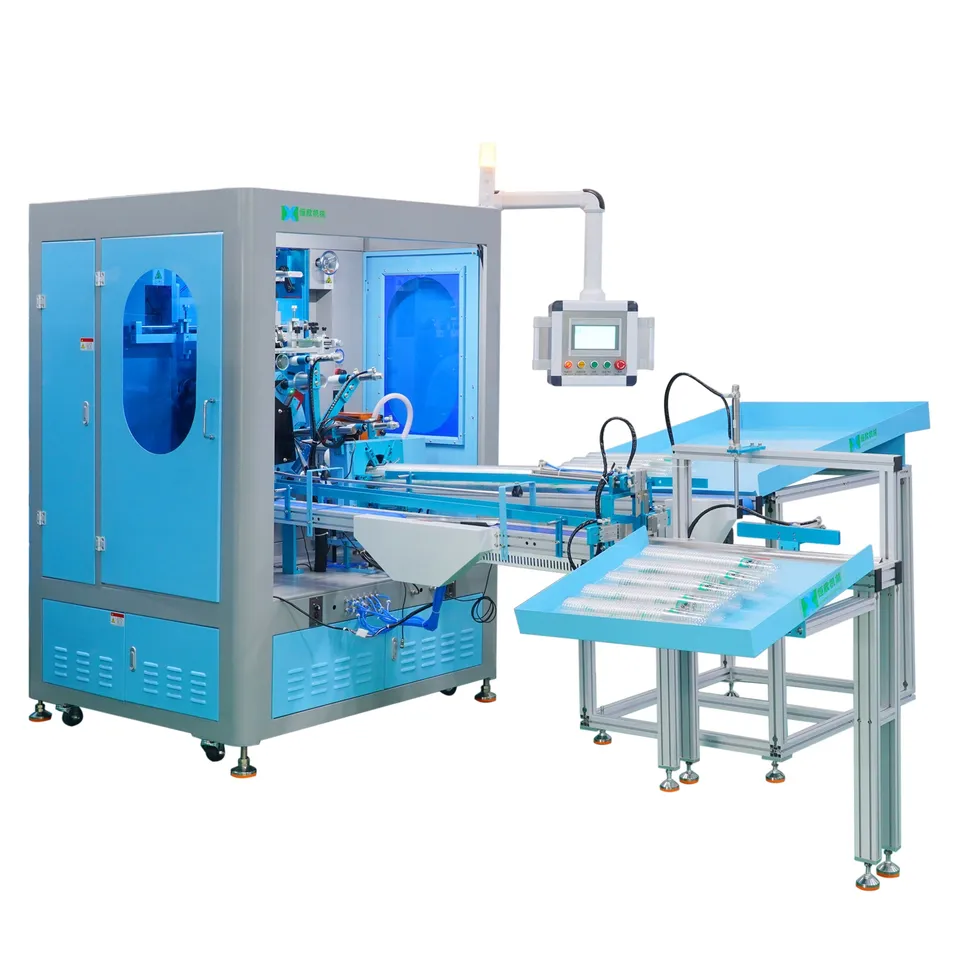

Our Machine Categories
• Screen Printing Machine
• Pad Printing Machine
• Hot Stamping Machine
• Heat Transfer Printing Machine
• Window Patching Machine
❓ Frequently Asked Questions (FAQ)
Q1: What materials can the Single Pass UV printer handle?
A: It is expertly engineered for non-absorbent materials such as plastic cups, lunch-boxes, egg cartons, and various plastic bags.
Q2: What is the maximum printing speed of this system?
A: Depending on the model, the speed ranges from 0-20 m/min (HX-501) up to 0-40 m/min (HX-503).
Q3: Does the machine support custom configurations?
A: Yes, we can customize configurations including print head numbers and feed widths to meet specific production requirements.
Q4: What kind of ink is used in the printing process?
A: The system uses eco-friendly UV ink with a circular ink supply system for efficient and sustainable production.
Q5: Is training provided for new operators?
A: Yes, we offer comprehensive on-site or remote training sessions covering both operation and routine maintenance.
Q6: What are the system requirements for the operating software?
A: The system uses MainTop software and is compatible with Windows 7 and above operating systems.
