High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
1 / 5
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System
High Speed UV Digital Full Color Printing System

High Speed UV Digital Full Color Printing System

Customization: Available
Color & Page: Multi-Colour Printing Press
Usage: Paper Printer, Label Printer, Card Printer, Cloths Printer
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
VDG330
Automatic Grade
Automatic
Printing Interface
USB3.0
System Supported
Windowsxp32
Color Support
Cmyk+W+V
Overprint
+-0.05mm
Max.Web Dia.
600mm
Material Weight
60-250G/M2
Total Power
45kw
Gross Weight
1500kgs
Origin
China
HS Code
8443322100
📦

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 120.00cm
Gross Weight
400.000kg
Transport Package
Wooden Cases
Capacity
100sets/Year
🖨️

Product Description

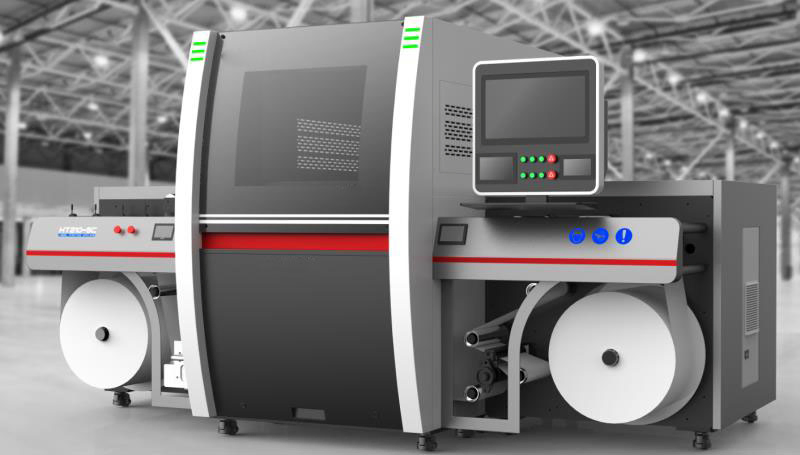

High Speed UV Digital Full Color Printing System

UV Digital Printing System Main

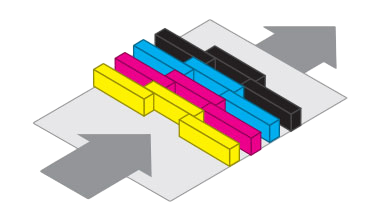

UV Digital Printing Details
Highly Flexible Feeding System

Suitable for materials 80-330mm wide: film (PET, BOPP, PE, BOPA), label stock, pre-pressed materials (PET, ALU, PE), and paper.

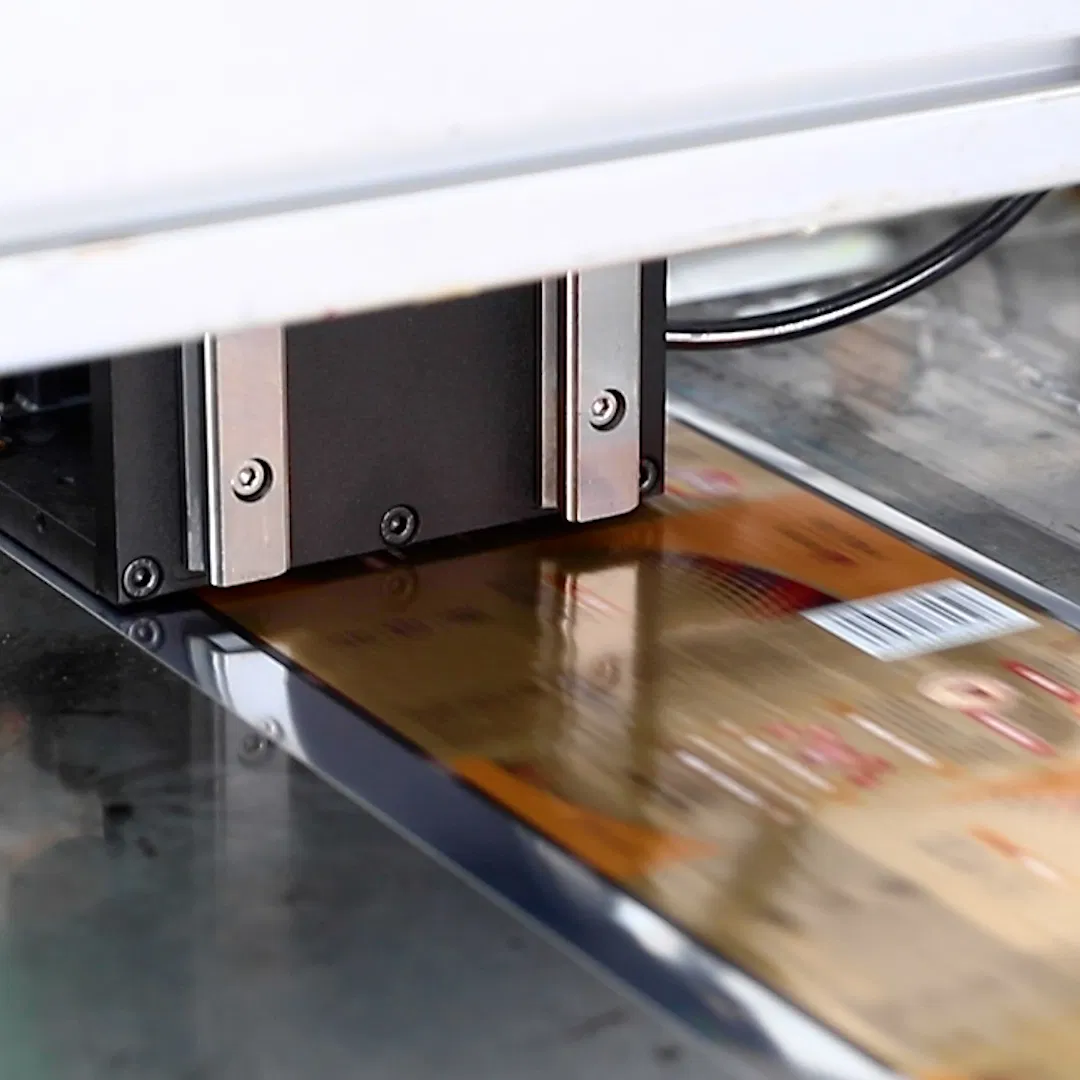

Stable High-Speed Printing

Imported industrial print head with resolution up to 600 X 1200 dpi. Electronic eye tracking solves registration problems.

Eco-Friendly UV Ink

Vivid colors and excellent stability. AGFA color management restores Pantone database colors accurately.

AGFA APOGEE Workflow

Fully integrated prepress workflow system ensuring high reliability and easier equipment operation.

Automatic Winding System

Prevents substrate shifting and ensures orderly winding for long-term non-stop automated production.

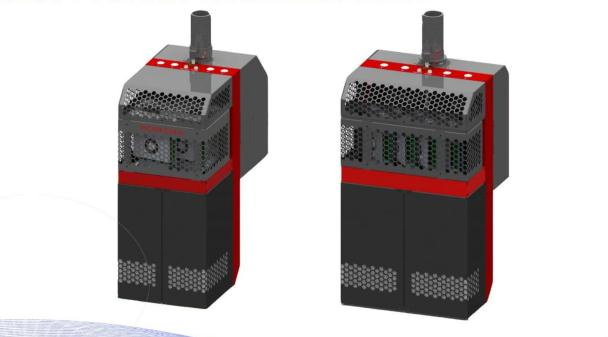

Multiple Curing Technology

LED cold light curing units for each color group. Quick ink attachment prevents spreading and ensures lifelike colors.

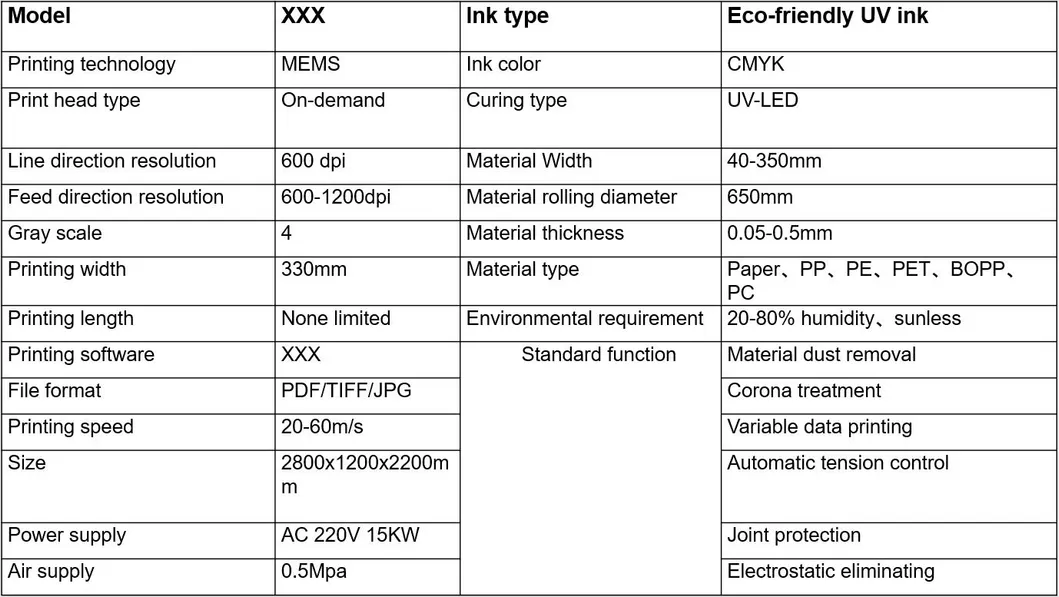

High Speed Printing Workflow
❓

Frequently Asked Questions

What materials can this digital printing system handle?
The system is highly flexible and supports 80-330mm wide materials including PET, BOPP, PE, BOPA films, label stock, ALU, and various types of paper.
What is the maximum printing resolution of the VDG330?
The system uses high-precision industrial print heads capable of achieving a resolution up to 600 X 1200 dpi.
What colors does the system support?
The VDG330 supports full-color printing with CMYK + White (W) + Varnish (V) configurations.
How does the curing system ensure print quality?
It utilizes unique LED cold light multiple curing technology. Each color group has its own curing module, allowing ink droplets to attach accurately without spreading before the final main curing.
Which software system is used for production workflow?
The machine is equipped with the fully integrated AGFA APOGEE prepress workflow system for reliable and efficient operation.
What are the power and weight specifications?
The total power consumption is 45kw, and the machine has a gross weight of approximately 1500kgs.
