High Speed Personalization System for Scratch Cards

1 / 5

High Speed Personalization System for Scratch Cards

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Specifications

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB 3.0

Printing Speed

50m/Min

System Supported

Windows XP/7 32/64bit

Color Support

CMYK+W+V

Overprint Precision

±0.05mm

Max Web Dia.

600mm

Material Weight

60-250G/M2

Gross Weight

3000kgs

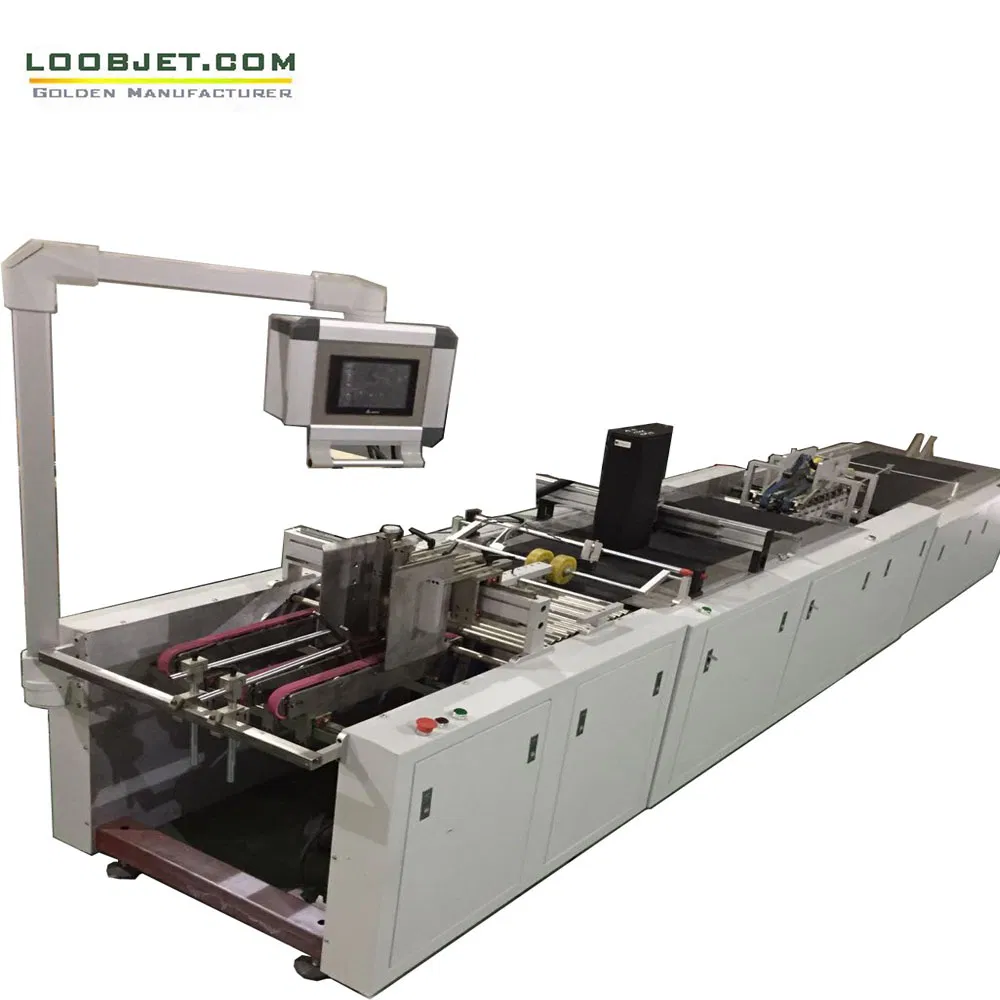

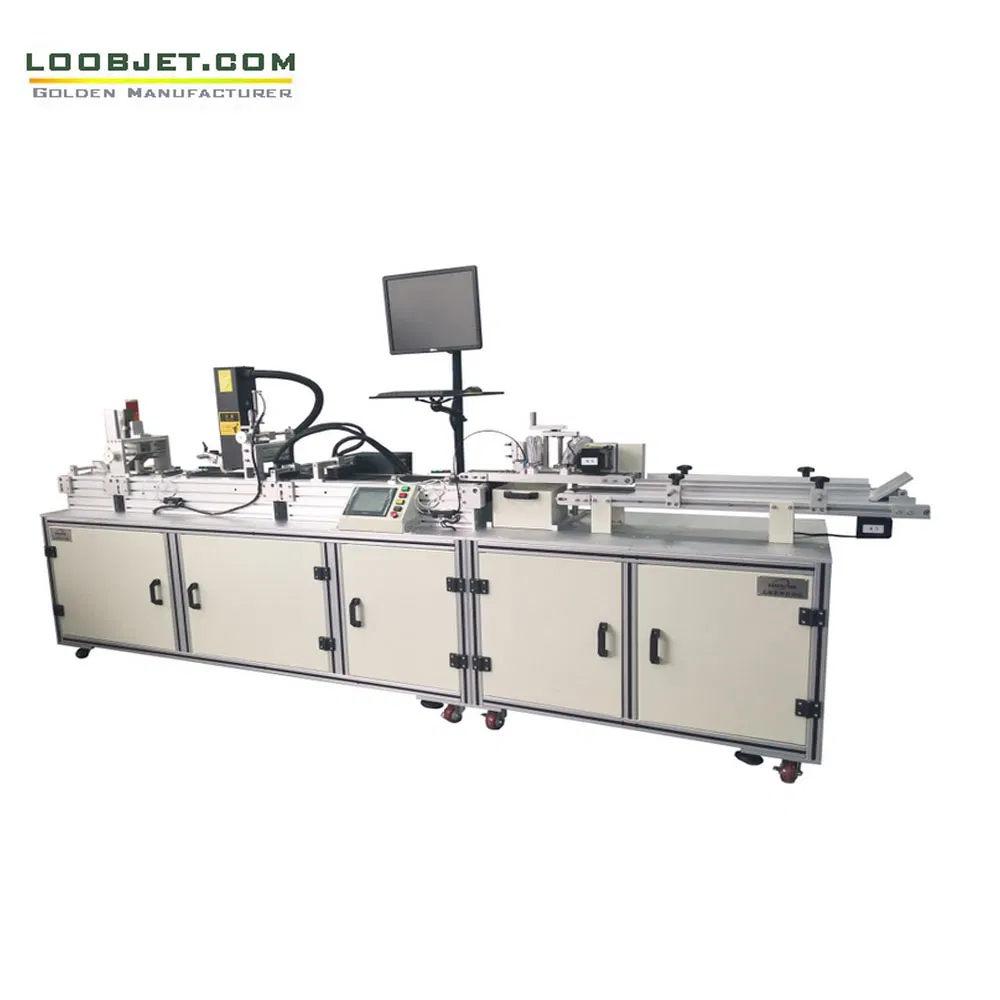

UV DOD Digital Inkjet Printer

The printing system featuring Kyocera PH is an industrial-level digital four-color printing engine system designed primarily for the packaging and printing industry. Equipped with 12 pieces of industrial-grade Kyocera printheads, it delivers high-speed performance with exceptional precision.

System Features

High Resolution: 12 industrial-grade Kyocera PH (printing width 324mm) achieve a precision of 600 * 1200dpi.

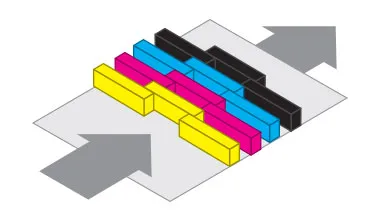

High Speed: Single-pass non-contact printing technology reaches speeds up to 50m/min.
Wide Material Compatibility: Perfect for all kinds of paper and adhesive labels without the need for pre-coating.
Variable Data Support: Supports variable barcodes, 2D barcodes, and complete variable image printing.
Efficiency: Average preparation time for new rolls is less than 1 minute with seamless content changing.
Intelligent Software: Equipped with powerful RIP, image processing, and data transmission technology.
Automatic Processing: Features automatic ink supply and air supply balance, maintaining negative pressure even during sudden power loss.
Industrial Reliability: Designed for 24/7 continuous production mode with durable piezoelectric nozzles.

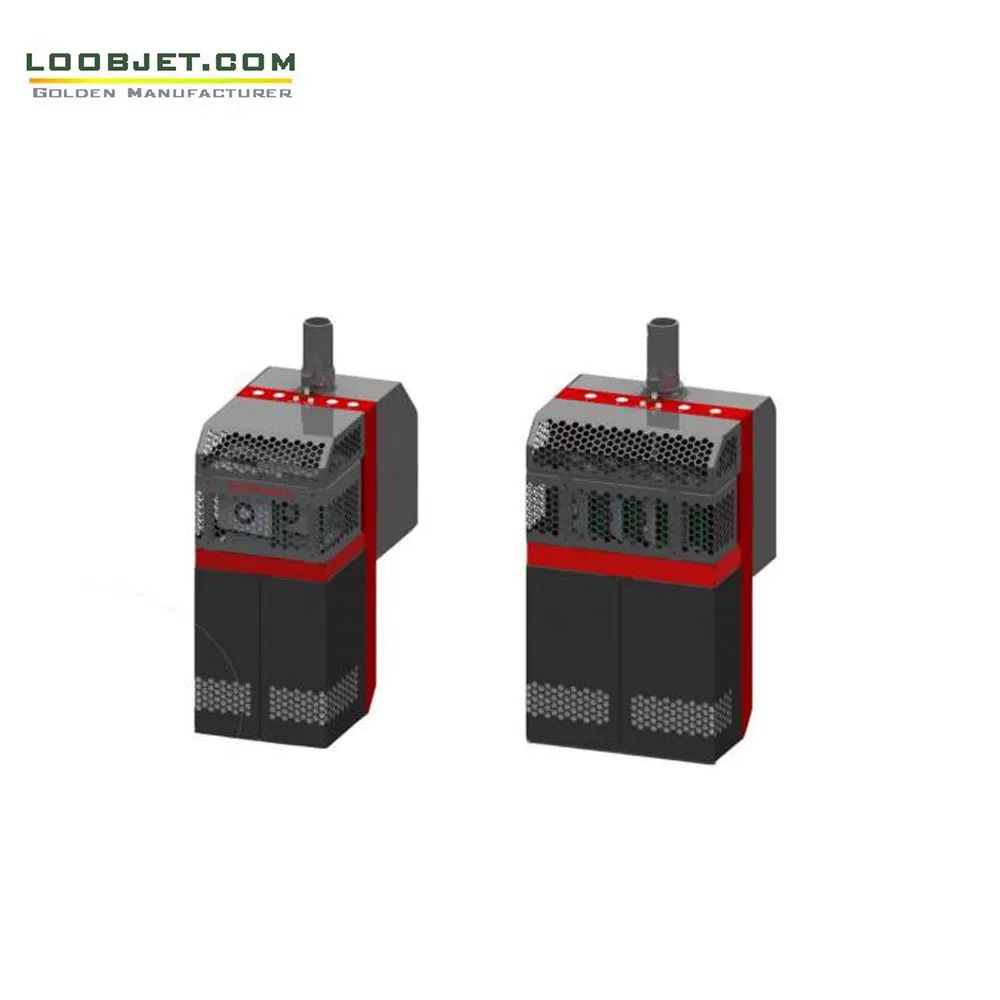

Printhead (PH) Parameters

Nozzle Model

Kyocera

Unit Width

108mm

Nozzle Count

2656

Ink Drop

3.5pl, 7pl, 11pl, 14pl (Adjustable)

Grayscale

8 Levels

Frequency

Max 40KHz

Control System & Others

Ink Type	UV / Water-based Ink
Ink Color	CMYK + Optional Orange, Purple, White or Spot Colors
Curing Type	Drying module or quick-drying ink
Power Requirements	AC220V 50 / 60Hz
Air Requirements	6-8 PA, clean and dry
Platform	Single-fed or Roll-fed
Materials	Ordinary paper, offset paper, adhesive labels (60-250g/m2)

Frequently Asked Questions

What is the maximum printing speed of the KY320?

The system utilizes industrial single-pass technology to reach speeds up to 50m/min at 600dpi resolution.

Does the material require pre-coating before printing?

No, the UV DOD Digital Inkjet Printer is designed to print high-quality patterns directly on various papers and adhesive labels without any pre-coating.

What kind of variable data can this machine handle?

It supports a wide range of variable data including 1D barcodes, 2D barcodes, and full-color variable image printing.

Is the printer suitable for 24/7 continuous operation?

Yes, the entire series is engineered for industrial-grade 24/7 production, featuring durable Kyocera piezoelectric nozzles.

What are the ink color options available?

The standard configuration supports CMYK four colors, but it can be expanded to include White (W), Varnish (V), Orange, Purple, or other customized spot colors.

How long does it take to change a print job?

The average preparation time for printing is less than 1 minute, allowing for seamless roll changes and rapid content updates.
