The overall adoption of a one-stop, integrated architecture ensures more stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces unexpected downtime.

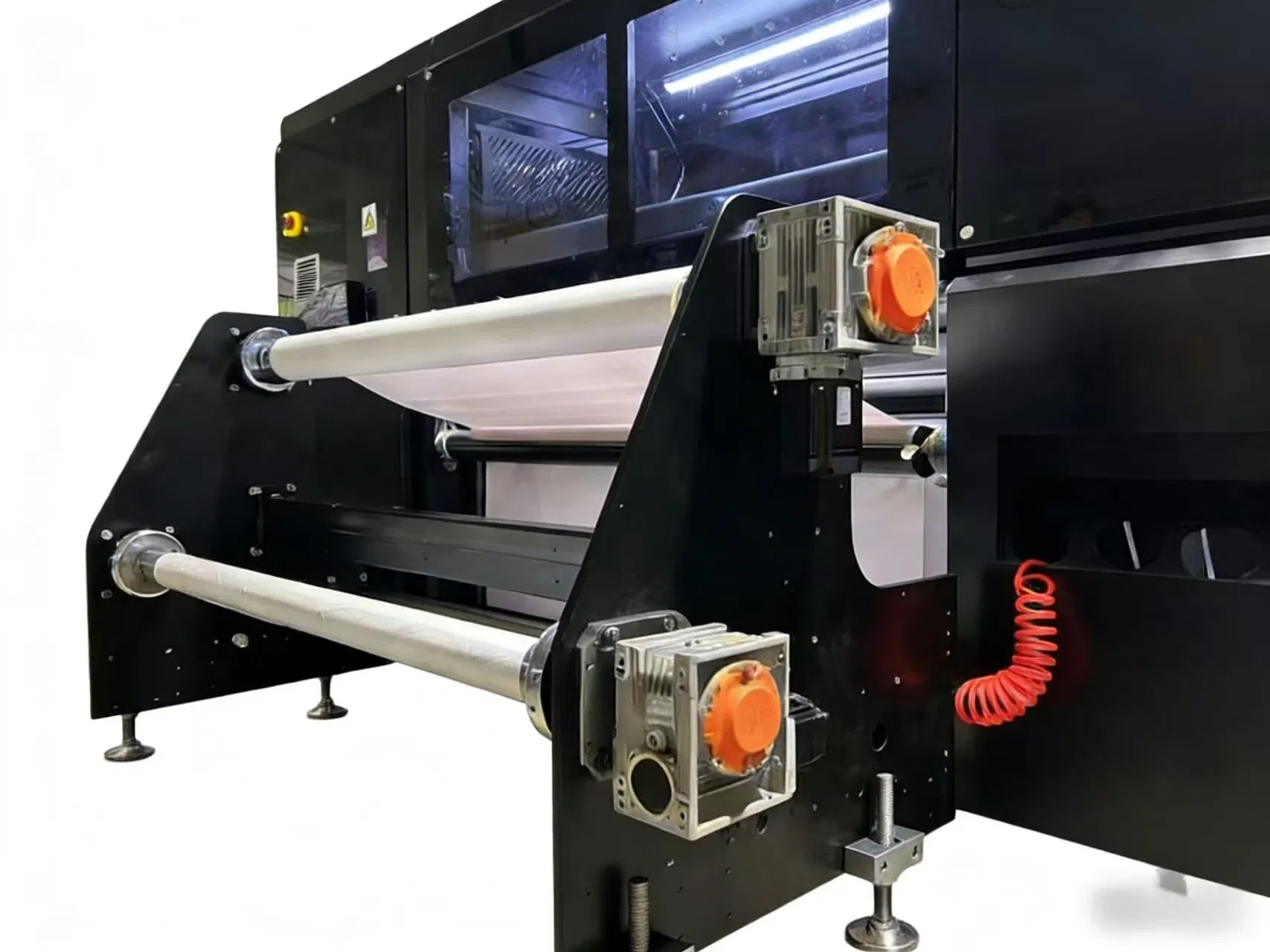

Utilizes high-rigidity linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy. This structure minimizes vibration, guaranteeing consistent registration during high-speed operation.

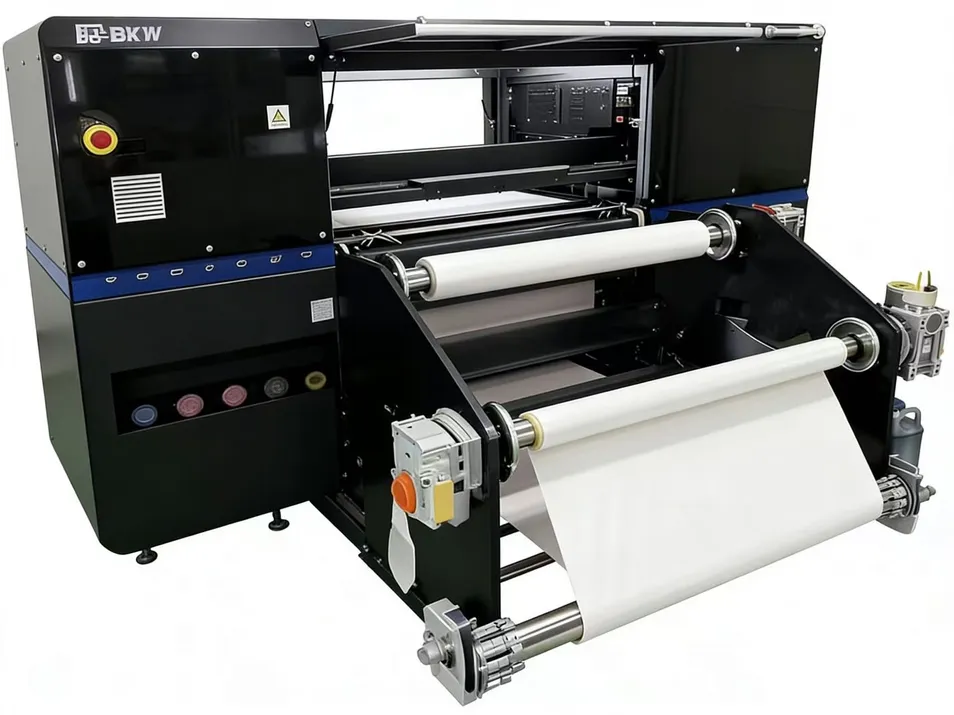

Advanced servo control system enables seamless switching between functions with precision. It automatically adjusts parameters for different printing modes and materials for optimal performance.

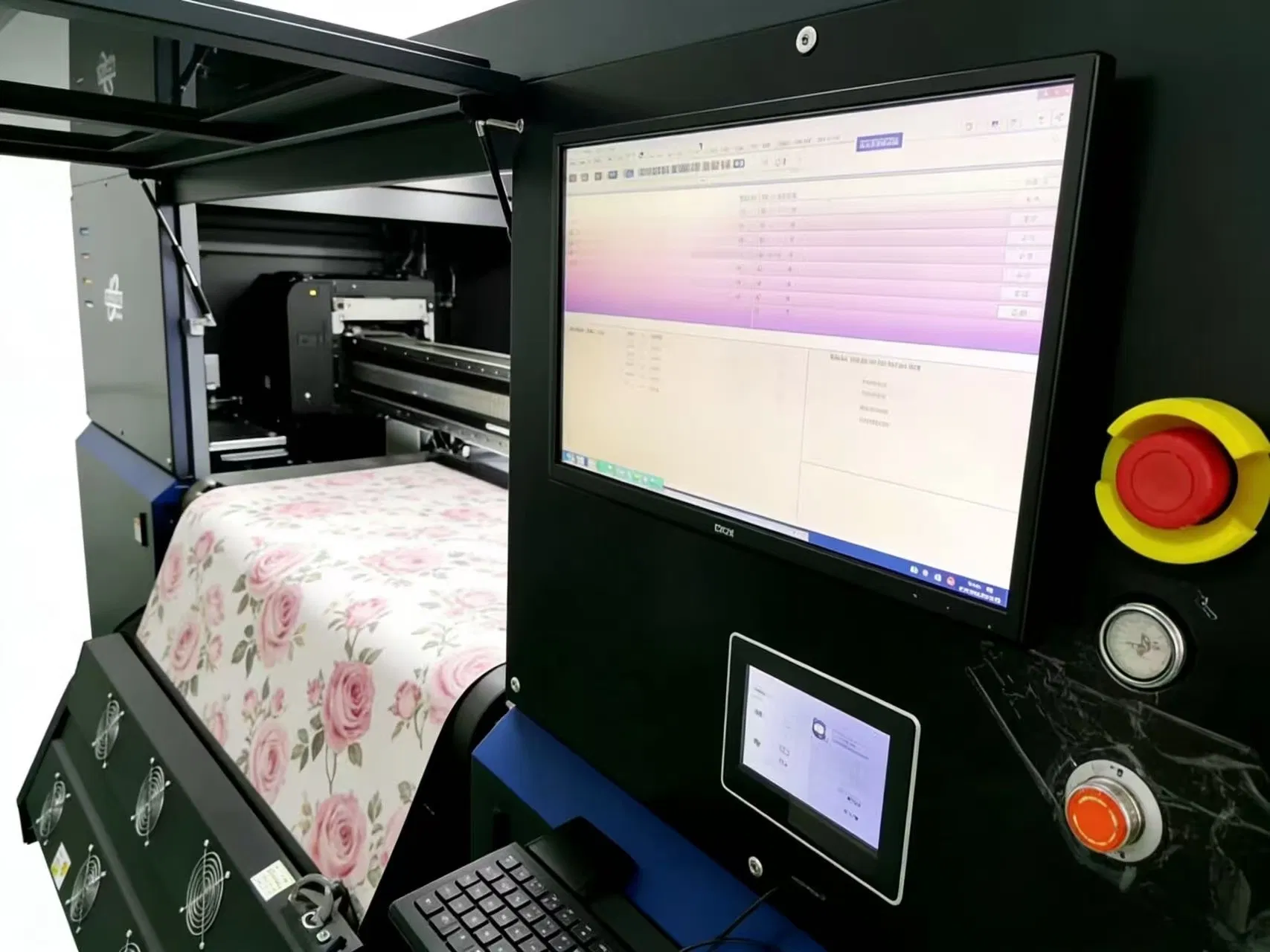

Intuitive interface designed for simplicity. The innovative one-touch operation eliminates complicated manual setup, allowing operators to start jobs quickly and effortlessly.
| Printer Model | Jep-V15 |
|---|---|
| Spray Heads | 8 / 12 / 16 / 24 |
| Print Width | 1350MM |

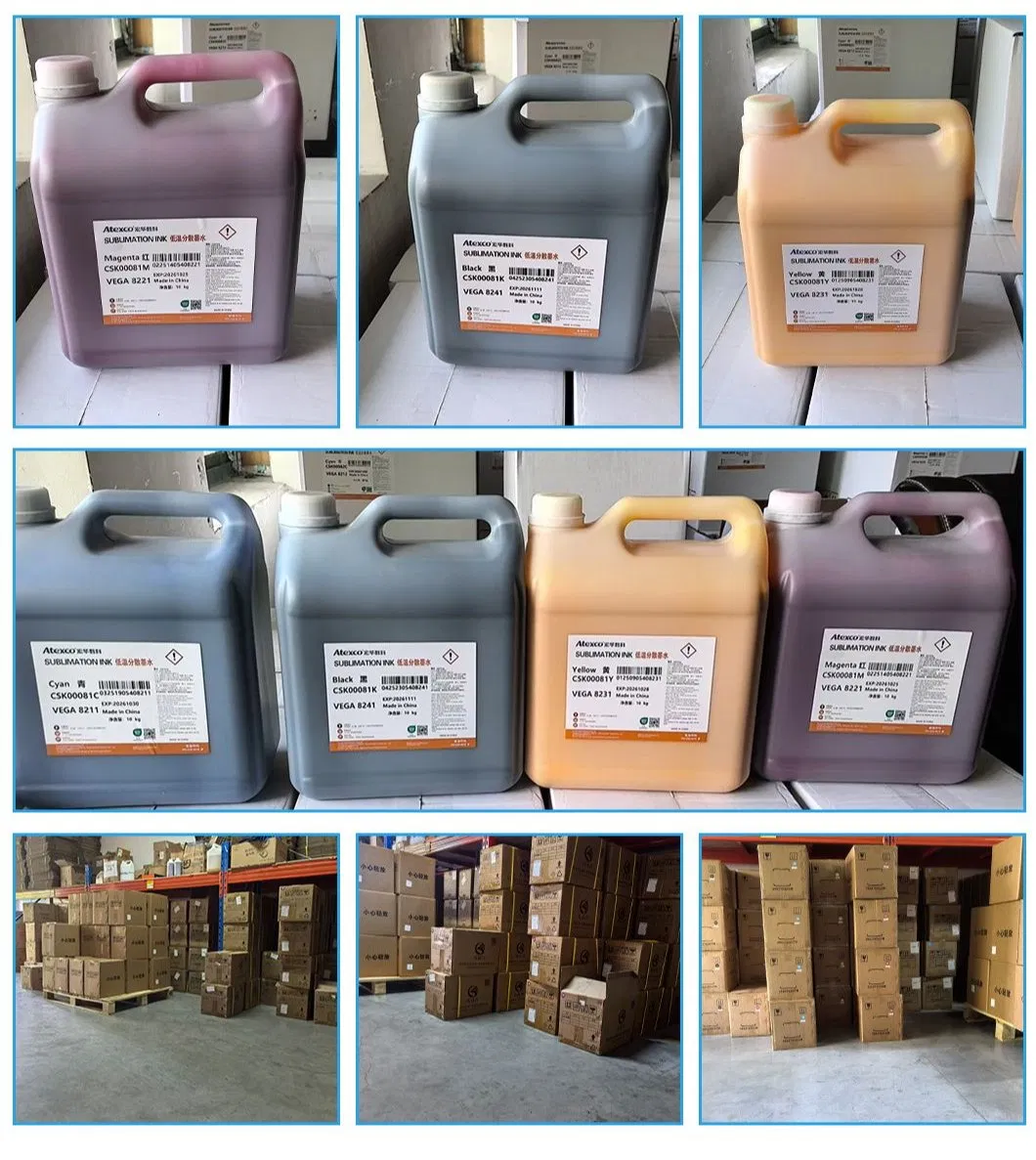

| Ink Type | Water-based pigment / Mild solvent ink |
| Colors | Red, Yellow, Blue, Black, Gray, Light Gray |
| Ink Supply | Negative pressure system, 15 liters/color |
| Production Speed | 80 / 120 / 160 / 240 m²/h |
| Quality Mode | 40 / 60 / 80 / 120 m²/h |
| Max Roll Diameter | 800mm |
| Max Roll Weight | 1000KG |
| OS Support | Windows 7 / 10 (64-bit) |
| RIP Software | Maintop, Print Factory, Photoprint, Onyx, NeoStampa, etc. |
| Dimensions | 3550 x 1300 x 1900 mm |
Our solutions redefine production processes through AI and intelligent cloud services, providing digital upgrading for traditional decorative paper and film (PVC, PP, PET, etc.).
A: We are a professional digital printing machine manufacturer with 10 years of R&D and production experience, specializing in high-end decorative material solutions.
A: Our machines are highly versatile and can print on paper, PVC, glass, metal, fabric, leather, and wood, making them suitable for construction, advertising, and textile industries.
A: In-stock models deliver within 5-7 days, while customized systems take 20-90 days. On-site installation and professional training usually take 3-7 days.
A: Depending on the model and head configuration, speeds range from 10 to 600 sqm/h, with high-definition resolutions reaching up to 2400dpi.
A: We offer a comprehensive 2-year warranty and lifetime maintenance. Our technical support is available 24/7 online, and spare parts can be dispatched within 7 days.
A: We hold over 20 patents and independent intellectual property rights. Our systems are exported to over 30 countries, offering high stability, intelligent servo control, and competitive ROI.
