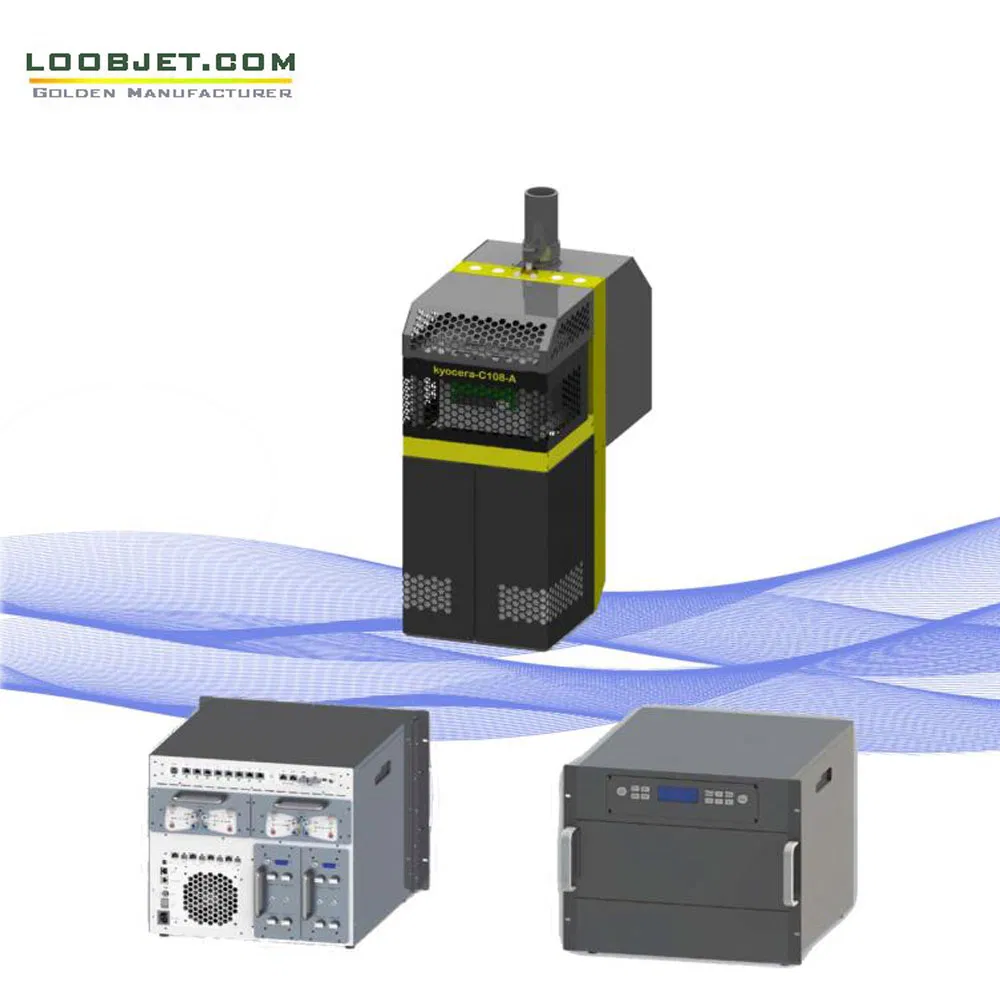

Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
1 / 5
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System
Inkjet Imagine High Speed Inkjet Printing System

Inkjet Imagine High Speed Inkjet Printing System

Customization: Available
Plate: Variable
Structure: Non-Contact
Send Inquiry

Product Description

i

Basic Info

Model NO.KY320
Color & PageMulti-Colour Printing Press
UsagePaper, Label, Card, Cloths Printer
Automatic GradeAutomatic
Printing InterfaceUSB3.0
Printing Speed50m/Min
System SupportedWindowsxp32
Color SupportCmyk+W+V
Overprint+-0.05mm
Max.Web Dia.600mm
Material Weight60-250G/M2
Total Power45kw
Gross Weight3000kgs
Transport PackageWooden Cases
Specification3200*1800*800mm
OriginChina
HS Code8443322100
Production Capacity100sets/Year
★

Product Description

UV DOD Digital Inkjet Printer

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, primarily used for the packaging and printing industry. It is equipped with 12 pieces of industrial-level Kyocera PH nozzles, enabling high-speed printing with extreme precision (600 * 1200dpi) at speeds up to 50m/min.

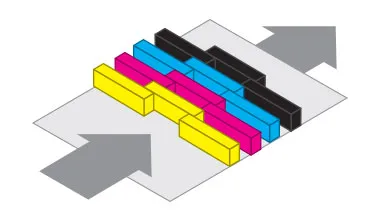

High Speed Inkjet Printing System Inkjet Imagine System
✔

System Features

High ResolutionPrecision reaches 600 * 1200dpi using 12 pieces of industrial grade Kyocera PH.
Industrial SpeedSingle pass non-contact printing technology with speeds up to 50m/min.
Material VersatilitySuitable for all kinds of paper and adhesive labels without pre-coating requirement.
Variable DataSupports various barcodes, 2D codes, and complete variable image printing.
Advanced SoftwareEquipped with intelligent Rip, image processing, and efficient data transmission.
24/7 OperationDesigned for continuous industrial production with durable piezoelectric nozzles.
⚙

System Specifications

PH Parameters:

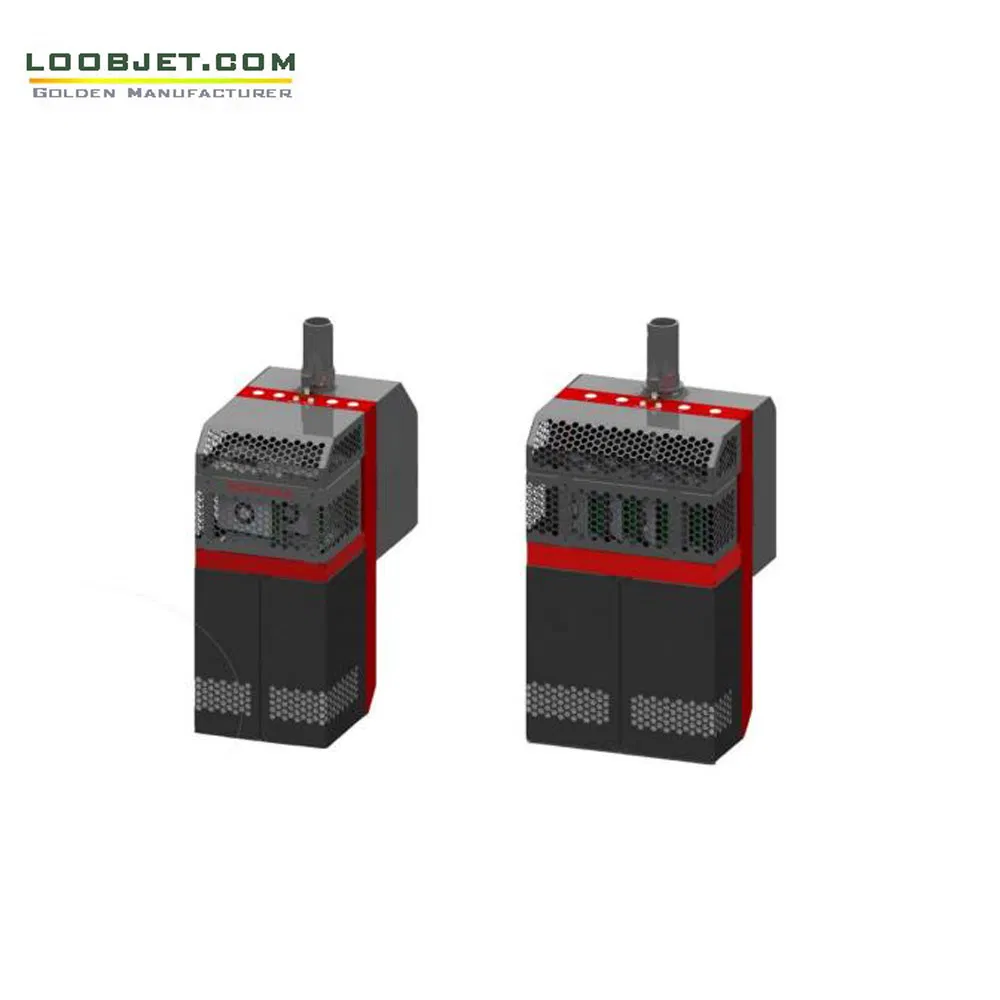

  • Nozzle Model: Kyocera (108mm printing width per unit)
  • Nozzle Density: 600dpi (Total 2656 nozzles)
  • Ink Drop: 3.5pl, 7pl, 11pl, 14pl (Adjustable)
  • Grayscale: 8 levels support
  • Frequency: Single point 35kHz, maximum 40KHz
Ink TypeUV/water base ink
Ink ColorCMYK + optional White, Purple, or Spot colors
Curing TypeDrying module or quick drying ink
Power RequirementsAC220V 50 / 60Hz
Air Supply6-8 PA, clean and dry
Printing PlatformSingle-fed or roll-fed
Material Weight60-250g/m2
Digital Inkjet Printer Structure Printing Control Module
?

Frequently Asked Questions

What is the maximum printing resolution of the KY320?
The system utilizes industrial-grade Kyocera print heads to achieve a high precision resolution of 600 * 1200dpi.
Does this printer require special coating for adhesive labels?
No, the KY320 is designed to print high-quality patterns directly on various types of paper and adhesive labels without any pre-coating.
What is the production speed for 4-color printing?
The system supports high-speed industrial single-pass printing at a speed of up to 50 meters per minute at 600dpi resolution.
Can the system handle variable data and barcodes?
Yes, the software supports various variable barcodes, 2D barcodes, and complete variable image printing for personalized packaging.
Is the equipment suitable for 24/7 continuous production?
Absolutely. The entire series is designed based on a 24/7 production mode, utilizing durable industrial components to meet rigorous demands.
What colors are supported by the ink system?
The standard configuration supports CMYK four colors, which can be expanded to include White (W), Varnish (V), or other customized spot colors.
