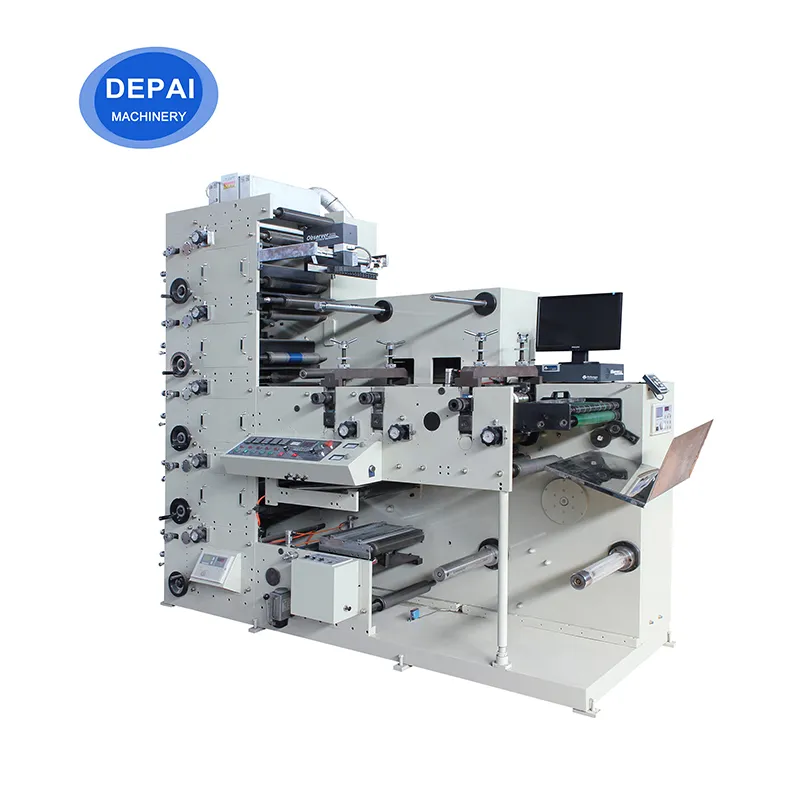

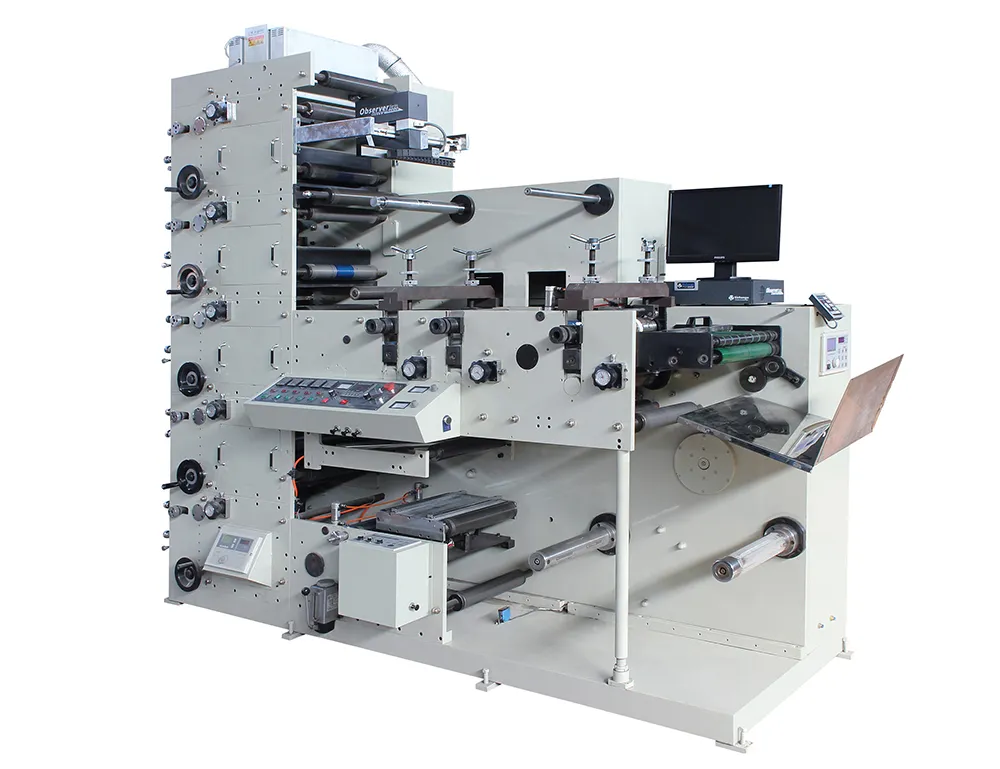

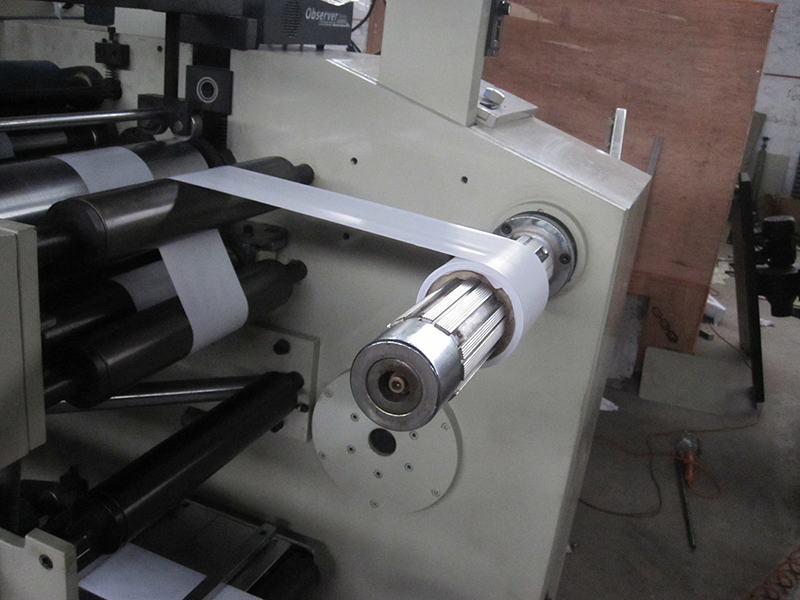

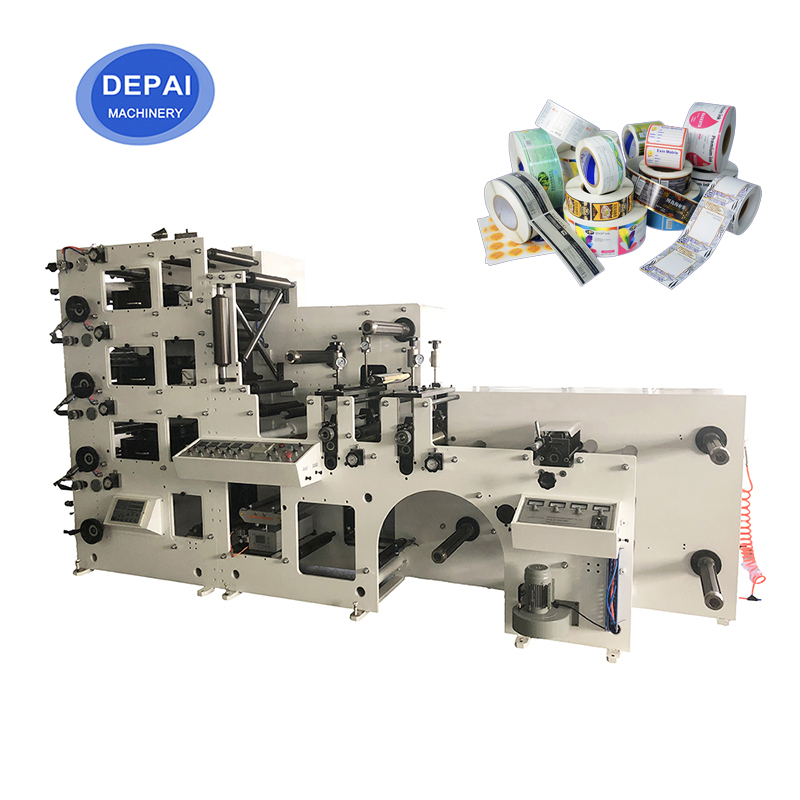

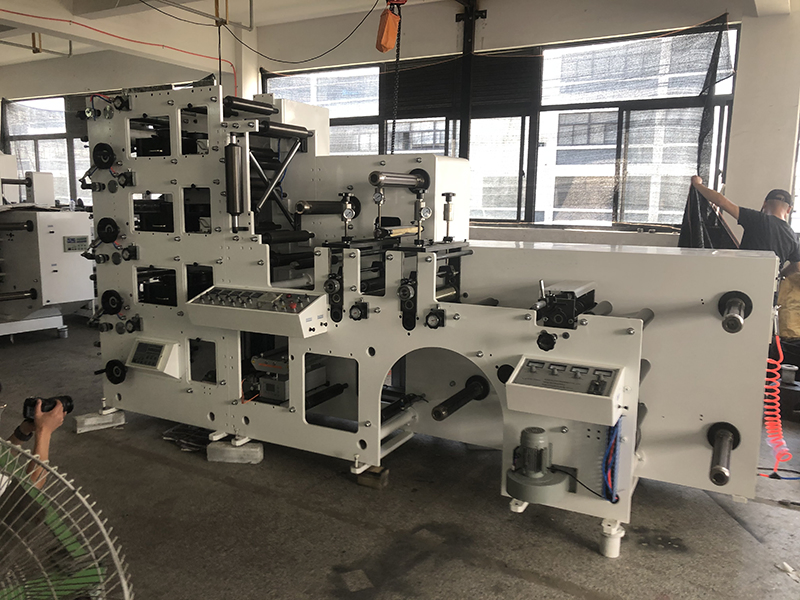

High Speed 100m/min Flexo Label Roll to Roll UV Printing Machine
| Model | DP-P-320 | DP-P-480 |
|---|---|---|
| Printing speed | 60m/min | 60m/min |
| Printing colour | 1-8 colors | 1-8 colors |
| Max. Web width | 330mm | 490mm |
| Max. Printing width | 320mm | 480mm |
| Max. Unwinding diameter | 600mm | 600mm |
| Max. Rewinding diameter | 600mm | 600mm |
| Printing girth | 175-380mm | 175-380mm |
| Precision of overprint | ±0.10mm | ±0.10mm |
| Dimensions (LxWxH) | 3730x1150x3000mm | 3730x1310x3000mm |
| Machine weight | 3500kg | 4000kg |
| Total power | 10.5kw | 15kw |

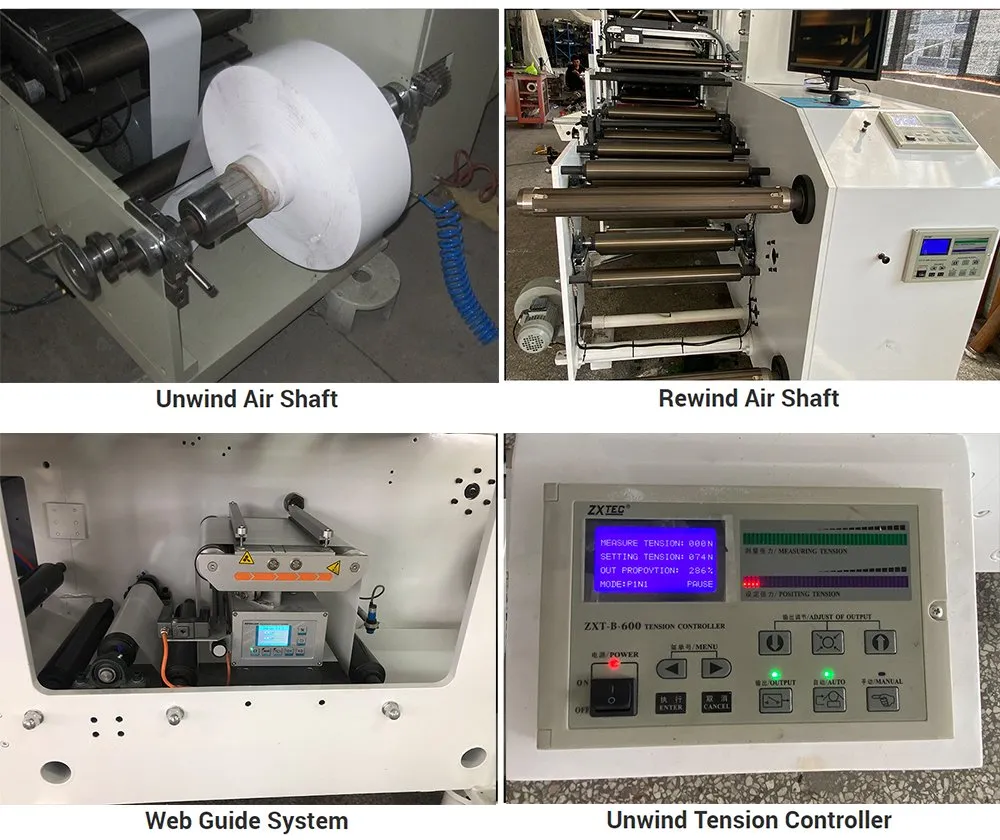

Auto Web Guiding System: Electronic paper web guide traction for accurate continuous revision.

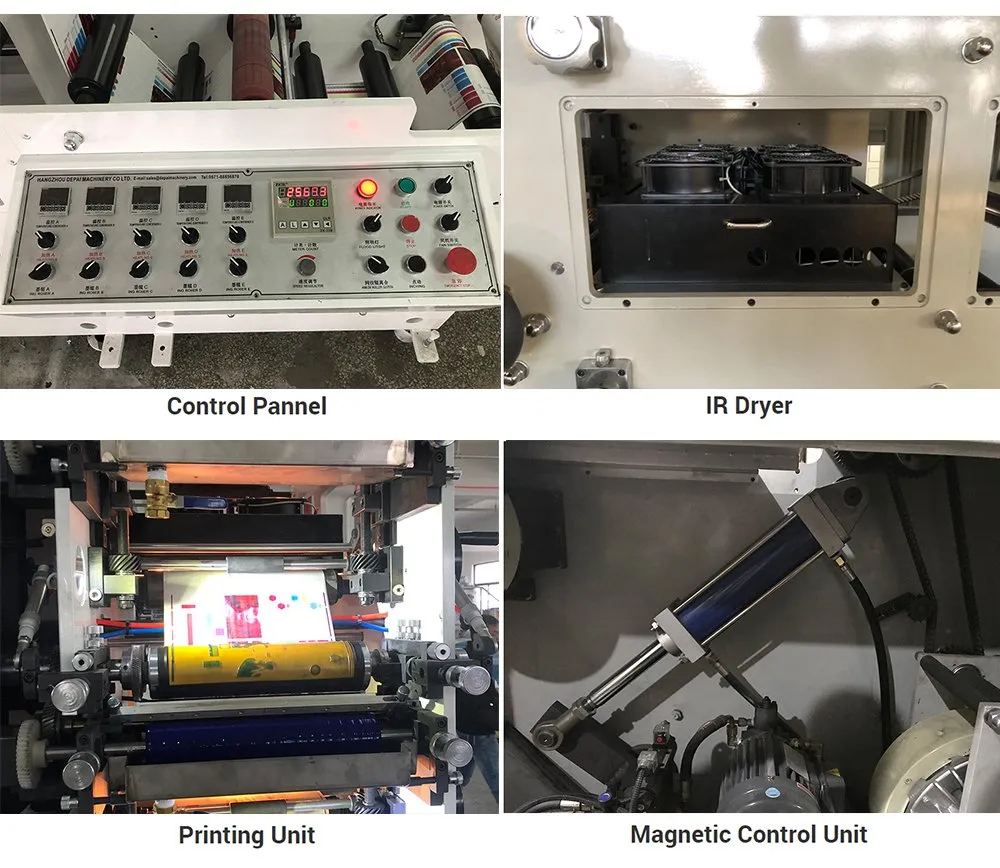

Automatic Tension Controller: Realizes constant tension synchronization between rollers.
IR Drying System: Infrared heating drying unit per color station.
Printing Unit: Anilox cylinder pneumatic clutch and ceramic anilox rollers.

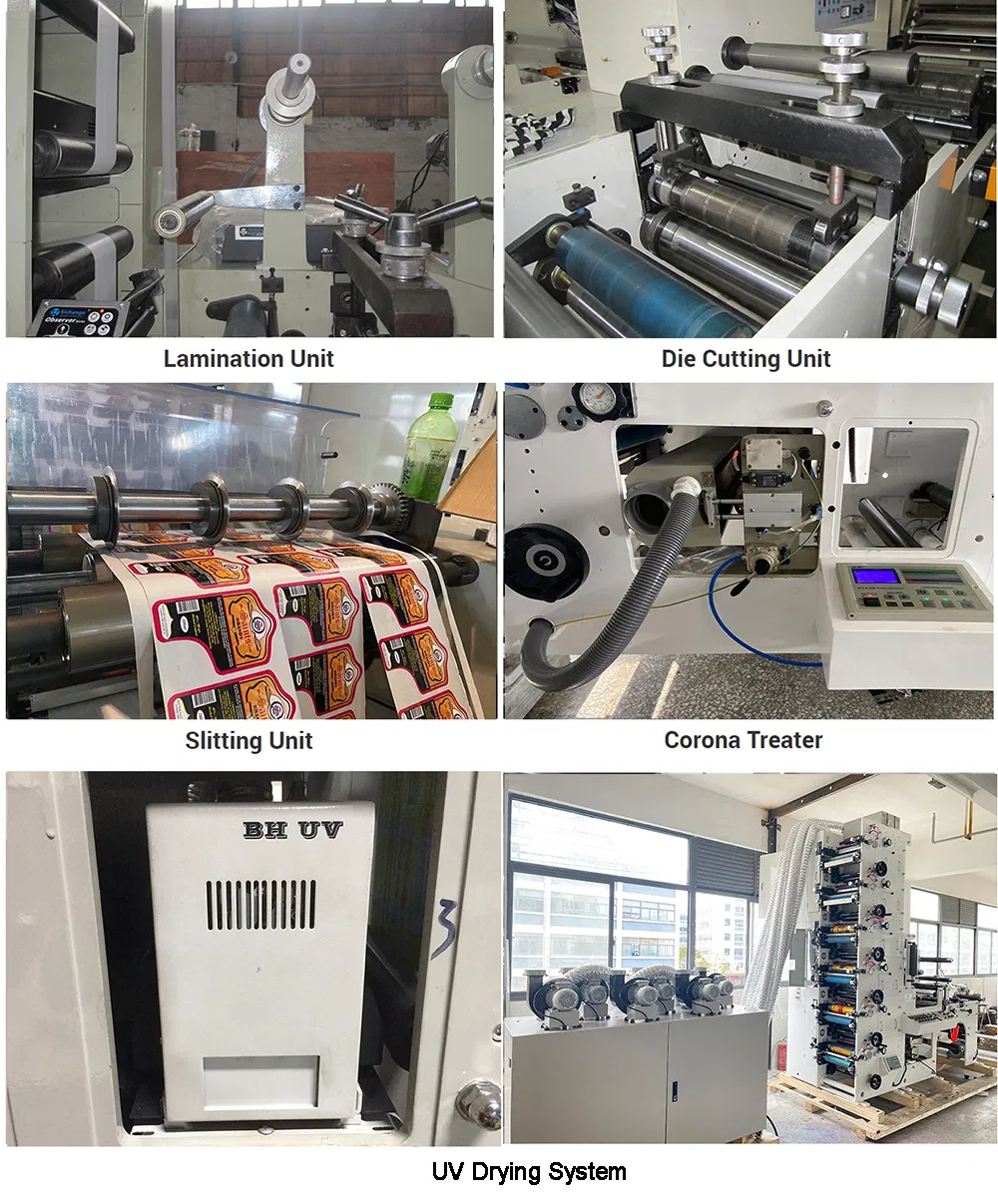

UV Dryer: Uses ultraviolet light for instant ink curing, high gloss effect, and anti-scratch performance.

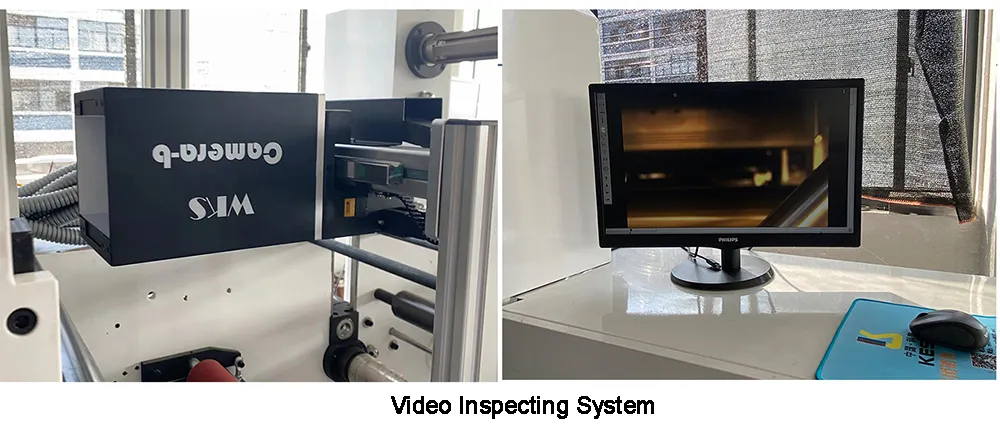

Video Inspecting System: Monitors printing quality at high speeds without stopping the machine.
LED UV Dryer: Equipped with water-cooled rollers to eliminate material deformation and reduce surface temperature.
Suitable Materials: Sticker labels, paper, aluminum foils, and plastic films (PVC, PET, OPP, etc.).

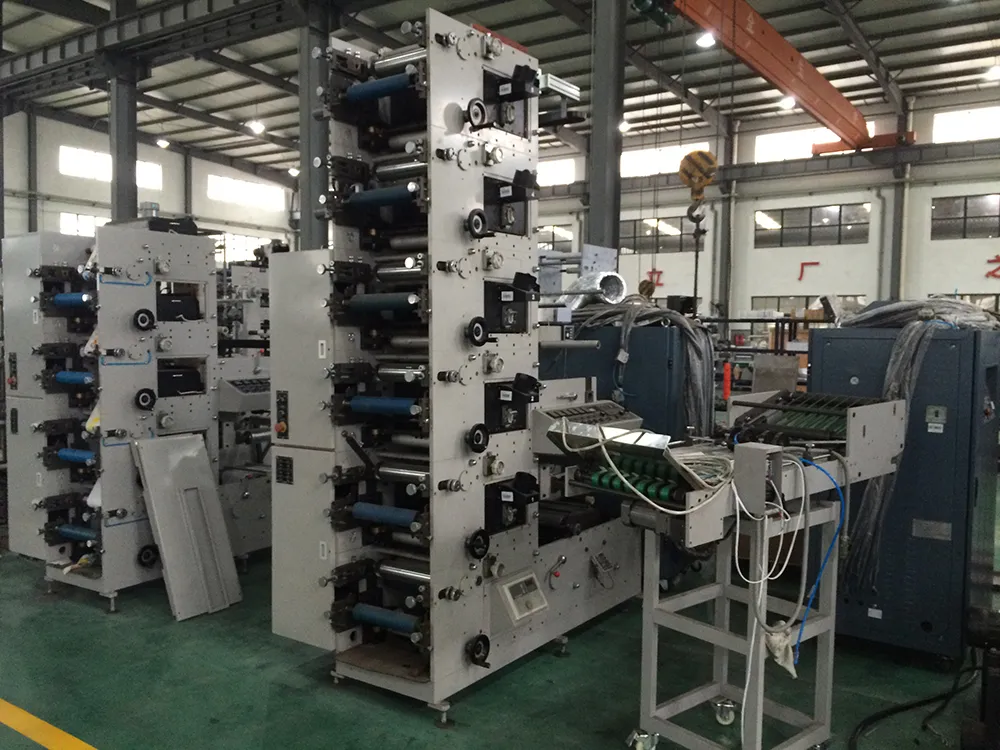

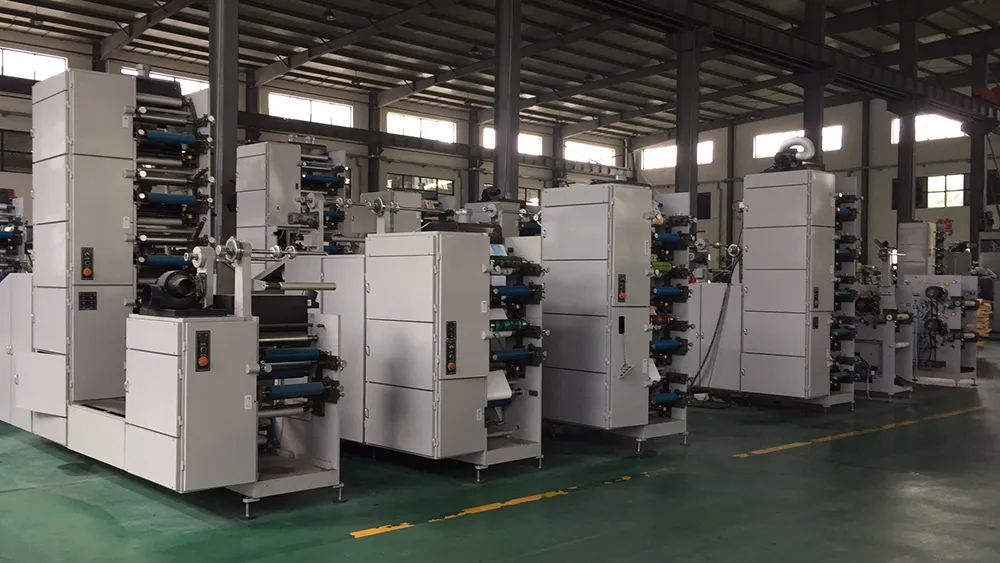

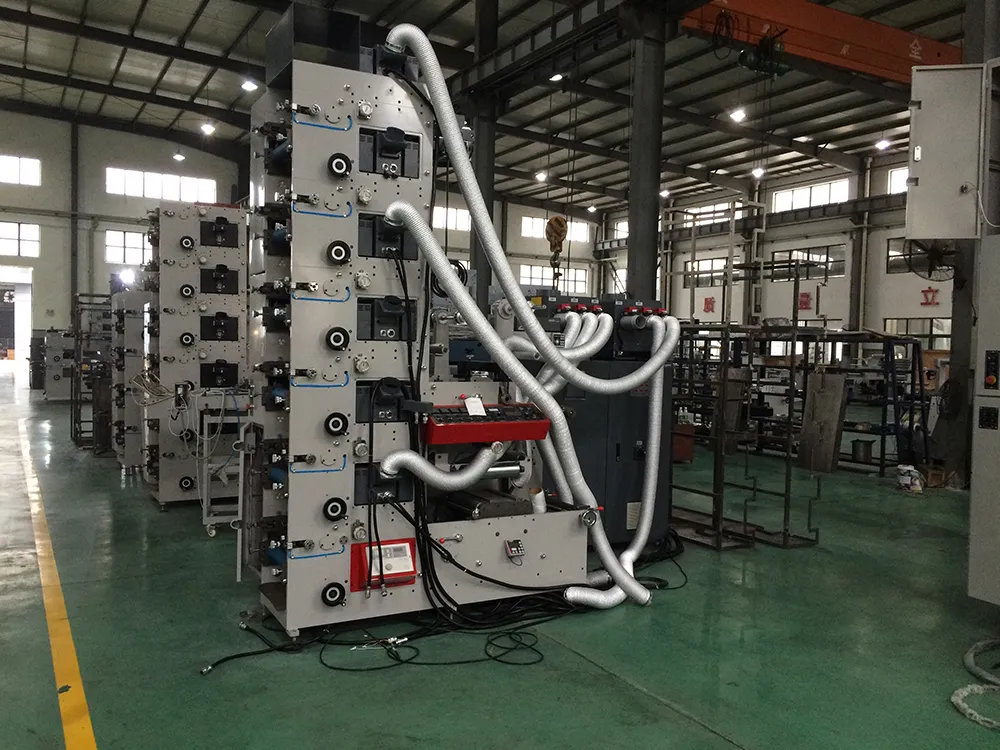

Our facility features professional production lines for printing, bag making, die cutting, and slitting machines. Every machine is built with high-quality components and undergoes rigorous technical study and communication with European partners to ensure top-tier performance.
Stack Flexo Machine
Full Servo Petal Machine
Horizontal Flexo Machine

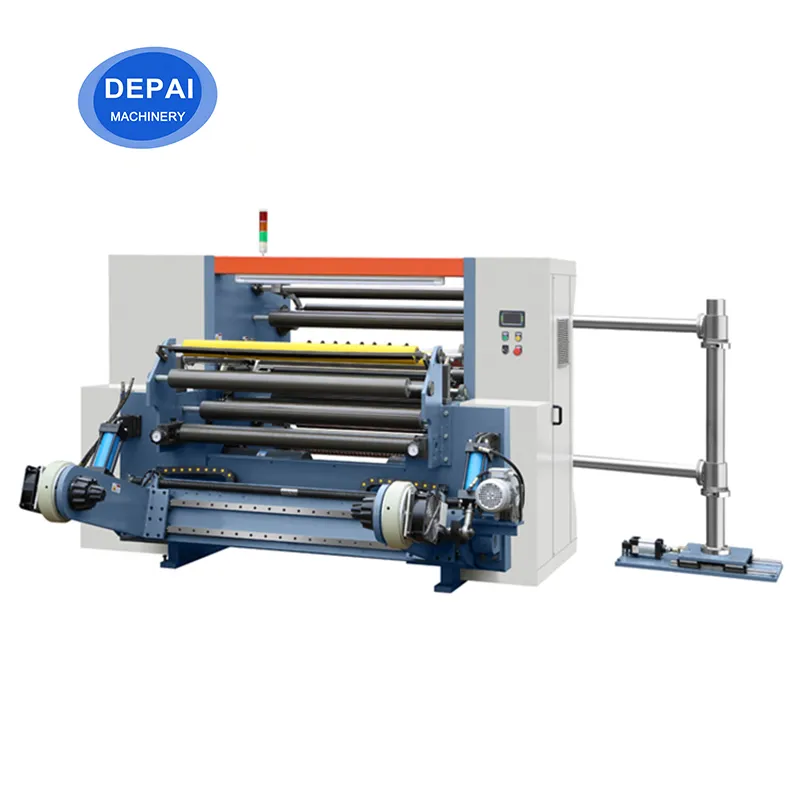

Vertical Slitting Machine
