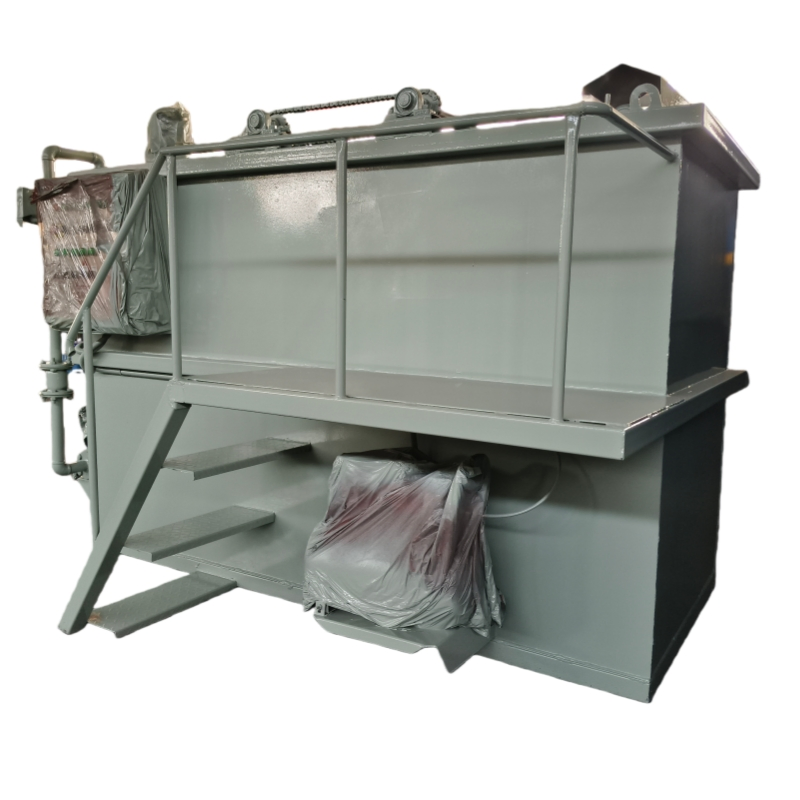

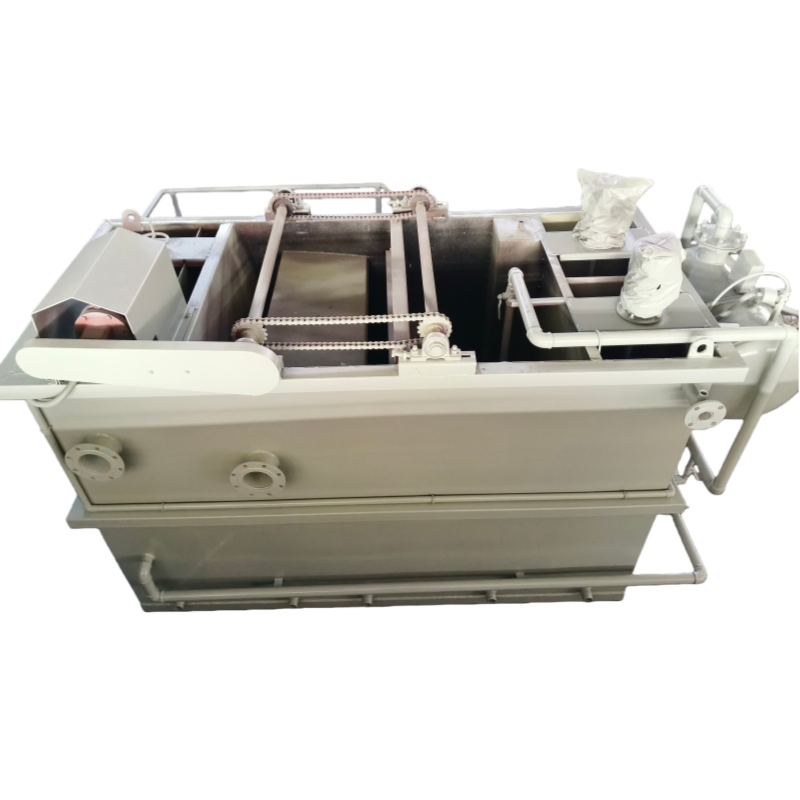

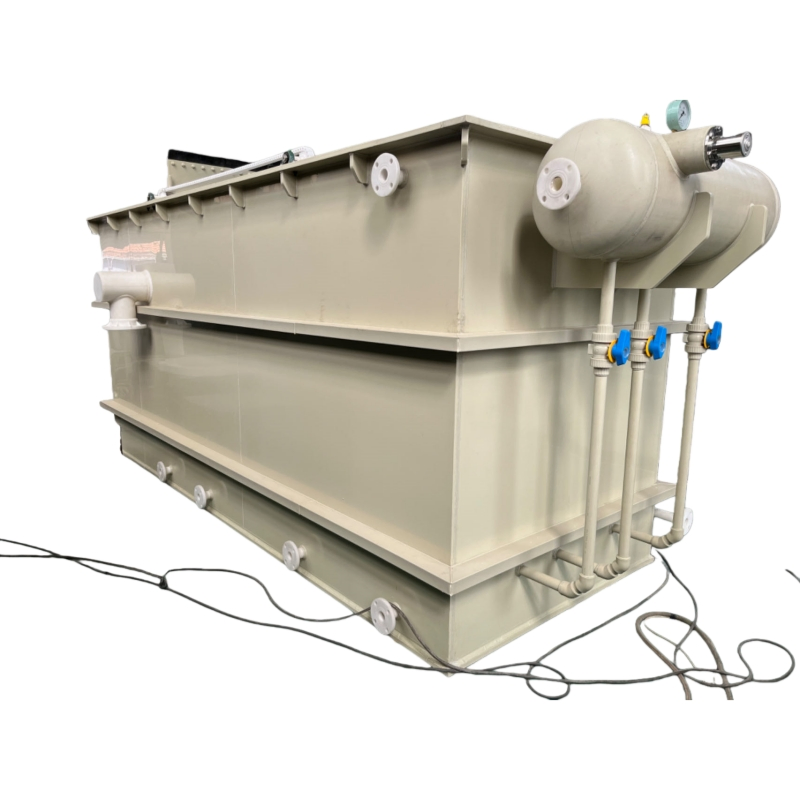

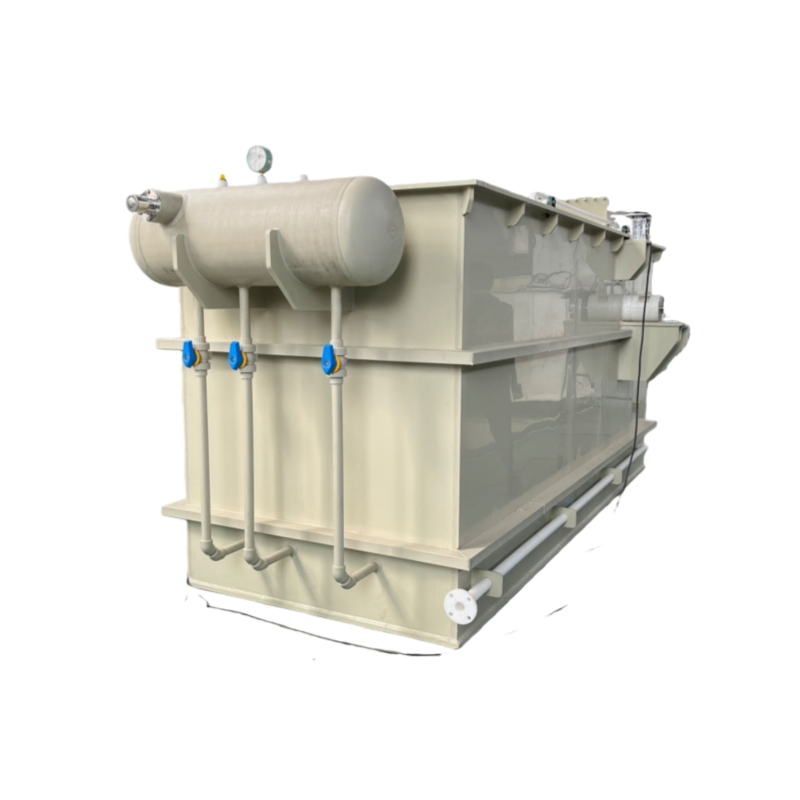

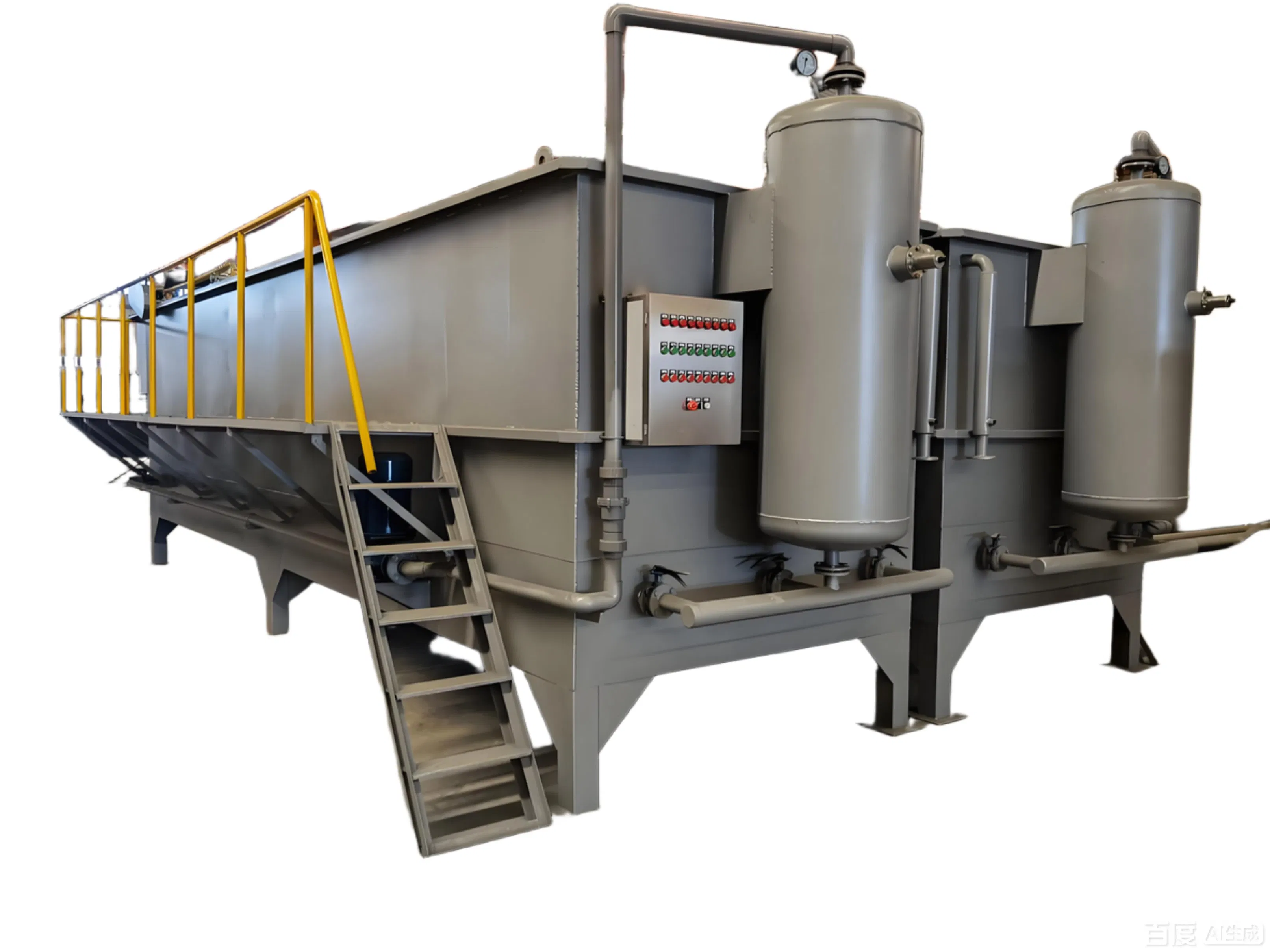

Utilizing microbubble physico-separation technology (20-50 μm bubble diameter), this system effectively removes sedimentation-resistant suspended solids—particularly lipid-rich and colloid-enriched contaminants in wastewater. Its modular configuration and low energy consumption (0.1-0.3 kW·h/m³) establish DAF as the pretreatment cornerstone for:
| No. | Throughput (m³/d) | Sizes (m) | Dosing Bucket (L) |
|---|---|---|---|
| 1 | 0-5m³ | 3.5*1.7*2.3 | 200 |
| 2 | 5-10m³ | 4.5*1.8*2.3 | 300 |
| 3 | 10-20m³ | 6*2.5*2.3 | 500 |
| 4 | 20-30m³ | 6.8*2.5*2.5 | 1000 |
| 5 | 30-40m³ | 7.2*2.7*2.5 | 1500 |
| 6 | 40-50m³ | 7.5*2.7*2.5 | 1500 |
| 7 | 50-60m³ | 8.5*2.7*2.5 | 1500 |
| 8 | 60-70m³ | 9*2.7*2.5 | 2000 |

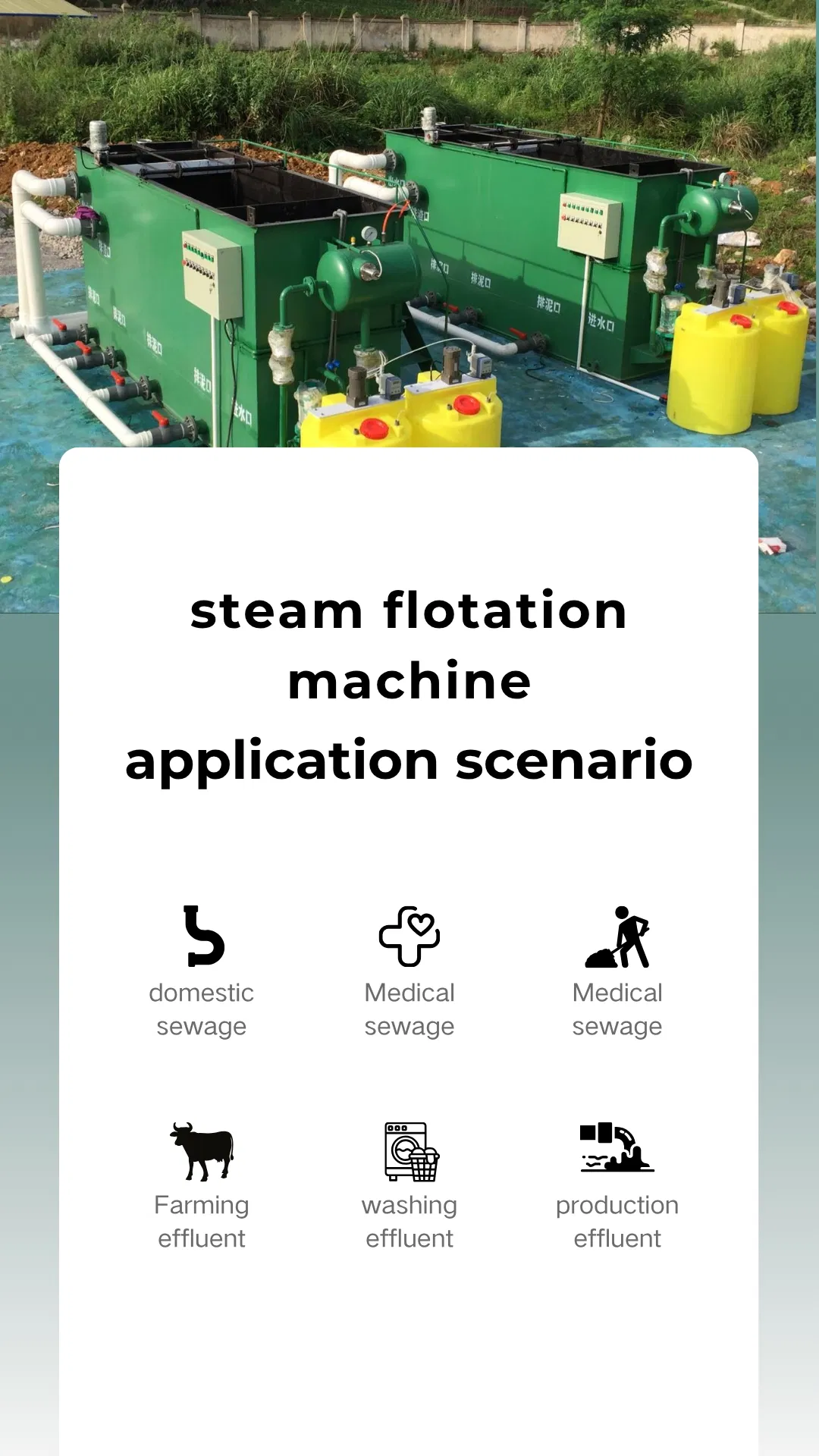

Applicable to various water treatment industries such as municipal sewage, tap water, industrial wastewater, food, animal husbandry, chemical engineering, mechanical manufacturing, metal processing, petroleum, printing and dyeing, washing, papermaking, etc.
Before Treatment: Turbid water (blackish gray), visible grease and food residues, pungent odor. COD > 500mg/L, BOD > 200mg/L.
After Treatment: Clear, transparent and colorless water. Suspended solids removal rate > 95%. COD < 50mg/L, BOD < 10mg/L, meeting high-standard discharge requirements.
We are a high-tech enterprise specializing in the research and development of sewage treatment technologies and environmental protection equipment manufacturing. Holding ISO 9001, ISO 14001, and OHSAS 18001 certifications, we possess multiple core patent technologies.
Core Business: Industrial wastewater projects, urban domestic sewage, medical wastewater, and manufacturing of integrated equipment like screw press sludge dewatering machines and chlorine dioxide generators.
