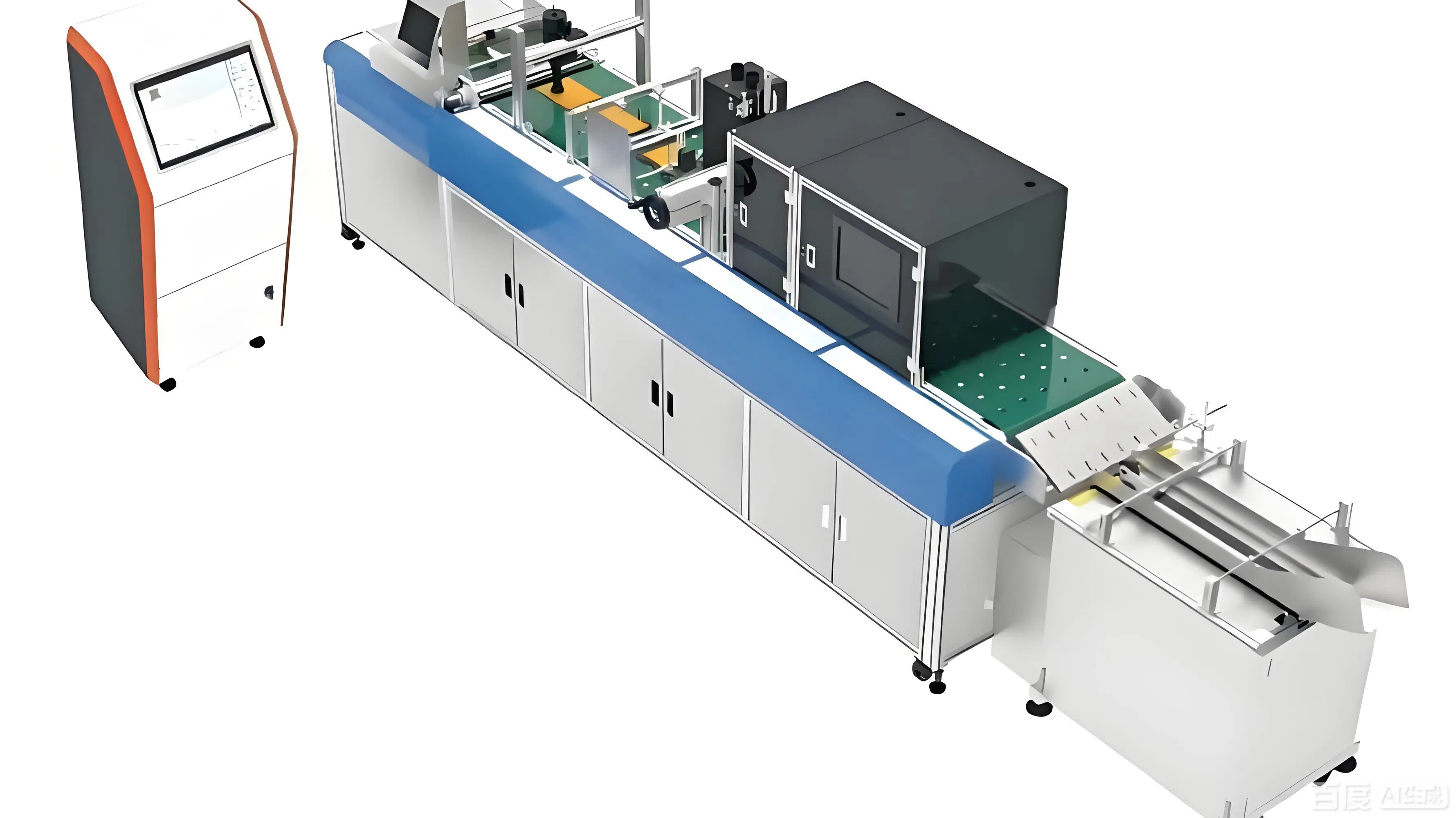

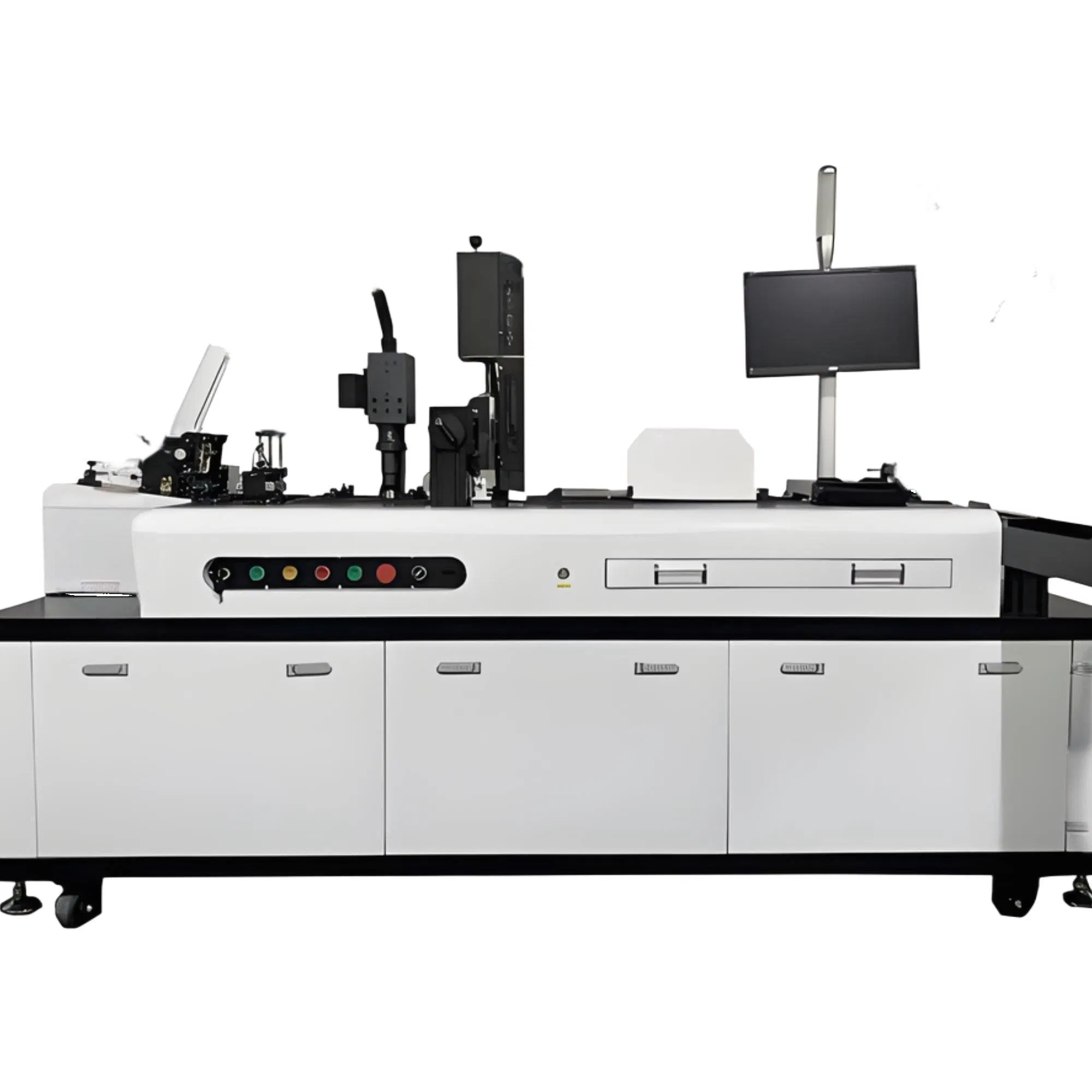

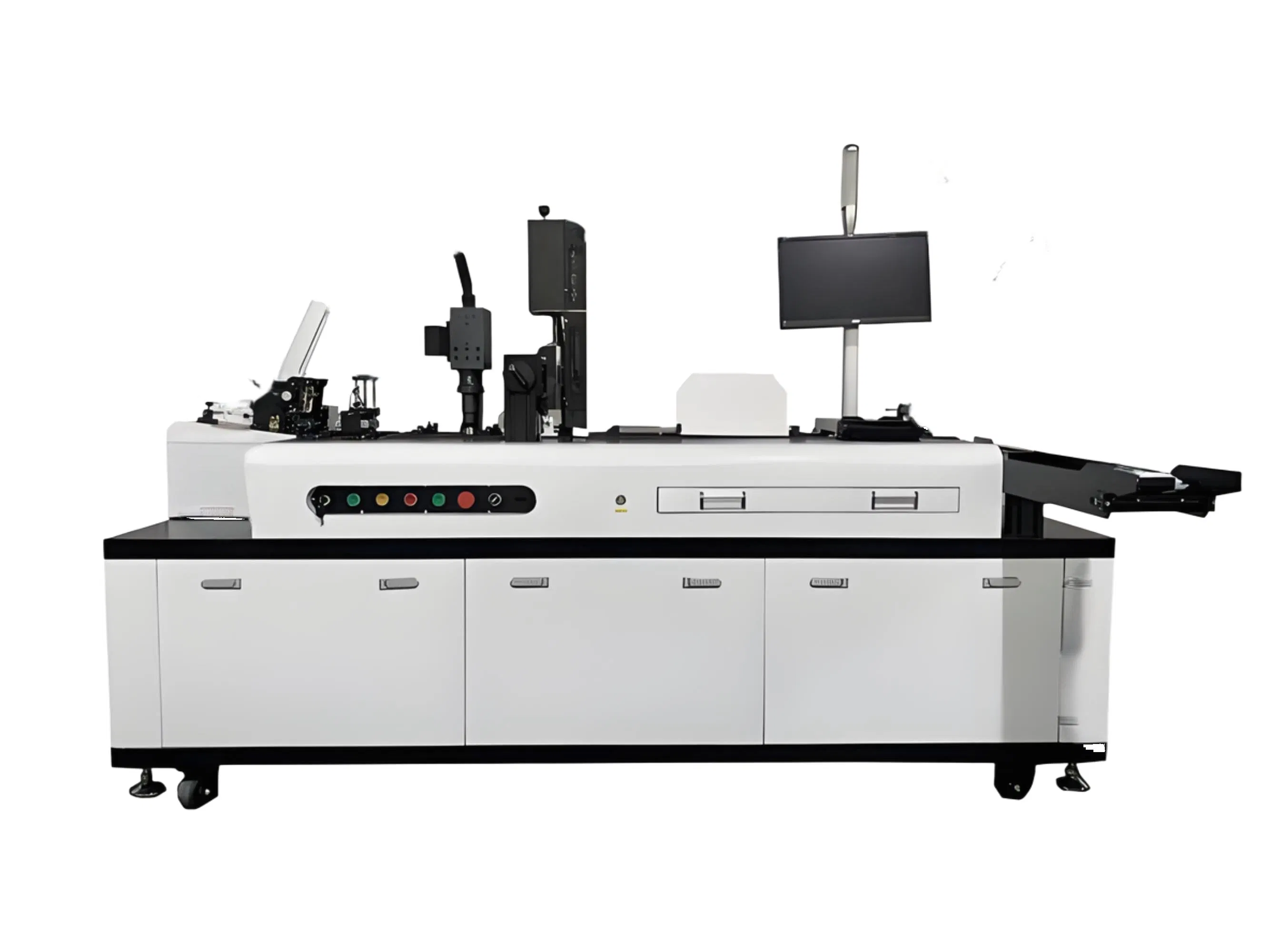

High Speed Clothing Label Garment Hangtag Digital Printing Machine

Customization:	Available
After-sales Service:	Online Support
Warranty:	12month

📋

Basic Information

Plate:Plateless

Structure:Digital

Color & Page:Can Be OEM

Usage:Paper, Label, Card, Box, Bag, Pipe

Automatic Grade:Automatic

Interface:USB 2.0

Printing Speed:70-150m/Min

System:Win10

Inks Certificate:SGS/MSDS/RoHS

HS Code:8443322100

📦

Packaging & Delivery

Package Size:150.00cm * 120.00cm * 120.00cm

Gross Weight:200.000kg

Transport:Wooden Case

🚀

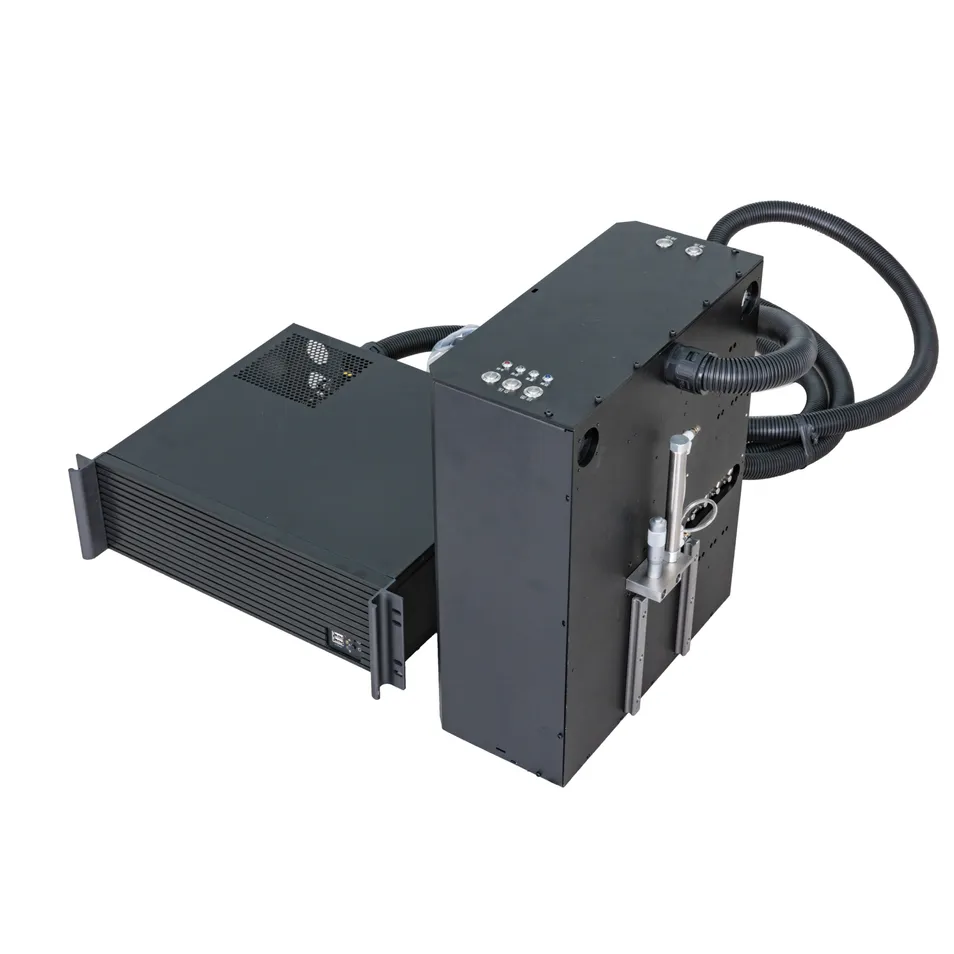

High-performance UV Piezo Inkjet Digital Printer

This system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking.

⚙️

Key Configurations

Suitable for high-speed inkjet printing of product name, number, logo, date, variable barcodes, and QR codes.
Supports various materials including films, labels, and metals.
Features imported industrial piezoelectric nozzles (Ricoh G5/G6/KY108).
Environment-friendly black LED UV ink for stable 24/7 operation.

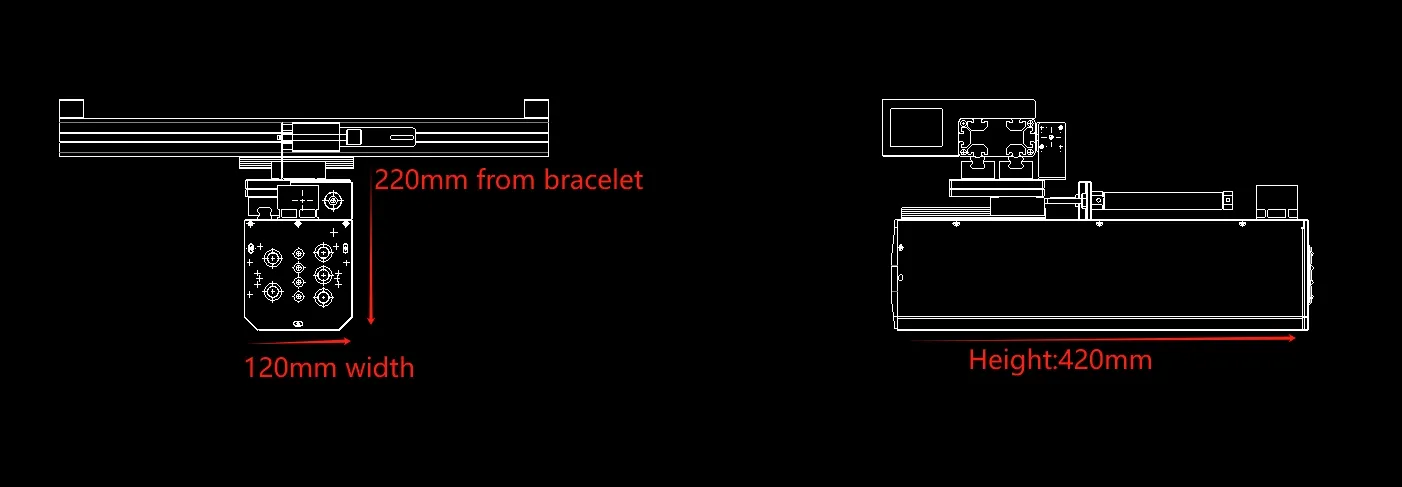

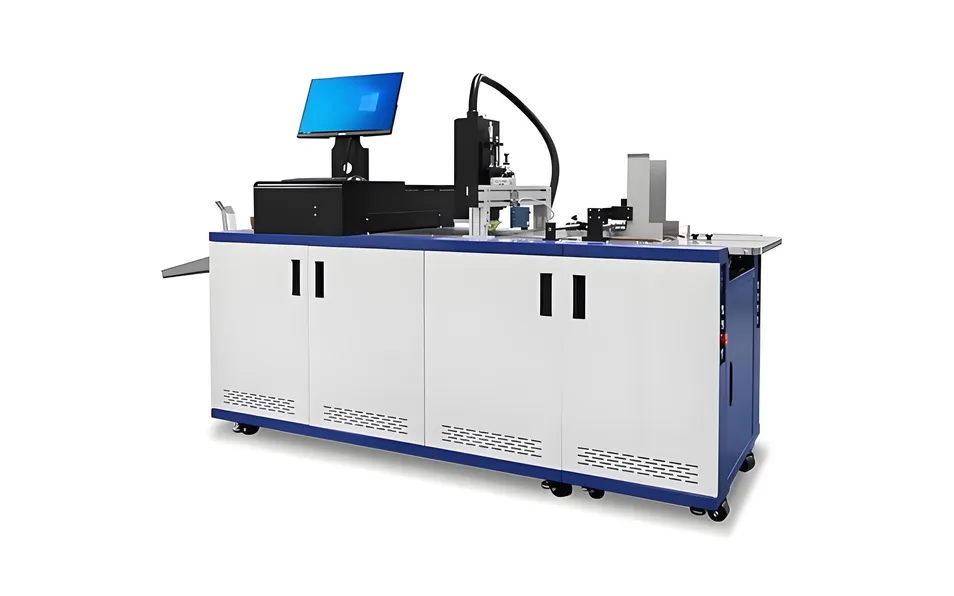

Modular design for easy integration into existing transport systems (intaglio, flexo, or packaging lines).
Independently developed variable data software for secure and flexible data printing.

📊

Speed Performance Reference

600 * 600 dpi:≥ 75m/min

600 * 400 dpi:≥ 91m/min

600 * 300 dpi:≥ 125m/min

600 * 200 dpi:≥ 160m/min

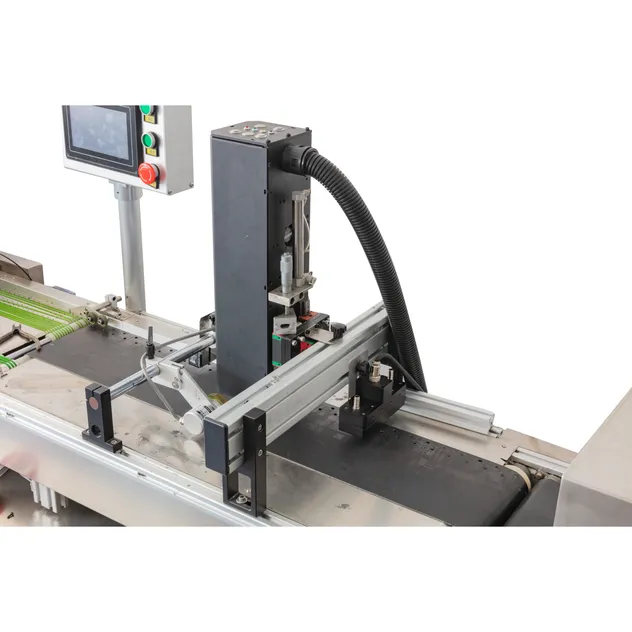

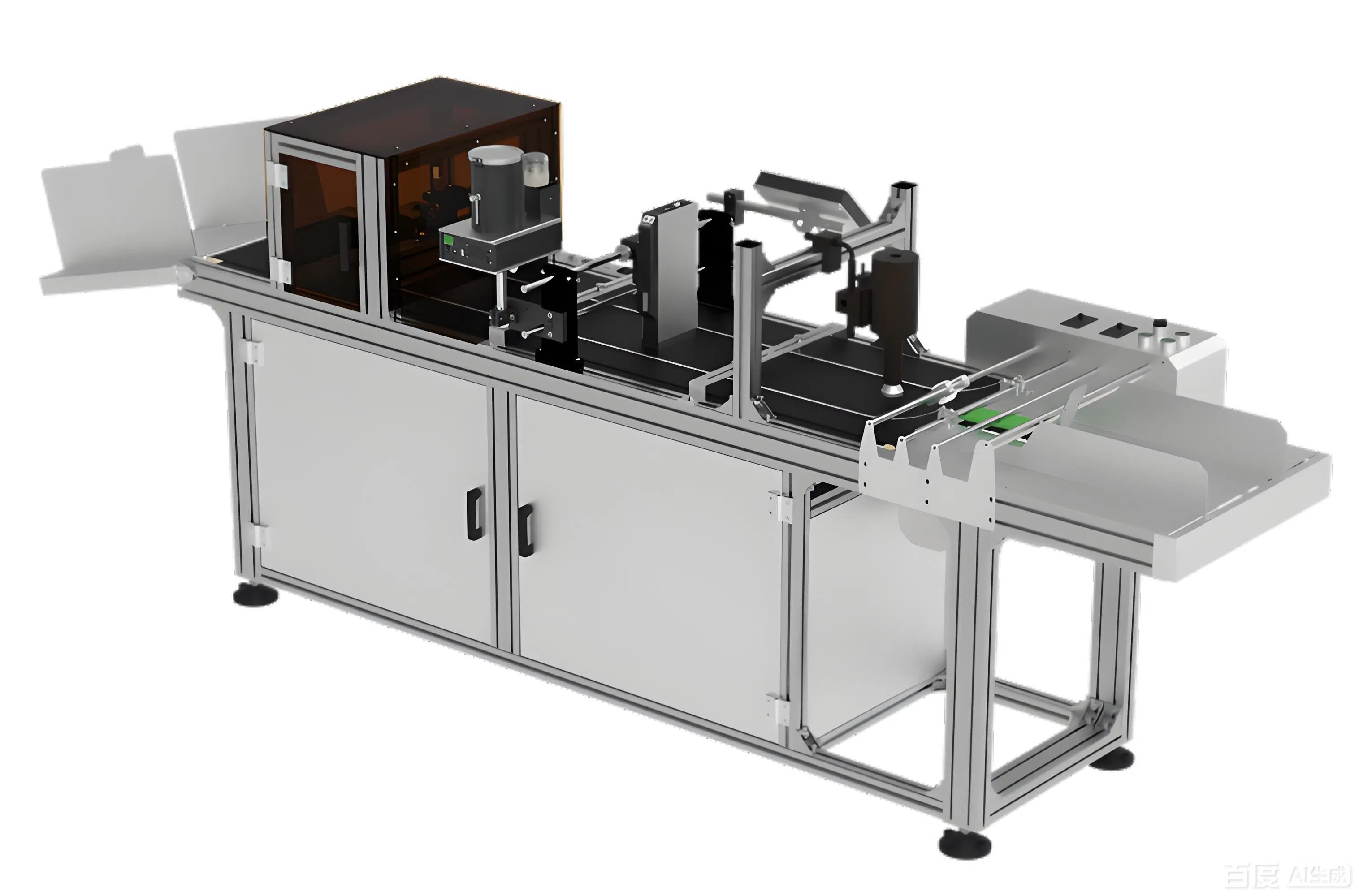

For Tags/Cards Paging

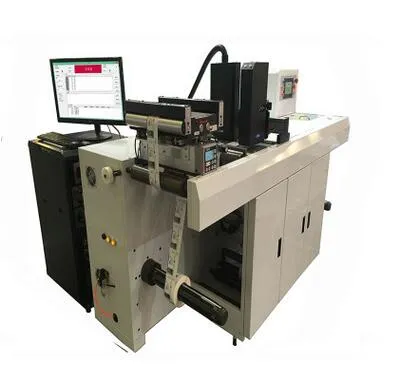

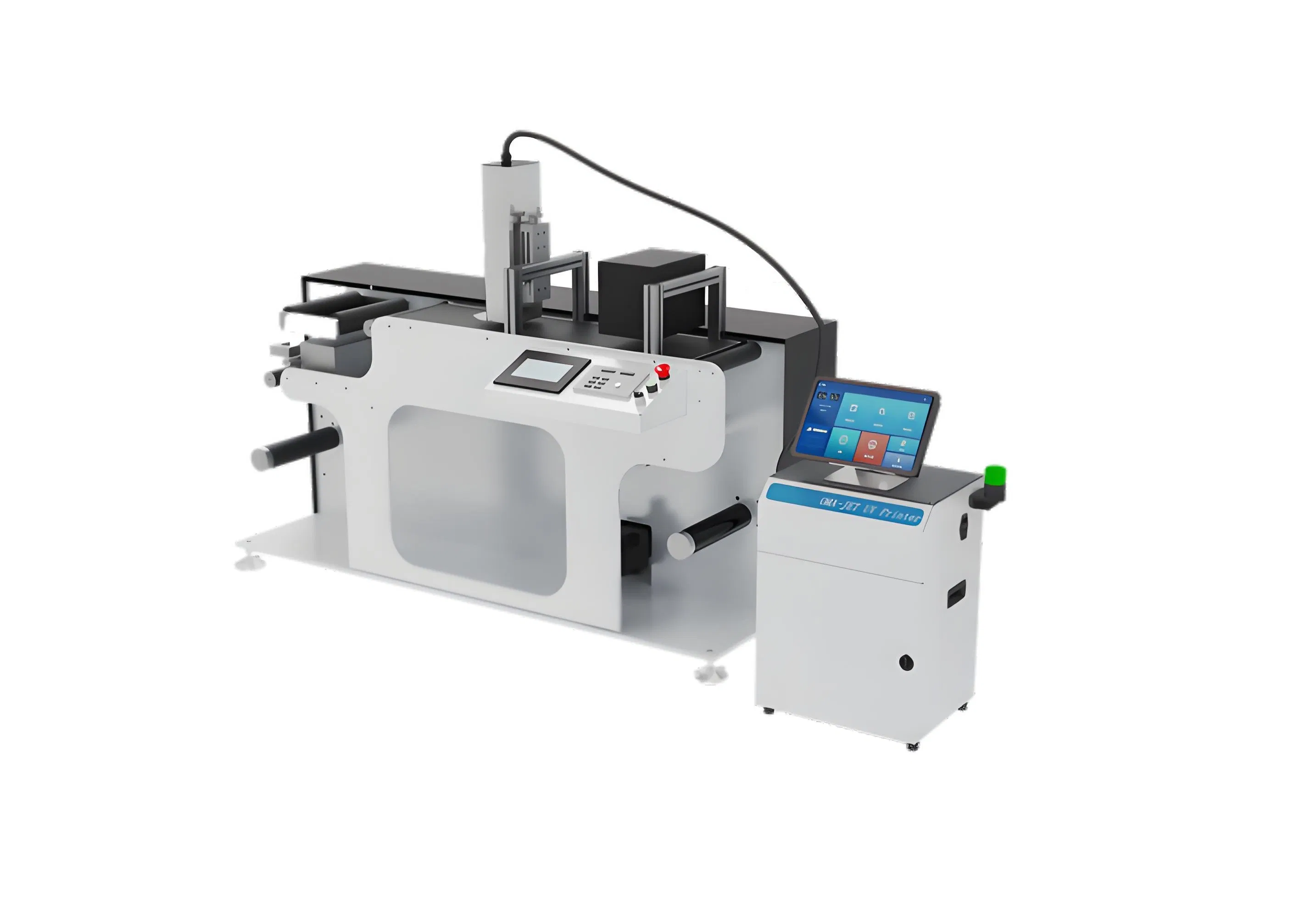

For Labels & Barcodes

For Full Color Logo

🛠️

Technical Specifications

Model	VDG540	KM720	KY108
Single Nozzle Width	54mm	71mm	108mm
Gap from Media	1-6mm	1-12mm	1-6mm
Ink Drop	21PL	35PL	5-14PL
Max Nozzles (1 PC)	64	64	64
Inks Type	UV / Water Base	UV	UV / Water Base
Printing Direction	Downwards	Sidewards / Downwards	Downwards

🛡️

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Global Support: 24/7 technical online assistance and spare parts supply.

Training: On-site or remote operation and maintenance training available. Factory training is free of charge.

🏢

Manufacturing Excellence

As a pioneer of ultraviolet digital printing and variable data inkjet printers, we possess over ten years of experience in inkjet technology research. Our strategic partnerships with nozzle manufacturers from the US and Japan, and ink specialists from the UK, ensure world-class performance for international markets.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & direct tech support
Comprehensive project solutions

❓

Frequently Asked Questions

Q: What's the lead time for orders? A: Standard models typically ship within 15–30 days. Customized units or large project orders require 30–45 days depending on the configuration.

Q: Do you provide after-sales service overseas? A: Yes, we provide 24/7 global technical support online and have partnered service centers in key regions to assist with maintenance and parts.

Q: Can I request a customized printing size and color? A: Absolutely. We offer OEM/ODM services to customize the machine specifications, colors, and printing widths to meet your specific project needs.

Q: What documents do you provide for export? A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and any necessary certifications (SGS/RoHS).

Q: Does the machine support variable data printing? A: Yes, our independently developed software is designed specifically for variable data printing, including QR codes, barcodes, and serialized numbers.

Q: Is training included with the purchase? A: Yes, we offer both remote and on-site operation training. Free training is provided at our facility for all customers.
