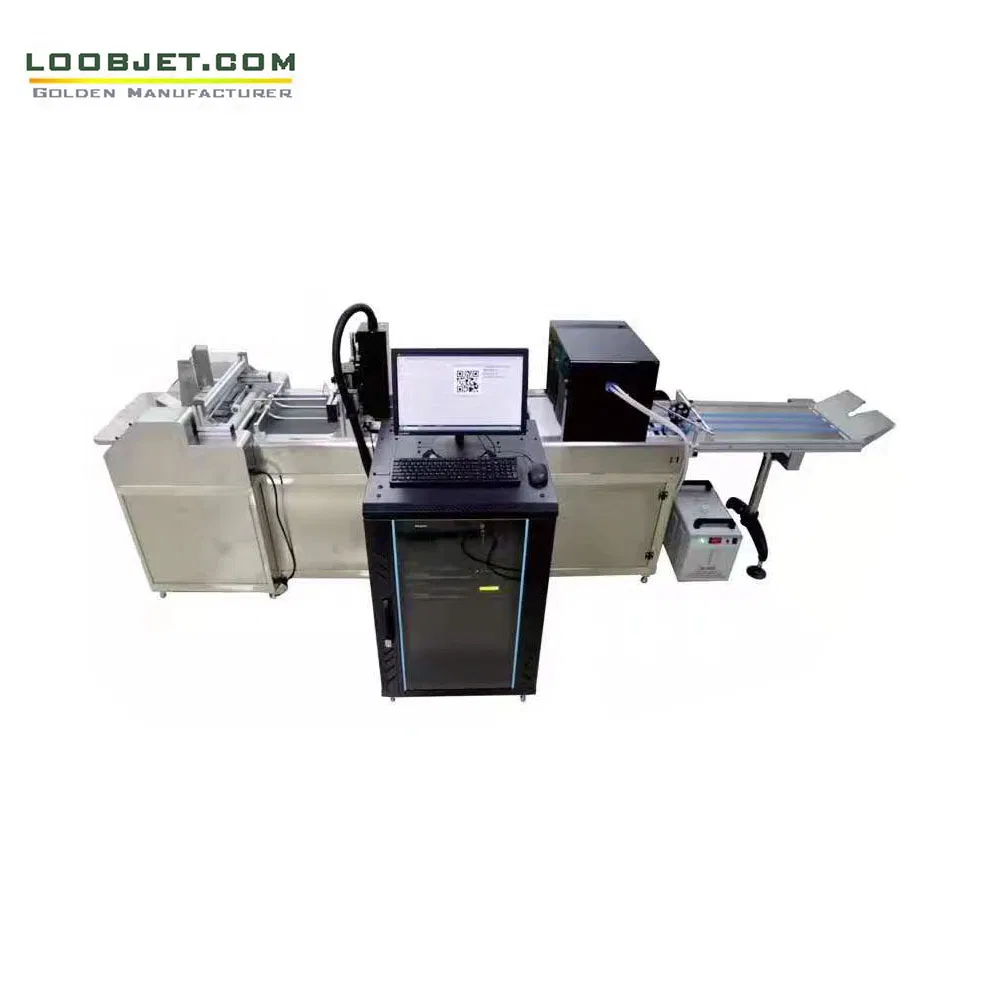

High Speed Automatic UV Digital Inkjet Printing System

1 / 5

High Speed Automatic UV Digital Inkjet Printing System

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

Basic Specifications

Model NO.

UV540

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Base on Your Requirement

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Support Porous, Semi-Porous and Non-Porous

Power

AC 90V-240V/50-60Hz

★

Product Introduction

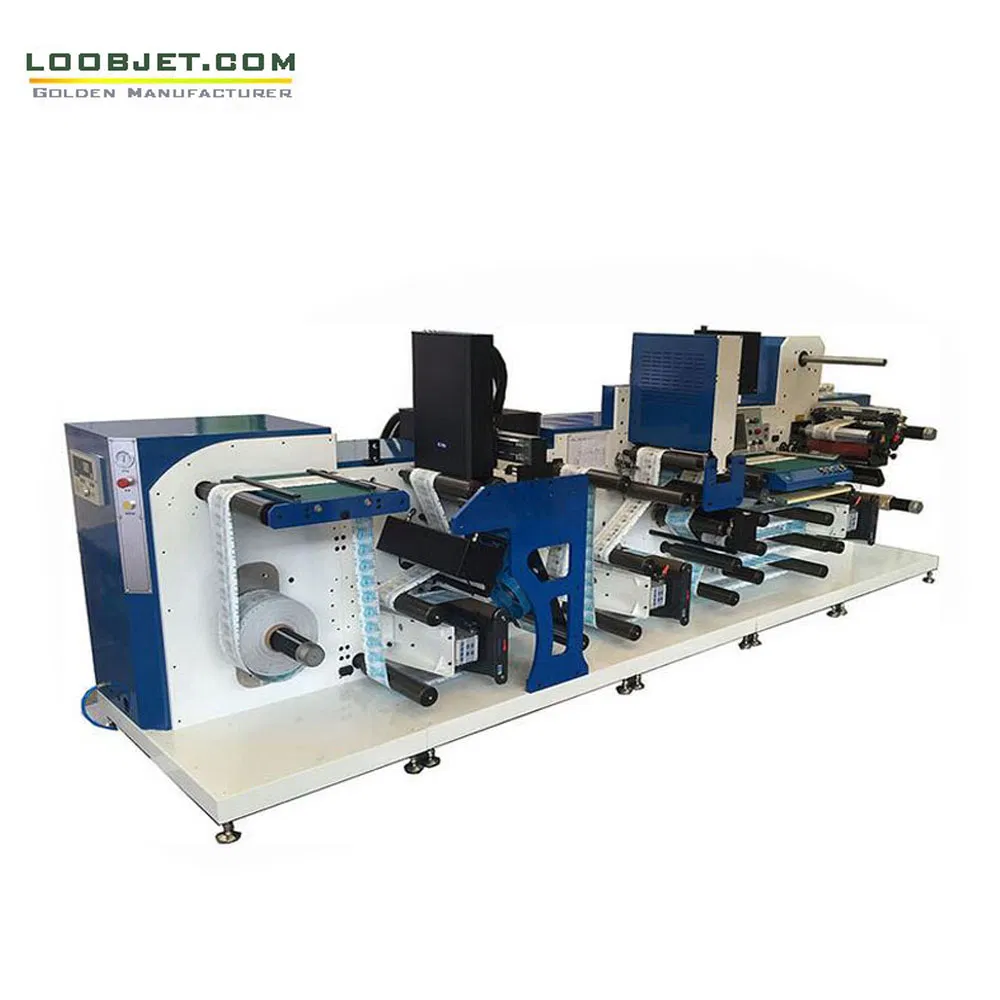

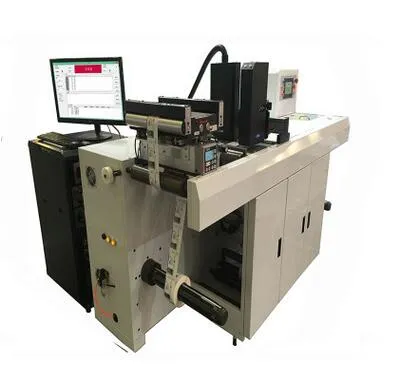

UV inkjet printer label press

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

Suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

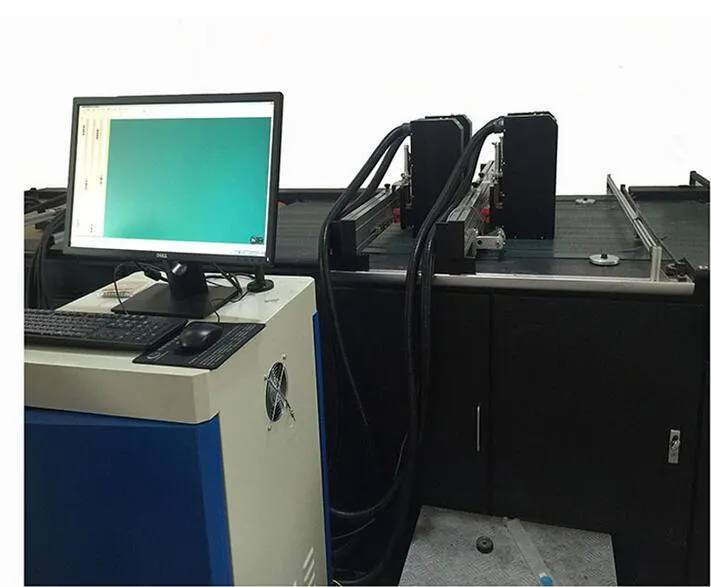

Automatic UV Digital Inkjet Printing System

✔

Technical Details

● Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle

● Nozzle Lifespan: More than 3 years (10 billion printing times)

● Print Width: 54/72/108 mm (Expandable via seamless joint)

● Precision: Physics 600 dpi printing precision

● Linear Speed: 70 ~ 180 m/min

● Ink Compatibility: UV or water-based inks; suitable for paper, plastics, PVC/PP/PE film

⚙

Control Software Features

The Printer Control Software (PCS) provides a user-friendly interface to control the printer, monitor status, and adjust settings like jetting waveforms and print head temperatures. Key features include database checking, DPI settings, and motor speed control.

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT and PDF files.

Multilingual Support: English, Spanish, German, French, Portuguese, Russian, and Chinese.

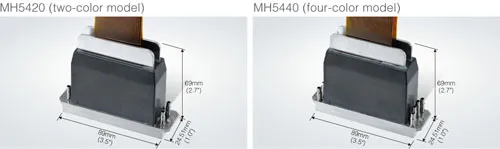

Print Head Specifications

Model	VDG540/VDK720/KY108	Print Head	Ricoh GN5/Konica 1024i/KY
Resolution	600×600, 400, 300, 200 dpi	Single Head Width	54.0mm / 72.0mm / 108mm
Printing Speed	180m/min (600×200dpi) \| 130m/min (600×300dpi) \| 100m/min (600×400dpi) \| 75m/min (600×600dpi)
Max Width	54/72/108mm × 24 Seamless Joint	Method	Piezoelectric Ink-jet
Drop Size	5-21PL	Inks	Original UV Inks
System	Windows 7 / Windows 10	Interface	Gigabit Ethernet (Real-time)
Barcode Formats	UPCA, EAN13, CODE128, PDF417, QR, DATAMATRIX, and more

Frequently Asked Questions

What materials can this UV inkjet printer handle?

The system is versatile and supports various materials including all kinds of paper, plastics, and films such as PVC, PP, and PE.

What is the maximum printing speed of the UV540 system?

Depending on the resolution, the speed ranges from 75m/min at 600x600dpi up to 180m/min at 600x200dpi.

Does the software support variable data like QR codes and serial numbers?

Yes, the Variable Data Printing software supports text, dates, logos, serial numbers, barcodes, and QR codes using data from CSV, Excel, or PDF files.

Which industrial print heads can I choose from?

You can select between Ricoh GEN5 (54mm), Konica 1024i (72mm), or Kyocera (108mm) industrial piezoelectric nozzles based on your specific requirements.

How durable are the print heads?

The industrial piezoelectric nozzles are designed for long-term use, typically offering a lifespan of more than 3 years or approximately 10 billion printing operations.

Can multiple print heads be combined for wider printing?

Yes, the system supports seamless jointing of 1 to 24 groups of printing units to achieve your required printing width.
