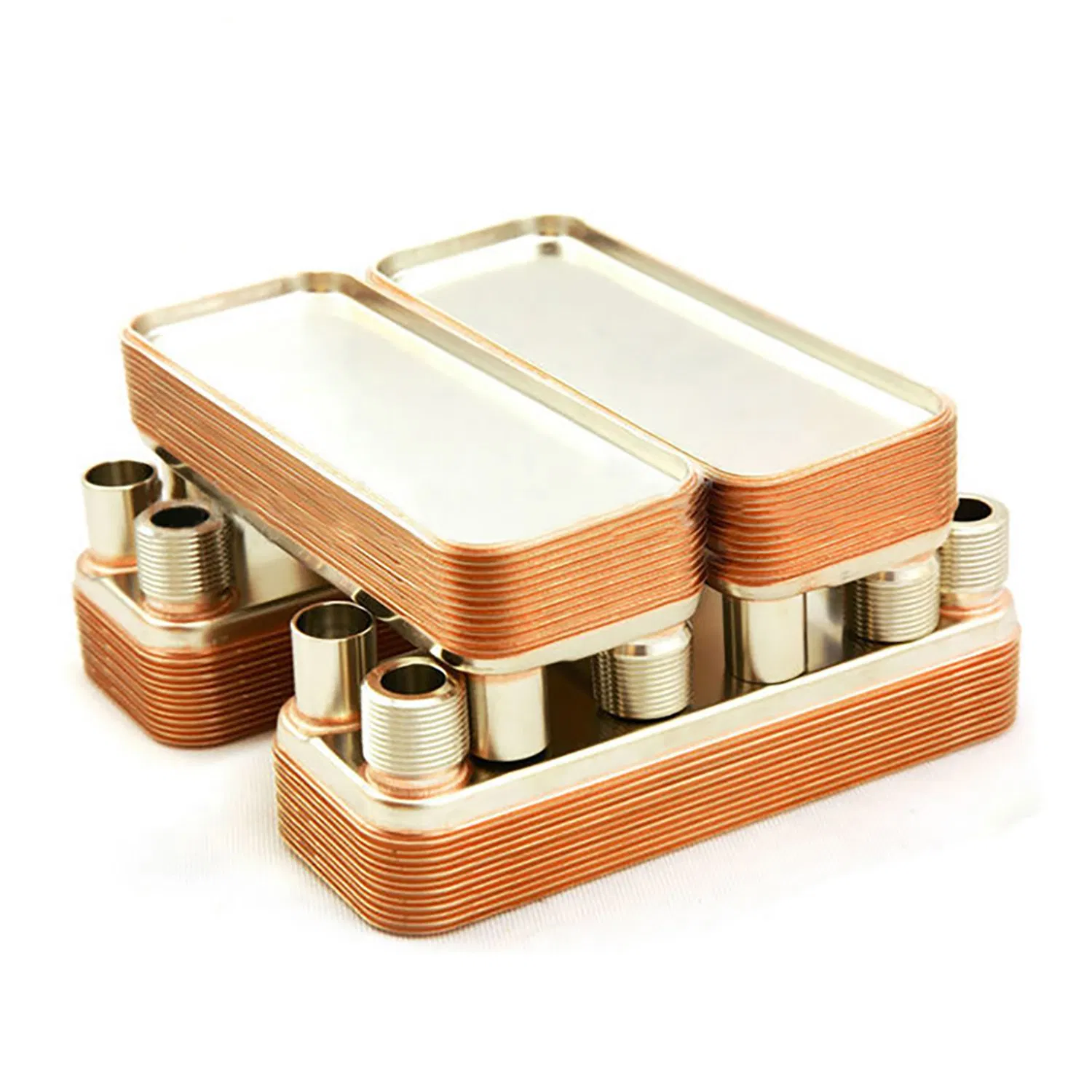

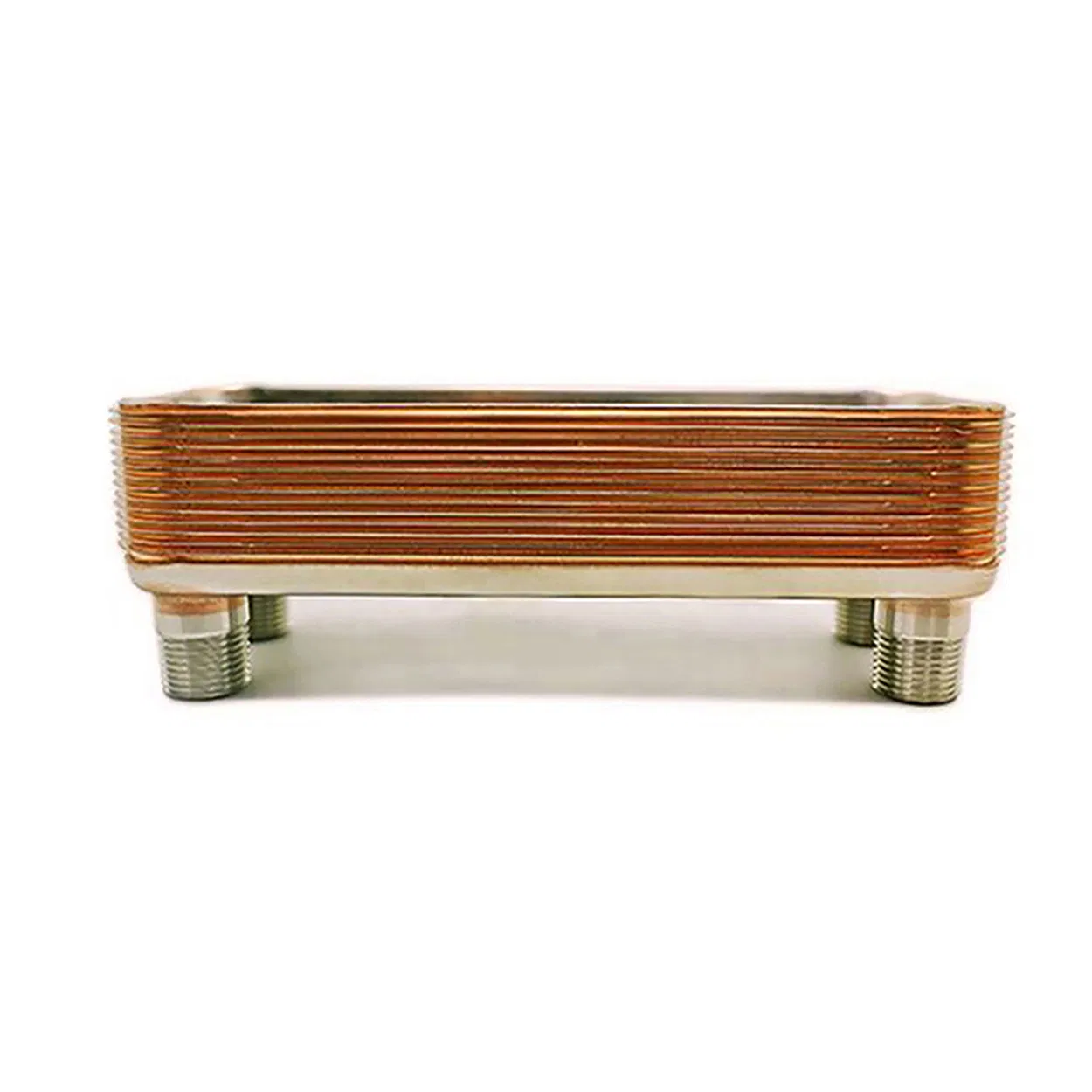

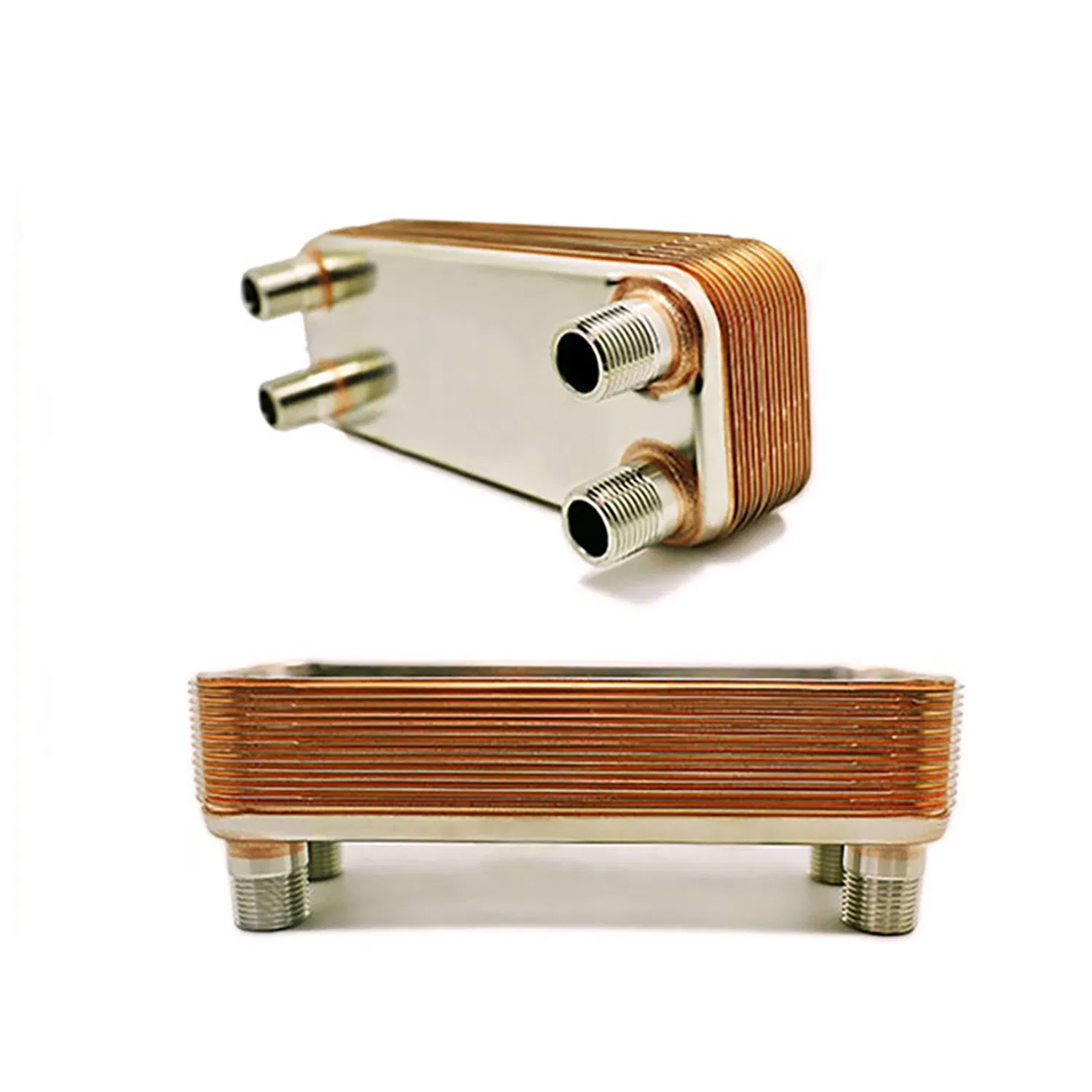

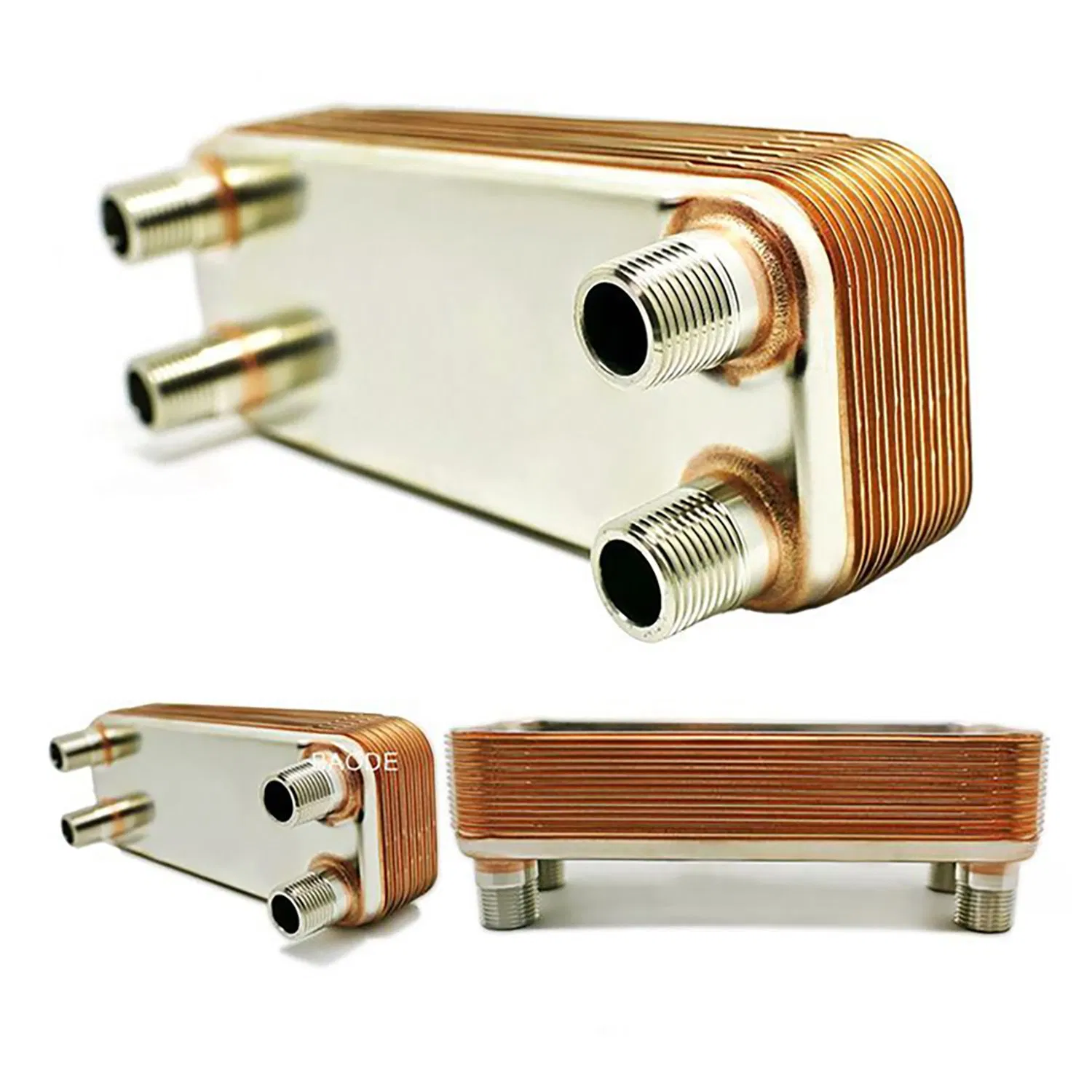

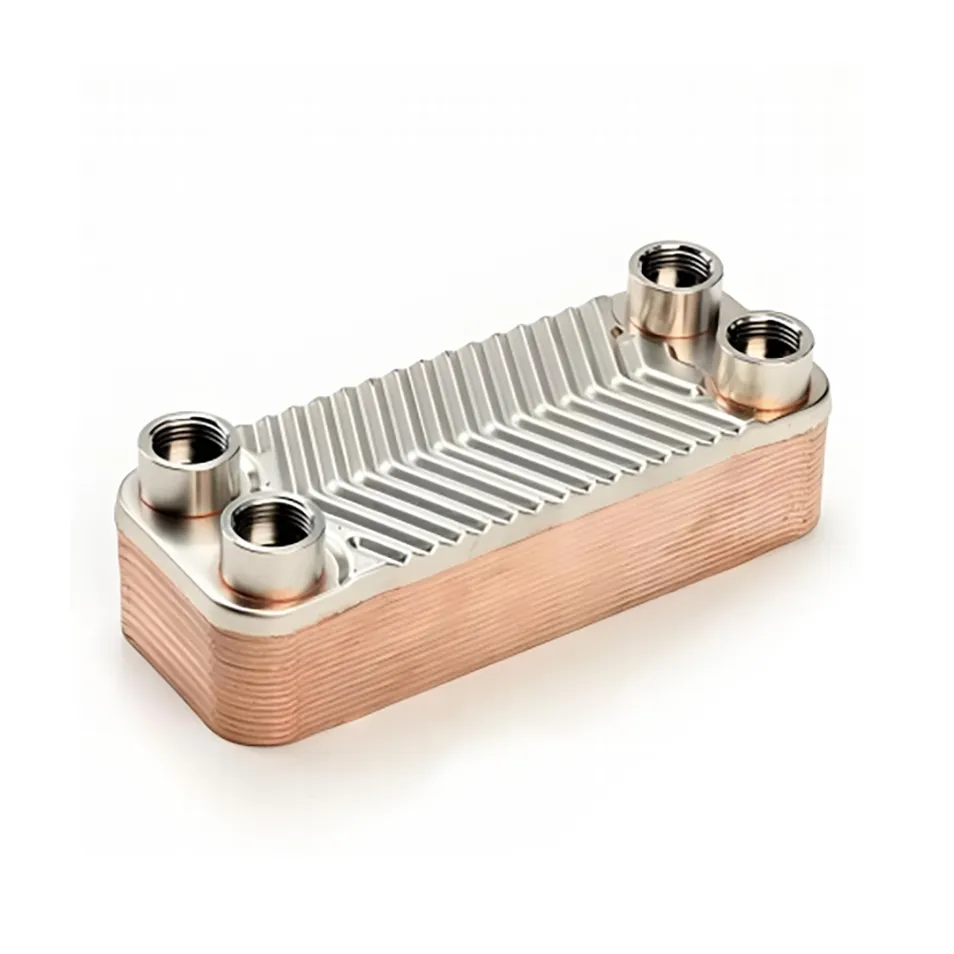

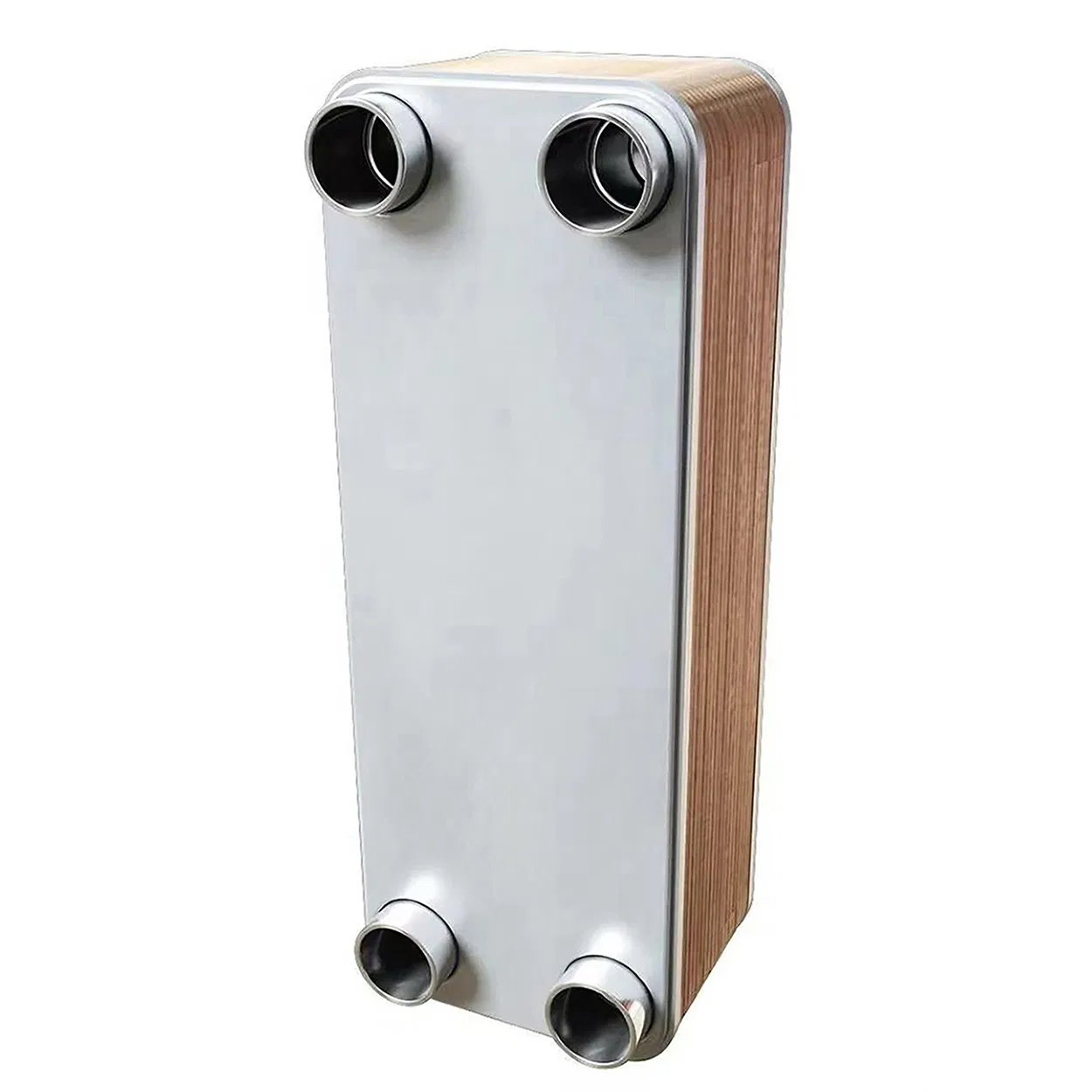

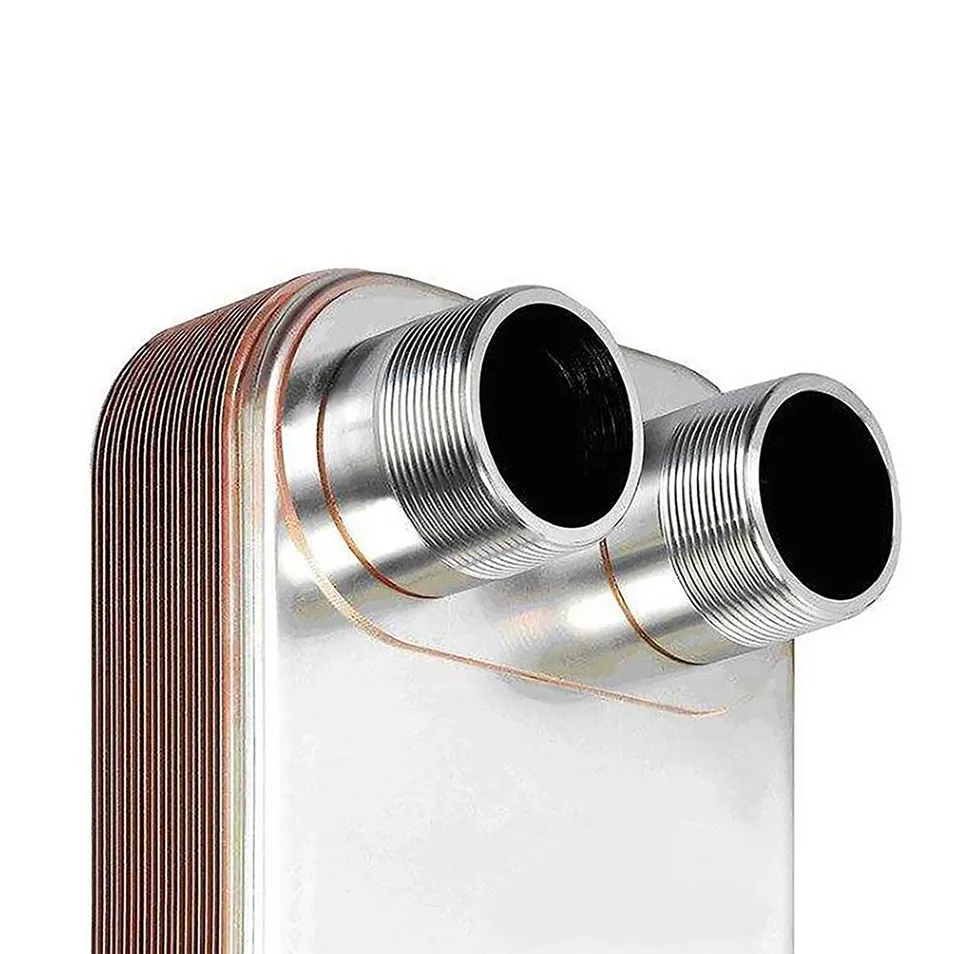

The Brazed Heat Exchanger is in principle built up by a plate package of corrugated channel plates between front and rear cover plate packages. The cover plate packages consist of sealing plates, blind rings, and cover plates. During the vacuum-brazing process, a brazed joint is formed at every contact point between two plates. The design creates a heat exchanger that consists of two separate circuits. Different plate patterns are available for various duties and performance specifications, allowing for standard configurations or units designed according to specific needs.

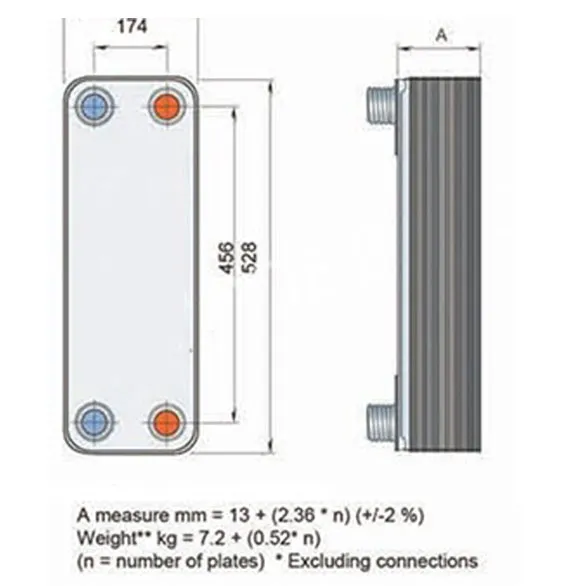

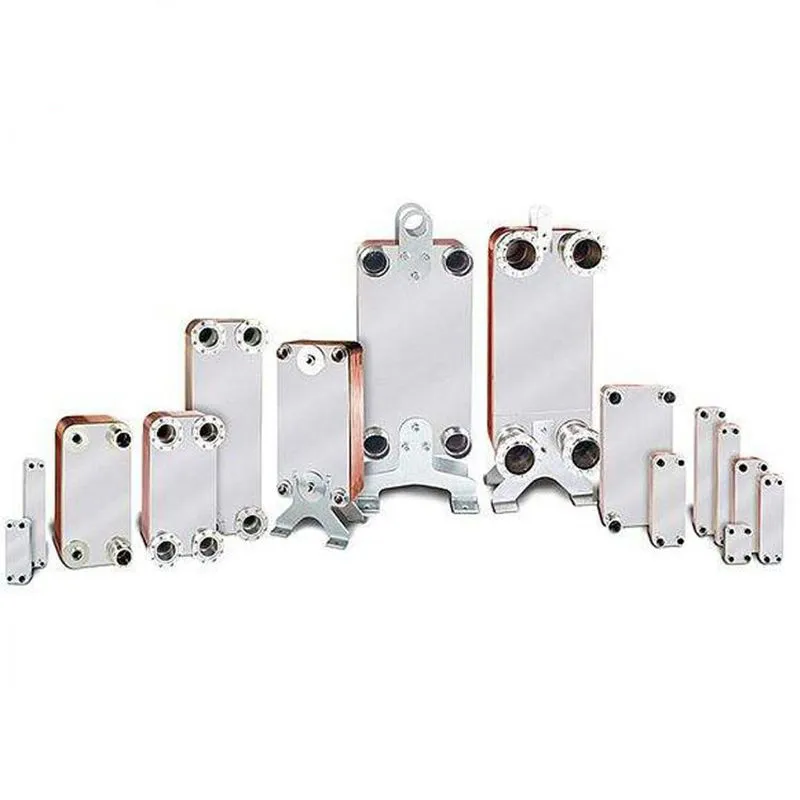

| Model | JXZ14 | JXZ20 | JXZ26 | JXZ260 | JXZ50 | JXZ95 |
|---|---|---|---|---|---|---|
| Width [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length [m] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 | 3 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Model | JXZ120 | JXZ190 | JXZ200 | JXZ600 | JXZ100 | JXZ210 |
|---|---|---|---|---|---|---|
| Width [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length [m] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Max pressure [Mpa] | 3 | 3 | 21 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
Note: Multiple specifications are available, and products can be customized based on actual working conditions.
