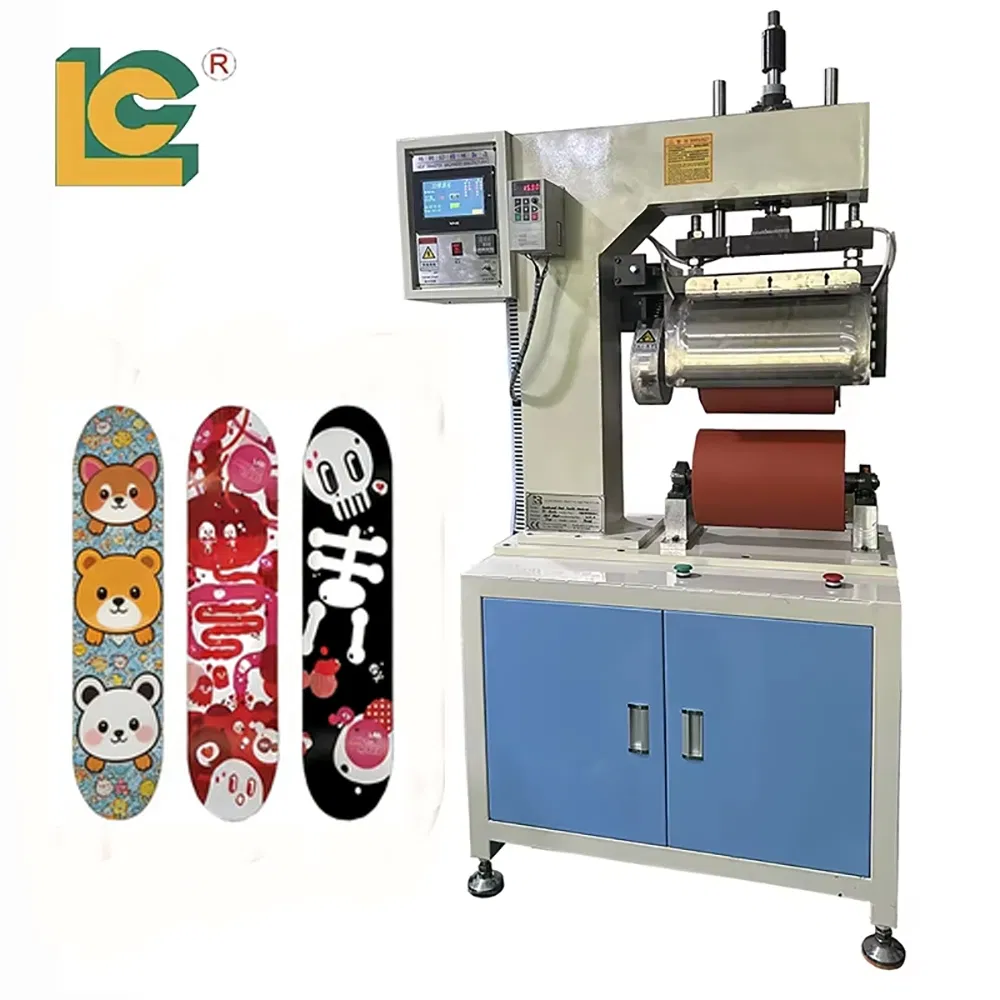

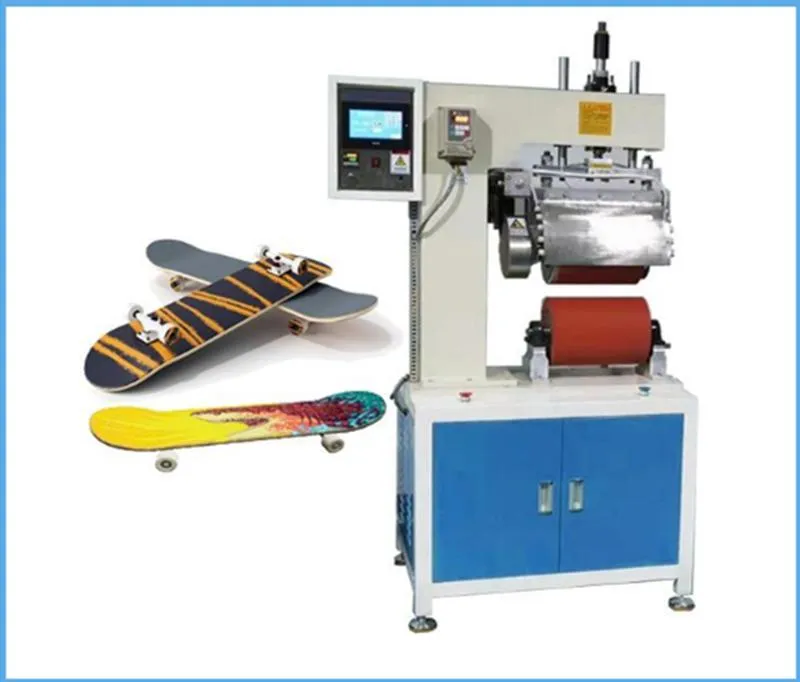

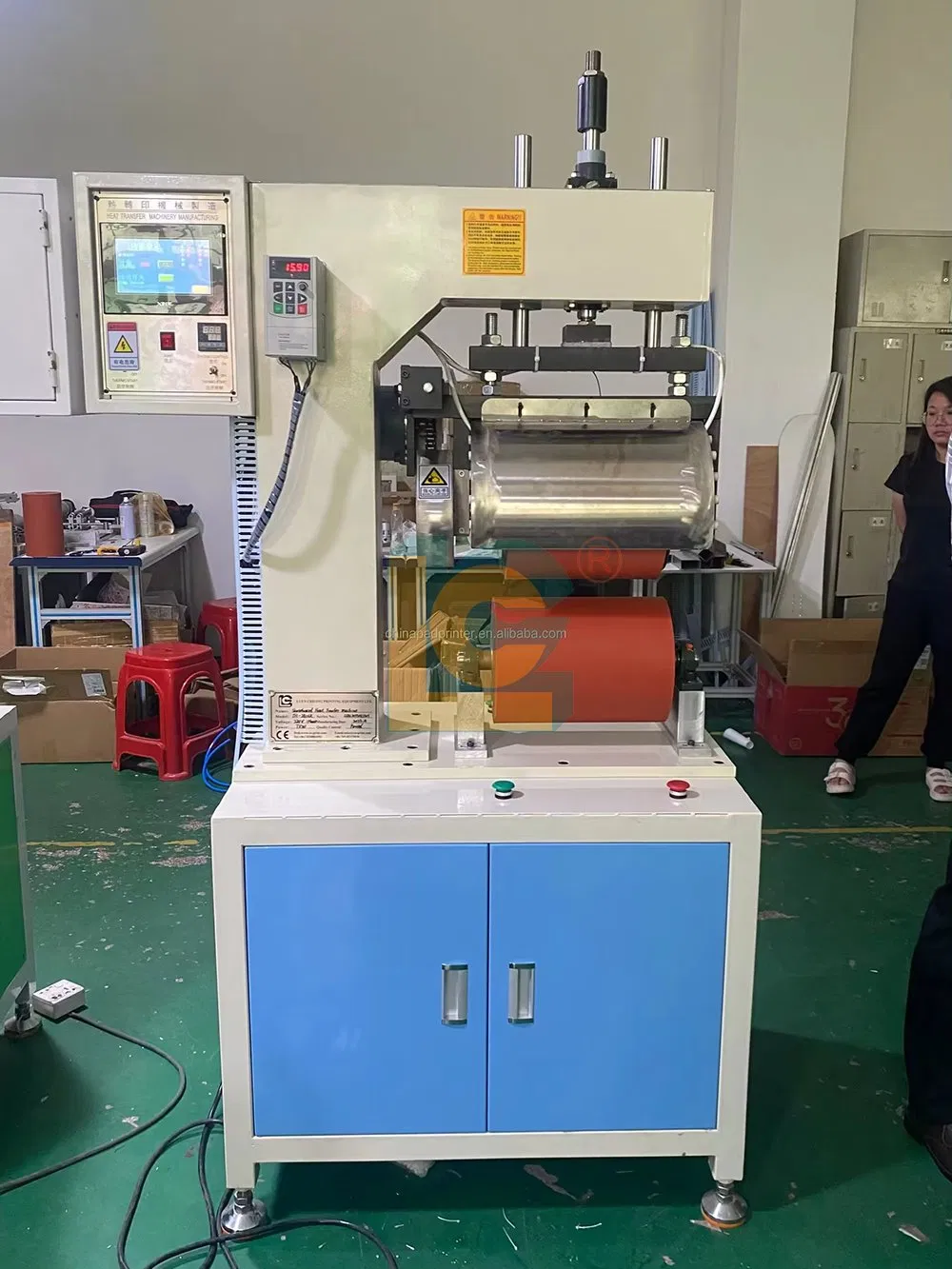

| Model Name | LC-280SK |
| Hydraulic Cylinder Stroke | 75 mm |
| Maximum Workpiece Height | 50 mm |
| Hot Stamping Temp Range | Room Temp ~ 300ºC |
| Hot Stamping Pressure | ≤ 2000kGF |
| Heating Power | 4100W |
| Machine Weight | 230 KG |
| Machine Dimensions | 900*750*1900mm |

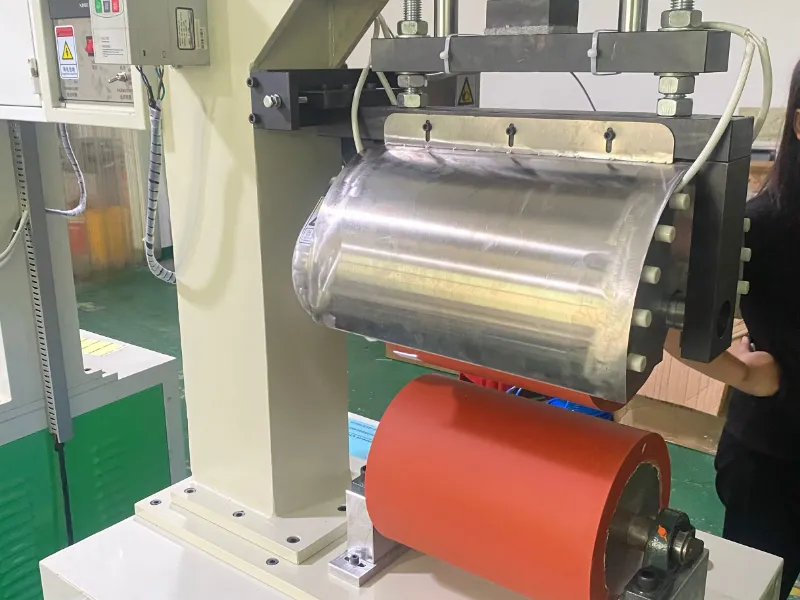

A: Yes, the machine is specifically designed with a hydraulic system and adjustable hot stamping head to accommodate the natural curves and contours of standard skateboard decks.
A: The machine supports a temperature range from room temperature up to 300ºC, allowing it to work with various types of heat transfer films.

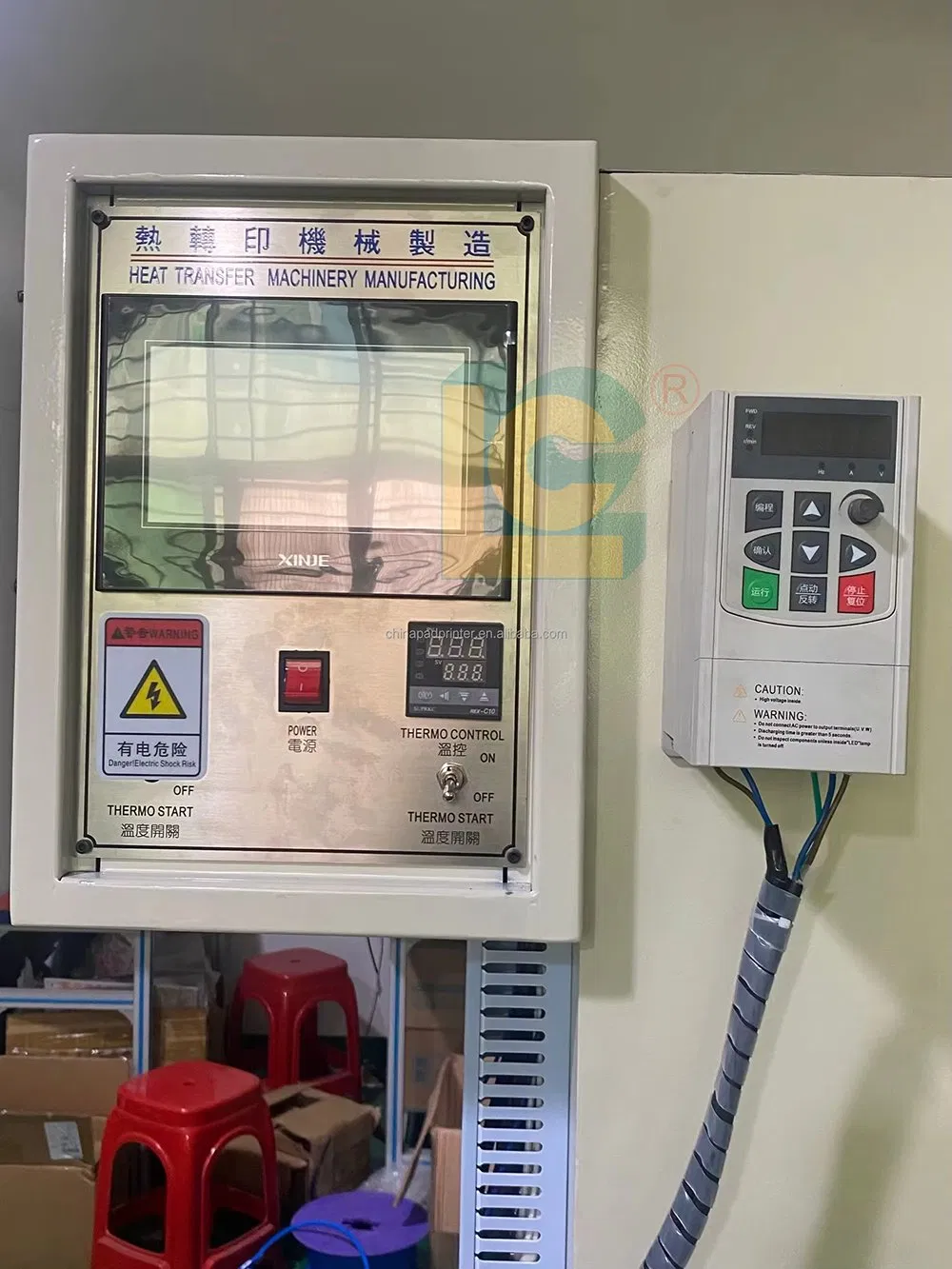

A: Yes, the PLC touch screen operation interface is designed for global use with a simple and intuitive layout.
A: The 2P hydraulic cylinder provides much higher and more consistent pressure compared to pneumatic systems, ensuring that complex, multi-color patterns adhere perfectly to the wood surface.
A: Yes, it features automatic paper feeding and receiving with adjustable speed settings driven by a precision motor for high-efficiency production.
A: Under optimal conditions, the machine can achieve a printing speed of approximately 800 pieces per hour.
