High Efficiency Rotogravure Printing Equipment for Food Packaging with 400m/Min

1 / 5

High Efficiency Rotogravure Printing Equipment for Food Packaging with 400m/Min

Customization:	Available
Warranty:	One Year
Certification:	CE

Send Inquiry

Product Description

Basic Information

Model NO.	BM-400D	Condition	NEW
System Supported	Windowsxp64	Printing Interface	USB3.0
Maximum Speed	400m/Min	Printing Width	1000mm
Effective Width	1050mm	Power	300kw
Accuracy	±0.1mm	Weight	Approx. 40000kg
Structure	Rotary Type	Automatic Grade	Automatic

Product Description

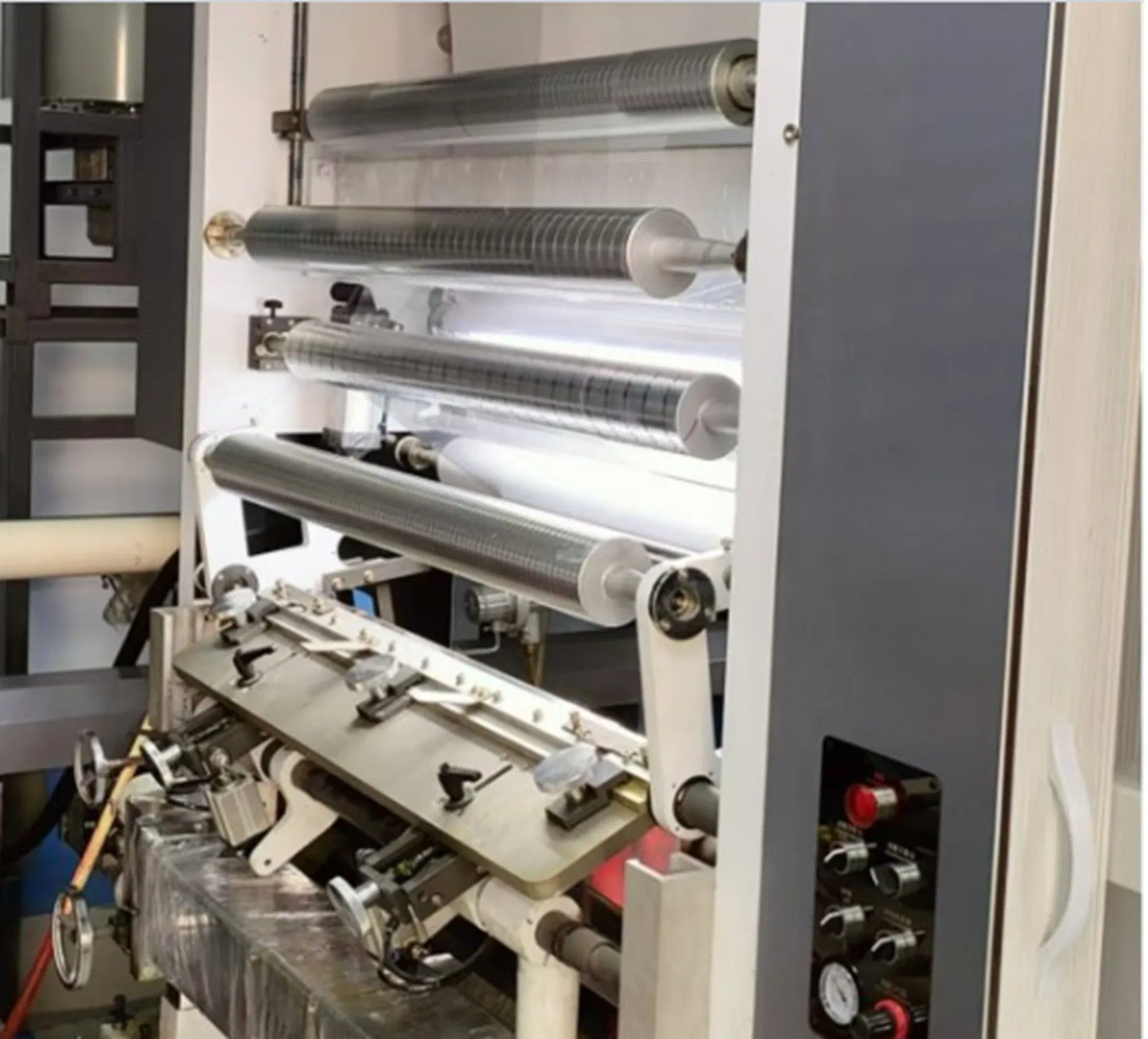

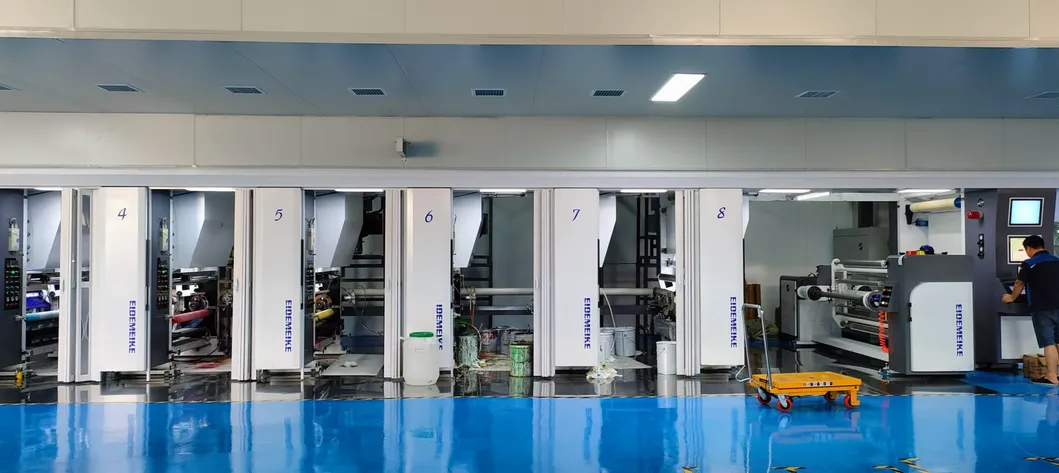

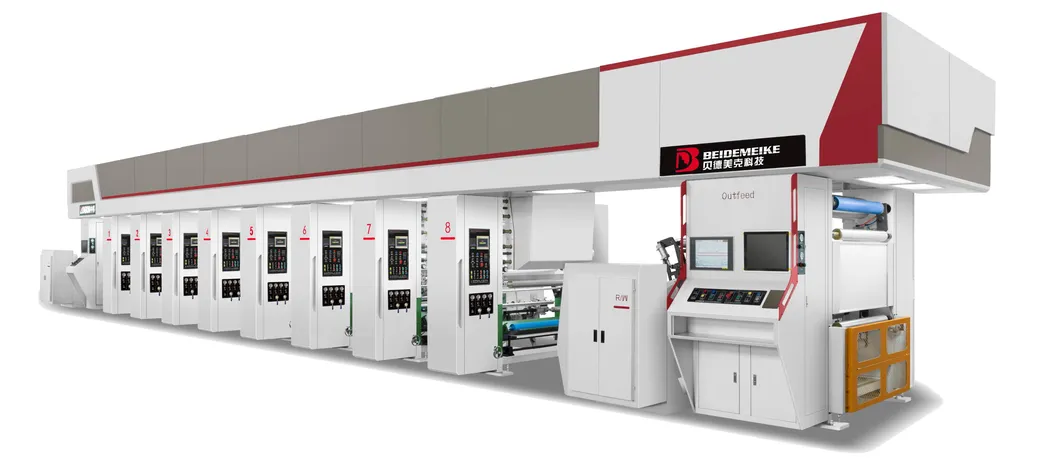

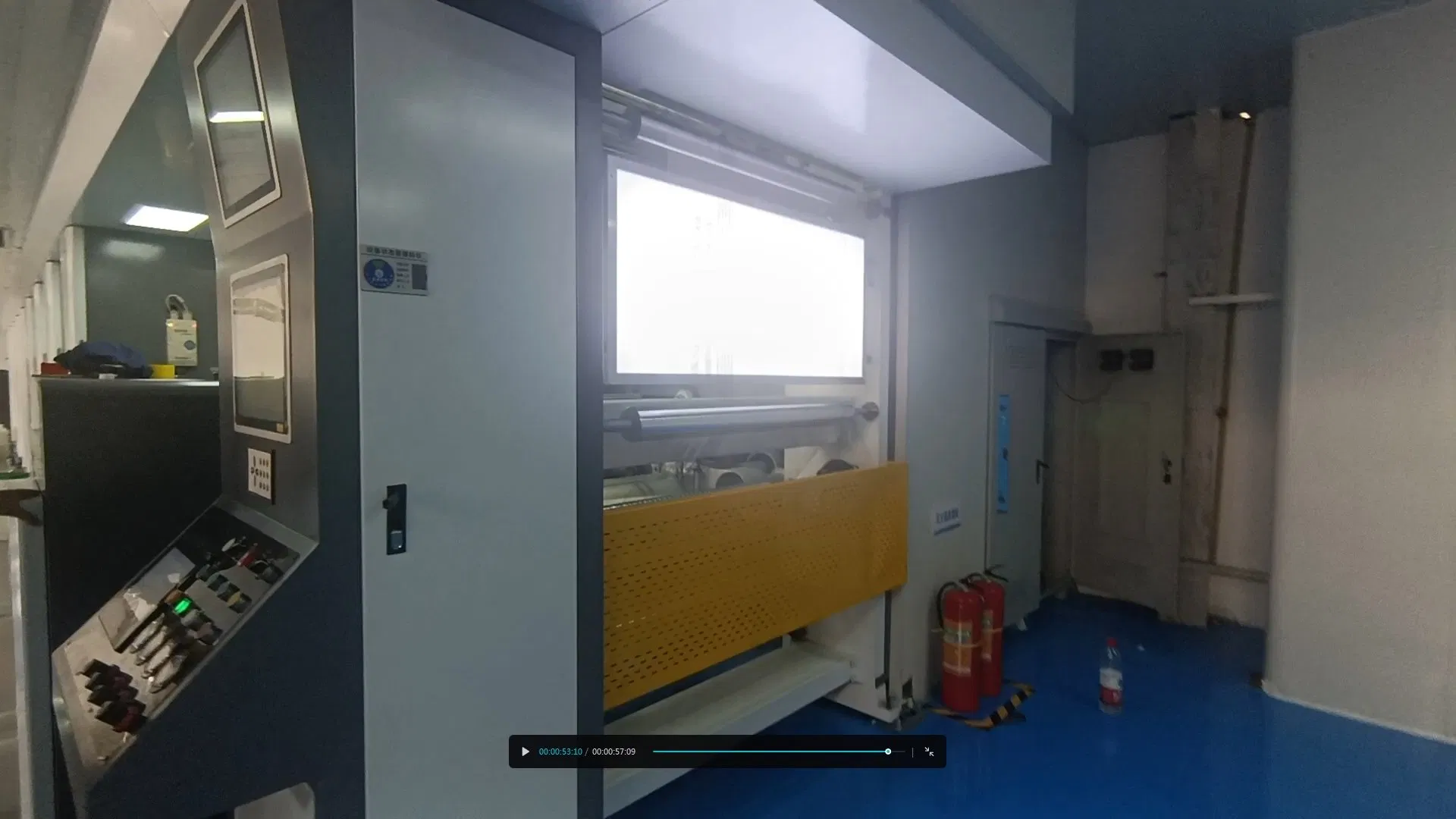

BM-400D Electronic Shaft-Driven Gravure Printing Machine

Introducing our cutting-edge Eight Color Gravure Printing Equipment with Minimal Material Waste. This state-of-the-art electronic shaft-driven gravure press stands at the forefront of modern printing technology. It delivers exceptional performance with its low energy consumption and minimal material loss, enhancing operational cost-effectiveness. Designed for user-friendly operation, it incorporates advanced intelligence to streamline processes, making it an ideal choice for both high-volume production runs and specialized small-volume product groups.

Main Features

Efficient Winding

Adopt tower type double station receiving and discharging structure, realizing the whole process without stopping or slowing down for stable coil replacement.

Intelligent Printing

Support a "one-key on" function with fully automatic tinted stability, reducing reliance on operator skill levels.

Environmental Protection

The oven adopts a half-suspension structure with an exquisite guide roller layout to streamline material resistance and optimize drying.

Product Parameters

Parameter Item	Specification (BM-400D)
Max. Speed	400m/min
Max. Width of Web	1050mm
Max. Diameter of Unwinding/Rewinding	Ø600-800mm
Tension Control Range	20-50kg/Full Width
Inside Diameter of Roll Core	76mm
Diameter of Printing Cylinder	Ø120-360mm
Accuracy of Computer Registration	±0.1mm
Total Power	Approx 300kw
Machine Dimension	20000(L) * 4000(W) * 3800(H)mm

Applications & Materials

Material Type	Min. Thickness	Max. Thickness
BOPP	12μm	60μm
PET	10μm	60μm
BOPA	15μm	60μm
PE	35μm	100μm
Paper	30g/m²	120g/m²
LDPE	35μm	100μm

Note: Data concerns standard specifications. Material thickness can be customized to meet specific needs.

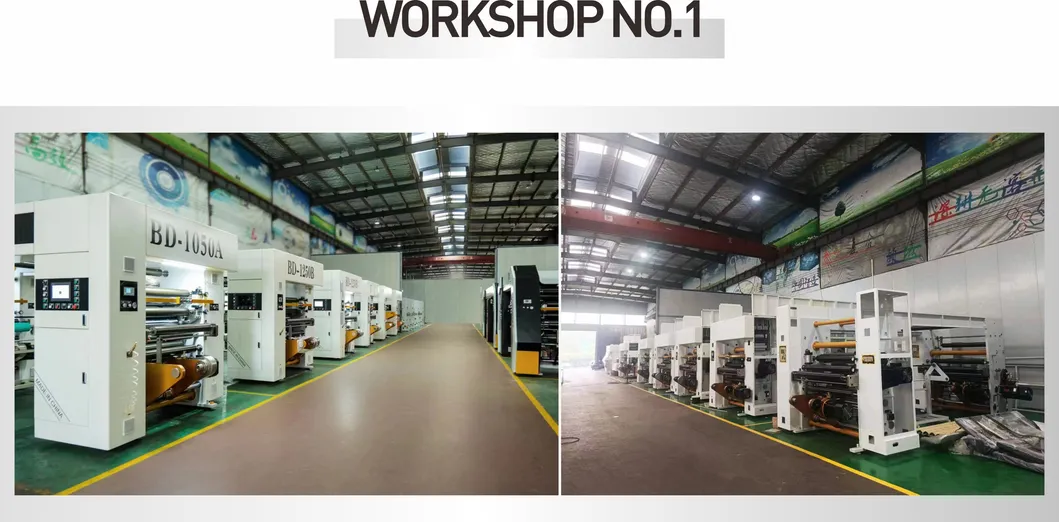

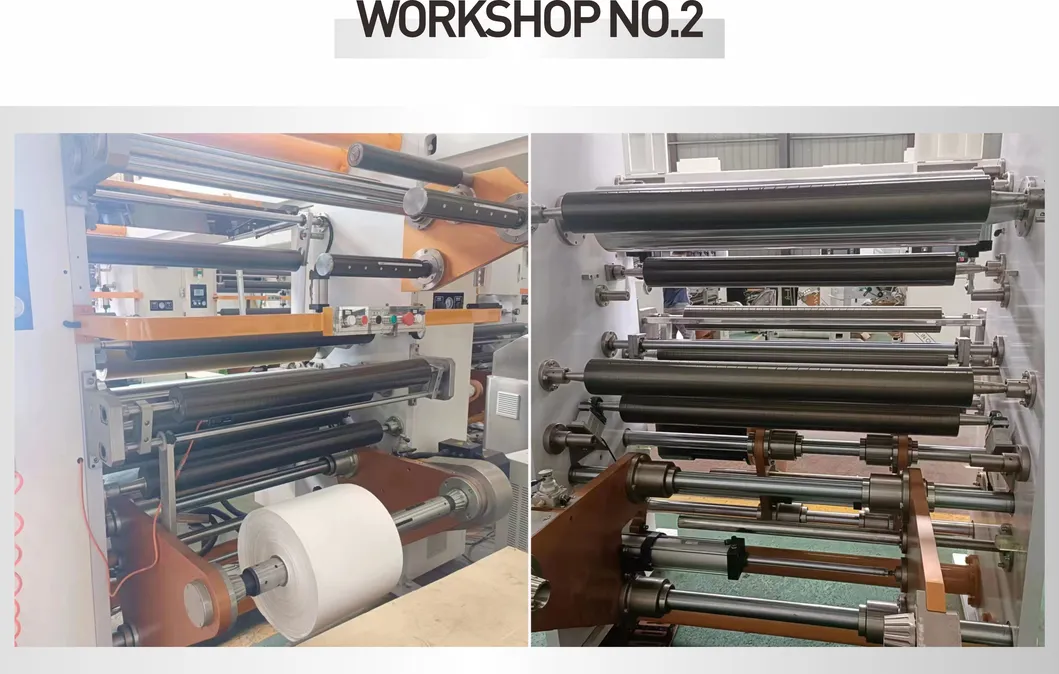

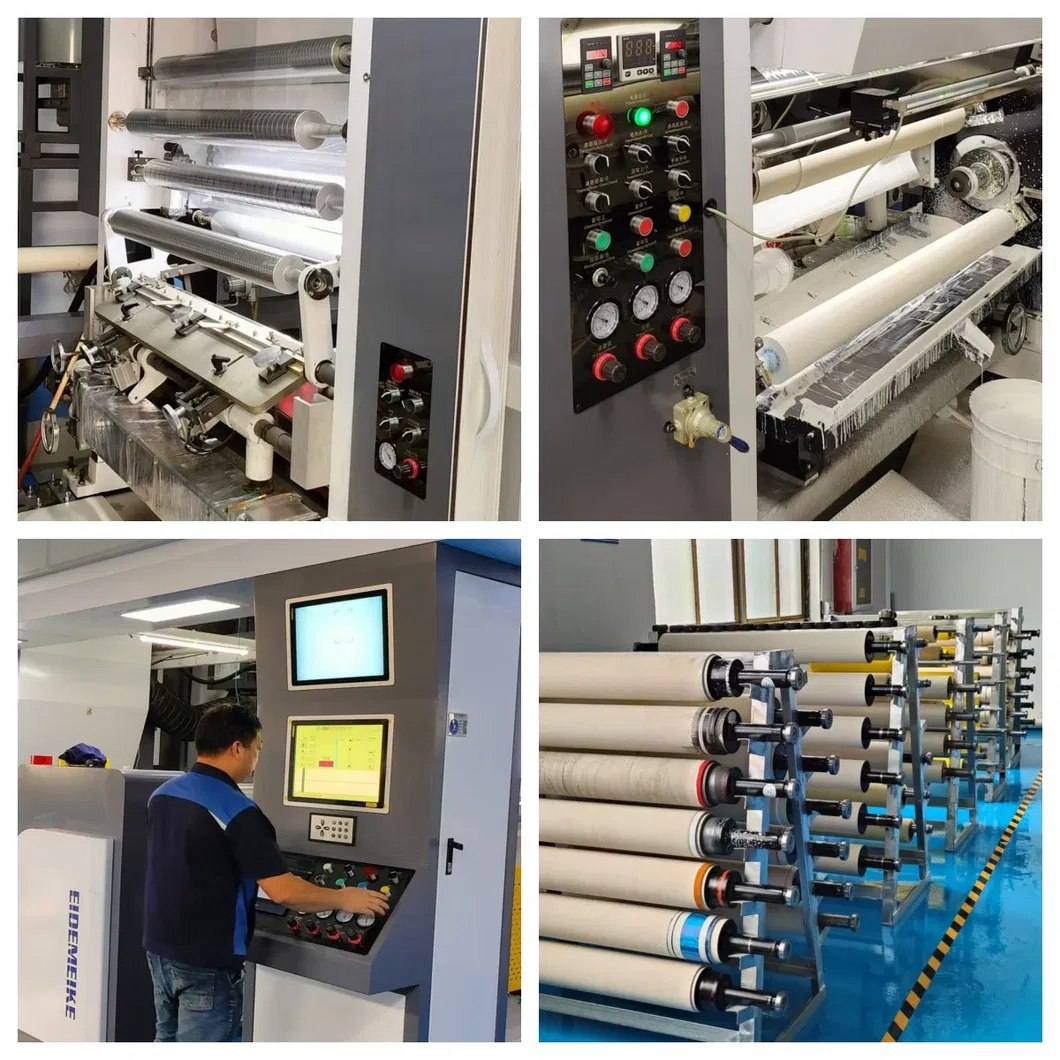

Workshop & Production

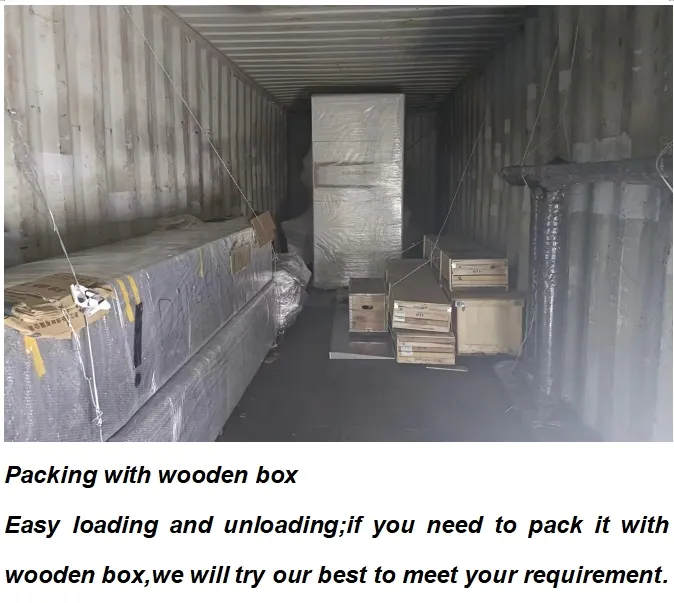

Packaging & Shipping

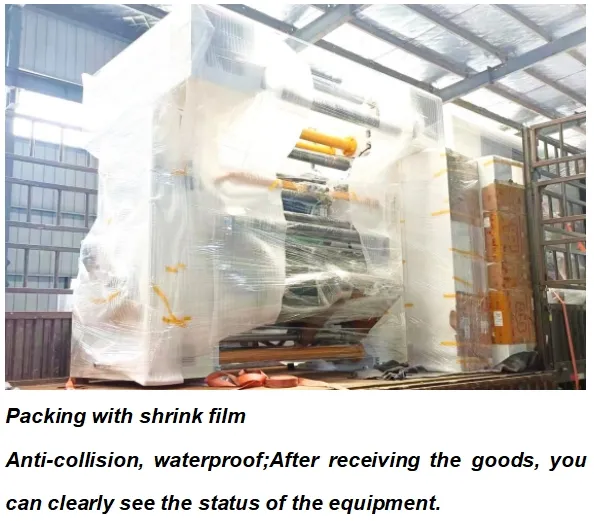

We hold our customers' needs in the highest regard. Our expert workers engage in packing sophisticated machinery with precision, ensuring delivery schedules are exceeded. Equipment is loaded with care for transport, arriving at international destinations in impeccable condition.

Exhibition & Global Presence

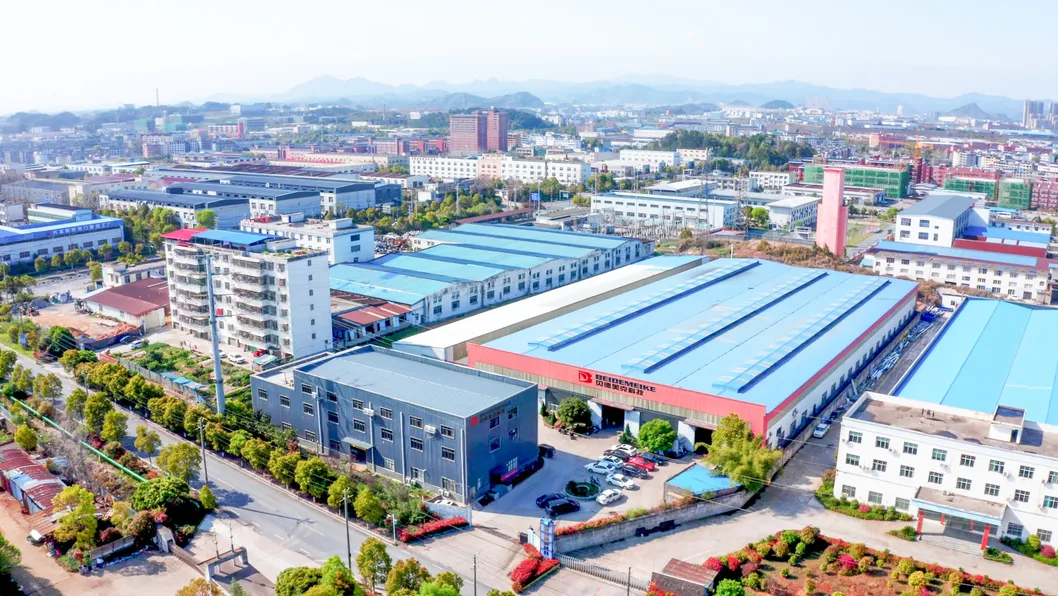

Our company is a pioneering production-oriented enterprise focusing on high-performance soft packaging machinery. With relentless innovation, we have engineered cutting-edge solvent-less composite equipment with high-speed, multifunctional, and multi-layer capabilities, serving packaging hubs globally.

Service Commitments

Before-Sale Service

• 24-hour free online consultation.
• Detailed device specifications and flow charts.
• Bespoke solutions for unique client demands.

During-Sales Service

• Use of highest quality raw materials.
• Regular production updates.
• Rigorous quality control and inspections.

After-Sale Service

• Meticulous shipment tracking.
• Overseas technical support and guidance.
• Instructional videos and prompt replacement parts.

Frequently Asked Questions

What is the maximum printing speed of the BM-400D?

The BM-400D offers a high-efficiency performance with a maximum printing speed of up to 400 meters per minute.

Which materials are compatible with this printing equipment?

The machine is versatile and can handle various materials including BOPP (12-60μm), PET (10-60μm), BOPA, PE, LDPE, and Paper (30-120g/m²).

How accurate is the color registration?

The machine features advanced computer registration technology with an accuracy of ±0.1mm, ensuring high-quality multi-color printing results.

Does the equipment support continuous operation during roll changes?

Yes, it utilizes a tower-type double station receiving and discharging structure that allows for stable coil replacement without stopping or slowing down.

What kind of after-sales technical support do you provide?

We provide comprehensive support including overseas engineer service, expert operational guidance via video, and prompt delivery of replacement parts to minimize downtime.

Can the machine specifications be customized?

Absolutely. While we have standard specifications, material thickness handling and power capabilities can be tailored to meet specific customer requirements.
