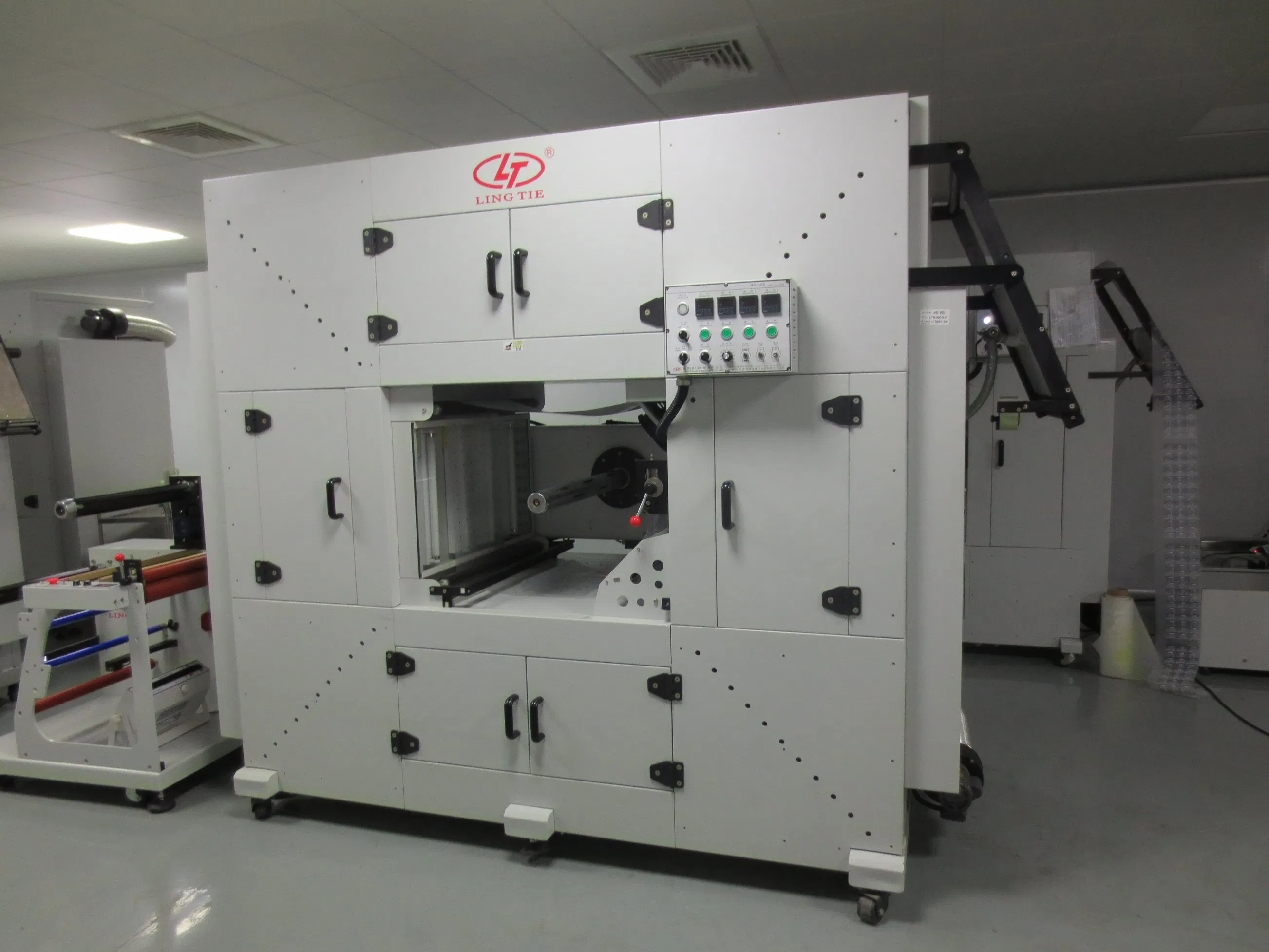

Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
1 / 5
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment
Heat Transfer Label Roll to Roll Screen Printing Equipment

Heat Transfer Label Roll to Roll Screen Printing Equipment

Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

📋
Basic Information
Model NO.
LTA-5060
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Application
Labels, Stickers, RFID, FPC, IMD, etc
Certification
CE and ISO9001
Accuracy
+/- 0.01mm
Max Printing Size
500x600 mm
Warranty
One Year
Transport Package
Wooden Box
HS Code
8443911900
Capacity
30 sets/Month
⚙️
Product Description

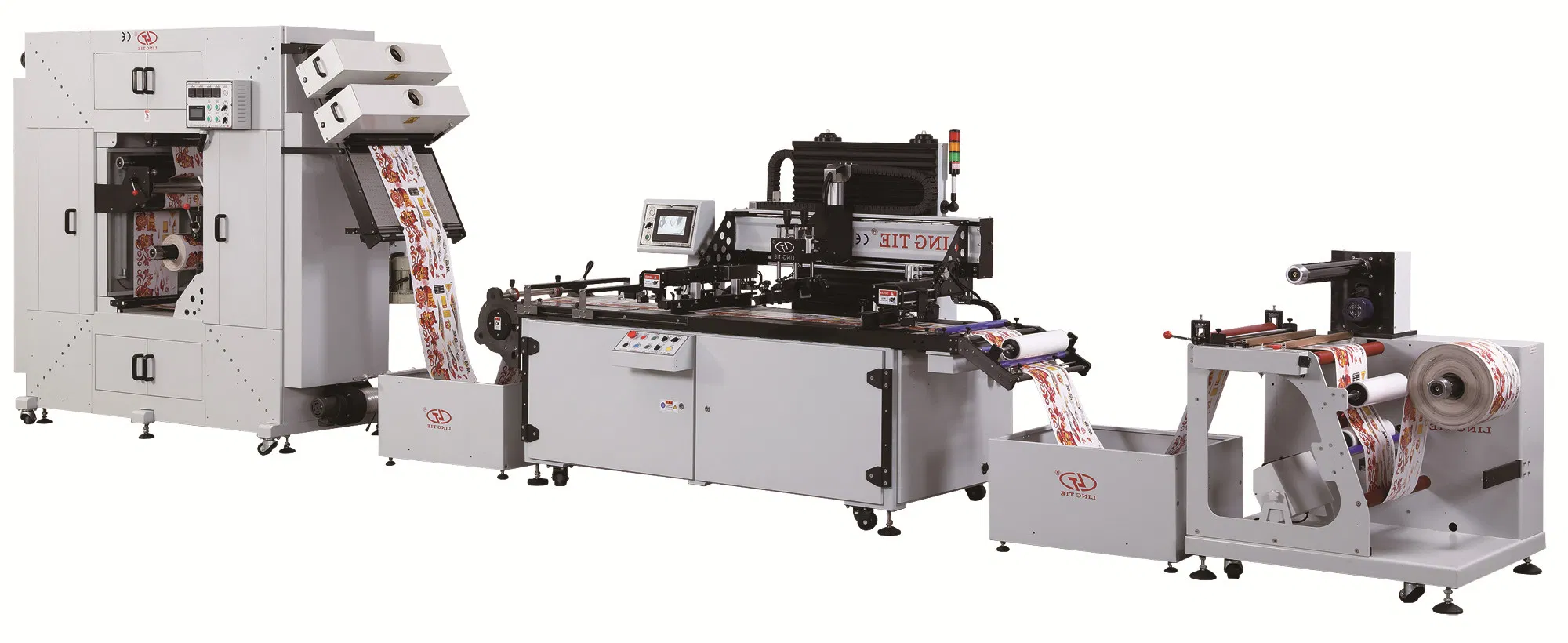

Heat Transfer Label Roll to Roll Screen Printing Equipment

Machine Overview:

This Roll to Roll Screen Printing Equipment is designed to print on film materials in rolls, such as PET, PVC, PE, PV, and PP film. The system is composed of a feeder, a high-precision printing unit, and a hot air dryer.

Key Features:

  • Feeder: Includes dust removal rollers and an automatic alarm for when material runs out.
  • Printing Unit: Features a vacuum table to fix film position and three photocell sensors for high-precision automatic registration.
  • Hot Air Dryer: Available in 30M, 60M, and 80M lengths. It includes cooling and automatic rewinding functions.
  • Automation: High level of automation allows a single operator to manage the entire production line.
  • Productivity: Production capacity is equivalent to six sets of semi-automatic screen printing machines.

Applications: RFID, heat transfer labels, stickers, membrane switches, graphic overlays, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplates, and non-woven fabrics.

📊
Machine Parameters
Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size300x400mm500x600mm600x800mm
Printing Speed0~5000 print/hr.0~2500 print/hr.0~2500 print/hr.
Max. Screen Frame Size600x800mm800x1000mm900x1200mm
Registration Accuracy±0.01mm±0.01mm±0.01mm
Max. Substrate Width320mm520mm620mm
Power Supply220V, 3KW, 15A220V, 3KW, 15A220V, 3KW, 15A
Substrate Thickness0.02~0.5mm0.02~0.5mm0.02~0.5mm
Overall Dimensions7000x1100x1900mm8200x1200x2000mm9000x1350x2200mm
📸
Machine Details & Components

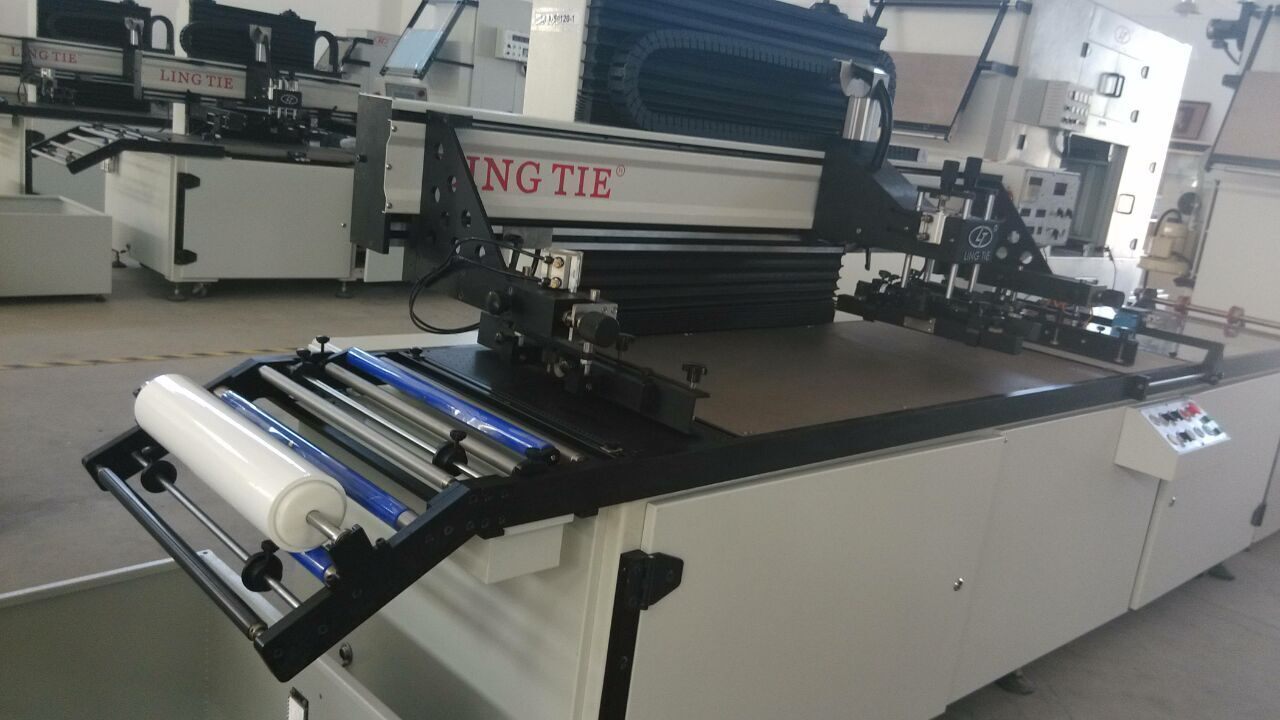

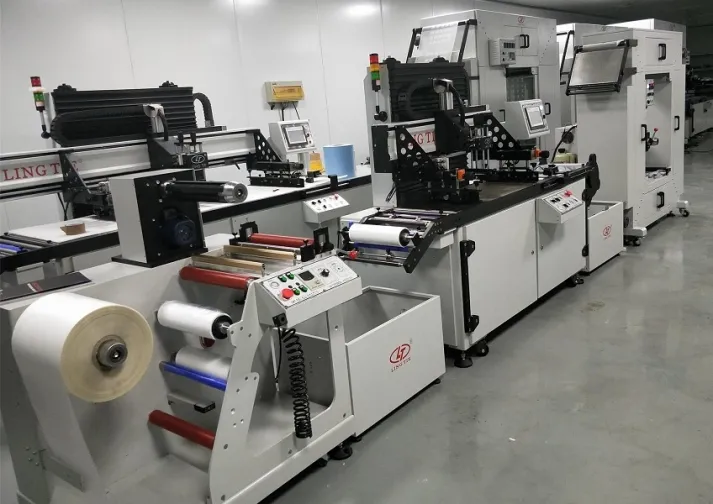

Full Machine Line
Full Printing Line

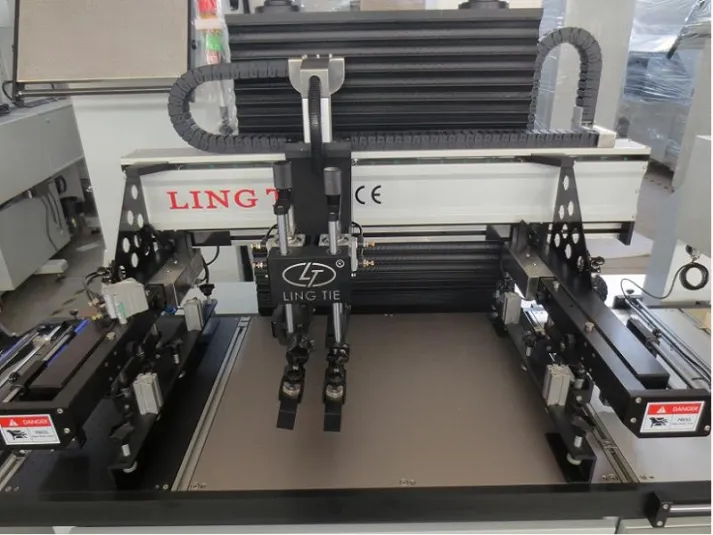

Vacuum Table
Vacuum Table & Registration

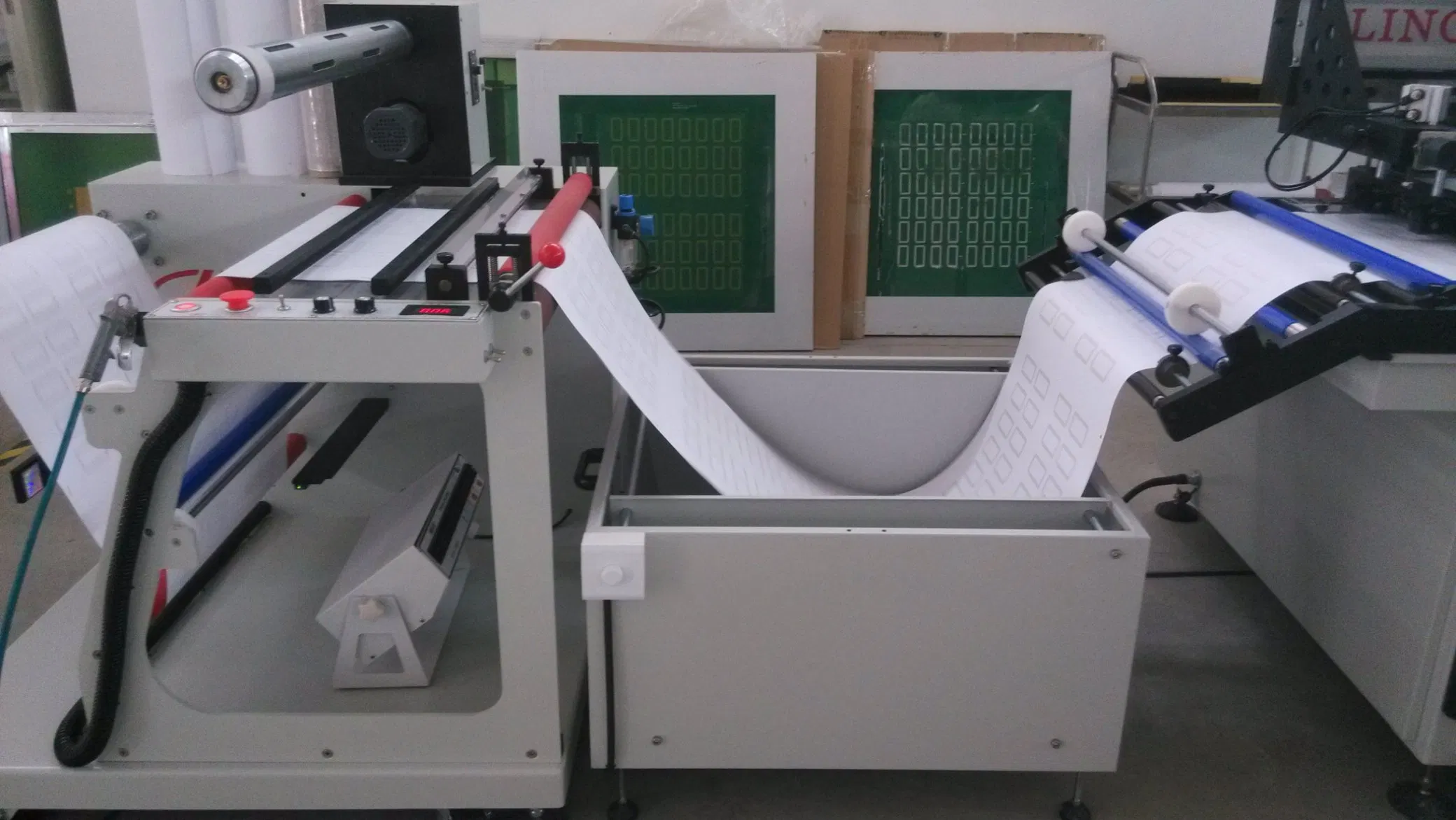

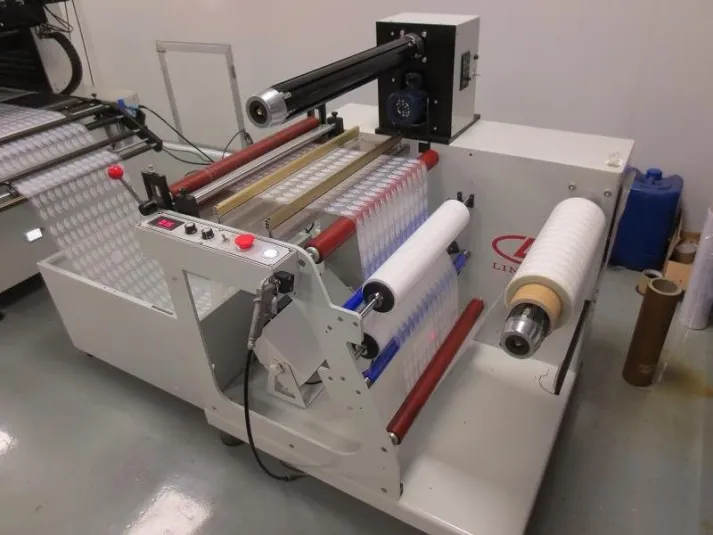

Feeder Unit
Feeder with Dust Removal

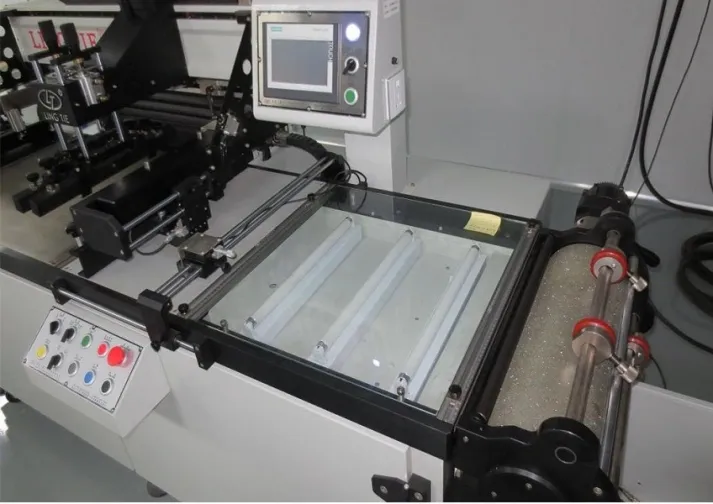

Inspection Station
Inspection Station

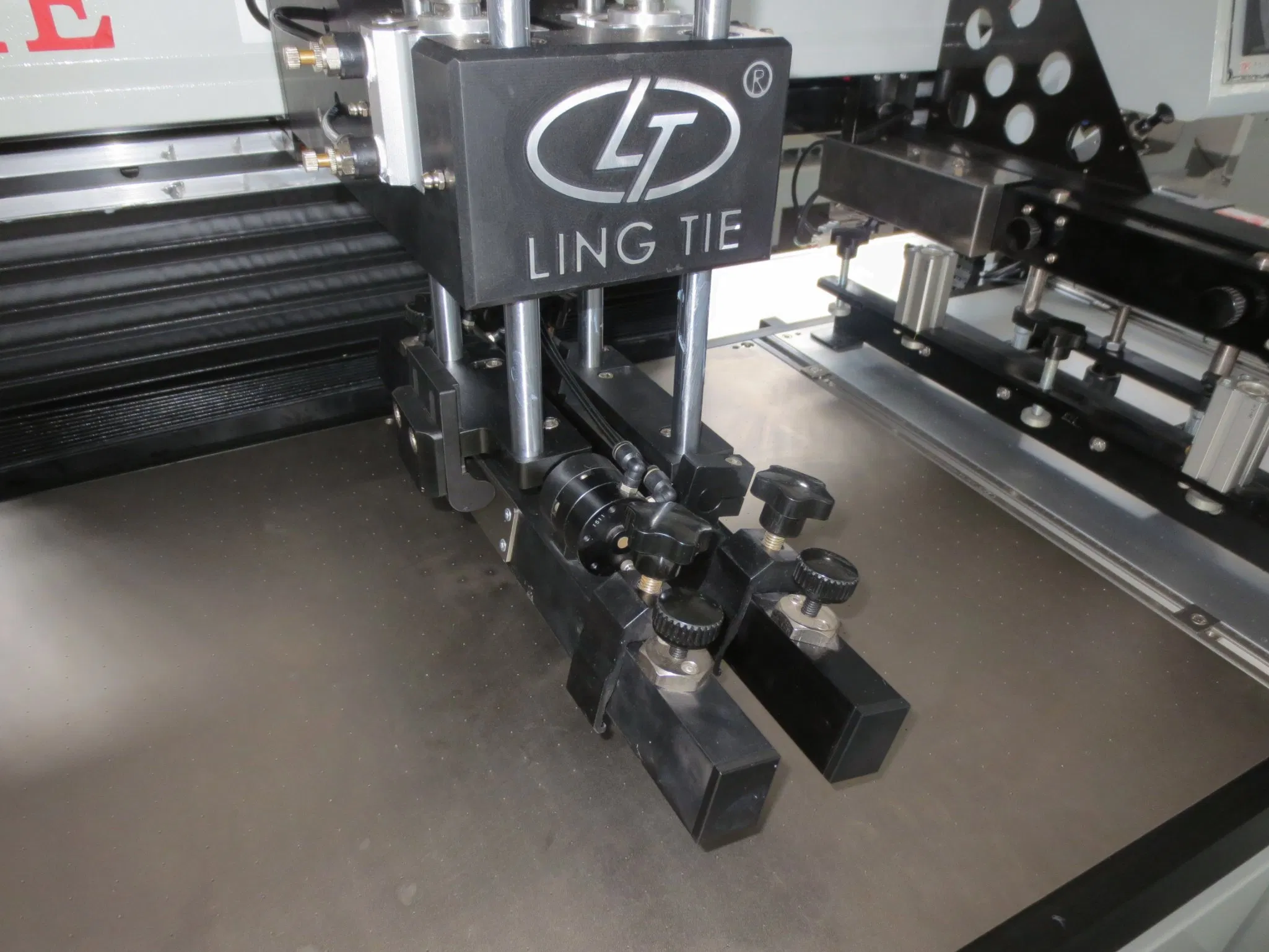

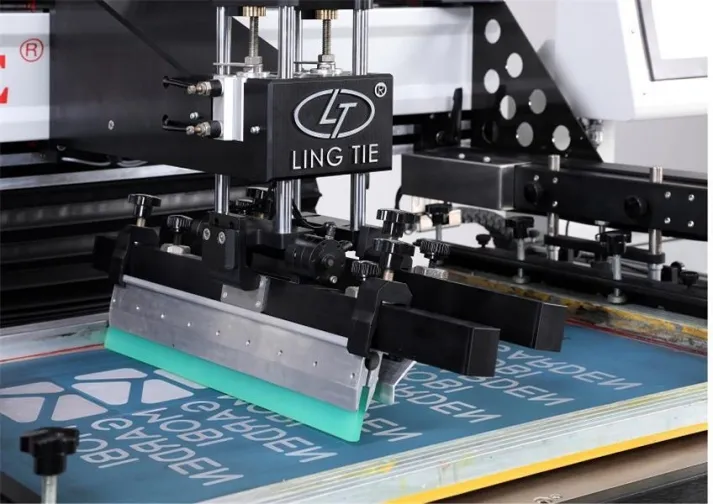

Print Head
High Stability Print Head

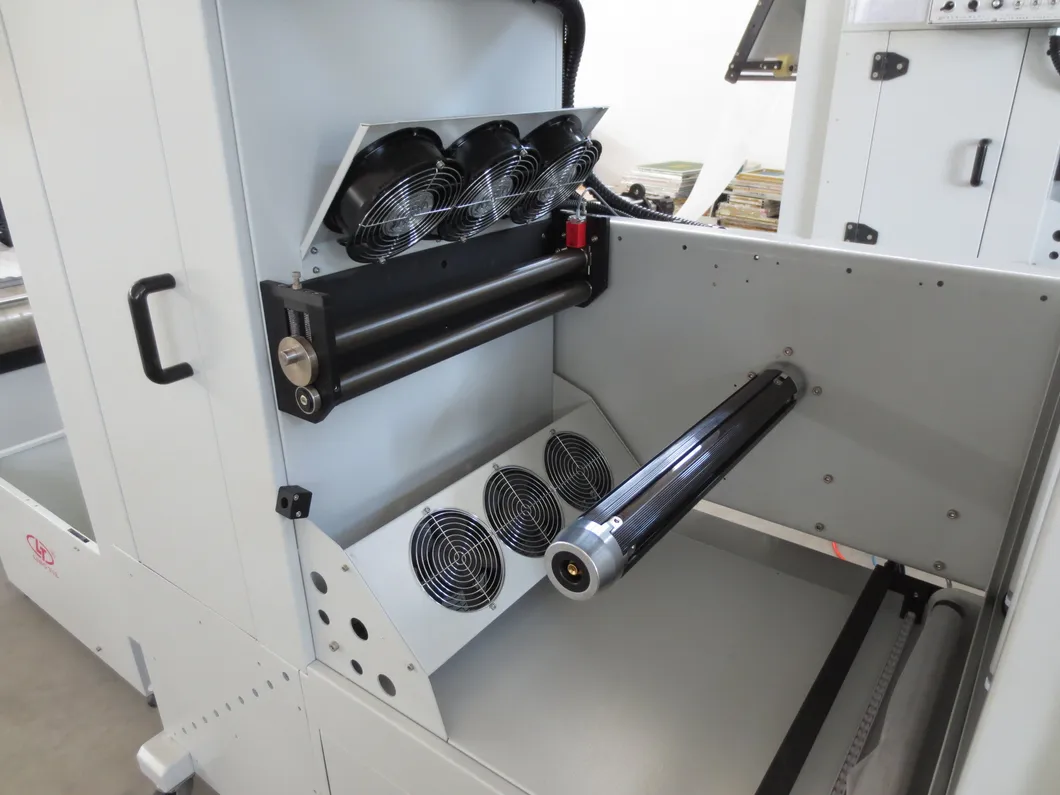

Rewinding Shaft
Automatic Rewinding Shaft
✨
Samples & Factory Display

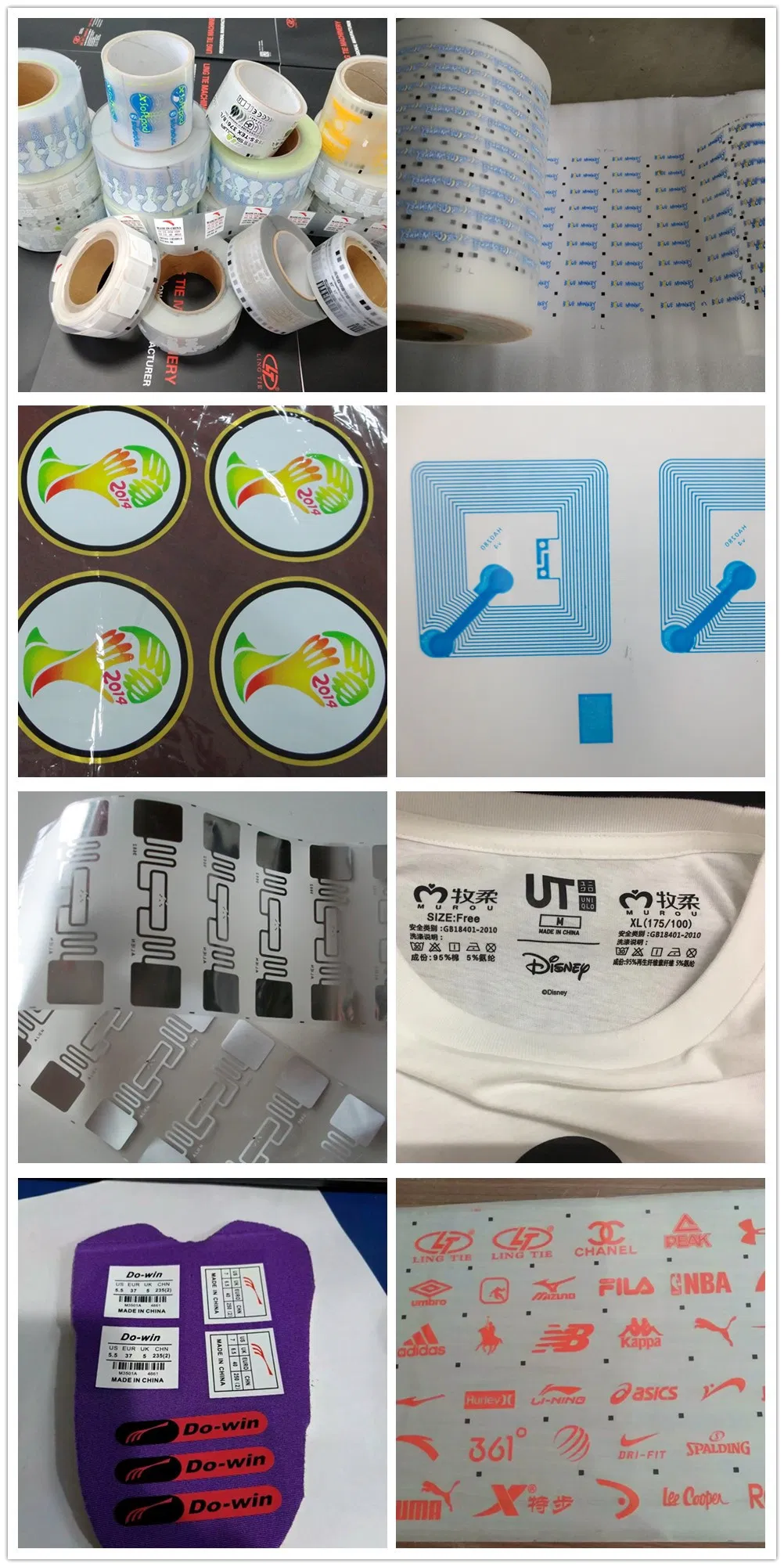

Printed Samples
Printed Samples
Honor
Certifications

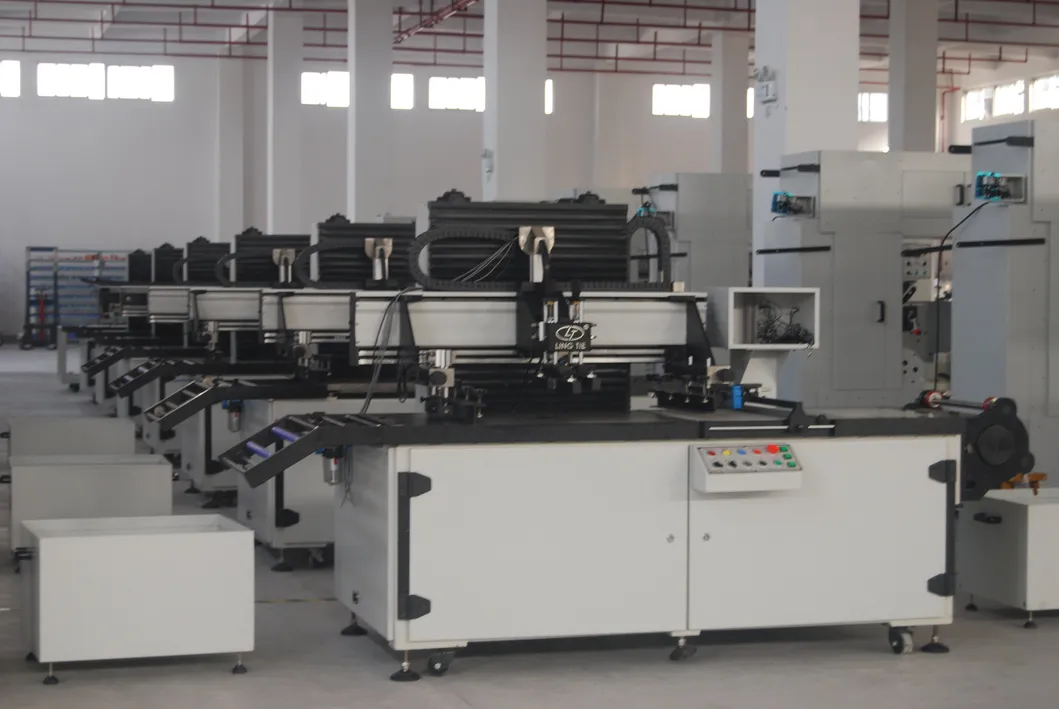

Workshop
Production Workshop
Exhibition
International Exhibition
Team
Team & Customers
Package
Export Wooden Package
❓
Frequently Asked Questions
What materials can this roll-to-roll screen printing equipment handle?
It is specifically designed for roll-based films, including PET, PVC, PE, PV, and PP films with thicknesses ranging from 0.02mm to 0.5mm.
How accurate is the multi-color overprinting?
The machine is equipped with three photocell sensors for automatic registration, achieving a high printing accuracy of ±0.01mm.
Does the machine require a large operation team?
No, thanks to its high level of automation, a single person can operate the entire printing line from feeding to drying and rewinding.
What are the main industrial applications for this machine?
It is widely used for RFID tags, heat transfer labels, membrane switches, graphic overlays, FPC (flexible printed circuits), and IMD/IML applications.
What is included in a complete printing line?
A standard production line includes an automatic feeder unit (with dust removal), a screen printing unit (with vacuum table), and a hot air dryer with cooling and rewinding capabilities.
What kind of drying options are available?
The hot air dryer can be customized with different pass lengths, such as 30M, 60M, or 80M, depending on your production speed and ink requirements.
