Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

Basic Specifications

Model NO.
LTA-3040
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Application
Labels, Stickers, RFID, FPC, IMD,etc
Certification
Ce and ISO9001
Registration Accuracy
+/- 0.01mm
Max Printing Size
(500X600)mm
After-Sales Service
Engineers Available to Service Machinery Overseas
Warranty
One Year
Transport Package
Wooden Box
Specification
(L8200xW1200xH2000)mm
HS Code
8443911900
Production Capacity
30 sets / Month

Product Description

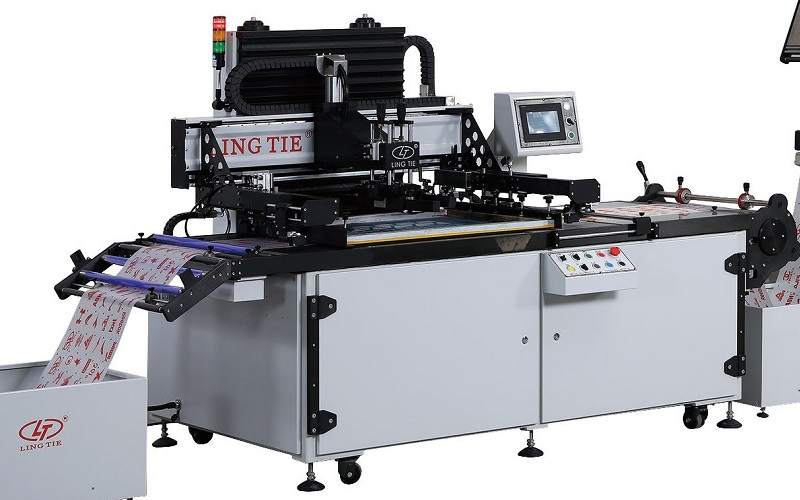

Heat Transfer Label Printing Equipment

The Heat Transfer Label Roll to Roll Screen Printing Equipment is professional-grade machinery designed to print on various film materials in roll format, including PET, PVC, PE, PV, and PP film.

Key Components:

  • Feeder: Includes dust removal rollers and an automatic roll-out alarm system.
  • Printing Unit: Features a vacuum table for substrate stability and three photocell sensors for ultra-precise automatic registration.
  • Hot Air Dryer: Available in 30M, 60M, and 80M pass lengths with integrated cooling and automatic winding systems.

Major Advantages:

  • High level of automation: The entire production line requires only one operator.
  • High precision: Specialized for multi-color overprinting with exceptional accuracy.
  • High productivity: Production capacity is equivalent to six units of semi-automatic machines.

Applications: RFID tags, heat transfer labels, stickers, membrane switches, graphic overlays, IMD, IML, FPC, ceramic decals, helmet decals, nameplates, and non-woven fabrics.

Machine Parameters

Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size300x400mm500x600mm600x800mm
Printing Speed0~5000 print/hr.0~2500 print/hr.0~2500 print/hr.
Max. Screen Frame600x800mm800x1000mm900x1200mm
Frame Adjust Variable60mm60mm60mm
Max. Substrate Width320mm520mm620mm
Registration Accuracy±0.01mm±0.01mm±0.01mm
Air Source0.4~0.6mpa0.4~0.6mpa0.4~0.6mpa
Power220V, 3KW220V, 3KW220V, 3KW
Material Thickness0.02~0.5mm0.02~0.5mm0.02~0.5mm
Weight600kgs700kgs950kgs

Machine Visuals

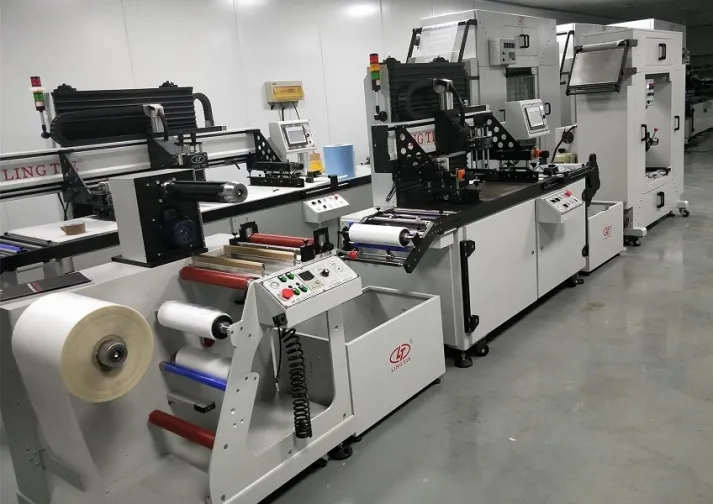

Heat Transfer Label Printing Equipment

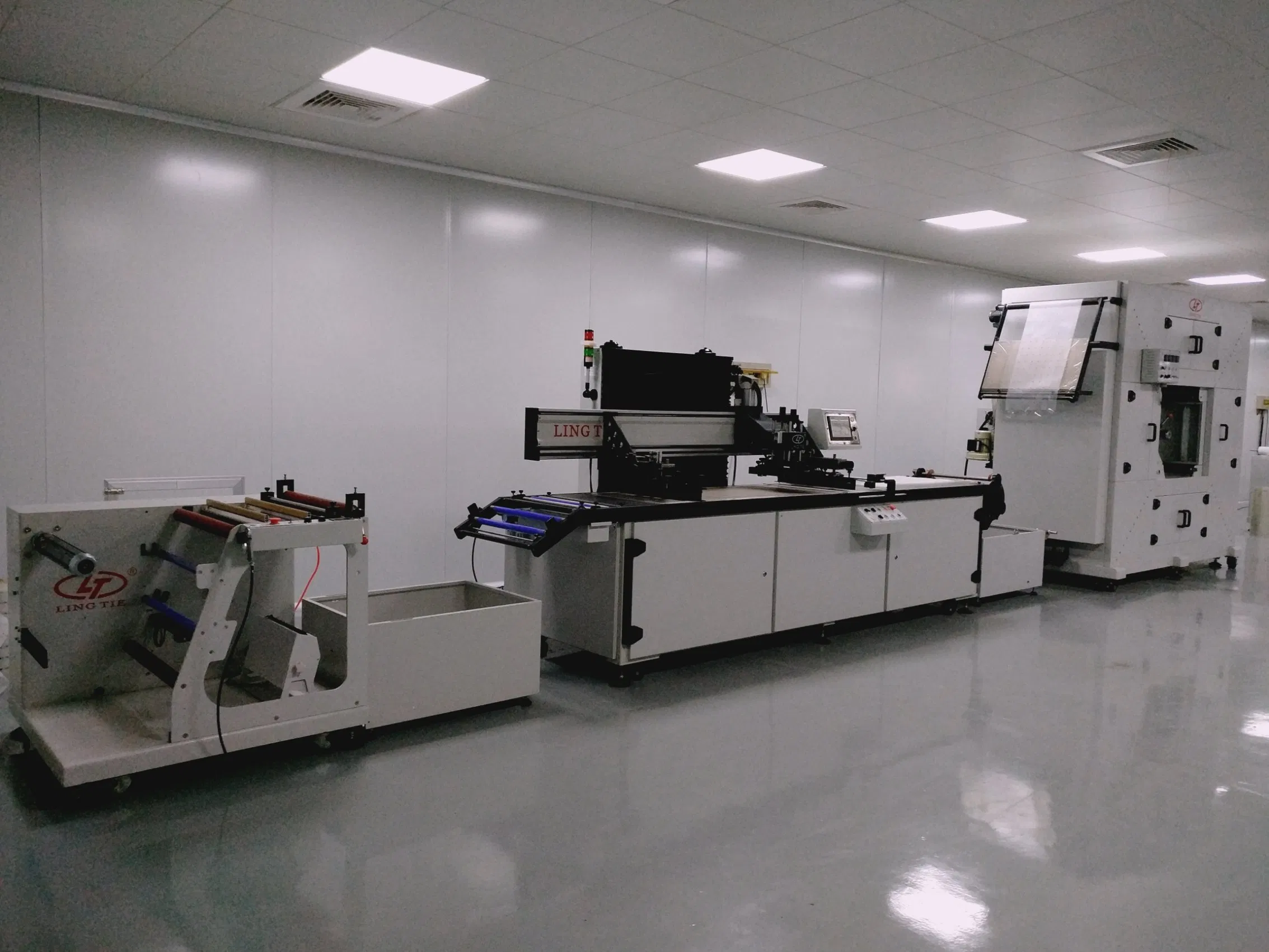

Full Printing Line Overview

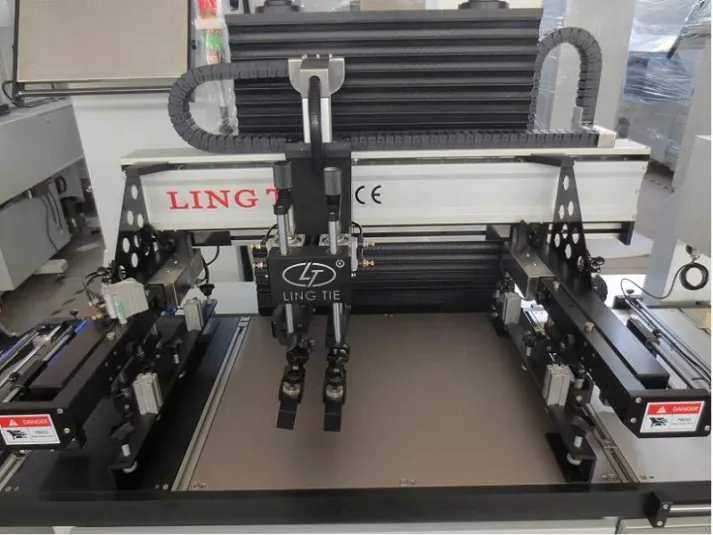

Vacuum table

Vacuum Table & Registration System

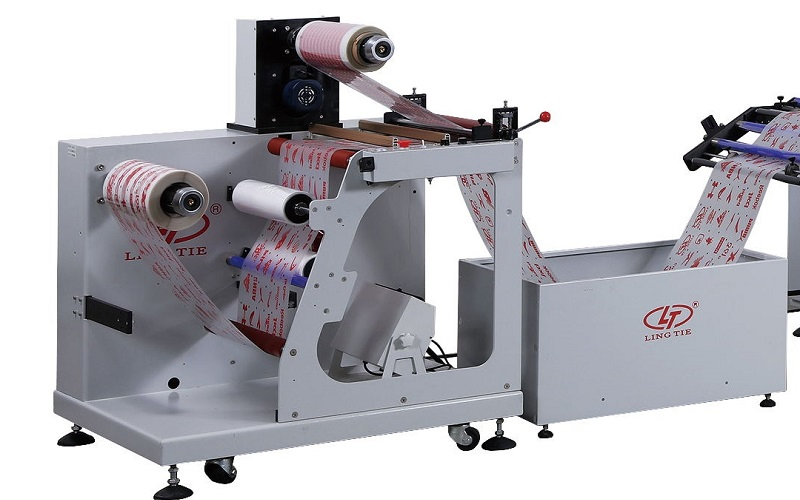

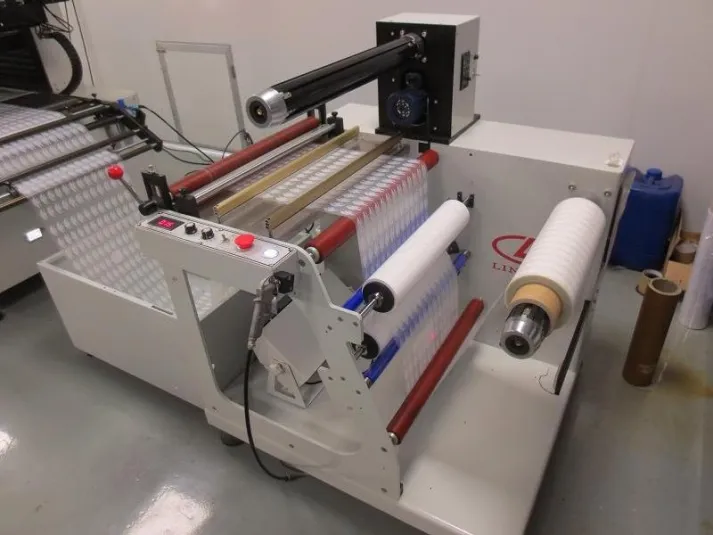

Feeder

Automatic Feeding & Cleaning Unit

Inspection station

Real-time Quality Inspection Station

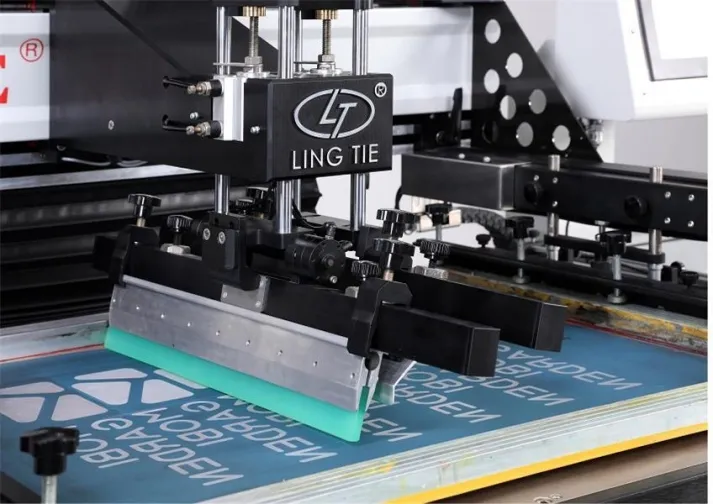

Print Head

High-Stability Printing Head

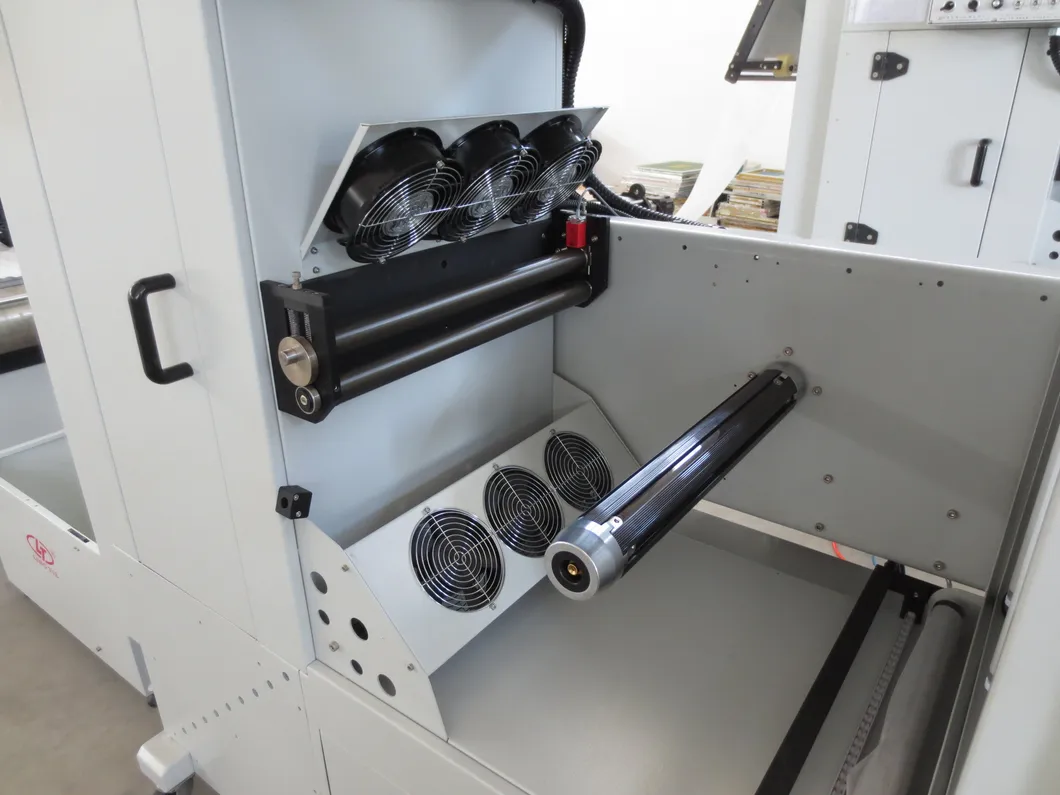

Rewinding Shaft

Automatic Rewinding Shaft

Samples & Facilities

Printed Samples

Precision Printed Samples

enterprise honor

Certifications and Honors

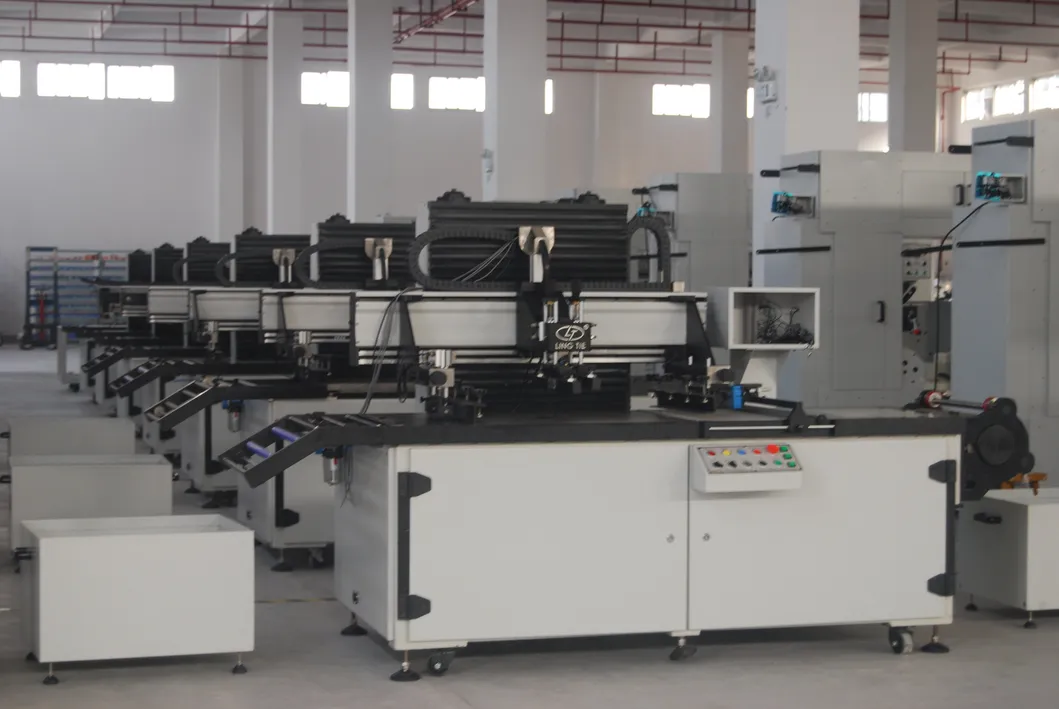

Workshop

Production Workshop

Exhibition

International Exhibition Display

Team and Customers

Professional Team and Global Clients

Machine Package

Export-Standard Wooden Case Packaging

Frequently Asked Questions

What materials are suitable for this screen printing machine?
The equipment is specifically designed for roll-to-roll materials including PET, PVC, PE, PV, and PP films, as well as non-woven fabrics and ceramic decals.
How accurate is the registration for multi-color printing?
The machine utilizes three photocell sensors for automatic registration, achieving a high precision accuracy of ±0.01mm, making it ideal for complex overprinting tasks.
How many workers are needed to operate the printing line?
Due to its high level of automation, the entire printing line, from feeding to drying and rewinding, can be efficiently managed by just one operator.
What are the drying options available?
We offer hot air dryers with pass lengths of 30M, 60M, or 80M, depending on your production speed and ink requirements.
What kind of after-sales support is provided?
We provide a one-year warranty and offer technical support with engineers available to service machinery overseas for installation and maintenance.
How is the equipment packaged for international shipping?
All equipment is securely packed in professional export-standard wooden boxes to ensure safe transport via sea or air container.
