Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
1 / 5
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment
Heat Transfer Label Automatic Screen Printing Equipment

Heat Transfer Label Automatic Screen Printing Equipment

Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

i

Basic Information

Model NO.
LTA-5060
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Application
Labels, Stickers, RFID, FPC, IMD,etc
Certification
Ce and ISO9001
Registration Accuracy
+/- 0.01mm
Max Printing Size
(500X600)mm
Warranty
One Year
Transport Package
Wooden Box
Specification
(L8200xW1200xH2000)mm
HS Code
8443911900
Production Capacity
30sets/Month
M

Product Description

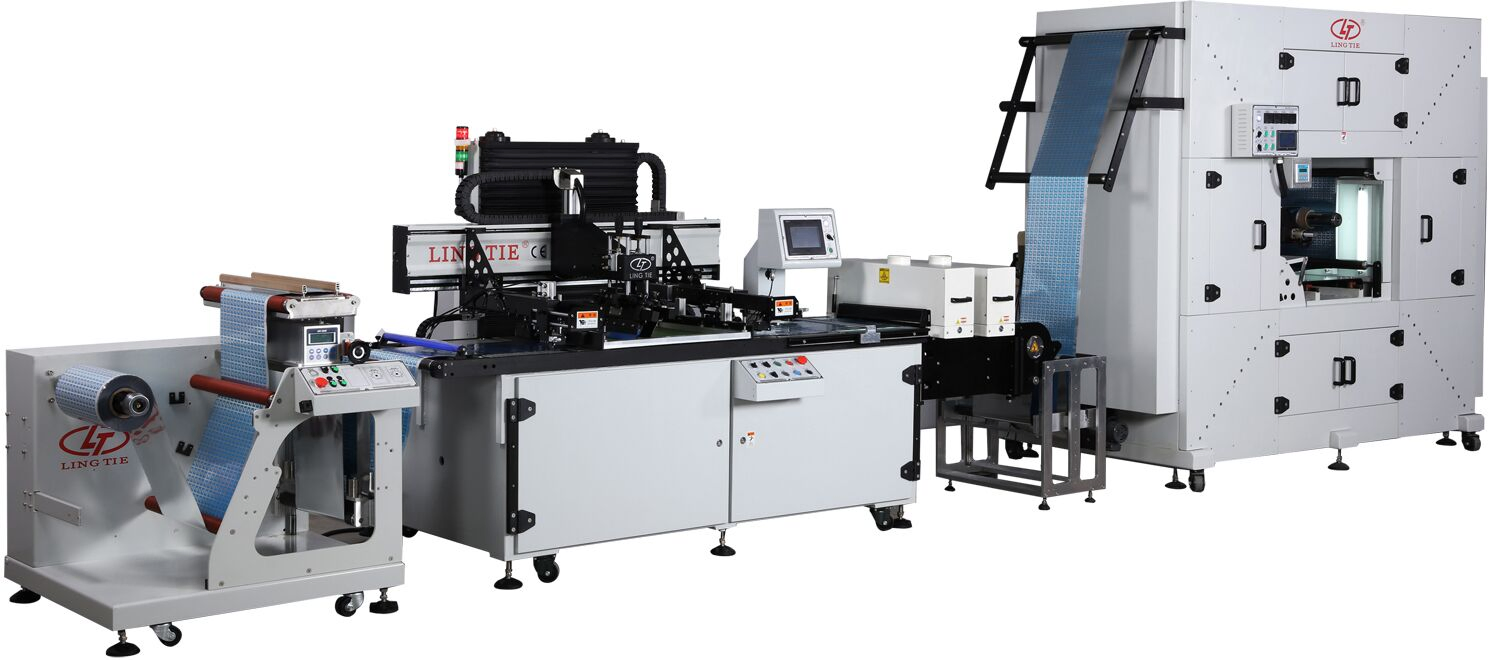

Heat Transfer Label Automatic Screen Printing Equipment

The Heat Transfer Label Roll to Roll Screen Printing Equipment is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film. This high-efficiency system is composed of a feeder, a printing unit, and a hot air dryer.

Advanced Feeder: Equipped with dust removal rollers and an automatic alarm system for material depletion.
Precision Printing: Features a vacuum table to fix PET film and three photocell sensors for perfect automatic registration.
Efficient Drying: Hot air dryer available in 30M, 60M, and 80M lengths, featuring cooling and automatic rewinding.

Key Advantages:

  • High level of automation: Only one person required to operate the entire line.
  • Exceptional accuracy: Supports high-precision multi-color overprinting.
  • Superior productivity: Capacity equivalent to six semi-automatic machines.

Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.

T

Machine Parameters

Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size 300x400mm 500x600mm 600x800mm
Printing Speed 0~5000 print/hr. 0~2500 print/hr. 0~2500 print/hr.
Max. Screen Frame Size 600x800mm 800x1000mm 900x1200mm
Max. Substrate Width 320mm 520mm 620mm
Registration Accuracy ±0.01mm ±0.01mm ±0.01mm
Power 220V, 3KW, 15A 220V, 3KW, 15A 220V, 3KW, 15A
Weight 600kgs 700kgs 950kgs
Dimensions (L*W*H) 7000x1100x1900mm 8200x1200x2000mm 9000x1350x2200mm
P

Machine Photos

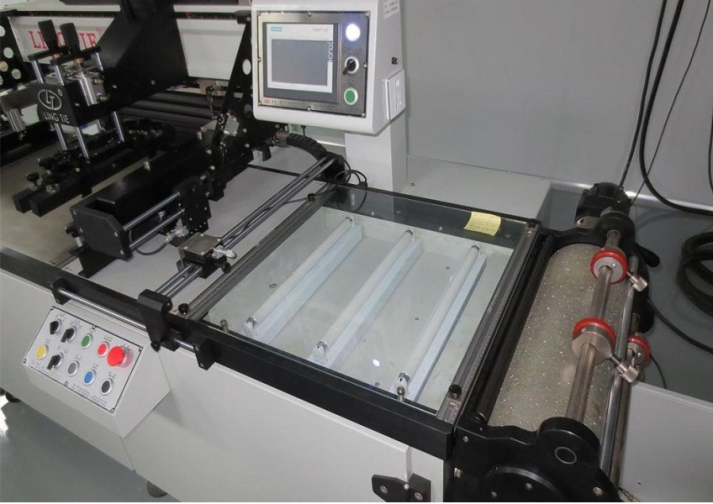

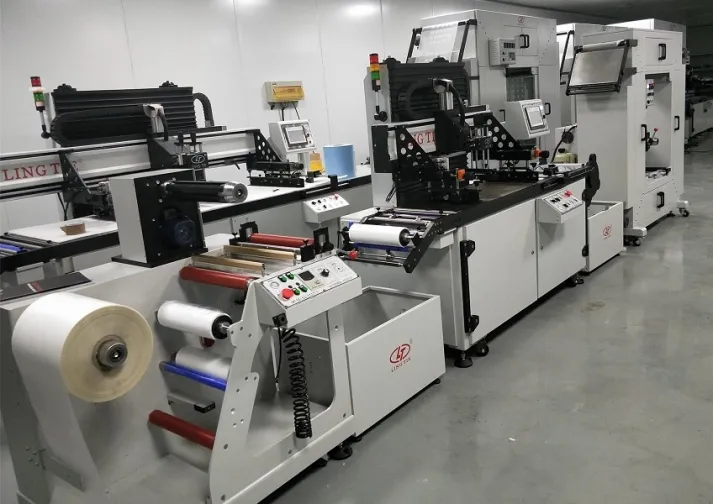

Automatic Screen Printing Equipment Overview
Heat Transfer Label Printing equipment: Feeder, Screen Printing unit and Hot Air Dryer.

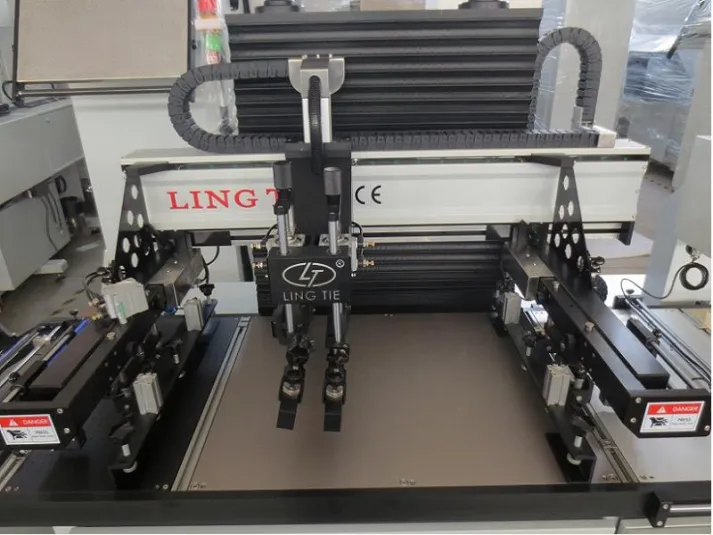

Vacuum table
Vacuum table: Automatic register system for screen alignment.

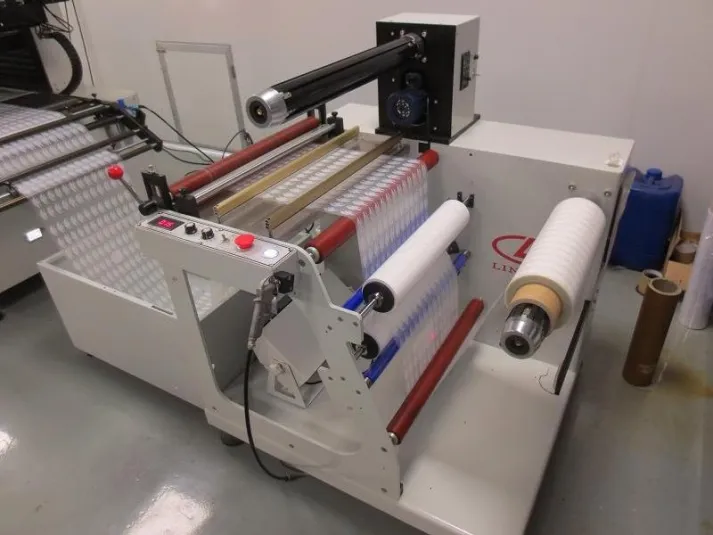

feeder unit
Feeder: Dust removing and electrostatic eliminating.
inspection station
Inspection station: Timely quality control.

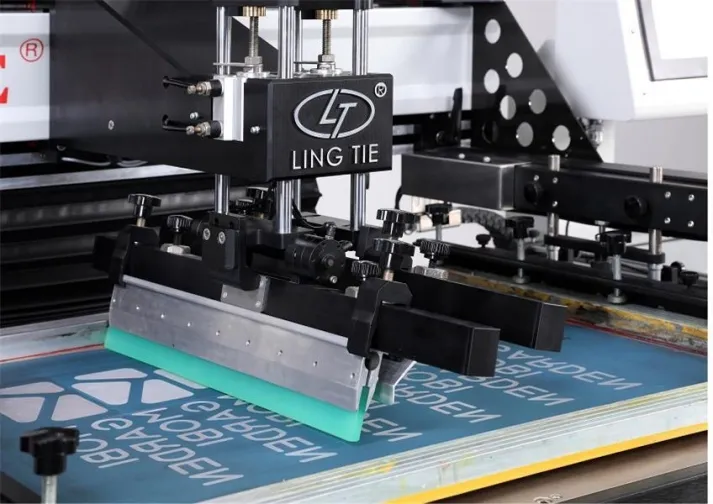

Print Head
Print Head: High stability for long-term industrial use.

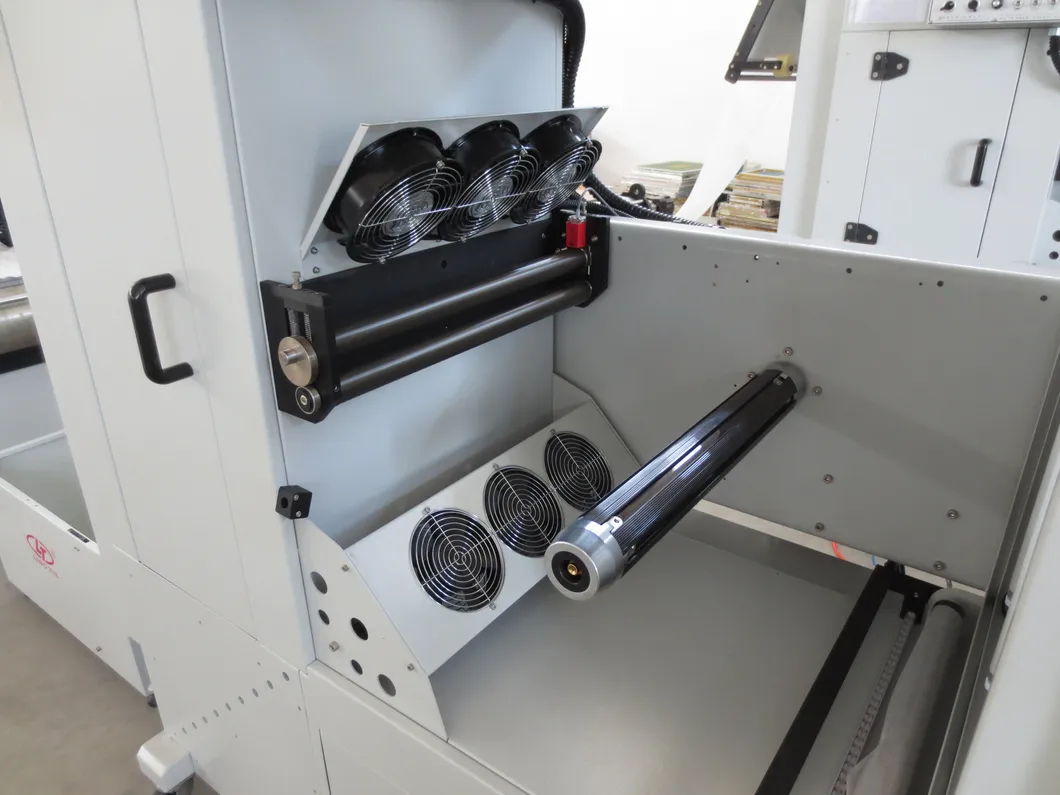

Rewinding Shaft
Rewinding Shaft: Automatic rewinding after tunnel drying.
S

Printed Samples & Workshop

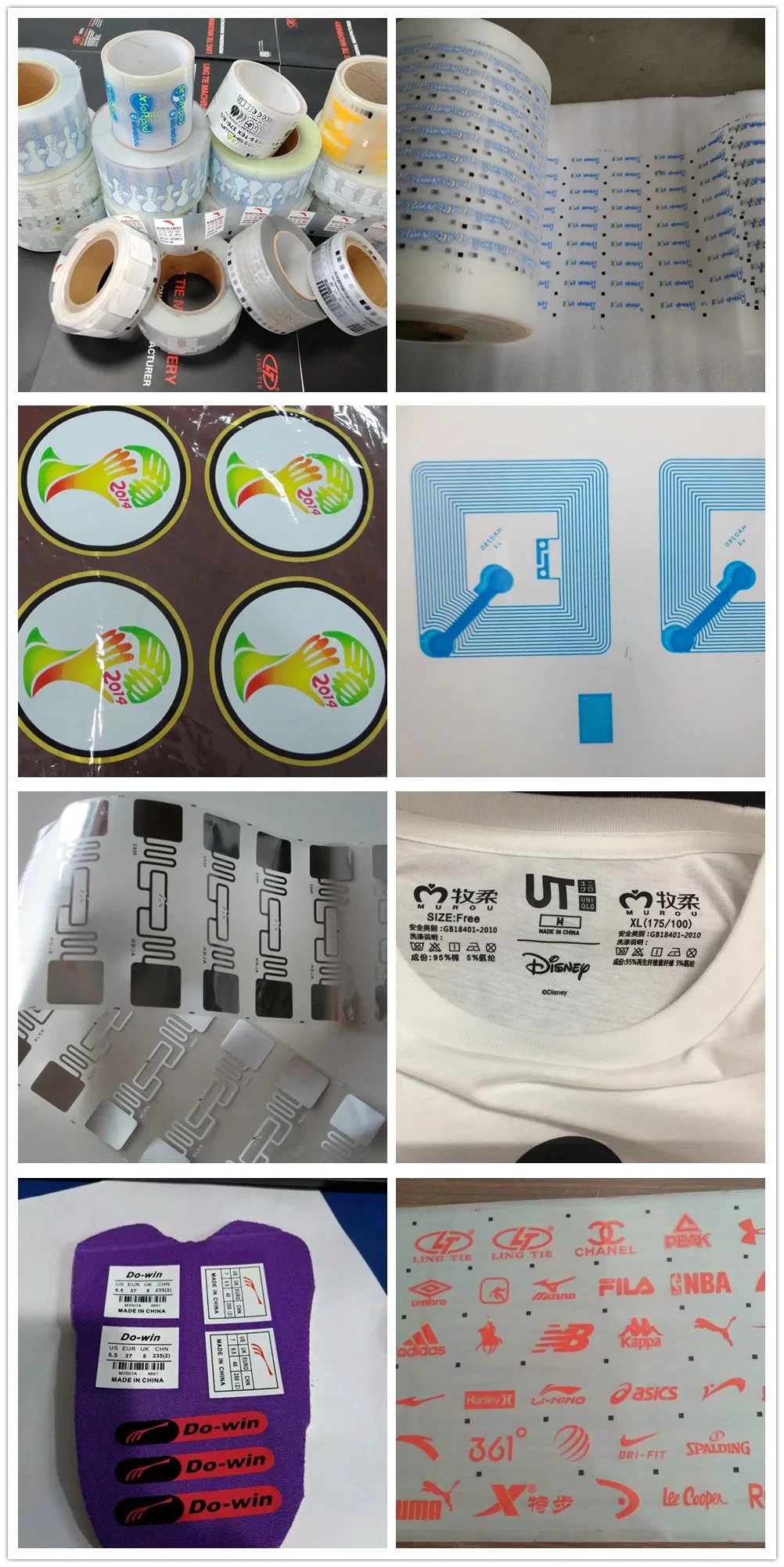

Printed Samples
Enterprise Honor

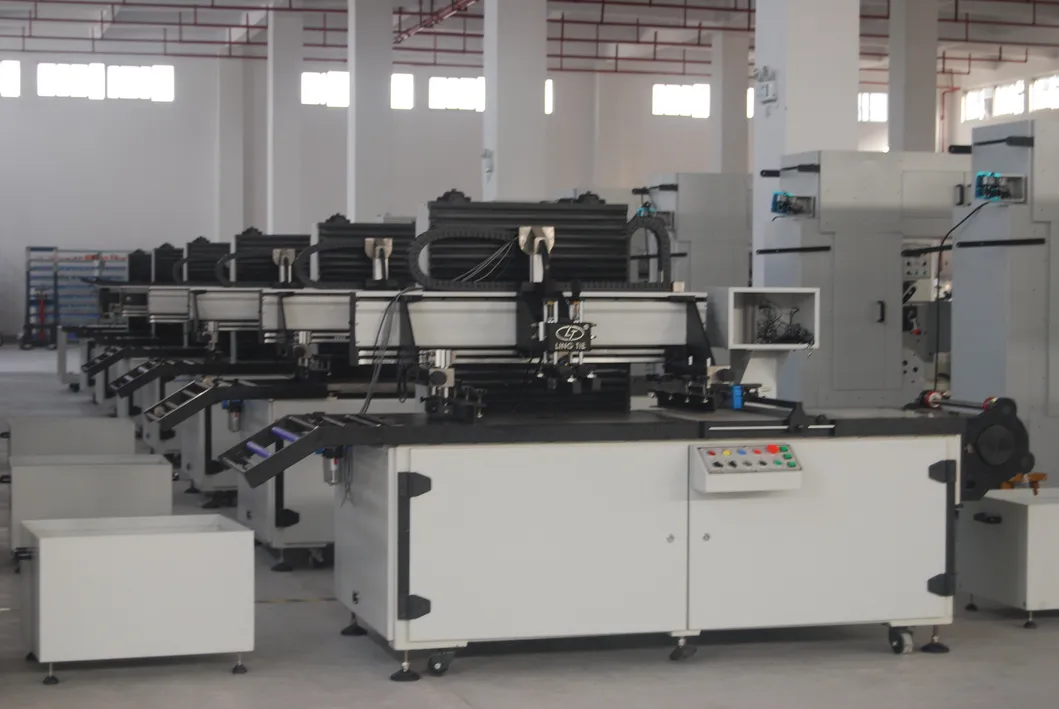

Workshop
Exhibition
Team and Customers
P

Packaging & Delivery

Heat Transfer Label Printing equipment is securely packed in wooden boxes for safe delivery via container shipping.

Machine Package
?

Frequently Asked Questions

What types of materials can this screen printing equipment handle?
The machine is designed for roll-to-roll film materials including PET, PVC, PE, PV, and PP films, commonly used for labels and heat transfers.
What is the registration accuracy for multi-color printing?
The equipment achieves a high registration accuracy of ±0.01mm, ensured by three photocell sensors and a vacuum table.
How many operators are required for the production line?
Thanks to its high level of automation, the entire printing line, from feeding to drying and rewinding, can be operated by just one person.
What are the drying options available for the system?
The hot air dryer comes with pass length options of 30M, 60M, and 80M to suit different production speeds and ink requirements.
What is the production capacity compared to manual machines?
The productivity of this automatic roll-to-roll system is equivalent to approximately six sets of semi-automatic screen printing machines.
What kind of after-sales support is provided?
The machine comes with a one-year warranty, and engineers are available to provide machinery service overseas if required.
