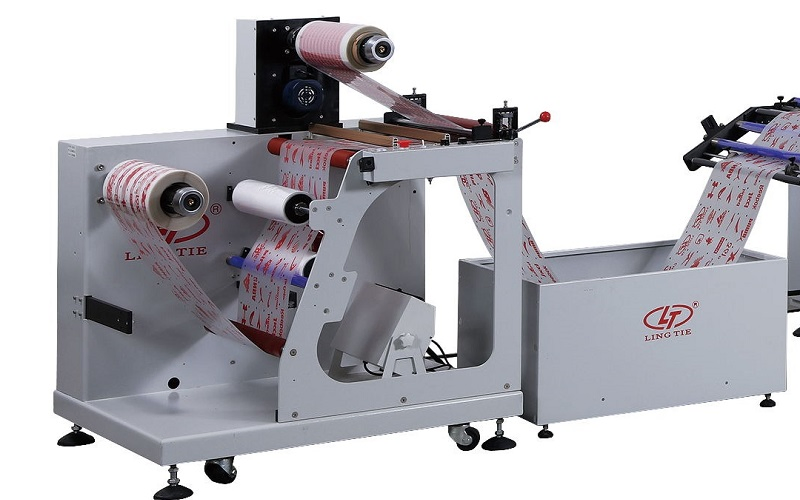

Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
1 / 5
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment

Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment

Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

Basic Specifications
Model NO.
LTA-3040
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Application
Labels, Stickers, RFID, FPC, IMD,etc
Certification
Ce and ISO9001
Registration Accuracy
+/- 0.01mm
Max Printing Size
(500X600)mm
Warranty
One Year
Transport Package
Wooden Box
Specification
(L8200xW1200xH2000)mm
HS Code
8443911900
Production Capacity
30sets/Month
Heat Transfer Label Automatic Roll to Roll Screen Printing Equipment

The Heat Transfer Label Roll to Roll Screen Printing Equipment is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film. This high-performance line consists of a feeder, a high-precision printing unit, and a hot air dryer.

  • Feeder Unit: Features dust removal rollers and an automatic alarm for material depletion.

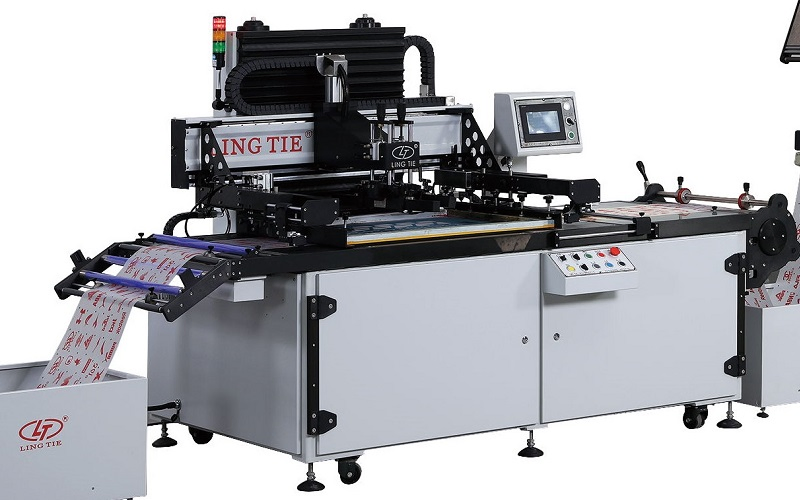

  • Printing Unit: Vacuum table fixes PET film in position. Equipped with three photocell sensors for automatic registration to ensure ±0.01mm accuracy.

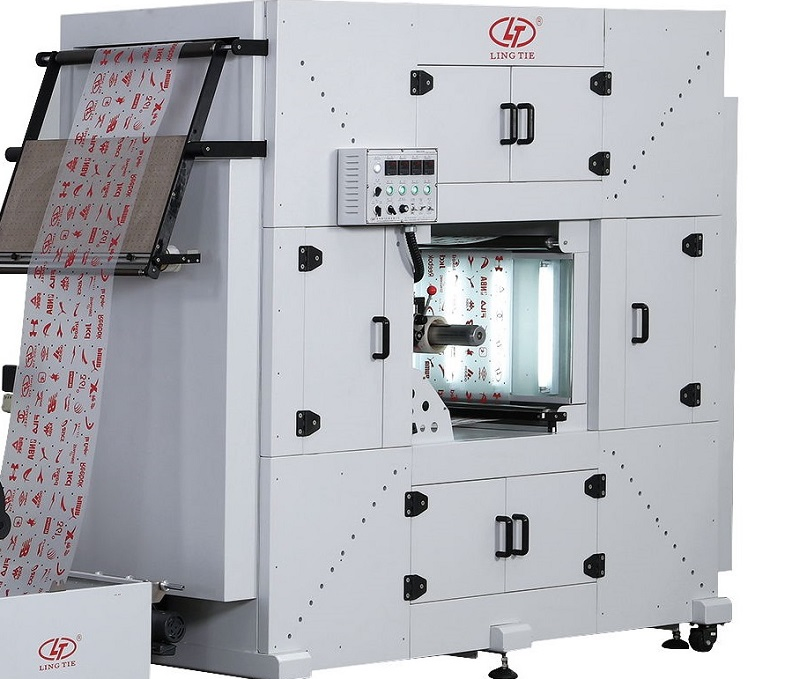

  • Drying System: Hot air dryer with 30M, 60M, or 80M pass options. Includes cooling and automatic rewinding functionality.
  • High Automation: Only one operator is required for the entire production line.
  • Superior Productivity: Production capacity is equivalent to six sets of semi-automatic screen printing machines.

Applications: RFID, heat transfer labels, stickers, membrane switches, graphic overlays, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplates, and non-woven fabrics.

Machine Parameters
Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size300x400mm500x600mm600x800mm
Printing Speed0~5000 print/hr.0~2500 print/hr.0~2500 print/hr.
Max. Screen Frame Size600x800mm800x1000mm900x1200mm
Max. Substrate Width320mm520mm620mm
Registration Accuracy±0.01mm±0.01mm±0.01mm
Power220V, 3KW, 15A220V, 3KW, 15A220V, 3KW, 15A
Weight600kgs700kgs950kgs
Dimensions (LxWxH)7000x1100x1900mm8200x1200x2000mm9000x1350x2200mm
Machine Components

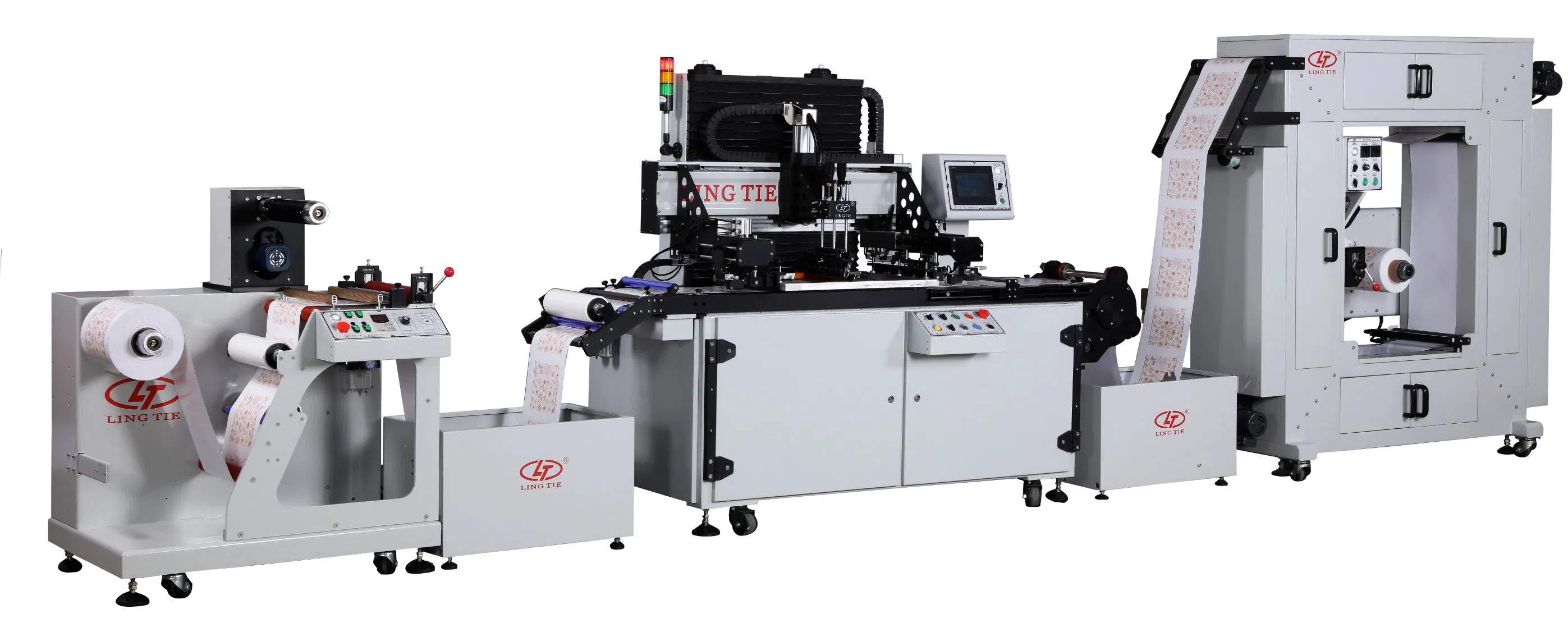

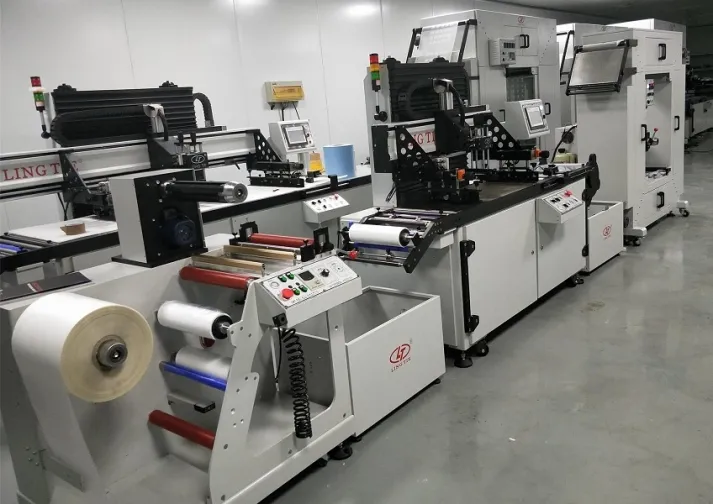

Roll to Roll Screen Printing Equipment

Full Production Line: Feeder, Printer, and Dryer

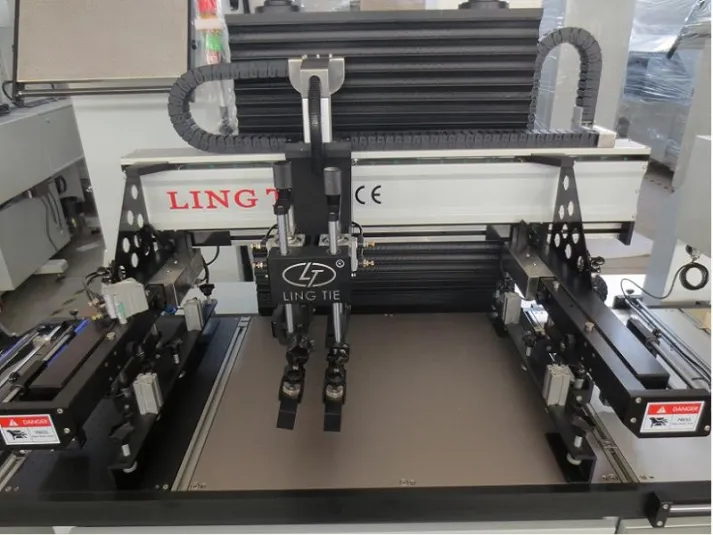

Vacuum table

Vacuum Table with Automatic Register System

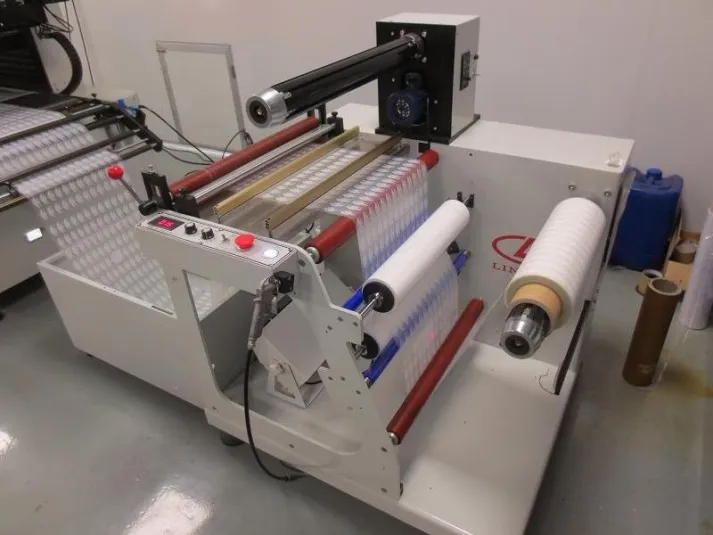

Feeder

Automatic Feeder: Dust & Static Removal

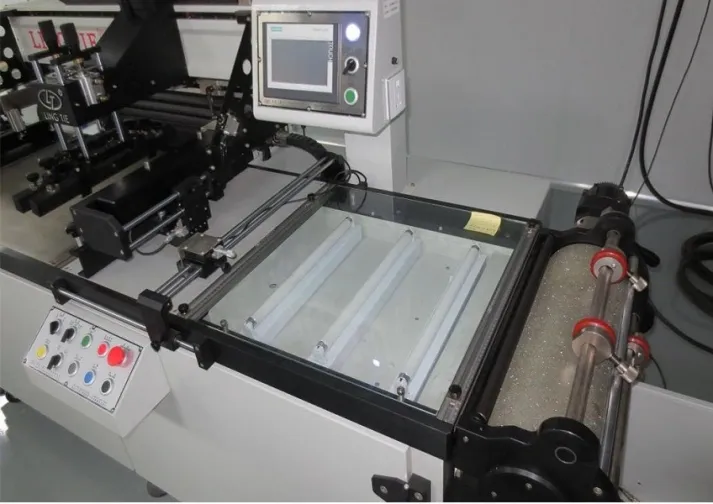

Inspection station

Inspection Station for Quality Control

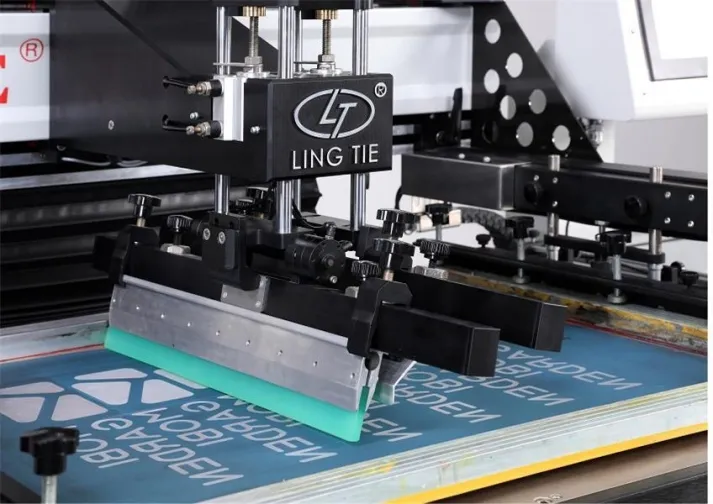

Print Head

High-Stability Industrial Print Head

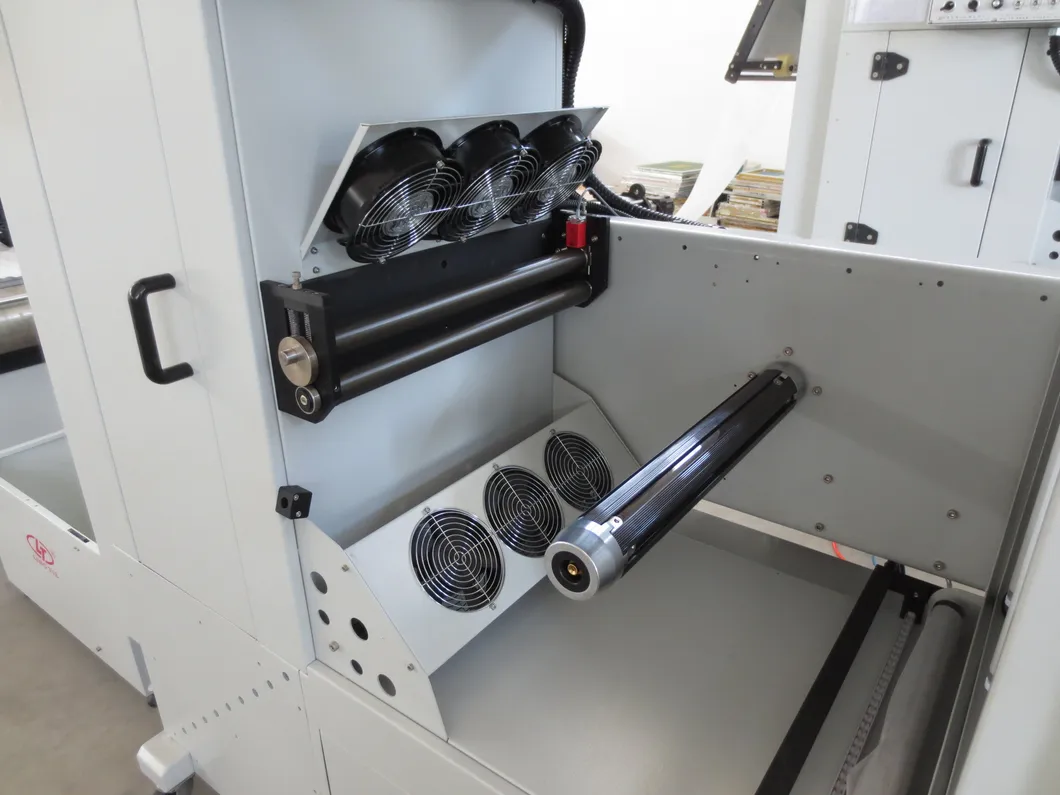

Rewinding Shaft

Automatic Rewinding Shaft after Drying

Printed Samples & Workshop

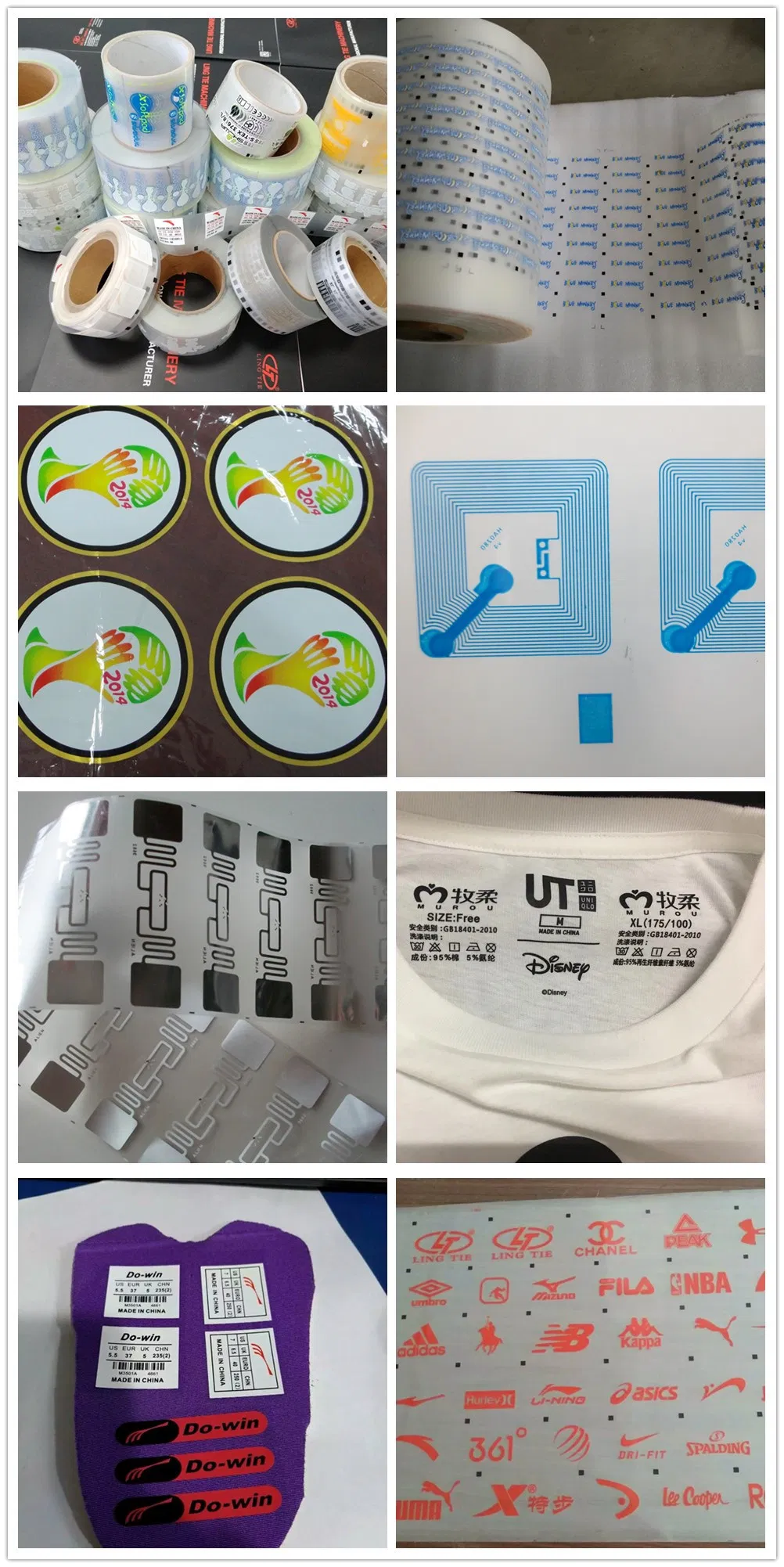

Printed Samples
Honor Enterprise Honor

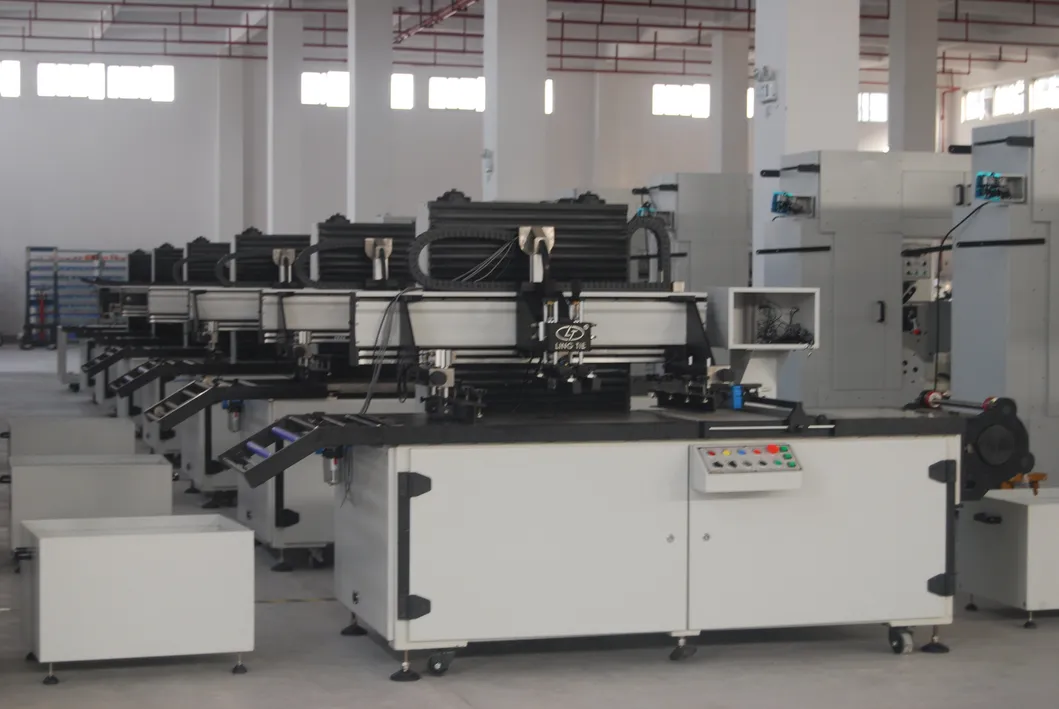

Workshop
Exhibition
Team and Customers

Machine Package: The equipment is securely packed in wooden boxes for safe international delivery via container.

Wooden Box Package
Frequently Asked Questions
What materials can this screen printing machine handle?
The machine is designed for various roll-to-roll film materials including PET, PVC, PE, PV, and PP film.
What is the printing accuracy for multi-color jobs?
It provides a registration accuracy of ±0.01mm, thanks to its vacuum table and three photocell sensors.
Is the machine easy to operate?
Yes, the equipment is highly automated. Only one operator is needed to manage the entire printing line.
Does the system include a drying process?
Yes, it includes a hot air dryer with options for 30M, 60M, or 80M pass lengths to ensure thorough curing before rewinding.
What is the production capacity of this model?
Depending on the model, it can reach up to 5000 prints per hour, equivalent to six semi-automatic machines.
How is the equipment protected during shipping?
All machines are professionally packed in robust wooden boxes suitable for long-distance container transport.
