Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
1 / 5
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine
Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine

Hot Sell H1 Industrial Large Format High Speed Multi-Pass Textile Digital Printing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
H1
Style
Digital Printing
Structure
No Press
Color & Page
Multi Color
Usage
Cloths, Paper, Label, Card, Bill, Tube Printer
Automatic Grade
Automatic
Print Interface
USB 3.0
System Support
Win10
Ink Type
Water Based Pigment
Transport Package
Wooden Box / Container
Specification
5053× 6150× 2100mm
Origin
China
⚙️ Product Parameters
Machine Model H1- K32 H1- K48 H1- M32 H1- S64
Max Printing Width 1800mm
Printhead Brand Kyocera EX600RC Kyocera EX600RC Epson S3200 Dimatix SG1024
Printhead QTY/Color 32 Heads / 8 Colors 48 Heads / 12 Colors 32 Heads / 8 Colors 64 Heads / 8 Colors
1 Pass Speed 867 - 948 sqm/h 821 - 911 sqm/h 831 - 925 sqm/h 783 sqm/h
Applicable Media Natural Fiber / Polyester / Etc.
Power Supply 3 Phase 380VAC, 17KW
Dimensions 4000×4672×2010mm
Weight 5200kg
🖼️ Detailed Photos
H1 MULTI-PASS TEXTILE DIGITAL PRINTER
H1 Industrial Large Format Printer
Product Detail 1

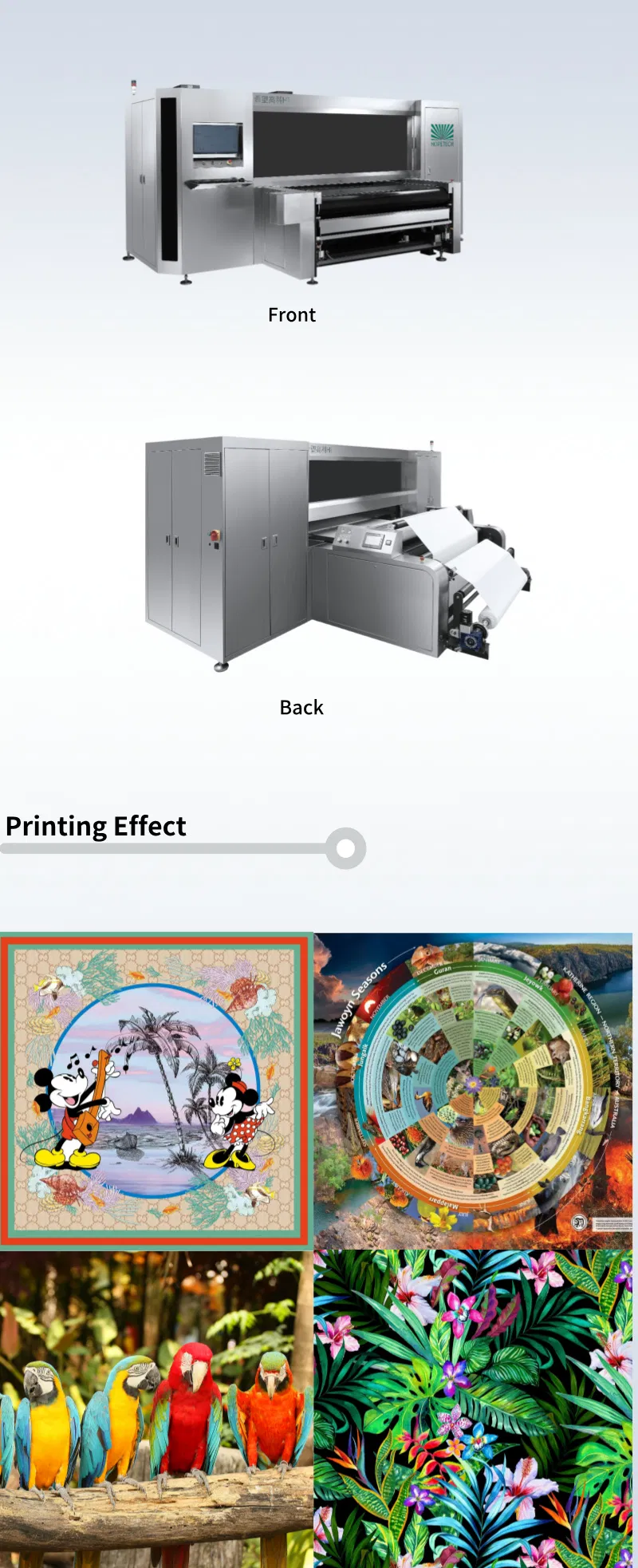

Product Detail 2
🏗️ Technical Capabilities
Technical Specifications Overview
Production Workflow
❓ Frequently Asked Questions
What types of fabrics can the H1 printer work with?
The H1 digital printer is highly versatile and applicable to various media, including natural fibers, polyester, and blended fabrics.
What is the maximum production speed of this machine?
Depending on the model and printhead configuration, the H1 can reach speeds up to 948 sqm/h in 1-pass mode.
What kind of printheads are used in the H1 series?
The H1 series supports high-end industrial printheads including Kyocera EX600RC, Epson S3200, and Dimatix SG1024, ensuring high precision and durability.
Does the printer support high-definition printing modes?
Yes, it features both High Definition Mode for intricate designs and High Speed Mode for industrial-scale production efficiency.
What are the power and space requirements for installation?
The machine requires a 3-Phase 380VAC power supply (17KW) and has a footprint of approximately 5053× 6150× 2100mm.
What type of ink is used for textile printing?
The system uses Water-Based Pigment ink, which is environmentally friendly and provides excellent color results on various textile surfaces.
