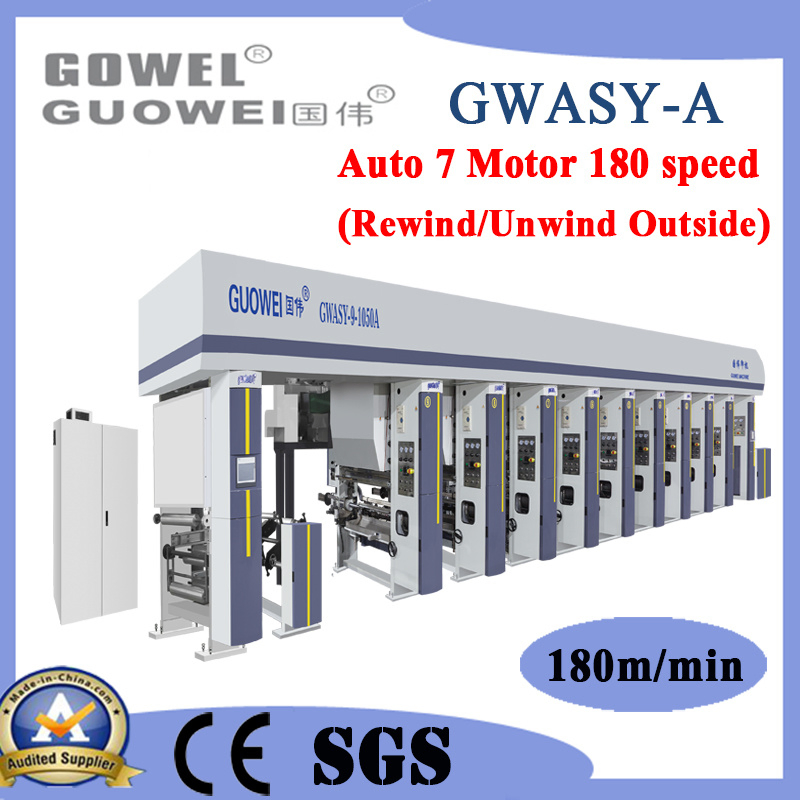

Guowei High-Speed Flexible Packaging Gravure Printing Equipment

Customization:	Available
Certification:	CE
Condition:	NEW

Send Inquiry

Product Description

Basic Specifications

Model NO.

GWASY-A

Applicable Material

Textile, Film, Paper, Plastic

Usage

Flexible Packaging Gravure Printing Machine

Automatic Grade

Automatic

Structure

Rotary Type Printing Machine

Printing Color

8 Colors (Adjustable)

Machine Speed

180 M/Min

+-0.1mm

Guarantee

1 Year

Origin

China

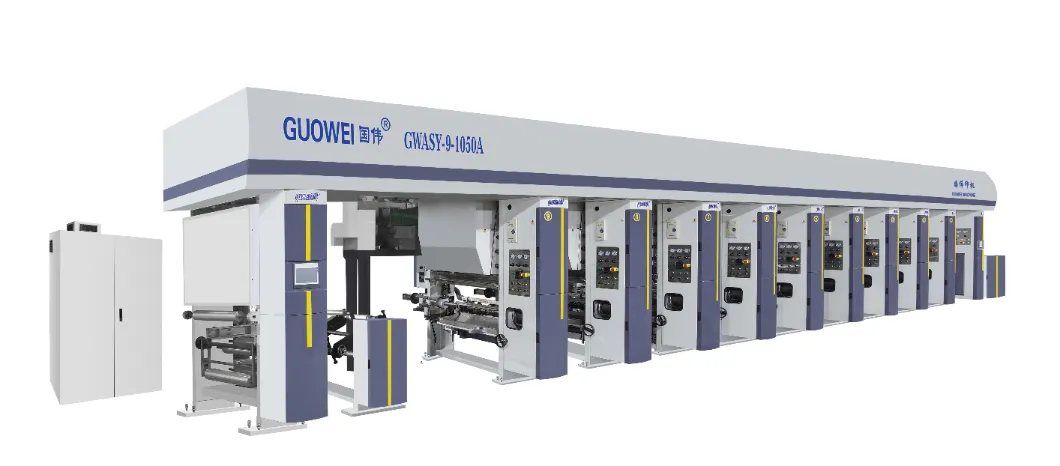

High-speed Flexible Packaging Gravure Printing Equipment

This high-speed gravure printing equipment is engineered for processing BOPP, PET, PVC, PE, aluminum foil, and roll paper. It provides exceptional continuous multi-color printing properties, making it an ideal choice for high-grade flexible packaging applications.

Feature	Technical Specifications
Printing Material	BOPP, PET, PVC, PE, aluminum foil and roll paper
Color Options	Multicolor 8 (Scalable from 1-13)
Max. Printing Width	600mm / 800mm / 1000mm / 1100mm / 1200mm
Max. Printing Speed	180 m/min
Drying Method	Electric, Steam, or Oil heating options
Register Precision	+-0.1mm
Control System	Siemens PLC & YASKAWA Frequency Converter

Key Unit Features

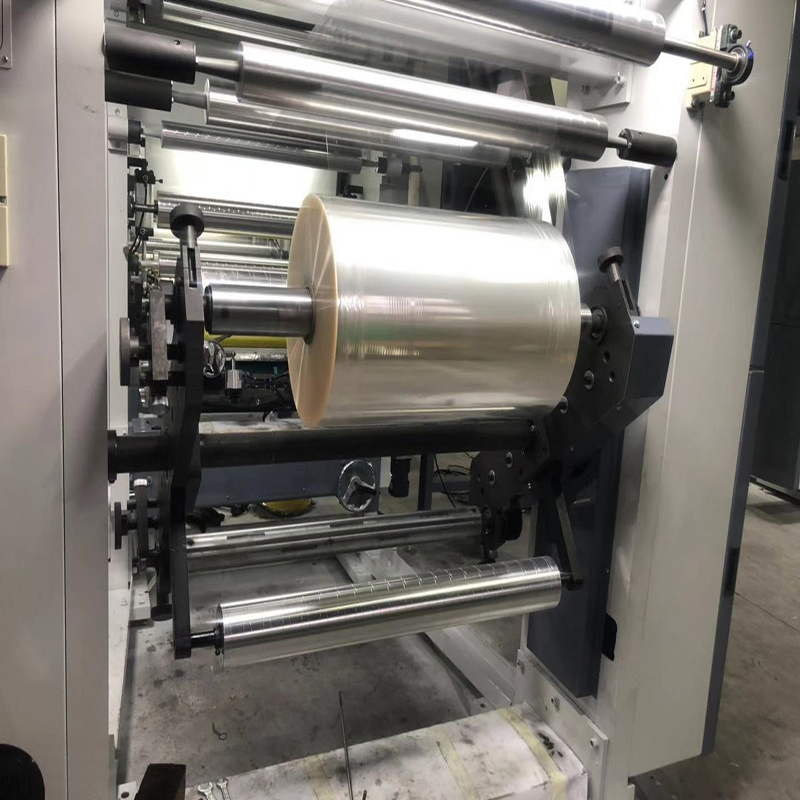

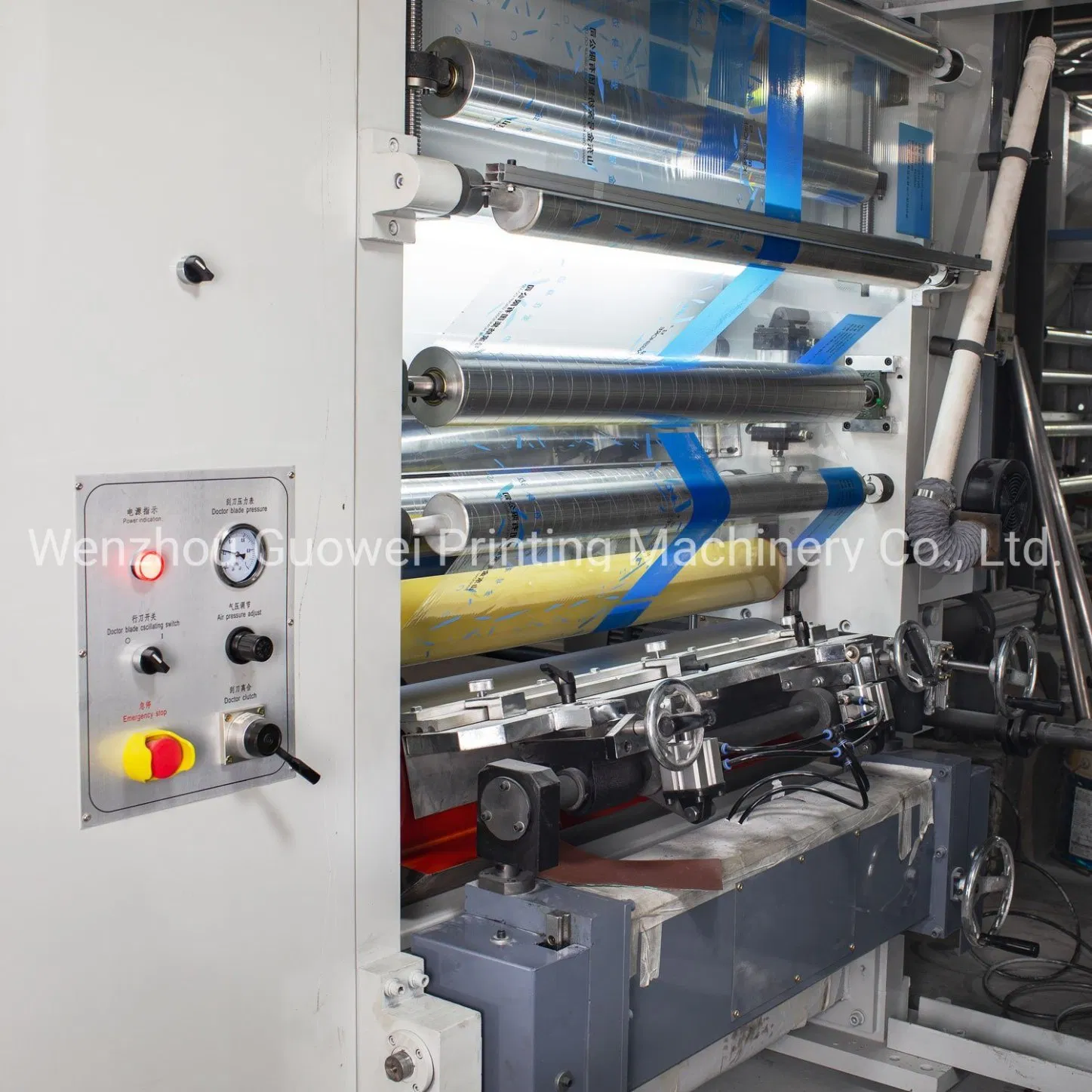

Unwinding & In-feed

Double working position rotary rack with built-in arms.
Closed-loop tension control with oscillating roll stabilization.
Independent drive control system using vector frequency conversion.
360-degree rotation (positive and negative) for rotary arms.

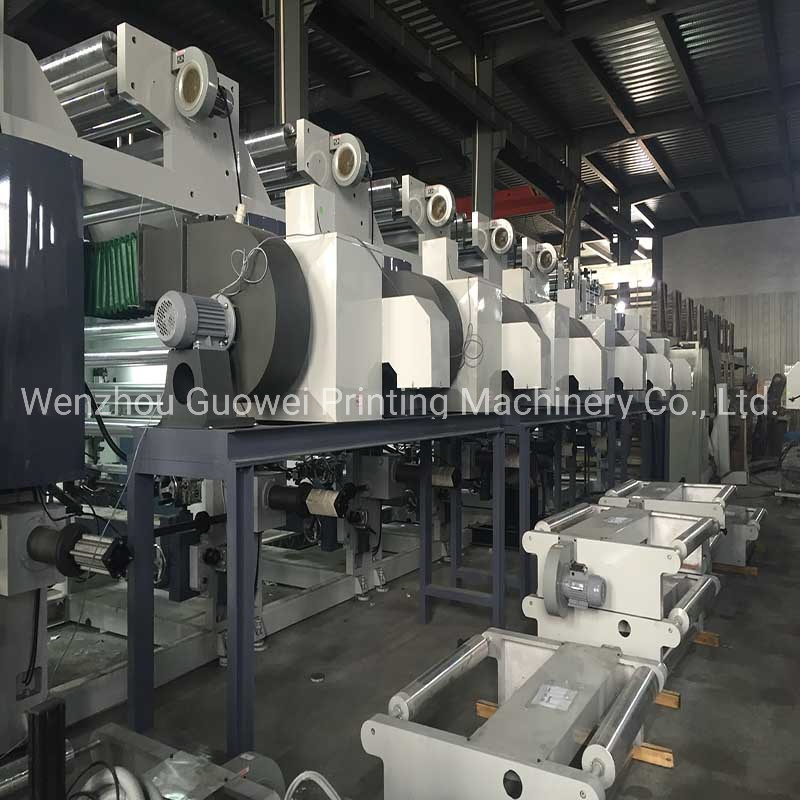

Drying System

Independent drying for monochromatic groups.
Energy-saving design utilizes return air two times.
Intelligent constant temperature control.
Door-type box body for easy material threading and tight sealing.

Rewinding & Frame

High-speed non-stop refueling with automatic cutting.
Integral type high-strength low-alloy cast iron wall for maximum stability.

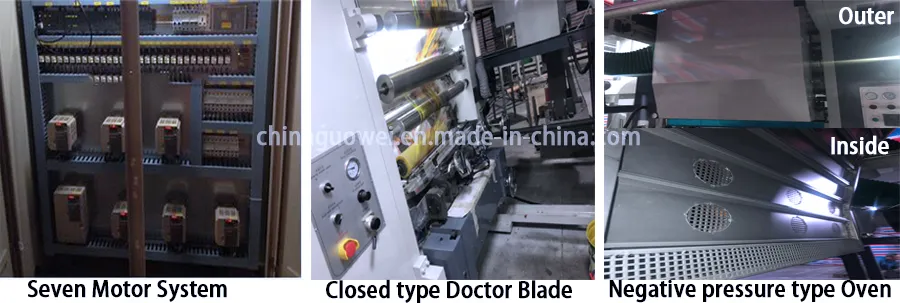

Seven-motor tension control system.
Vertical register system for high precision and minimized waste.

Frequently Asked Questions

What materials can this machine print on?

The machine is highly versatile and can print on BOPP, PET, PVC, PE, aluminum foil, and various types of roll paper.

What is the maximum printing speed and precision?

The machine reaches a mechanical speed of up to 180 meters per minute with a vertical register precision of +-0.1mm.

How is the tension managed during high-speed operation?

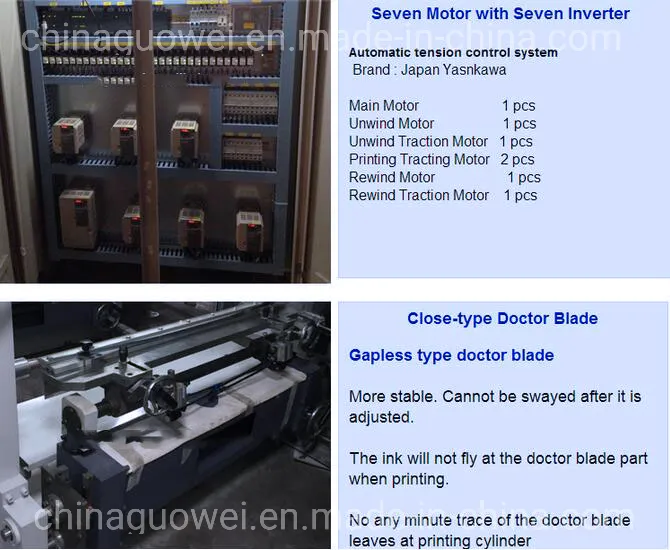

It utilizes a sophisticated seven-motor tension control system combined with Siemens PLC and YASKAWA frequency converters for stable, closed-loop control.

Does the machine support non-stop material changes?

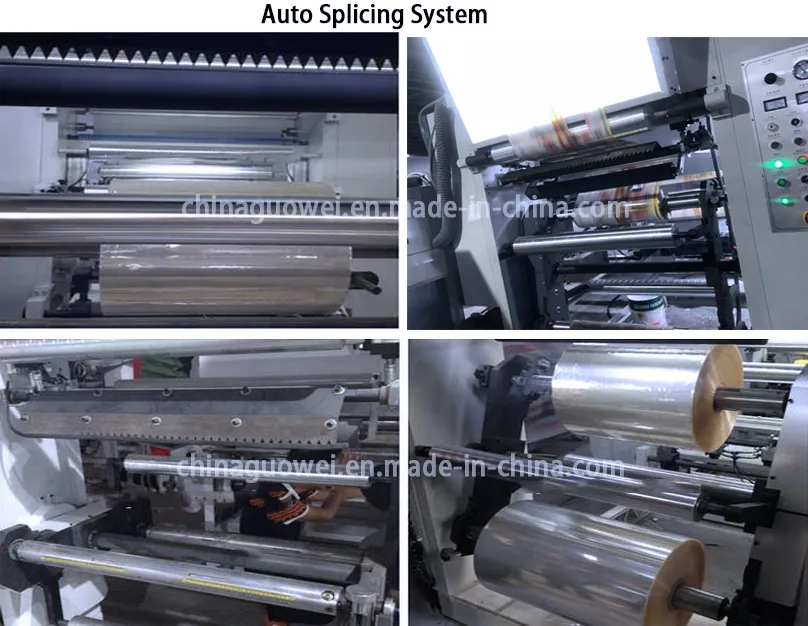

Yes, the rewinding part features high-speed non-stop refueling, where the new volume automatically drives at the same speed as the host for automatic cutting.

What drying options are available?

Users can choose between electric heating, steam heating, or oil heating, depending on their facility's infrastructure and energy requirements.

What are the warranty and after-sales terms?

The machine comes with a 1-year guarantee. Technical support is available, including engineers for overseas machinery service and installation.
