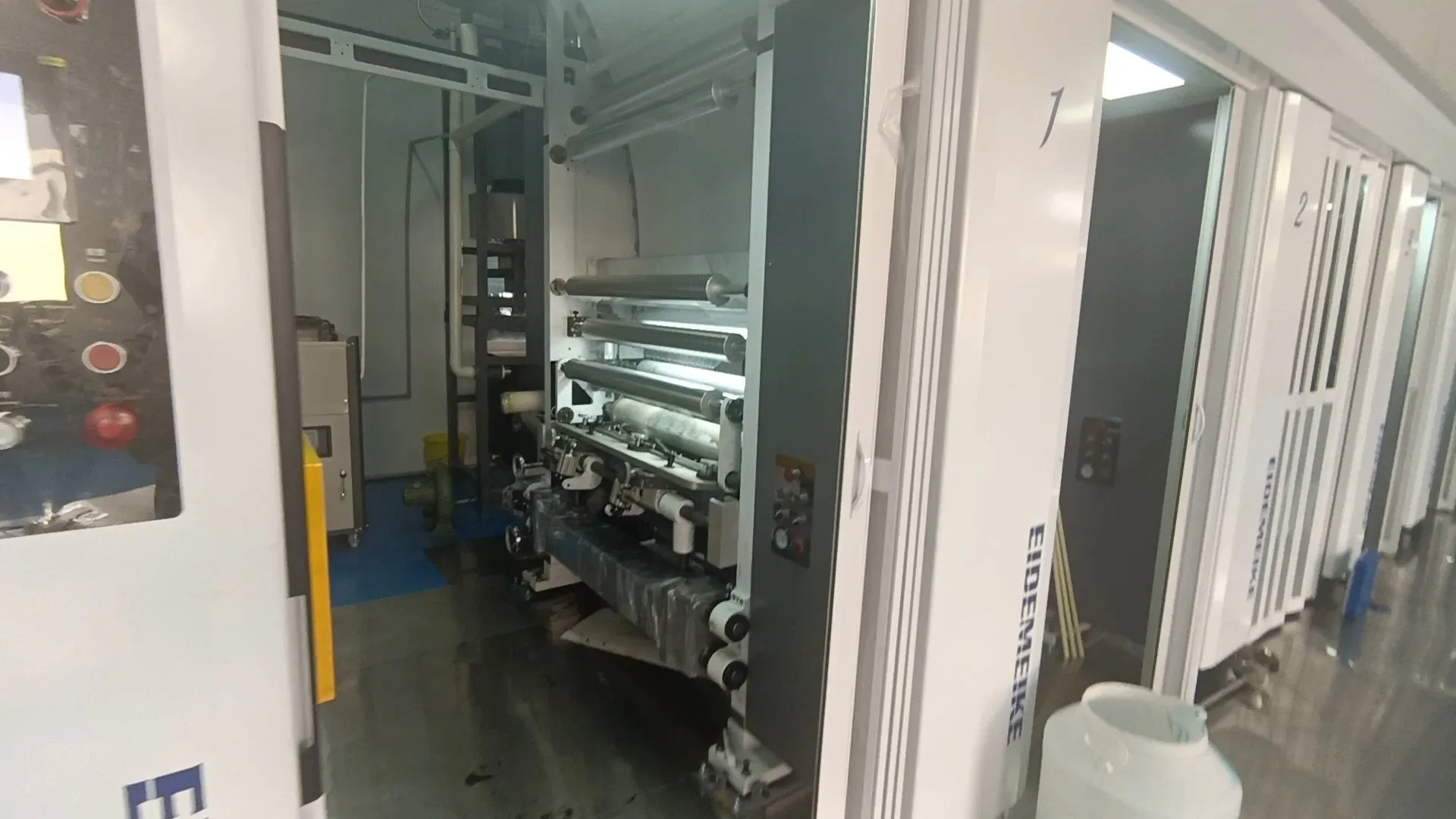

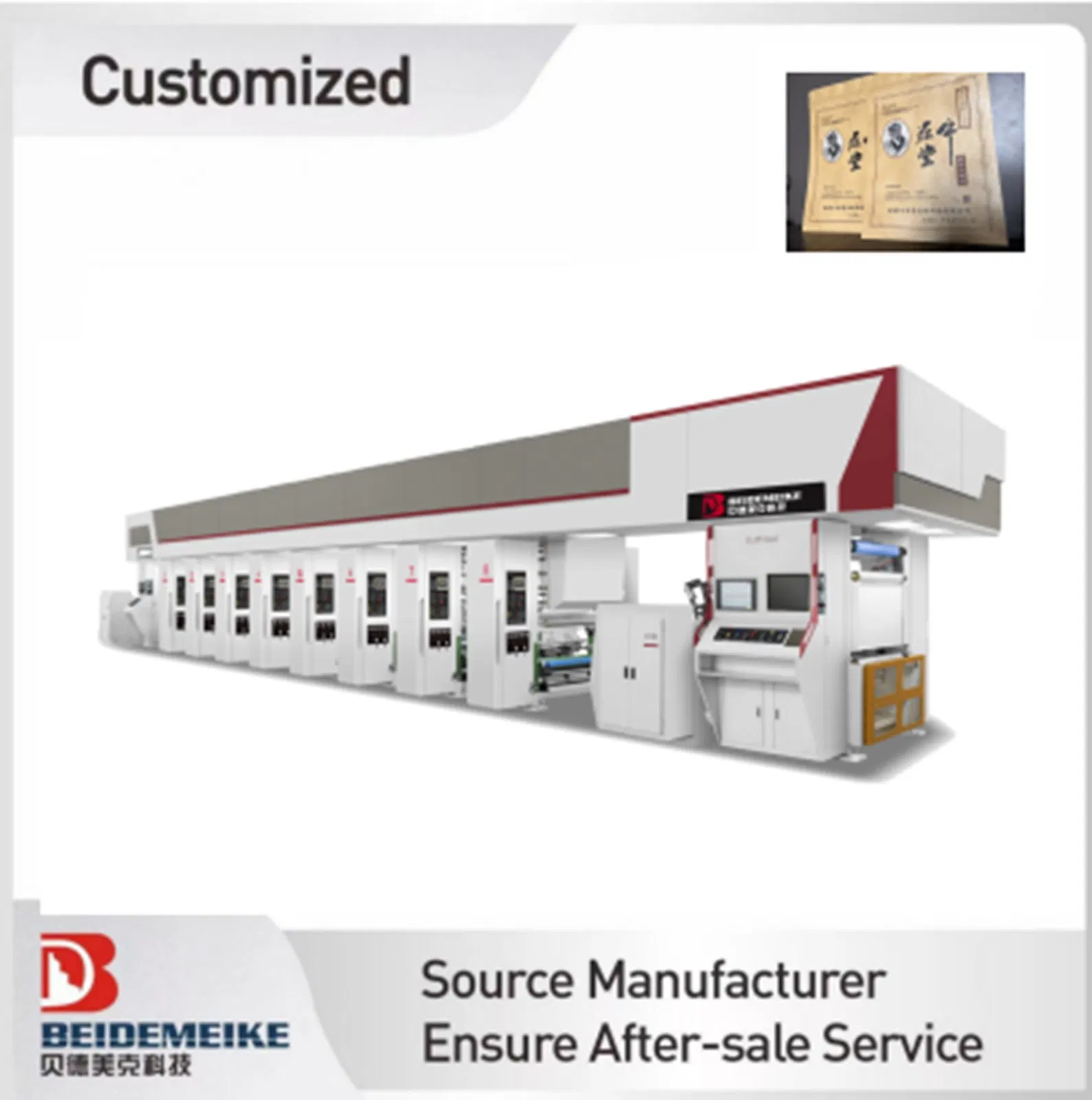

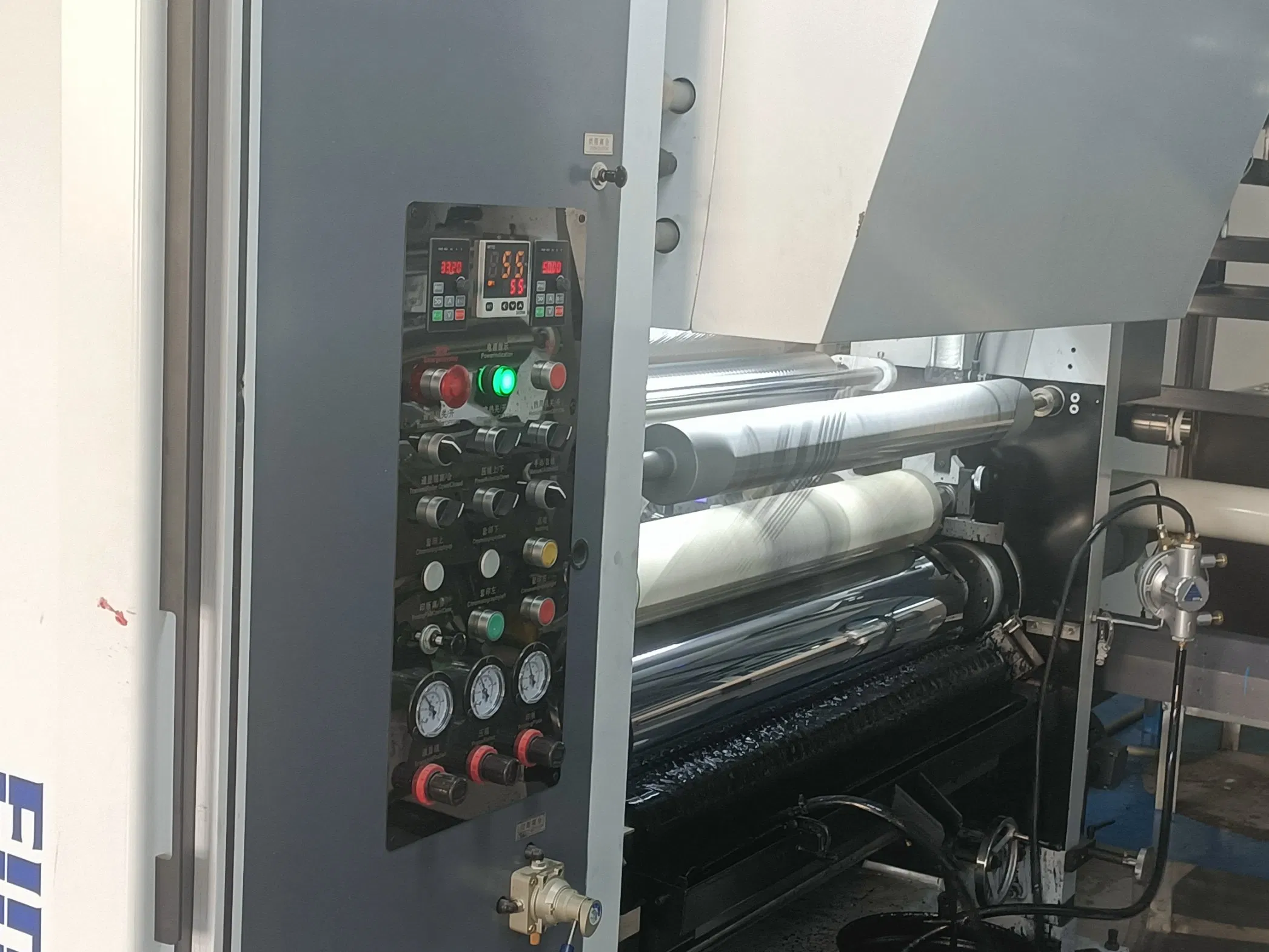

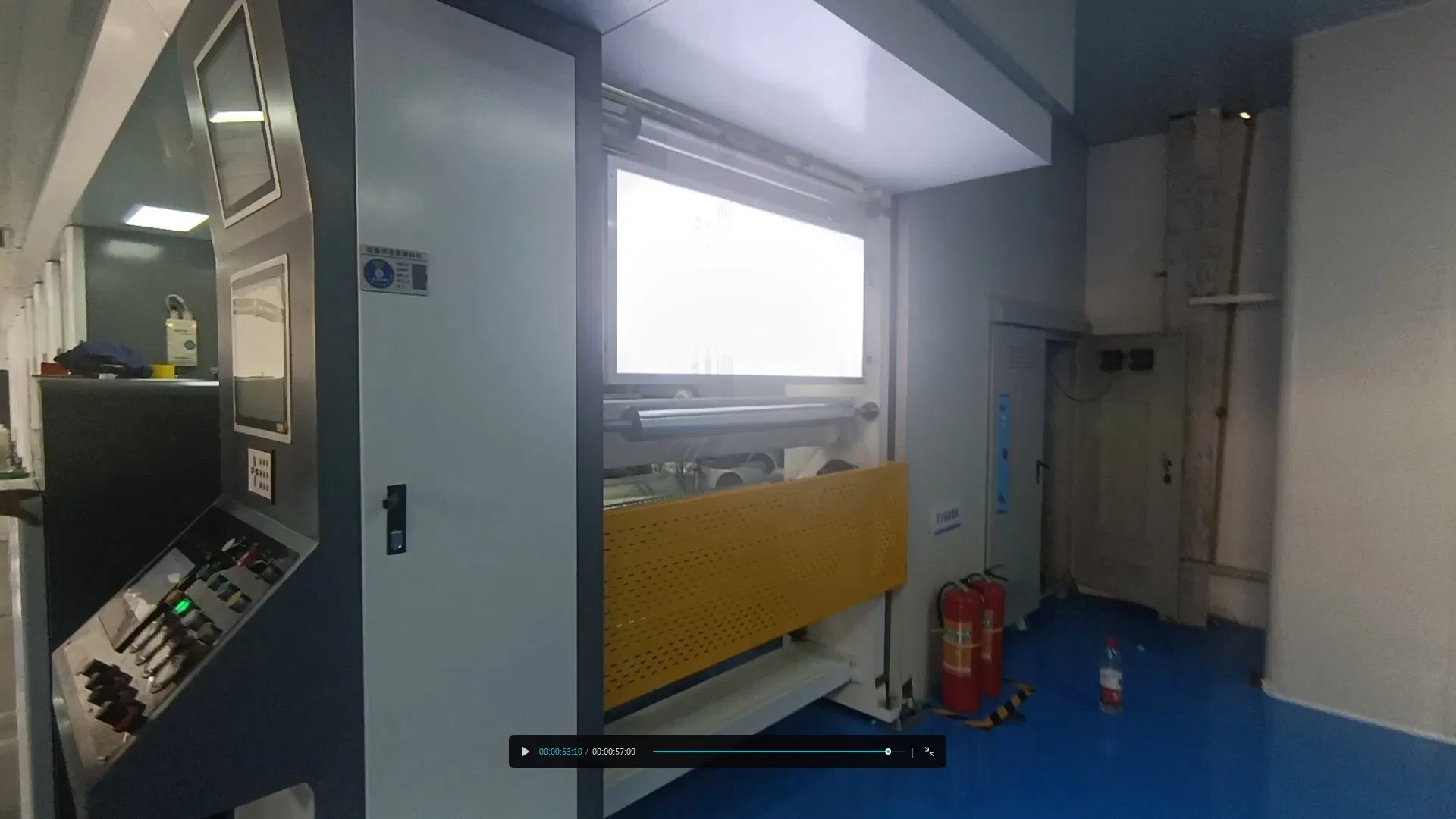

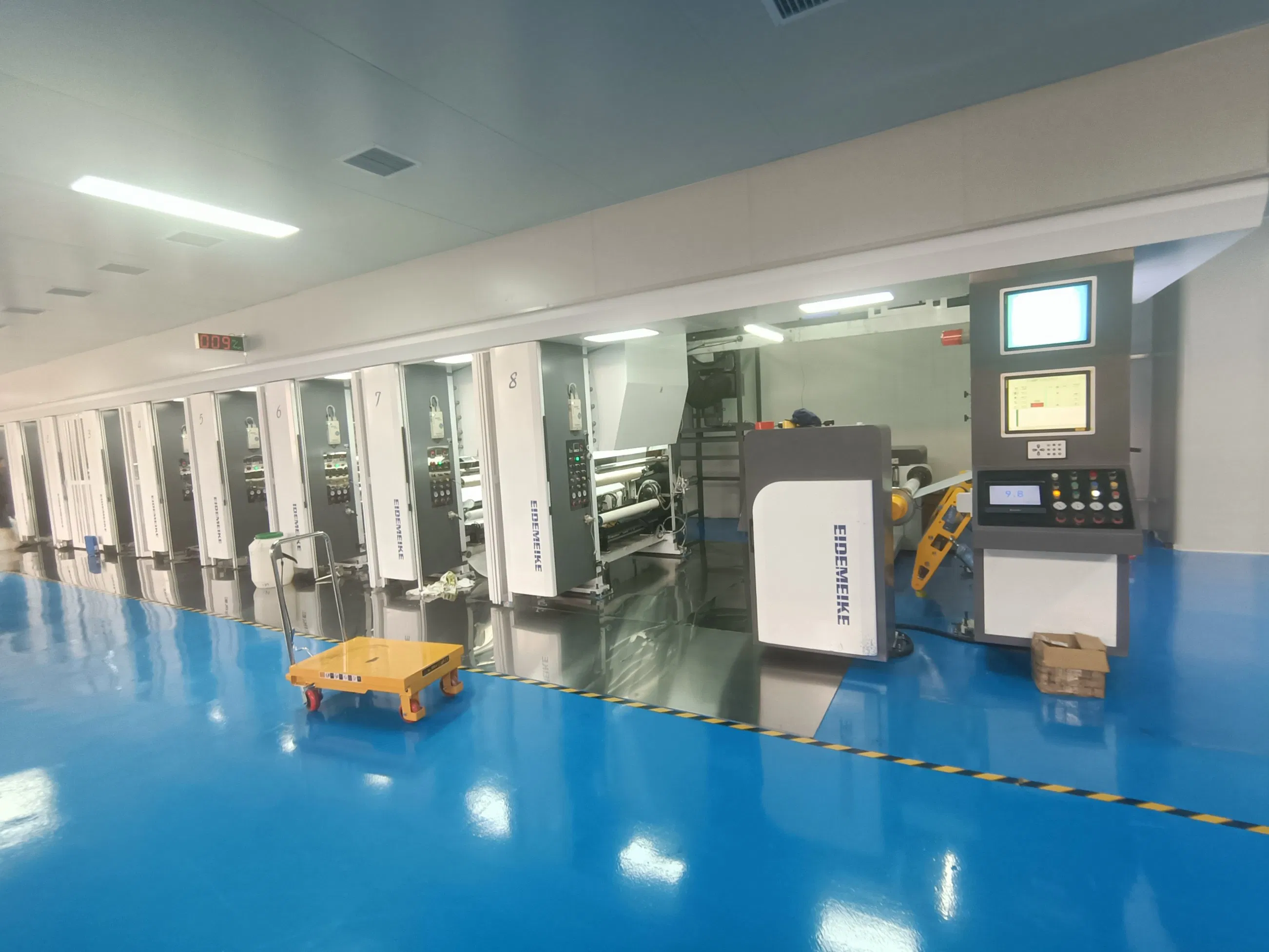

Easy Operation Gravure Printing Equipment for Flow Pack Packaging with Tension Control ±0.5n

Customization: Available
Warranty: One Year
Certification: CE

Product Description

📋

Basic Information

Model NO.
BM-400D
Condition
NEW
Max. Speed
400m/min
Effective Printing Width
1000mm
Automatic Grade
Automatic
Printing Interface
USB3.0
Accuracy
±0.1mm
Total Power
Approx. 300kw
🚀

Product Description

Discover the remarkable capabilities of our Electronic Shaft-Driving Gravure Press, a marvel of modern engineering with top-tier features. Designed for low energy consumption and minimal operational loss, it offers simplicity in use and advanced intellectualization. Whether handling large-batch surplus products or catering to small-batch product groups, this machine is perfect for long-term production needs.

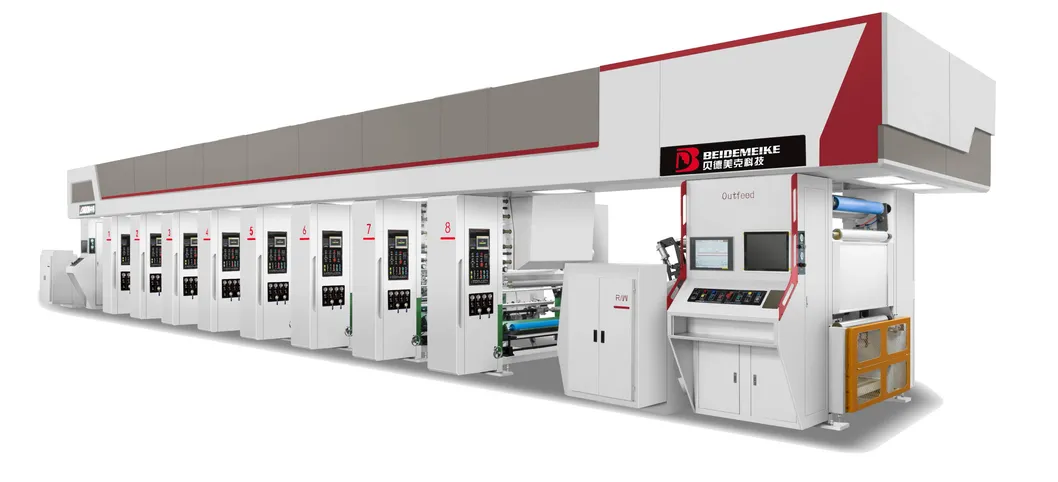

Gravure Press Operation
Equipment Composition: Includes Feeding, unwinding and cutting, unwinding traction, printing, drying, winding traction, winding and cutting, discharging.
📊

Technical Parameters

Parameter Item Specifications (BM-400D)
Max. width of web1050mm
Max. diameter of unwinding/rewindingØ600-800mm
Tension control range20-50kg/Full Width
Inside diameter of roll core76mm
Diameter of printing cylinderØ120-360mm
Accuracy of computer registration±0.1mm
Machine dimensionApprox 20000(L) * 4000(W) * 3800(H) mm
Machine weightApprox. 40000kg

Main Features

1
Machine applies on-site bus technical digital control.
2
High-speed and reliable Industrial Personal Computer with high-precision servo driver.
3
Tension realizes local closed-loop feedback for synchronization discrepancy compensation.
4
Rational combination of imported super-low friction cylinder and precision pressure regulating valve.
5
Winding applies variable taper tension control to fulfill a tidy winding.

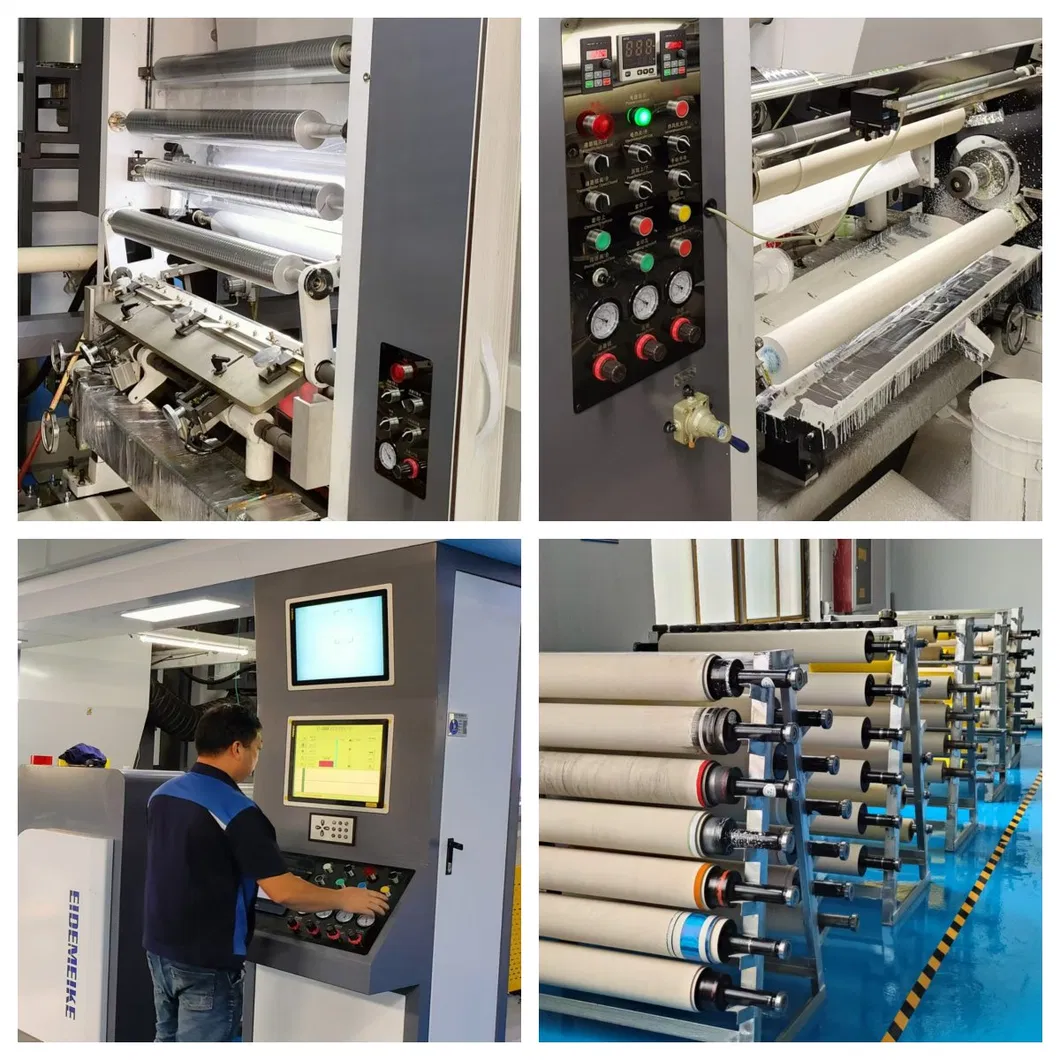

Machine Feature Detail
🛠️

Applications & Materials

Material Min. Thickness Max. Thickness
BOPP12μm60μm
PET10μm60μm
BOPA15μm60μm
PE / LDPE35μm100μm
Paper30g/m²120g/m²
Application Samples
🏭

Workshop & Exhibition

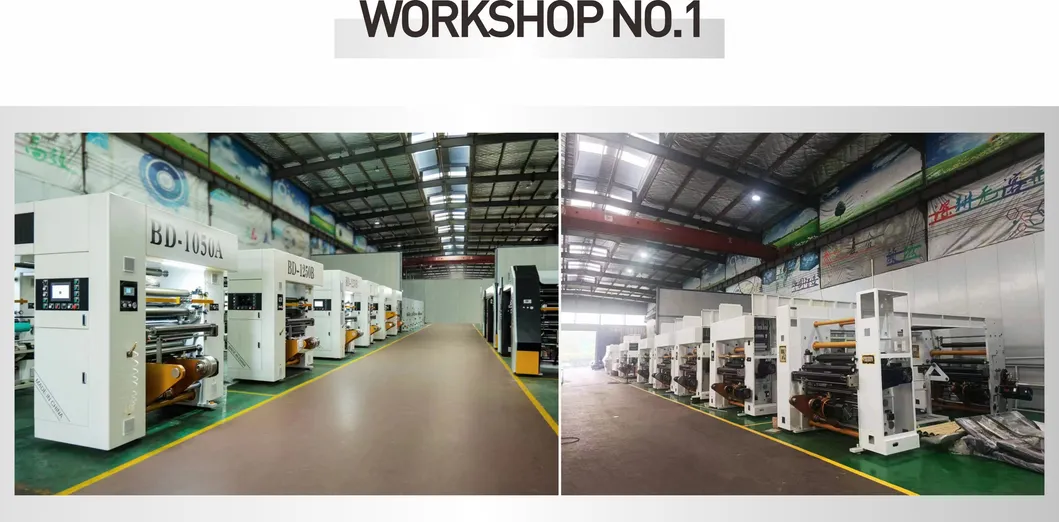

Workshop View 1

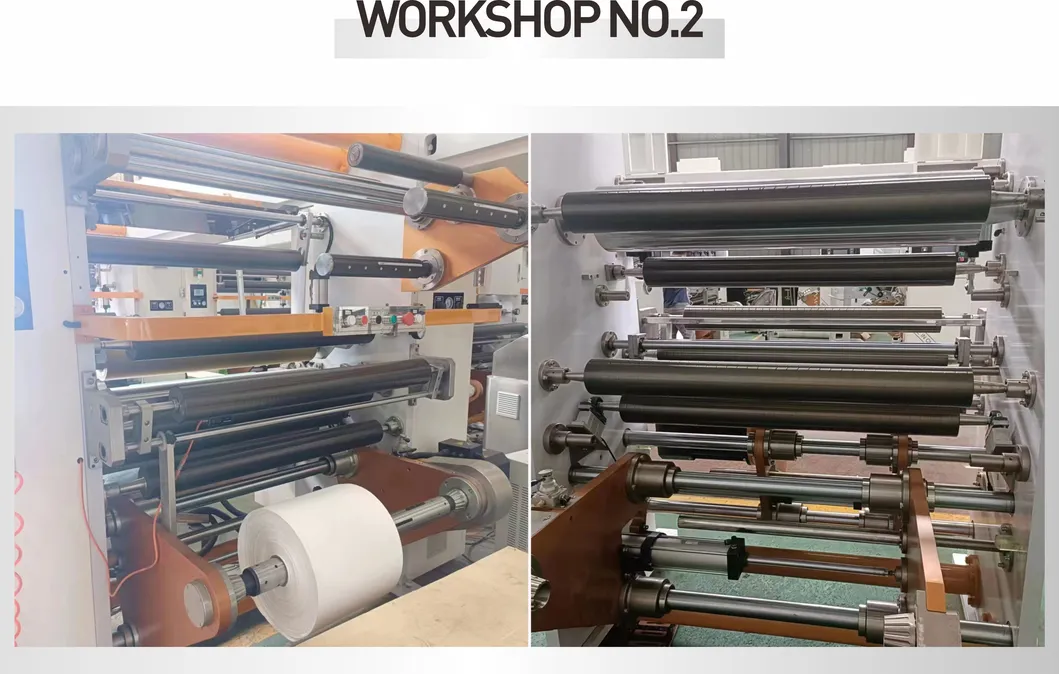

Workshop View 2
Exhibition View 1
Exhibition View 2
📦

Packaging & Shipping

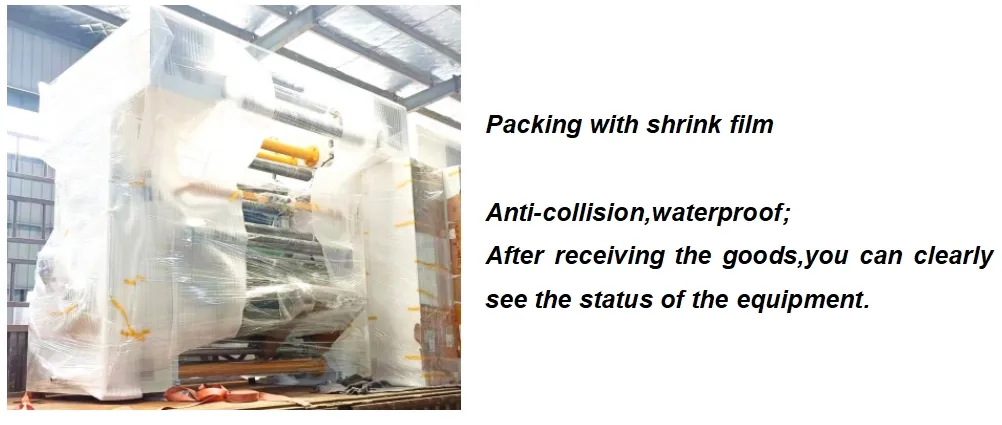

Packing 1

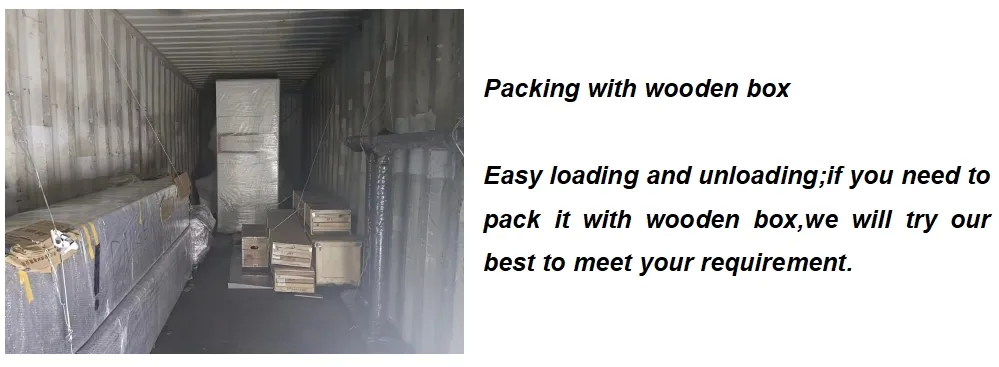

Packing 2
Shipping 1
Our dedicated workers tirelessly pack machines to ensure timely delivery. Every detail, from secure packaging to precise handling, reflects our standards of quality and reliability.
ℹ️

About Us

Established in 2017, we are committed to the development and production of environmentally friendly equipment. We provide professional technical consultation, installation, and training. Quality innovation is our priority, from parts procurement to assembly and final quality inspection, ensuring we meet customer needs globally.

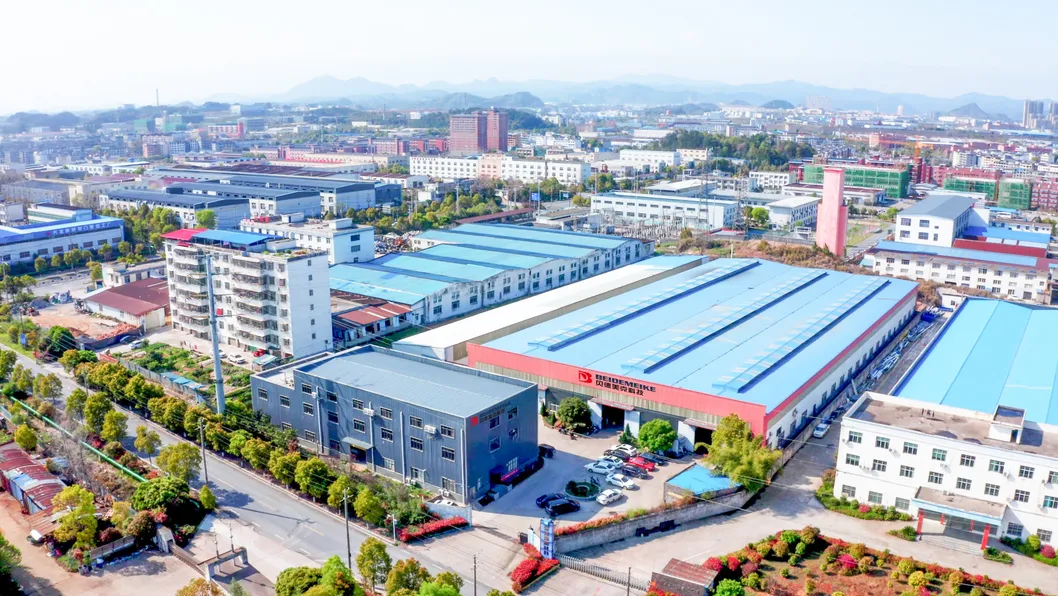

Company Facility 1

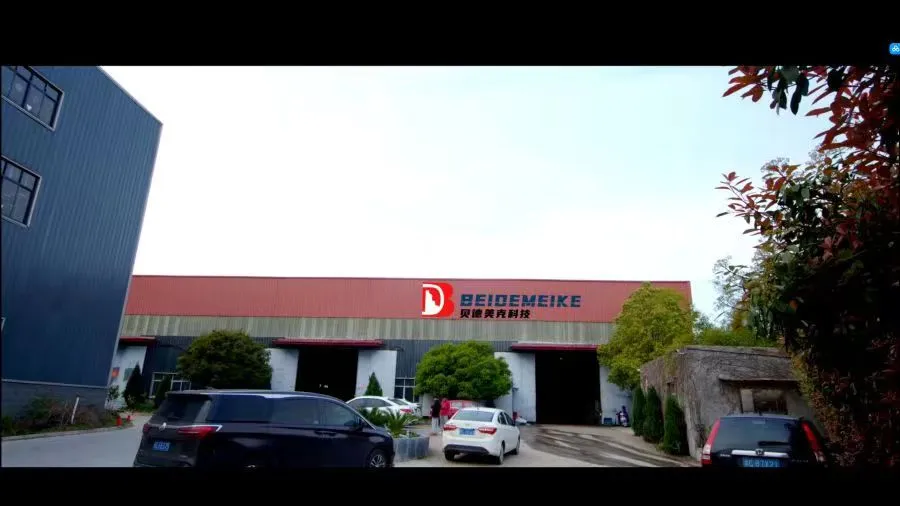

Company Facility 2
FAQ
Can you do OEM and ODM?
Yes, OEM and ODM are both acceptable. The material, color, and style can be customized based on discussion and basic quantities.
When can I get the price?
Usually, we provide a quote within 8 hours after receiving your inquiry.
How long is your delivery time?
The general delivery time is approximately 30 days after receiving your order confirmation.
What is your term of payment?
We typically require a 30% T/T deposit in advance and 70% before shipping.
What is your after-sale service?
Our quality warranty period is one year. Any quality problems will be solved to customer satisfaction, including free part replacement.
What are your advantages compared to competitors?
We offer qualified manufacturing, reliable quality control, competitive pricing, high-efficiency 24/7 working response, and a one-stop service system.
